LEDVANCE Sylvania 62302 Dual Selectable UFO High Bay — 240/280/320W Selectable — 3500K/4000K/5000K — 120–347V — Black
Available in stock (300)
About this item
About this item
- Selectable Output: Field-select 320W, 280W, or 240W at the fixture — delivers up to 48,000 lumens at 150 lm/W. No rewiring required.
- Selectable CCT: Field-select 3500K, 4000K, or 5000K at the fixture — one SKU covers warm white, neutral white, and cool white for any facility environment.
- IP65 Wet Location: UL Listed for wet locations — rated for wash-down environments, outdoor canopies, and covered industrial spaces.
- DLC 5.1 Premium: Qualifies for the highest tier of utility rebate programs in most U.S. markets.
- LEDVANCE LINK™ Bluetooth® Mesh Ready: Screw-in sensor receptacle accepts LEDVANCE LINK motion and daylight sensors for occupancy-based automation. 0–10V dimming standard.
We process payments securely and do not store credit card information.
Description
Description

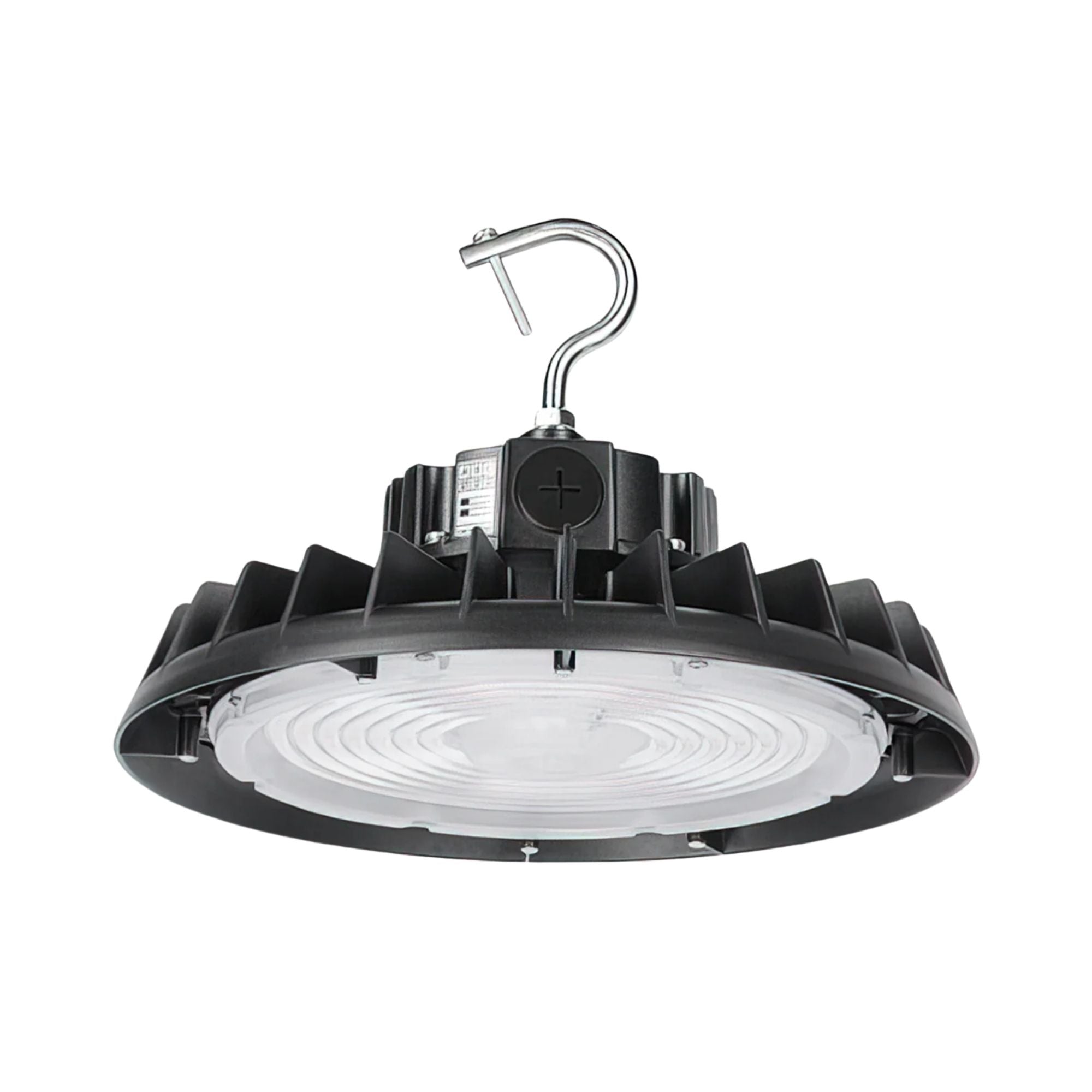

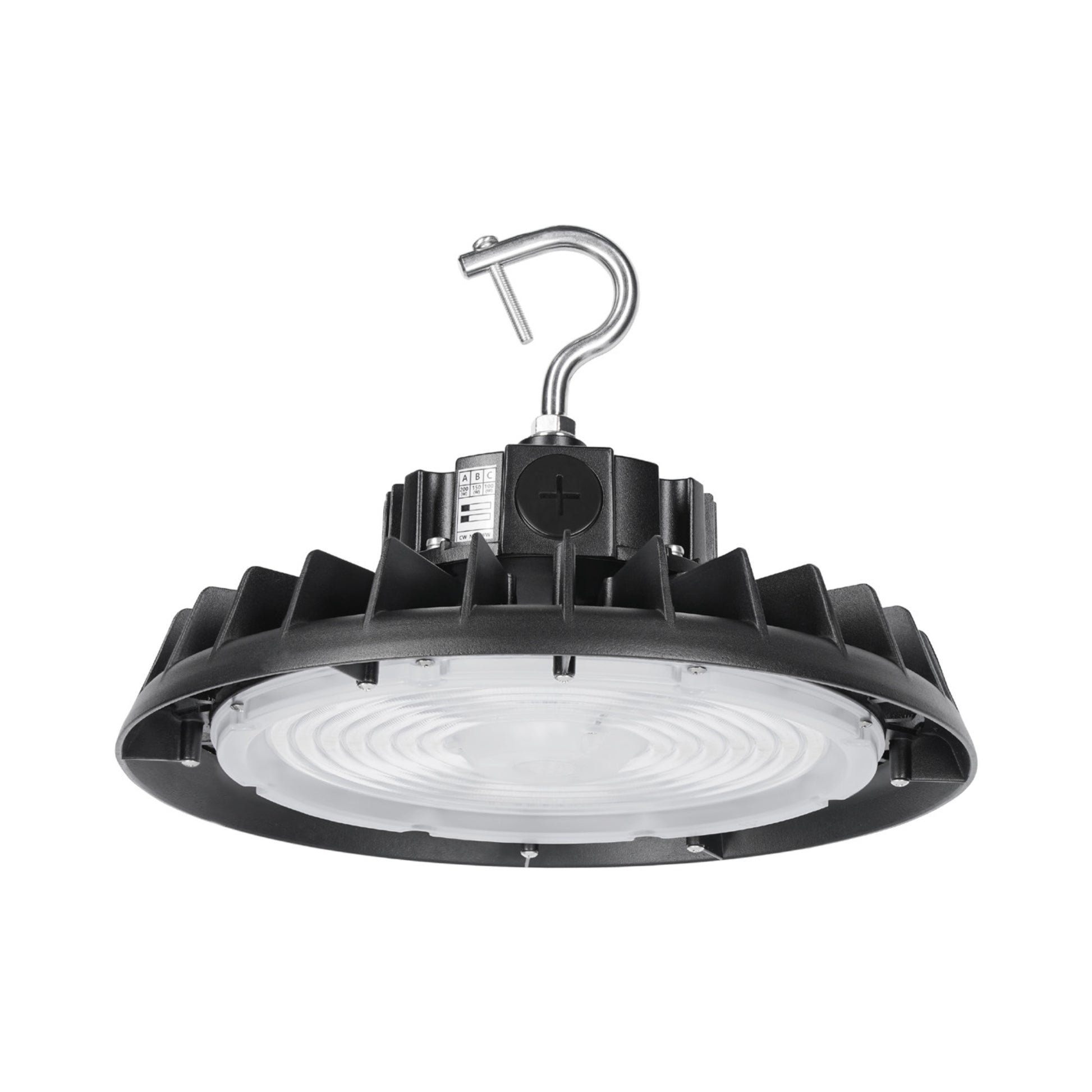

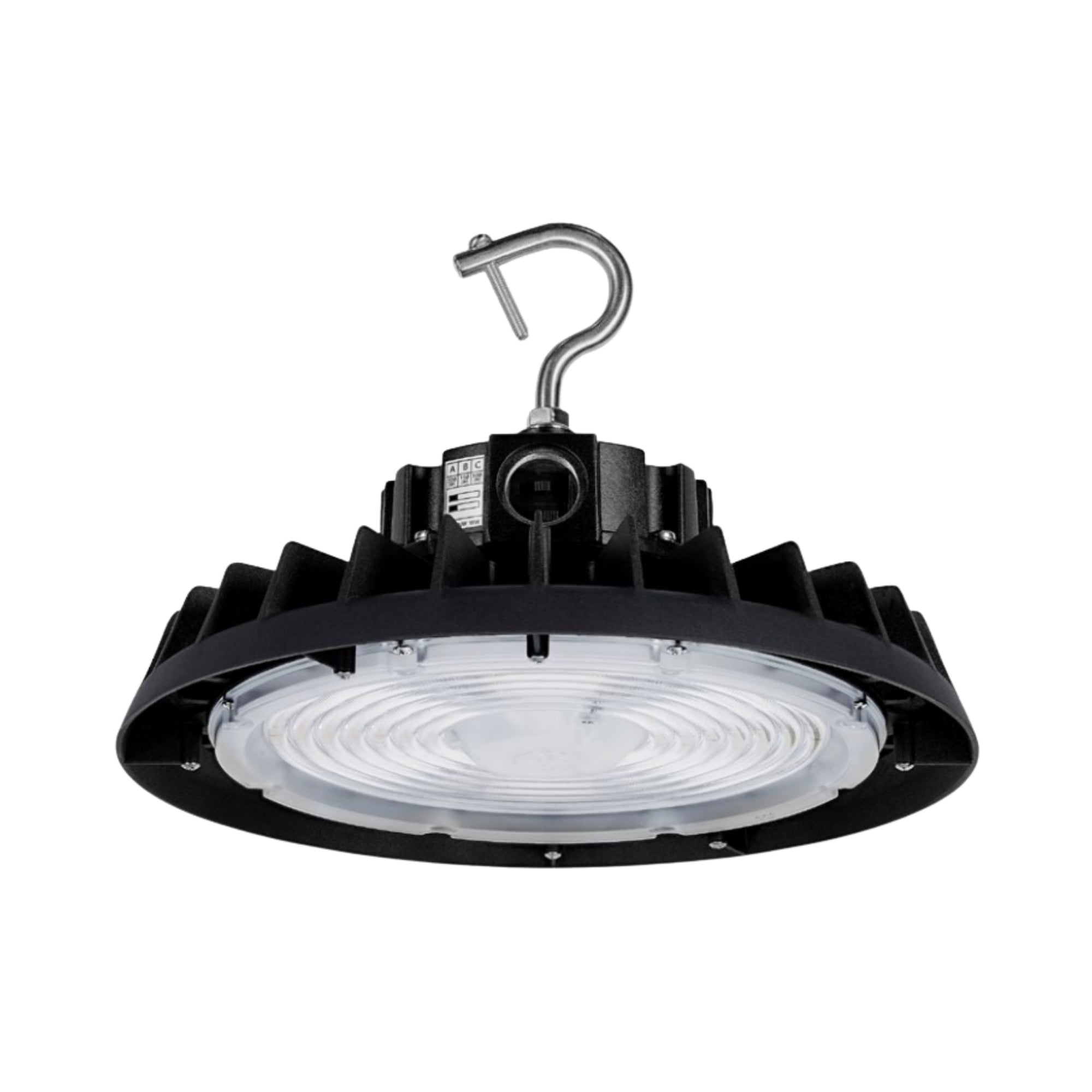

LEDVANCE Sylvania 62302 Dual Selectable UFO LED High Bay — 240W / 280W / 320W Selectable — Black
The LEDVANCE Sylvania 62302 is a Dual Selectable UFO LED high bay delivering up to 48,000 lumens at 150 lm/W peak efficacy with field-selectable 240W / 280W / 320W wattage and 3500K / 4000K / 5000K color temperature. Operating on 120–347V with constant current LED driver and 0–10V dimming, it replaces up to 1000W HID fixtures. Rated IP65, UL Wet Location, and TAA compliant for government and institutional projects. Recommended for ceiling heights of 30–45 ft.
Key Features
- Selectable Wattage: 240W / 280W / 320W — field-selectable on site, replaces up to 1000W MH/HPS
- Selectable CCT: 3500K / 4000K / 5000K — tunable to application without re-ordering
- Total Lumens: 36,000 lm (240W) / 42,000 lm (280W) / 48,000 lm (320W)
- Peak Efficacy: Up to 150 lm/W
- CRI: >80
- Dimming: 0–10V continuous dimming
- Voltage: 120–347V AC, 50/60Hz
- Power Factor: >90%
- THD: <20%
- Surge Protection: 6kV
- Impact Rating: IK08
- Operating Temperature: -40°F to +122°F (-40°C to +50°C)
- Rated Life: 125,000 hours (L70)
- Warranty: 5 years (NLB Trusted Warranty Program)
- Controls Ready: Screw-in sensor receptacle — accepts field-installable motion/daylight sensors or LEDVANCE LINK™ Bluetooth® Mesh components (sold separately)
- Finish: Black
- Body Dimensions: 15.7 in dia × 5.9 in H | Weight: 9.70 lb
Performance & Light Output
| Wattage | Total Lumens | Efficacy | HID Equivalent |
|---|---|---|---|
| 240W | 36,000 lm | 150 lm/W | ~600W MH/HPS |
| 280W | 42,000 lm | 150 lm/W | ~750W MH/HPS |
| 320W | 48,000 lm | 150 lm/W | ~1000W MH/HPS |
CRI >80 across all wattage and CCT settings. Rated life of 125,000 hours (L70) per IES TM-21. Energy savings up to 68% vs comparable HPS systems.
Smart & Control Features
The 62302 includes a controls-ready screw-in sensor receptacle in the center of the lens — no wiring required. It accepts:
- Field-installable motion/daylight sensors — Item 65622 (Microwave DC, IP65, max 49 ft), Item 62664 (PIR DC, IP65, max 39 ft) — sold separately
- LEDVANCE LINK™ Bluetooth® Mesh components — BLE low-voltage controller (Item 62630) and BLE sensor+controller (Item 62634) via adapter 63652 — sold separately
- Wall switch: 5-button Bluetooth® Mesh wall controller (Item 62636) — sold separately
Control via the LEDVANCE LINK™ app (iOS/Android) or the wireless wall controller. Supports on/off and dimming (manual or auto). Compatible with DLC-approved Networked Lighting Control (NLC) systems via the screw-in receptacle.
Electrical
Constant current LED driver rated for 120–347V AC, 50/60Hz. Power factor >90%. THD <20%. Surge protection rated at 6kV. 0–10V continuous dimming included via integrated 3-foot dimming cable. Mercury-free, UV-free, RoHS compliant.
Construction

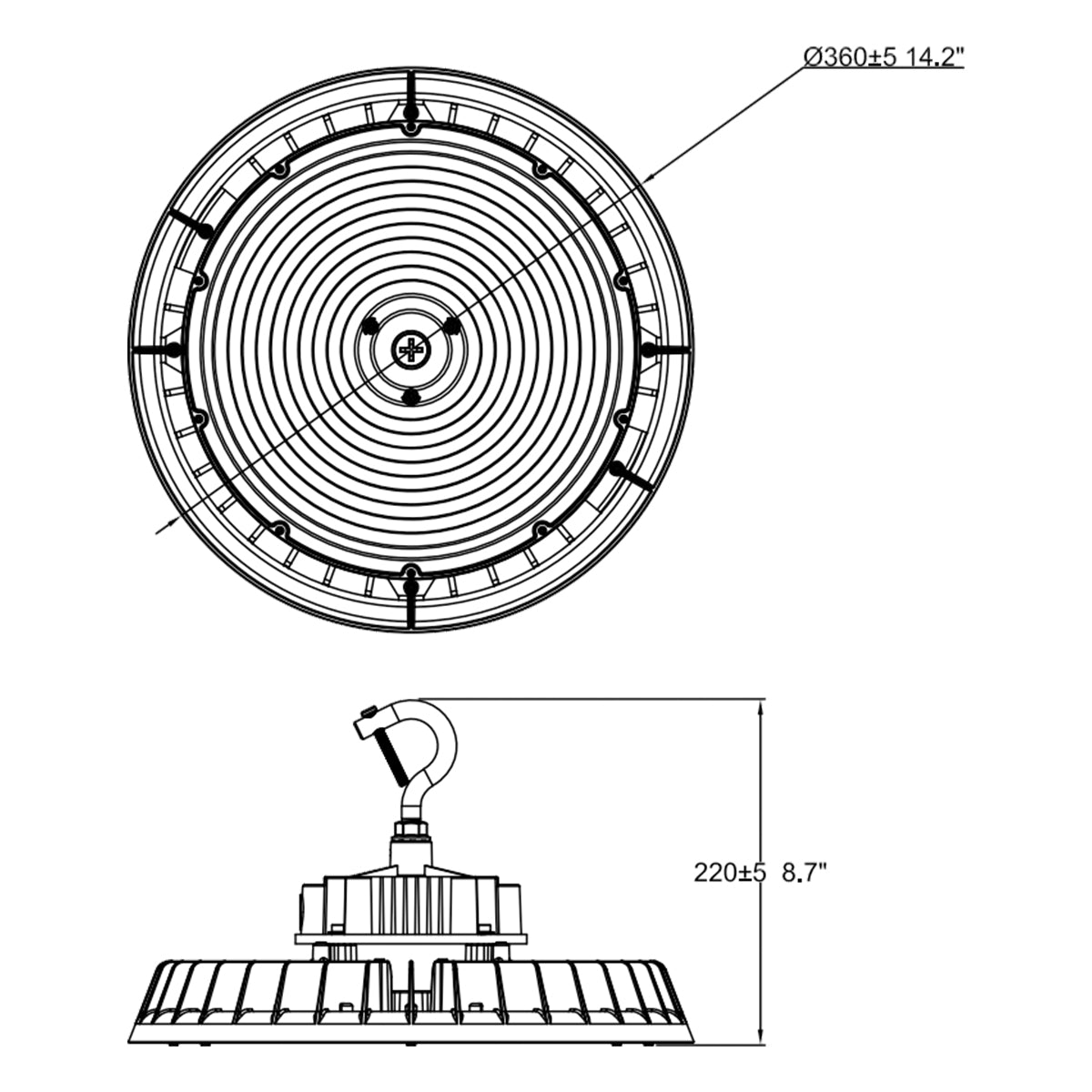

Die-cast aluminum body with molded heatsink fins engineered for passive thermal dissipation and long-term lumen maintenance. 90° polycarbonate lens minimizes glare. Fixture housing is IP65-rated and IK08 impact resistant. Finish: Black powder coat. Dimensions: 15.7 in dia × 5.9 in H. Weight: 9.70 lb.

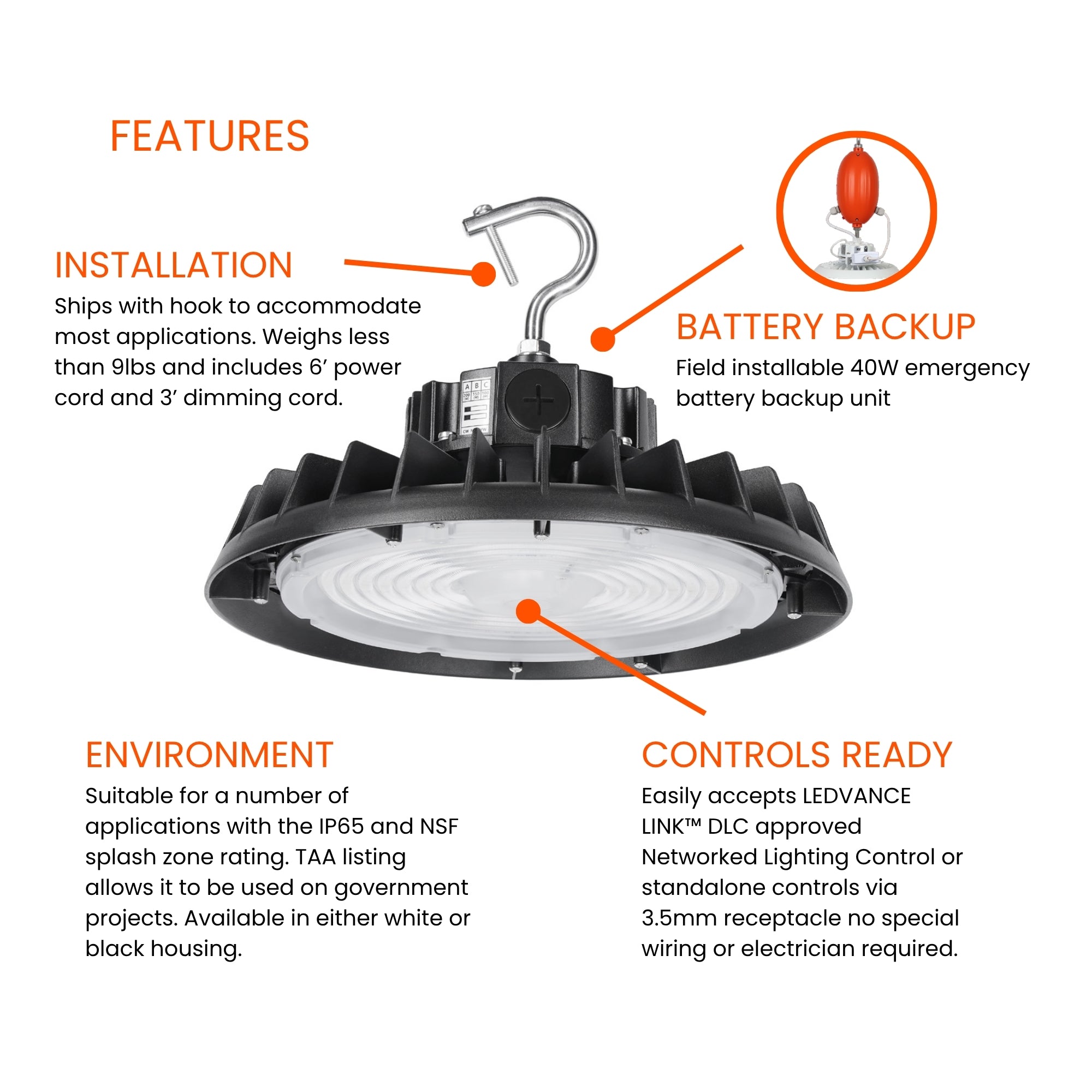

Installation & Mounting

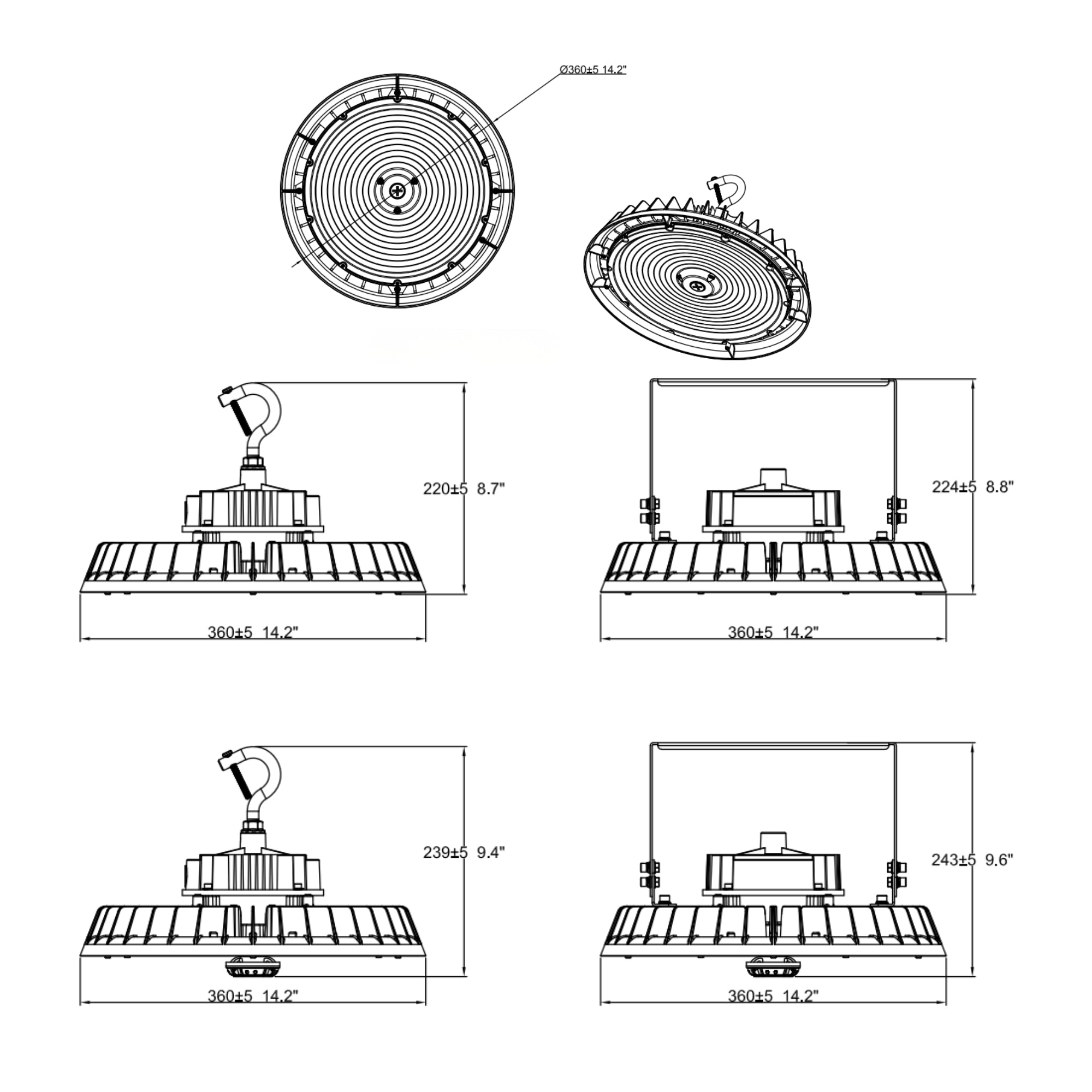

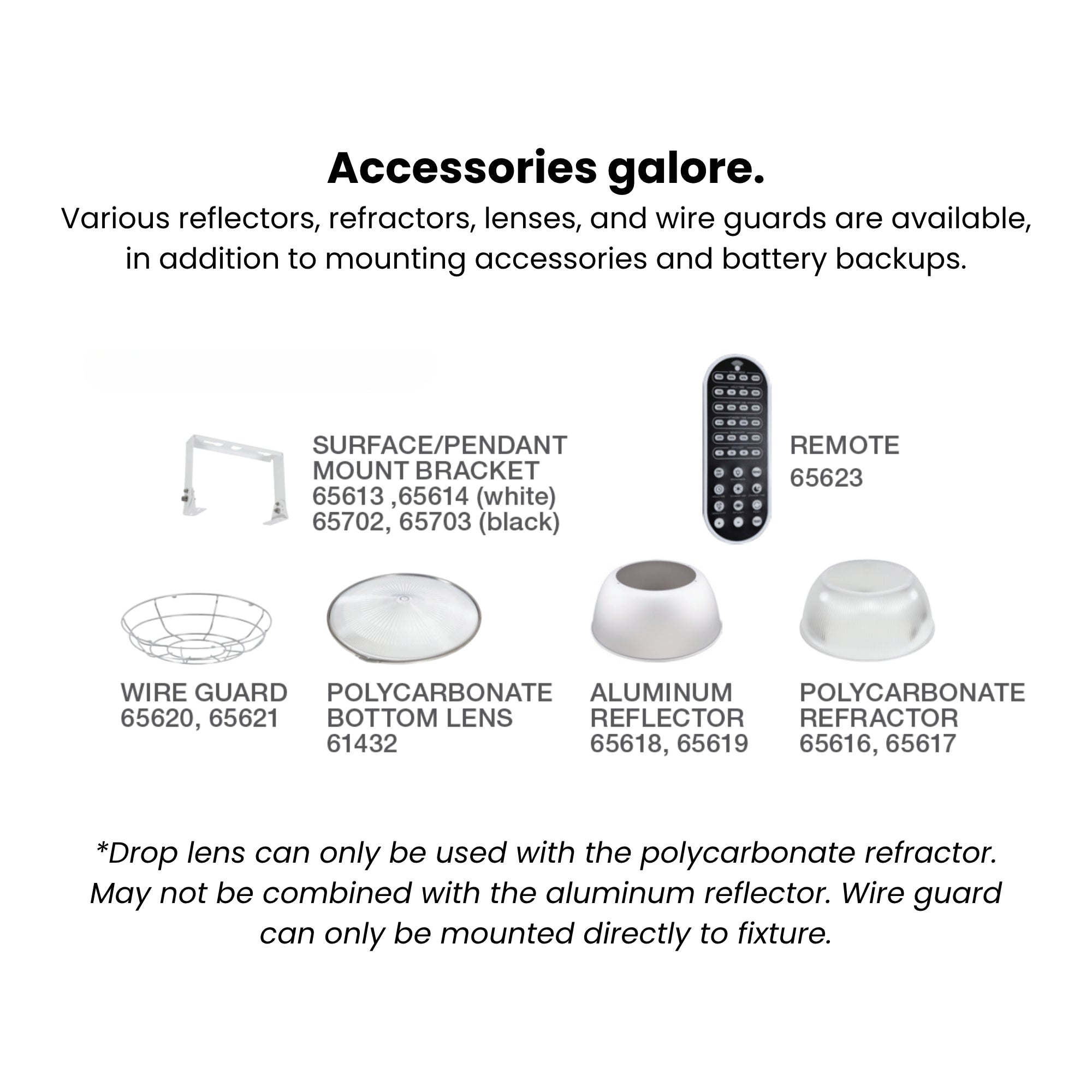

Ships with a pre-installed heavy-duty hook for suspended mounting. Surface and pendant mounting available via optional brackets:
- White Surface/Pendant Mount Bracket for 320W products — Item 65613 (sold separately)
- Black Surface/Pendant Mount Bracket for 320W products — Item 65702 (sold separately)
- Wire Guard for 320W products — Item 65620 (sold separately)
- Polycarbonate Refractor, 90° — Item 65616 (sold separately)
- Aluminum Reflector, 90° — Item 65618 (sold separately)
- Emergency Battery Backup 40W (277V max) — Item 61062 (sold separately)
Includes 6-foot power cable and 3-foot dimming cable. Recommended ceiling height: 30–45 ft. For ceilings 15–30 ft, consider the 100/150/200W variant (Item 62301).

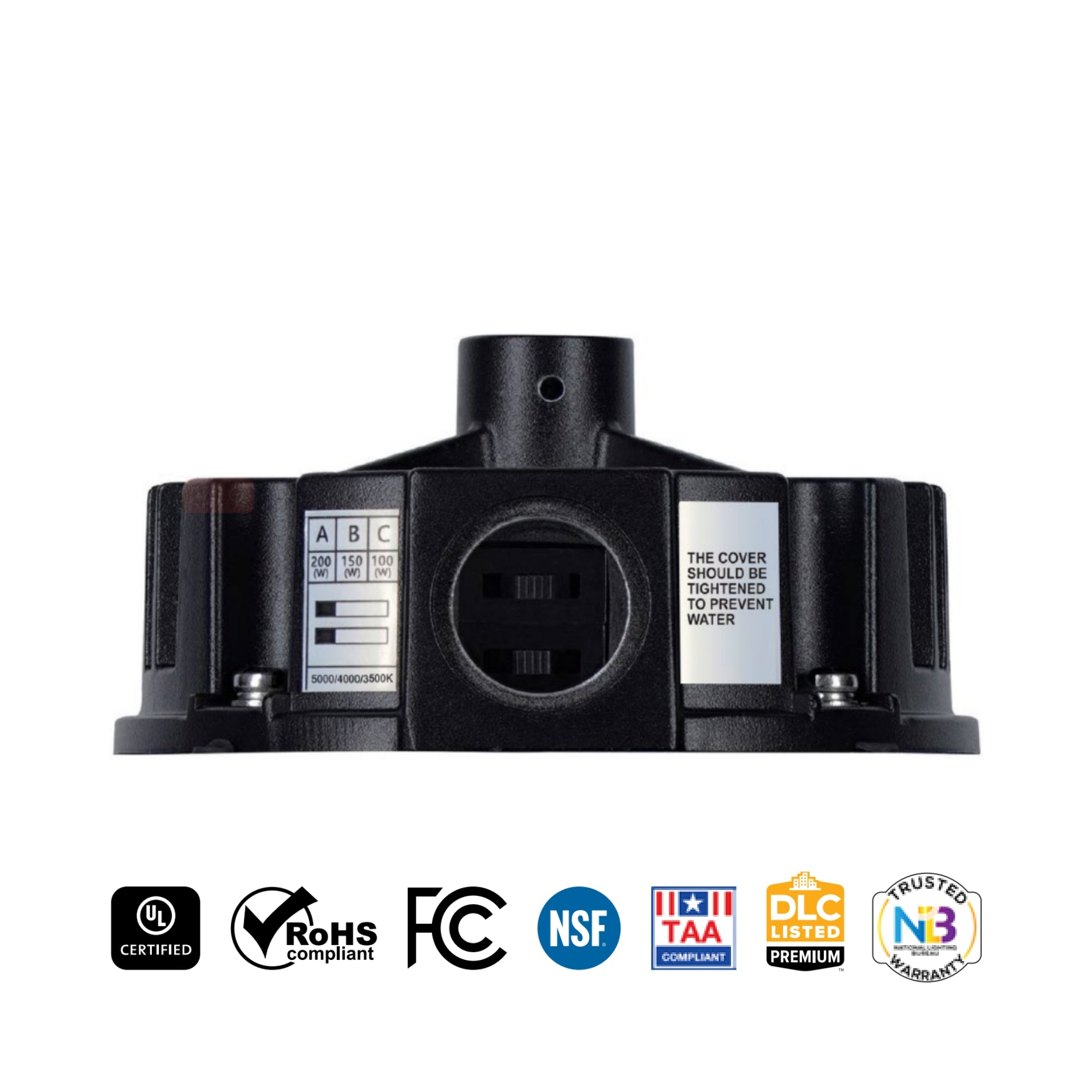

Certifications & Rebates
- Ordering Abbreviation: UFO5A/S320UNHD8SC7/BL
- DLC 5.1 Premium Listed — qualifies for utility rebate programs in most U.S. markets. Verify at designlights.org.
- cULus Listed — UL Wet Location rated
- IP65
- NSF Listed
- FCC
- RoHS Compliant
- TAA Compliant — eligible for U.S. government and GSA procurement
- 5-Year Warranty — NLB Trusted Warranty Program
Typical Applications

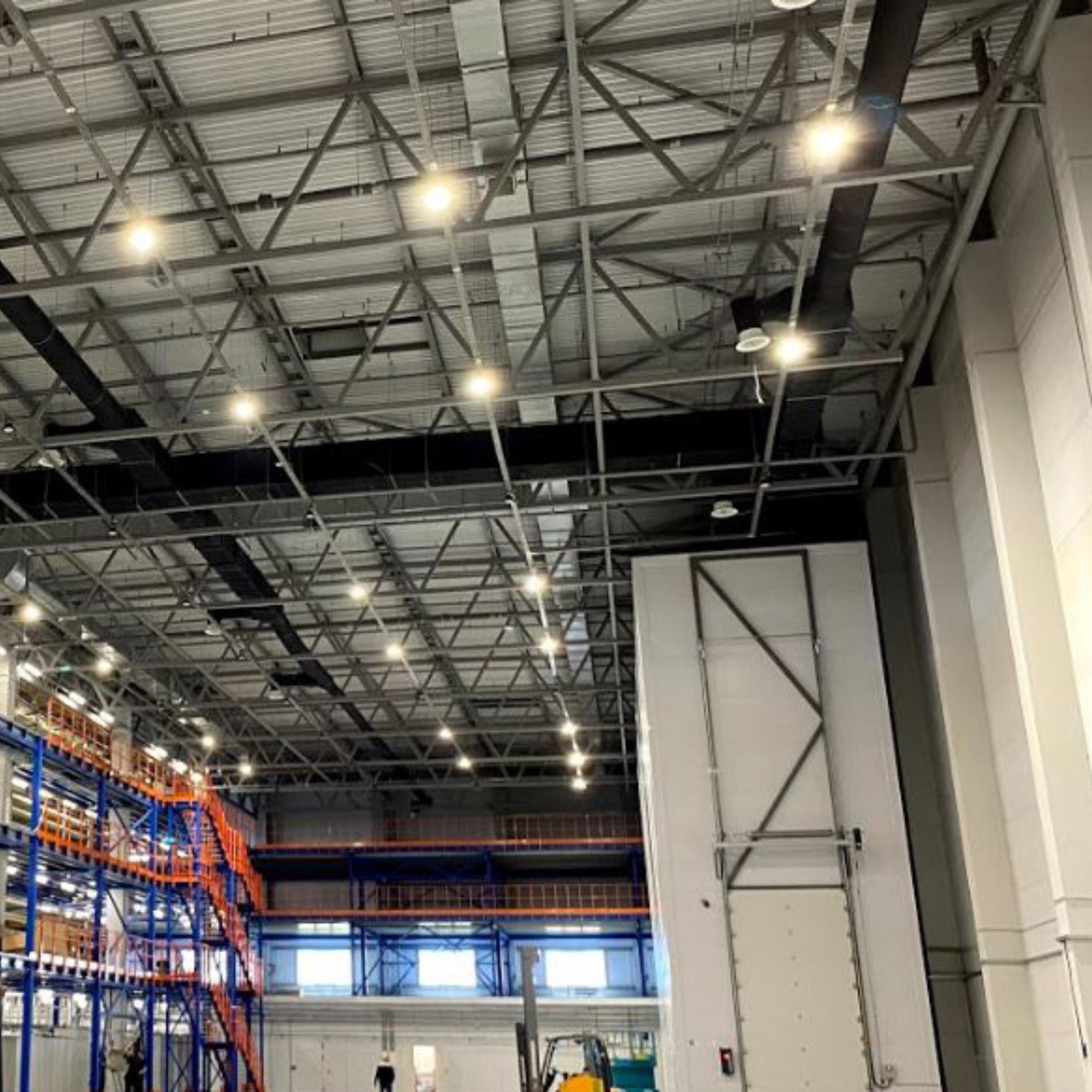

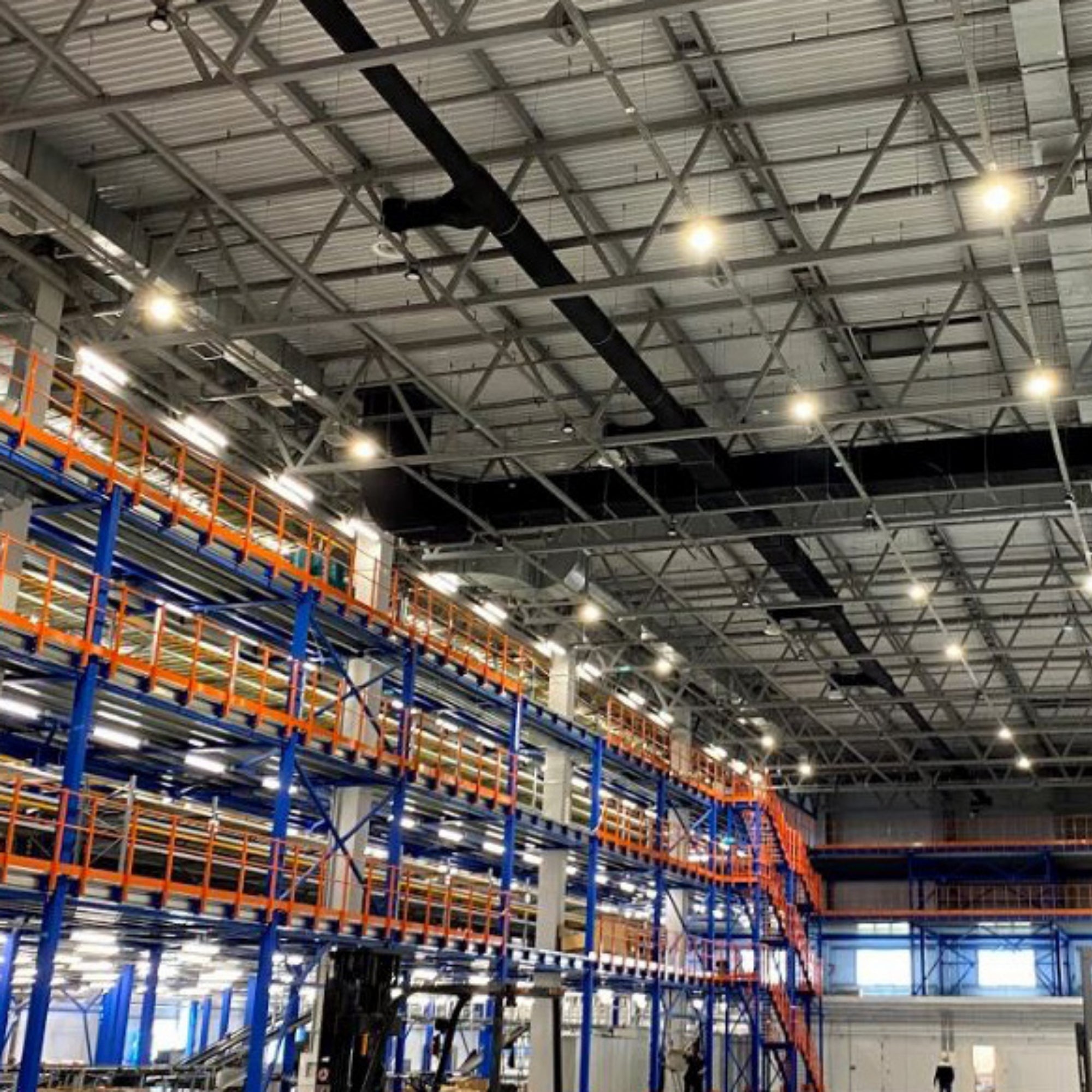

- High-bay warehouses and distribution centers — replaces 600–1000W HID for up to 68% energy savings
- Manufacturing and assembly facilities with high ceilings (30–45 ft)
- Gymnasiums and recreational facilities — NSF listing supports food-adjacent environments
- Cold storage and refrigerated warehouses — rated to -40°F without warm-up time
- Municipal and government buildings — TAA compliant for qualifying procurement
- Loading docks and industrial storage — IP65 and IK08 rated for dust, moisture, and impact
What's Included
- LEDVANCE Sylvania 62302 UFO LED high bay (Black)
- Pre-installed heavy-duty mounting hook
- 6-foot power cable
- 3-foot dimming cable
