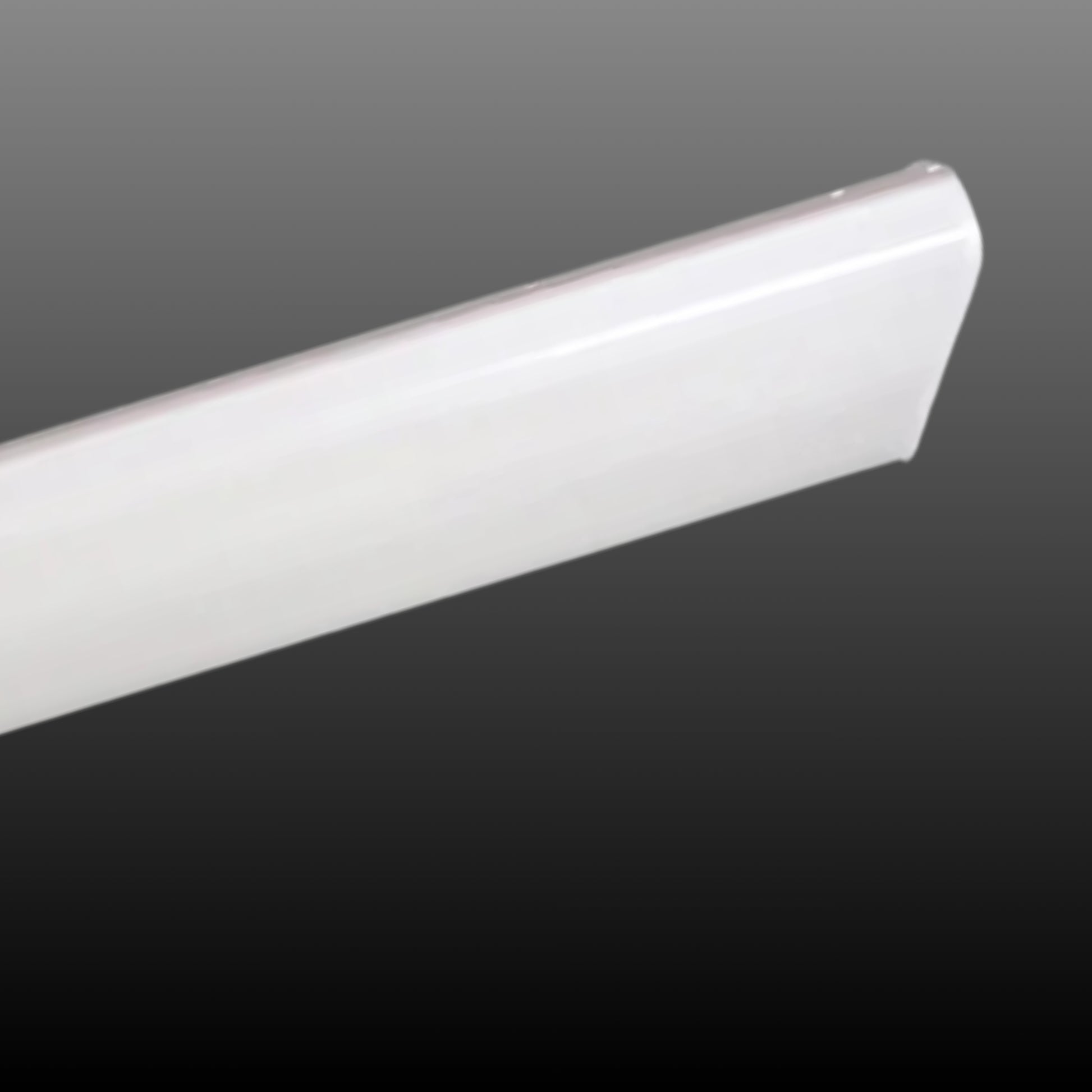

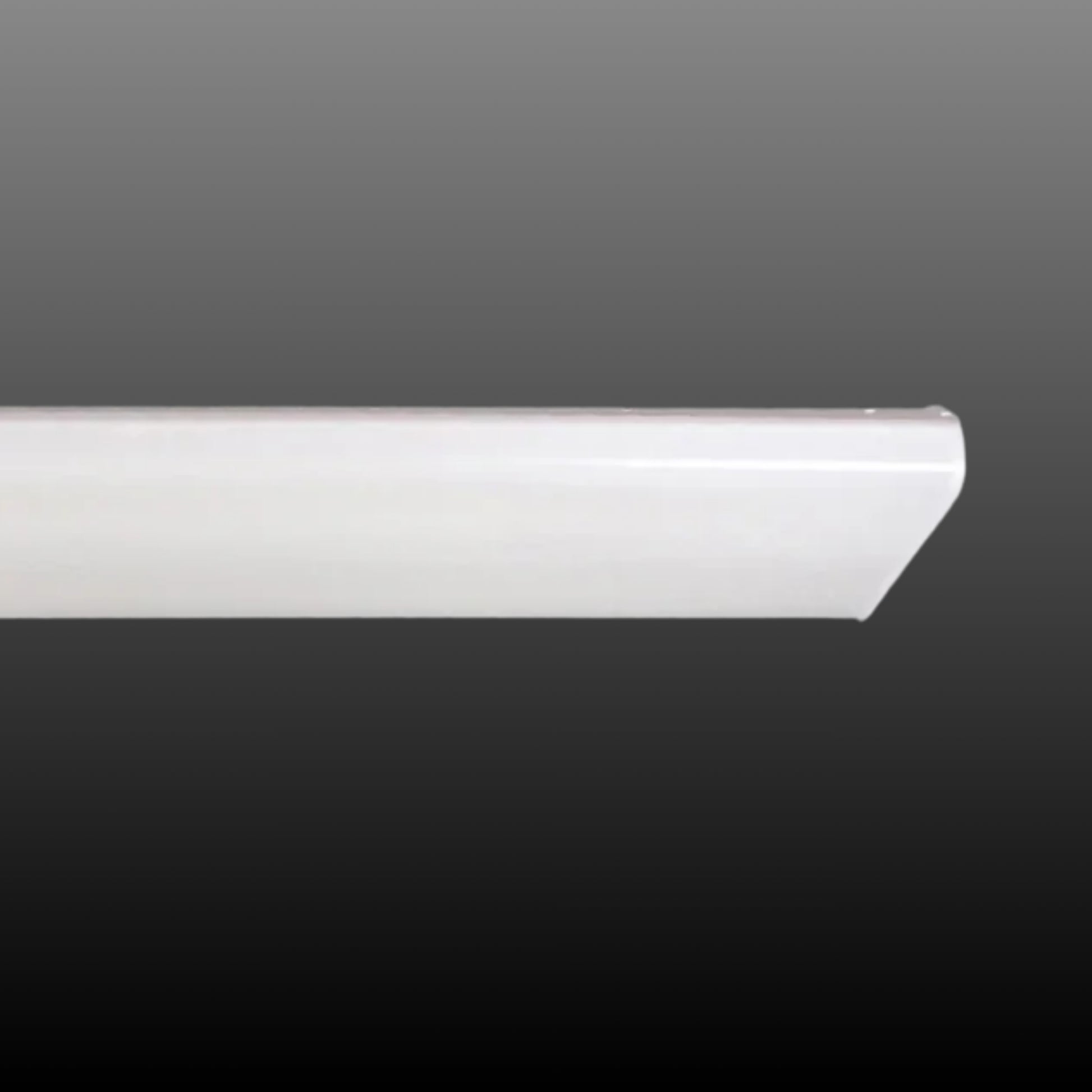

LEDVANCE Sylvania 62176 UltraLED CCT Selectable 2ft LED Wrap — 22W — 3500K/4000K/5000K — White

The LEDVANCE Sylvania WRAP2A/022UNVD8SC7/24U/WH (Item 62176) is a commercial 2ft UltraLED CCT Selectable Wrap luminaire engineered to deliver up to 2,860 lumens with a dedicated 22W power package and switchable 3500K/4000K/5000K color temperatures. Operating on universal 120–277VAC electrical systems with 0–10V continuous dimming down to 10% and a 12V auxiliary output, this fixture provides an energy-efficient replacement for legacy 1-lamp 32W linear fluorescent (28W system) luminaires. Built with a cULus Listed damp location rating, it is qualified for maximum commercial utility rebates under DLC Premium standards and features a toollessly removable diffuse acrylic lens that eliminates LED pixilation and light-leaks on all sides.

Key Features

• Wattage: 22W fixed output
• Wattage Equivalency: Replaces legacy 1x32W fluorescent (28W system) fixtures for 21% energy savings
• Maximum Lumen Output: 2,860 lm at 22W
• Peak Efficacy: 130 lm/W for high-efficiency commercial operation
• CRI: >80 color rendering across all settings
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch (factory default 4000K)
• Lens & Optics: Diffuse acrylic wraparound lens eliminates LED pixilation and side light-leaks for smooth, even illumination
• Dimming & Aux Power: 0–10V continuous dimming down to 10% with integrated 12V auxiliary output
• Voltage: Universal 120–277VAC constant current driver
• Location Rating: cULus Listed for indoor damp locations
• Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
• Certifications: DLC Premium Listed, cULus Listed, FCC, RoHS Compliant
• Rated Life: 100,000 hours (L70)
• Warranty: 5-year limited warranty — LEDVANCE Sylvania
• Form Factor & Design: Toolless lens removal for fast installation; surface, V-hook suspended, or continuous-row mounting capable

Performance & Light Output

CRI >80 across all configurations. Rated life 100,000 hours (L70).

Smart & Control Features

The 62176 (WRAP2A/022UNVD8SC7/24U/WH) includes standard 0–10V dimming control leads for smooth continuous dimming down to 10% and a 12V auxiliary output. Within the UltraLED WRAP2A series, made-to-order configurations with internally mounted motion/daylight sensors (/D) and 8W 90-minute emergency battery backups (/E, /DE — 4ft models) are available, along with optional handheld sensor remotes (standard remote 60105 HIBAY2A/REMOTE and digital readout remote 65305 STRIP2A/REMOTE — sold separately).

Electrical

Powered by a universal 120–277VAC driver with an integrated 12V auxiliary output, delivering high electrical efficiency with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Includes 0–10V dimming control leads (dimmable down to 10%).

Construction

Housing & Build: Commercial wraparound housing engineered with a toollessly removable lens assembly for rapid internal wiring access during installation.

Location & Environmental Rating: cULus Listed for indoor damp location commercial environments.

Operating Temperature: Operating ambient temperature range of -4°F (-20°C) to 104°F (40°C).

Lens & Optics: Innovative diffuse acrylic lens design delivers smooth, even illumination while eliminating LED pixilation and light-leaks on all sides of the fixture.

Finish: White finish formulated for commercial durability and clean ceiling integration.

Dimensions: 23.90" L × 9.37" W × 2.79" H (607mm × 238mm × 70.9mm).

Installation & Mounting

Standard Mounting: Luminaire can be surface mounted directly to ceilings or suspended via the included V-hooks.

Continuous Run & Suspended Mounting: Supports end-to-end continuous row mounting using the optional joiner bracket and suspended mounting via optional chain or aircraft cable kits.

Accessories (Sold Separately):

• Continuous Row Joiner: 62241 / WRAP2A/JOINBRKT (End-to-End Joiner Bracket, 7.73" × 4.45" — sold separately)
• Suspension Mounts: 60573 / LNHIBA2A/CHAINMT (Chain Mount, 5 ft, 1 pair — sold separately); 60574 / LNHIBA2A/ACCABLEMT (Cable Mount, 5 ft, 1 pair — sold separately)
• Sensor Remotes: 60105 / HIBAY2A/REMOTE (Standard Remote Control for Sensor — sold separately); 65305 / STRIP2A/REMOTE (Remote Control with Digital Readout for Sensor — sold separately)

Certifications & Rebates

• DLC Premium Listed: Qualifies for the highest tier of utility rebate incentives across regional commercial energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID PLNZQA34E42B (Linear Ambient).
• cULus Listed: Certified for indoor damp locations per UL standards.
• FCC Compliant: Meets commercial electromagnetic interference requirements.
• RoHS Compliant: Engineered free of hazardous substances.

Typical Applications

• Retail & Commercial Corridors — Diffuse acrylic lens eliminates LED pixilation and side light-leaks for clean visual presentation.
• Warehouses & Manufacturing Facilities — Up to 2,860 lumens at 130 lm/W efficacy and -4°F to 104°F ambient rating support industrial workspaces.
• Offices & Administrative Spaces — Switchable 3500K/4000K/5000K CCT and smooth 0–10V dimming down to 10% adapt to occupant comfort.
• Educational Facilities & Classrooms — DLC Premium qualification and 100,000-hour L70 lifespan reduce institutional operating and maintenance costs.
• Continuous-Row Retrofit Installations — Toolless lens removal and optional 62241 end-to-end joiner brackets streamline linear fluorescent replacements.

What's Included

• LEDVANCE Sylvania WRAP2A/022UNVD8SC7/24U/WH (Item 62176) UltraLED CCT Selectable 2ft LED Wrap — White
• V-hook mounting hardware
• Installation and operation manual
