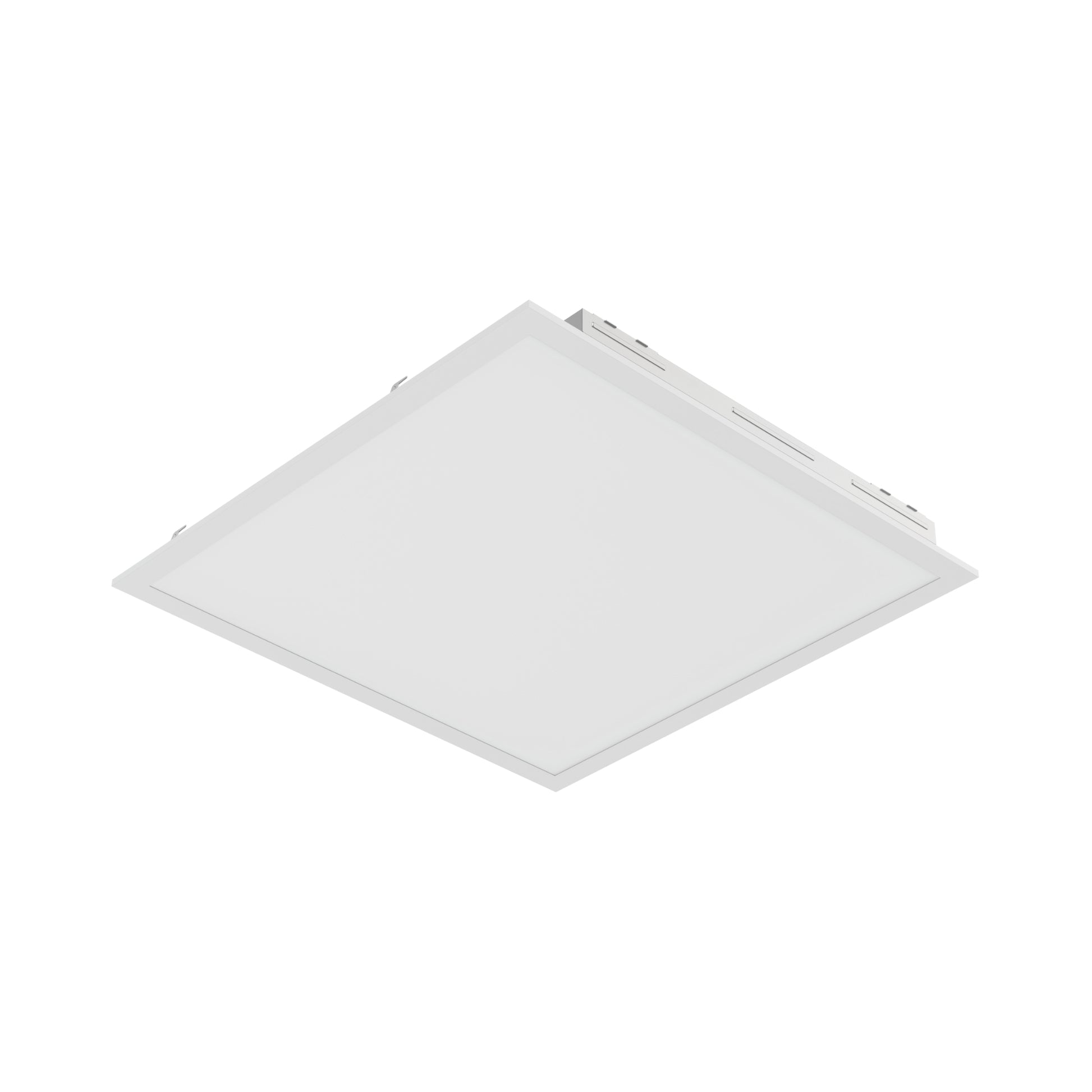

LEDVANCE Sylvania 61583 PANELF ValueLED Panel LED Troffer — 2×2 — 30W — 4000K — White

The LEDVANCE Sylvania 61583 is a 2×2 recessed LED flat panel troffer from the PANELF Generation 3A ValueLED series, designed as a low-profile direct replacement for 2×2 fluorescent troffers in commercial and institutional grid ceiling applications. The fixture delivers 3,750 lumens at 30W with 125 lm/W efficacy at a fixed 4000K (neutral white) color temperature. It supports 0–10V dimming, operates on 120–277V, is cETLus Listed for IC and damp locations, DLC Listed, and carries a 5-year warranty. Suitable for use in closets, compliant with NFPA 70, NEC section 410.16.

Key Features

• Lumen Output: 3,750 lumens at 30W / 4000K.
• Efficacy: 125 lm/W.
• CCT: 4000K (neutral white) — fixed.
• CRI: >80.
• 0–10V Dimming: 0–10V continuous dimming. Compatible dimmer required, sold separately.
• Voltage: 120–277V universal voltage driver.
• Power Factor: >0.90.

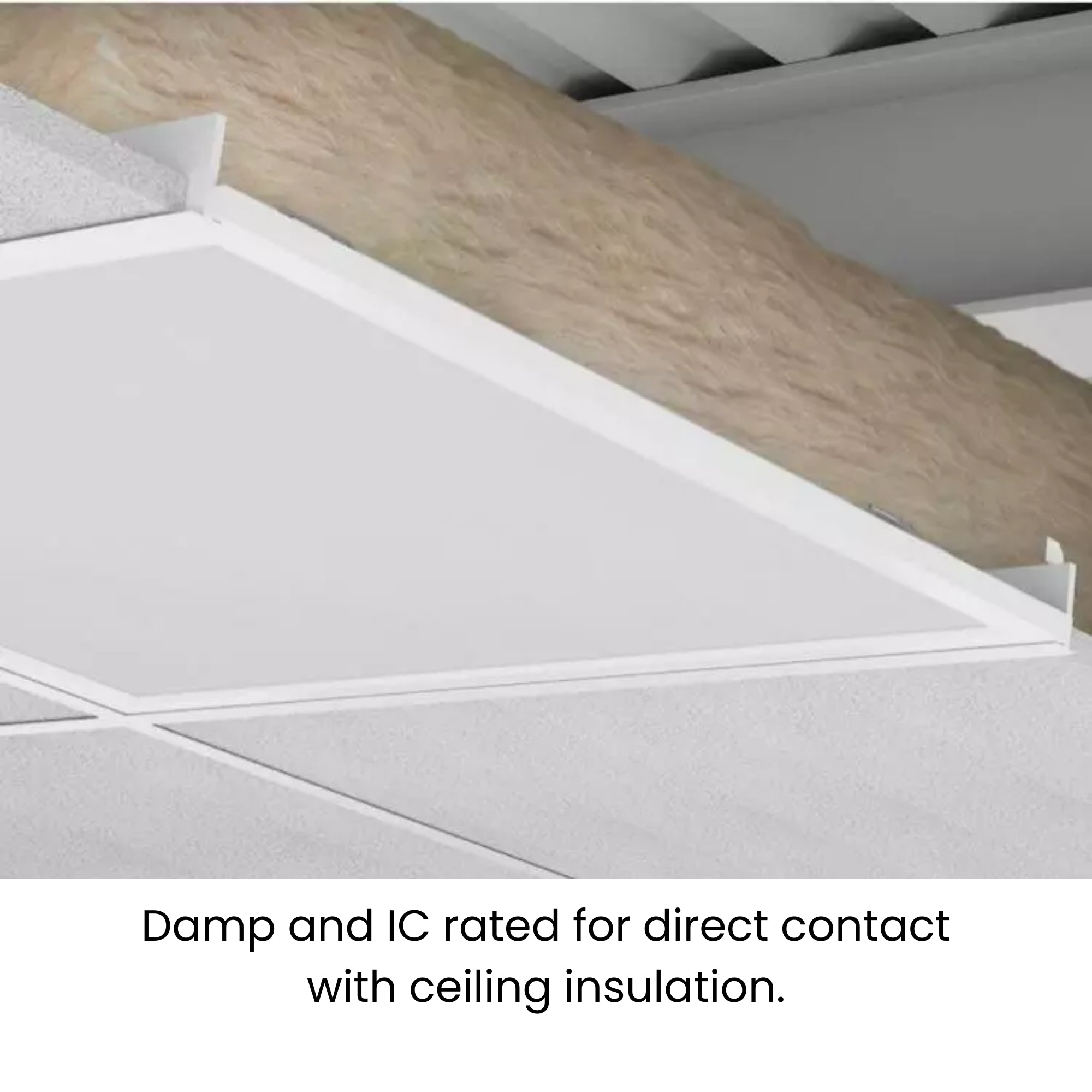

• IC and Damp Rated: cETLus Listed to UL1598 standards — suitable for insulated ceiling and damp location installations.
• Closet Rated: Suitable for use in closets per NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
• DLC Listed: Qualifies for utility rebate programs.
• Optional Emergency Battery Backup: Field-installable EMBB unit (60888, sold separately) provides a minimum of 650 lumens for at least 90 minutes. Requires metal bridge kit 61682 for 2×2 panels.
• Rated Life: L70 50,000 hours.
• Warranty: 5-year limited manufacturer warranty.

Performance & Light Output

Power factor: >0.90. Dimming: 0–10V.

Electrical

Voltage: 120–277V. Dimming: 0–10V. Power factor: >0.90. cETLus Listed to UL1598. IC and damp rated. Suitable for closets per NFPA 70, NEC 410.16. Mercury-free.

Construction

Housing: Low-profile flat panel troffer housing, 1.7″ depth.

Finish: White.

T-Grid Mounting: Grid (G) — installs into standard 2×2 T-grid ceiling systems.

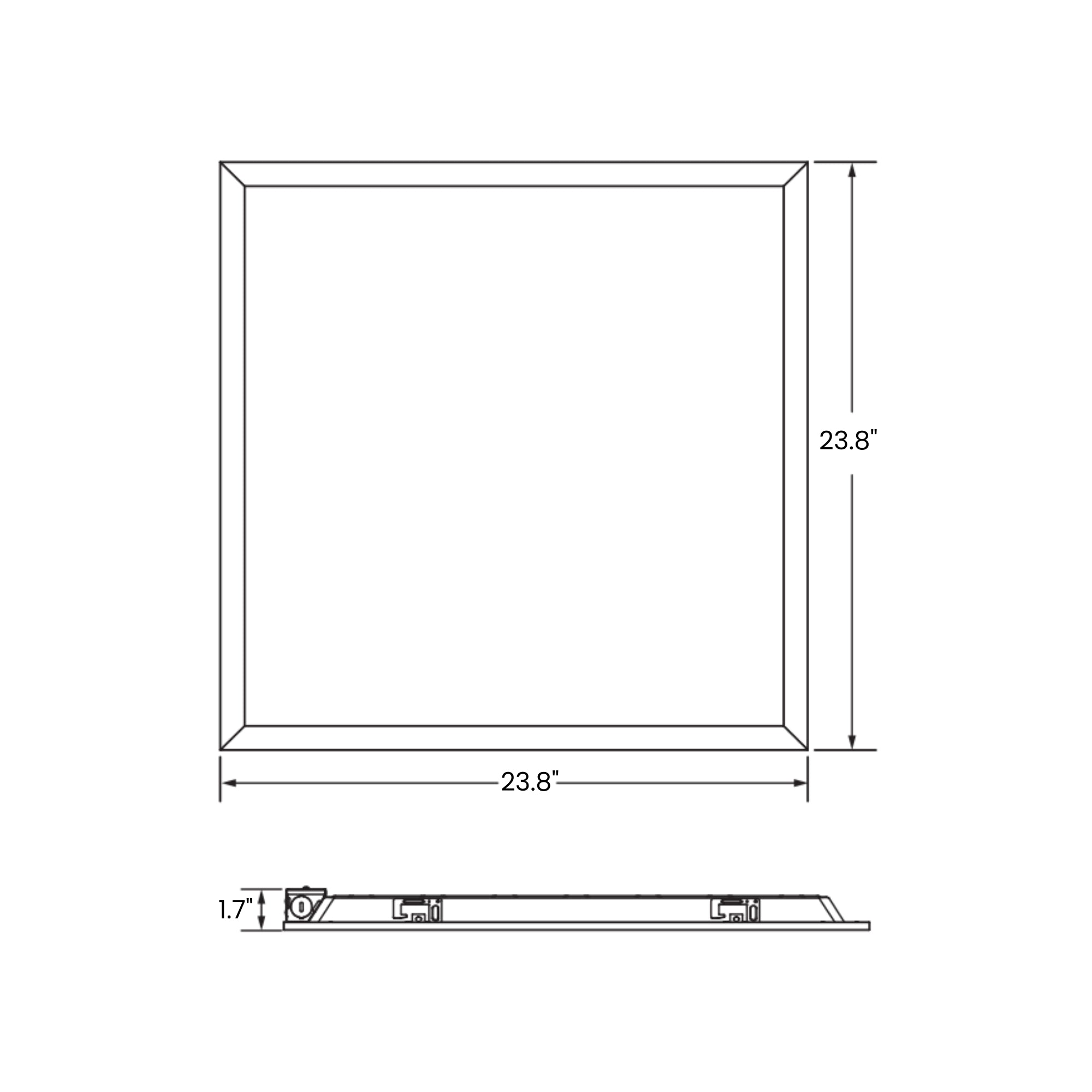

Dimensions: 23.8″ L × 23.8″ W × 1.7″ H.

Installation & Mounting

Standard Mounting: Recessed installation into standard 2×2 T-grid ceiling systems.

Emergency Battery Backup (Optional, Sold Separately):

• EMBB Unit: 60888 (EMBB1A8WDC) — field-installable emergency battery backup unit, provides minimum 650 lm for 90+ minutes
• Bridge Kit for 2×2 / 2×4: 61682 (ACCPANELF3AEMBB-BRIDGE2) — required for EMBB installation on 2×2 and 2×4 panels

Certifications & Rebates

• cETLus Listed — UL1598 — IC and Damp Rated
• Closet Rated — NFPA 70, NEC 410.16 (A)(3) and (C)(5)
• DLC Listed — qualifies for utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search by model number 61583.
• RoHS Compliant

Typical Applications

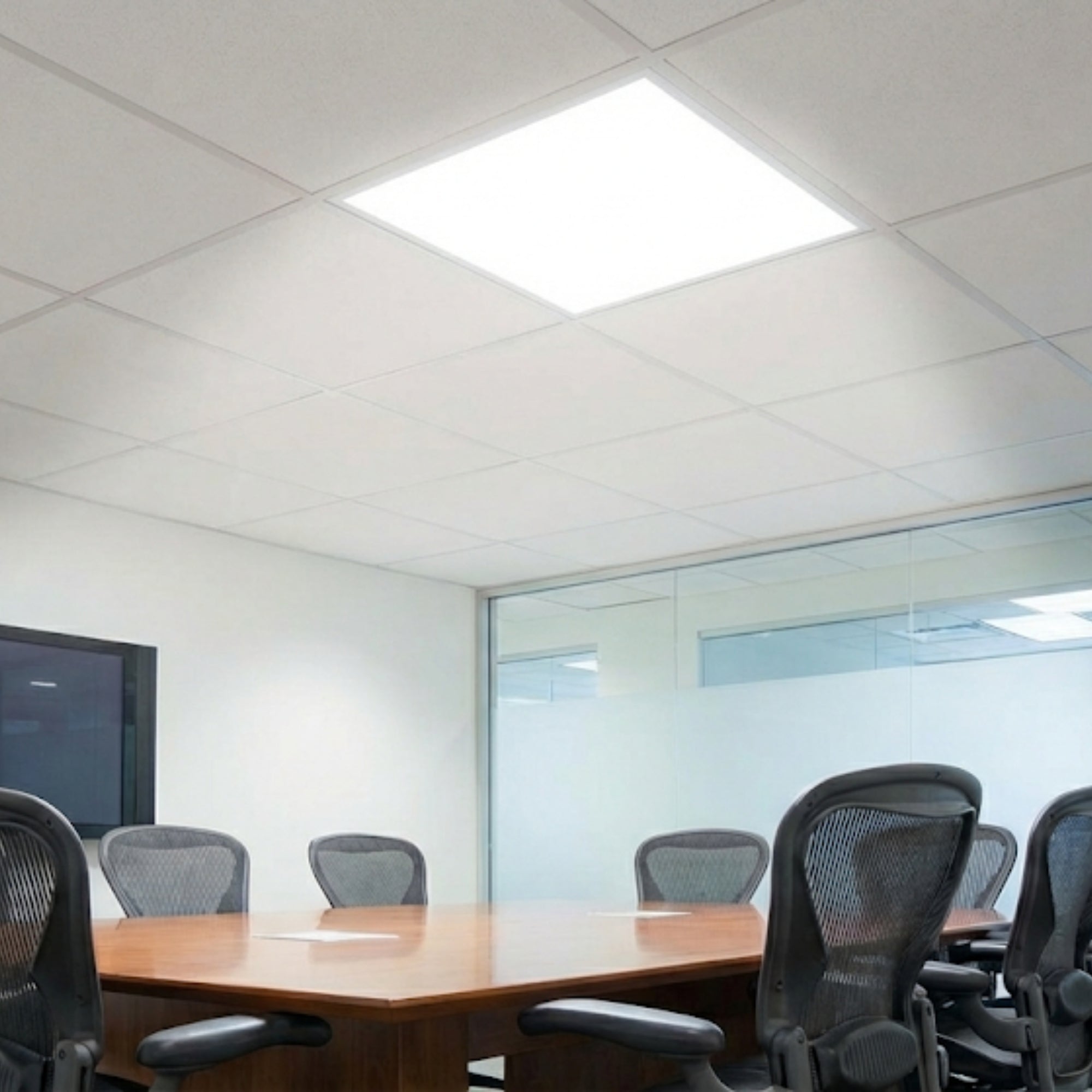

• Corporate offices and open-plan workspaces — 4000K neutral white CCT and 3,750 lm deliver bright, balanced illumination for sustained visual comfort
• Classrooms and educational facilities — low-profile 1.7″ depth installs directly into standard 2×2 T-grid frames for a cost-effective fluorescent upgrade
• Healthcare and clinical spaces — CRI >80 and 4000K support accurate visual assessment in exam and treatment rooms
• Retail interiors — 125 lm/W efficacy delivers energy-efficient, even illumination across sales floors
• Closets and utility rooms — NEC 410.16-compliant closet rating and IC-rated construction support code-compliant installations in tight spaces
• Corridors and common areas — optional field-installable EMBB (60888) supports emergency egress compliance without a separate fixture

What’s Included

• LEDVANCE Sylvania 61583 PANELF ValueLED Panel LED troffer fixture — 2×2 — White
• Mounting hardware for recessed T-grid installation
