Sylvania 61554 6 in Round Hi-PerformanceLED Recessed Downlight Kit 12-16W 4000K 120-277V
Available in stock (140)
About this item
About this item
- 6 in Round Hi-PerformanceLED Recessed Kit — White / Wet Rated / Plenum: IC rated; airtight per ASTM E283-04; wet/damp/dry rated; plenum rated per UL2043; UGR <19 low glare; specular reflectors with careful luminous element placement; junction box included
- Fixed CCT: 4000K | 3-Step Lumen Output: 12/14/16W → 1100/1300/1500 lm; up to 94 LPW; CRI 94; flicker-free (<2% for 0-10V, <10% for phase-cut); emergency battery backup ready (EMBB Ready)
- 12/14/16W / 1100/1300/1500 lm / CRI 94: L70: ≥60,000 hrs @ 25°C; up to 60% energy savings vs CFL; replaces 18-23W CFL
- 0-10V Dimmable (10–100%): 120-277V | PF >0.9 | THD <20% | Op temp: -4°F to 104°F (-20°C to +40°C)
- ENERGY STAR / TAA / IC / Airtight / Plenum: cETLus Listed; UL 1598/1598C; ASTM E283-04; UL2043; RoHS; FCC; 5-year warranty (NLB Trusted Warranty Program)
We process payments securely and do not store credit card information.
Description
Description
Sylvania 61554 6 in Round Hi-PerformanceLED Recessed Downlight Kit — 12/14/16W / 1100/1300/1500 lm / 4000K / 120-277V / White
The Sylvania 61554 (LEDRT6/R4AS1500UD/940S) is a 6 in round recessed downlight kit from the SYLVANIA Hi-PerformanceLED Recessed Downlight Kit family. Delivering up to 1,500 lm at 16W (94 LPW) at a fixed 4000K color temperature with 3-step field-selectable output (1100/1300/1500 lm). Features specular reflectors with carefully placed luminous elements for excellent cutoff, UGR <19 low glare, CRI 94, IC rated, airtight per ASTM E283-04, wet/damp/dry rated, plenum rated per UL2043, and emergency battery backup ready. 0-10V dimmable (10–100%) at 120-277V. Flicker-free (<2% for 0-10V). Junction box included. ENERGY STAR certified. TAA compliant. 5-year warranty. L70: ≥60,000 hours @ 25°C. Up to 60% energy savings versus CFL.
Key Features
- Wattage: 12W / 14W / 16W (3-step field selectable)
- Light Output: 1,100 lm / 1,300 lm / 1,500 lm (3-step field selectable)
- Efficacy: Up to 94 LPW
- CCT: 4000K fixed
- CRI: 94
- UGR: <19 (low glare)
- Reflector: Specular with carefully placed luminous elements for excellent cutoff
- Input Voltage: 120-277V
- Dimming: 0-10V | 10–100% | Flicker-free <2%
- Power Factor: >0.9 | THD: <20%
- IC Rating: Yes — IC rated for direct contact with ceiling insulation
- Air Tight: Yes — certified per ASTM E283-04
- Environment: Dry / Damp / Wet rated | Op temp: -4°F to 104°F (-20°C to +40°C)
- Plenum Rated: Yes — per UL2043
- Emergency Battery: EMBB Ready — field-installable
- Junction Box: Included
- Quick Disconnect: Yes — for fast new construction installation
- Lifespan: ≥60,000 hours L70 @ 25°C | Warranty: 5-year / NLB Trusted Warranty Program
- Certifications: ENERGY STAR Certified | TAA Compliant | cETLus Listed | UL 1598/1598C | ASTM E283-04 | UL2043 | RoHS | FCC
Construction & Aesthetics

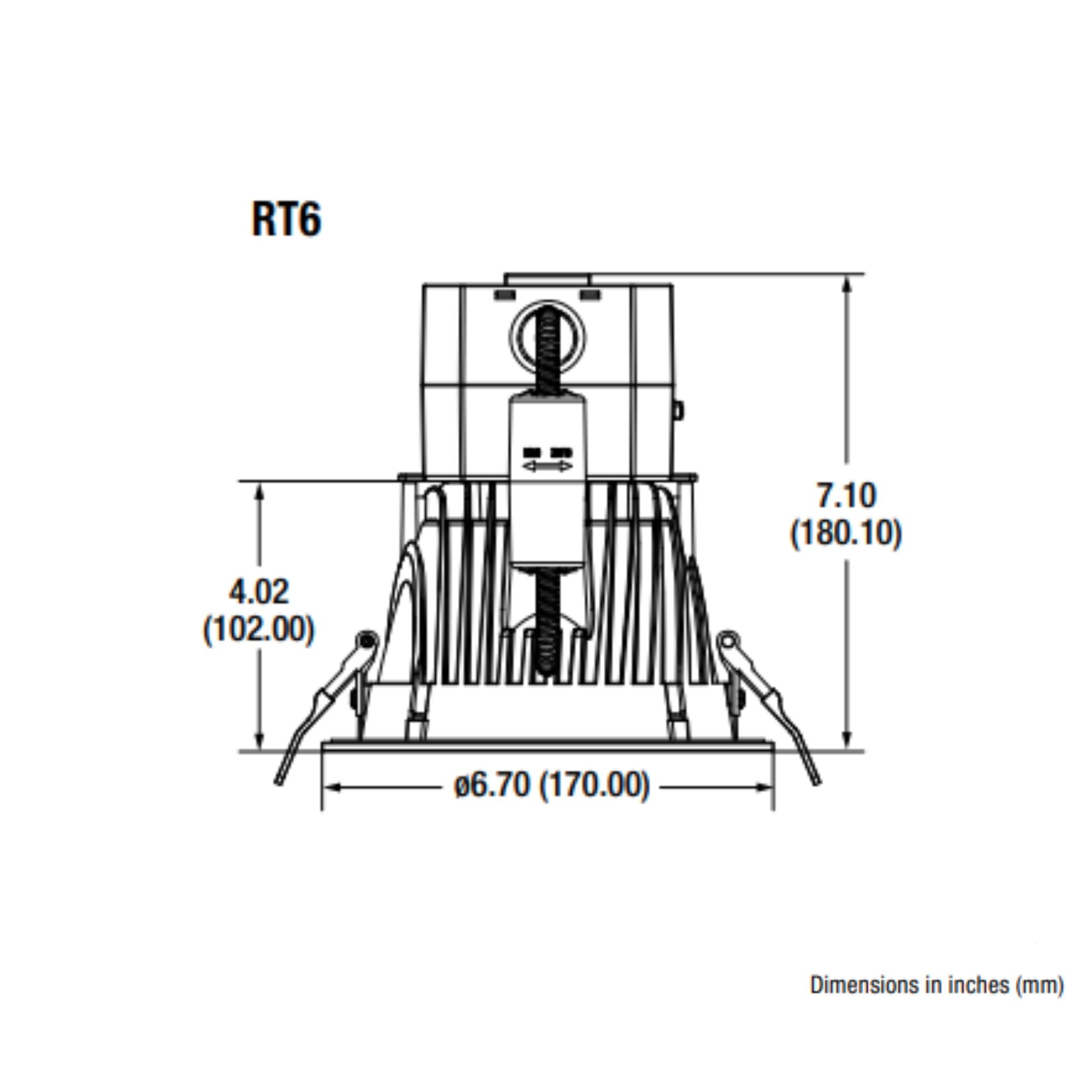

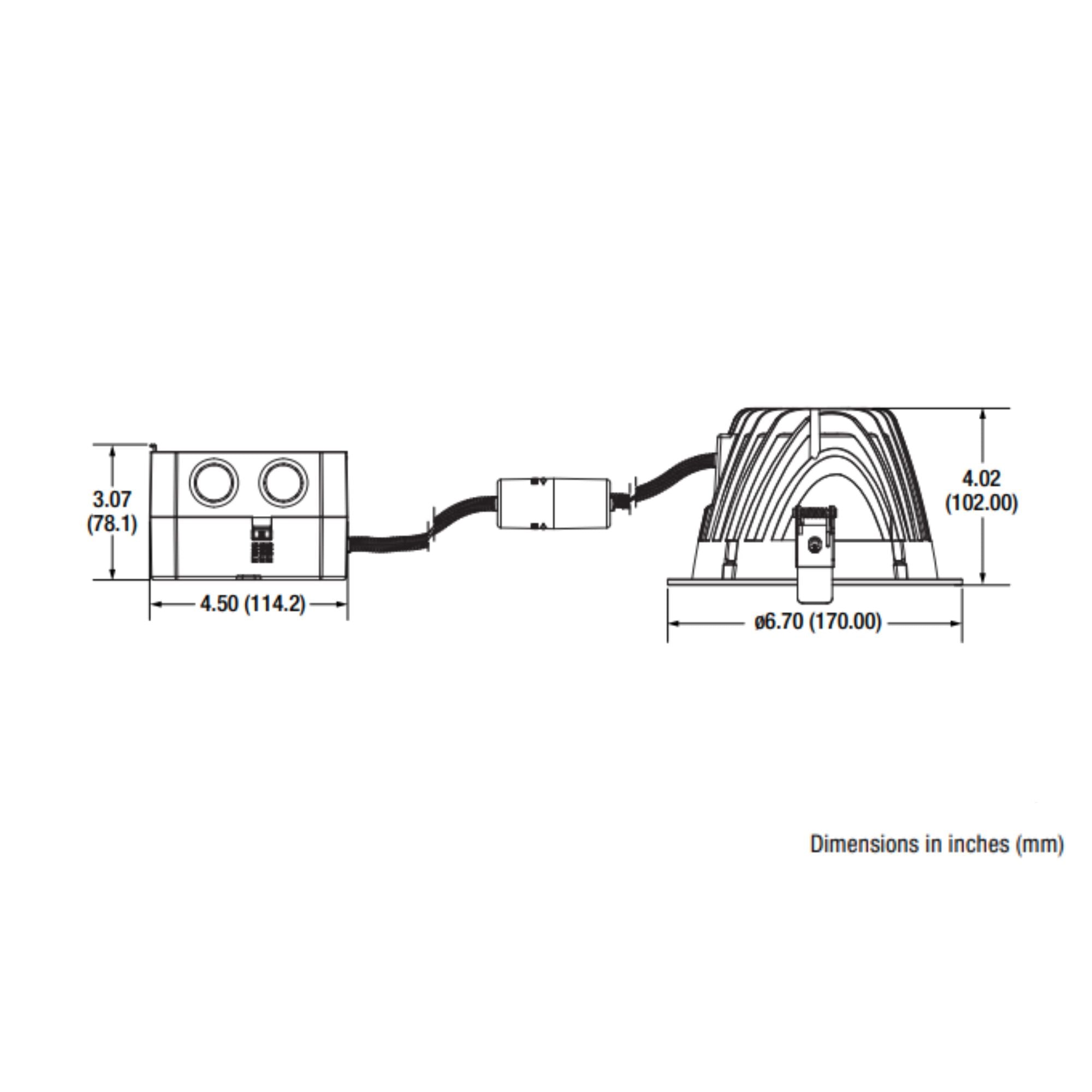

Size: 6 in round | Finish: White | Reflector: Specular, for excellent cutoff and high visual impact. Junction box included to save time and money on the job site. Quick disconnect allows for fast installation in new construction applications.
Light Output & Performance
The Sylvania 61554 delivers up to 1,500 lm at 16W (94 LPW) at a fixed 4000K with CRI 94 and UGR <19. Flicker-free performance (<2% for 0-10V). Field-selectable 3-step output (1100/1300/1500 lm) allows a single SKU to cover multiple lighting design needs. L70 lifespan is ≥60,000 hours @ 25°C. Replaces 18–23W CFL with up to 48% energy savings.
Electrical & Installation
The Sylvania 61554 operates at 120-277V with 0-10V dimming from 10% to 100%. PF >0.9; THD <20%. IC rated and airtight per ASTM E283-04. Plenum rated per UL2043. Installation as a stand-alone kit is recommended for hard ceilings; recessed incandescent frame recommended for tiled ceiling applications. Emergency battery backup field-installable.
Compatible Emergency Battery Back-Up Accessories (Sold Separately)
- Sylvania 60887 — EMBB1A5WDC | 120-277V | 9.6Wh | Max mounting height: 22.63 ft | Damp rated | 4-year warranty
- Sylvania 60888 — EMBB1A8WDC | 120-277V | 14.4Wh | Max mounting height: 22.26 ft | Damp rated | 4-year warranty
- Sylvania 60889 — EMBB1A16WDC | 120-277V | 28.8Wh | Max mounting height: 22.13 ft | Damp rated | 4-year warranty
Typical Applications
- Commercial offices, schools, and retail spaces
- Hotels and hospitality environments
- Public and commercial buildings
- Residential interiors
- New construction and retrofit of CFL fixtures
- Wet, damp, and plenum-rated installations
- Emergency lighting applications
What’s Included
- Sylvania 61554 6 in Hi-PerformanceLED recessed downlight kit (white)
- Junction box
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the Sylvania 61554 rated for wet locations?
Is the Sylvania 61554 rated for wet locations?
What dimming method does the Sylvania 61554 support?
What dimming method does the Sylvania 61554 support?
Does the Sylvania 61554 support emergency battery backup?
Does the Sylvania 61554 support emergency battery backup?
Is the Sylvania 61554 IC rated and airtight?
Is the Sylvania 61554 IC rated and airtight?
What is the lumen output and CCT of the Sylvania 61554?
What is the lumen output and CCT of the Sylvania 61554?
