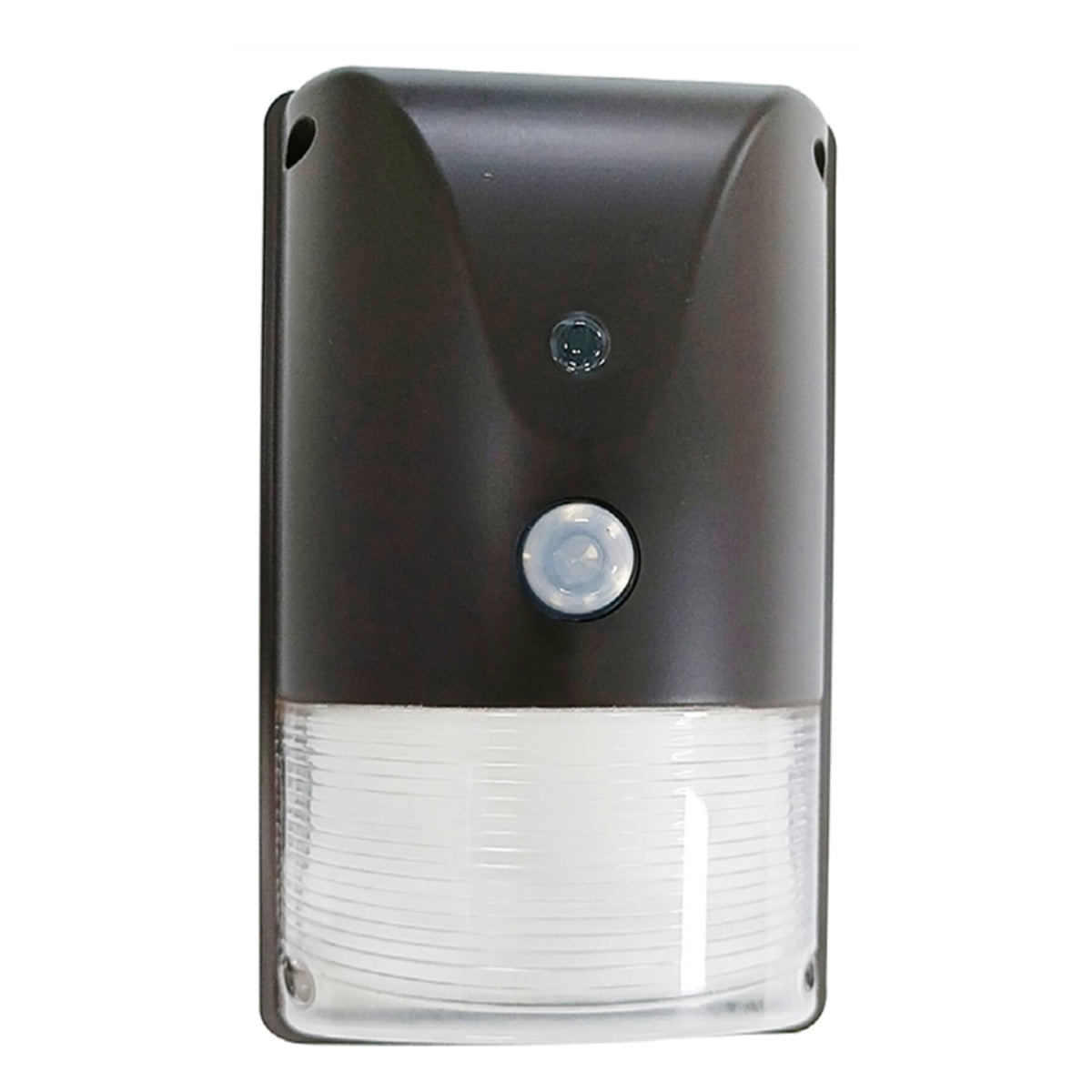

LEDVANCE SYLVANIA Emergency Mini Wall Pack — 15W Selectable CCT, 120–277V, Bronze

The LEDVANCE SYLVANIA 61369 is a versatile and reliable Emergency LED Mini Wall Pack designed to provide high-quality illumination and critical safety backup. Delivering up to 1,950 lumens at 15W, this fixture features field-selectable 3000K/4000K/5000K color temperatures to suit any exterior environment. Operating on a 120–277V universal driver, it includes an integrated battery backup for egress lighting and a built-in photocell for automated dusk-to-dawn control. With its IP65 Wet Location rating and compact architectural design, it is the ideal all-in-one solution for building corridors, walkways, stairwells, and entryways.

Key Features

• Wattage: 15W
• Selectable CCT: 3000K / 4000K / 5000K
• Delivered Lumens: 1,950 lumens
• Efficacy: 130 Lumens Per Watt (LPW)
• Voltage: 120–277V universal input
• Emergency Backup: Integrated battery for egress operation
• Controls: Built-in 120-277V photocell included
• CRI: 80+
• Environmental Ratings: IP65 rated for Wet Locations
• Certifications: DLC Premium Listed, cULus, RoHS Compliant, FCC
• Estimated Life: 50,000 hours (L70)

Typical Applications

• Building perimeters and facades
• Outdoor corridors and walkways
• Stairwells and egress points
• Commercial and residential entryways
• Security and pathway lighting

Performance & Light Output

The 61369 mini wall pack provides highly efficient, non-cutoff distribution, ensuring widespread light coverage for maximum safety. With 1,950 lumens and a selectable CCT switch, installers can tailor the light to match existing site conditions. Its high efficacy of 130 LPW ensures minimal energy costs while meeting the strict requirements for DLC Premium certification. The 50,000-hour rated life significantly reduces maintenance and lamp replacement cycles.

Emergency & Controls

Safety is the priority with the integrated battery backup, providing essential illumination during power failures. For standard operation, the built-in photocell enables "set-it-and-forget-it" dusk-to-dawn lighting. The fixture also supports 0-10V dimming, allowing for flexible light level management in non-emergency modes.

Construction & Durability

Engineered for longevity, the fixture features a robust die-cast aluminum backplate and a bronze-finished housing. The impact-resistant polycarbonate lens is UV-stabilized to minimize yellowing over time. It is designed to operate in extreme temperatures, from -40°F (-40°C) during normal operation to 32°F (0°C) in emergency mode, up to 122°F (50°C).

Installation & Mounting

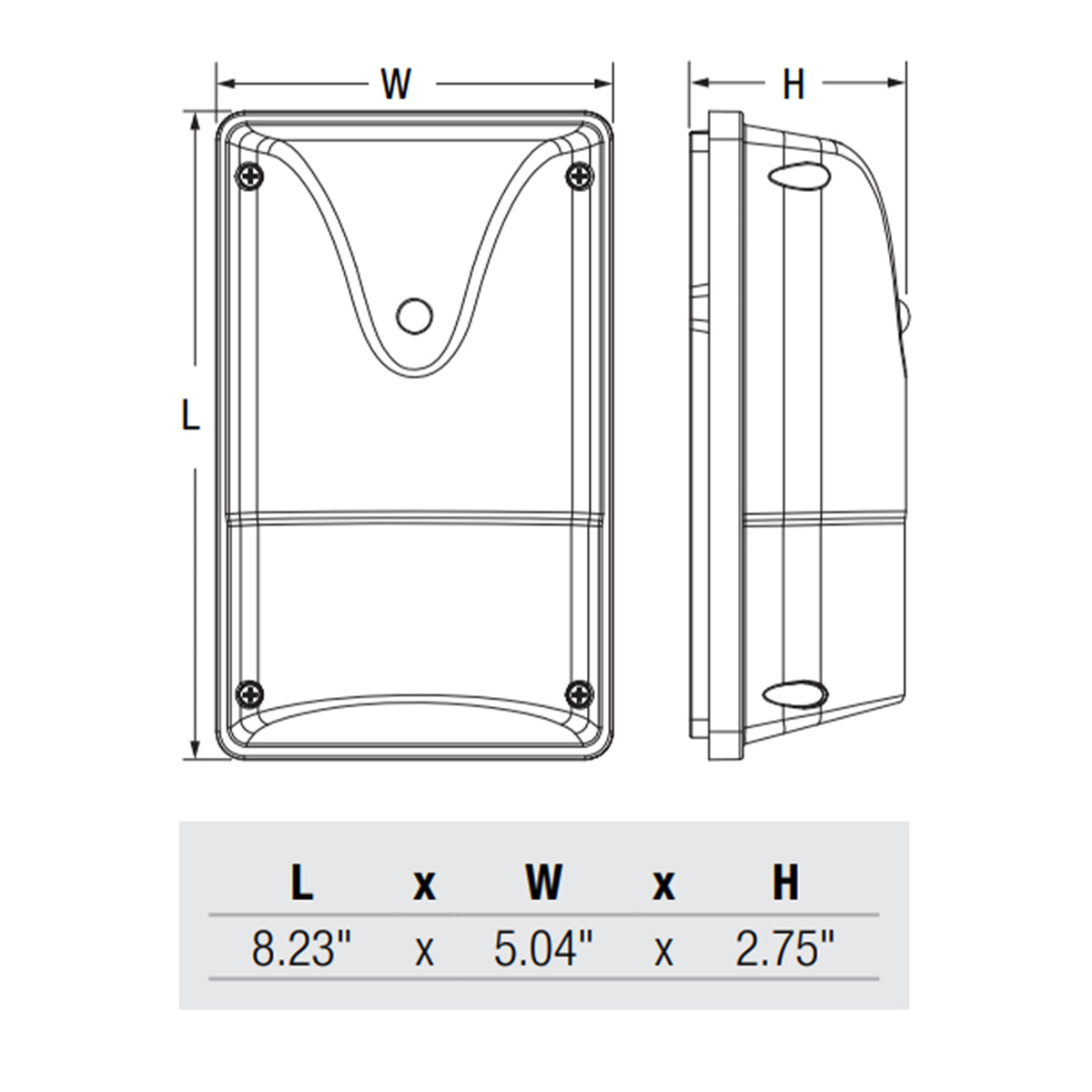

The compact footprint (approx. 8.2" x 5.0") makes it perfect for mounting over doorways and in tight exterior spaces. The design allows for easy surface mounting directly to standard junction boxes, reducing installation time for contractors.

What's Included

• LEDVANCE SYLVANIA Emergency Mini Wall Pack (Bronze)
• Integrated Emergency Battery Backup
• Integrated Photocell
