Sylvania UltraLED Retrofit Door Kit 3A Troffer Retrofit — 33W Configuration

The Sylvania UltraLED Retrofit Door Kit 3A, MPN 60620, is a troffer retrofit solution delivering 4100 lumens at 33 watts. It operates on a 120-277V input voltage, making it suitable for a range of commercial applications. This retrofit kit is damp rated, ensuring reliable performance in various environments.

Key Features

• Lumens: Delivers a bright output of 4100 lumens for effective illumination.
• Wattage: Consumes 33 watts, optimizing energy efficiency.
• Color Temperature: Emits a 4000K neutral white light, ideal for workspaces.
• Dimmable: Compatible with dimming systems for adjustable lighting.
• Voltage Range: Operates on 120-277V, accommodating various electrical systems.

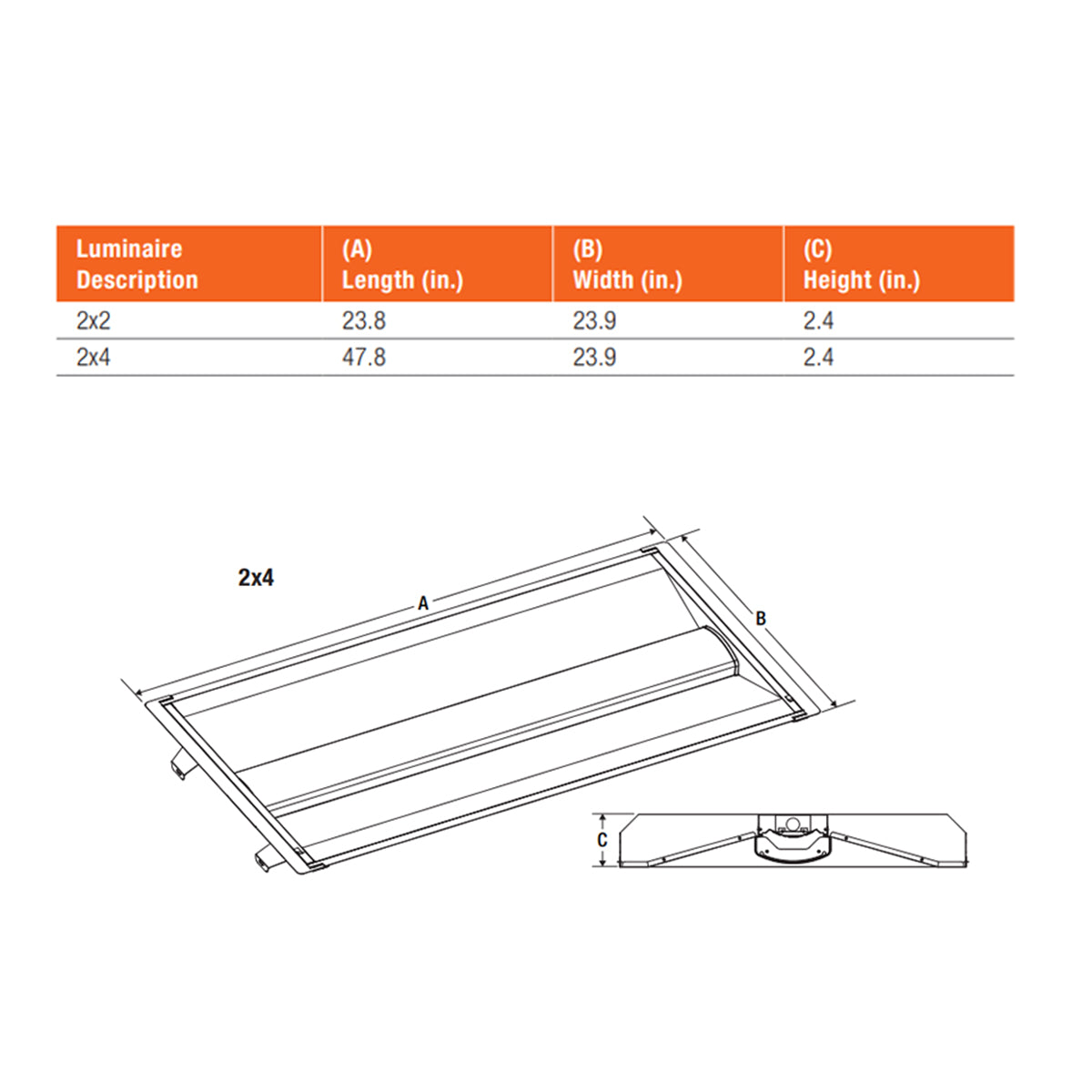

• Dimensions: Measures 23.90 in. width, 2.40 in. height, and 47.80 in. length for easy integration.
• Weight: Weighs 13.50 lbs, facilitating straightforward handling and installation.
• Damp Rated: Suitable for use in damp environments, enhancing versatility.
• Warranty: Backed by a 5-year warranty for peace of mind.

Typical Applications

• Offices
• Retail Spaces
• Educational Facilities
• Healthcare Facilities
• Conference Rooms

Performance & Light Output

This retrofit kit provides 4100 lumens with a 4000K color temperature, ensuring bright and neutral lighting. It is designed for high efficacy and consistent color rendering.

Electrical & Controls

The unit supports a voltage range of 120-277V and is compatible with dimming controls, allowing for energy savings and lighting customization.

Construction & Durability

Constructed to be damp rated, this retrofit kit is durable and suitable for various indoor environments. It is designed for long-lasting performance.

Installation & Mounting

Designed for easy installation in existing troffer fixtures, this retrofit kit simplifies the upgrade process without the need for extensive modifications.

What's Included

• Retrofit Door Kit
