Sylvania 42346 2ft Magnetic Retrofit Bar Kit | 20W | 3200lm | 120-347V | Selectable CCT
Available in stock (100)
About this item
About this item
- 31% Energy Savings vs. F32T8: Replaces a 2-lamp F32T8 fixture at 29W with 20W and 3200 lumens — no new fixture needed, just swap the lamp system.
- 160 LPW Efficacy + DLC 5.1 Listed: Best-in-class efficiency qualifies this bar for utility rebate programs in most U.S. states — check your local utility before purchasing.
- Field-Selectable CCT + 12V Aux for Sensors: Choose 3500K, 4000K, or 5000K at install; 12V auxiliary output enables wired/wireless occupancy sensors and controls without extra wiring.
- Universal Voltage + cETLus Damp Rated: 120-347V input and damp location listing cover virtually all North American commercial wiring and humid environment applications.
- Driver Required — Sold Separately: Pairs with LEDVANCE driver item 75908 (1–3 bars) or 75909 (2–4 bars). For a complete ready-to-install system, see the Magnetic Retrofit Bundle.
We process payments securely and do not store credit card information.
Description
Description

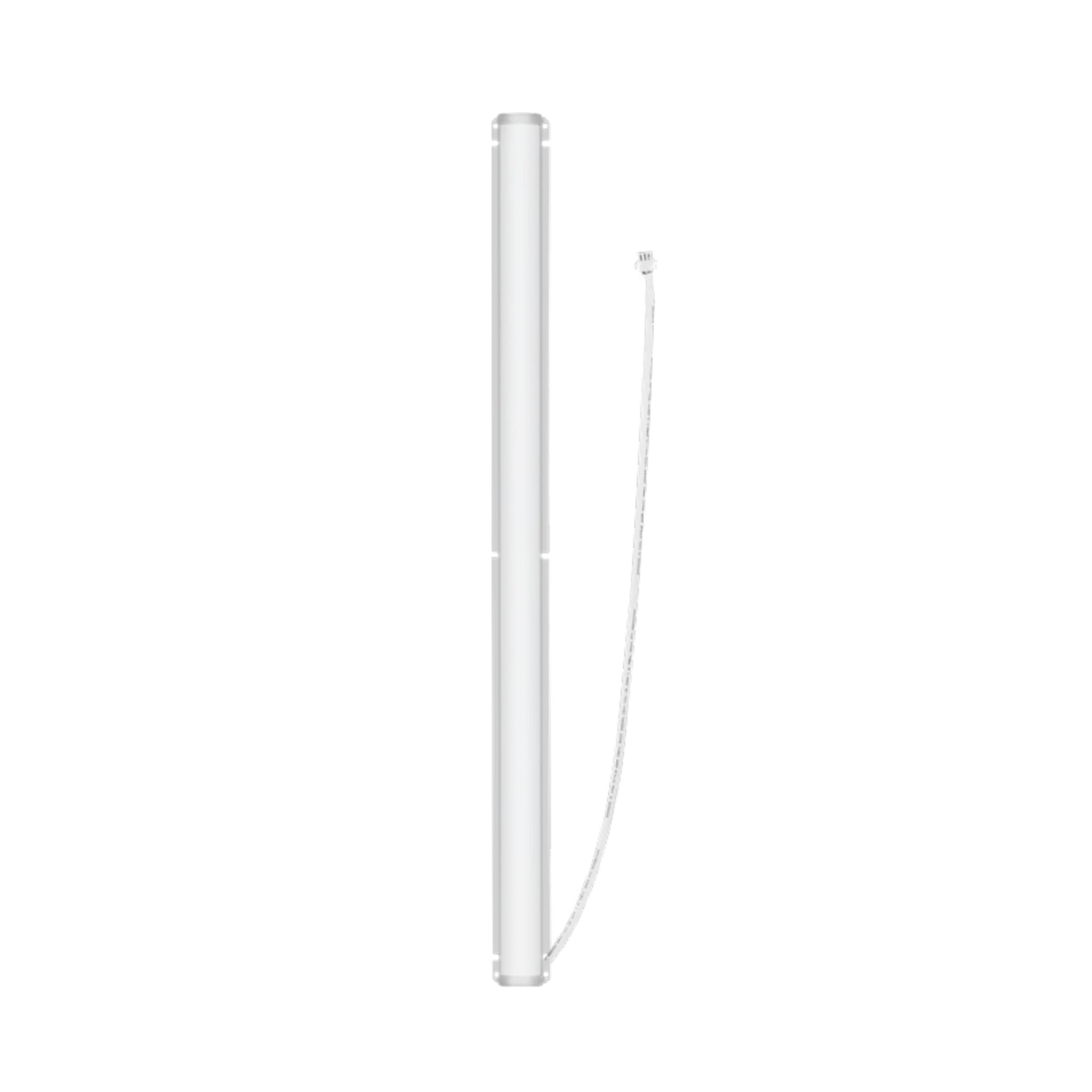

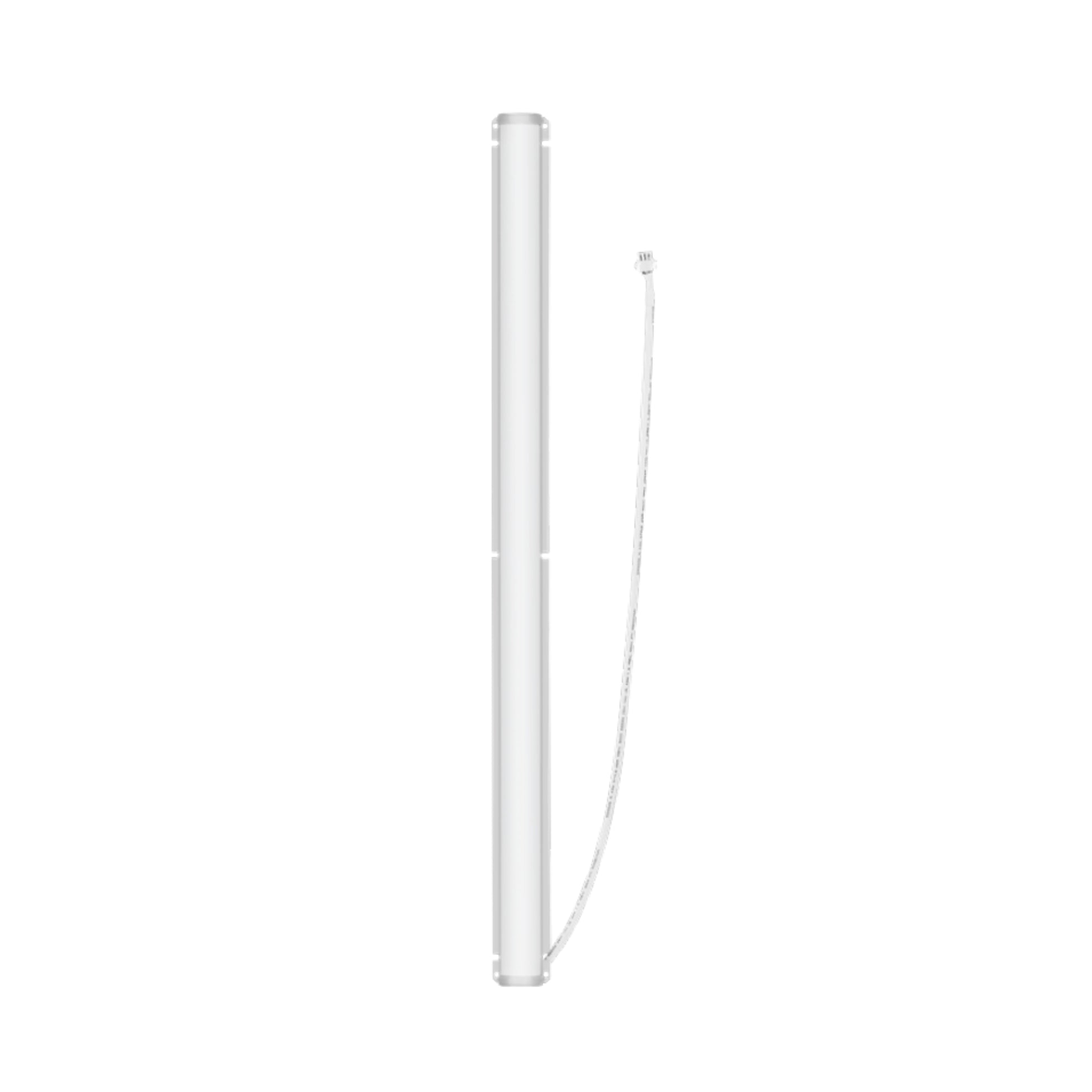

Sylvania 42346 2ft Magnetic Retrofit Bar Kit — 20W | 3200lm | 120-347V
The Sylvania 42346 is a 2ft magnetic retrofit bar that replaces 2-lamp F32T8 fluorescent fixtures running at 29W — delivering 3200 lumens at just 20W for a 31% energy reduction. Three field-selectable CCTs (3500K, 4000K, 5000K), universal 120-347V voltage, and cETLus damp location listing make it a versatile drop-in for office, education, and retail applications. DLC 5.1 Standard/Premium listed for utility rebate eligibility.
Key Features
- Wattage: 20W Max (selectable 13W / 17W / 20W per bar)
- Lumens: 3200 lm (without lens) / 2800 lm (with lens)
- Efficacy: 160 LPW (without lens) / 140 LPW (with lens)
- CCT: 3500K / 4000K / 5000K (selectable)
- CRI: >80
- Voltage: 120-347V Universal
- Dimming: 0-10V, 20–100%
- Power Factor: >0.9 | THD: <20%
- Beam Angle: 120° | Lens: Frosted Plastic
- 12V Aux Output: Yes — enables wired/wireless sensors and controls
- Location Rating: Damp Rated (cETLus)
- Housing: Aluminum substrate for heat dissipation

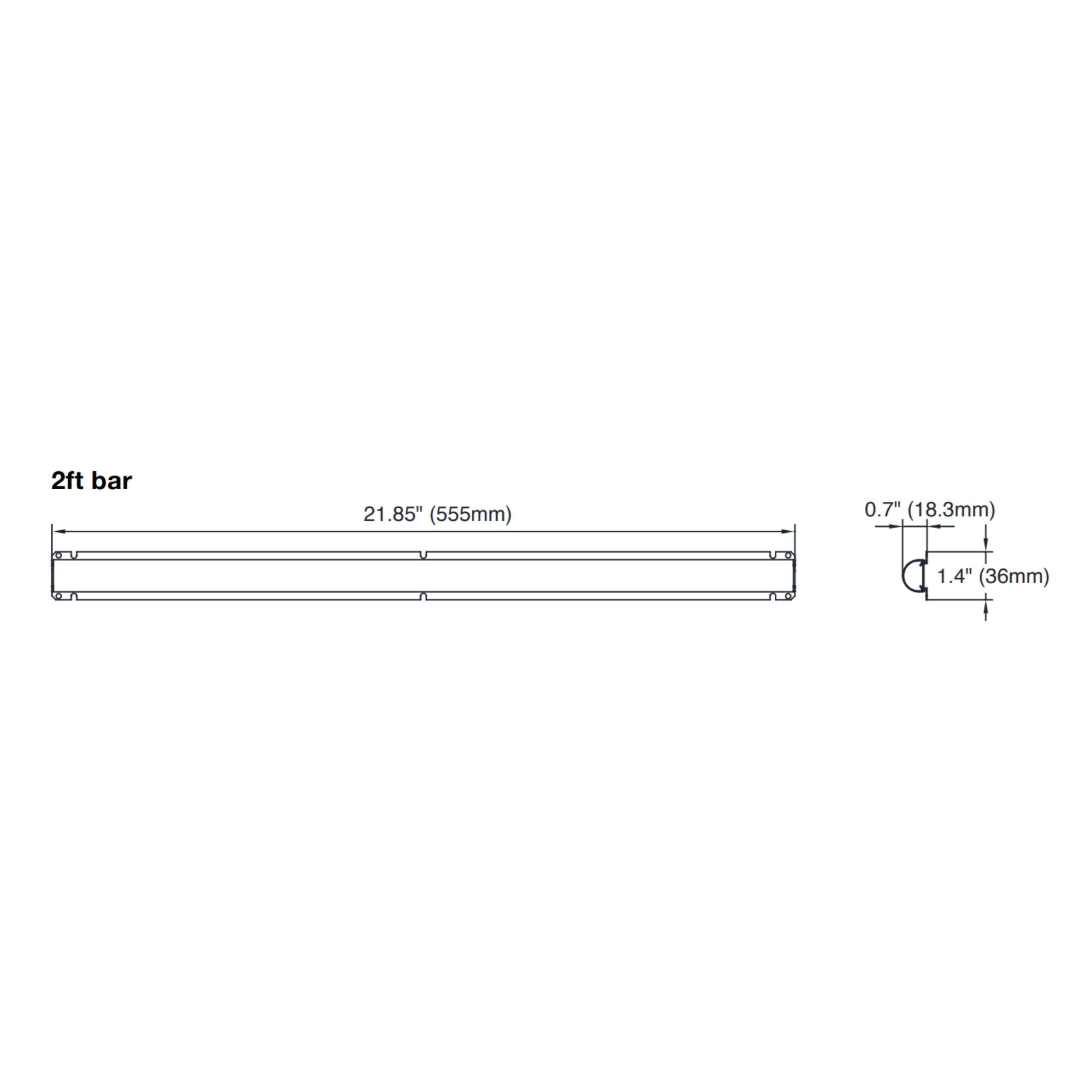

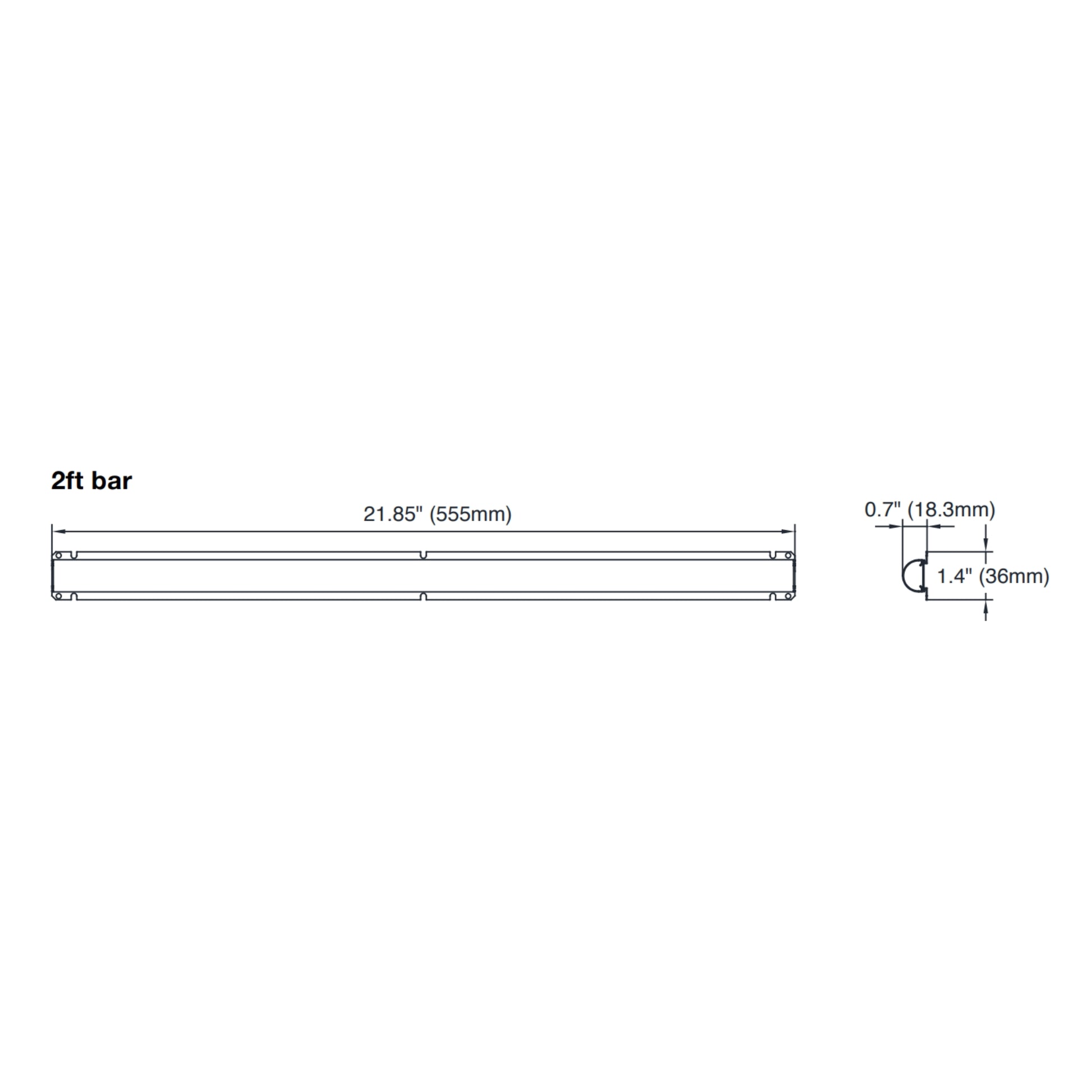

- Dimensions: 21.85" L × 1.4" W × 0.7" H
- Operating Temp: -40°F to +104°F (-40°C to +40°C)
- Rated Life: 65,000 Hours (L⁰)
- Certifications: cETLus, DLC 5.1 Standard/Premium, RoHS, FCC, TAA Compliant
- Controls Compatibility: LEDVANCE EMBB (61097)
- Warranty: 5 Years (driver + magnetic bars)
💡 DLC 5.1 Listed — Qualifies for utility rebate programs in most U.S. states. Check your local utility’s rebate database before purchasing.
Typical Applications
- Office and open-plan workspace fluorescent retrofits
- K–12 classroom and education facility upgrades
- Retail display and general illumination
- Healthcare and institutional corridor lighting
- Light commercial renovation and tenant improvement projects
Performance & Light Output
The 42346 delivers 3200 lumens without a lens and 2800 lumens with the included frosted plastic lens at a best-in-class 160 LPW (without lens) / 140 LPW (with lens). Replaces a 2-lamp F32T8 fixture drawing 29W — a 31% energy reduction at 20W. CRI >80 across all three CCT options. Rated L⁰ life of 65,000 hours with no warm-up time and instant full light output.
Electrical & Controls
Universal 120-347V input. 0-10V dimming from 20–100%. Power Factor >0.9, THD <20%. 12V auxiliary output enables easy addition of wired or wireless controls and occupancy sensors without additional power wiring. Compatible with LEDVANCE EMBB module (61097). Requires a compatible LEDVANCE driver (sold separately).
Construction & Durability
Aluminum substrate construction for excellent heat dissipation. Frosted plastic lens provides 120° beam angle for uniform illumination. cETLus listed for damp locations. Operating temperature range: -40°F to +104°F. No UV emission.
Installation & Mounting
Magnetic strip attaches directly to existing fixture housing and secures with screws for a vibration-resistant hold. Designed for standard 2ft fluorescent fixture cavities. Supports 1–4 bar connections per driver depending on driver selected. Driver sold separately — see LEDVANCE driver item 75908 or 75909 for compatible options, or purchase as the Magnetic Retrofit Bundle.
What's Included
- 1× Sylvania 42346 2ft Magnetic Retrofit Bar (LEDMAGBAR/L24FPDIM8SC7)
- Mounting hardware
