360° LED T8 Sign Lamp, 117 in, 45W, 6500 Lumens, 40K|50K|65K, R17D Base

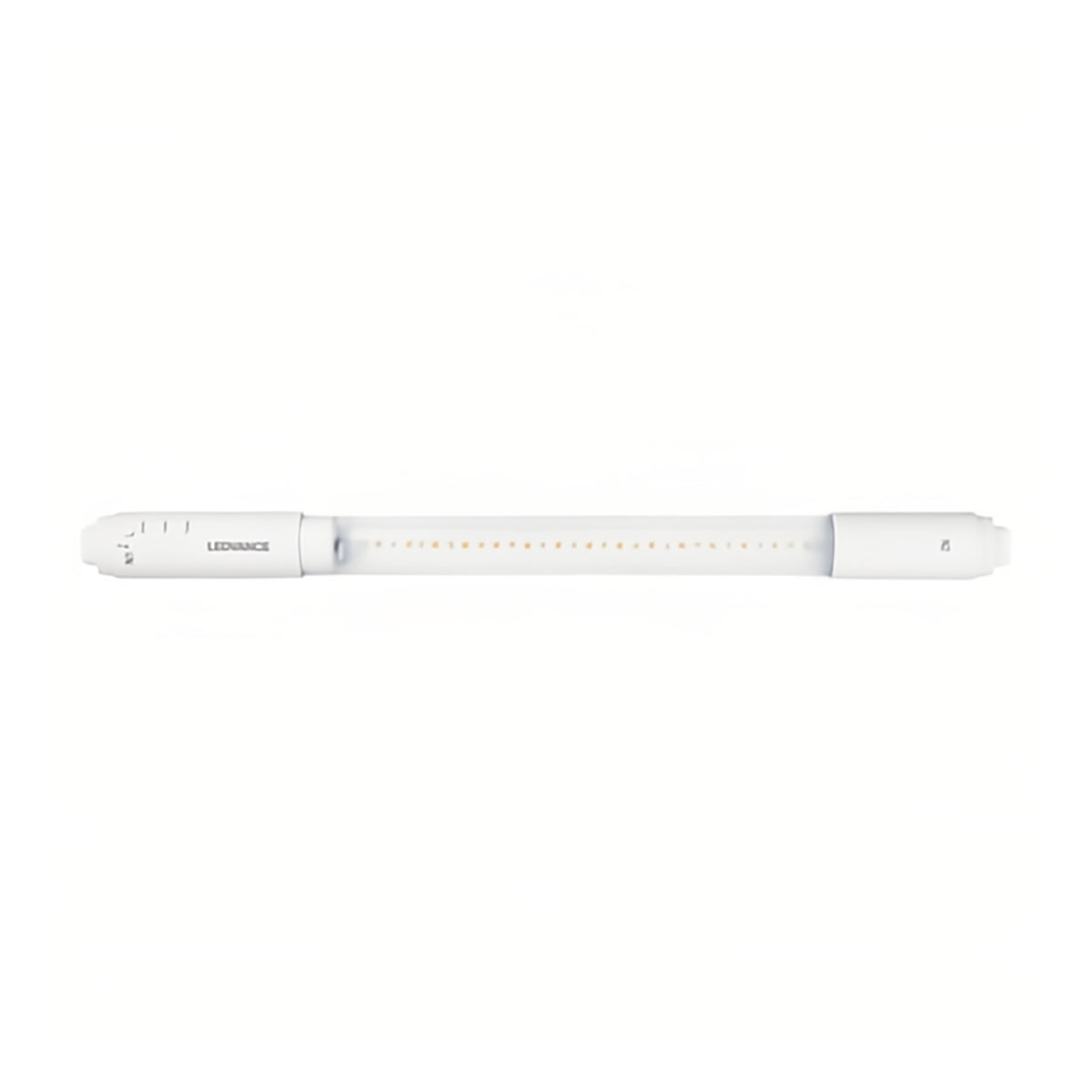

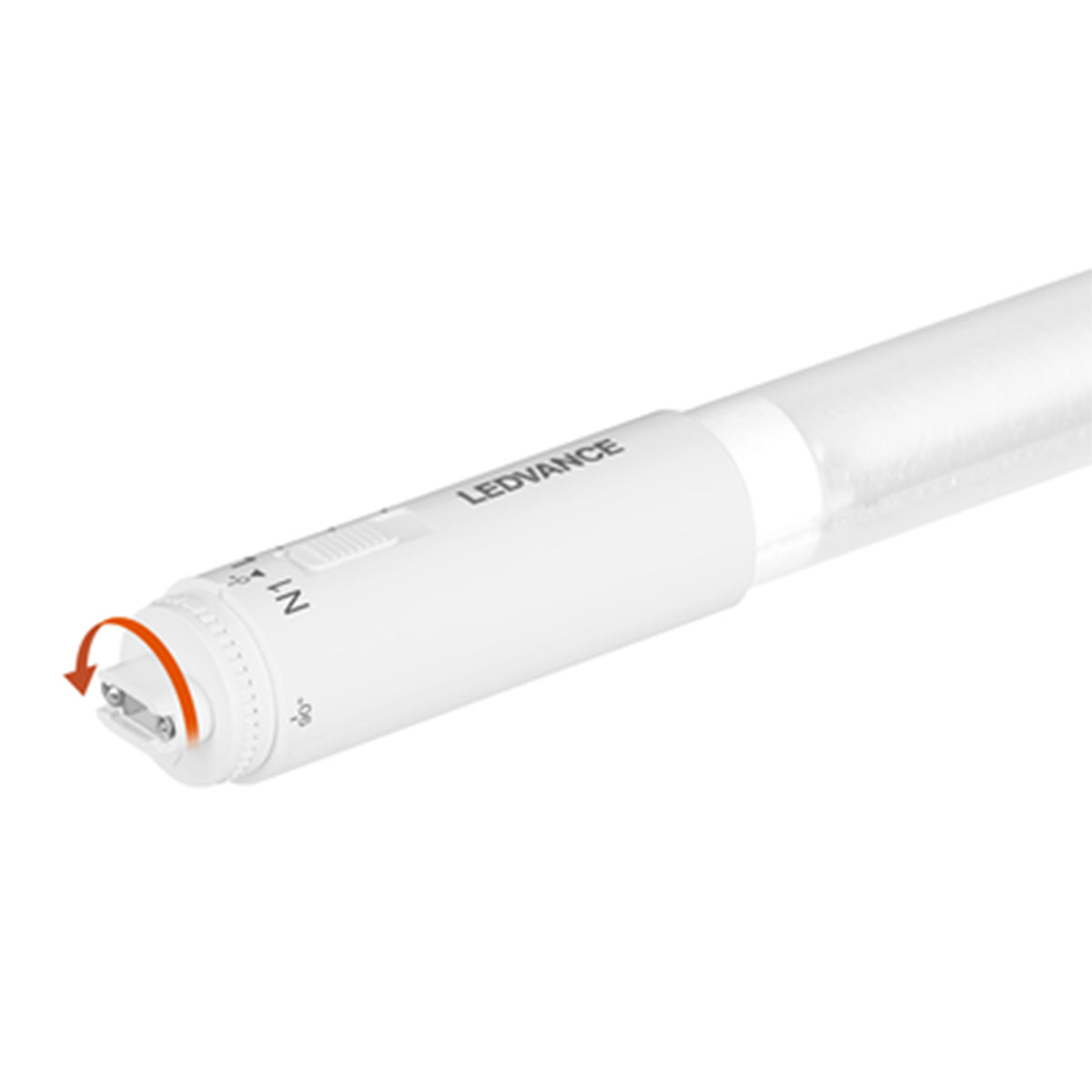

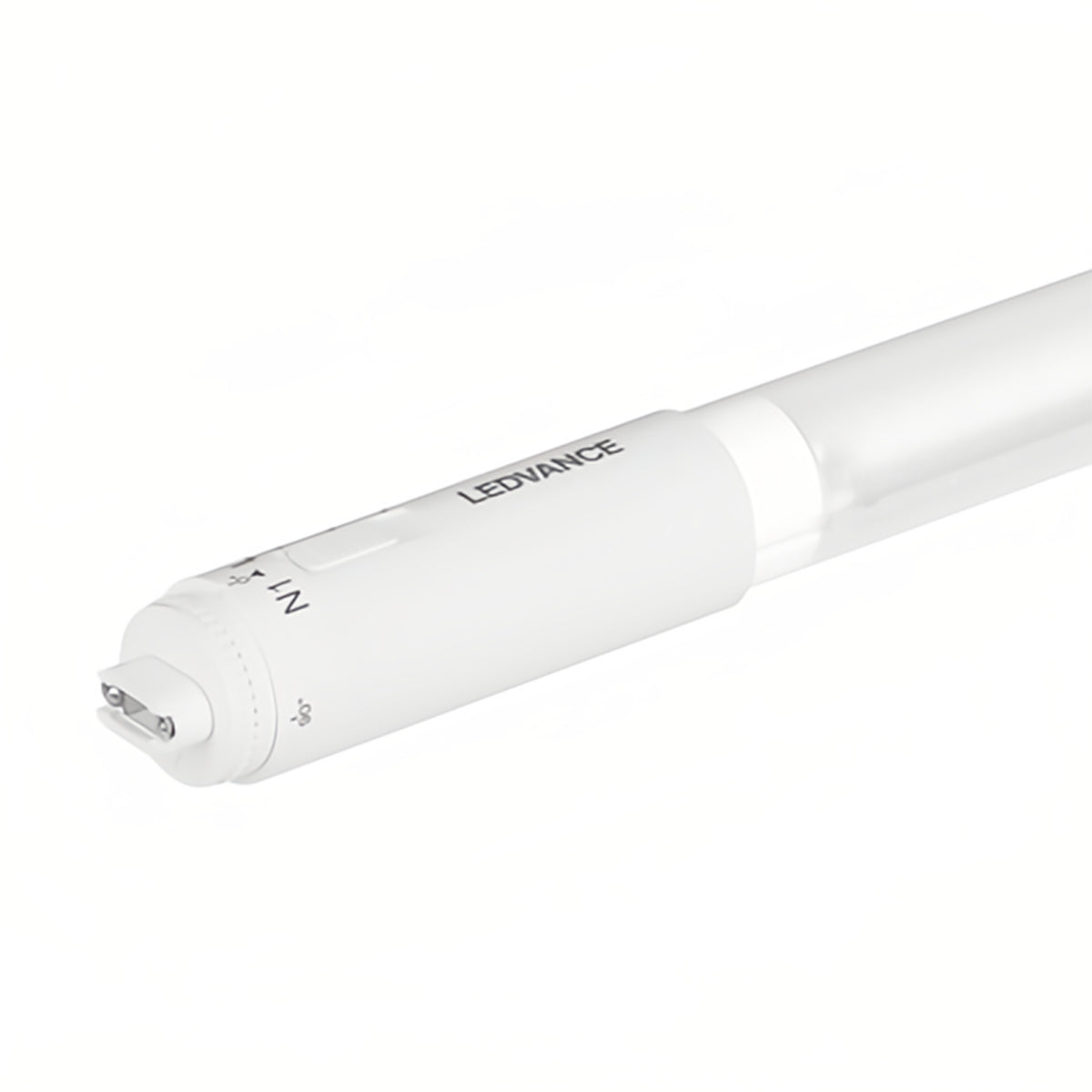

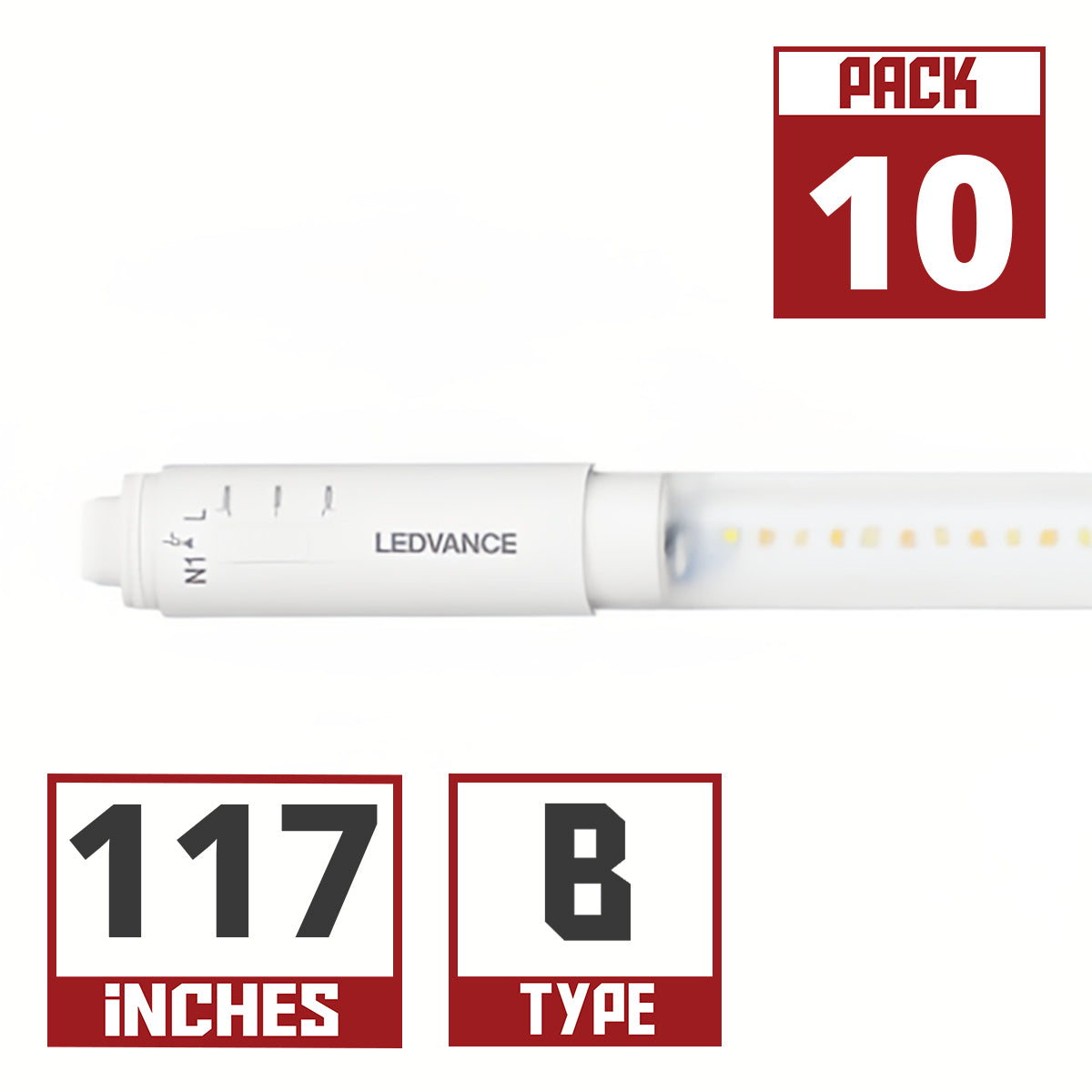

Sylvania 360° LED T8 Sign Lamp — 45W / Selectable CCT

The Sylvania 42148 T8 LED bulb features an R17D base and is designed to replace traditional fluorescent T8 and T12 lamps. This 45W bulb offers selectable color temperatures of 4000K, 5000K, and 6500K, providing flexibility for various applications. The bulb is engineered for direct wire installation, bypassing the ballast for energy savings.

Key Features

• Base Type: R17D (Recessed Double Contact)
• Bulb Shape: T8
• Wattage: 45W
• Selectable CCT: 4000K, 5000K, 6500K
• Beam Angle: 360°
• Enclosed Fixture Rated: Yes
• Certifications: UL, RoHS, FCC
• Installation Type: Type B (Direct Wire/Ballast Bypass)
• Lifespan: 50,000 hours
• Material: Frosted Plastic

Construction & Aesthetics

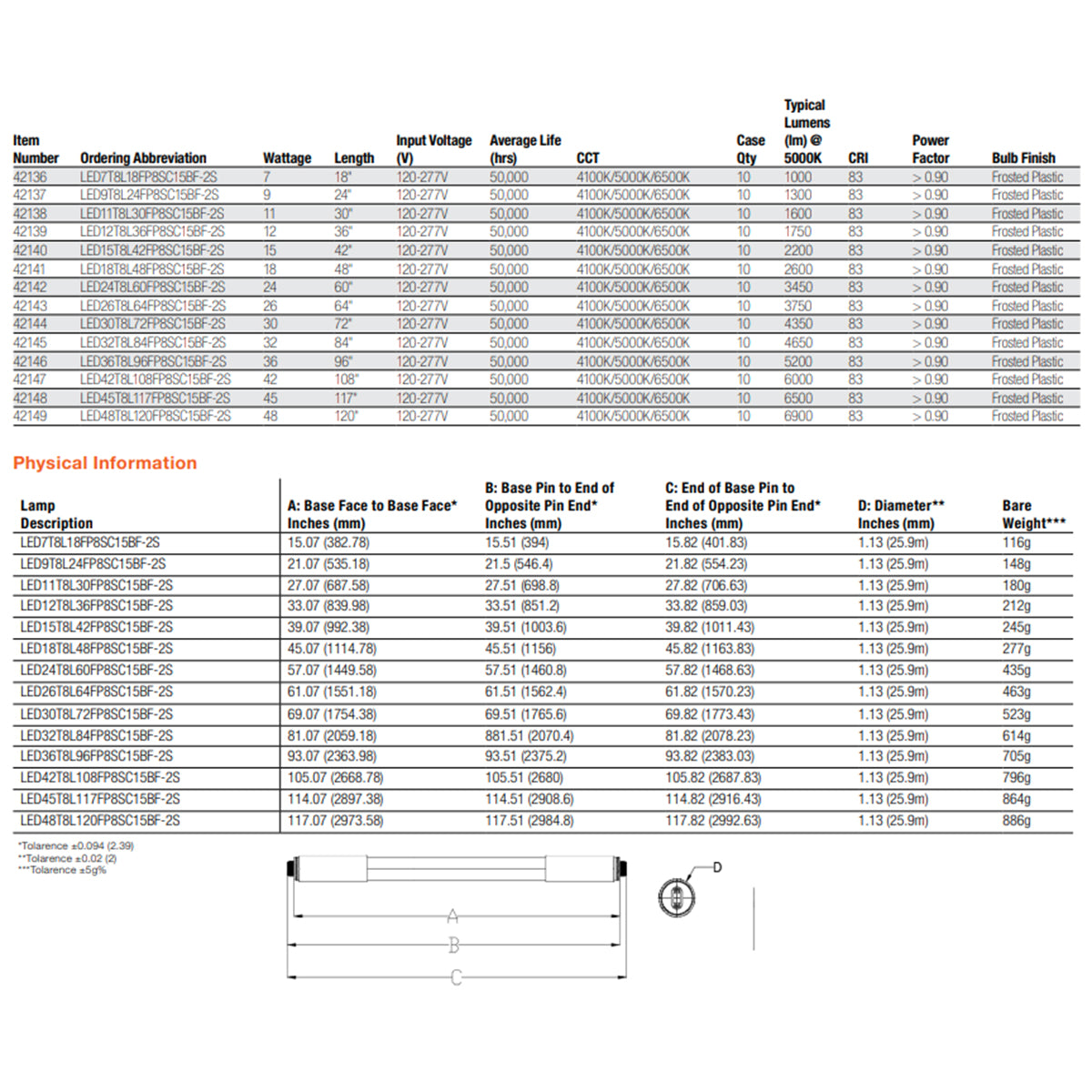

Constructed with robust plastic and aluminum, this bulb features a frosted finish that ensures even light distribution without hot spots. The bulb's dimensions are 114.07 inches in length and 1.13 inches in diameter.

Electrical & Installation

Designed for direct wire installation, this bulb operates on 120-277V and supports both double-ended and single-ended wiring configurations. It is not compatible with ballasts.

Light Output & Performance

With a lumen output of 6500 lumens and a CRI of 83, this bulb provides bright, high-quality light suitable for signage applications. The LED technology ensures a long lifespan of 50,000 hours.

Typical Applications

• Signage
• Commercial Lighting
• Retail Displays
