360° LED T8 Sign Lamp, 96 in, 36W, 5200 Lumens, 40K|50K|65K, R17D Base

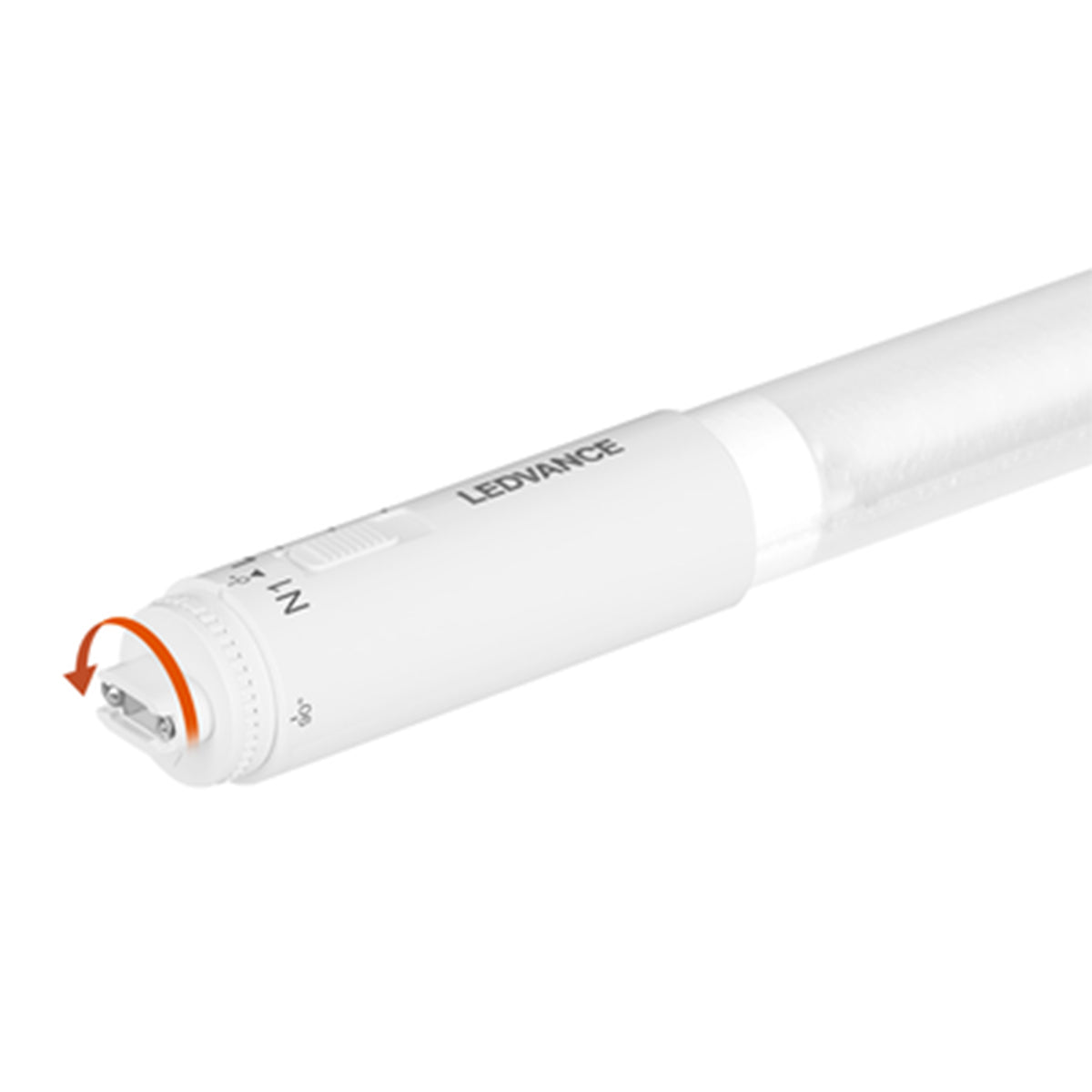

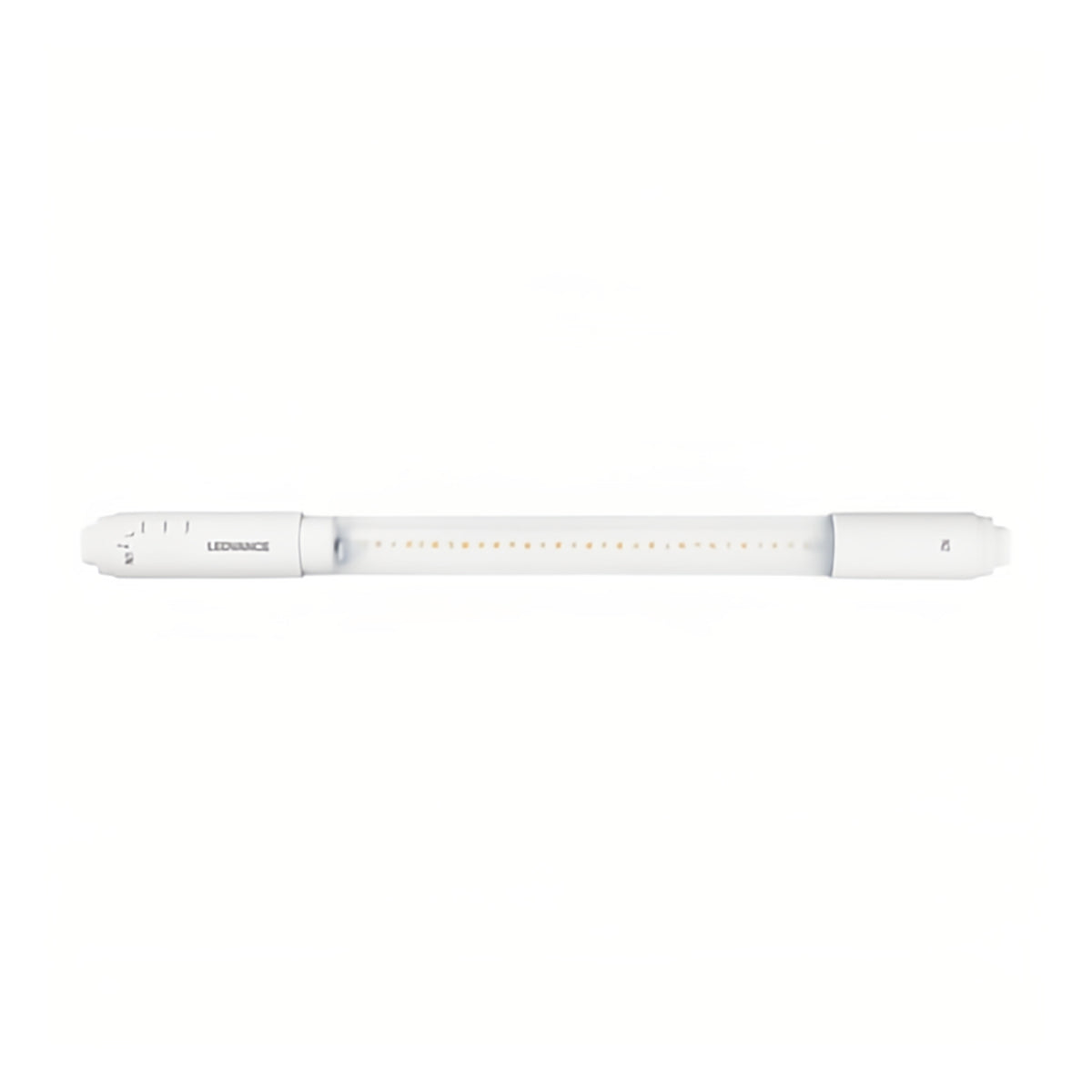

Sylvania 360° LED T8 Sign Lamp — 36W / Selectable CCT

The Sylvania 42146 T8 LED bulb features a R17D base and is designed to replace traditional fluorescent T8 and T12 lamps. This 36-watt bulb offers selectable color temperatures of 4000K, 5000K, and 6500K, providing flexibility for various signage applications. The bulb operates directly on 120-277V, eliminating the need for a ballast.

Key Features

• Base Type: R17D (Recessed Double Contact)
• Bulb Shape: T8
• Equivalency: Replaces T8 and T12 lamps
• Enclosed Fixture Rated: Yes
• Certifications: UL Classified, RoHS compliant
• Beam Angle: 360° omnidirectional
• Voltage: 120-277V
• Power Factor: > 0.9
• THD: < 20%
• Rated Life: 50,000 hours (L70)
• Material: Frosted plastic and aluminum
• Warranty: 5-year limited warranty

Construction & Aesthetics

Constructed from robust plastic and aluminum, this bulb features a frosted finish to ensure even light distribution without hot spots. The bulb measures 96 inches in length and has a diameter of 1.13 inches.

Electrical & Installation

This bulb is designed for direct wire installation, bypassing the existing ballast. It can be installed in either double-ended or single-ended wiring configurations, making it versatile for various setups.

Light Output & Performance

With a lumen output of 5200 lumens and a CRI of 83, this bulb provides bright and accurate lighting for signage applications. The selectable CCT feature allows for customization of the light output to suit different needs.

Typical Applications

• Signage
• Commercial lighting
• Retail displays
• Outdoor signs
