360° LED T8 Sign Lamp, 72 in, 30W, 4350 Lumens, 40K|50K|65K, R17D Base
In stock
About this item
About this item
- Energy Efficient: Replaces traditional T8 and T12 lamps
- Base Type: R17D (Recessed Double Contact)
- Selectable CCT: 4000K, 5000K, 6500K
- Installation: Ballast-free, direct wire
- Beam Angle: 360 degrees for even light distribution
We process payments securely and do not store credit card information.
Description
Description

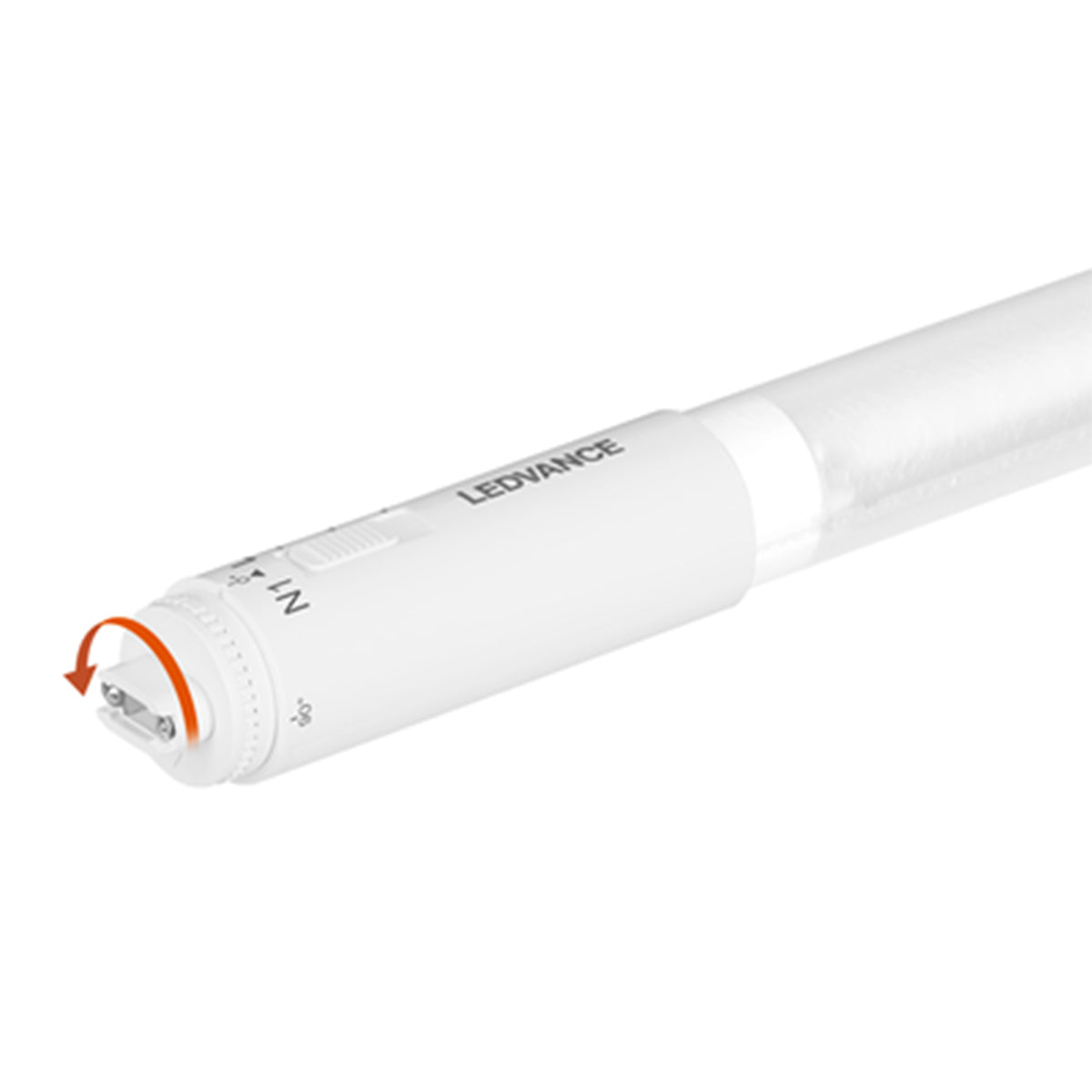

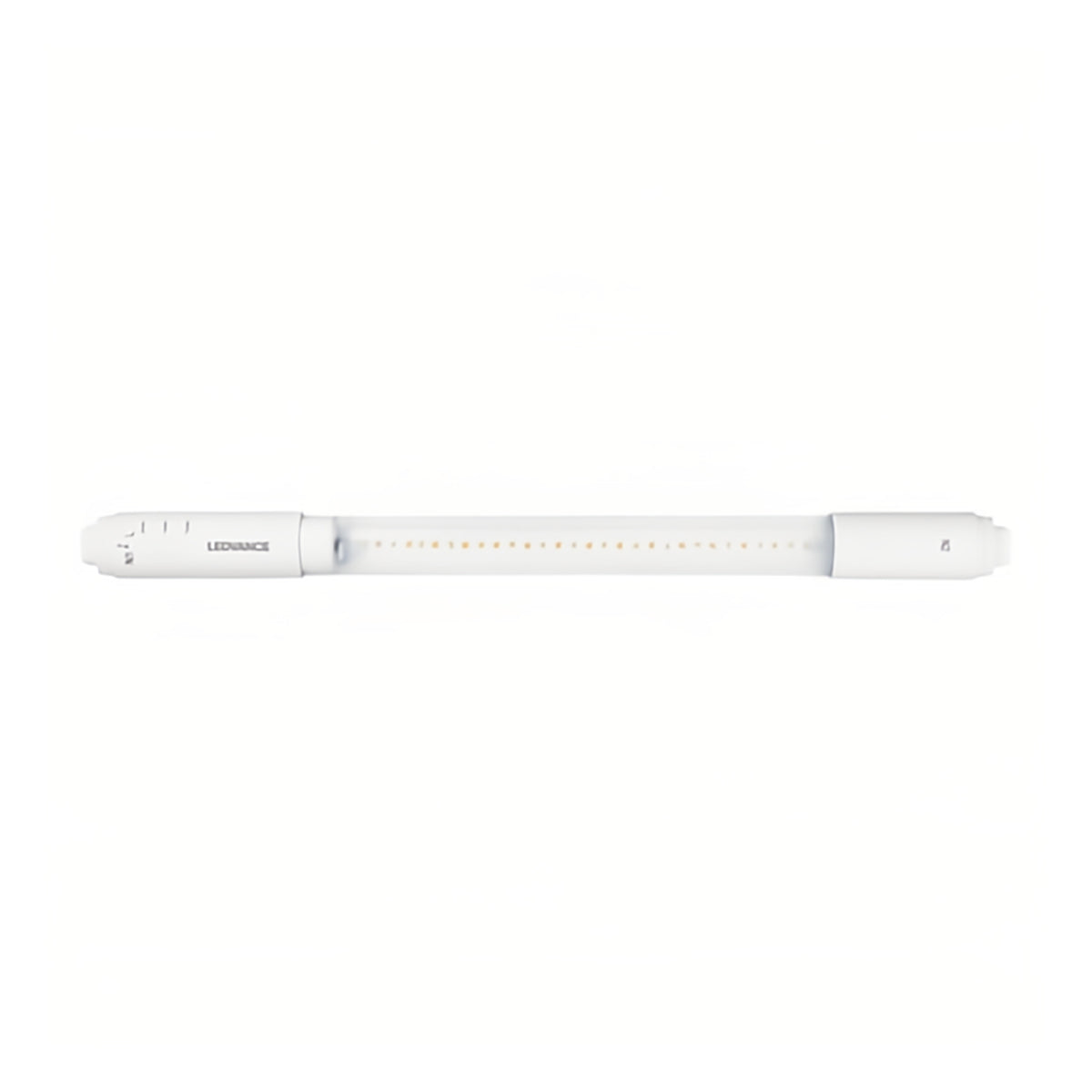

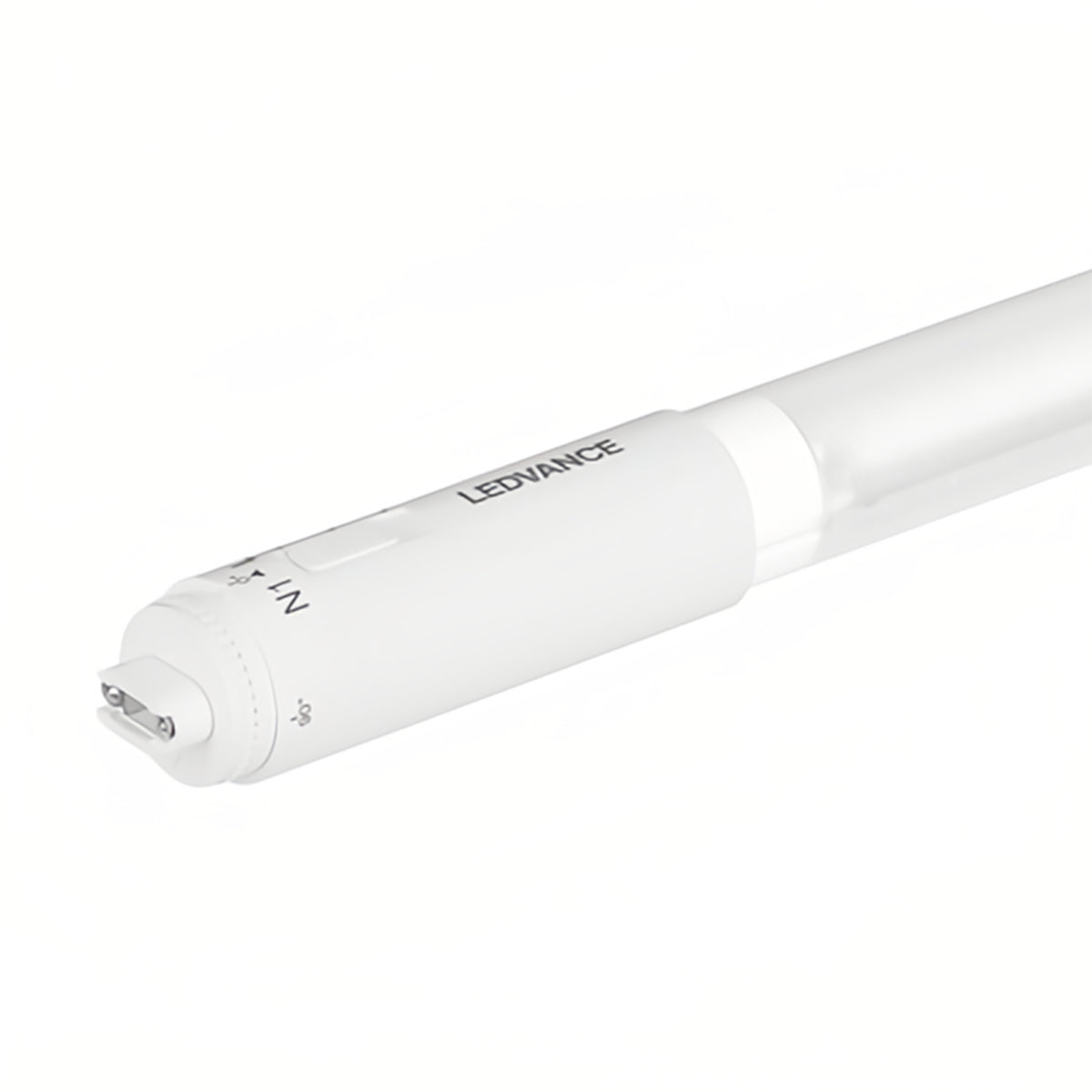

Sylvania 360° LED T8 Sign Lamp — 30W / 4000K/5000K/6500K
The Sylvania 42144 T8 LED bulb features a R17D base and is designed to replace traditional fluorescent high output T8 and T12 lamps. Operating at 30 watts, this bulb offers selectable color temperatures of 4000K, 5000K, and 6500K, providing flexibility for various signage applications.
Key Features
- Base Type: R17D (Recessed Double Contact)
- Bulb Shape: T8
- Equivalency: Replaces traditional T8 and T12 lamps
- Enclosed Fixture Rated: Yes
- Certifications: UL 1598C, RoHS, FCC
- Beam Angle: 360 degrees
- Voltage: 120-277V
- Power Factor: >0.9
- THD: <20%
- Lifespan: 50,000 hours (L70)
Construction & Aesthetics
Constructed from robust plastic and aluminum, this bulb features a frosted finish for even light distribution without hot spots. The bulb measures 69.07 inches in length and 1.13 inches in diameter.
Electrical & Installation
This bulb operates directly on 120-277V and supports both double-ended and single-ended wiring configurations. It is ballast-free, requiring a direct wire installation.
Light Output & Performance
With a lumen output of 4350 and a CRI of 83, this bulb ensures bright and accurate color rendering. The 360-degree beam angle provides comprehensive coverage for signage applications.
Typical Applications
- Outdoor signage
- Billboards
- Retail displays
- Commercial advertising
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What base type does the Sylvania 42144 use?
What base type does the Sylvania 42144 use?
Is the Sylvania 42144 dimmable?
Is the Sylvania 42144 dimmable?
Can the Sylvania 42144 be used in enclosed fixtures?
Can the Sylvania 42144 be used in enclosed fixtures?
Does the Sylvania 42144 require a ballast?
Does the Sylvania 42144 require a ballast?
What color temperatures are available for the Sylvania 42144?
What color temperatures are available for the Sylvania 42144?
