360° LED T8 Sign Lamp, 18 in, 7W, 1000 Lumens, 40K|50K|65K, R17D Base
In stock
About this item
About this item
- Energy Efficient: Replaces traditional T8 and T12 signage lamps
- Base Type: R17D (Recessed Double Contact)
- Color Temperature: Selectable 4000K, 5000K, 6500K
- Installation: Direct wire, ballast-free operation
- Beam Angle: 361° for even light distribution
We process payments securely and do not store credit card information.
Description
Description

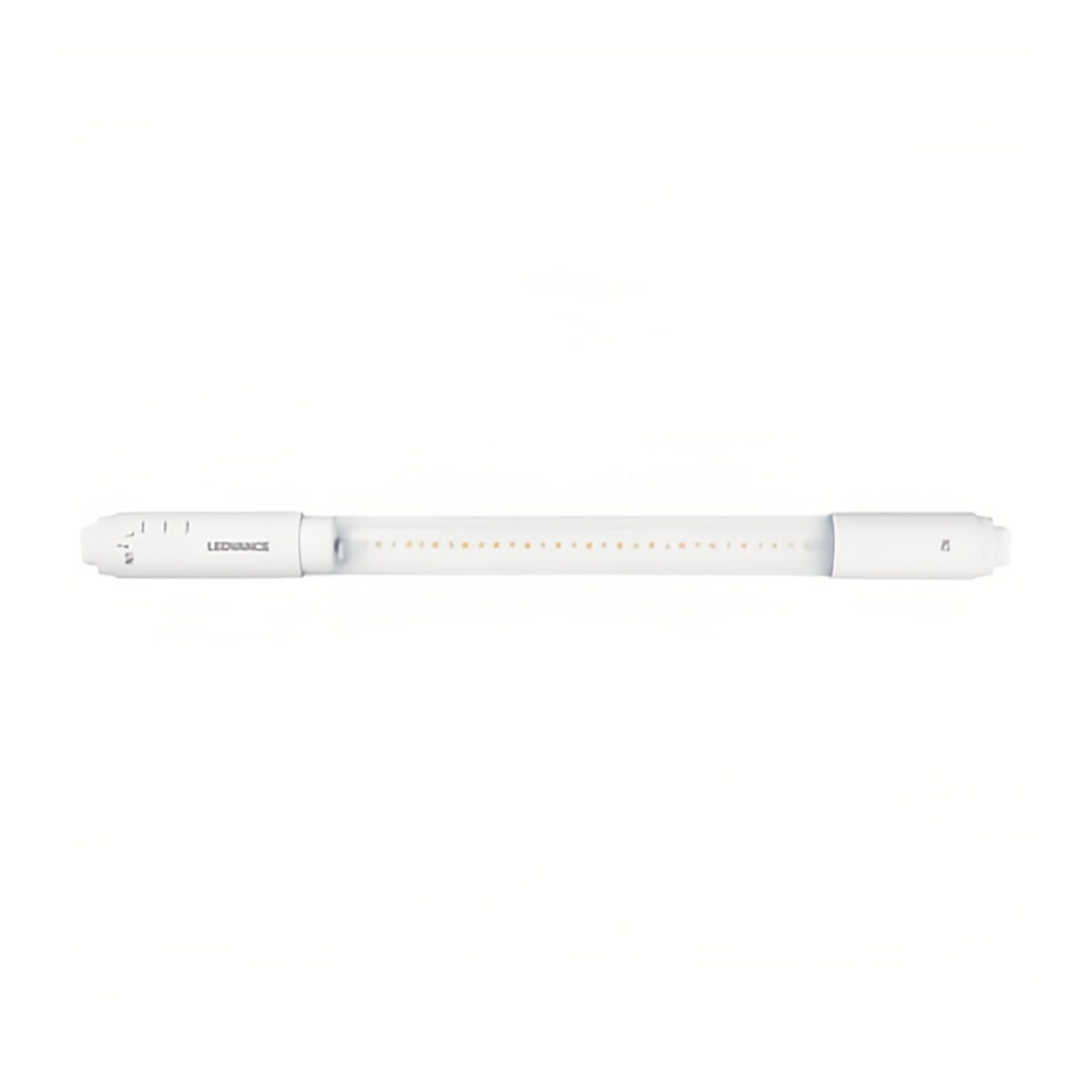

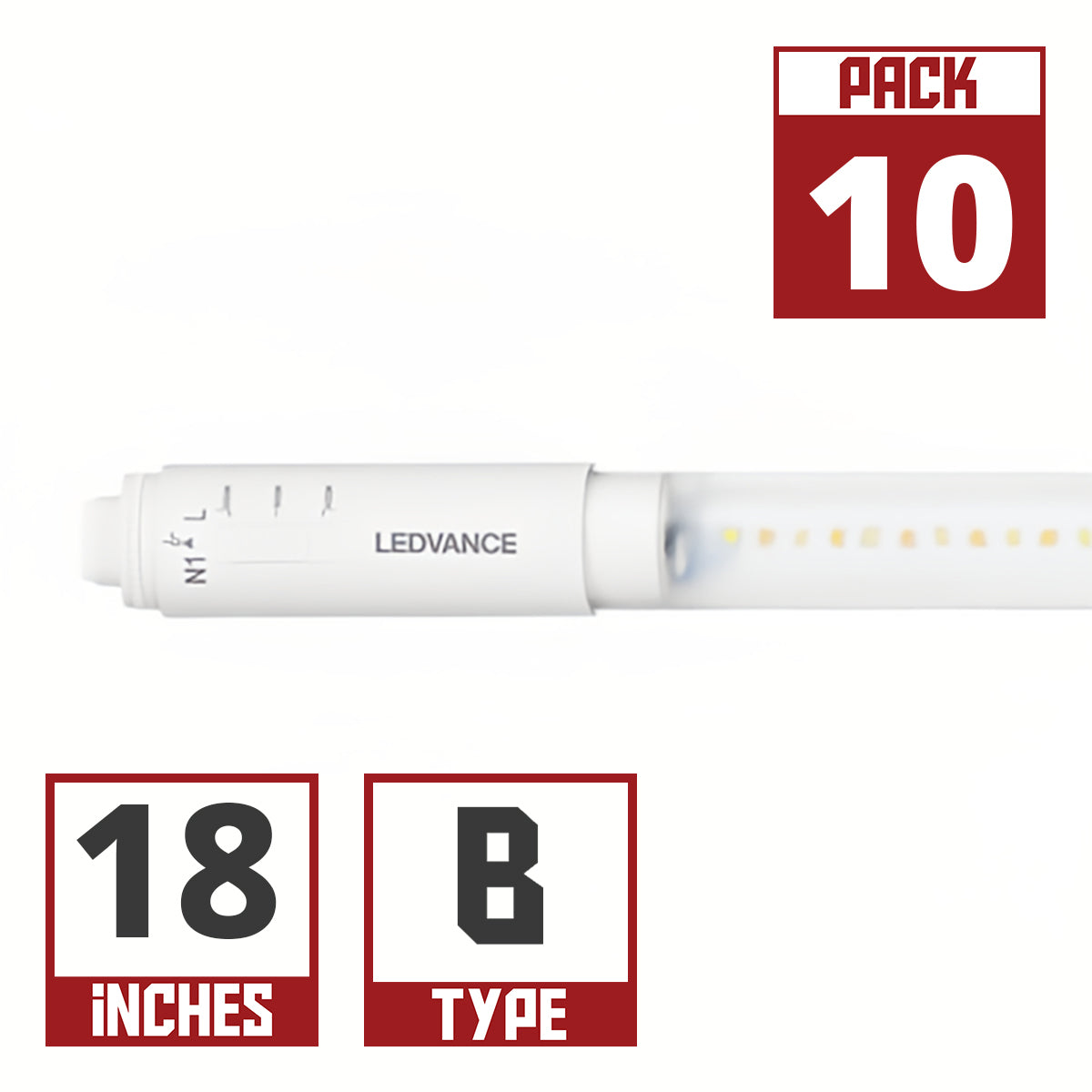

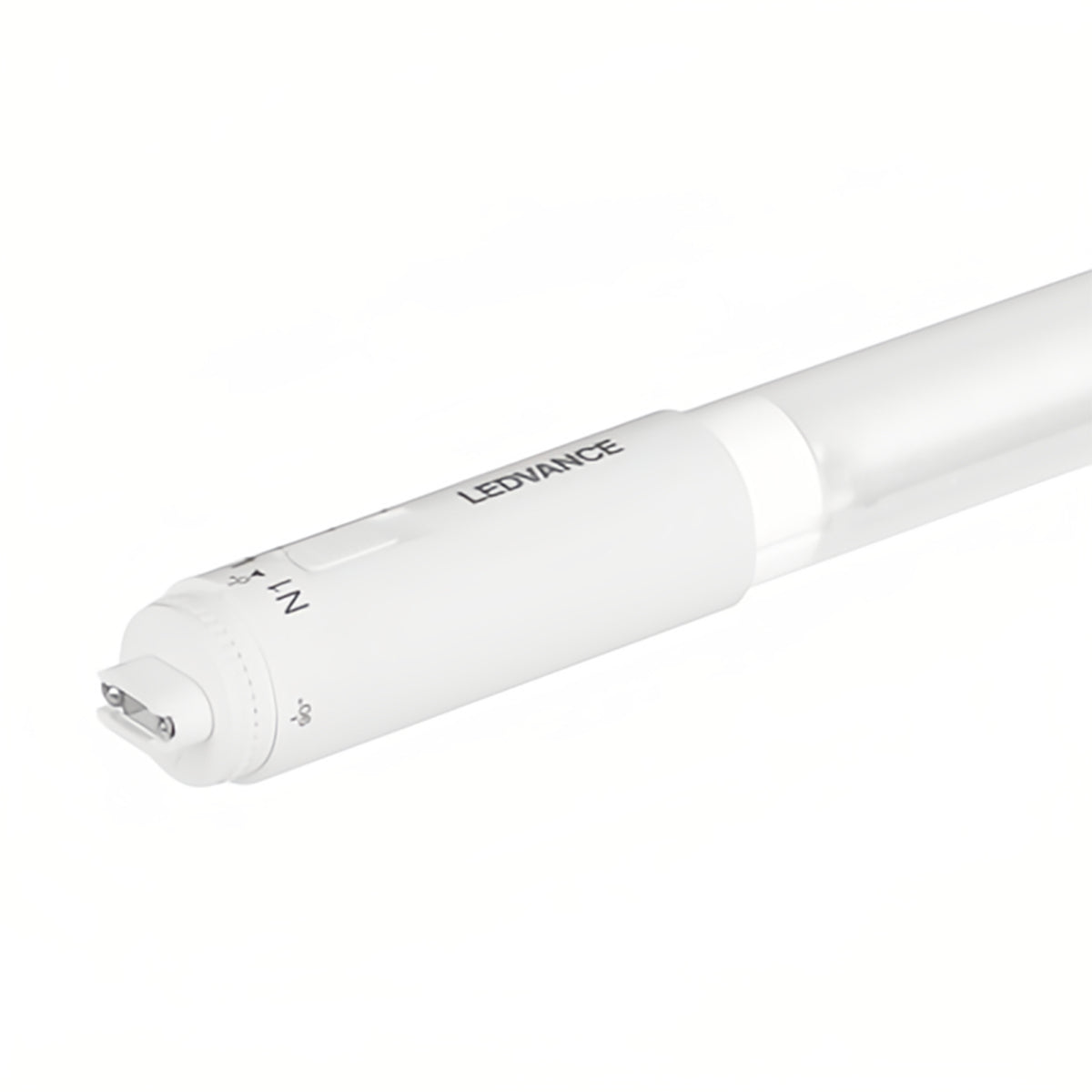

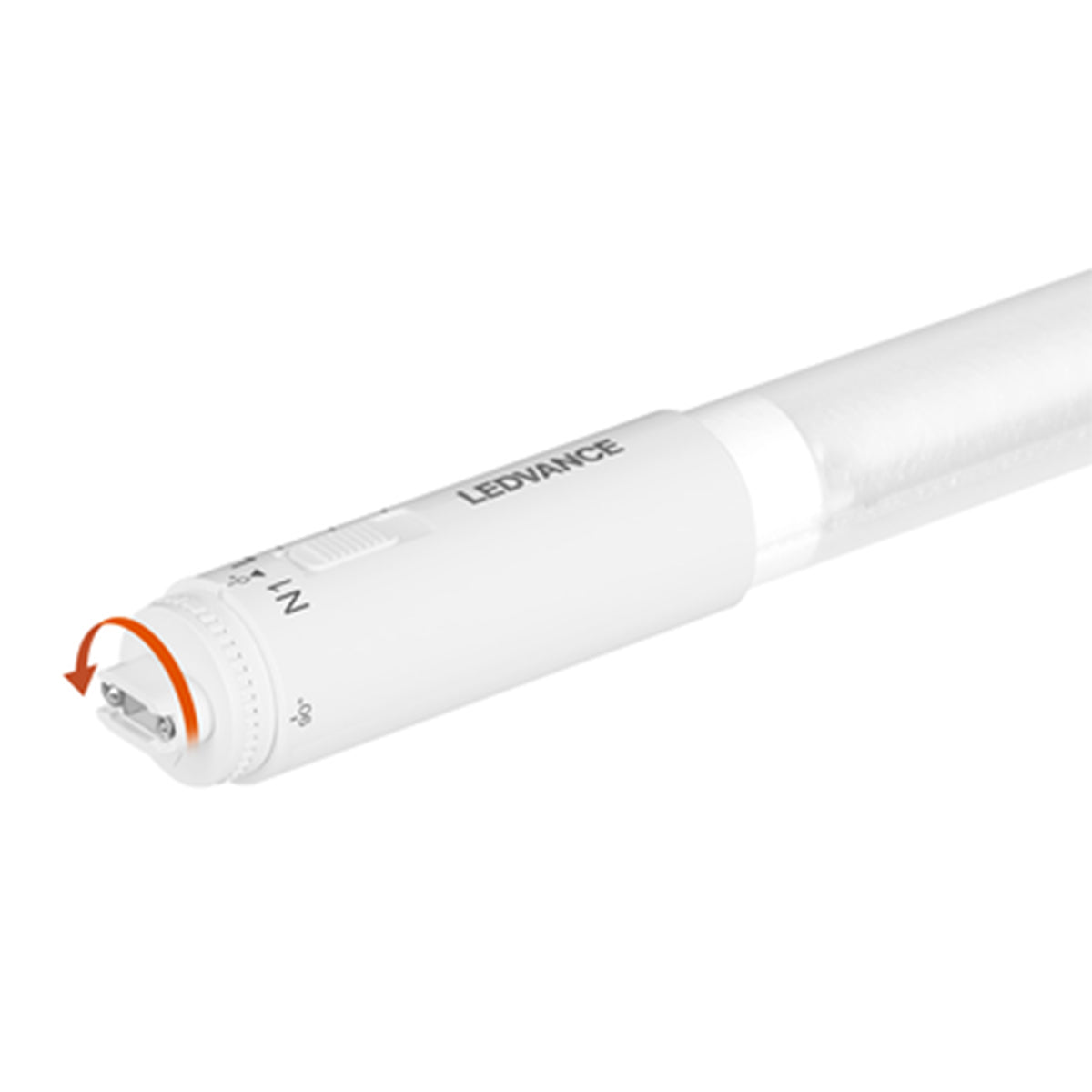

Sylvania 360° LED T8 Sign Lamp — 7W / Selectable CCT
The Sylvania 42136 T8 LED bulb with an R17D base is designed to replace traditional fluorescent high output T8 and T12 signage lamps. Operating at 7 watts, this bulb offers selectable color temperatures of 4000K, 5000K, and 6500K, providing flexibility for various applications. The bulb is engineered for direct wire installation, bypassing the existing ballast.
Key Features
- Base Type: R17D (Recessed Double Contact)
- Bulb Shape: T8
- Equivalency: Replaces T8 and T12 lamps
- Enclosed Fixture Rated: Yes
- Certifications: cULus, RoHS, FCC
- Color Temperature: Selectable 4000K, 5000K, 6500K
- Beam Angle: 361°
- Voltage: 120-277V
- Power Factor: > 0.9
- Rated Life: 50,000 hours
- Material: Frosted plastic
- UL Classified: LED sign retrofit
Construction & Aesthetics
Constructed with robust plastic and aluminum, this bulb features a frosted finish for even light distribution. Its 361° beam angle ensures comprehensive coverage without hot spots.
Electrical & Installation
This bulb operates on 120-277V and is designed for direct wire installation, bypassing the ballast. It supports both double-ended and single-ended wiring configurations.
Light Output & Performance
Delivering 1000 lumens with a CRI of 83, this bulb ensures high-quality light output. It has a lifespan of 50,000 hours, providing long-term performance.
Typical Applications
- Signage
- Commercial Lighting
- Retail Displays

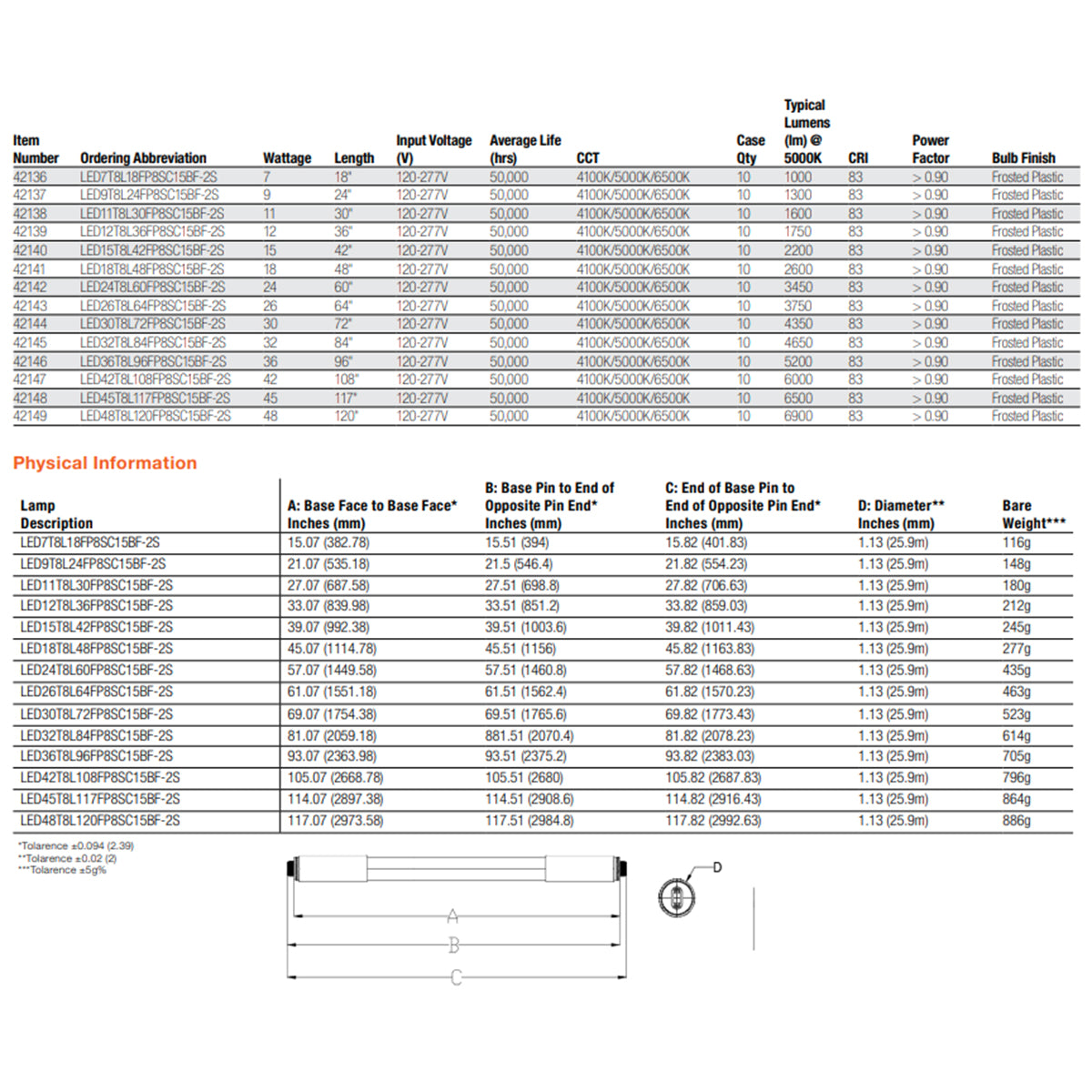

Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
