LEDVANCE Sylvania Dual Selectable UFO High Bay — 100–320W Selectable — 3500K/4000K/5000K — 120–347V — White / Black
Regular price
$239.05
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Available in stock (300)
Arrives by
Must be ordered in quantities of .
About this item
About this item
- Selectable Output: Choose from 2 wattage configurations — 100/150/200W or 240/280/320W — delivering up to 48,000 lumens at 150 lm/W. No rewiring required.
- Selectable CCT: Field-select 3500K, 4000K, or 5000K at the fixture — one SKU covers warm white, neutral white, and cool white for any facility environment.
- IP65 Wet Location: UL Listed for wet locations — rated for wash-down environments, outdoor canopies, and covered industrial spaces.
- DLC 5.1 Premium: Qualifies for the highest tier of utility rebate programs in most U.S. markets.
- LEDVANCE LINK™ Bluetooth® Mesh Ready: Screw-in sensor receptacle accepts LEDVANCE LINK motion and daylight sensors for occupancy-based automation. 0–10V dimming standard.
Description
Description
LEDVANCE Sylvania Dual Selectable UFO High Bay 5A — 100–320W Selectable — White & Black
The LEDVANCE Sylvania Dual Selectable UFO High Bay 5A covers four configurations across two wattage tiers and two finishes, giving specifiers and contractors a single family to right-size output for ceiling heights from 15 to 45 ft. Field-selectable wattage (100/150/200W or 240/280/320W) and CCT (3500K / 4000K / 5000K) are adjustable on site without re-ordering. Up to 48,000 lumens at 150 lm/W peak efficacy. Operates on 120–347V with integrated 0–10V dimming. Rated IP65, UL Wet Location, IK08, NSF Listed, and DLC 5.1 Premium certified. TAA compliant for government and institutional procurement.
Key Features
- Selectable Wattage: 100/150/200W (Items 62299, 62301) or 240/280/320W (Items 62300, 62302) — field-adjustable on site
- Selectable CCT: 3500K / 4000K / 5000K — tunable without re-ordering
- Lumen Output: 15,000–30,000 lm (100–200W tier) · 36,000–48,000 lm (240–320W tier)
- Peak Efficacy: Up to 150 lm/W
- CRI: >80
- Dimming: 0–10V continuous dimming standard
- Voltage: 120–347V AC, 50/60Hz
- Power Factor: >90% · THD: <20%
- Surge Protection: 6kV
- Impact Rating: IK08
- Location Rating: UL Listed for wet locations · IP65
- NSF Listed: Suitable for food processing and food service environments
- Operating Temperature: -40°F to +122°F (-40°C to +50°C)
- Rated Life: 125,000 hours (L70)
- Warranty: 5 years (NLB Trusted Warranty Program)
- Controls Ready: Screw-in sensor receptacle — accepts field-installable sensors or LEDVANCE LINK™ Bluetooth® Mesh components (sold separately)

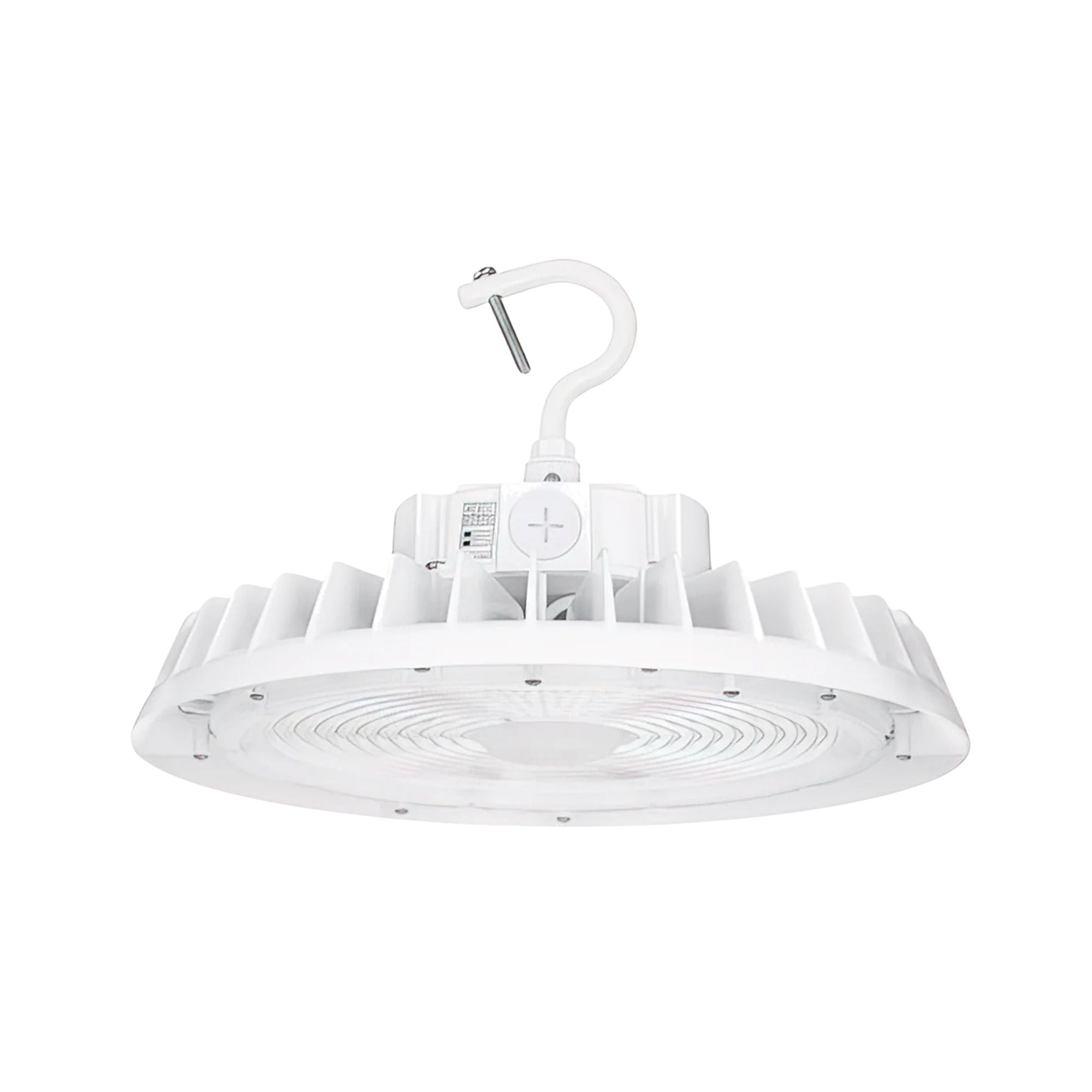

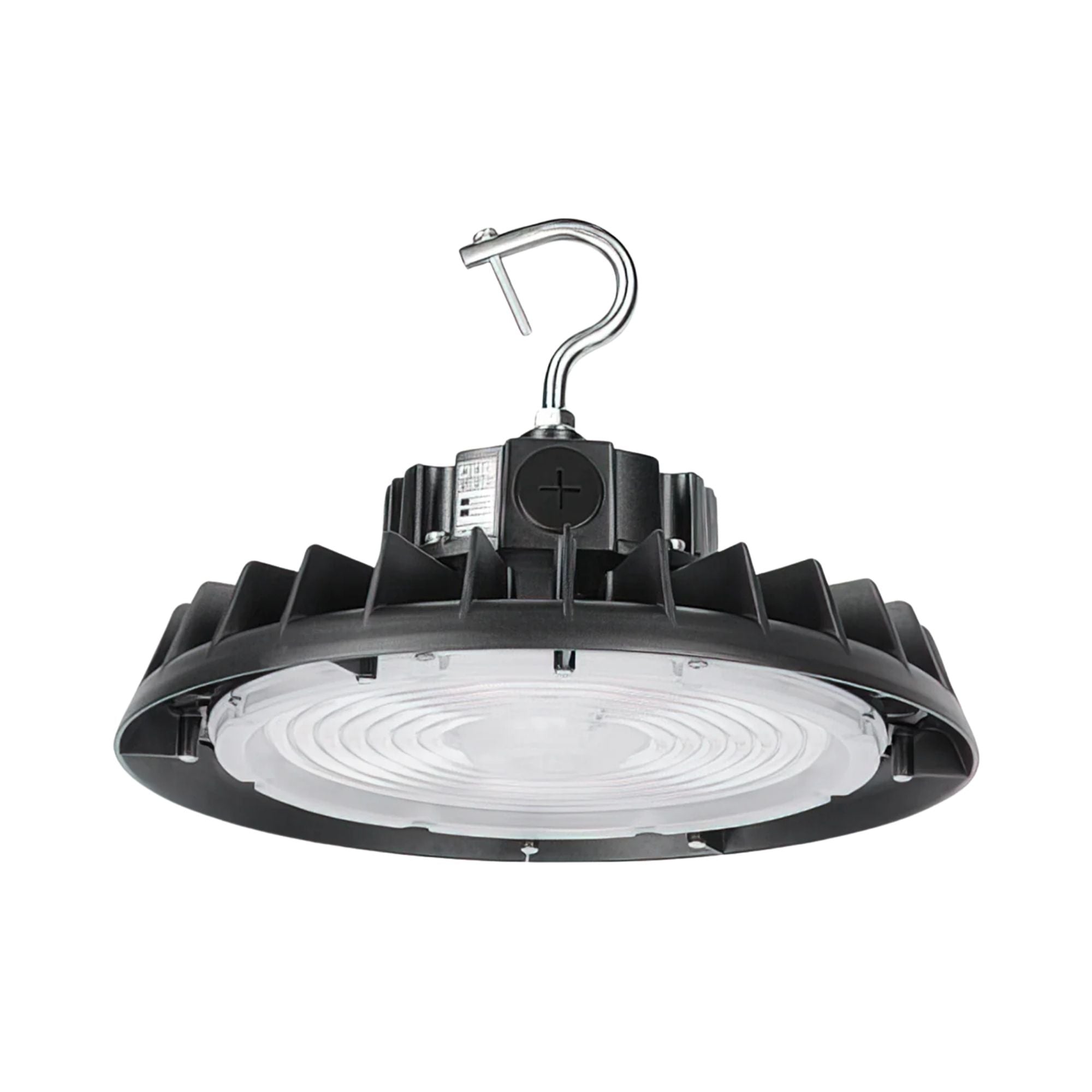

- Finish: White (Items 62299, 62300) or Black (Items 62301, 62302)
Performance & Light Output
| Item # | Wattage | Total Lumens | Efficacy | HID Equivalent | Finish |
|---|---|---|---|---|---|
| 62299 / 62301 | 100W | 15,000 lm | 150 lm/W | ~250W MH/HPS | White / Black |
| 62299 / 62301 | 150W | 22,500 lm | 150 lm/W | ~400W MH/HPS | White / Black |
| 62299 / 62301 | 200W | 30,000 lm | 150 lm/W | ~550W MH/HPS | White / Black |
| 62300 / 62302 | 240W | 36,000 lm | 150 lm/W | ~600W MH/HPS | White / Black |
| 62300 / 62302 | 280W | 42,000 lm | 150 lm/W | ~750W MH/HPS | White / Black |
| 62300 / 62302 | 320W | 48,000 lm | 150 lm/W | ~1000W MH/HPS | White / Black |
CRI >80 across all wattage and CCT settings. Rated life 125,000 hours (L70) per IES TM-21.
Smart & Control Features
All 5A fixtures include a controls-ready screw-in sensor receptacle — no wiring required. Compatible with:
- Field-installable motion/daylight sensors — Item 65622 (Microwave DC, IP65, max 49 ft), Item 62664 (PIR DC, IP65, max 39 ft) — sold separately
- LEDVANCE LINK™ Bluetooth® Mesh — BLE controller (Item 62630), BLE sensor+controller (Item 62634) via adapter 63652 — sold separately
- Wall switch: 5-button Bluetooth® Mesh wall controller (Item 62636) — sold separately
Electrical
Constant current LED driver. Input: 120–347V AC, 50/60Hz. Power factor >90%. THD <20%. Surge protection: 6kV. Integrated 0–10V dimming via 3-foot dimming cable. Mercury-free, UV-free, RoHS compliant.
Construction
Die-cast aluminum body with molded heatsink fins for passive thermal dissipation. 90° polycarbonate lens minimizes glare. IP65-rated, IK08 impact resistant. Available in White or Black powder coat.
- 100–200W body: 11.8 in dia × 4.8 in H · 5.47 lb
- 240–320W body: 15.7 in dia × 5.9 in H · 9.70 lb
Installation & Mounting
Ships with pre-installed heavy-duty hook, 6-foot power cable, and 3-foot dimming cable. Optional accessories (sold separately):
- Surface/Pendant Mount Bracket (White — Item 65613 · Black — Item 65702)
- Wire Guard — Item 65620
- Polycarbonate Refractor, 90° — Item 65616
- Aluminum Reflector, 90° — Item 65618
- Emergency Battery Backup 40W (277V max) — Item 61062
Recommended ceiling height: 15–30 ft for 100/150/200W · 30–45 ft for 240/280/320W.
Certifications & Rebates
-
Ordering Abbreviations:
- Item 62299 — UFO5A/S200UNHD8SC7/WH (White, 100/150/200W)
- Item 62300 — UFO5A/S320UNHD8SC7/WH (White, 240/280/320W)
- Item 62301 — UFO5A/S200UNHD8SC7/BL (Black, 100/150/200W)
- Item 62302 — UFO5A/S320UNHD8SC7/BL (Black, 240/280/320W)
- DLC 5.1 Premium Listed — qualifies for utility rebate programs in most U.S. markets. Verify at designlights.org.
- cULus Listed — UL Wet Location rated
- IP65
- IK08
- NSF Listed
- FCC
- RoHS Compliant
- TAA Compliant — eligible for U.S. government and GSA procurement
- 5-Year Warranty — NLB Trusted Warranty Program
Typical Applications
- Warehouses and distribution centers — replaces 250–1000W HID for up to 68% energy savings
- Manufacturing and assembly facilities — selectable CCT and wattage right-size output to task and ceiling height
- Gymnasiums and recreational facilities — NSF listing supports food-adjacent environments
- Cold storage and refrigerated warehouses — rated to -40°F without warm-up time
- Municipal and government buildings — TAA compliant for qualifying procurement
- Loading docks and industrial storage — IP65 and IK08 rated for dust, moisture, and impact
What's Included
- LEDVANCE Sylvania Dual Selectable UFO High Bay 5A (finish per item selected)
- Pre-installed heavy-duty mounting hook
- 6-foot power cable
- 3-foot dimming cable
Specifications
Specifications
Documents
Item Details
MPN
62302
MPN
62301
MPN
62300
MPN
62299
Brand
Sylvania
Family
UFO High Bay 5A
UPC
046135623028
Frequently Asked Questions
How do I choose between the 100/150/200W and 240/280/320W tier?
How do I choose between the 100/150/200W and 240/280/320W tier?
The two tiers are optimized for different ceiling height ranges. Items 62299 (White) and 62301 (Black) are the 100/150/200W tier, recommended for ceiling heights of 15–30 ft — replacing up to 550W MH/HPS. Items 62300 (White) and 62302 (Black) are the 240/280/320W tier, recommended for ceiling heights of 30–45 ft — replacing up to 1000W MH/HPS. Within each tier, wattage is field-selectable on site without rewiring or re-ordering. Select the tier based on your mounting height and target footcandles, then dial in the exact wattage on site.
Can I select wattage and CCT after the fixture is installed?
Can I select wattage and CCT after the fixture is installed?
Yes. Both wattage and CCT are field-selectable on the fixture itself — no tools, no rewiring, and no accessories required. Wattage is adjusted via a built-in selector switch (100/150/200W or 240/280/320W depending on the model). CCT is adjusted via a separate switch with three positions: 3500K, 4000K, and 5000K. Both adjustments can be made after installation, allowing contractors and facility managers to fine-tune output to the space without ordering a different fixture.
Are the 5A models compatible with motion/daylight sensors and wireless controls?
Are the 5A models compatible with motion/daylight sensors and wireless controls?
Yes. All four 5A fixtures (Items 62299–62302) include a screw-in sensor receptacle at the center of the lens — no wiring required. Compatible accessories include: Item 65622 (Microwave DC sensor, IP65, max 49 ft mounting height), Item 62664 (PIR DC sensor, IP65, max 39 ft), and LEDVANCE LINK™ Bluetooth® Mesh components — BLE low-voltage controller (Item 62630) or BLE sensor+controller (Item 62634) via adapter 63652. A 5-button wall controller (Item 62636) is also available for group control. Control via the LEDVANCE LINK™ app (iOS/Android). Compatible with DLC-approved Networked Lighting Control (NLC) systems.
Are all 5A models NSF listed and suitable for food processing environments?
Are all 5A models NSF listed and suitable for food processing environments?
Yes. All four 5A models (Items 62299, 62300, 62301, 62302) are NSF listed, IP65 rated for dust and water ingress, and IK08 impact rated — meeting the hygiene, washdown resistance, and impact durability requirements for food processing facilities, commercial kitchens, and food service environments. Operating temperature range is -40°F to +122°F (-40°C to +50°C) with no warm-up time required.
Are the 5A models DLC Premium listed and eligible for utility rebates?
Are the 5A models DLC Premium listed and eligible for utility rebates?
Yes. All four 5A models (Items 62299, 62300, 62301, 62302) are DLC 5.1 Premium listed, qualifying for the highest rebate tier from DLC Member Utilities. To confirm your utility's specific incentive or look up the ordering abbreviation for your model, visit designlights.org. Ordering abbreviations: Item 62299 — UFO5A/S200UNHD8SC7/WH · Item 62300 — UFO5A/S320UNHD8SC7/WH · Item 62301 — UFO5A/S200UNHD8SC7/BL · Item 62302 — UFO5A/S320UNHD8SC7/BL.
