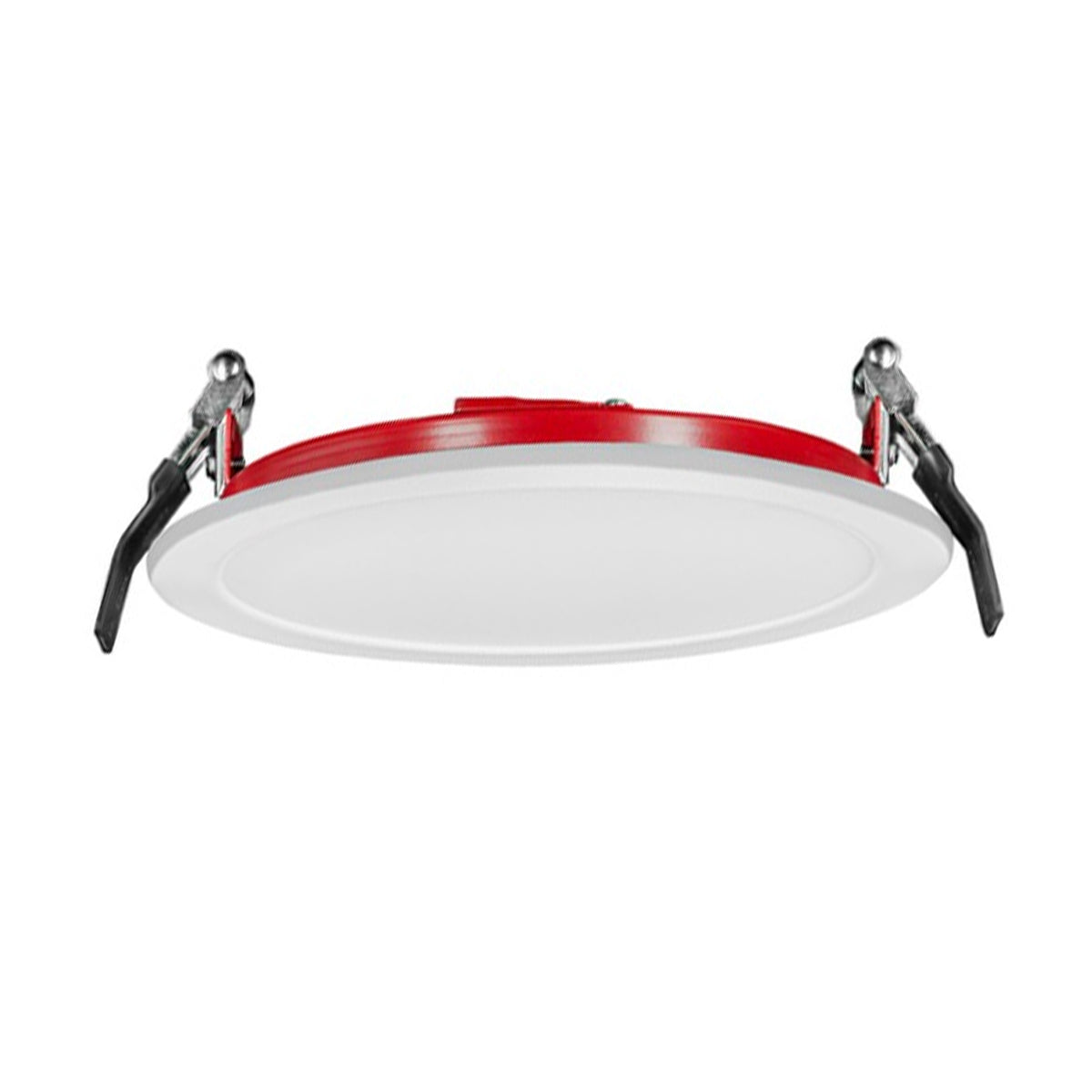

Sylvania Blazeguard Flame Resistant Slim Microdisk LED Downlight — 4 in / 6 in / 8 in / Selectable CCT / 120V / White

The Sylvania Blazeguard is a flame-resistant slim microdisk LED canless downlight family from LEDVANCE Performance Class, available in 4 in (Sylvania 63426), 6 in (Sylvania 63427), and 8 in (Sylvania 63428). At just 1/2 in height, all models install directly under joists in new and remodel construction. Fire rated per UL263 (1100°C / 2 hours), IC rated, airtight per ASTM E283-2004, wet rated, and ENERGY STAR certified. Field-selectable CCT (2700K–5000K). Quick connectors included. 120V / Phase-Cut dimming. TAA compliant.

Series Overview

• Sylvania 63426 (4 in): 10W | 800 lm | 80 LPW | Catalog: LEDMD4R3B800ST9SC3WH | 120-277V: see Sylvania 63594 (MTO)
• Sylvania 63427 (6 in): 14W | 1,200 lm | 86 LPW | Catalog: LEDMD6R3B1200ST9SC3WH | 120-277V: see Sylvania 63595 (MTO)
• Sylvania 63428 (8 in): 19W | 1,600 lm | 84 LPW | Catalog: LEDMD8R3B1600ST9SC3WH | 120-277V: see Sylvania 63596 (MTO)

Key Features (All Models)

• Type: Round flame-resistant slim microdisk LED canless downlight | LEDVANCE Performance Class | 1/2 in fixture height
• Construction: Ultra-thin profile | Installs directly under joists | Quick connectors included | Universal Metal Frame sold separately for new construction
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via switch on driver
• CRI: 92 | L70: 50,000 hours
• Input Voltage: 120V | Phase-Cut dimming | PF: >0.9 | THD: <20% | 120V only
• IC Rating: Yes — IC rated for direct contact with ceiling insulation
• Air Tight: Yes — certified per ASTM E283-2004
• Fire Rating: UL263 — withstands flames of 1100°C for up to 2 hours
• Environment: Wet rated | Op temp: -4°F to 104°F (-20°C to 40°C)
• Cable: FT6 listed cable
• Closet Rating: Suitable for closets — NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)

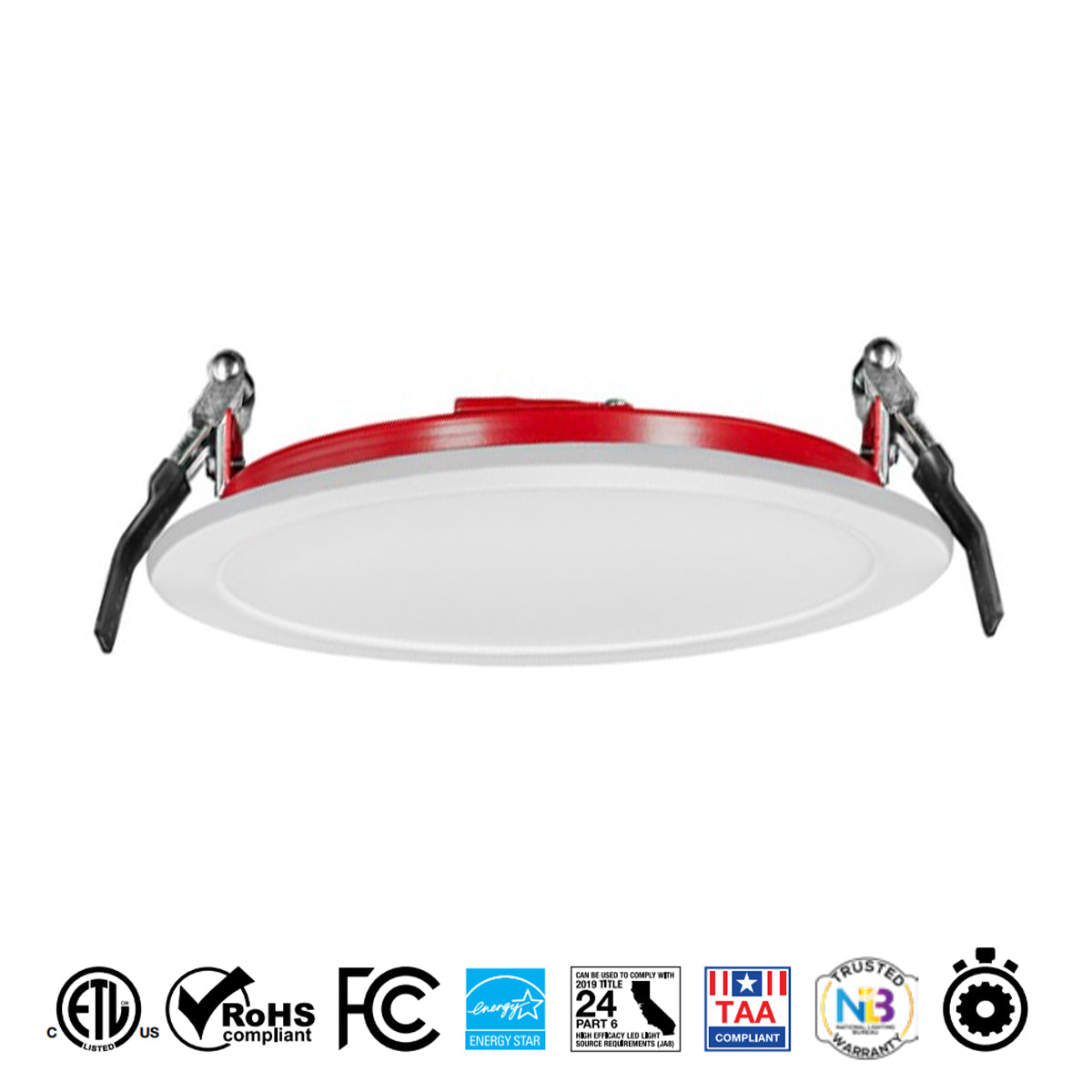

• Certifications: ENERGY STAR Certified | Title 24 Compliant | TAA Compliant | cETLus | FCC | RoHS | UL263 | ASTM E283-2004
• Warranty: 5-year / NLB Trusted Warranty Program

Light Output & Performance

The Blazeguard family delivers up to 92% energy savings vs incandescent. The 4 in model produces 800 lm at 10W (80 LPW), the 6 in produces 1,200 lm at 14W (86 LPW), and the 8 in produces 1,600 lm at 19W (84 LPW). All models feature CRI 92 and 50,000-hour L70 lifespan across all five CCT settings.

Electrical & Installation

All Blazeguard models operate at 120V with Phase-Cut dimming (PF >0.9, THD <20%). The 1/2 in ultra-thin profile installs directly under joists. Remote driver with quick connectors included. IC rated and airtight per ASTM E283-2004. Fire rated per UL263. FT6 listed cable. For 120-277V or 0-10V dimming, see made-to-order variants Sylvania 63594 (4 in), Sylvania 63595 (6 in), and Sylvania 63596 (8 in).

Compatible Accessories (Sold Separately)

• Extension Cables: Sylvania 60793 — LEDMD6FTEXCBL (6 ft) | Sylvania 60794 — LEDMD10FTEXCBL (10 ft) | Sylvania 60795 — LEDMD20FTEXCBL (20 ft)
• Universal Metal Frames: Sylvania 62959 — LEDSLIMMDFRAME (20.72 × 9.65 in) | Sylvania 63743 — MDFRAME1A (17.72 × 14.65 in)
• Rough-In Frames: Sylvania 71708 — LED/RT6HO/FRAME (6 in) | Sylvania 71709 — LED/RT8/FRAME (8 in)

Typical Applications

• Multi-family housing and fire-rated ceiling applications
• Shipbuilding and marine applications
• Residential kitchens, bathrooms, and living areas
• Commercial offices and retail spaces
• Wet and damp locations including bathrooms and covered outdoor areas
• New construction and remodel installations under joists
• Closet lighting per NEC 410.16
