LEDVANCE Sylvania PANELF3B Backlit Dual Selectable LED Panel — 1×4 / 2×2 / 2×4 — 3500K/4000K/5000K — White
Available in stock (200)
-
Estimated delivery: Oct 27 - Oct 31
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

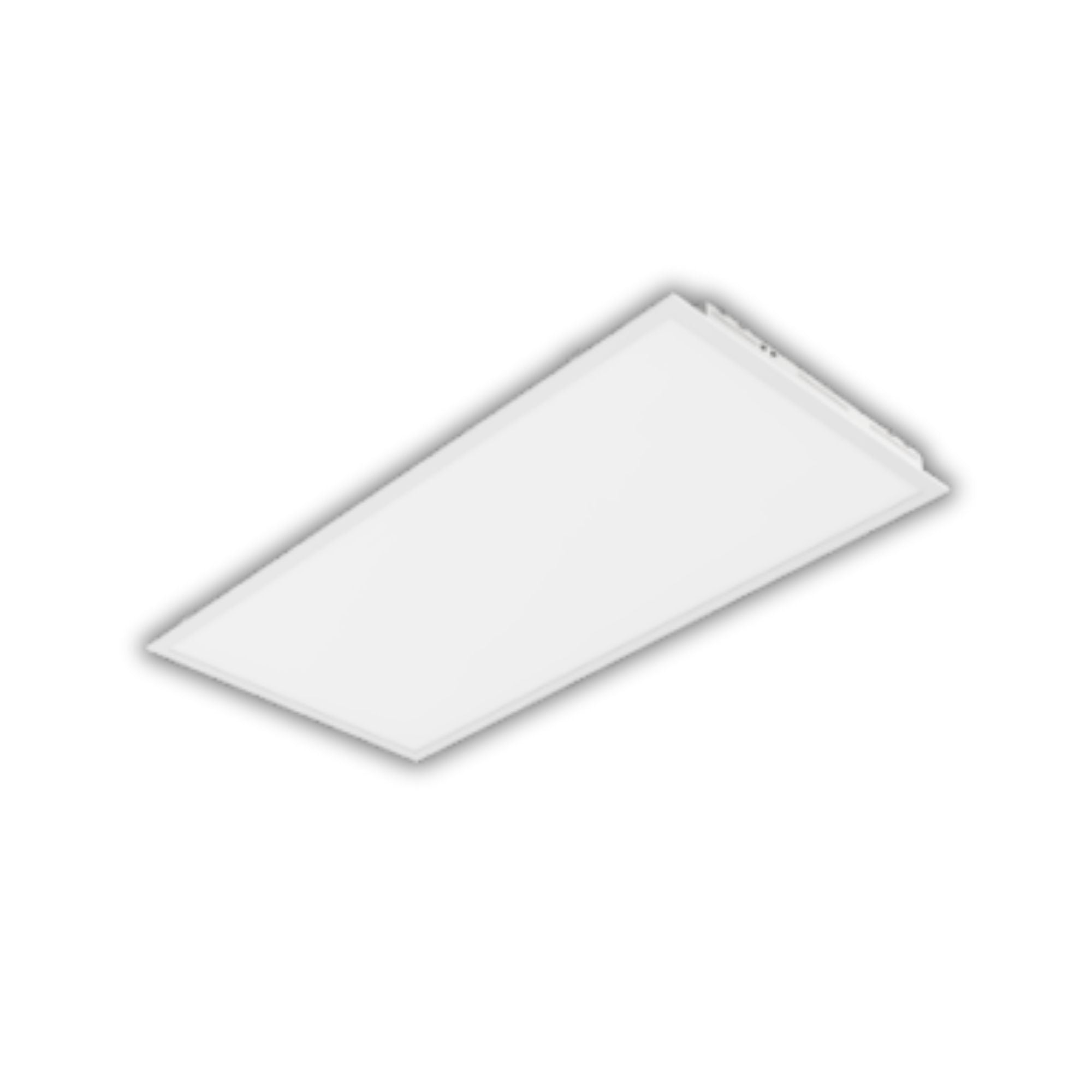

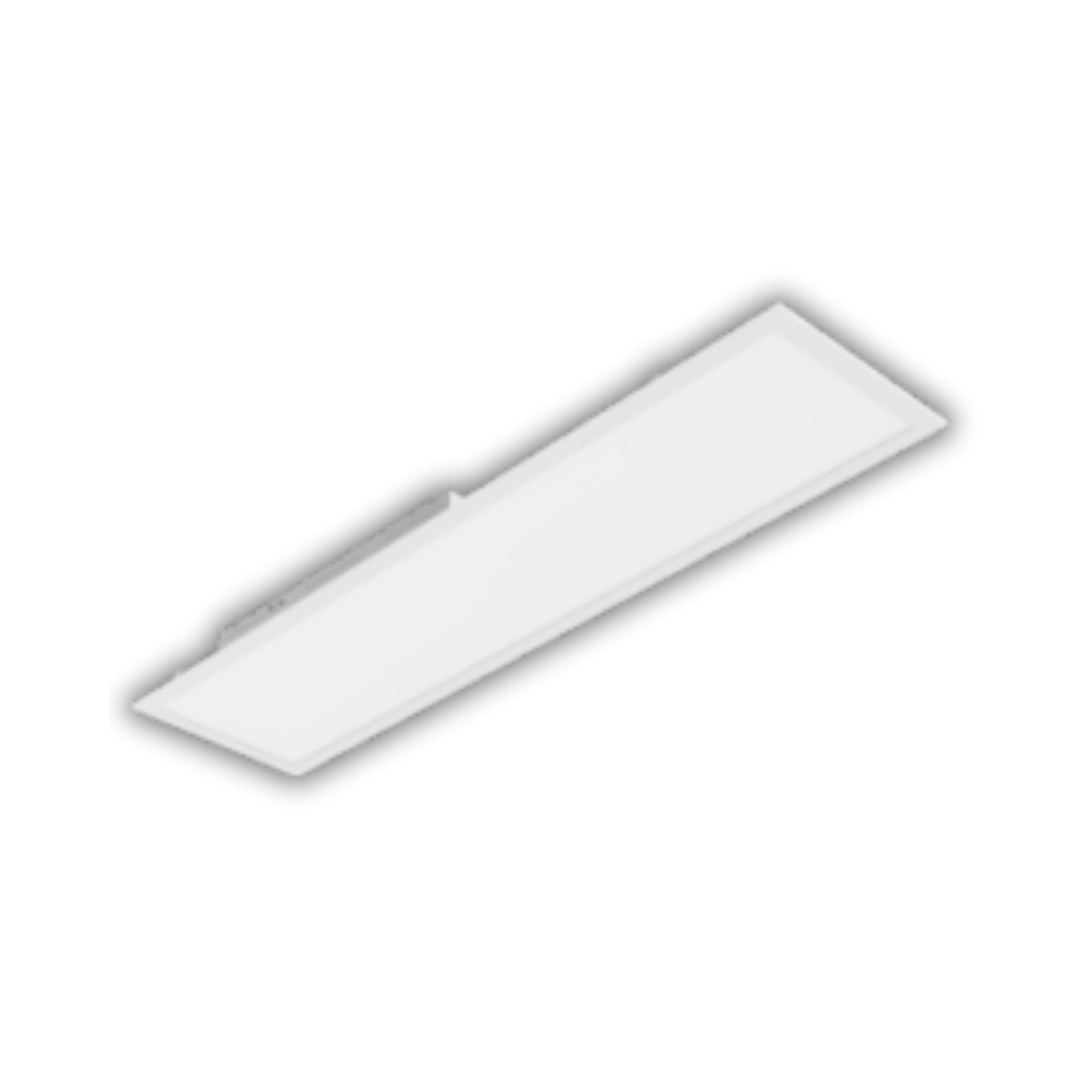

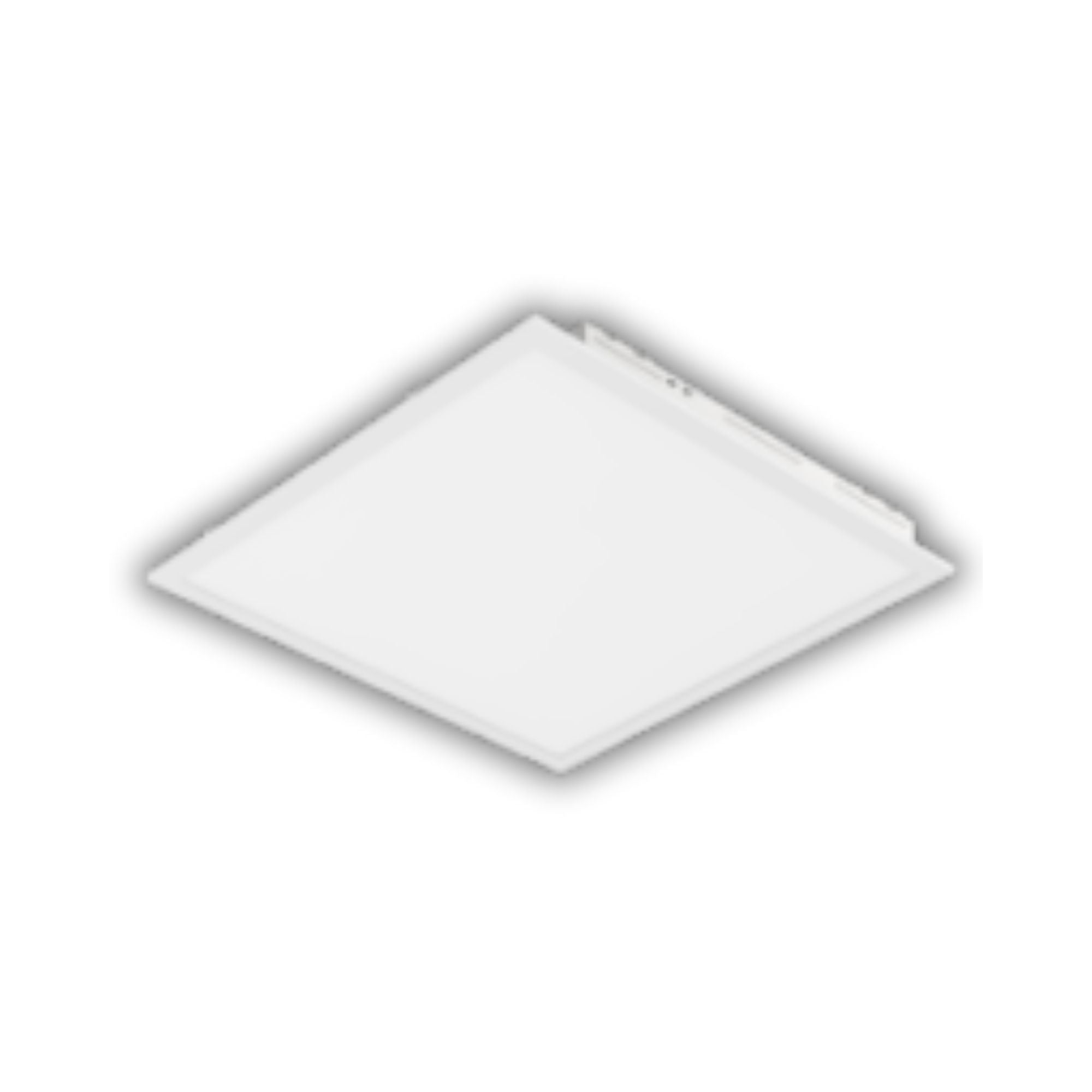

LEDVANCE Sylvania PANELF3B Backlit Dual Selectable LED Panel — 1×4 / 2×2 / 2×4 — White
The LEDVANCE Sylvania PANELF Generation 3B Backlit Dual Selectable series is a family of low-profile recessed LED backlit flat panels available in 1×4, 2×2, and 2×4 sizes. All models feature dual field-selectable wattage and color temperature — both adjustable without tools at the fixture. Color temperature is selectable between 3500K, 4000K, and 5000K across all sizes. All models support 0–10V dimming, are cETLus Listed for IC and damp locations, DLC Listed, TAA Compliant, and carry a 5-year warranty backed by the NLB Trusted Warranty Program. The 2×4 50W variant (65904) operates on 120–347V for U.S. and Canadian compatibility; all other models operate on 120–277V.
Key Features
- Dual Selectable Wattage & CCT: Both wattage and color temperature are field-adjustable without tools — one SKU per size covers multiple output levels and CCTs.
- CCT Options: 3500K, 4000K, and 5000K — available across all sizes.
- Backlit Panel Design: Even, glare-controlled illumination across the full panel surface.
- CRI: 80 across all models.
- 0–10V Dimming: Continuous 0–10V dimming. Compatible dimmer required, sold separately.
- IC and Damp Rated: cETLus Listed to UL1598 across all models.
- DLC Listed: All models qualify for utility rebate programs.
- TAA Compliant: Available for U.S. government and GSA procurement. TAA inventory available — check with your LEDVANCE sales representative for availability.
- Optional Emergency Battery Backup: All models compatible with field-installable EMBB units (62367 or 60888, sold separately). EMBB provides minimum 790 lm (850 lm nominal) for 90+ minutes.
- Rated Life: L70 50,000 hours.
- Warranty: 5-year limited warranty — NLB Trusted Warranty Program.
Model Selection & Performance
| Item # | Size | Wattage Steps | Max Lumens | Peak Efficacy | Voltage |
|---|---|---|---|---|---|
| 65896 | 1×4 | 20 / 30 / 35W | 4,150 lm | 134 lm/W | 120–277V |
| 65897 | 2×2 | 20 / 30 / 35W | 4,400 lm | 138 lm/W | 120–277V |
| 65898 | 2×4 | 30 / 35 / 45W | 5,511 lm | 138 lm/W | 120–277V |
| 65904 | 2×4 | 35 / 40 / 50W | 6,250 lm | — | 120–347V |
All models: CRI 80, 0–10V dimming, power factor >0.90, THD <20%.
Physical Dimensions
| Size | Length | Width | Height |
|---|---|---|---|
| 1×4 | 12.0″ | 47.8″ | 1.8″ |
| 2×2 | 23.9″ | 23.9″ | 1.7″ |
| 2×4 | 23.9″ | 47.8″ | 1.7″ |
Electrical
Voltage: 120–277V (65896, 65897, 65898) / 120–347V (65904). Dimming: 0–10V. Power factor: >0.90. THD: <20%. Operating temperature: −20°C to +45°C (−4°F to +113°F). Mercury-free.
Installation & Mounting
Standard Mounting: Recessed installation into standard T-grid ceiling systems (1×4, 2×2, or 2×4 per selected size).
Accessories (Sold Separately):
- EMBB Unit (large): 62367 (EMBB2A8WUNVDC)
- EMBB Unit (small): 60888 (EMBB1A8WDC)
- Bridge Kit for 1×4: 61683 (ACCPANELF3AEMBB-BRIDGE1)
- Bridge Kit for 2×2 / 2×4: 61682 (ACCPANELF3AEMBB-BRIDGE2)
- Surface Mount Kit 1×4: 62066 (SMKIT3A/14/WH)
- Surface Mount Kit 2×2: 62064 (SMKIT3A/22/WH)
- Surface Mount Kit 2×4: 62065 (SMKIT3A/24/WH)
- Suspension Kit: 62067 (SPKIT3A)
- Flange Kit 1×4: 60457 (FK1A14GWH)
- Flange Kit 2×2: 60458 (FK1A22GWH)
- Flange Kit 2×4: 60459 (FK1A24GWH)
Certifications & Rebates
- cETLus Listed — UL1598 — IC and Damp Rated — all models
- DLC Listed — all models qualify for utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search by your specific item number.
- TAA Compliant — eligible for U.S. government and GSA procurement. TAA inventory available — contact your LEDVANCE sales representative for availability.
- FCC Compliant
- RoHS Compliant
Typical Applications
- Corporate offices and open-plan workspaces — dual selectable wattage and CCT allow post-installation tuning to match task lighting requirements without re-ordering
- Classrooms and educational facilities — selectable CCT supports different learning environments; available in 1×4, 2×2, and 2×4 for any grid ceiling configuration
- Healthcare and clinical spaces — CRI 80 and selectable CCT support accurate visual assessment in exam and treatment rooms
- Government and institutional buildings — TAA Compliant across all models for qualifying U.S. government and GSA procurement
- Retail and hospitality interiors — backlit panel optics deliver even, glare-controlled illumination with selectable CCT for any environment
- U.S. and Canadian projects — 65904 (2×4, 50W) supports 120–347V for compatibility with Canadian electrical systems without a separate high-voltage model
What’s Included
- LEDVANCE Sylvania PANELF3B backlit LED panel fixture — White (size and wattage per selected variant)
- Mounting hardware for recessed T-grid installation
