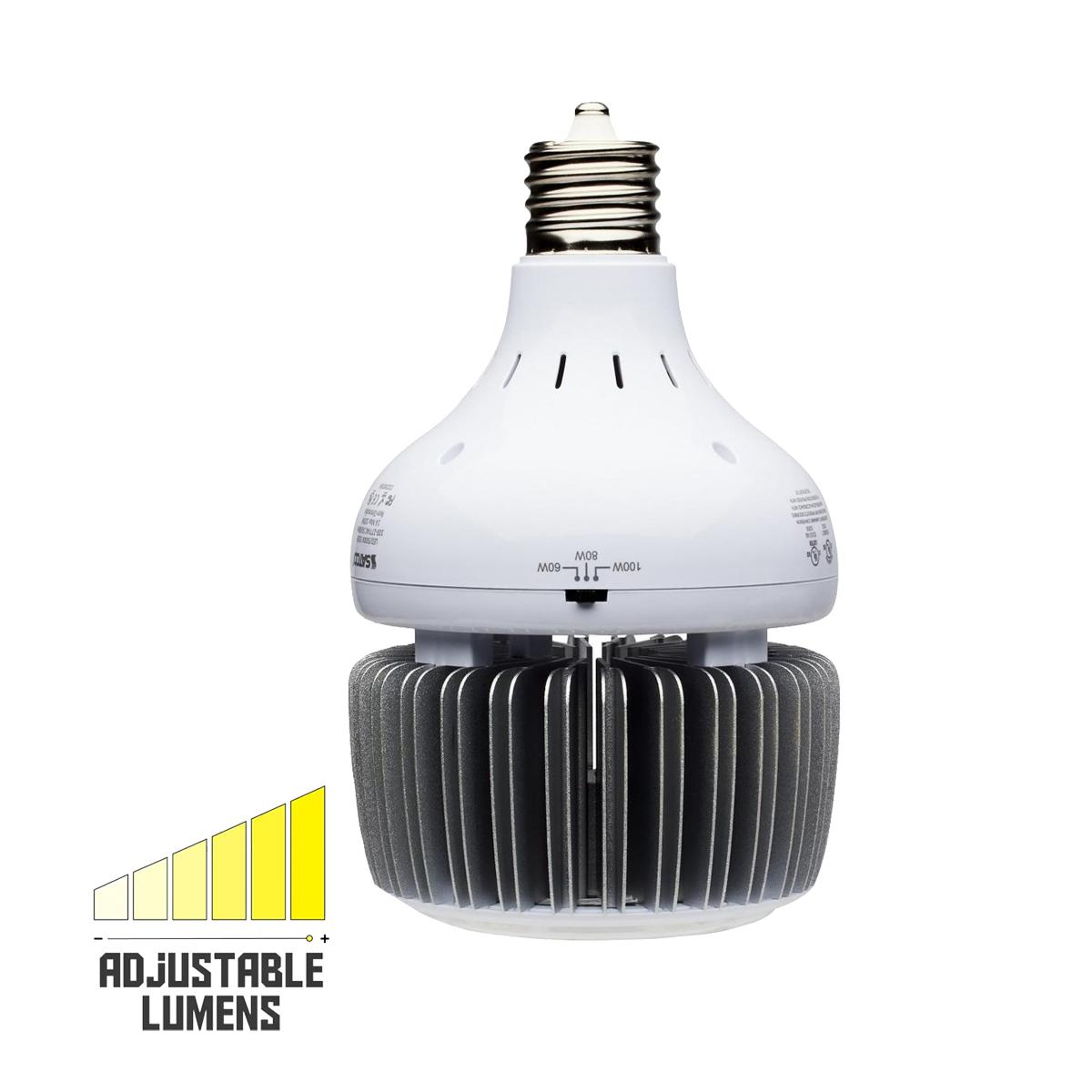

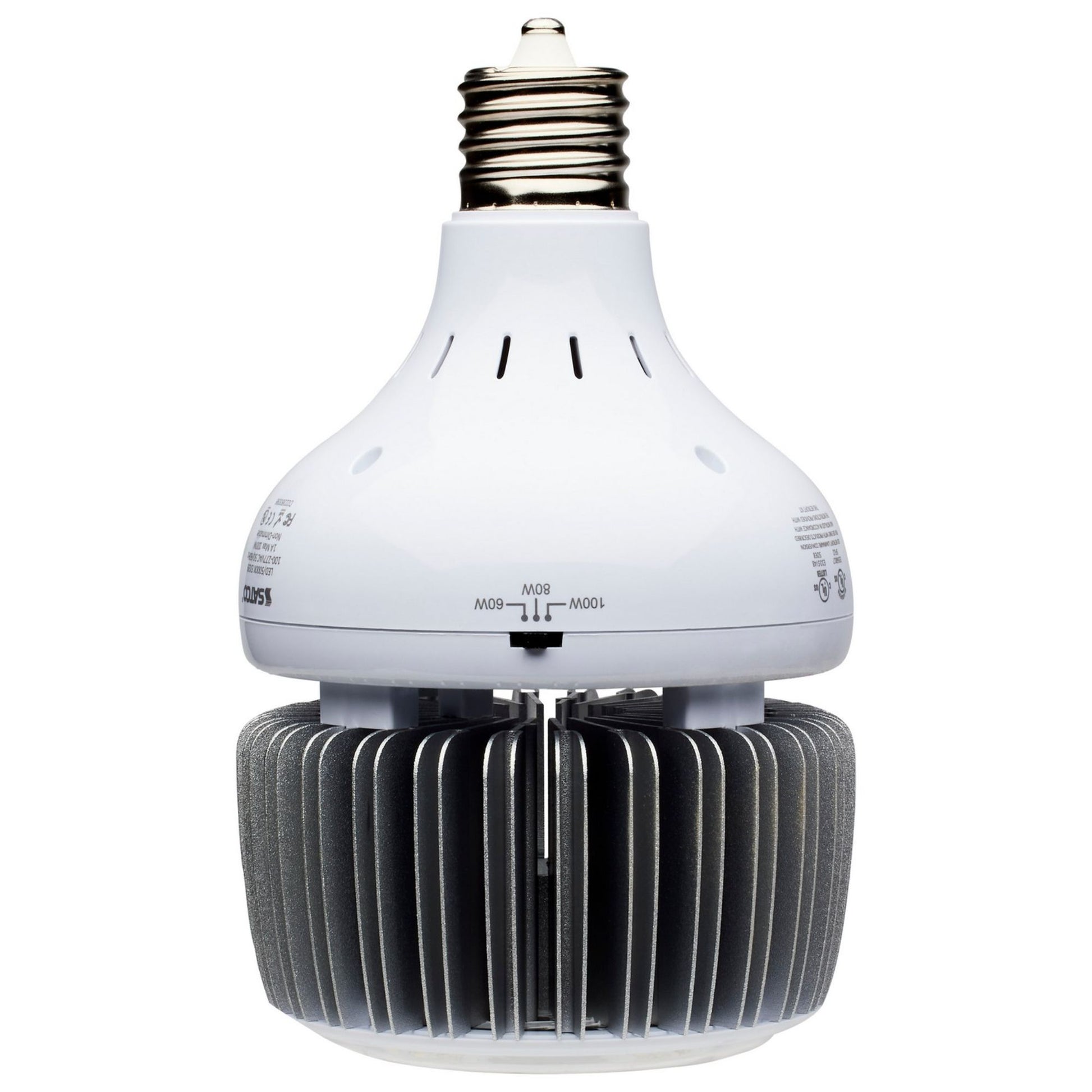

Satco Hi-Bay LED Bulb — 100W / 5000K

The Satco S33113 Hi-Bay LED bulb features an EX39 Mogul Extended base and delivers 14000 lumens, making it an ideal replacement for 320W metal halide bulbs. This 100W LED bulb operates within a voltage range of 120-277V and is perfect for high bay applications. It is enclosed fixture rated, ensuring safe operation in enclosed environments.

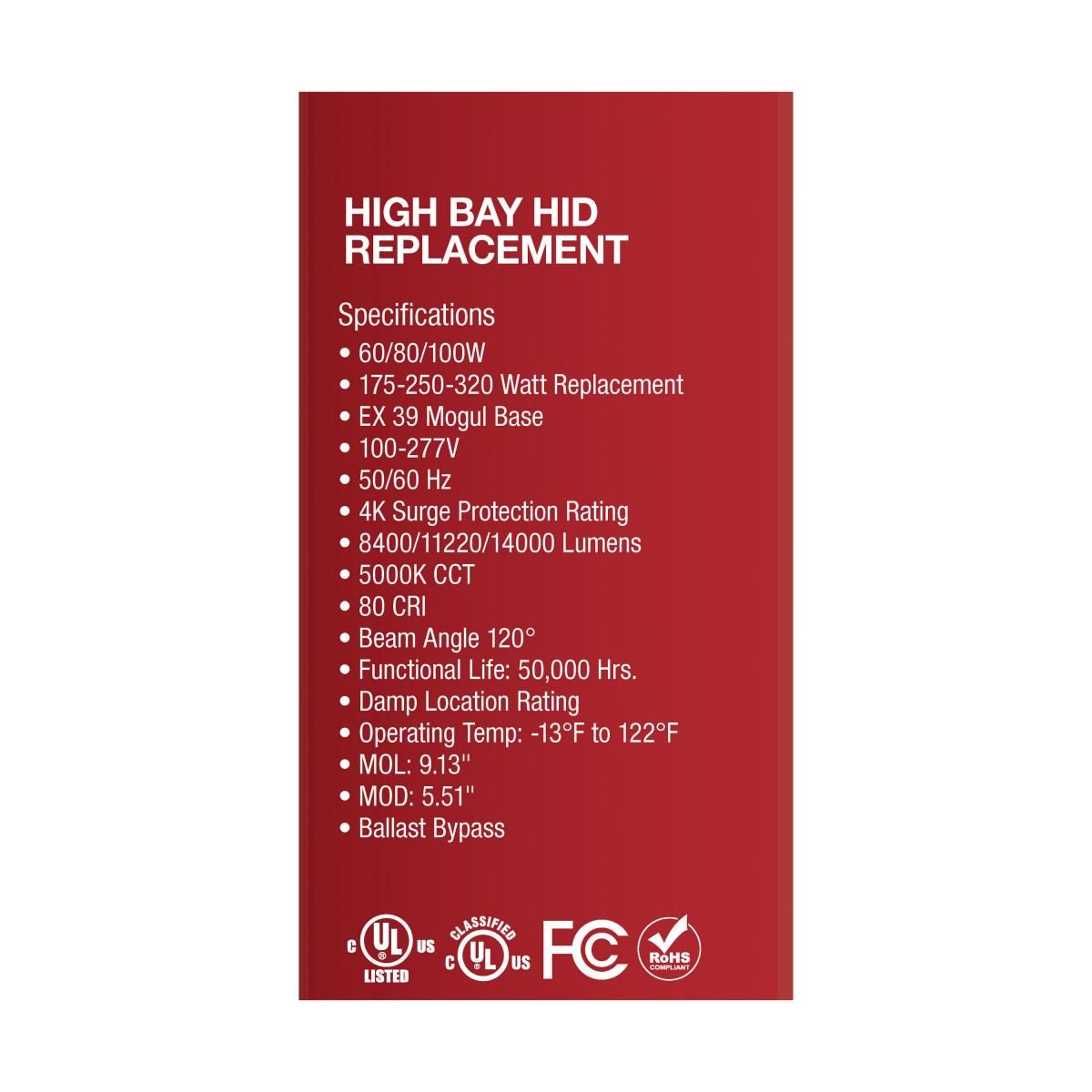

Key Features

• Base Type: EX39 Mogul Extended
• Bulb Shape: Hi-Bay

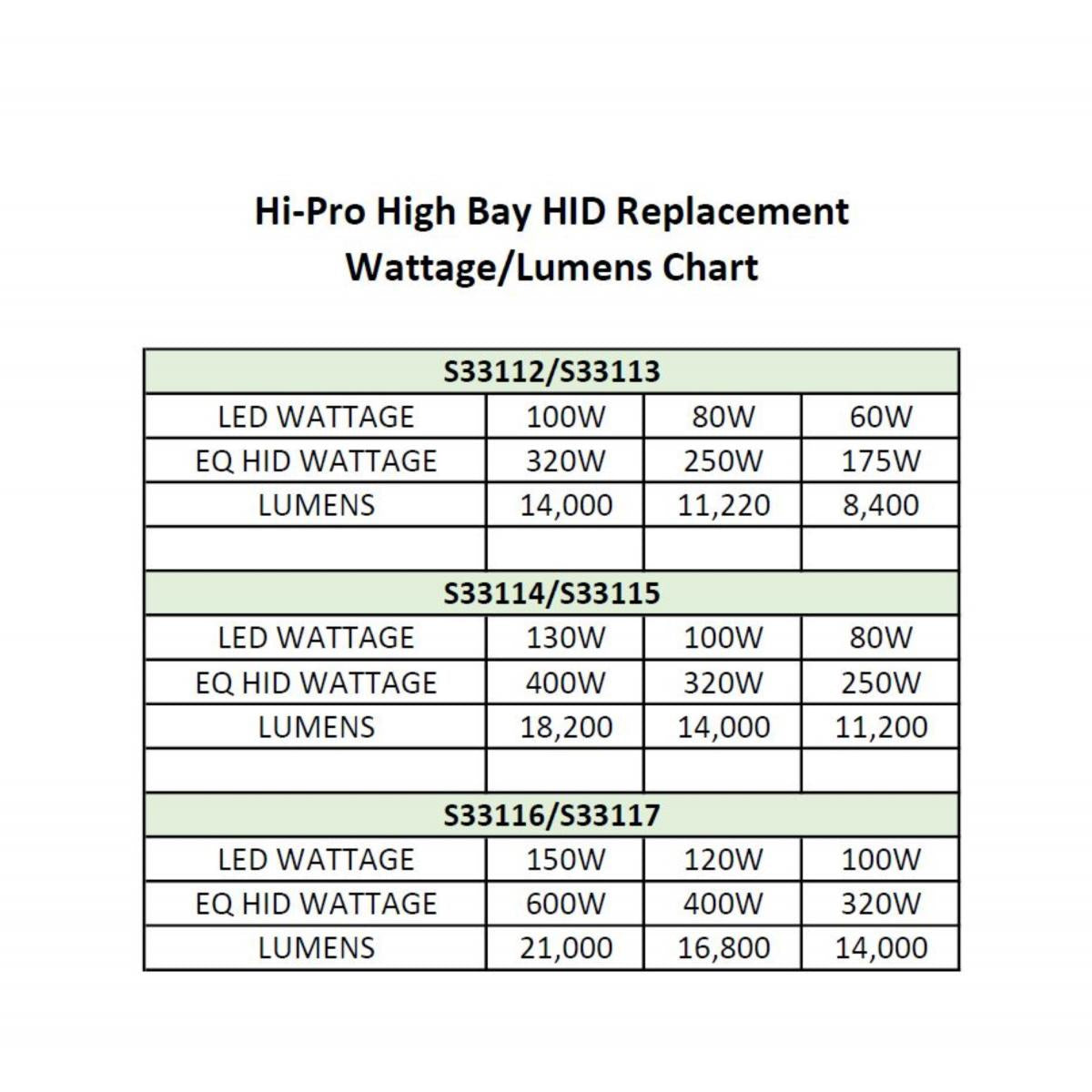

• Wattage Equivalency: 320W Metal Halide
• Enclosed Fixture Rated: Yes
• Certifications: cULus Listed, RoHS Compliant
• Lumens: 14000
• Color Temperature: 5000K
• Beam Angle: 120 degrees
• Voltage: 120-277V
• Power Factor: 0.99
• Operating Temperature: -25C to +50C
• Warranty: 5 Years

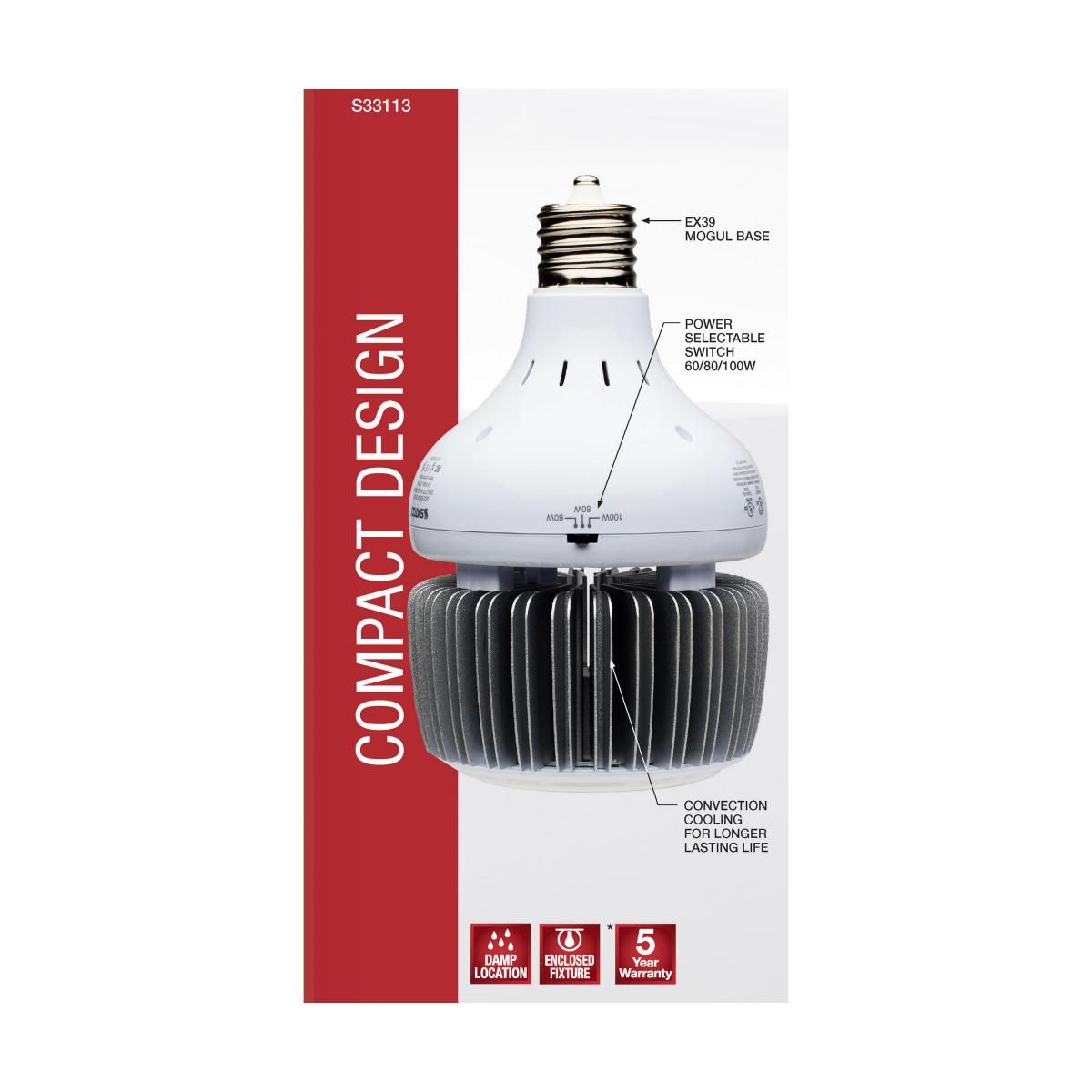

Construction & Aesthetics

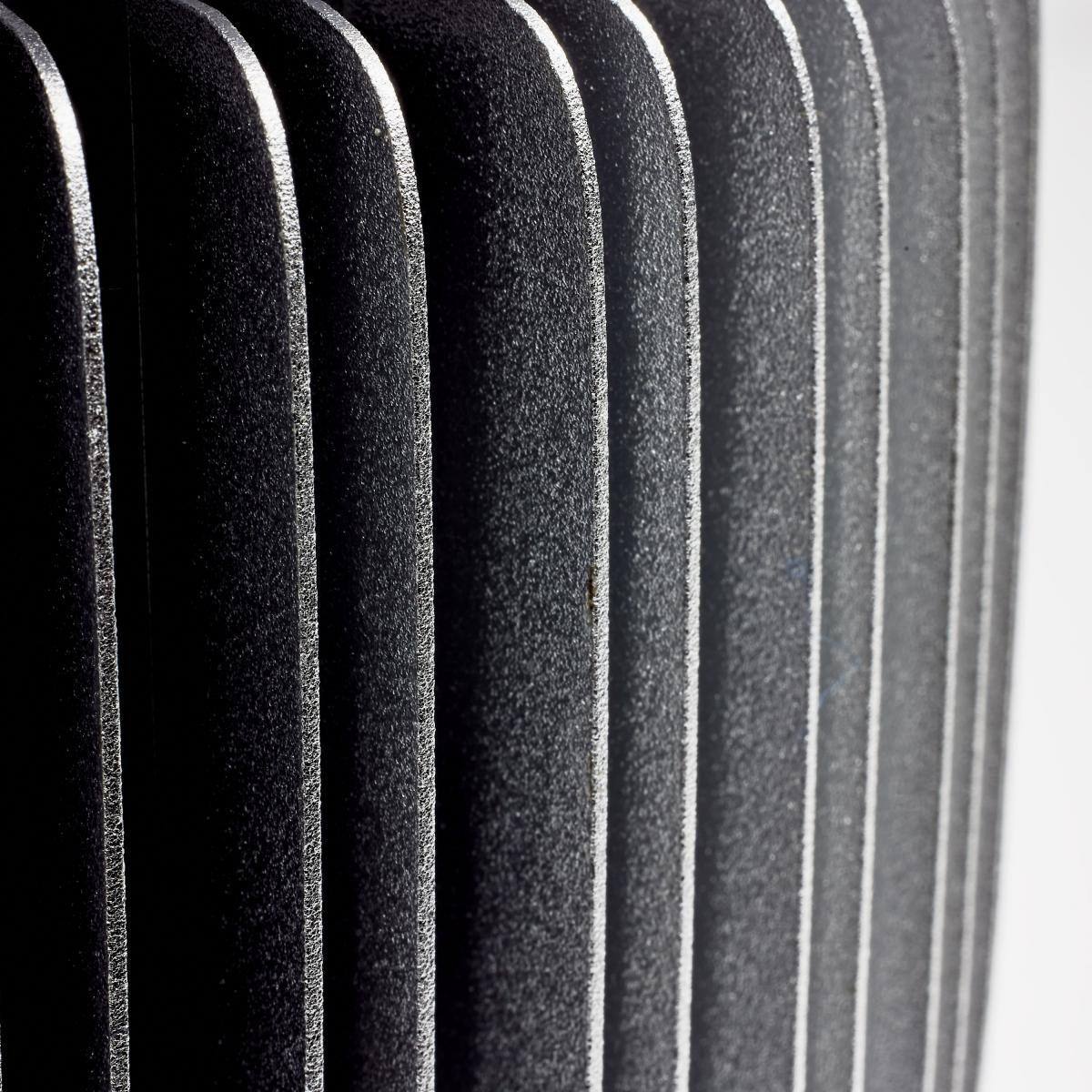

Constructed with durable aluminum and plastic, the bulb features a white finish and a compact design with dimensions of 11.14 inches in height and 5.91 inches in width. The 120-degree beam angle ensures wide light distribution.

Electrical & Installation

Designed for ballast bypass (Type B) installation, this bulb requires direct wiring to the fixture. It is non-dimmable, ensuring consistent light output. Suitable for use in both indoor and outdoor settings.

Light Output & Performance

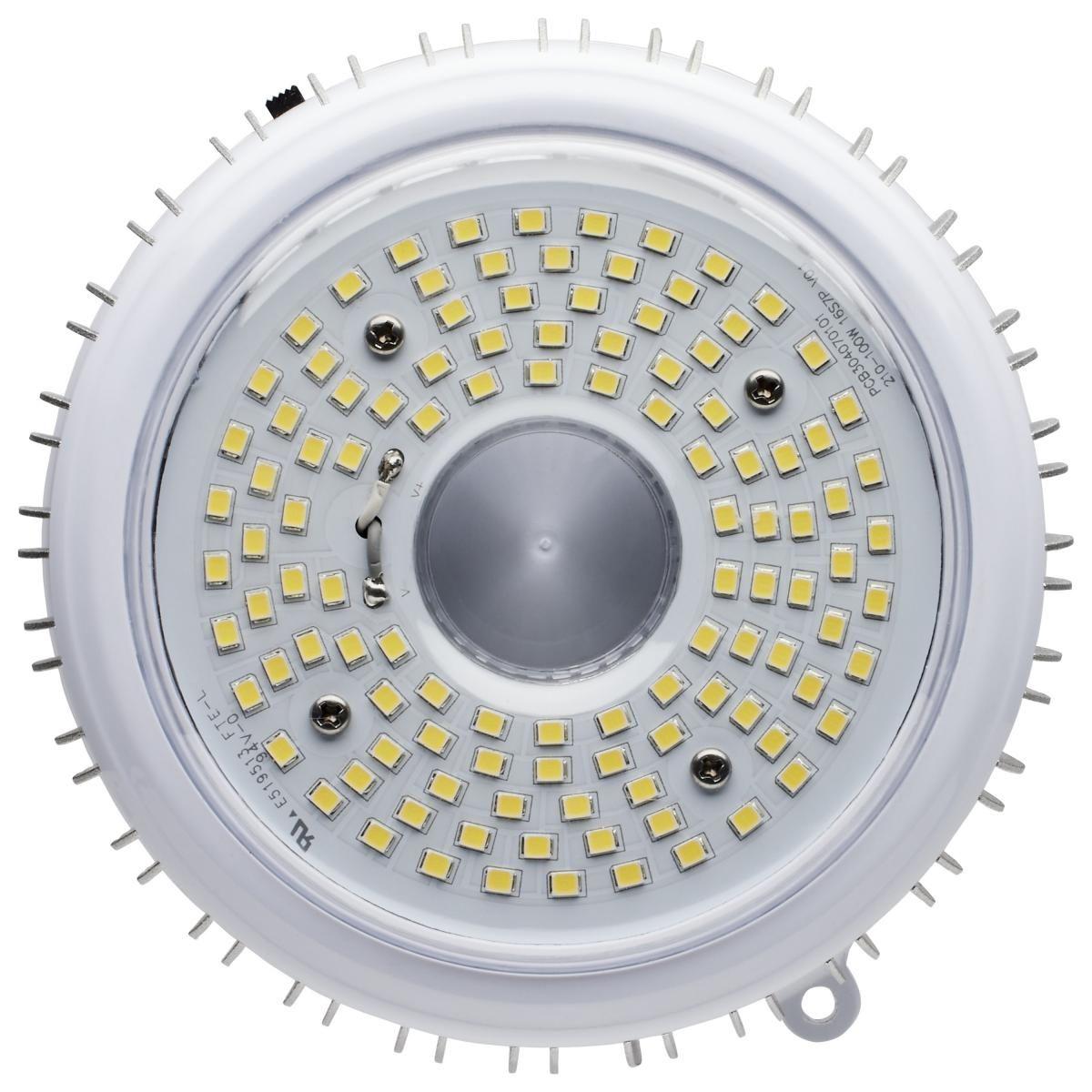

With a light output of 14000 lumens and a CRI of 80+, this bulb provides bright, natural light with a lifespan of 50,000 hours, reducing maintenance frequency.

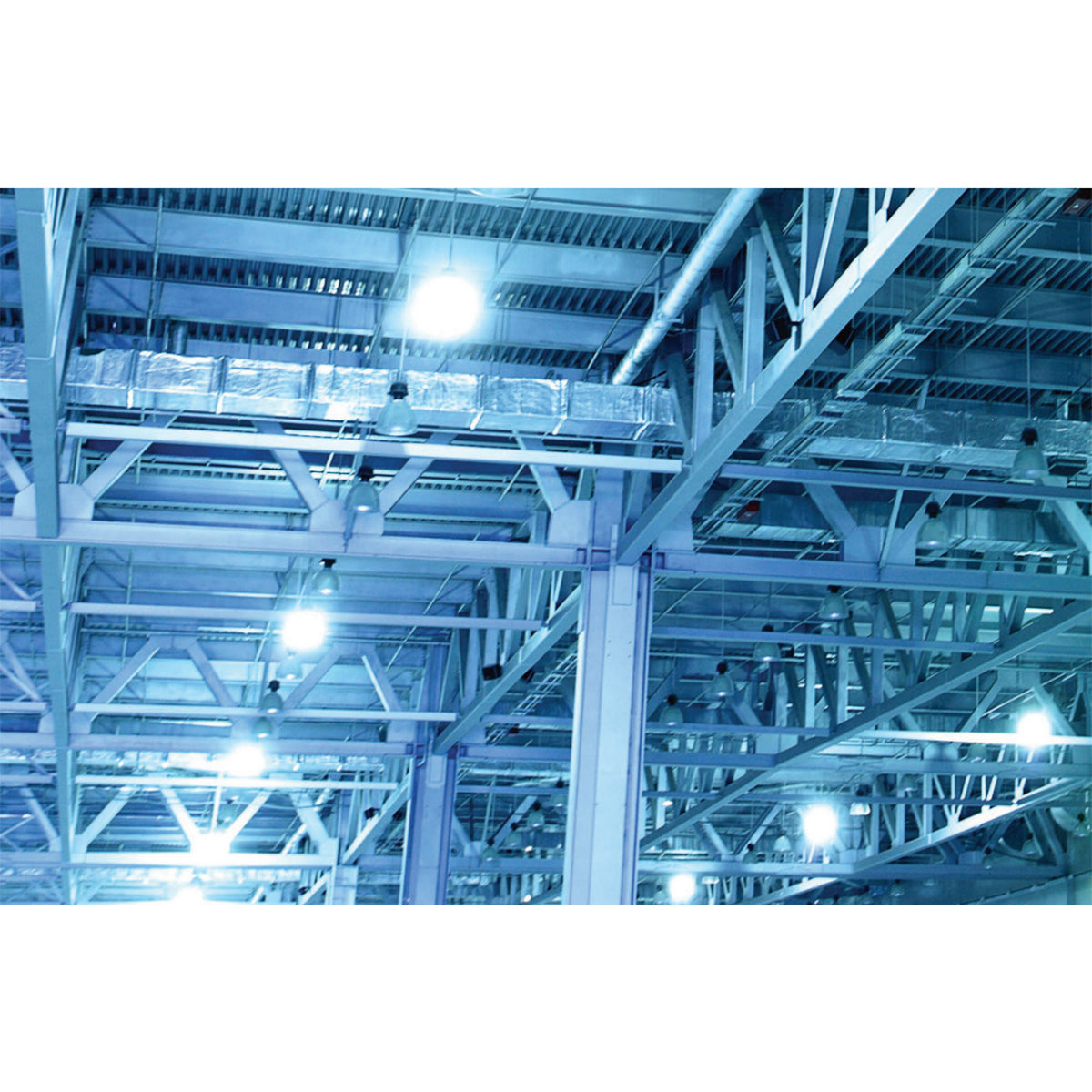

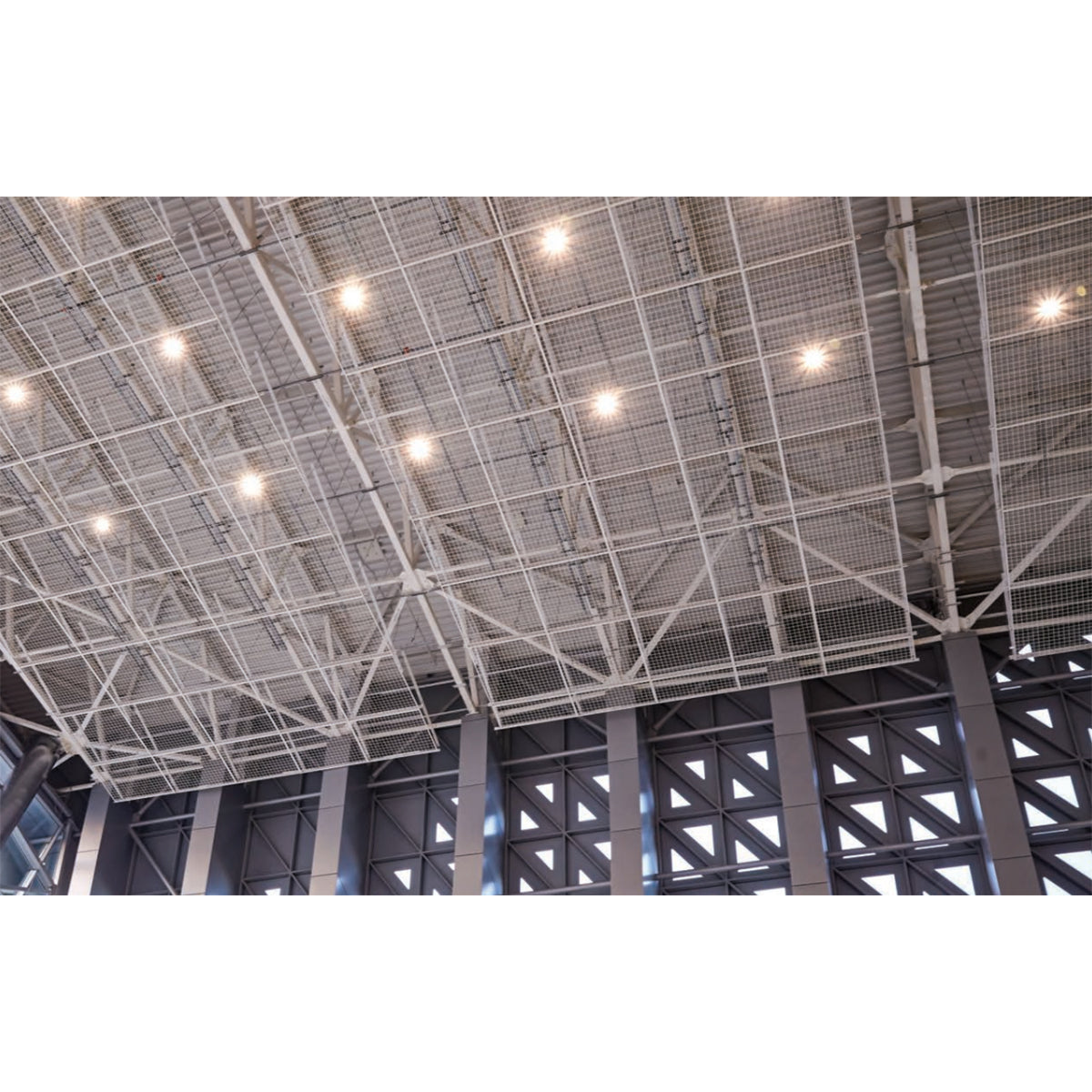

Typical Applications

• Warehouses
• Industrial Facilities
• Gymnasiums
• Retail Stores
• Commercial Spaces
