Satco Hi-Pro Shoe Box Retrofit LED Bulb — 60/70/80W / CCT Selectable

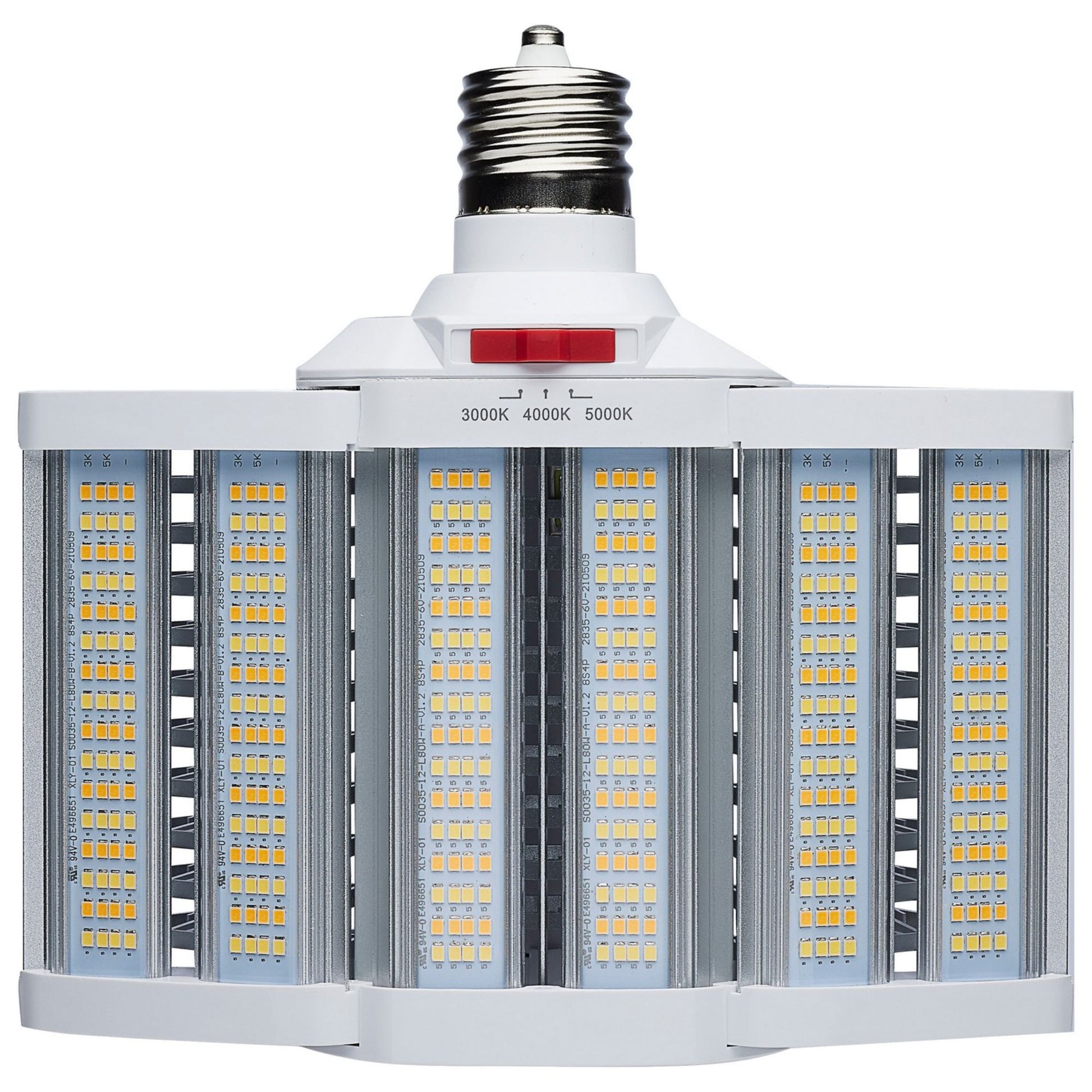

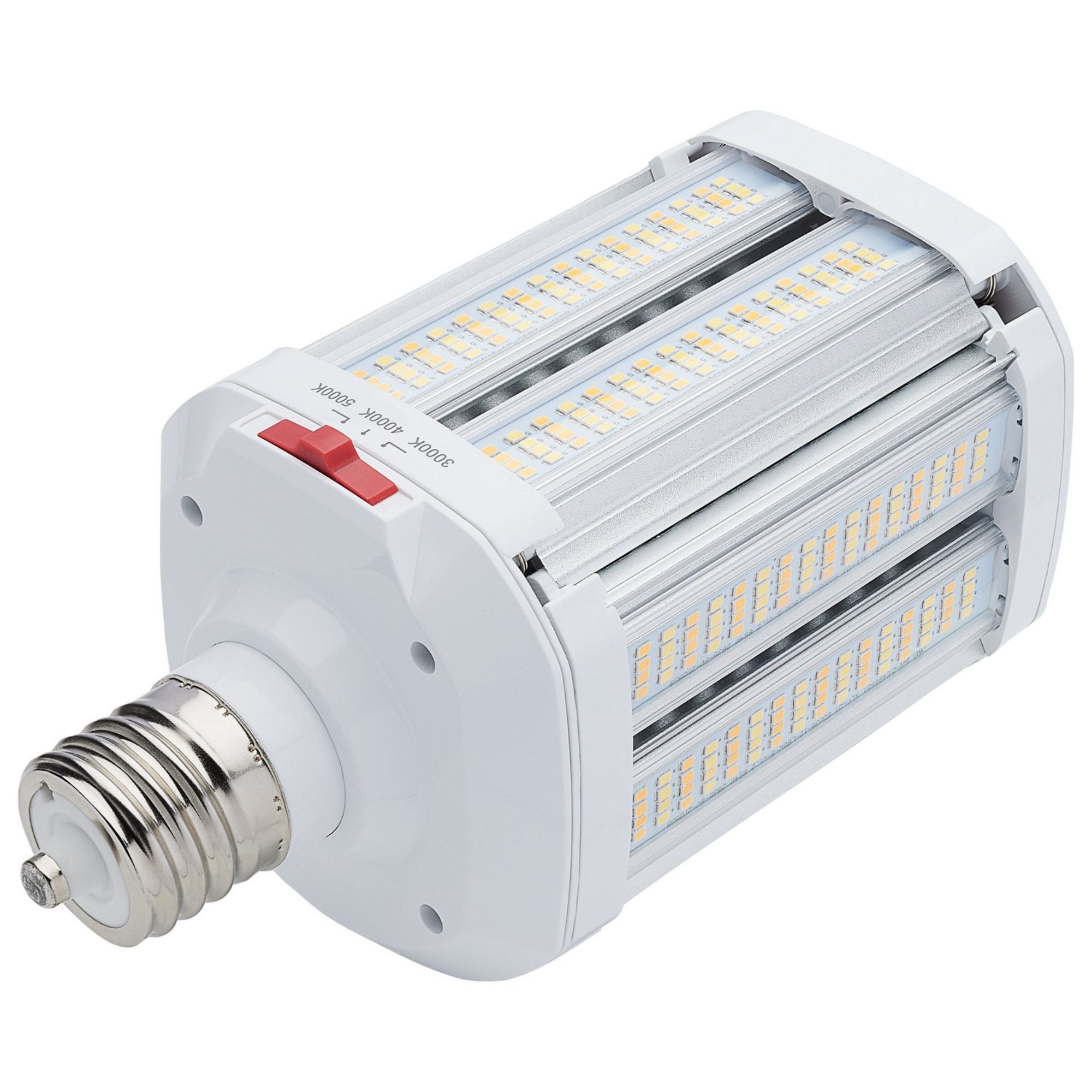

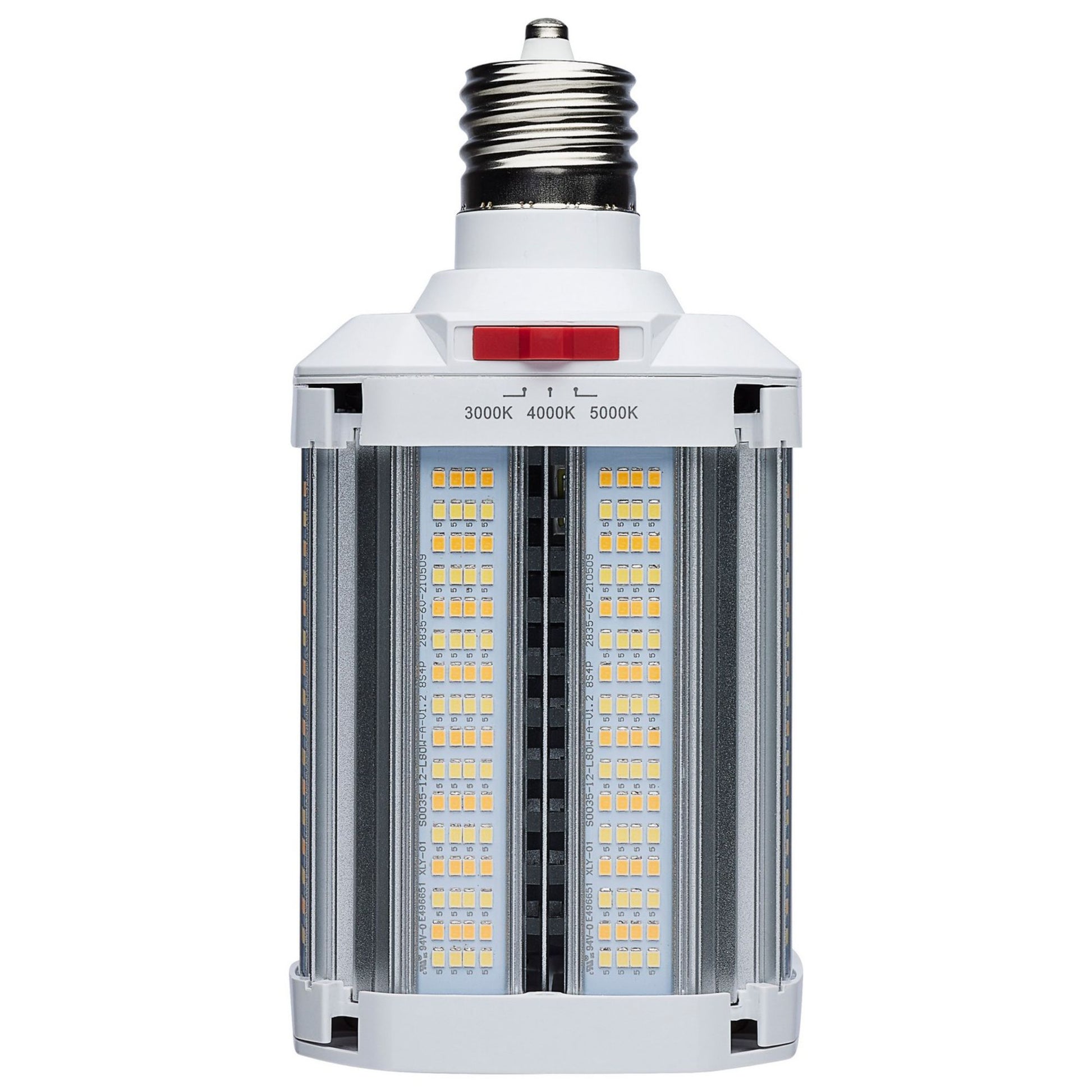

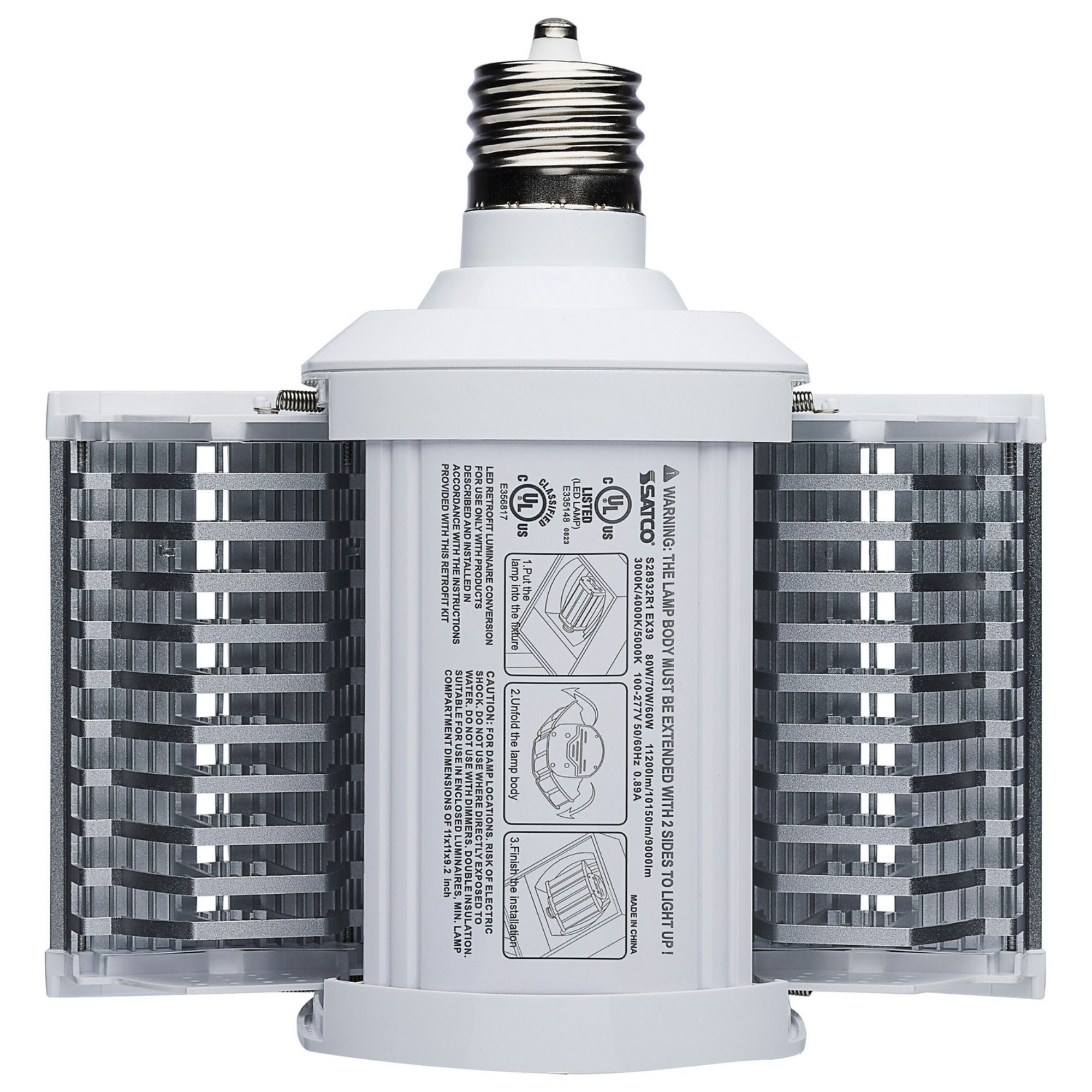

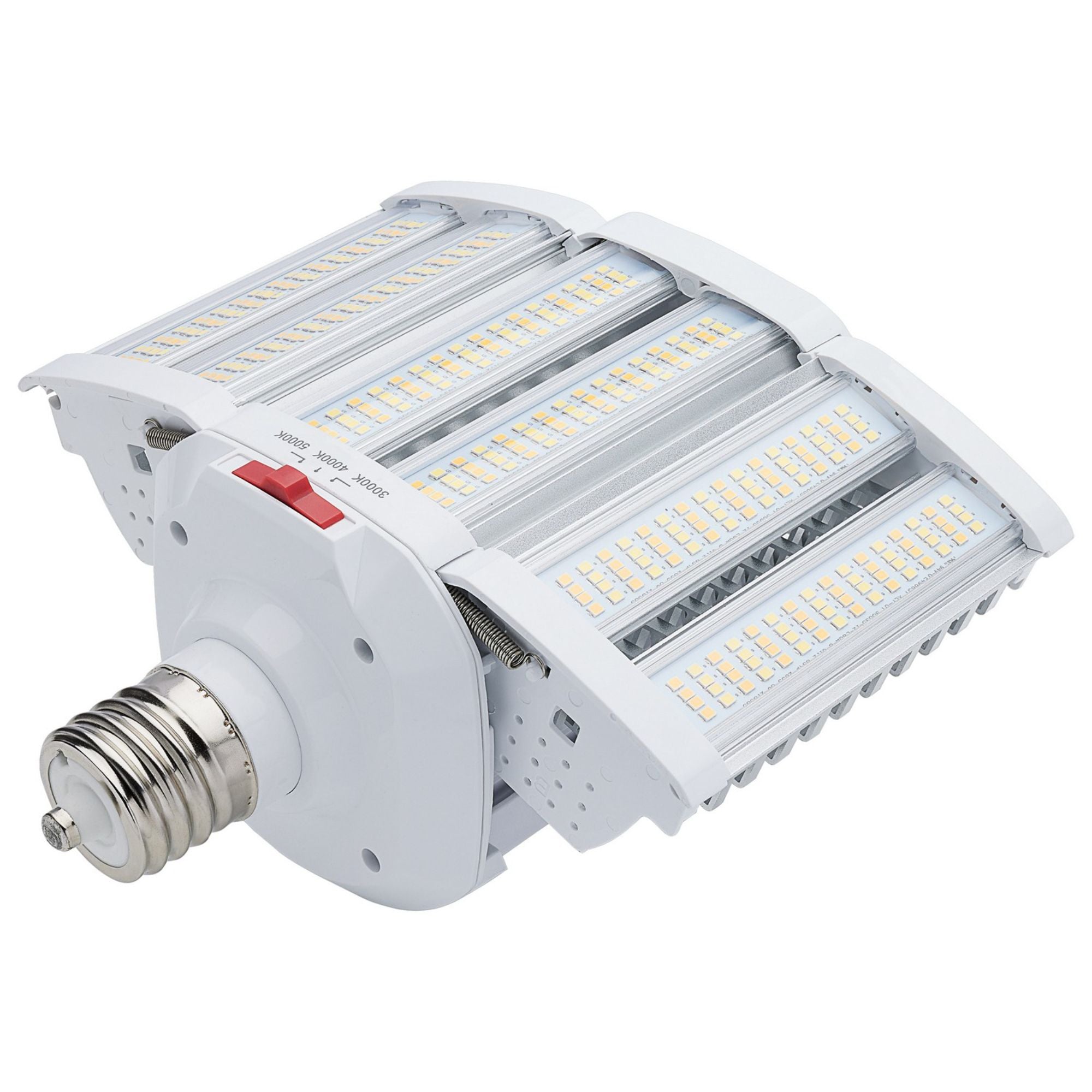

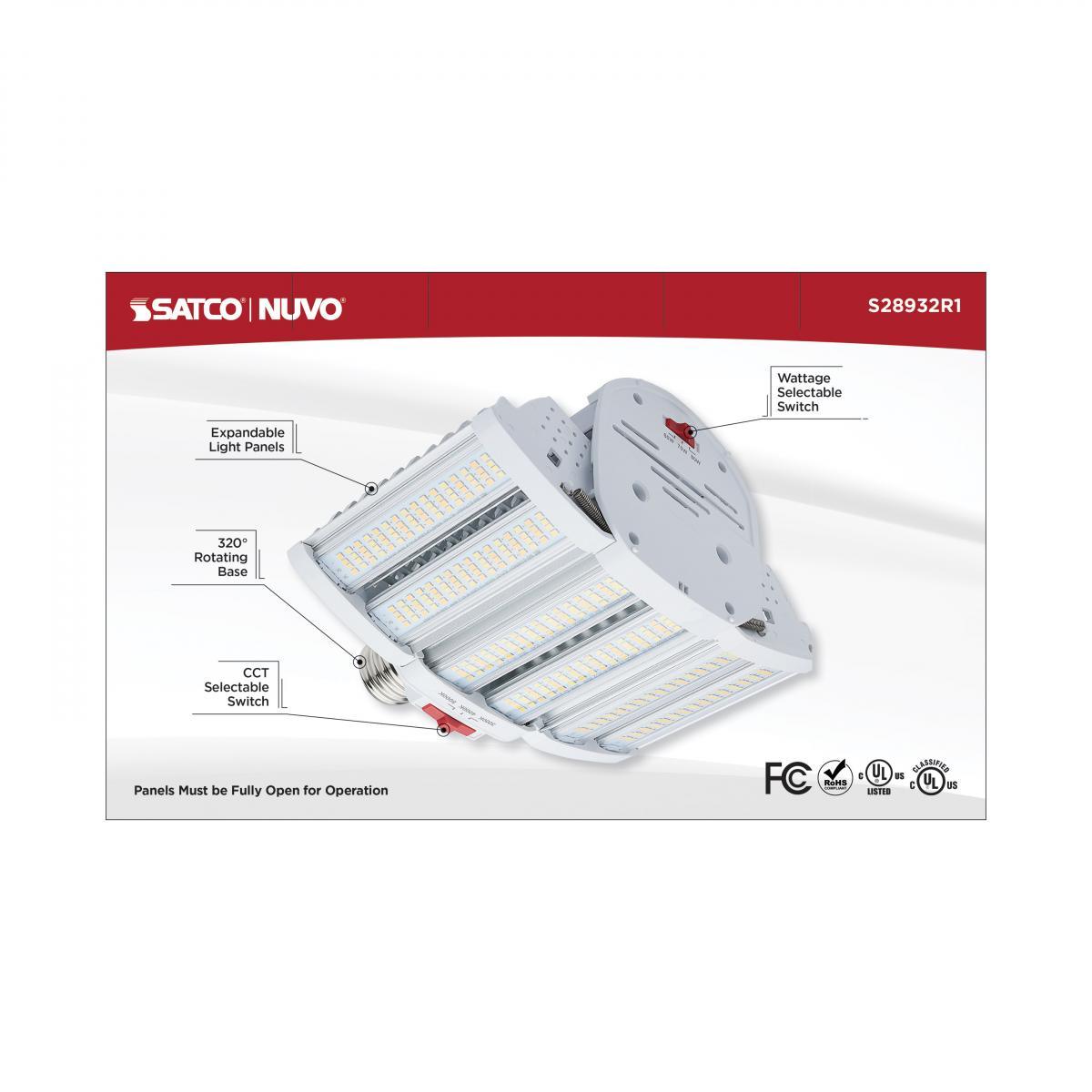

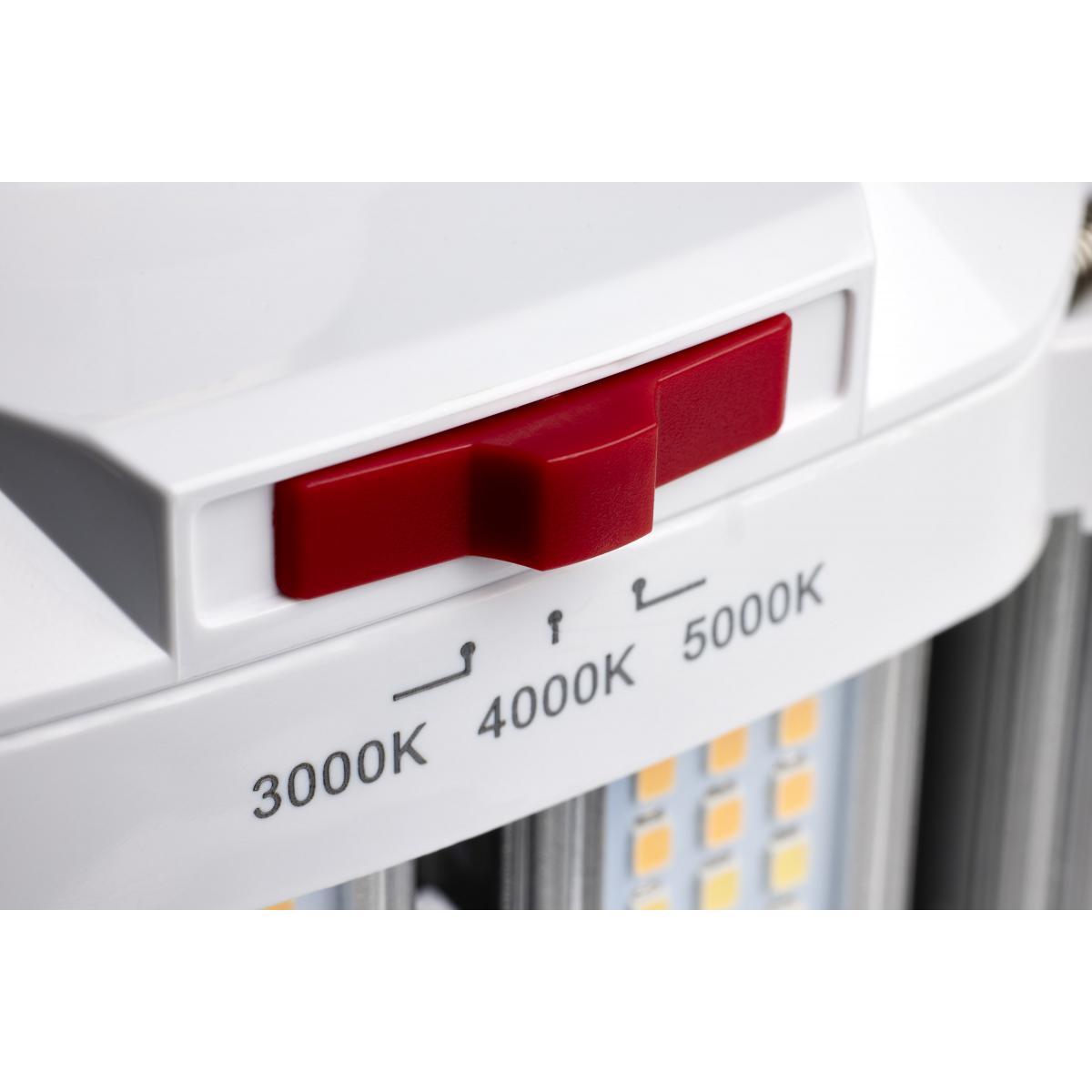

The Satco S28932R1 Integrated LED bulb features a versatile E39 (Mogul) base and selectable wattage options of 60W, 70W, and 80W, replacing up to 400W incandescent bulbs. This bulb offers CCT selectable options of 3000K, 4000K, and 5000K, providing flexibility in lighting design. It is enclosed fixture rated, ensuring safe operation in various settings.

Key Features

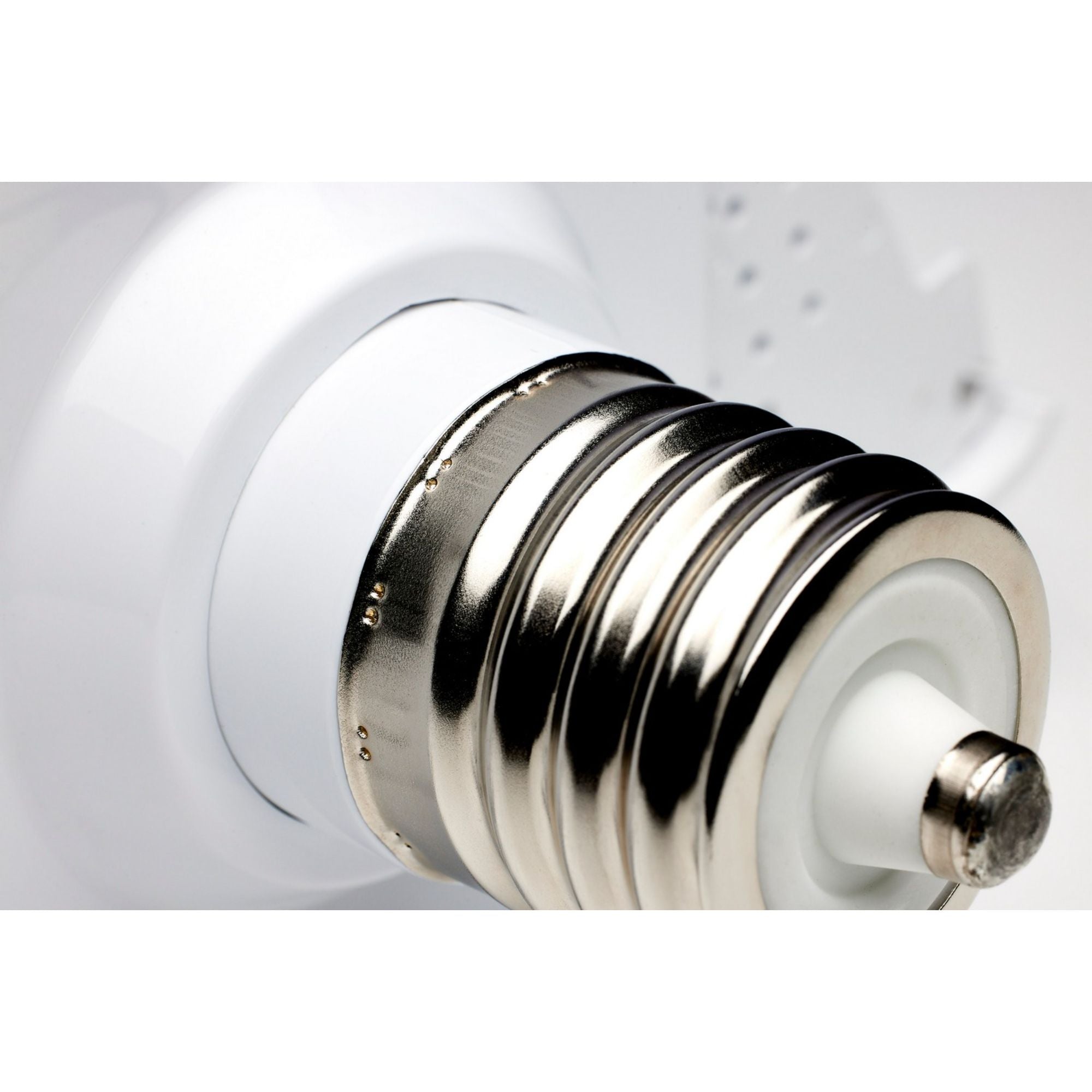

• Base Type: E39 (Mogul)
• Bulb Shape: Integrated LED
• Wattage Selectable: 60W/70W/80W
• Enclosed Fixture Rated: Yes
• Certifications: cULus, DLC Approved, ROHS Compliant
• Surge Protection: Built-in 4KV
• Beam Angle: 180 degrees
• Voltage: 120-277V
• CRI: 80+
• Lifespan: 50,000 hours
• Operating Temperature: -30C to +45C
• Power Factor: >0.9

Construction & Aesthetics

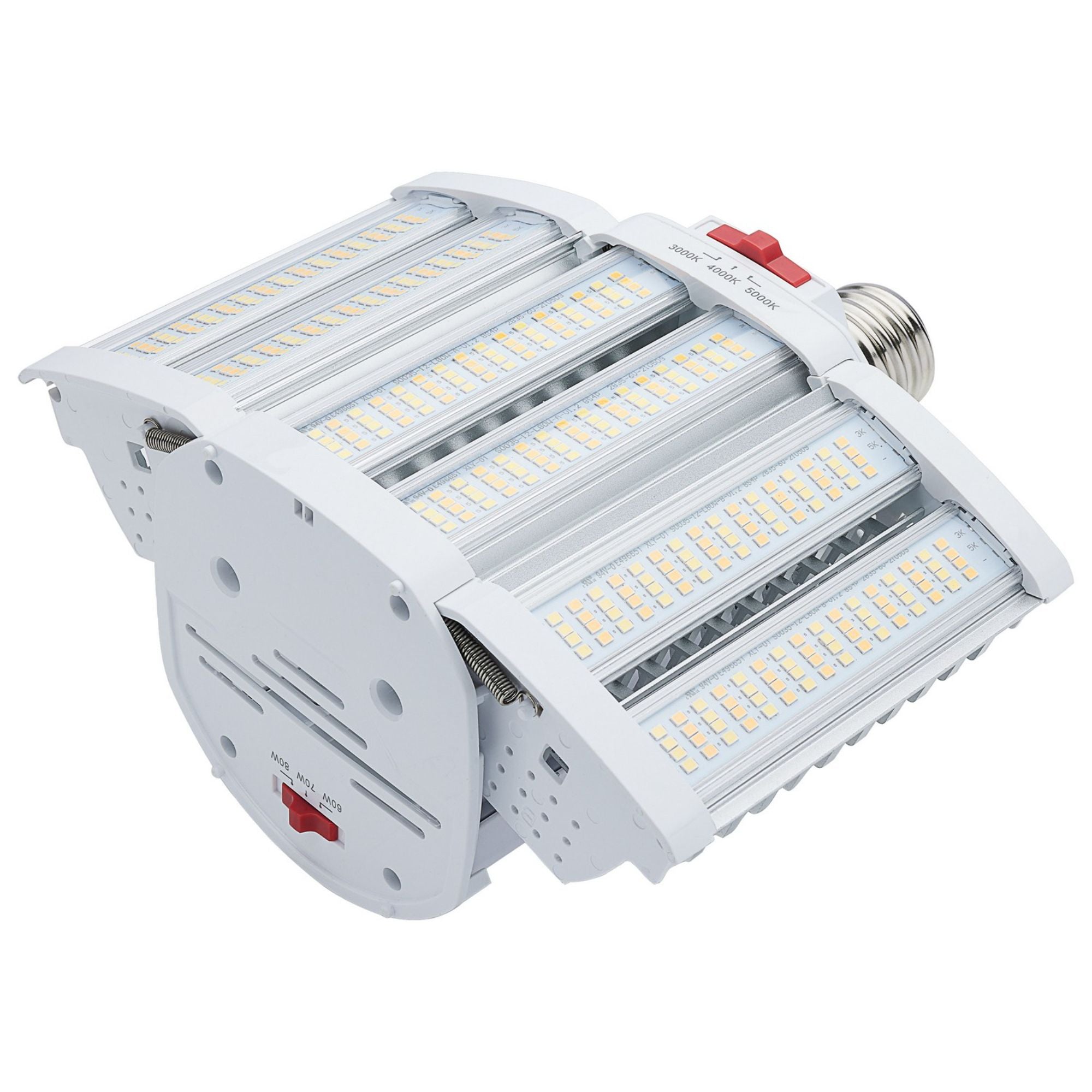

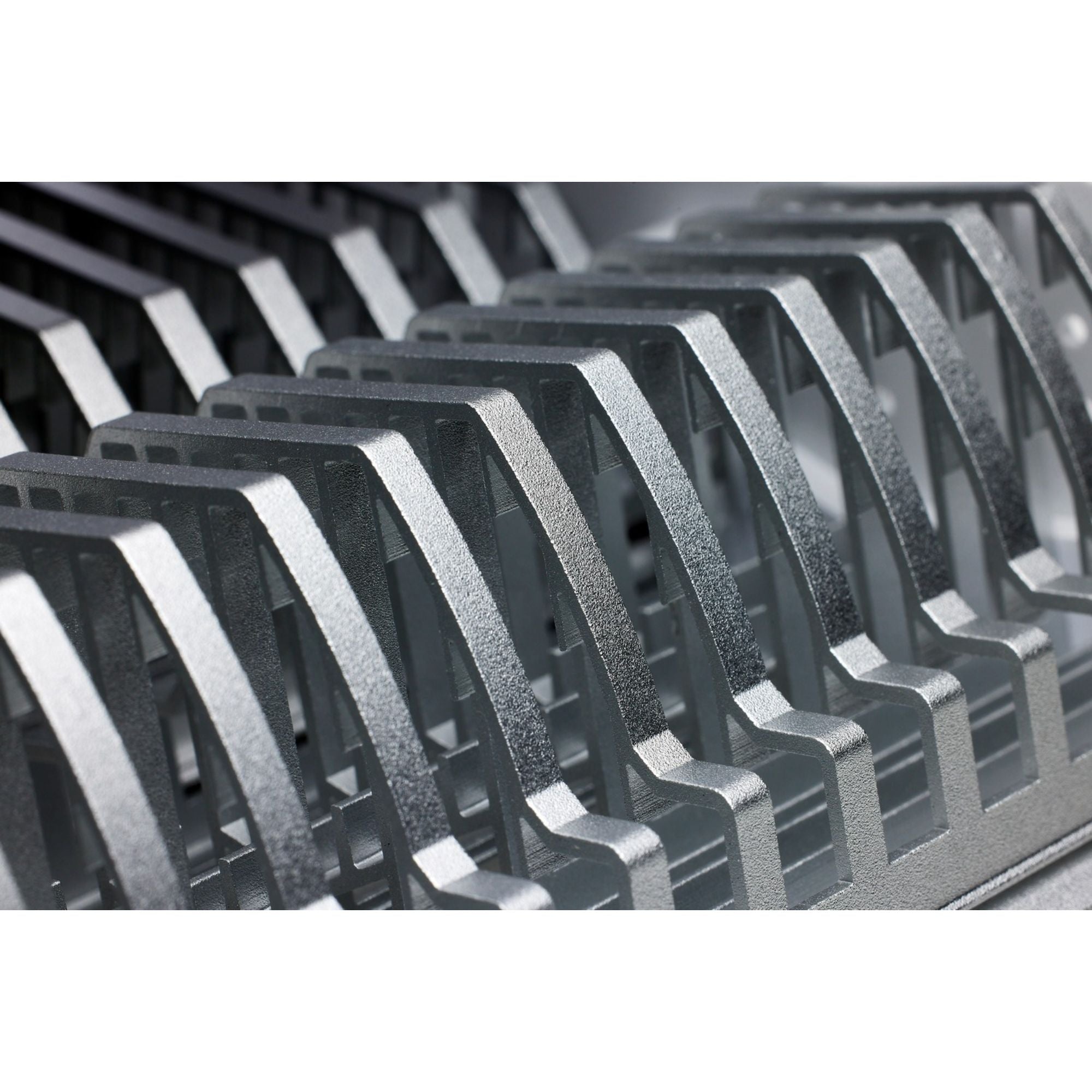

Constructed with durable aluminum and polycarbonate materials, this bulb features a white finish and a 180-degree beam angle for broad light distribution. The compact design fits within a minimum compartment size of 11 in. x 11 in. x 9.2 in.

Electrical & Installation

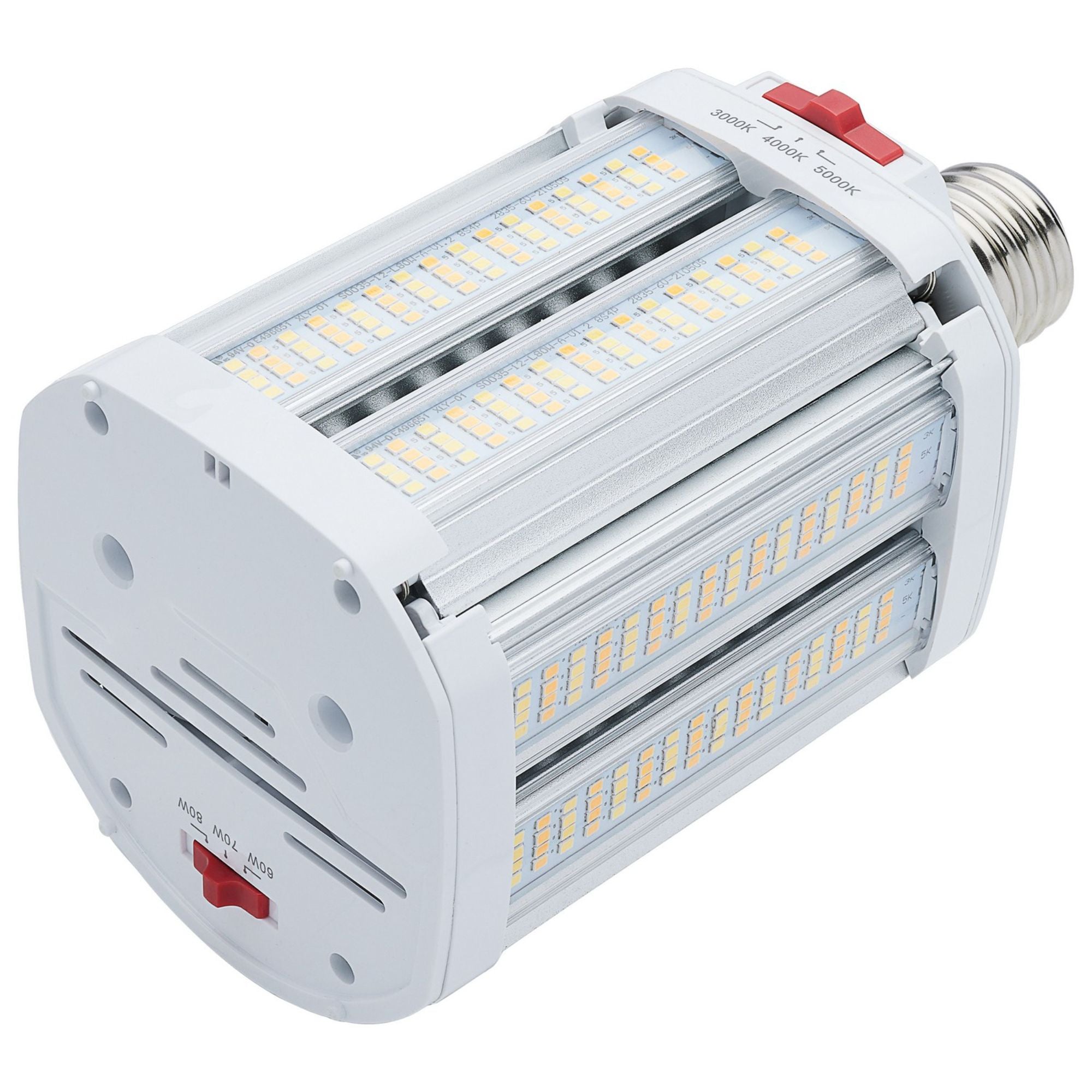

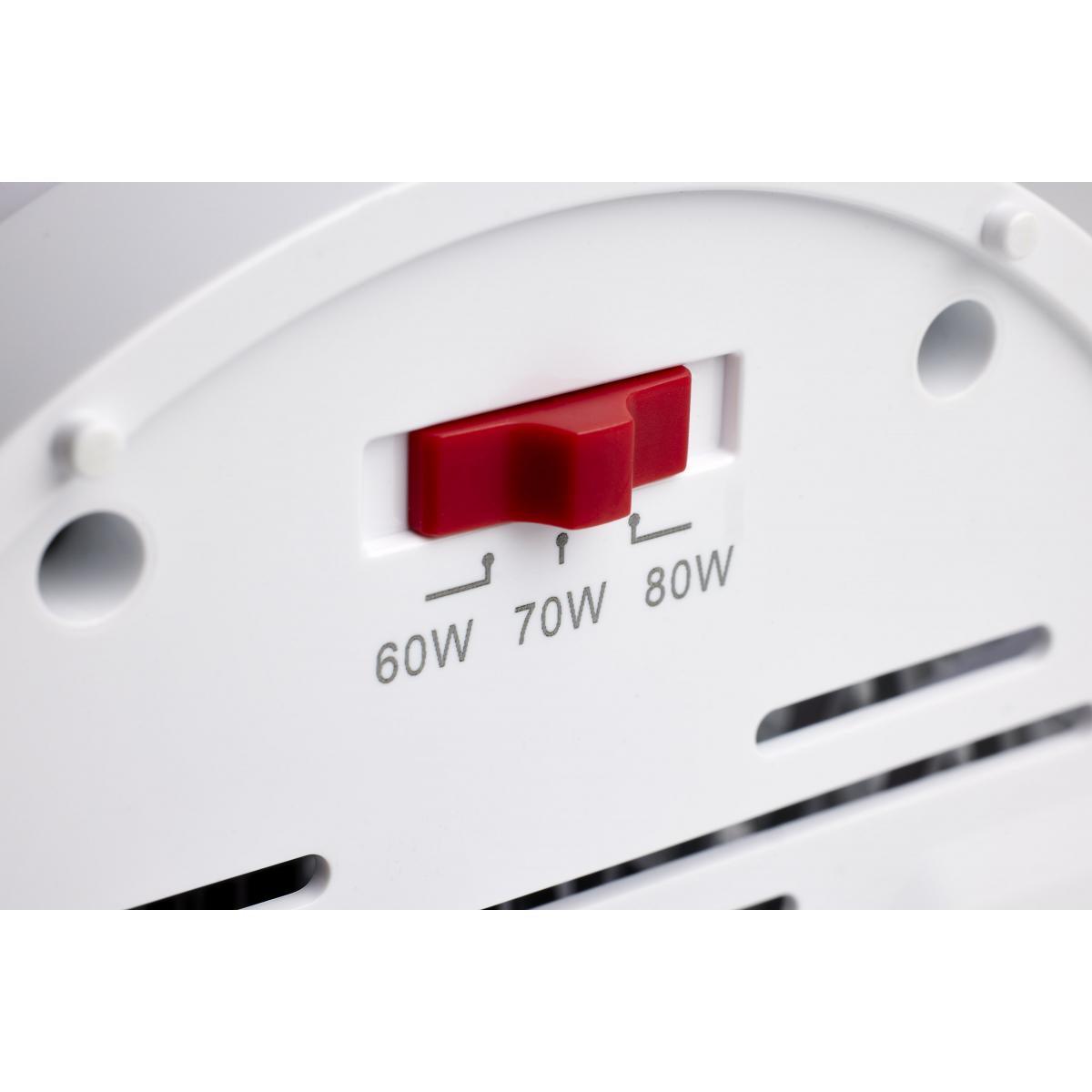

This bulb operates on a voltage range of 120-277V and supports step dimming through a wattage selection switch. It requires a direct wire installation, bypassing the ballast for efficient operation.

Light Output & Performance

With lumens ranging from 9000 to 11200, this bulb delivers high-performance lighting with a CRI of 80+. It offers a long lifespan of 50,000 hours, ensuring reliable use over time.

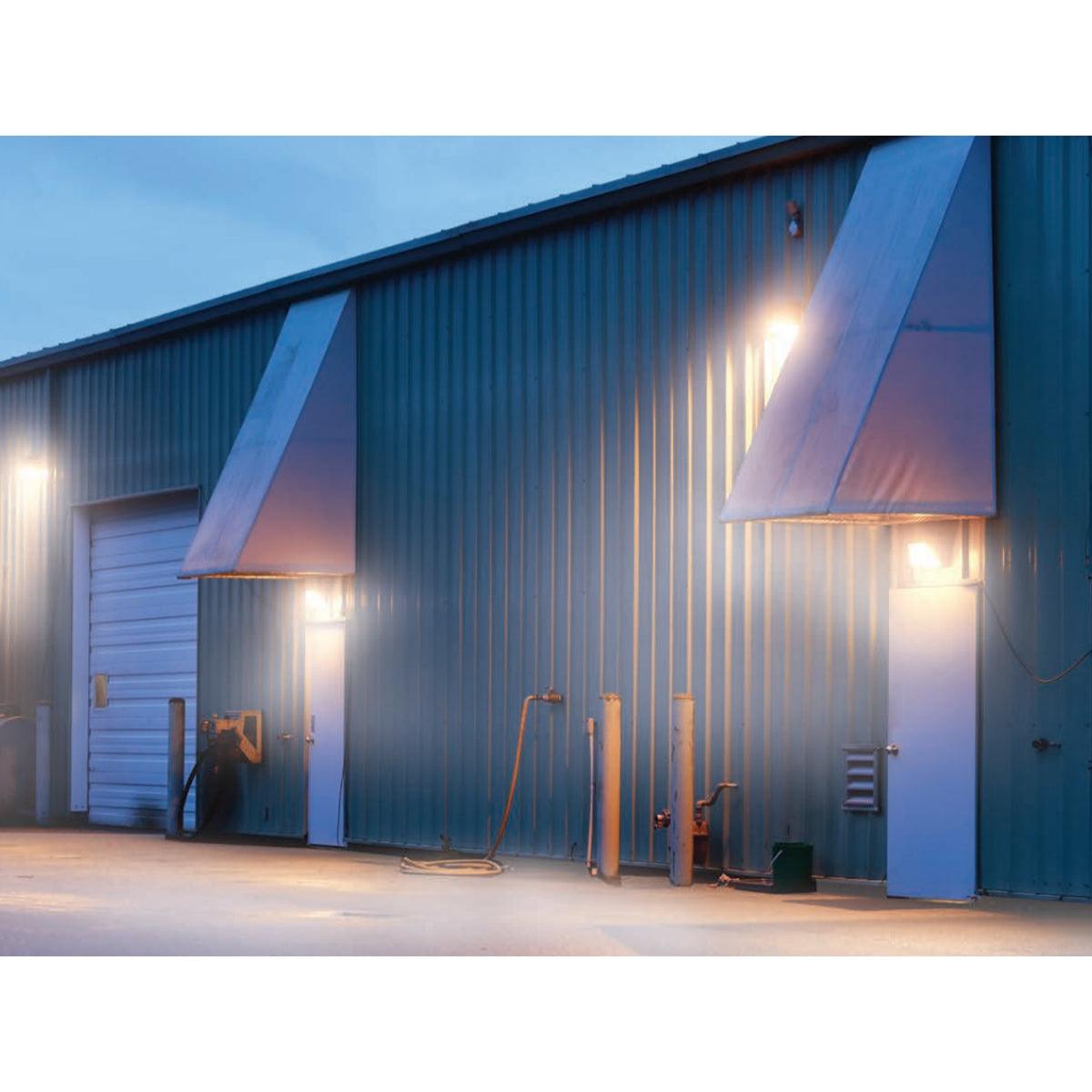

Typical Applications

• Outdoor shoe box fixtures
• Street lighting

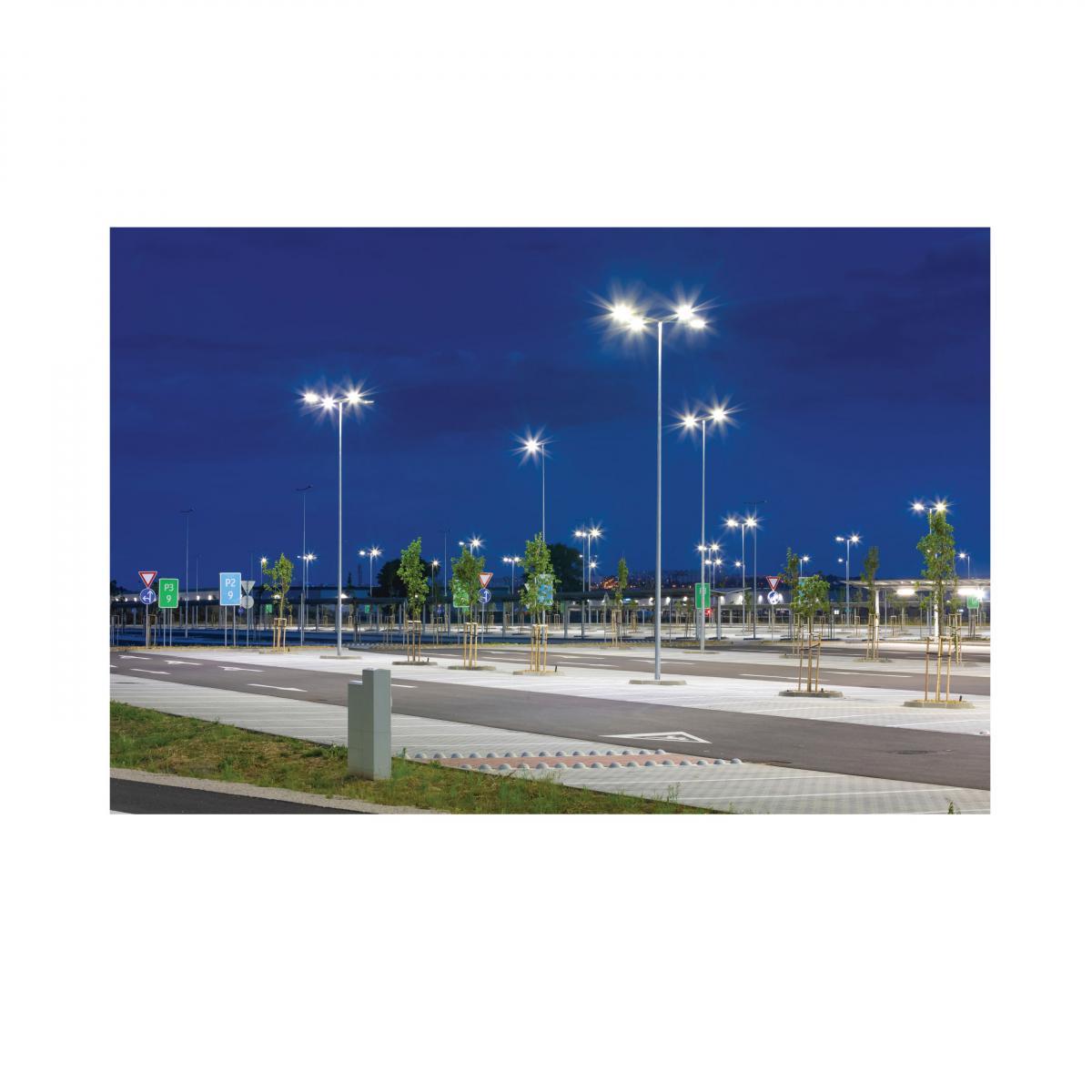

• Parking lot lighting
• Industrial settings
