Retrofit LED Corn Bulb Omnidirectional, 45W, 6300lm, Selectable CCT, EX39 Mogul, 480V

Satco Retrofit LED Corn Bulb Omnidirectional — 45W / Selectable CCT

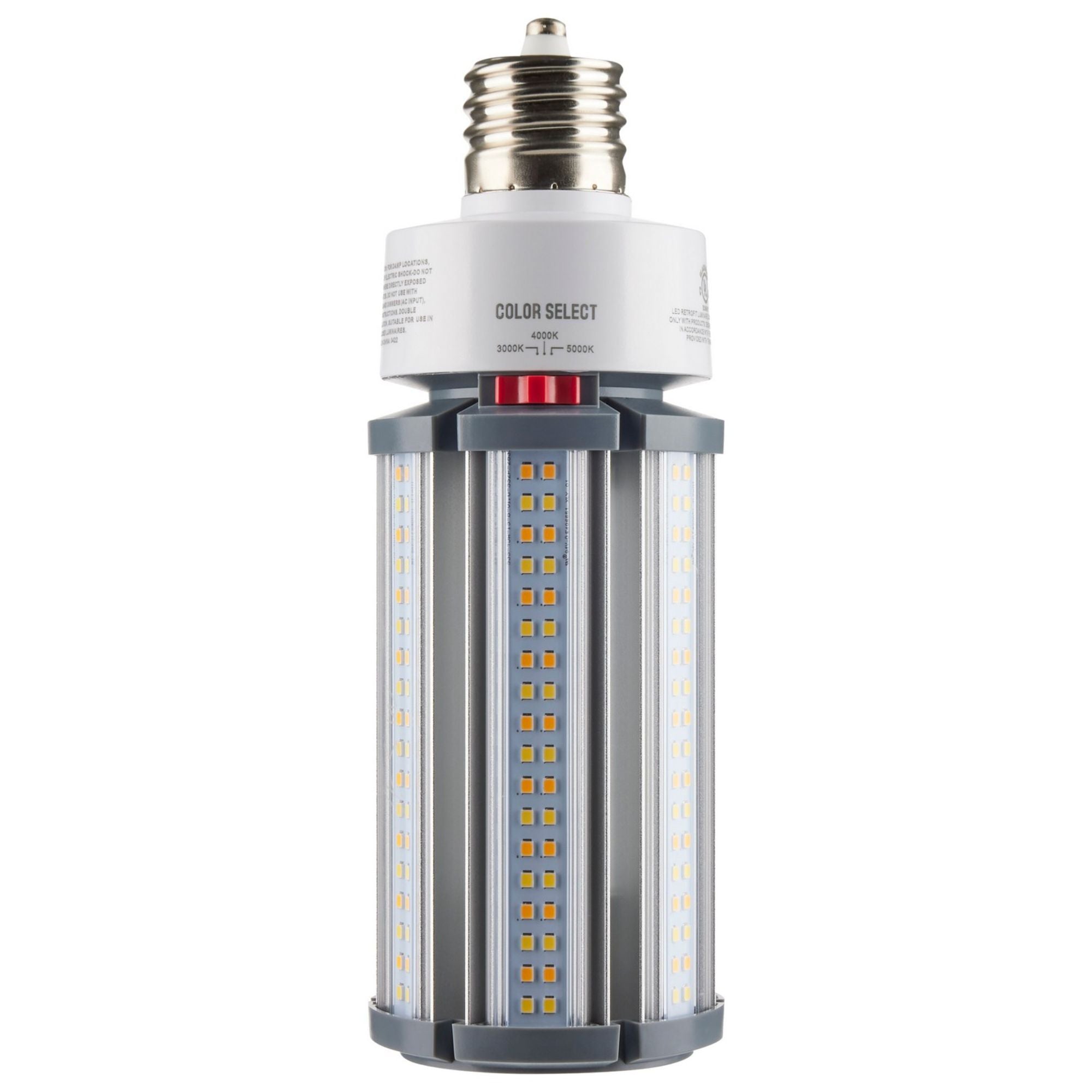

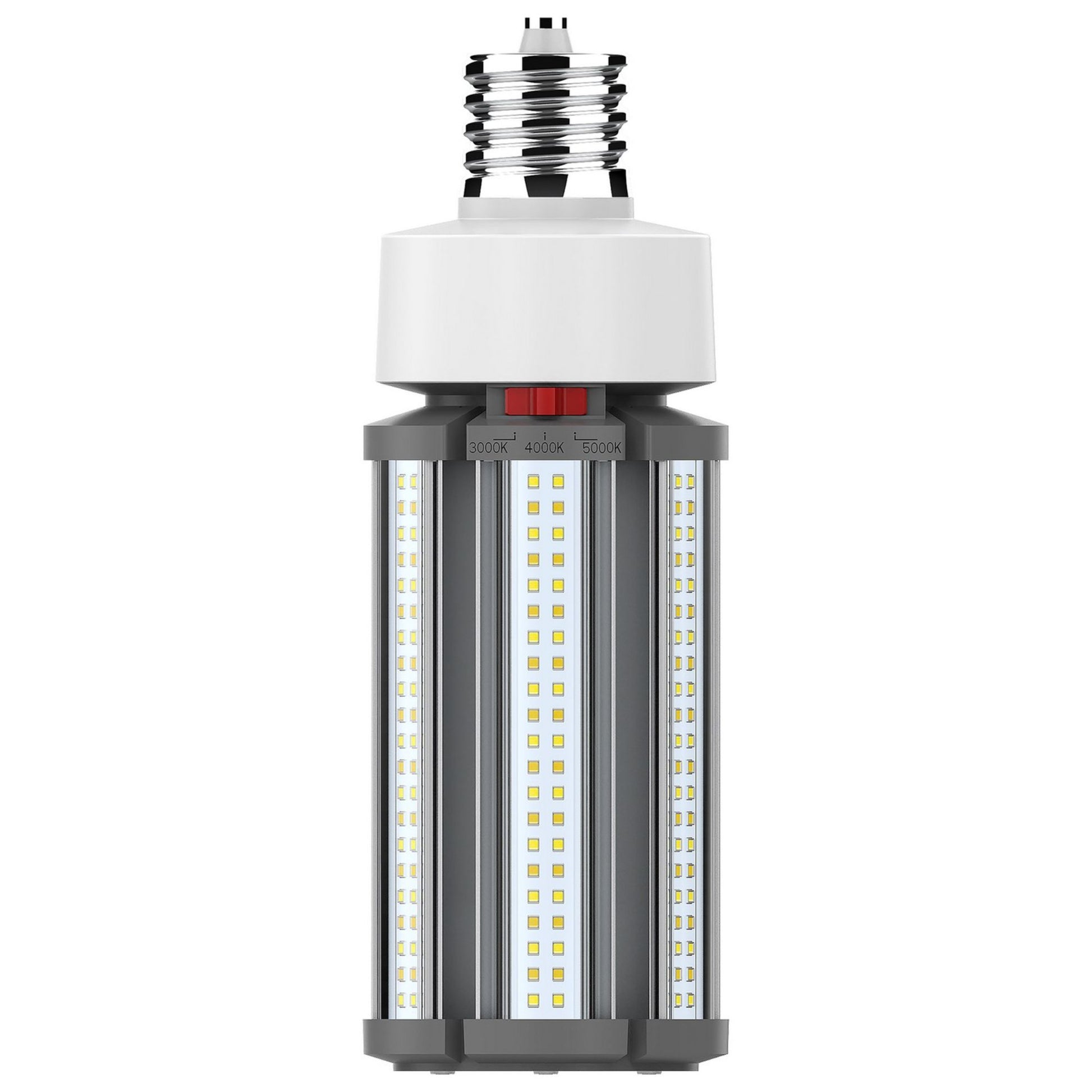

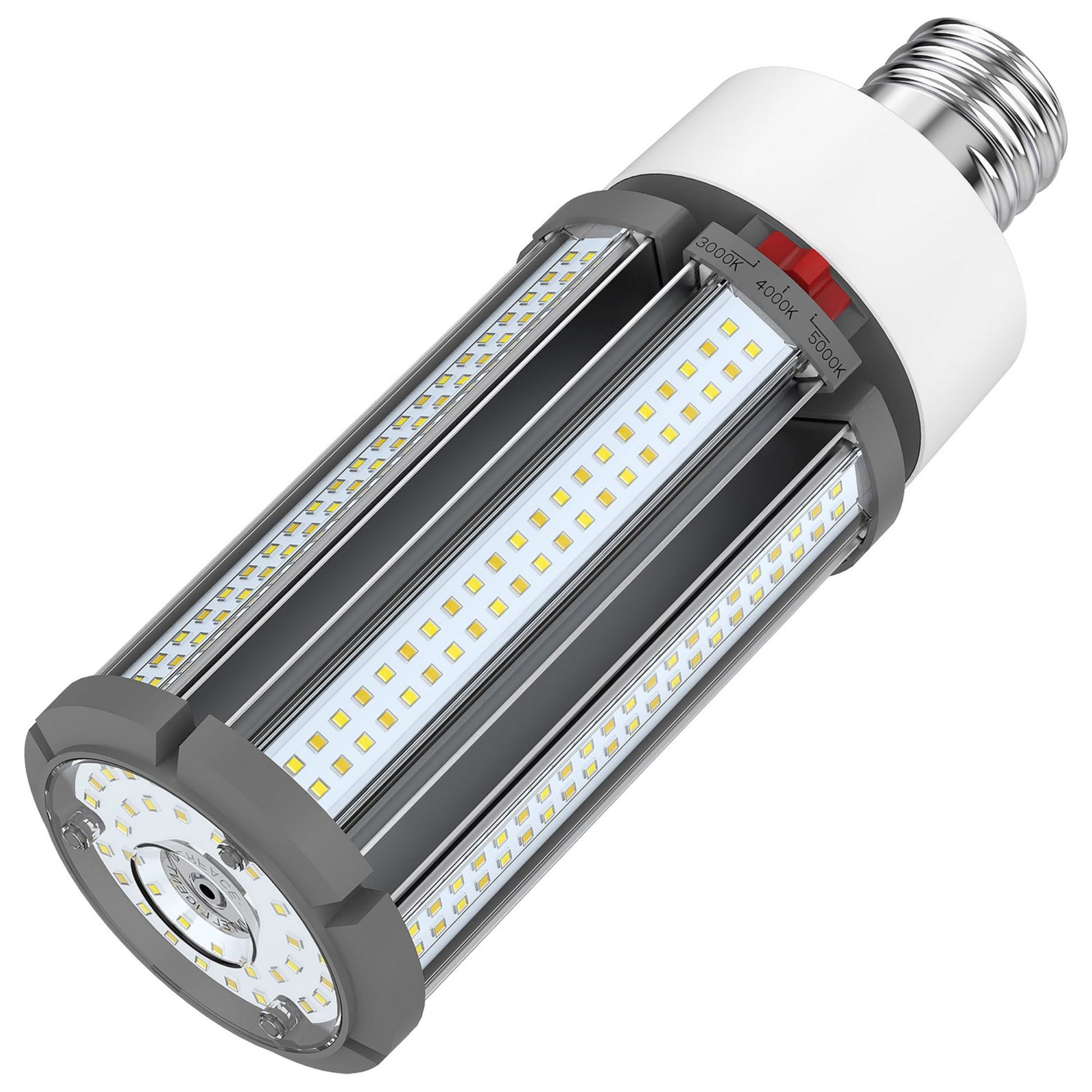

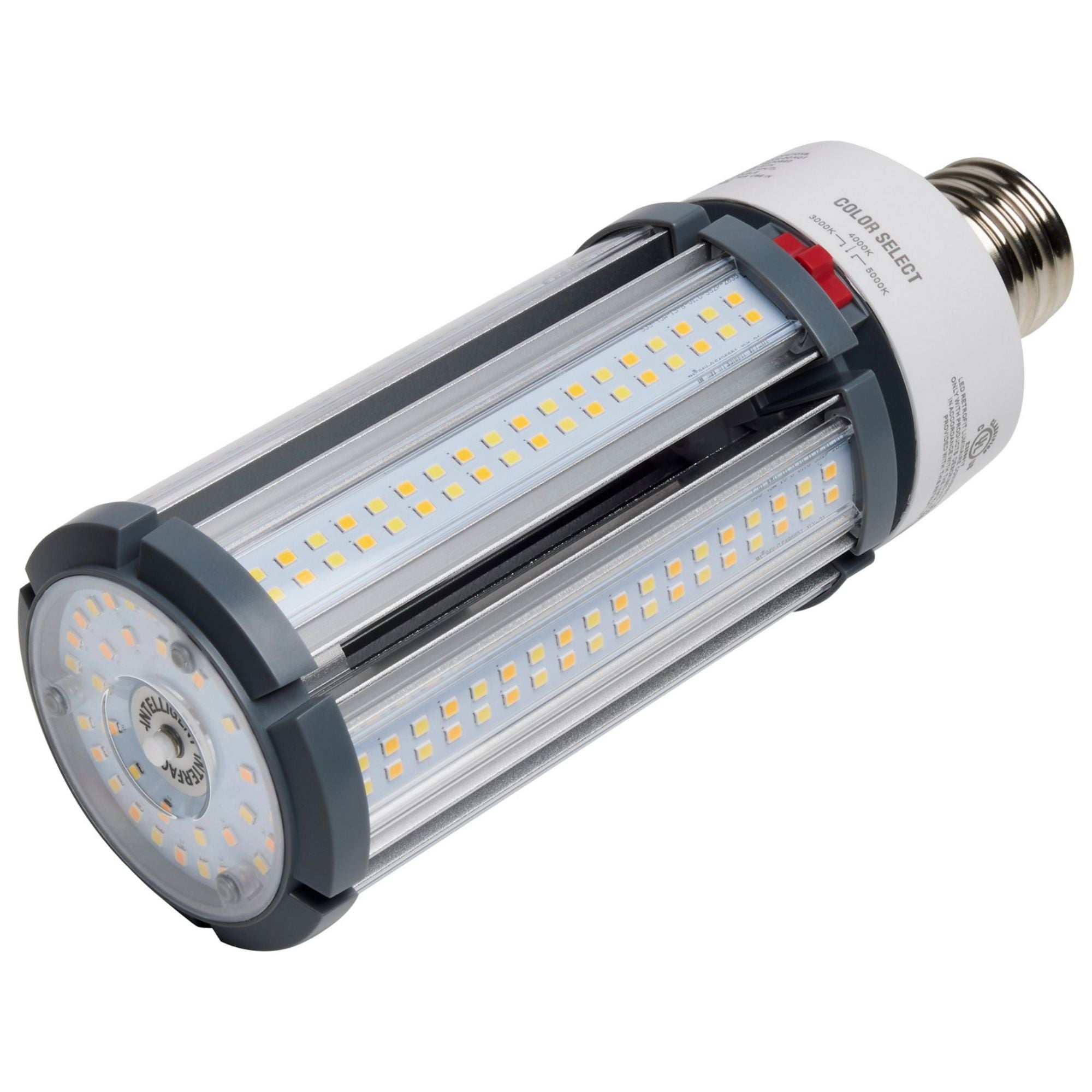

The Satco S23165 Corncob LED bulb features an EX39 Mogul Extended base and replaces 200W metal halide lamps with only 45 watts. This bulb offers selectable color temperatures of 3000K, 4000K, and 5000K, providing flexibility for various lighting needs. It is enclosed fixture rated, making it suitable for a wide range of applications.

Key Features

• Base Type: EX39 Mogul Extended
• Bulb Shape: Corncob
• Wattage Equivalency: 200W MH Equal
• Enclosed Fixture Rated: Yes
• Selectable CCT: 3000K, 4000K, 5000K
• Dimmable: Yes, via WiFi Module and Starfish App
• Voltage: 277-480V
• Surge Protection: Built-in 4KV
• Certifications: DLC Approved, RoHS Compliant
• Operating Temperature: -30C to +45C
• Beam Angle: 300 degrees
• Lifespan: 50,000 hours

Construction & Aesthetics

The bulb is constructed with durable aluminum and polycarbonate materials, featuring a clear plastic lens. It has a compact design with a length of 9.53 inches and a width of 3.35 inches, ensuring it fits well in various fixtures.

Electrical & Installation

This bulb operates on 277-480V and requires a ballast bypass installation. It is dimmable via the Starfish App and a WiFi Module, providing smart control over lighting levels.

Light Output & Performance

With a lumen output of 6300, a CRI of 80+, and a 300-degree beam angle, this bulb delivers bright and efficient lighting. It has a rated lifespan of 50,000 hours, ensuring long-term performance.

Typical Applications

• Warehouses
• Industrial Facilities
• Outdoor Areas
• Commercial Spaces
• High Bay Fixtures
