117 Inch LED T8 Sign Tube, 45 Watts, 6500 Lumens, 40K|50K|65K, 360°, R17D Base

Vendor: SATCO|NUVO

SKU: S16442

$74.95
$74.95 $0.00
Shipping calculated at checkout.
Size: 117"

Available in stock (438)

Must be ordered in quantities of .

About this item
  • Energy Efficiency: 45W LED replaces 132W fluorescent

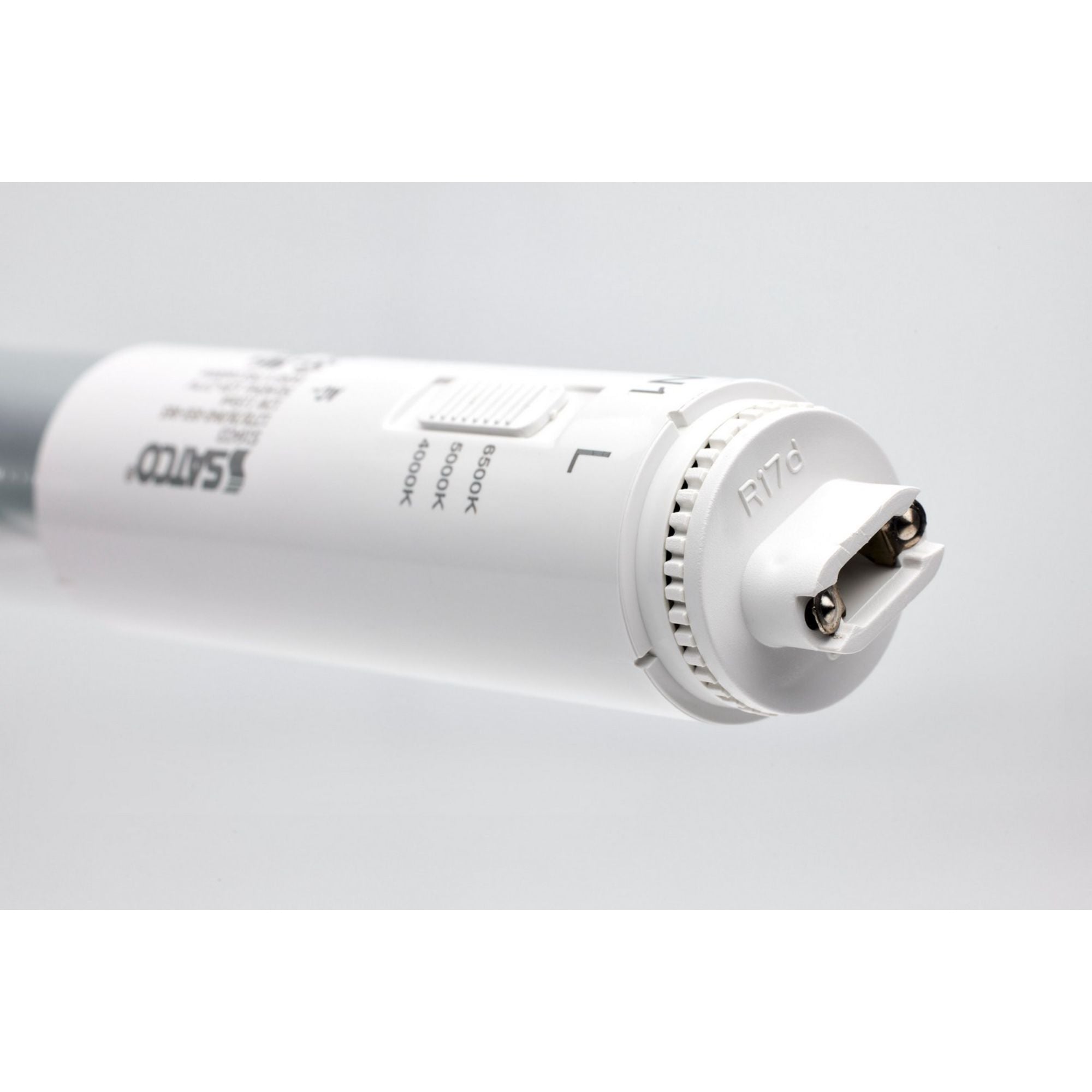

  • Base Type: R17D Recessed Double Contact

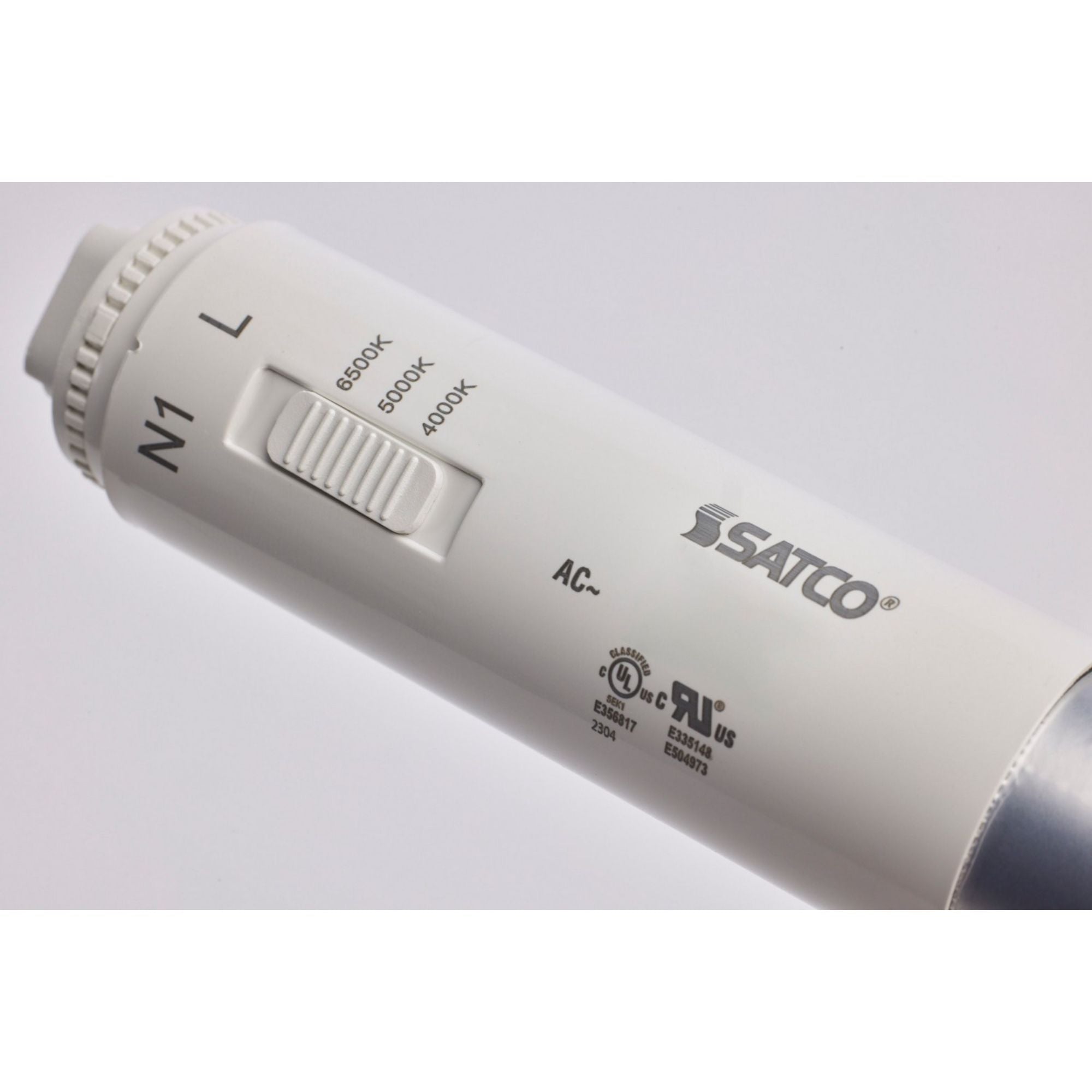

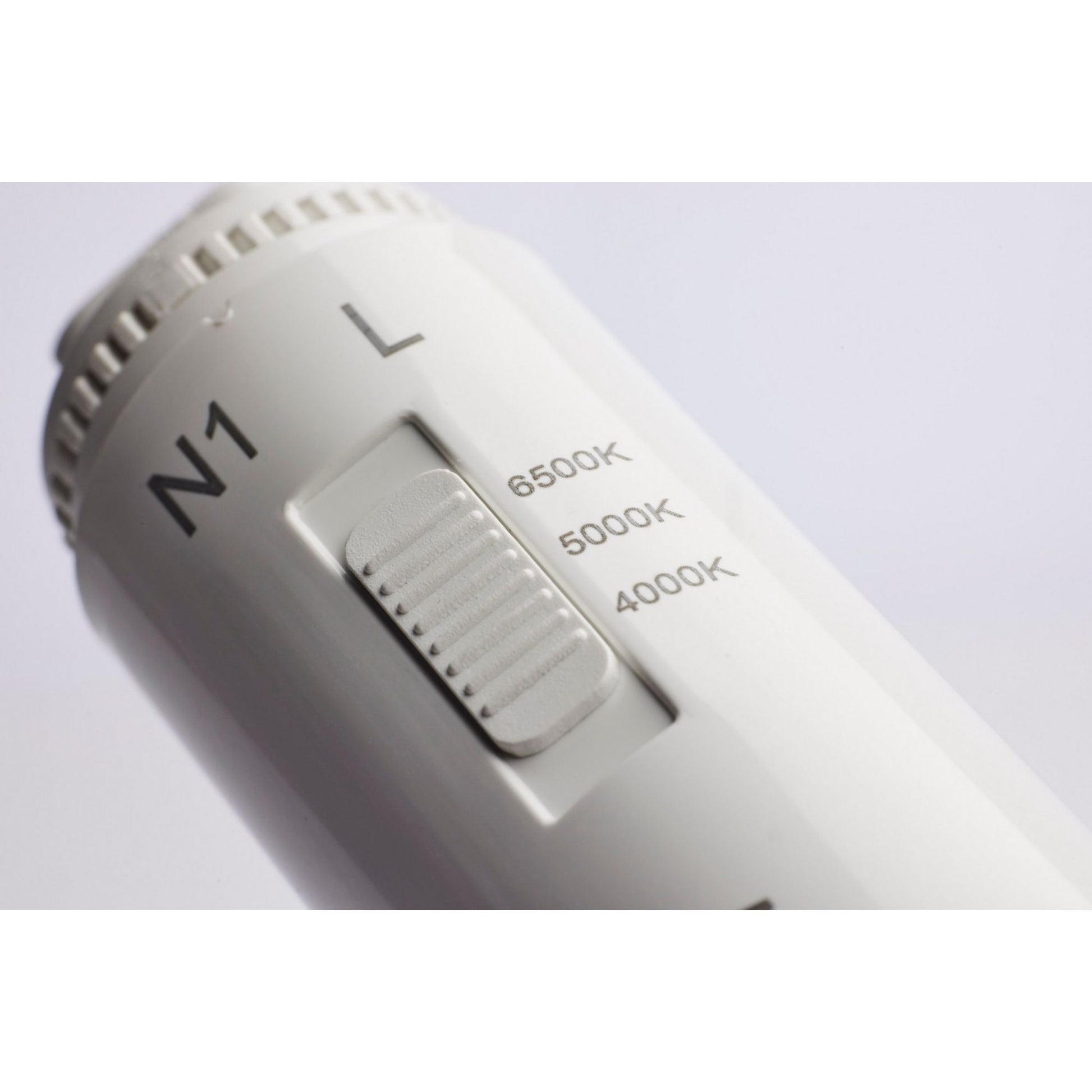

  • CCT Selectable: 4000K, 5000K, 6500K options
  • Installation: Type B Ballast Bypass required
  • Enclosed Fixture Rated: Safe for enclosed fixtures
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

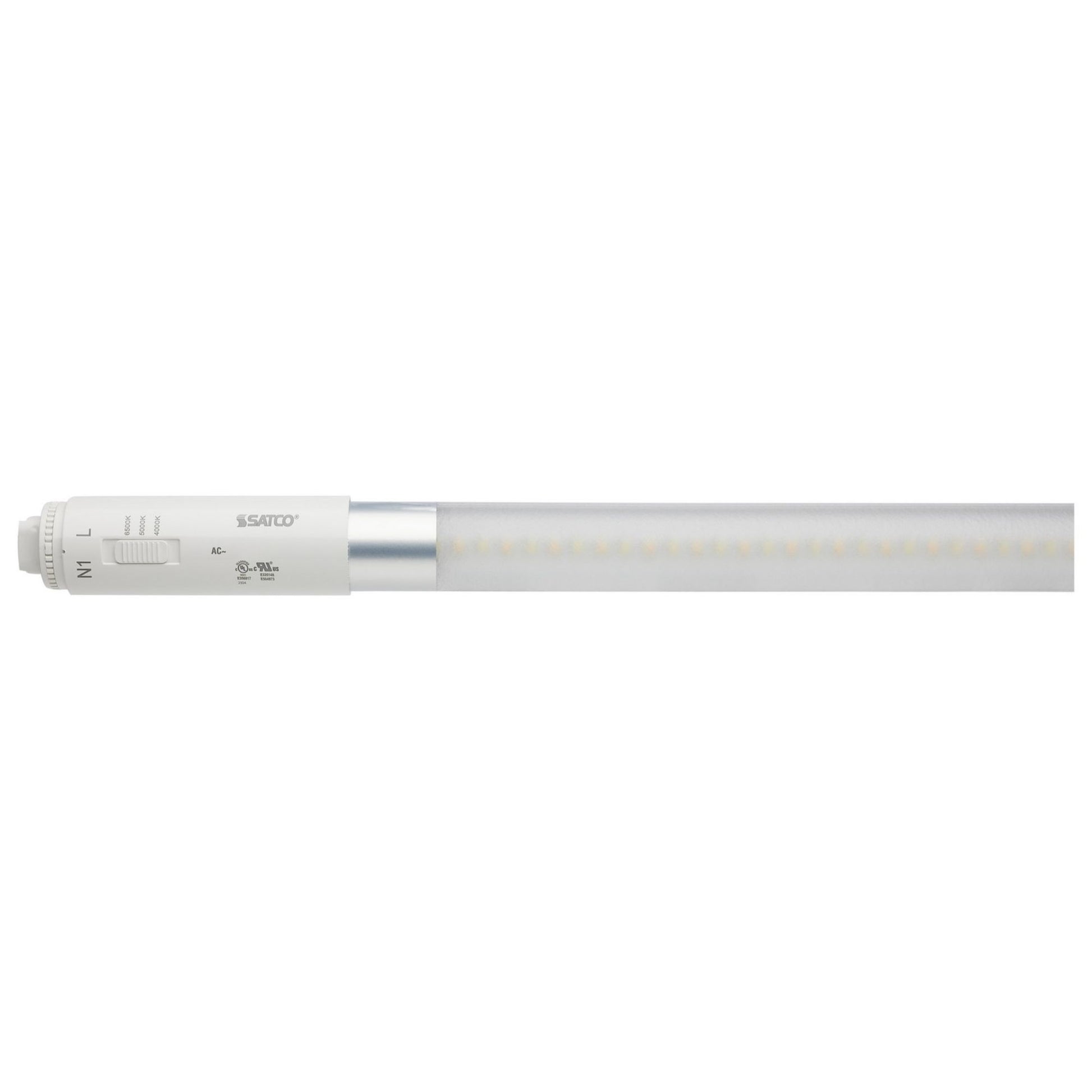

Satco 117 Inch T8 LED Sign Tube 45W / Selectable CCT

The Satco S16442 T8 LED bulb features a R17D base and offers a selectable CCT of 4000K, 5000K, or 6500K. This 45W LED bulb is an energy-efficient replacement for 132W fluorescent tubes, providing up to 6500 lumens of bright, consistent light. Designed for use in enclosed fixtures, it is ideal for a variety of commercial and industrial applications.

Key Features

  • Base Type: R17D Recessed Double Contact
  • Bulb Shape: T8
  • Wattage: 45W
  • Equivalent Wattage: 132W fluorescent
  • Enclosed Fixture Rated: Yes
  • CCT Selectable: 4000K, 5000K, 6500K
  • Voltage: 120-277V
  • Beam Angle: 360 degrees
  • Certifications: RoHS Compliant, cULus Certified
  • Lifespan: 50,000 hours
  • Material: Polycarbonate
  • Power Factor: 0.9

Construction & Aesthetics

Constructed with durable polycarbonate material, this T8 LED bulb features a frosted lens for even light distribution. Its 360-degree beam angle ensures comprehensive illumination, making it suitable for various lighting setups.

Electrical & Installation

Operating on 120-277V, this non-dimmable bulb requires a Type B ballast bypass installation. It is designed for single or double-ended wiring configurations, providing flexibility during installation.

Light Output & Performance

With a high lumen output of up to 6500 lumens and a CRI of 80+, this LED bulb delivers bright and accurate color rendering. Its long lifespan of 50,000 hours ensures reliable performance over time.

Typical Applications

  • Commercial lighting
  • Industrial facilities
  • Retail spaces
  • Warehouses
  • Office buildings

Specifications

Dimensions

Length/Depth
114.81 in
Width/Diameter
1.13 in
Weight
1.91 lb

Documents

Style & Materials

Finish
White
Material
Plastic
Style
Wedge
Shape
Tubular
Glass
Frost

Characteristics & Features

Lamp Source
LED
Base Type
R17d
Bulb Included
No
Integrated LED
Yes
Bulb
T8
Lamp Color
4000K, 5000K, 6500K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
6500
Beam Angle
360.00
Enclosed Rated
Yes

Electrical Information

Voltage
120-277V
Total Wattage
45W
Bulb Wattage
45W

Item Details

MPN
S16442
Brand
SATCO|NUVO
Catalog Number
45T8/LED/HO-SIGN/117-3CCT/BP/S
UPC
045923164422

Warranty & Certifications

Product Warranty
5 Year Limited - T8 LED Bulbs
Lamp Life
50000 hours
Product Rating
Damp
Safety Listing
cRUus, cULus

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What base type does the Satco S16442 LED bulb use?
The Satco S16442 LED bulb uses an R17D Recessed Double Contact base.

Is the Satco S16442 LED bulb dimmable?
No, the Satco S16442 LED bulb is non-dimmable.

Can the Satco S16442 LED bulb be used in enclosed fixtures?
Yes, the Satco S16442 LED bulb is rated for use in enclosed fixtures.

What installation type is required for the Satco S16442 LED bulb?
The Satco S16442 LED bulb requires a Type B ballast bypass installation.

What color temperatures are available for the Satco S16442 LED bulb?
The Satco S16442 LED bulb offers selectable color temperatures of 4000K, 5000K, and 6500K.
