96 Inch LED T8 Sign Tube, 36 Watts, 5200 Lumens, 40K|50K|65K, 360°, R17D Base

Satco 96 Inch T8 LED Sign Tube 36W / Selectable CCT

The Satco S16440 T8 LED bulb features a R17D base and replaces 110W fluorescent tubes with only 36W of power. This bulb offers selectable color temperatures of 4000K, 5000K, and 6500K, providing flexibility for various lighting needs. Designed for enclosed fixtures, it ensures safety and efficiency in diverse applications.

Key Features

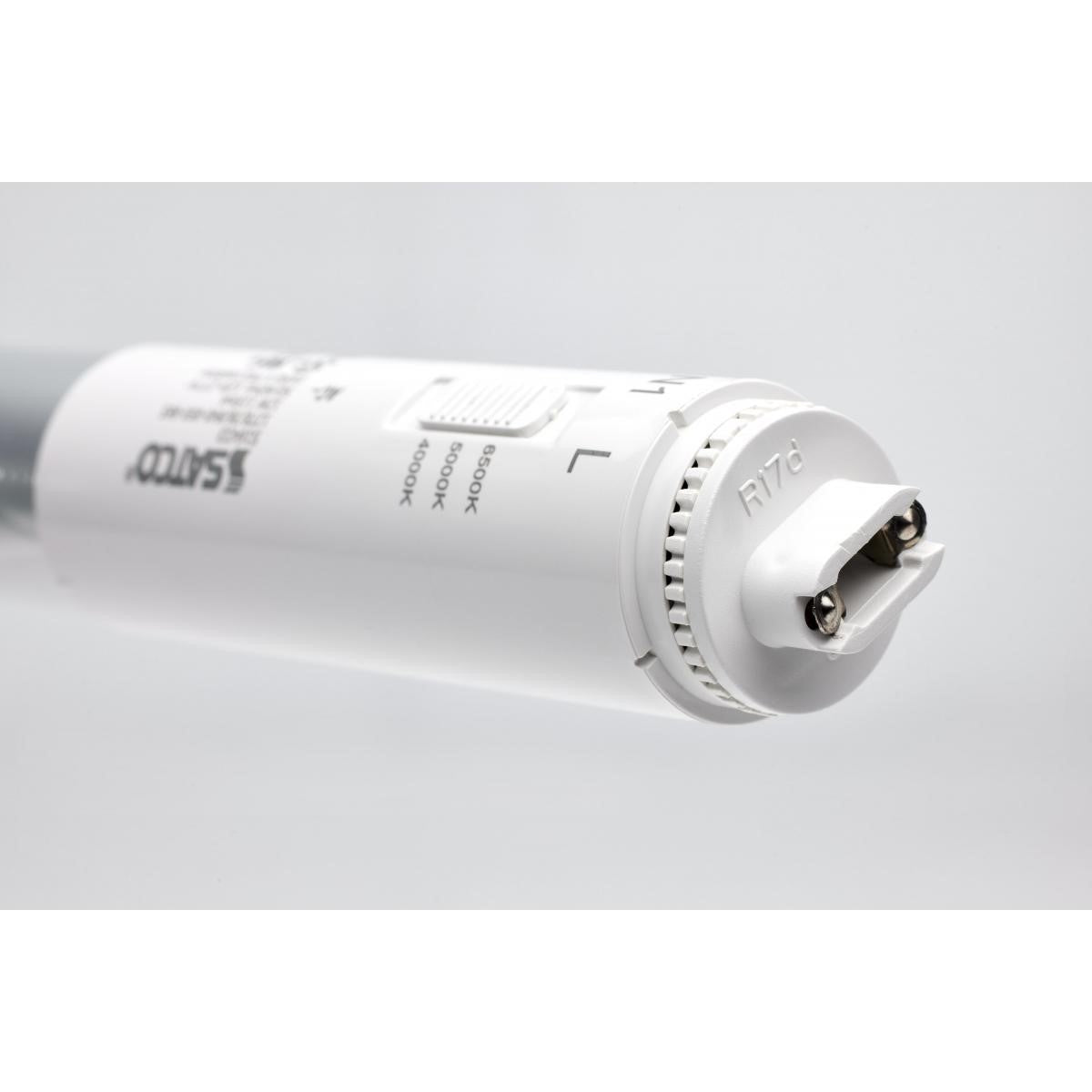

• Base Type: R17D (Recessed Double Contact)
• Bulb Shape: T8
• Wattage Equivalency: 110W Fluorescent
• Enclosed Fixture Rating: Yes

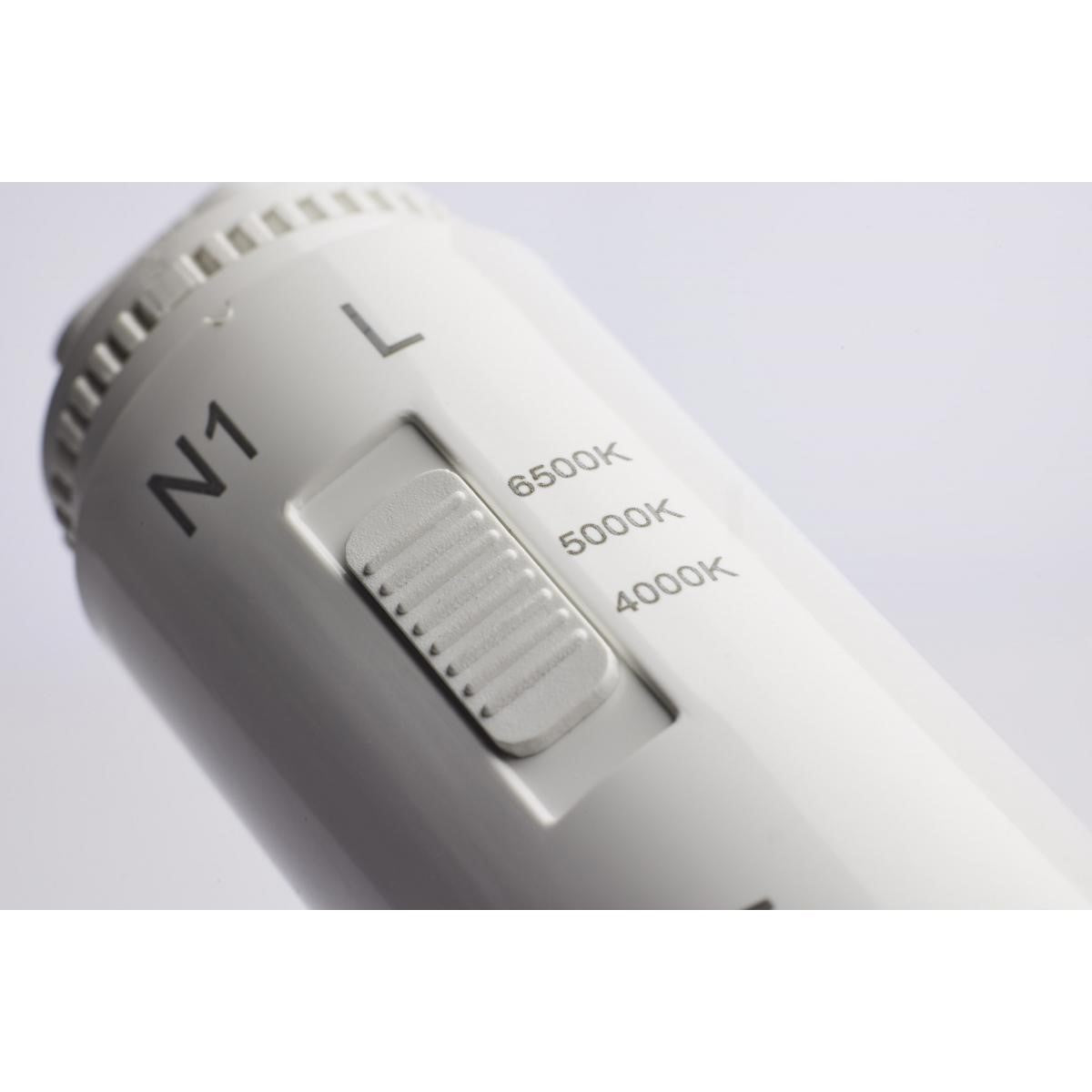

• Selectable CCT: 4000K, 5000K, 6500K
• Voltage: 120-277V
• Non-Dimmable: Fixed output
• Certifications: cRUus, cULus, RoHS Compliant
• Beam Angle: 360 degrees
• Lifespan: 50,000 hours
• Material: Polycarbonate
• Surge Protection: Built-in 1KV

Construction & Aesthetics

This T8 LED bulb is constructed with durable polycarbonate material and features a frosted lens for even light distribution. It measures 96 inches in length and 1.15 inches in diameter, fitting standard linear fixtures.

Electrical & Installation

Operating on 120-277V, this bulb requires a Type B ballast bypass installation. It is non-dimmable and includes built-in surge protection for enhanced reliability.

Light Output & Performance

With a lumen output of 5200, this LED bulb offers high brightness and a CRI of 80+, ensuring accurate color rendering. It has a wide 360-degree beam angle and a long lifespan of 50,000 hours.

Typical Applications

• Commercial Signage
• Warehouse Lighting
• Retail Spaces
• Office Buildings
• Industrial Facilities
