48 Inch LED T8 Sign Tube, 18 Watts, 2600 Lumens, 40K|50K|65K, 360°, R17D Base
Available in stock (3514)
About this item
About this item

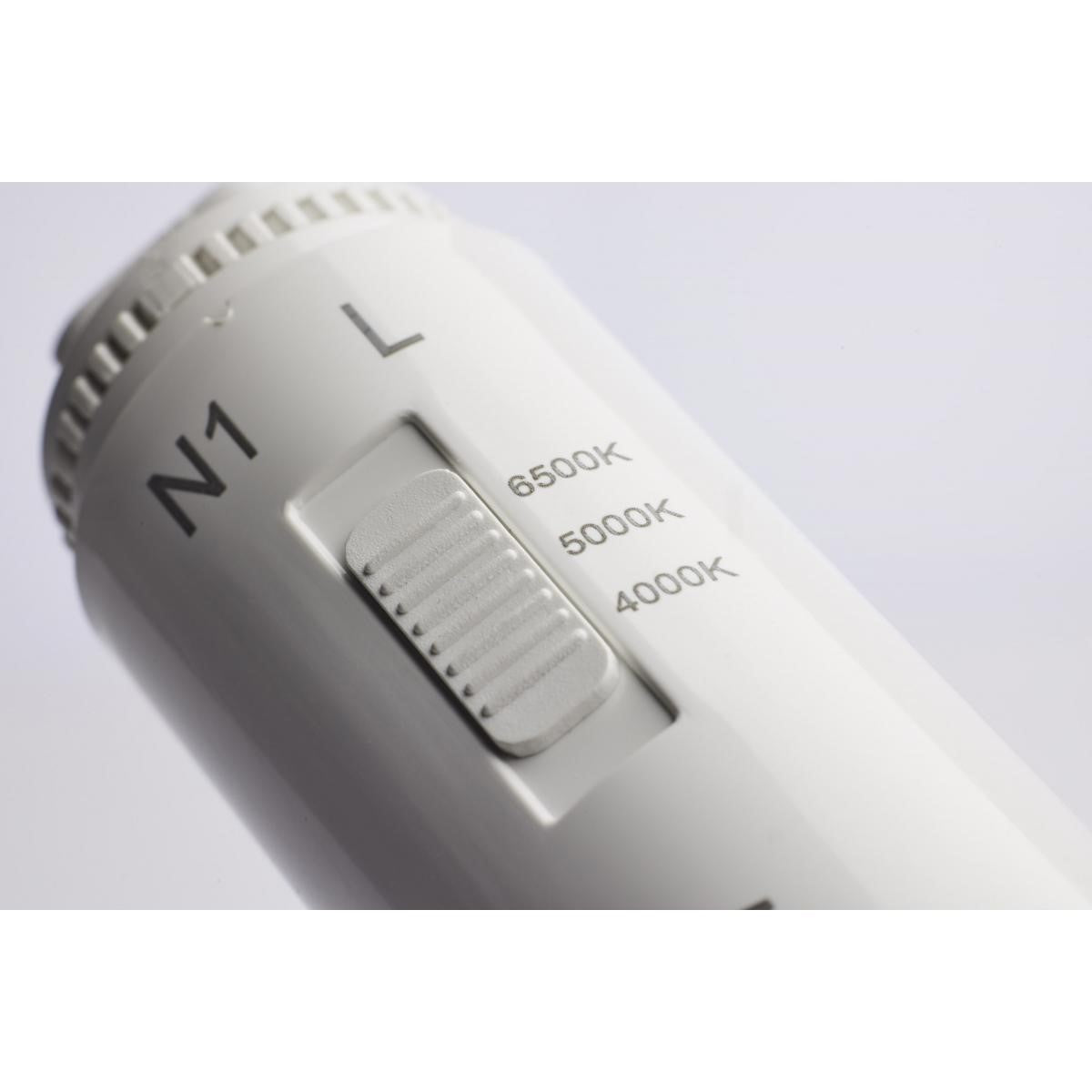

- Selectable CCT: Choose from 4000K, 5000K, or 6500K
- Base Type: R17D Recessed Double Contact
- Equivalency: Replaces 60W fluorescent or 90W incandescent
- Enclosed Fixture Rated: Safe for use in enclosed fixtures
- Ballast Bypass: Type B installation for direct wire
We process payments securely and do not store credit card information.
Description
Description
Satco 48 Inch T8 LED Sign Tube 18W / Selectable CCT
The Satco S16435 T8 LED bulb offers a versatile lighting solution with its selectable color temperature options of 4000K, 5000K, and 6500K. Designed for R17D recessed double contact bases, this 18-watt bulb is an energy-efficient replacement for traditional 60W fluorescent and 90W incandescent bulbs. It is Enclosed Fixture Rated, making it ideal for a variety of applications.
Key Features
- Base Type: R17D Recessed Double Contact
- Bulb Shape: T8
- Equivalency: 60W fluorescent, 90W incandescent
- Enclosed Fixture Rated: Yes
- Certifications: cRUus, cULus, RoHS Compliant
- Voltage: 120-277V
- Non-Dimmable: Fixed output
- Beam Angle: 360 degrees
- Surge Protection: Built-in 1KV
- Operating Temperature: -20C to +45C
- Power Factor: 0.9
- CRI: 80+
Construction & Aesthetics

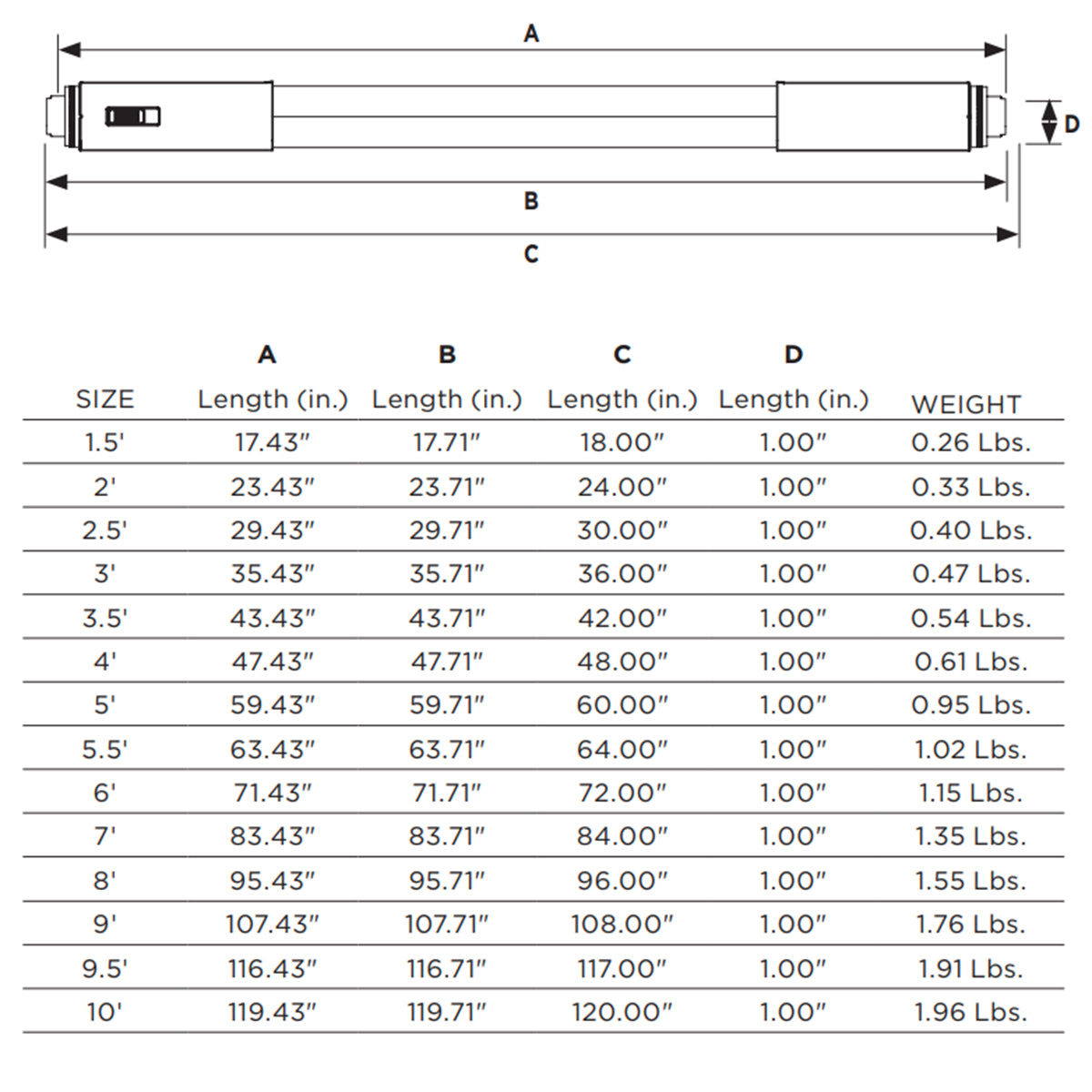

Constructed with durable polycarbonate material, the bulb features a frosted lens for even light distribution. Its compact design measures 45.81 inches in length and 1.15 inches in diameter.
Electrical & Installation
This bulb operates on a wide voltage range of 120-277V and requires a Type B ballast bypass installation, meaning it must be directly wired to the power source. It is not suitable for use in vapor-tight fixtures.
Light Output & Performance
With a light output of up to 2600 lumens and a 360-degree beam angle, this bulb provides ample illumination for various settings. It has a rated lifespan of 50,000 hours, ensuring long-term performance.
Typical Applications
- Commercial signage
- Retail displays
- Office lighting
- Warehouse illumination
- Industrial facilities
