18 Inch LED T8 Sign Tube, 7 Watts, 1000 Lumens, 40K|50K|65K, 360°, R17D Base

Vendor: SATCO|NUVO

SKU: S16430

$20.50
$20.50 $0.00
Shipping calculated at checkout.
Size: 18"

Available in stock (243)

Must be ordered in quantities of .

About this item
  • Energy Efficient: 7W LED replaces 25W fluorescent

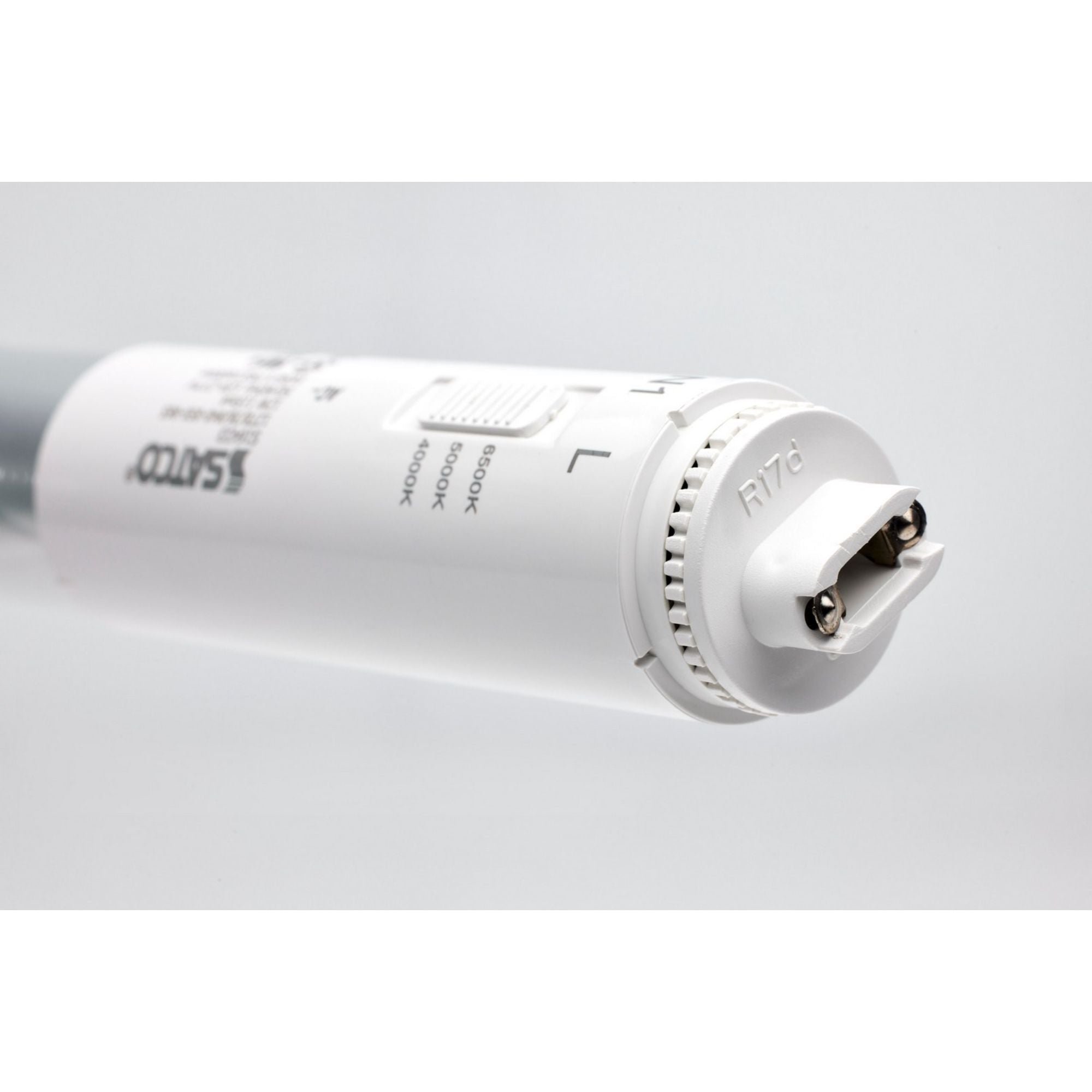

  • Base Type: R17D Recessed Double Contact

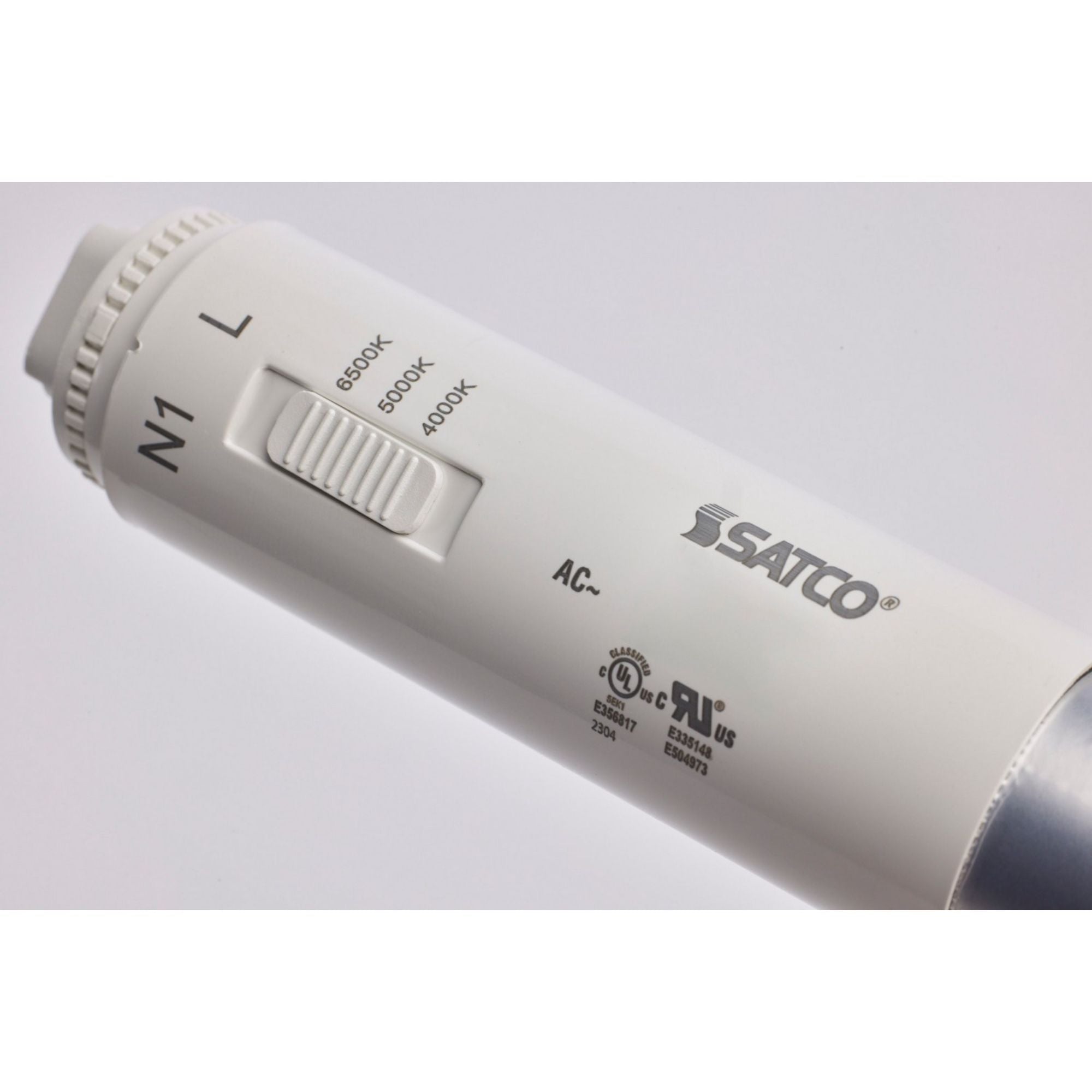

  • CCT Selectable: 4000K, 5000K, 6500K
  • Enclosed Fixture Rated: Safe for enclosed fixtures
  • Non-Dimmable: Fixed brightness level
View More Details
Payment & Security
  • Ach Direct Debit
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • USDC
  • Visa

We process payments securely and do not store credit card information.

Description

Satco 18 Inch T8 LED Sign Tube 7W / Selectable CCT

The Satco S16430 T8 LED bulb features a R17D base and operates at 7 watts, replacing 25W fluorescent tubes. This bulb offers selectable color temperatures of 4000K, 5000K, and 6500K, providing flexibility for various lighting needs. Designed for use in enclosed fixtures, it ensures safe and efficient operation.

Key Features

  • Base Type: R17D Recessed Double Contact
  • Bulb Shape: T8
  • Wattage Equivalency: 25W Fluorescent
  • Enclosed Fixture Rated: Yes
  • Certifications: cRUus, cULus, RoHS Compliant
  • Voltage: 120-277V
  • Beam Angle: 360 degrees
  • Surge Protection: Built-in 1KV
  • Power Factor: 0.9
  • Operating Temperature: -20C to +45C
  • CRI: 80+
  • Rated Life: 50,000 hours

Construction & Aesthetics

The bulb is constructed with durable polycarbonate material and features a frosted plastic lens for even light distribution. Its compact design fits seamlessly into various fixtures.

Electrical & Installation

Operating at 120-277V, this non-dimmable bulb requires a ballast bypass installation, making it suitable for both single and double-ended connections.

Light Output & Performance

Delivering up to 1000 lumens with a CRI of 80+, this bulb ensures bright and accurate color rendering. The 360-degree beam angle provides comprehensive illumination.

Typical Applications

  • Commercial Signage
  • Retail Lighting
  • Office Spaces
  • Warehouse Lighting

Specifications

Dimensions

Length/Depth
15.81 in
Width/Diameter
1.13 in
Weight
0.26 lb

Documents

Style & Materials

Finish
White
Material
Plastic
Style
Wedge
Shape
Tubular
Glass
Frost

Characteristics & Features

Lamp Source
LED
Base Type
R17d
Bulb Included
No
Integrated LED
Yes
Bulb
T8
Lamp Color
4000K, 5000K, 6500K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
1000
Beam Angle
360.00
Enclosed Rated
Yes

Electrical Information

Voltage
120-277V
Total Wattage
7W
Bulb Wattage
7W

Item Details

MPN
S16430
Brand
SATCO|NUVO
Catalog Number
7T8/LED/HO-SIGN/18-3CCT/BP/SE
UPC
045923164309

Warranty & Certifications

Product Warranty
5 Year Limited - T8 LED Bulbs
Lamp Life
50000 hours
Product Rating
Damp
Safety Listing
cRUus, cULus

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What base type does the Satco S16430 bulb use?
The Satco S16430 bulb uses an R17D recessed double contact base.

Is the Satco S16430 bulb dimmable?
No, the Satco S16430 bulb is non-dimmable and operates at a fixed brightness level.

Can the Satco S16430 bulb be used in enclosed fixtures?
Yes, the Satco S16430 bulb is rated for use in enclosed fixtures.

What is the installation type for the Satco S16430 bulb?
The Satco S16430 bulb requires a Type B ballast bypass installation.

What color temperatures are available with the Satco S16430 bulb?
The Satco S16430 bulb offers selectable color temperatures of 4000K, 5000K, and 6500K.
