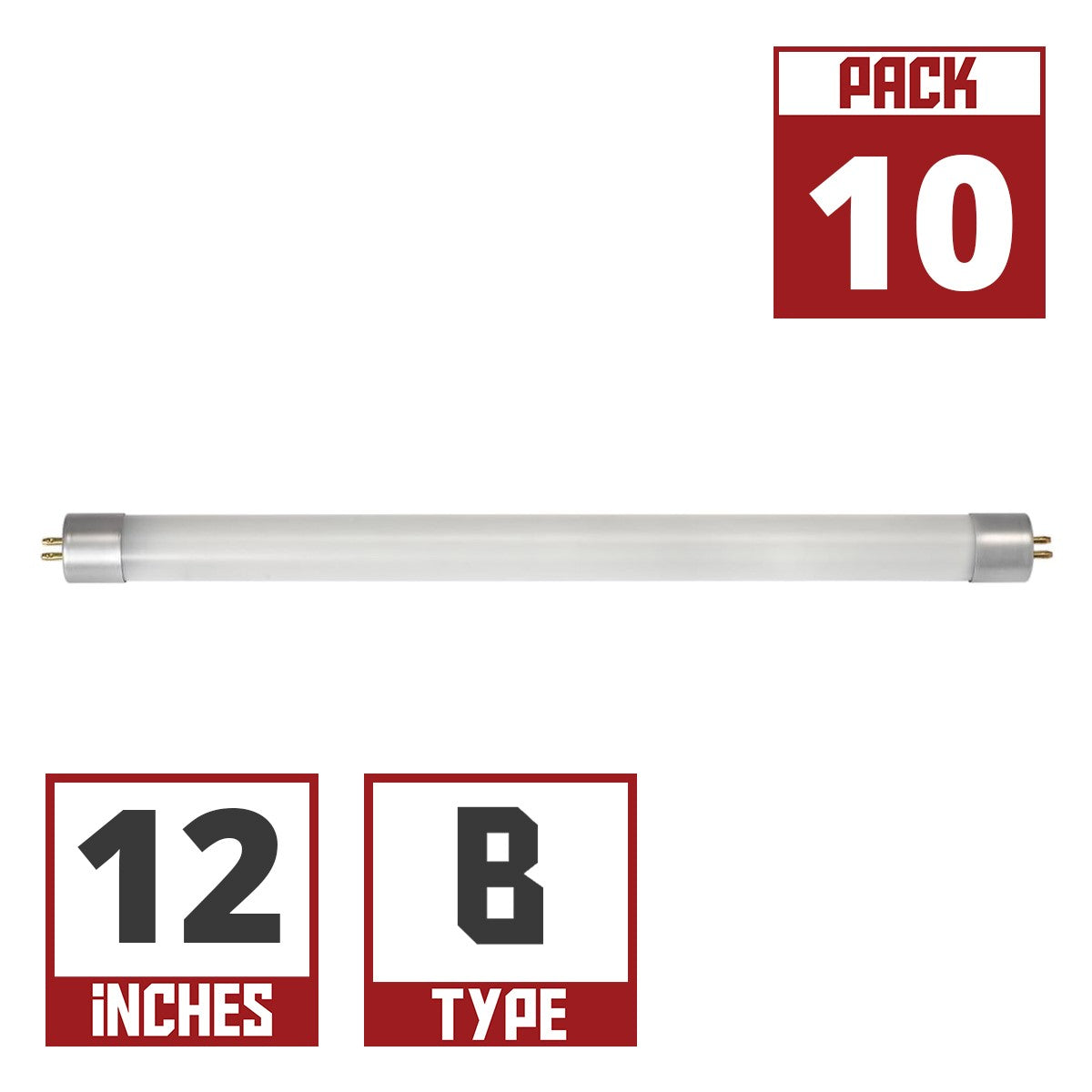

12" Mini T5 LED Tube, 4W, 400 Lumens, F8T5/WW Equal, 3000K, Ballast Bypass, Double End
Available in stock (1431)
About this item
About this item
- Energy Efficient: 4W LED replaces 8W fluorescent
- Base Type: G5 Miniature Bi-Pin
- Non-Dimmable: Consistent light output
- Ballast Bypass: Type B, direct wire installation
- Long Lifespan: 50,000 hours of operation
We process payments securely and do not store credit card information.
Description
Description

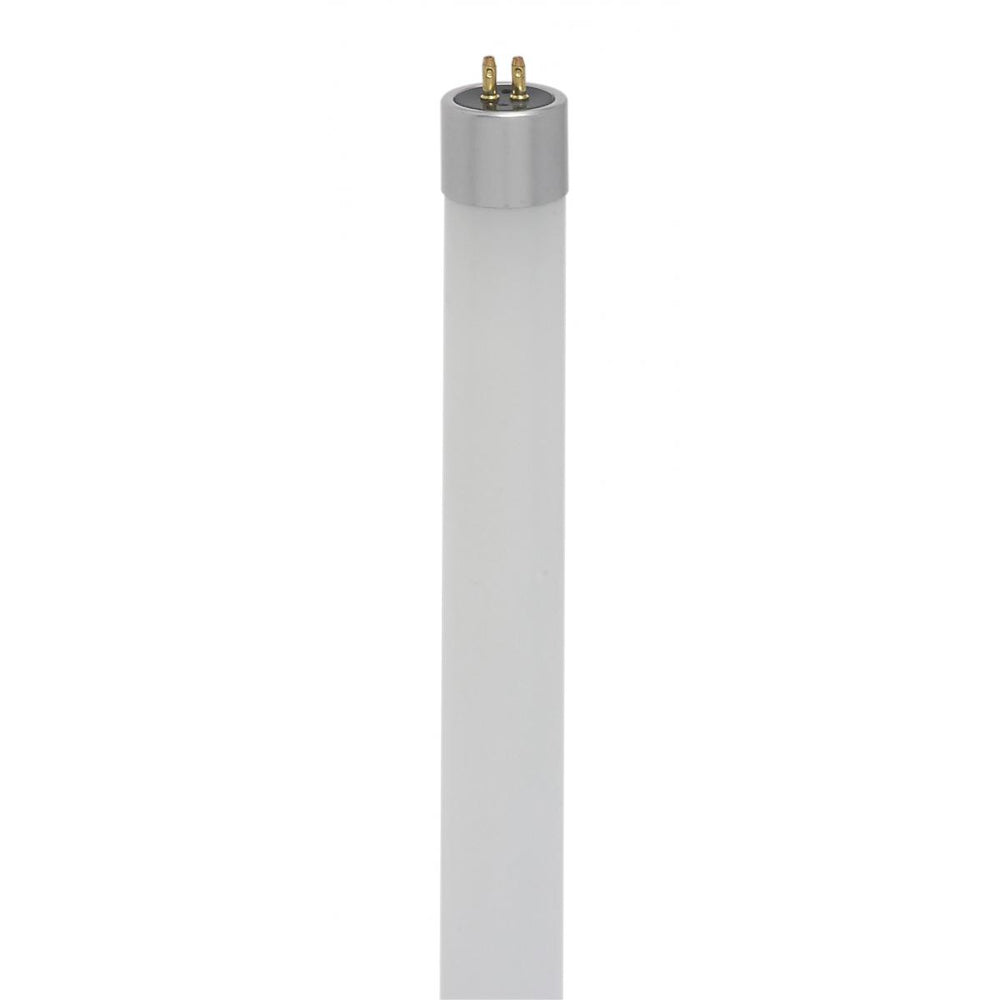

Satco 12" Mini T5 LED Bulb — 4W / 3000K
The Satco S11904 T5 LED bulb features a G5 base and is designed to replace 8W fluorescent lamps. Operating at 4 watts, this bulb provides a warm white light at 3000K and delivers 400 lumens. Ideal for direct wire installations, it offers a long lifespan of 50,000 hours.
Key Features
- Base Type: G5 Miniature Bi-Pin
- Bulb Shape: T5
- Equivalent Wattage: 8W Fluorescent
- Enclosed Fixture Rated: False
- Certifications: cULus, ETLus, RoHS Compliant
- Voltage: 120-277V
- Beam Angle: 240 degrees
- Surge Protection: Built-in 0.5KV
- Power Factor: 0.9
- Operating Temperature: -25C to +45C
- Material: Frosted glass with PET coating
- Installation: Double-ended wiring, direct wire
Construction & Aesthetics
This T5 LED bulb is constructed with frosted glass and a PET coating for durability. It measures 11.91 inches in length and 0.83 inches in diameter, providing a wide 240-degree beam angle for optimal light distribution.
Electrical & Installation
Designed for 120-277V line voltage, this bulb requires no ballast or external driver, simplifying installation. It is non-dimmable, ensuring consistent light output. The double-ended wiring allows for straightforward direct wire installation.
Light Output & Performance
Delivering 400 lumens with a CRI of 80+, this LED bulb ensures high-quality light output. Its 50,000-hour lifespan reduces maintenance and replacement costs.
Typical Applications
- Office lighting
- Retail displays
- Residential under-cabinet lighting
- Task lighting
