SATCO S11877 6 in Square Slim LED Downlight ColorQuick 5-CCT 12W 120V Black
Available in stock (2191)
About this item
About this item

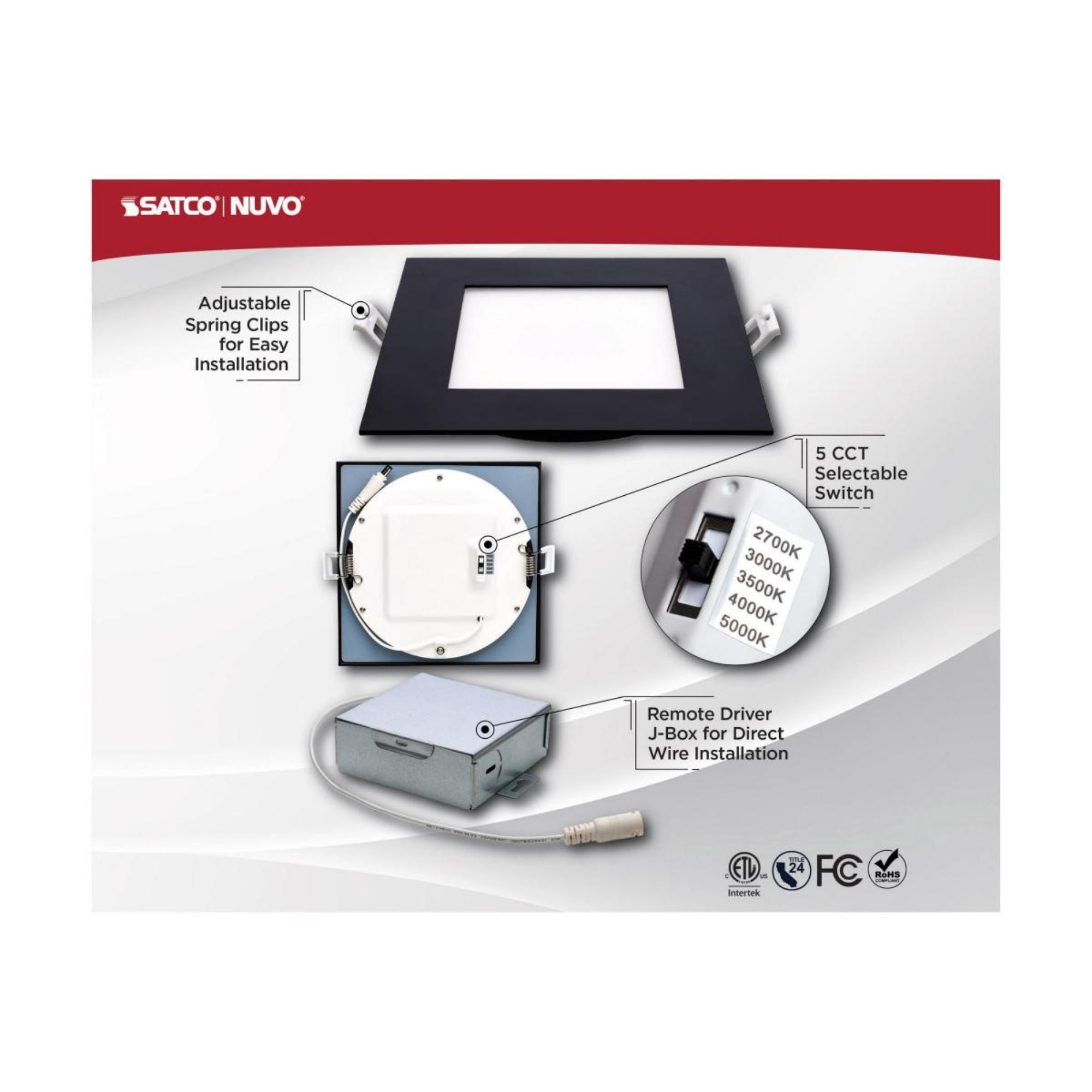

- ColorQuick 5-CCT Selectable — 6 in Square Slim Fit LED Downlight: Remote driver; aluminum construction; frost PMMA lens; black finish; indoor and outdoor use; down installation only
- IC Rated, Airtight, and IP20 Rated — Wet Rated: Suitable for bathrooms; indoor and outdoor rated; EA width 2.13 in; EA height 7.13 in; EA length 8.74 in; weight 1.28 lbs
- 750 lm at 12W: CRI 90+; 108° beam angle; replaces 65W incandescent; L70: 50,000 hrs; 1.5KV surge protection; PF >0.9; THD <20%
- Phase-Cut Dimmable — 120V / 60Hz Only: CCT adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; op temp: -4°F to +113°F (-20°C to +45°C)
- California T24 JA8 Listed / cETLus Listed: FCC; RoHS; Title 20: Exempt; 5-year warranty
Description
Description
SATCO S11877 6 in Square Slim LED Downlight — ColorQuick / 5-CCT Selectable / 12W / 750 lm / 120V / Black

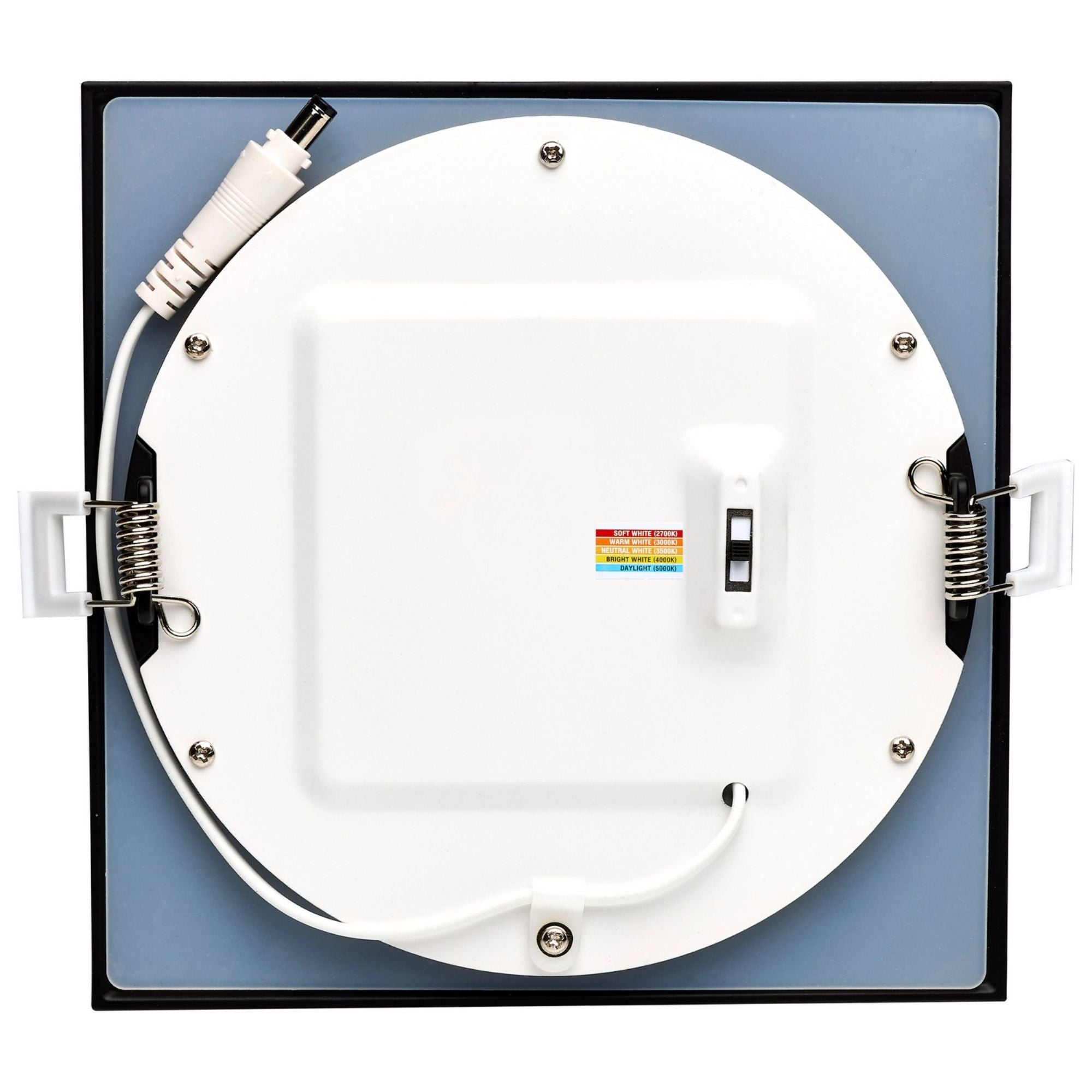

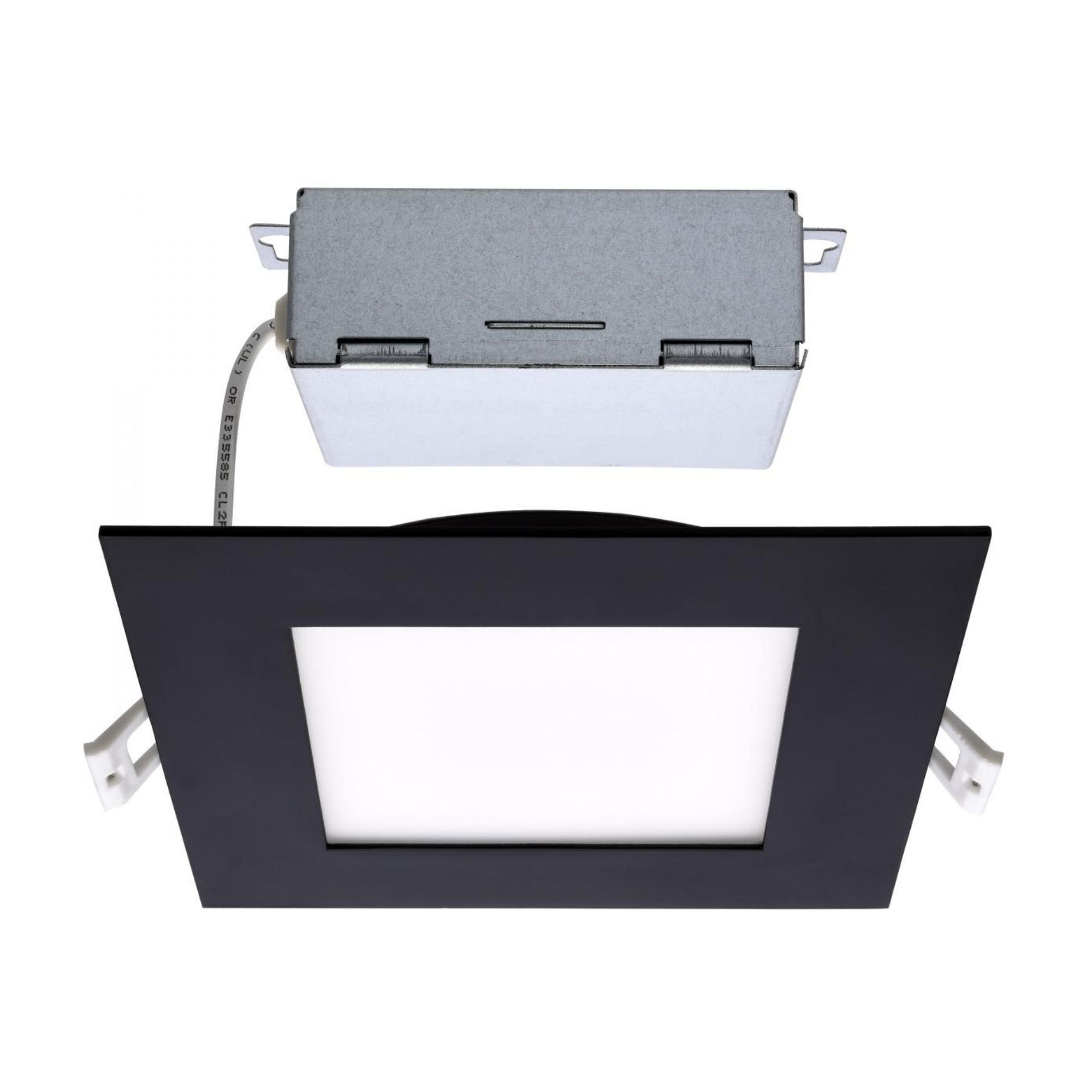

The SATCO S11877 is a 6 in square slim fit remote driver LED downlight featuring ColorQuick selectable color technology in a sleek black finish. Delivering 750 lm at 12W with a 108° beam angle. Aluminum construction with frost PMMA lens. IC rated, airtight, IP20 rated, and wet rated. Indoor and outdoor use. Phase-cut dimmable at 120V. Built-in 1.5KV surge protection. California T24 JA8 Listed. cETLus Listed. FCC. RoHS. 5-year warranty. L70: 50,000 hours. Replaces 65W incandescent.
Key Features
- Wattage: 12W (fixed)
- Light Output: 750 lm
- Beam Angle: 108°

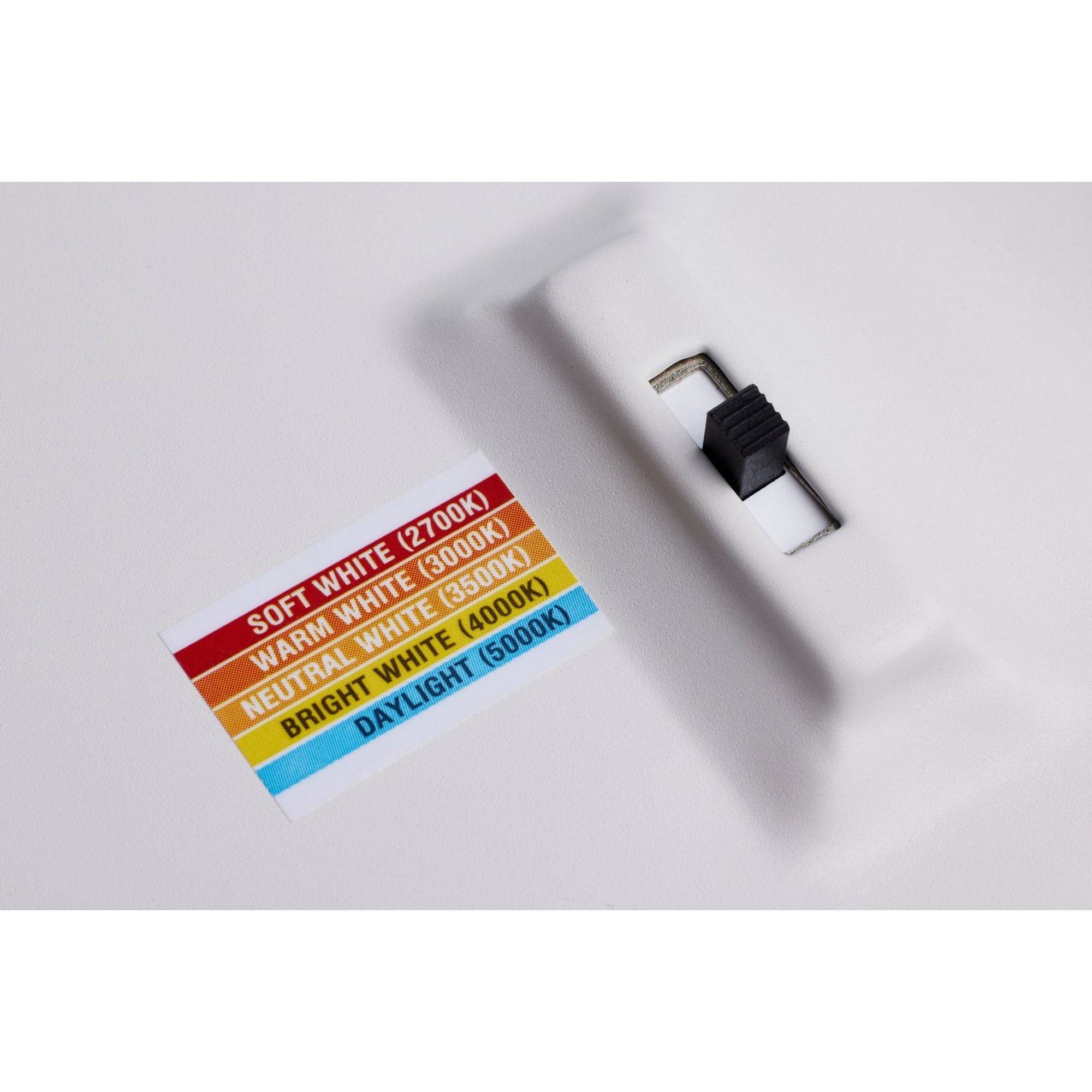

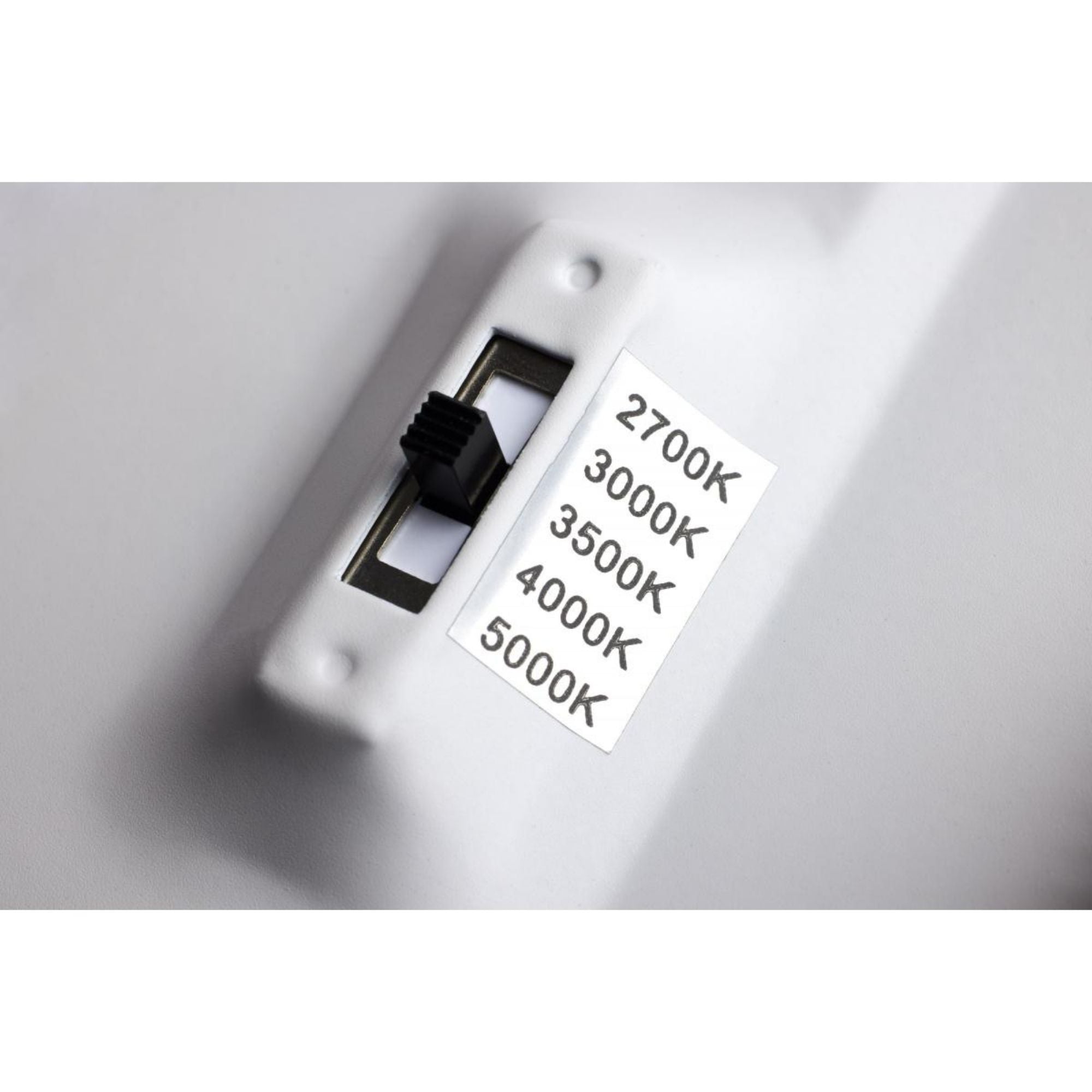

- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+

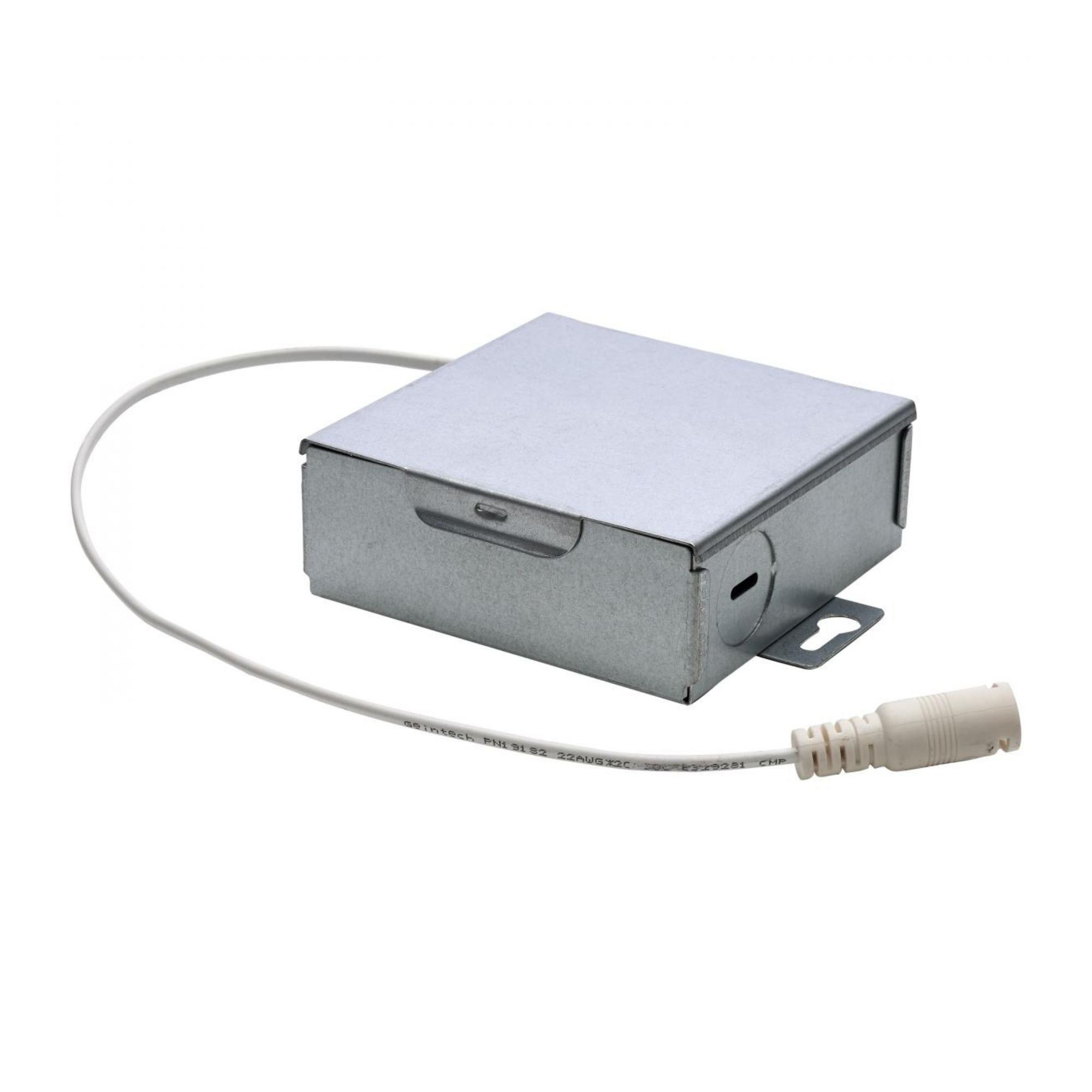

- Fixture Type: Remote Driver LED Downlight
- Finish: Black | Lens: Frost PMMA | Construction: Aluminum

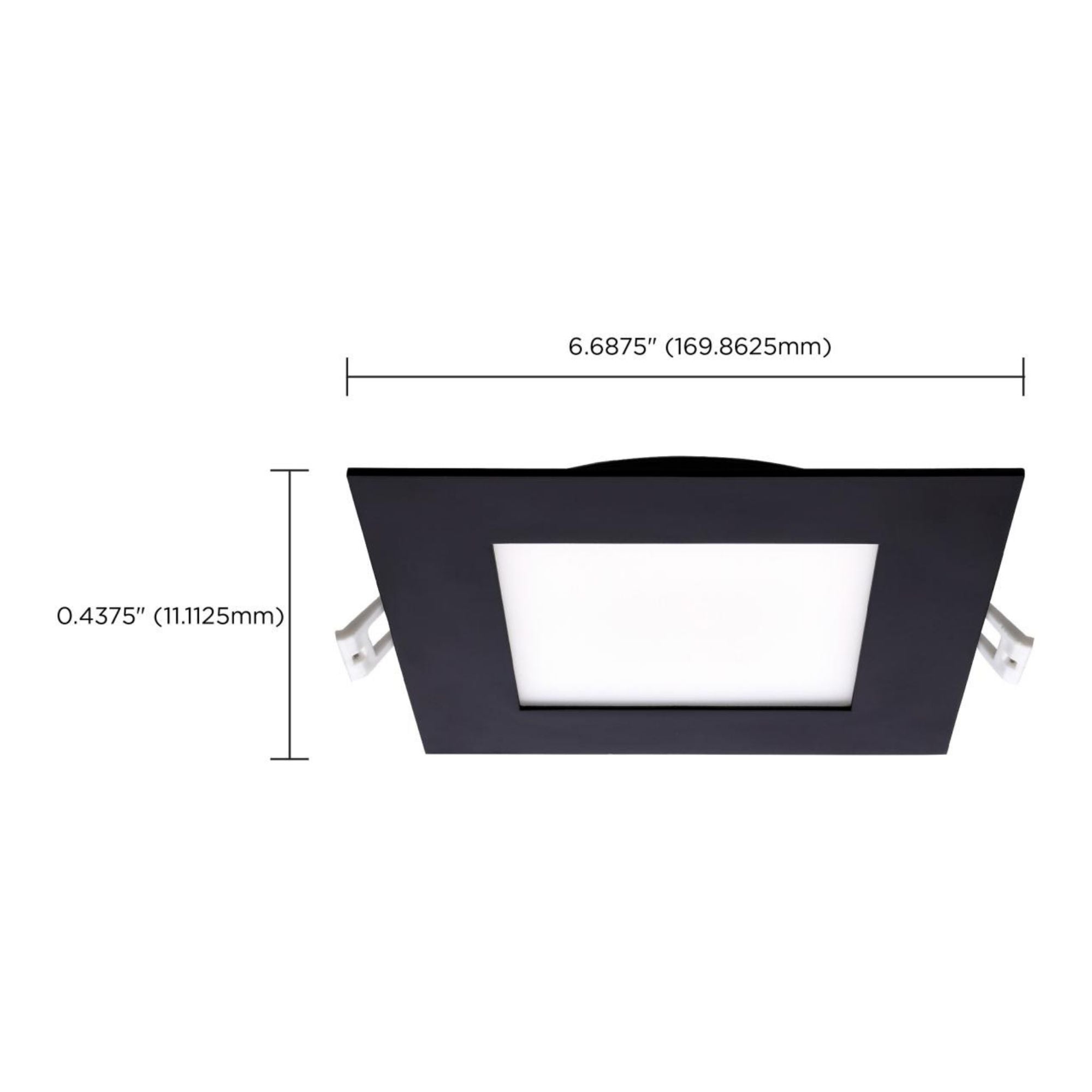

- EA Width: 2.13 in | EA Height: 7.13 in | EA Length: 8.74 in | Weight: 1.28 lbs
- Input Voltage: 120V only | 60Hz | Amps: 0.100A
- Dimming: Phase-Cut (Triac)
- Power Factor: >0.9 | THD: <20% | Surge Protection: 1.5KV
- IC Rating: Yes | Air Tight: Yes | IP Rating: IP20
- Location Rating: Wet | Indoor and Outdoor
- Suitable for Bathrooms: Yes
- Replaces: 65W incandescent
- Lifespan: 50,000 hours L70 | Warranty: 5-year
- Certifications: CA T24 JA8 Listed | cETLus Listed | FCC | RoHS | Title 20: Exempt
Construction & Design

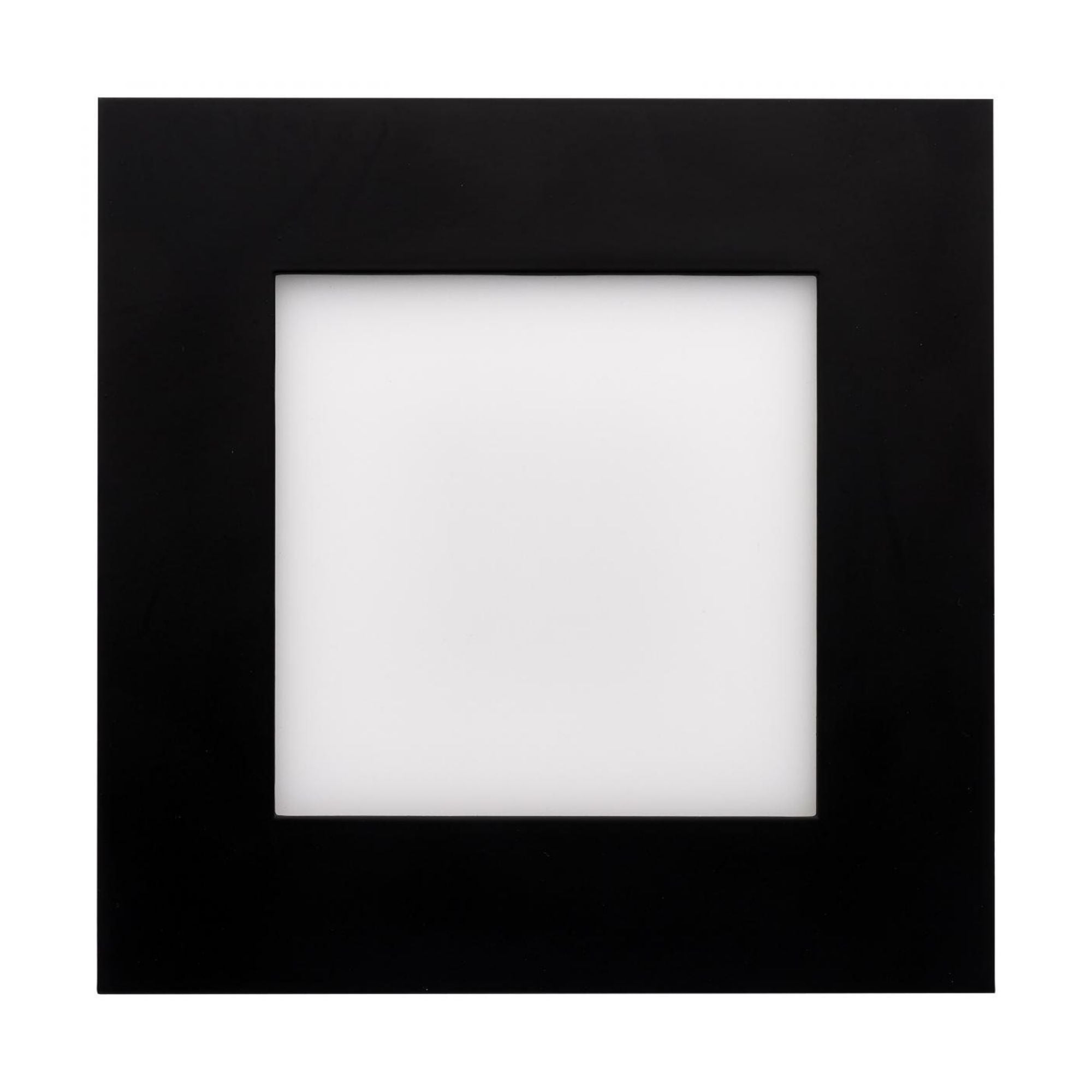

Shape: Square | Size: 6 in | Finish: Black | Lens: Frost PMMA | Construction: Aluminum. IP20 rated. IC rated and airtight. Wet rated for indoor and outdoor installations. For the 4 in black square version, see S11876. For white finish square versions, see S11829R1 (4 in) and S11830R1 (6 in).
Light Output & Performance
The SATCO S11877 delivers 750 lm at 12W with CRI 90+ and a 108° beam angle. CCT field-selectable: 2700K–5000K. Replaces 65W incandescent. L70: 50,000 hours.
Electrical & Installation

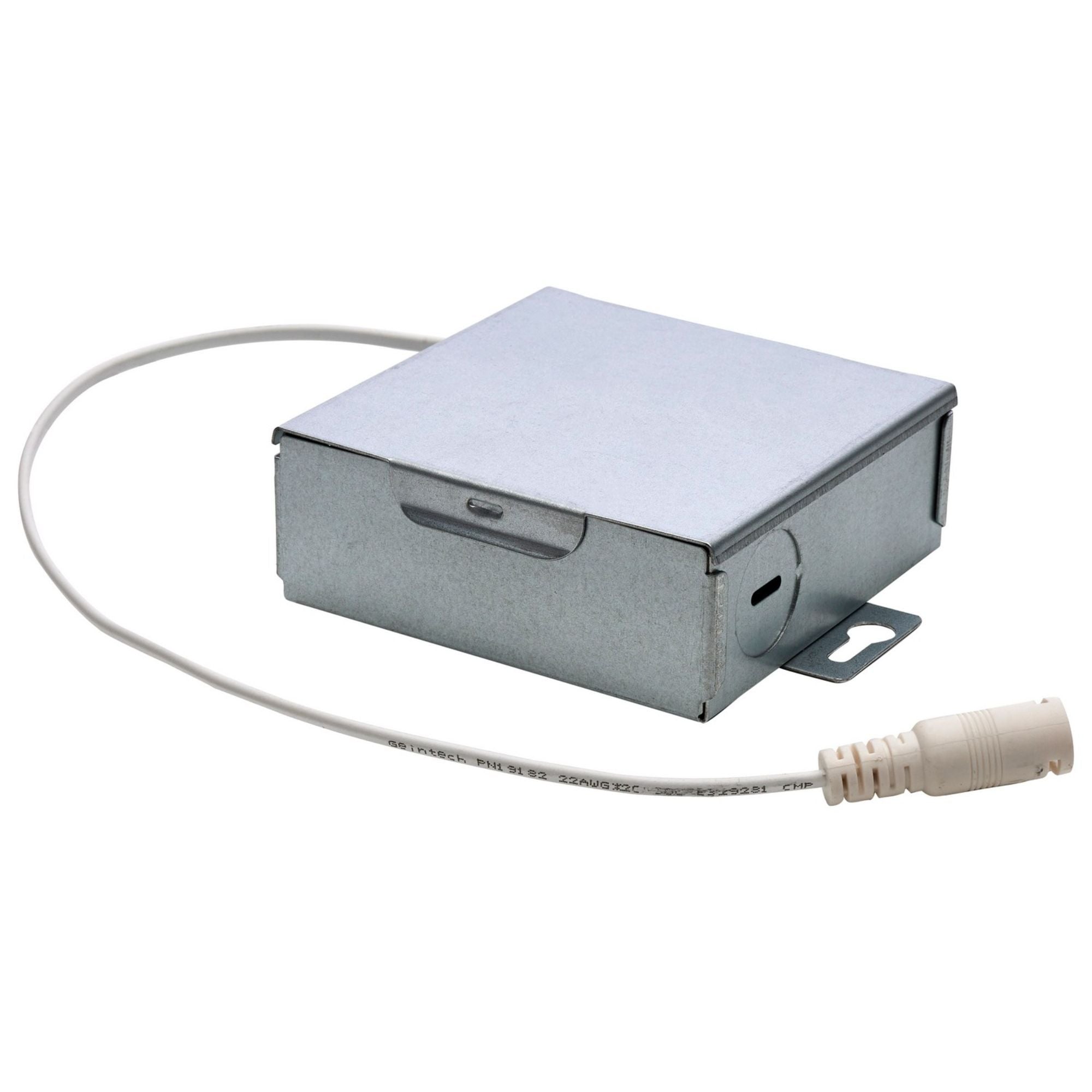

The SATCO S11877 operates at 120V only (60Hz) with phase-cut dimming. PF >0.9; THD <20%; built-in 1.5KV surge protection. Op temp: -4°F to +113°F. Remote driver. Indoor and outdoor rated.
Typical Applications
- Residential bedrooms, living rooms, kitchens, and bathrooms
- Outdoor-adjacent covered spaces
- Hospitality and multifamily spaces
- Commercial applications requiring slim-profile black finish downlights
What’s Included
- SATCO S11877 6 in square slim LED downlight (black)

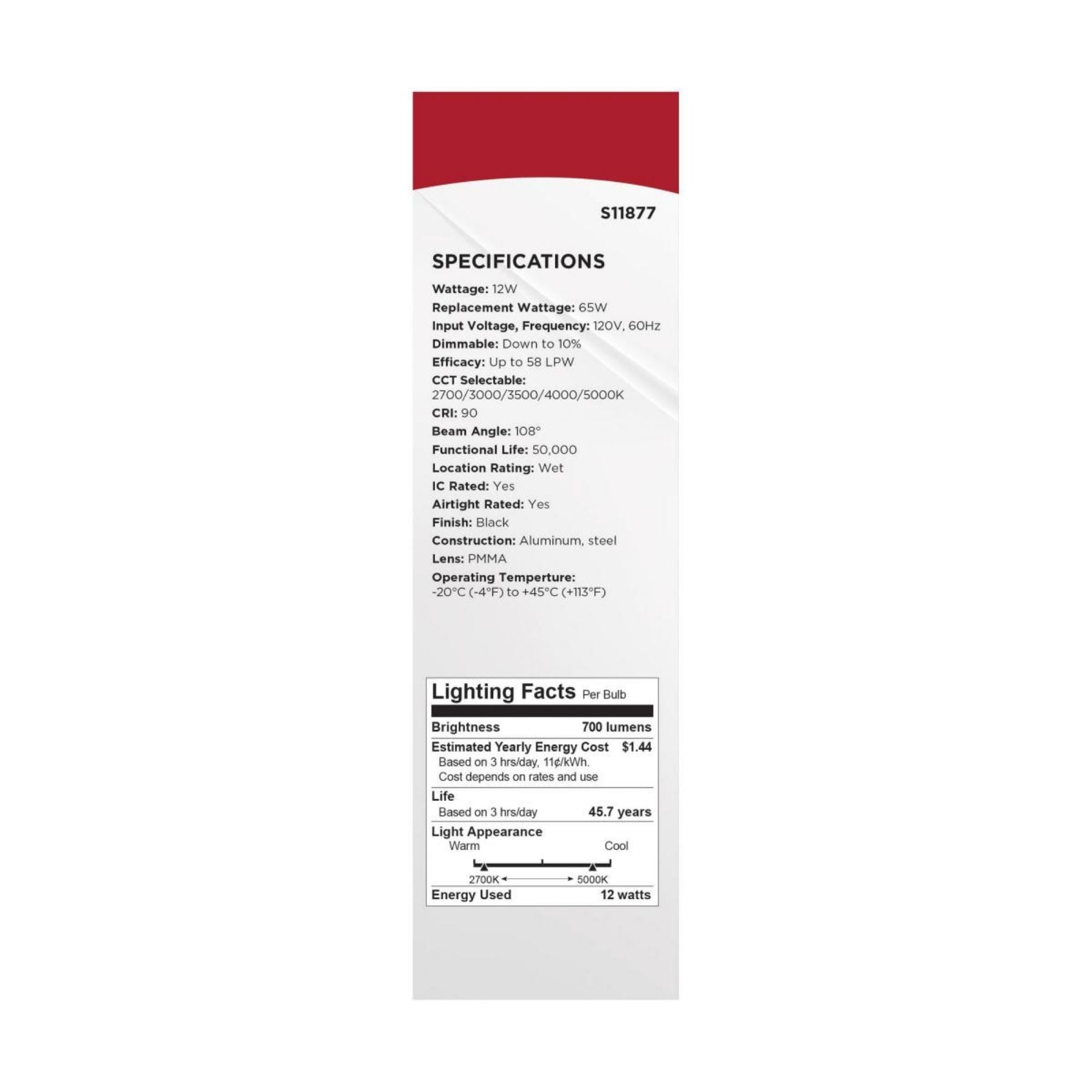

Specifications
