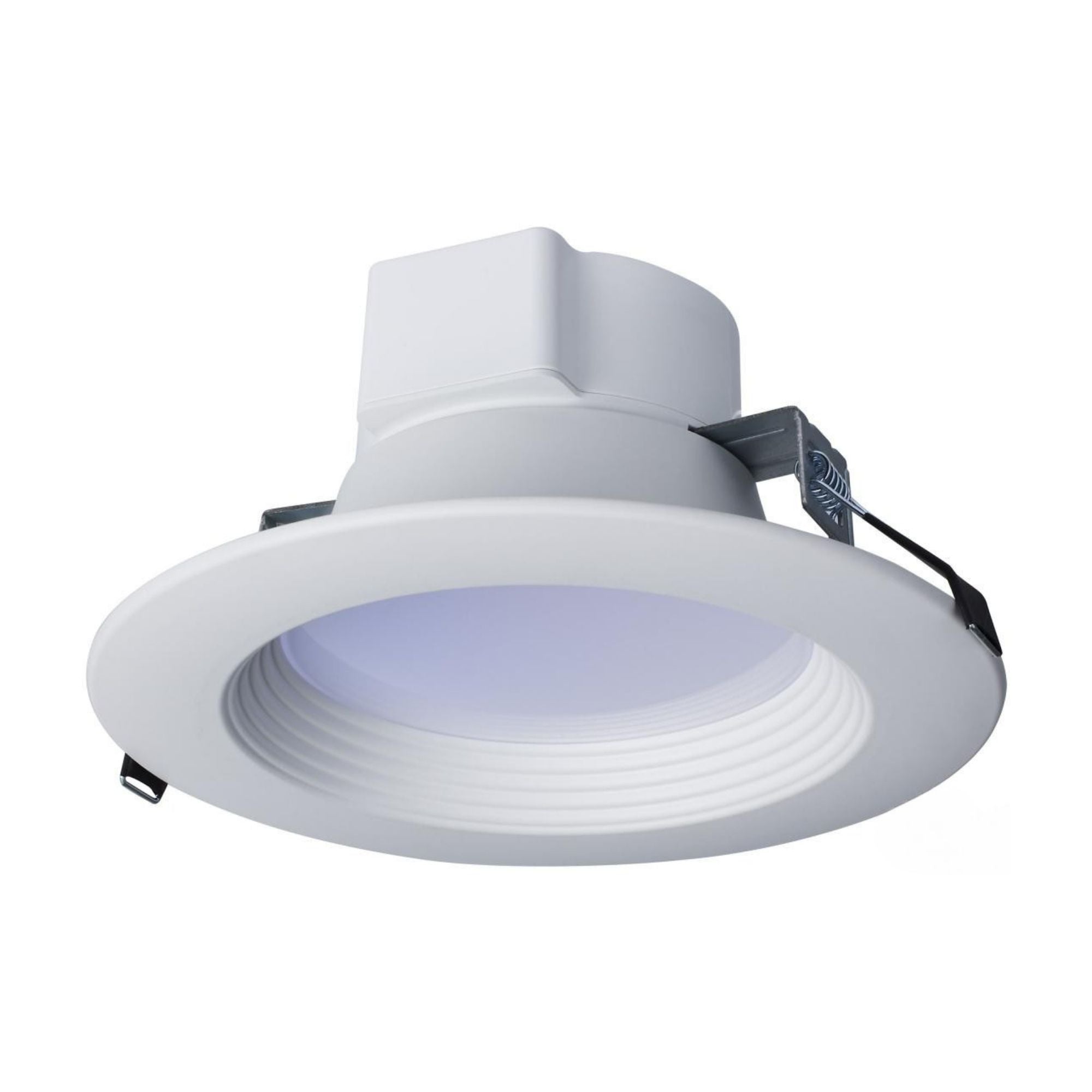

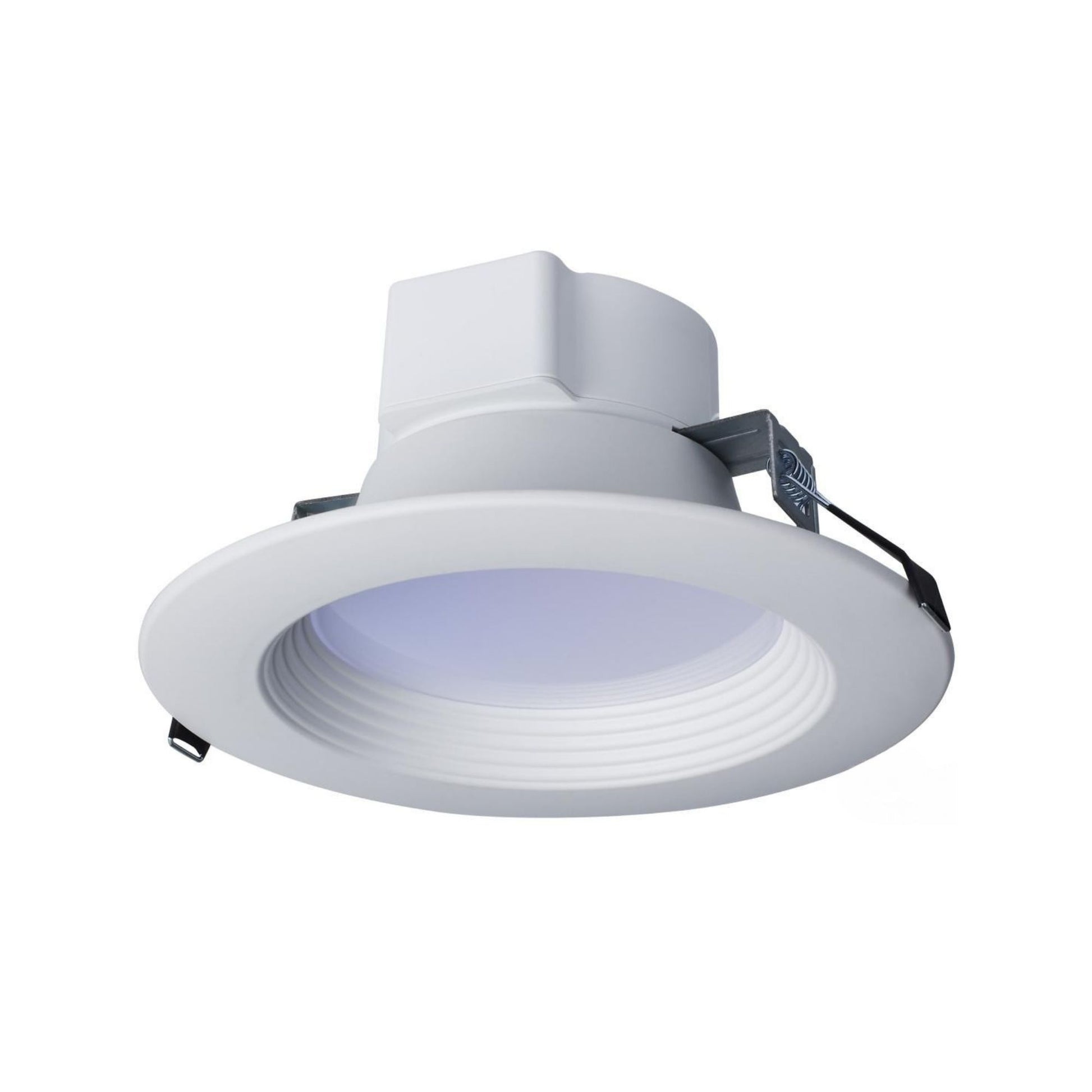

SATCO S11851 6 in Round Commercial LED Downlight — Selectable CCT / 15W / 1600 lm / 0-10V / 120–277V / White

The SATCO S11851 is a 6 in round commercial LED downlight with direct wire installation and ColorQuick selectable CCT technology. Choose from five CCTs: 2700K, 3000K, 3500K, 4000K, or 5000K at installation. Operates on 120–277V universal voltage with 0-10V dimming. Includes an 18 in whip for direct wire connection — J-box required but not included. Wet rated. IC rated. Sloped ceiling compatible. Energy Star Certified. cETLus Listed. 5-year warranty. L70: 50,000 hours. Successor to S21601.

Key Features

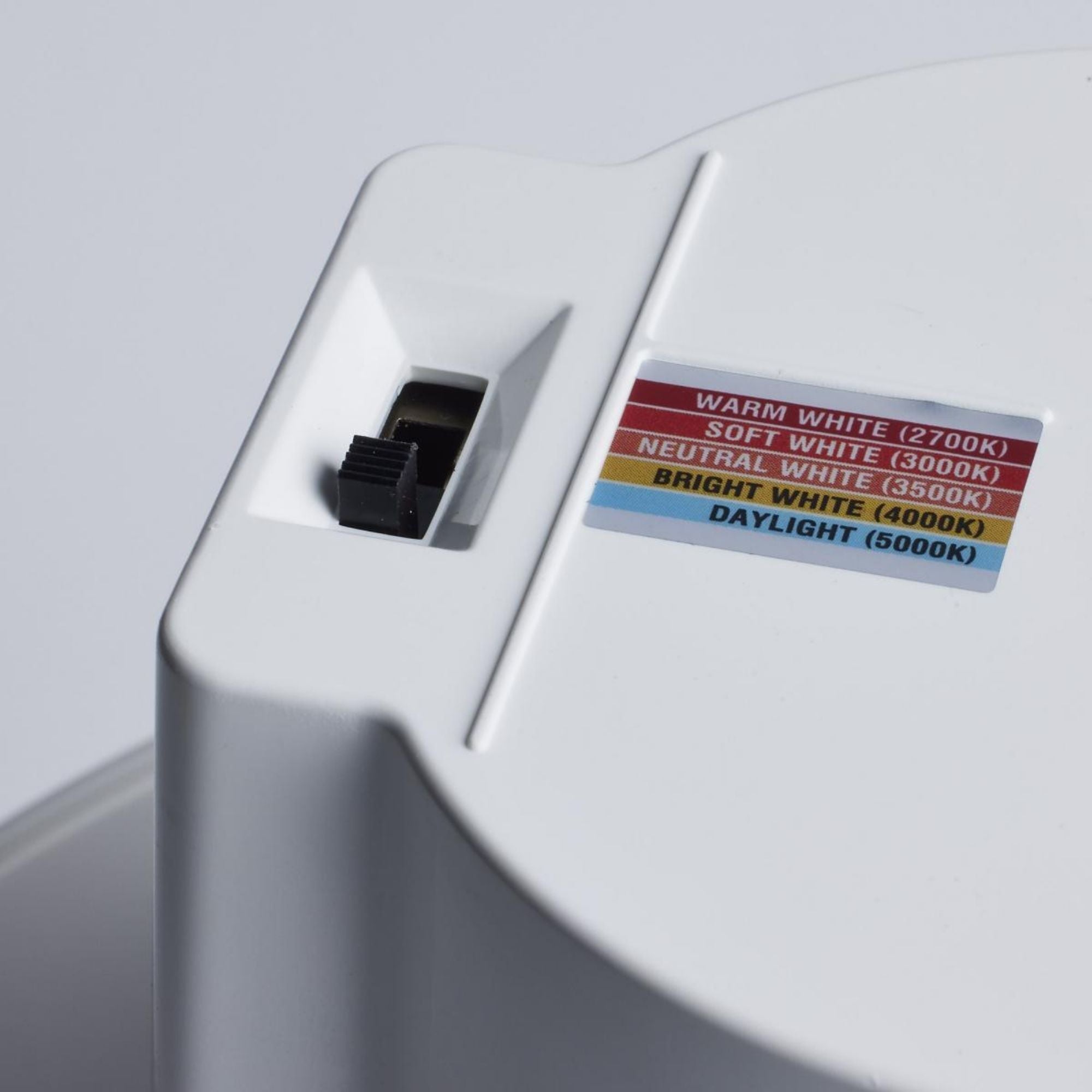

• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K — set at installation
• Light Output: 1600 lm at 15W, CRI 80+, 90° beam angle — replaces 75W incandescent / 1×26W CFL
• Dimming: 0-10V only — not compatible with TRIAC dimmers
• Voltage: 120–277V / 50–60Hz universal voltage
• Amps: 0.140A
• Power Factor: 0.99

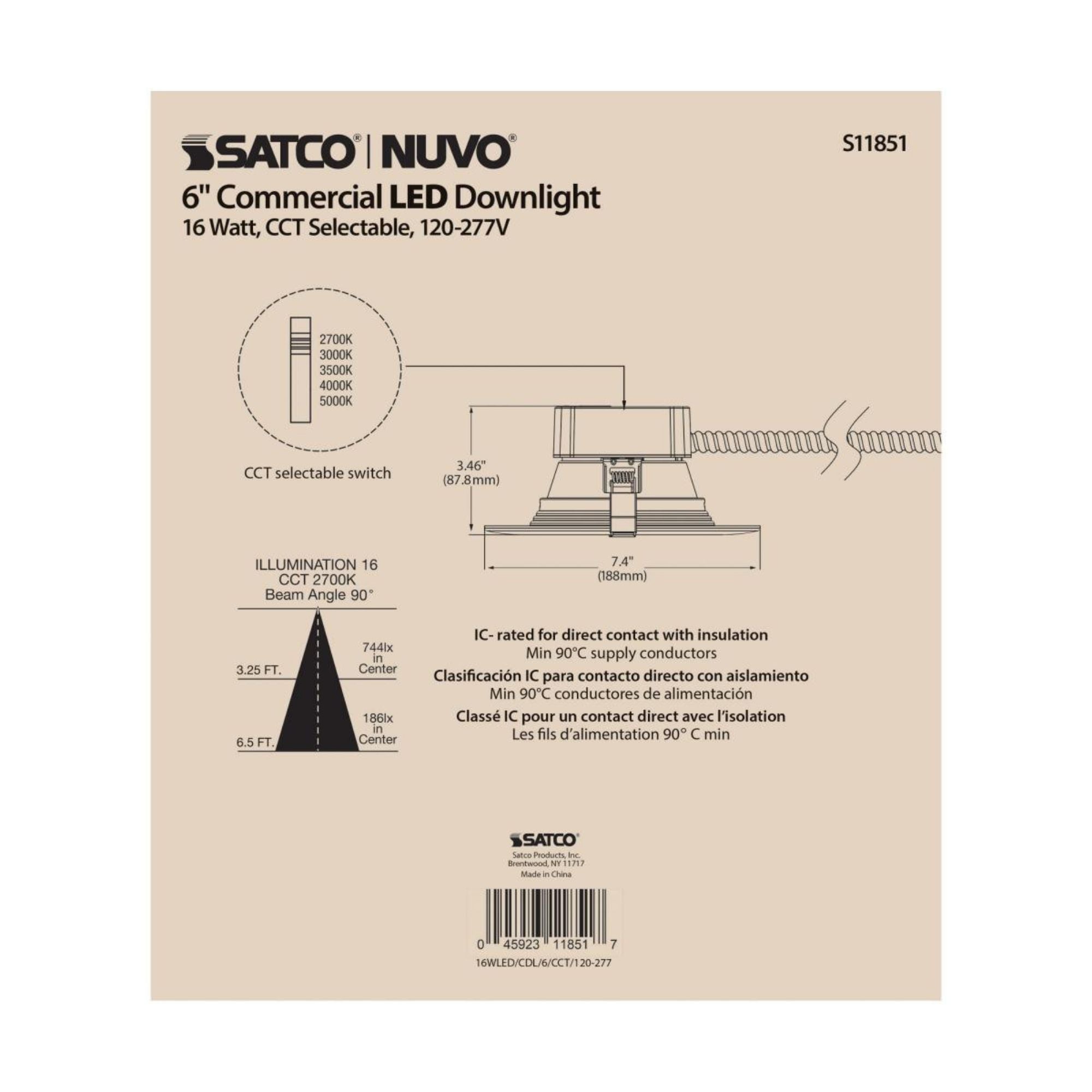

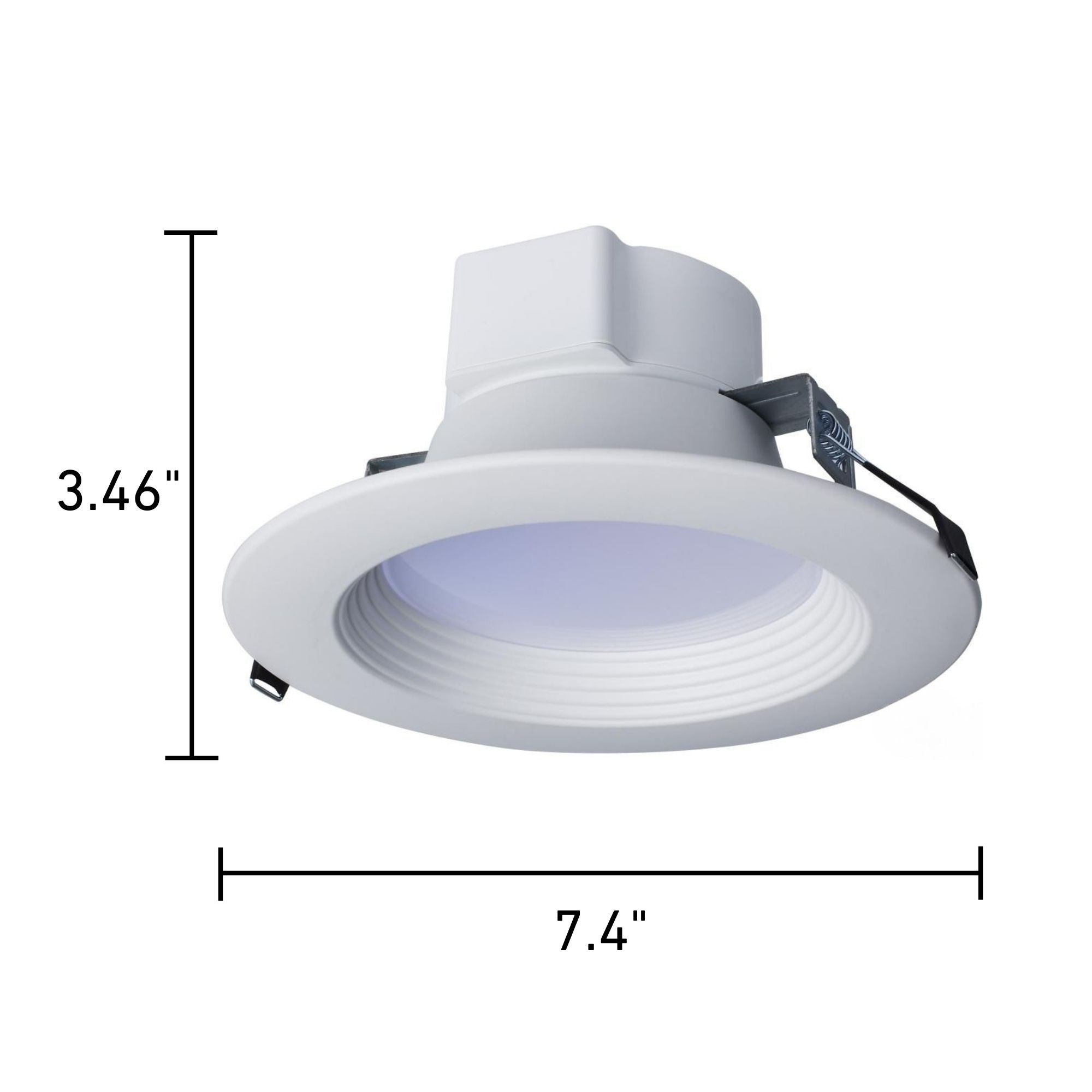

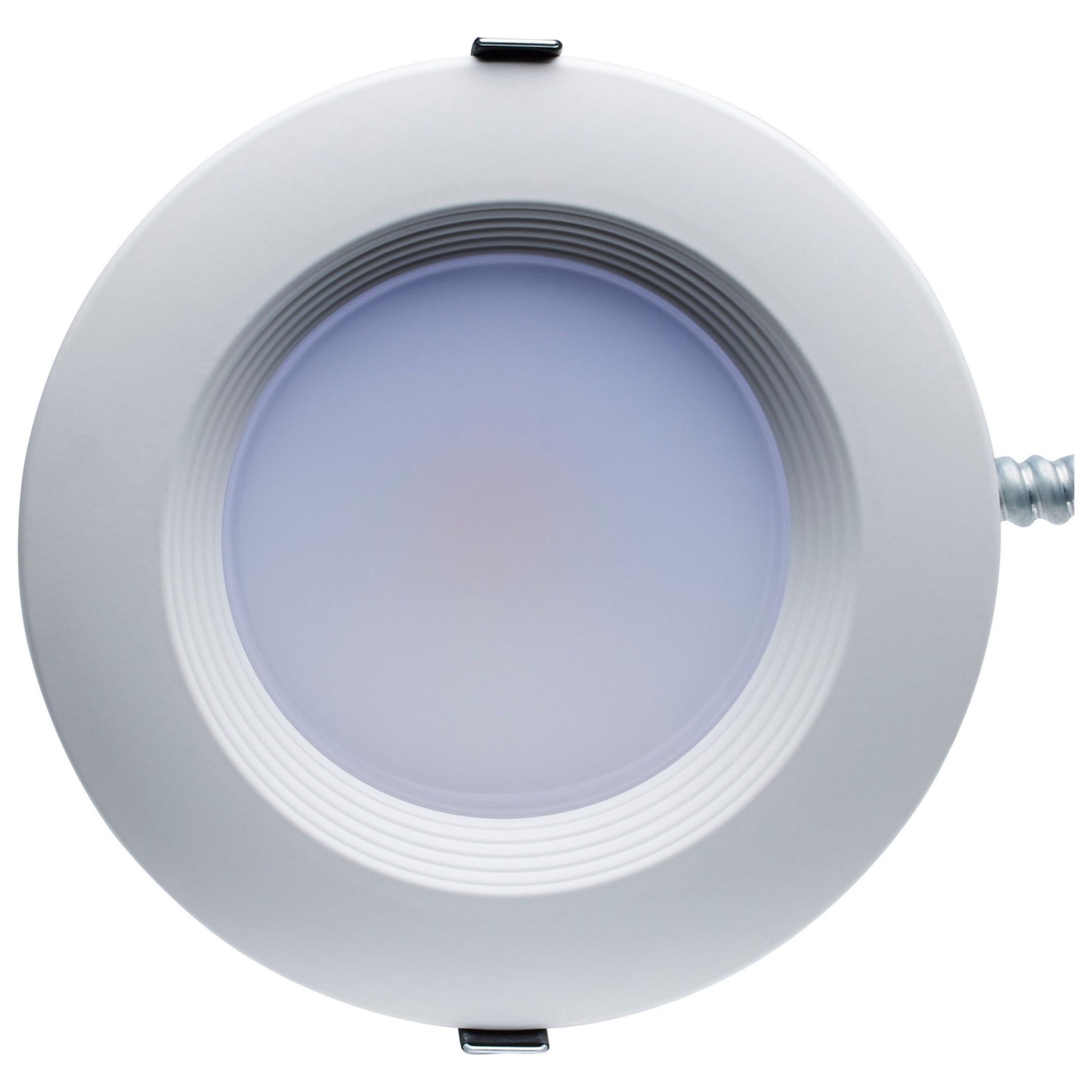

• Fixture: 6 in round, white finish, polycarbonate lens, aluminum construction — diameter 7.4 in, MOL 3.46 in, weight 1.34 lbs

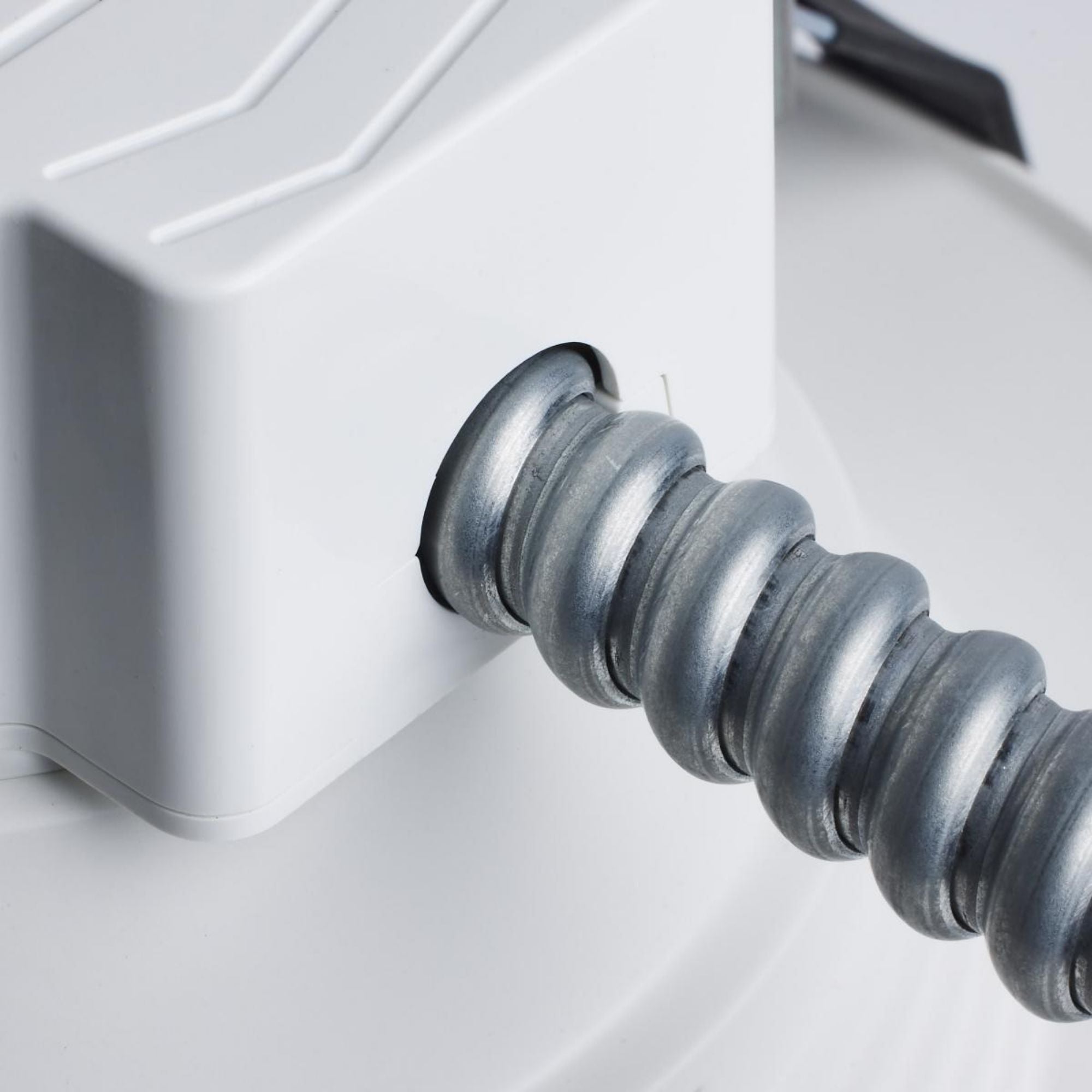

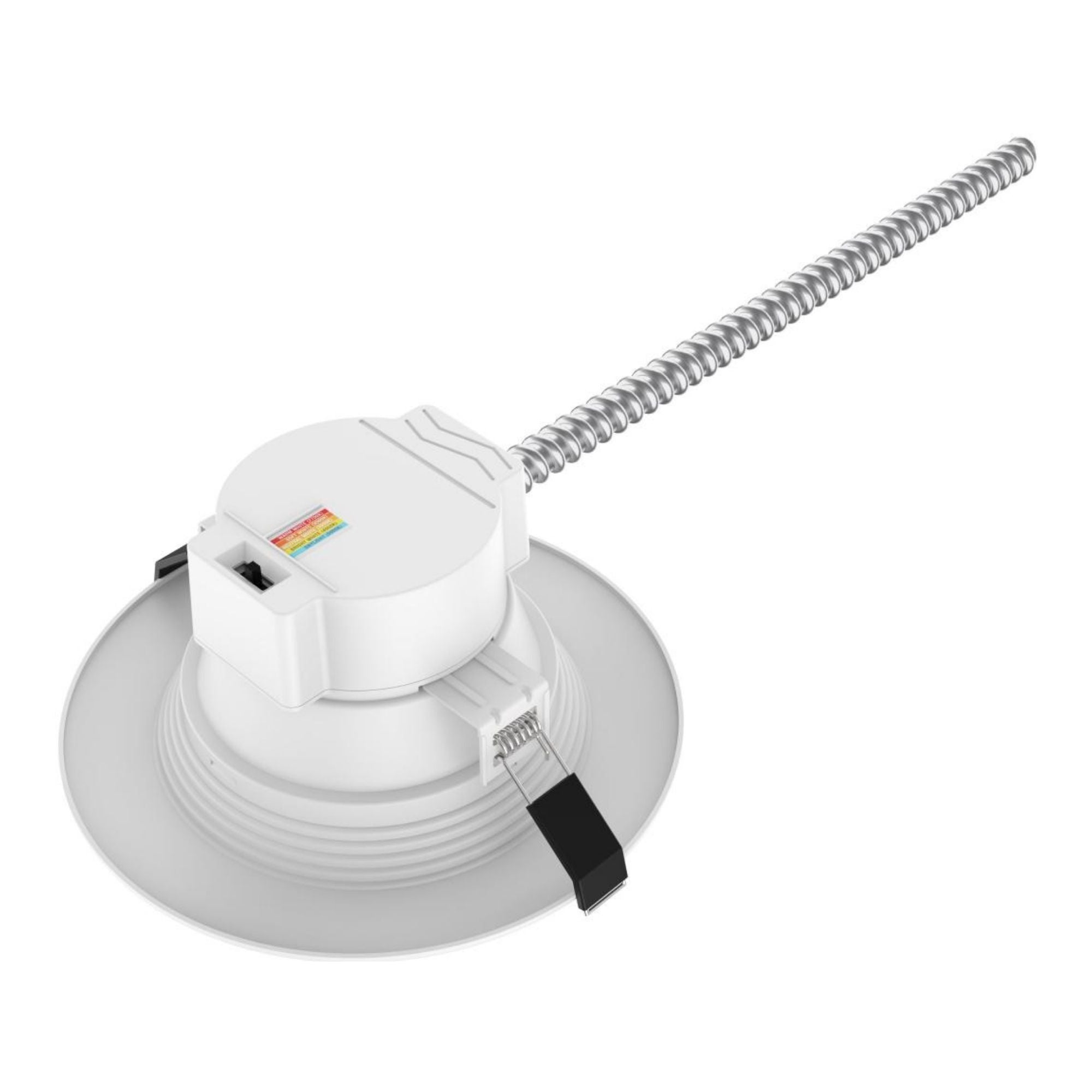

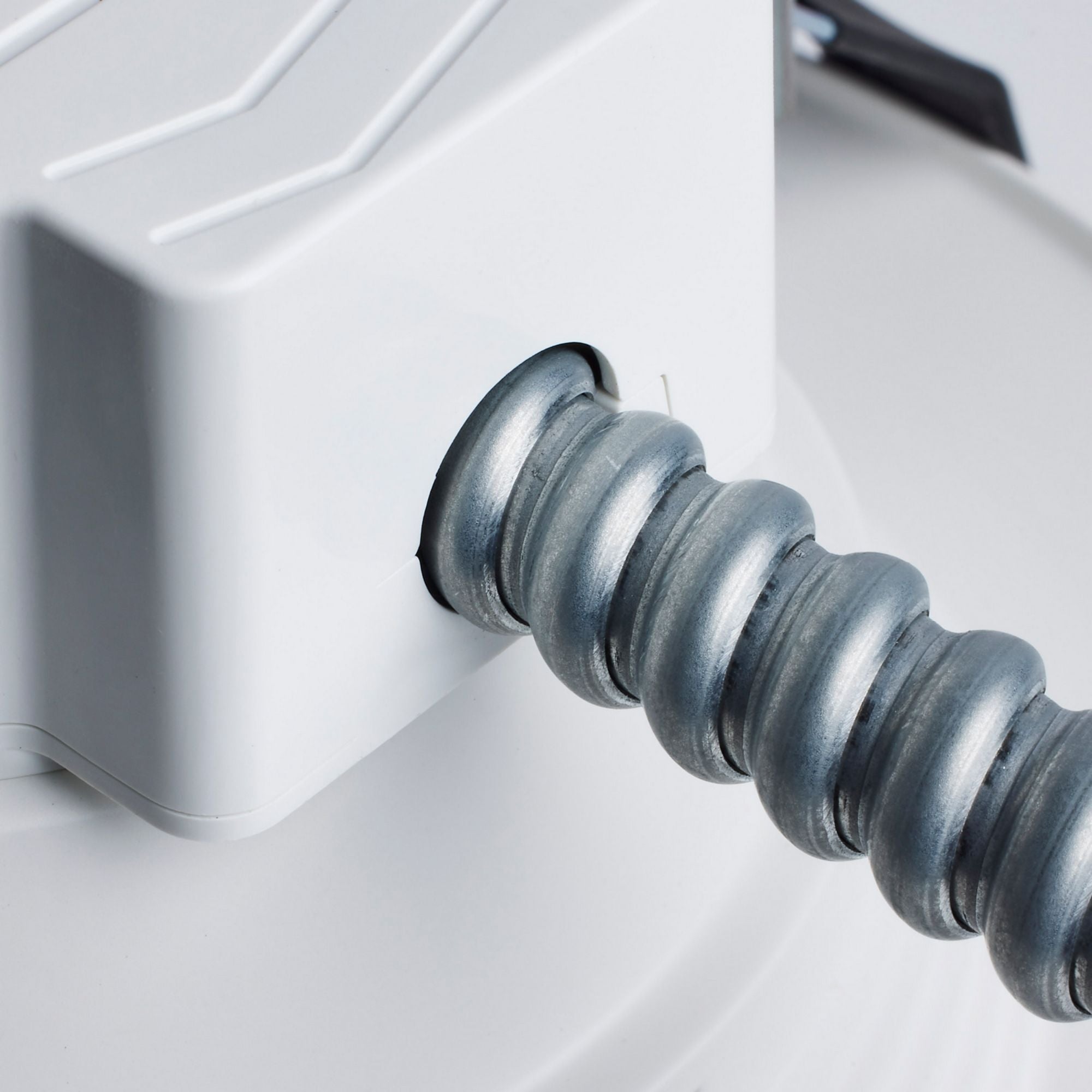

• Installation: Direct wire with included 18 in whip — J-box required but not included
• Ratings: Wet rated, IC rated, not airtight — sloped ceiling compatible
• Certifications: Energy Star Certified, cETLus Listed, FCC Compliant, ROHS Compliant, Title 20 Exempt
• Lifespan & Warranty: 50,000 hours L70 — 5-year manufacturer warranty

Construction & Design

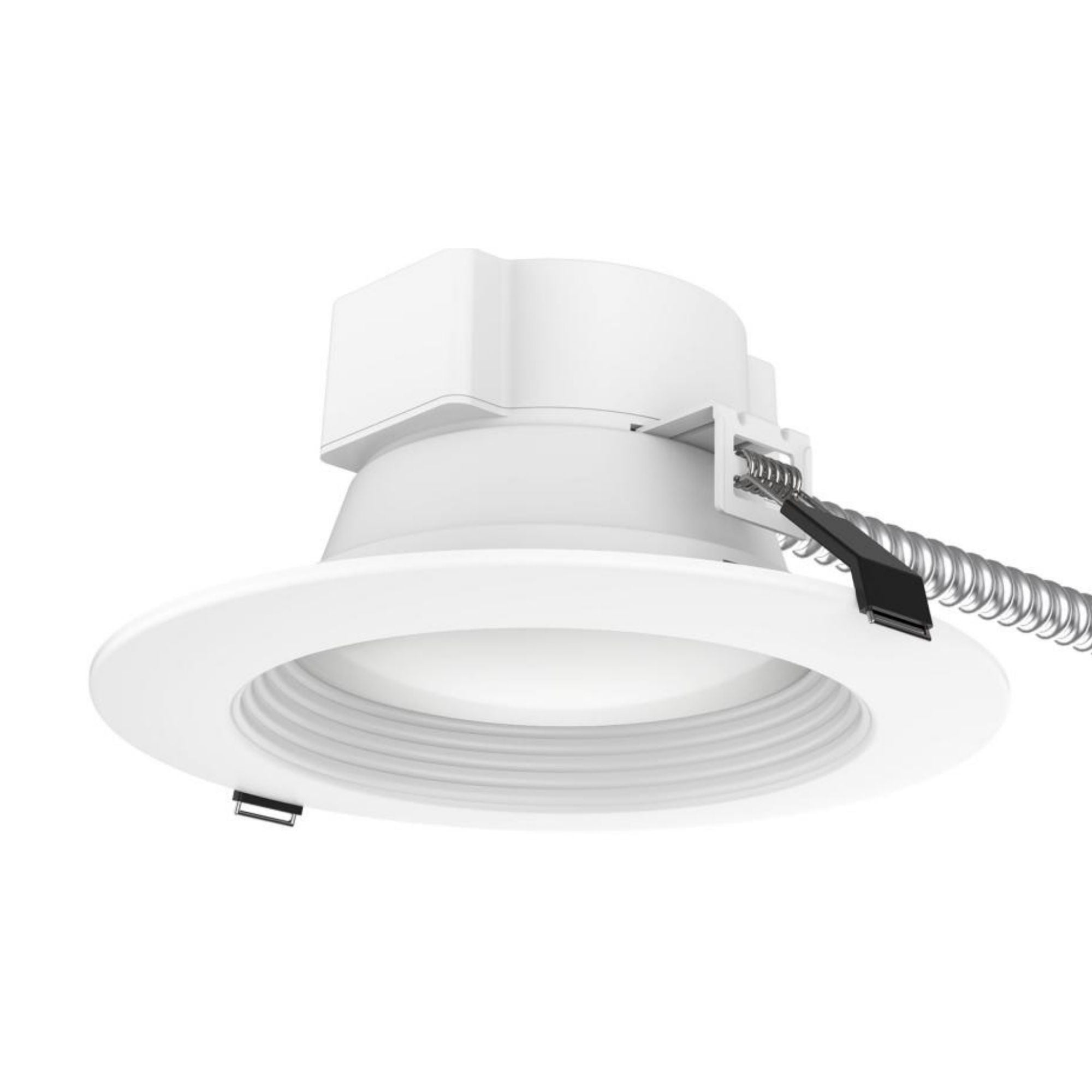

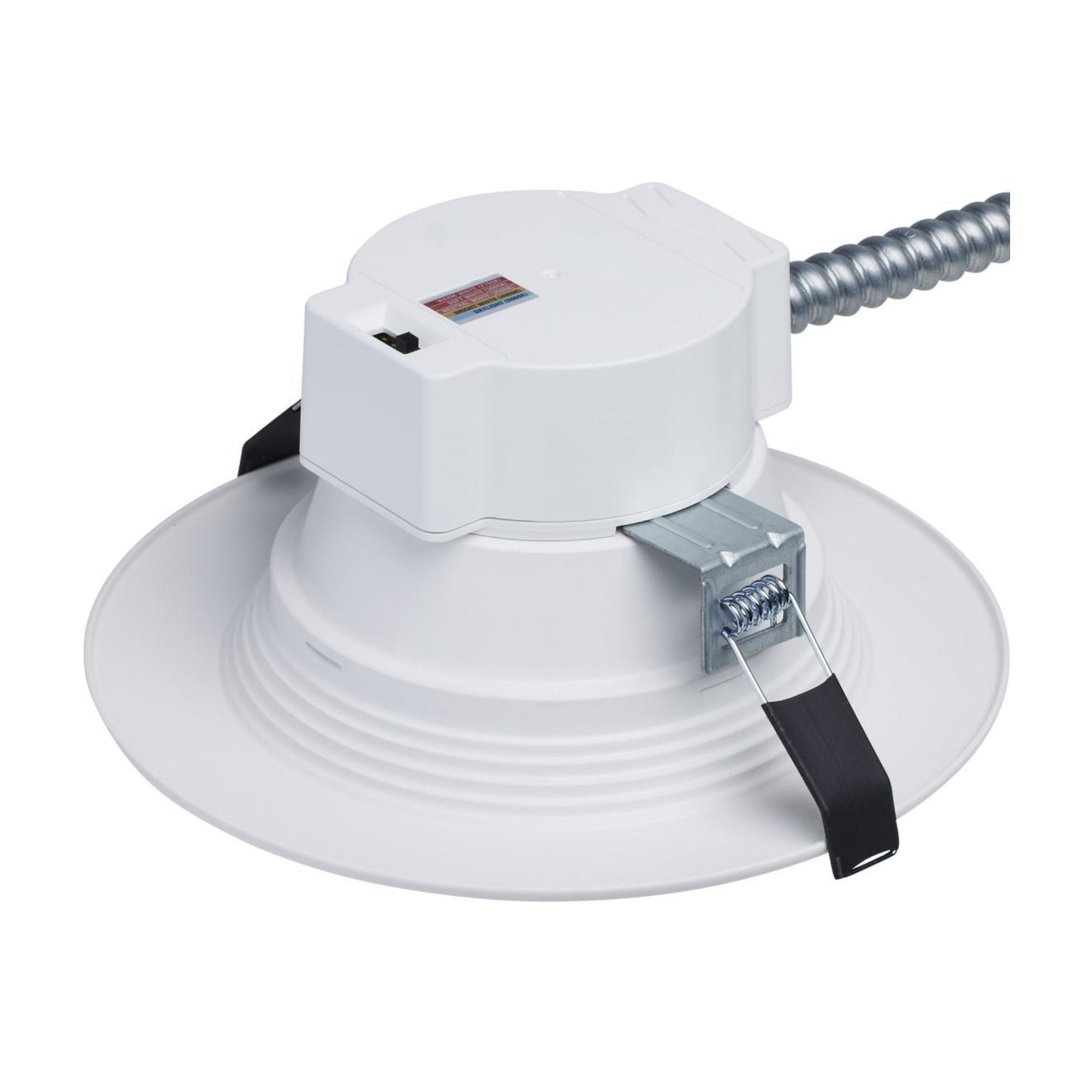

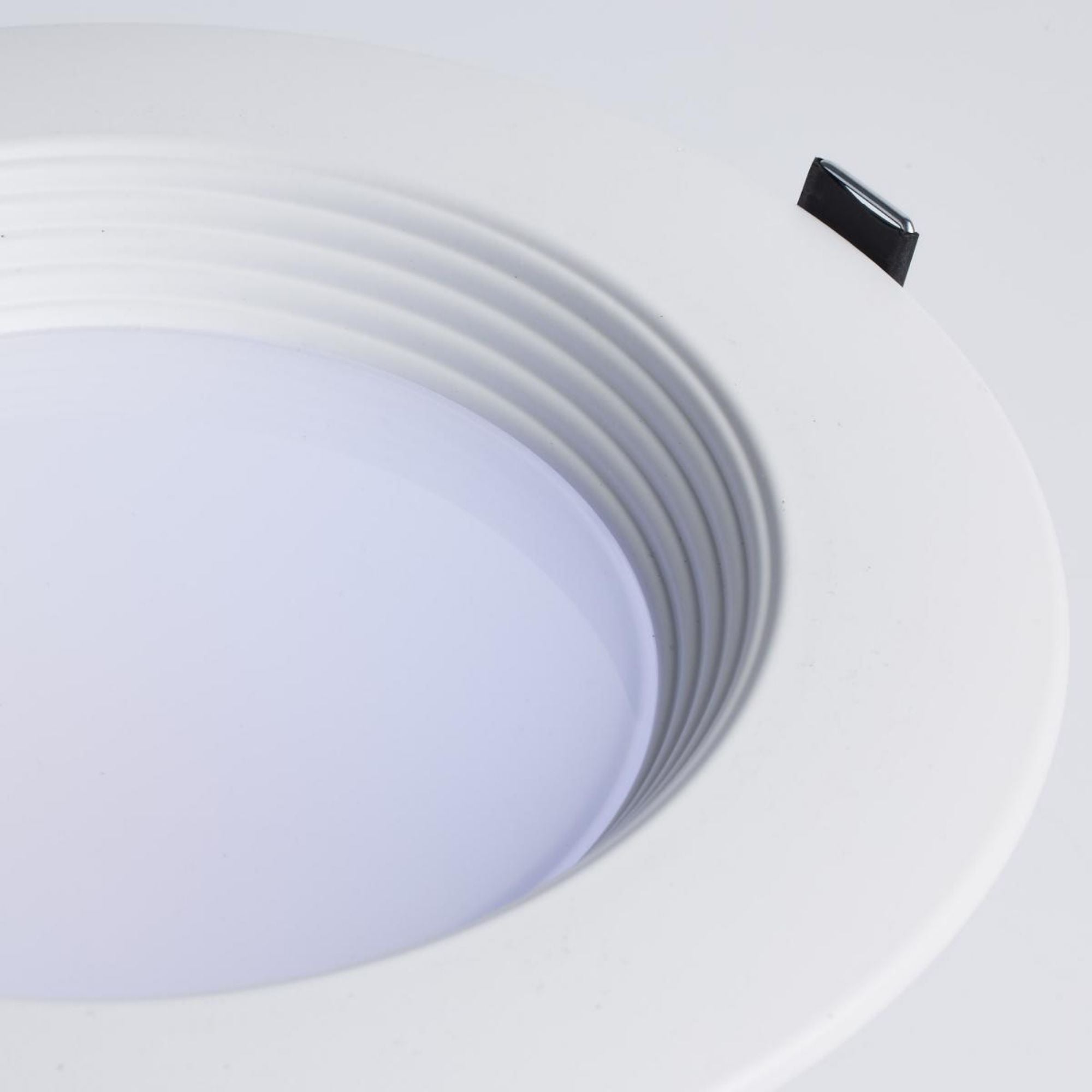

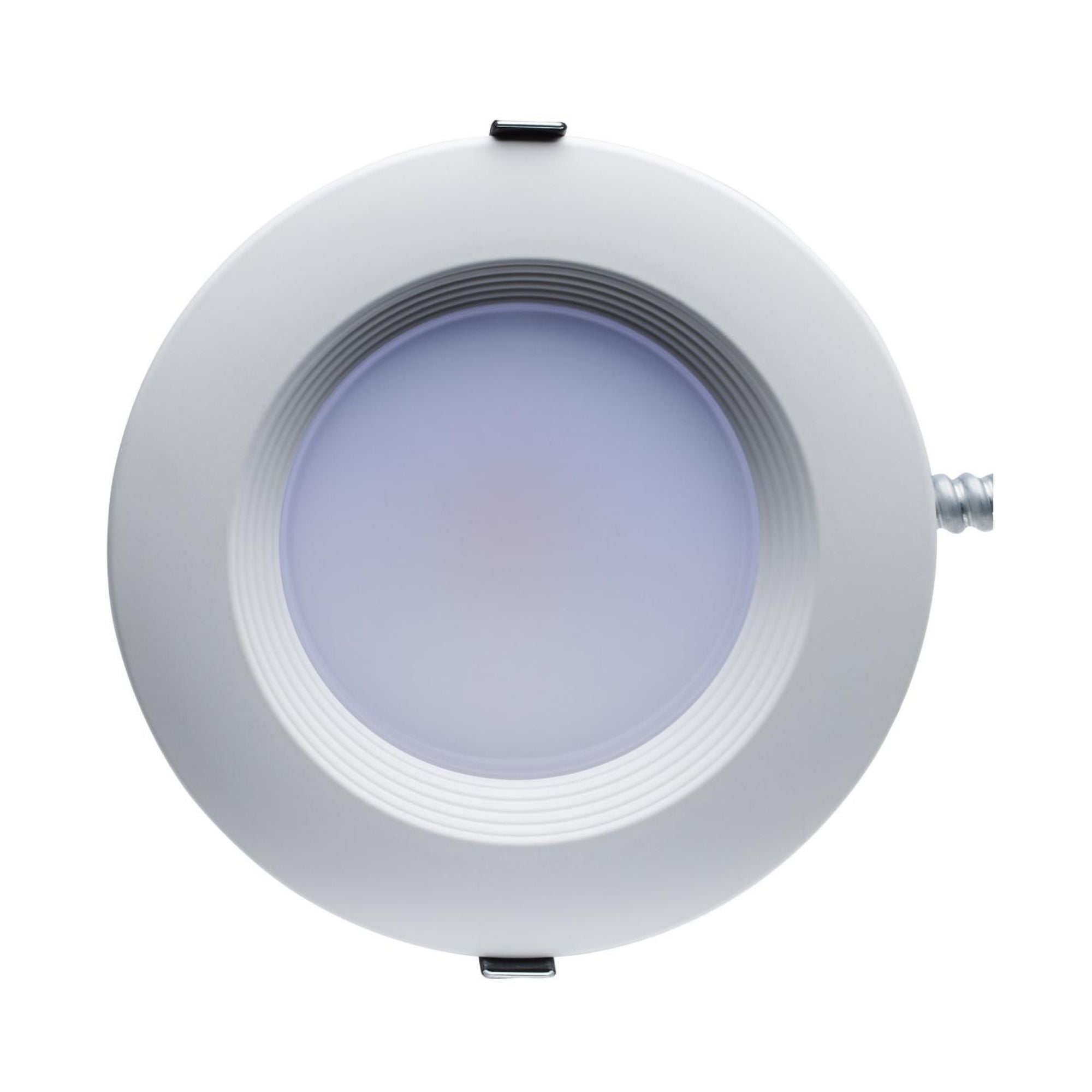

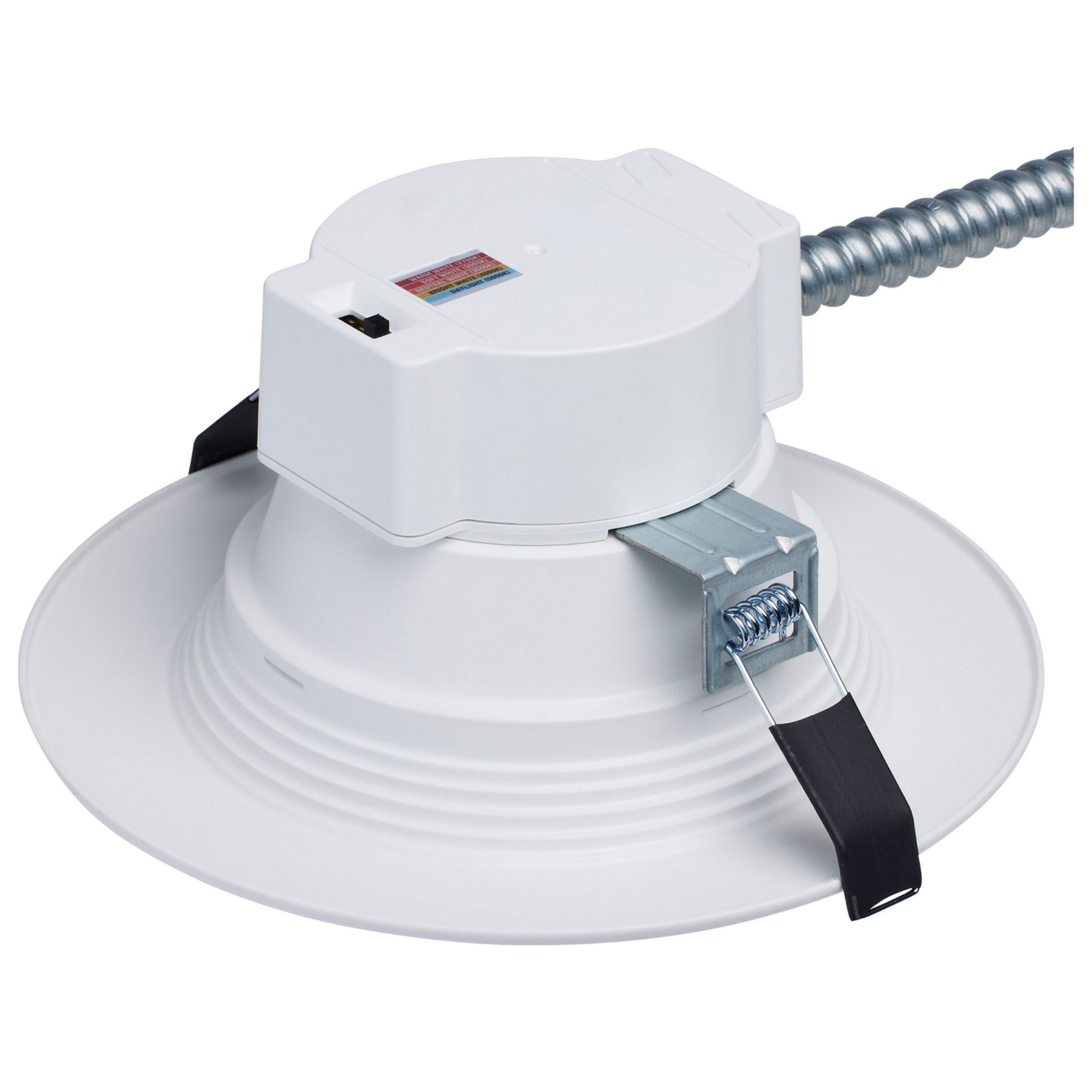

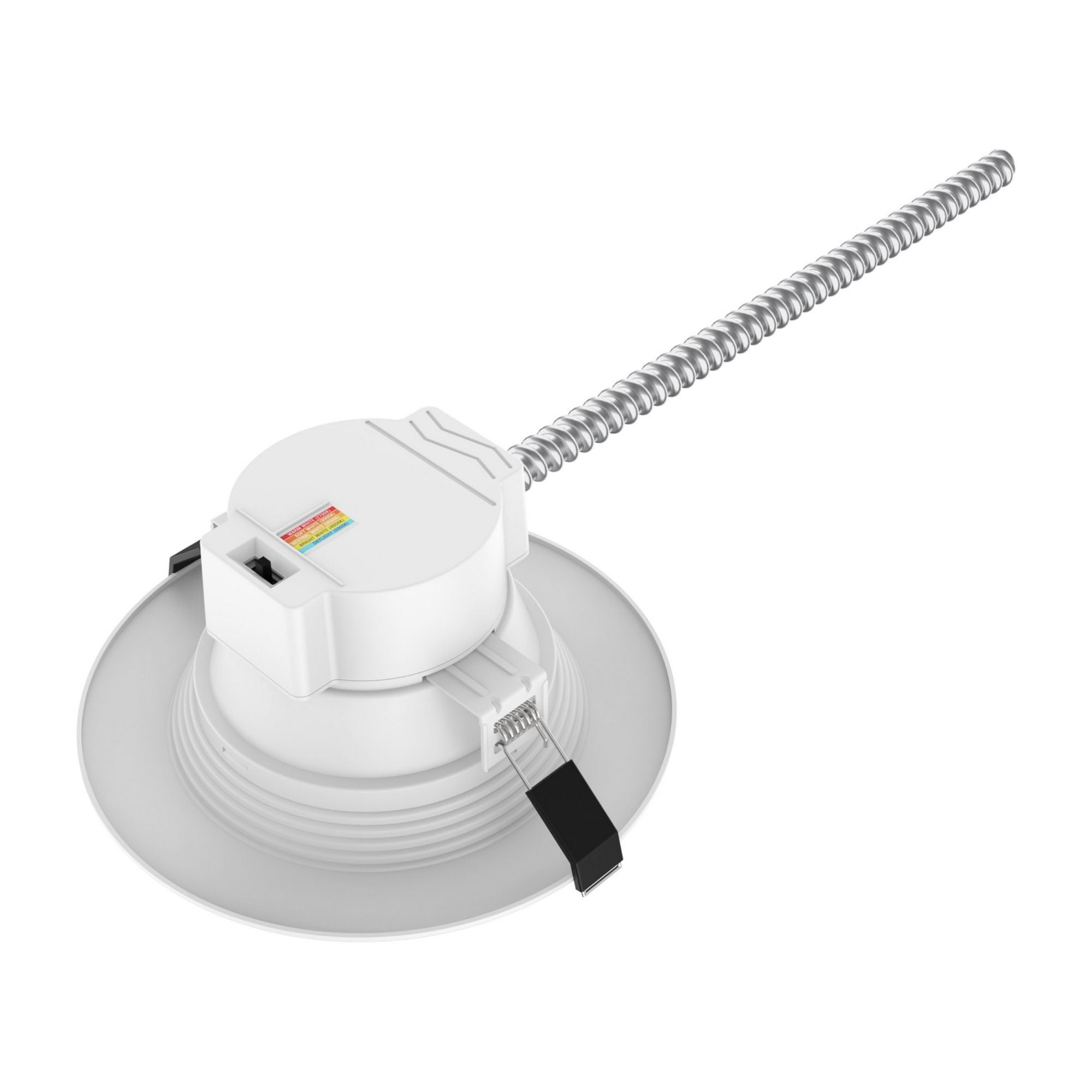

Round, 6 in, white finish, polycarbonate lens, aluminum housing. Wet rated and IC rated. Not airtight. Sloped ceiling compatible. Direct wire with 18 in whip included — J-box required but not included. For other sizes, see S11850 (4 in), S11852 (8 in), and S11853 (10 in). Successor to S21601.

Light Output & Performance

Delivers 1600 lm at 15W, CRI 80+, 90° beam angle. Selectable CCT 2700K–5000K. Replaces 75W incandescent or 1×26W CFL. L70: 50,000 hours.

Electrical & Installation

120–277V universal voltage / 50–60Hz. 0-10V dimming only. PF 0.99; op temp: -20°C (-4°F) to +40°C (+104°F). Direct wire with 18 in whip included. J-box required but not included.

Compatible Accessories (Sold Separately)

• 6 in Goof Ring Direct Wire (8 in OD): SATCO 80-947

Typical Applications

• Commercial and multi-family residential lighting
• Bathrooms and wet locations
• Hallways, kitchens, and stairwells
• New construction and retrofit installations

What’s Included

• SATCO S11851 6 in round commercial LED downlight (white)
• 18 in whip for direct wire connection
