SATCO S11841 4 in Square Gimbal LED Downlight — Selectable CCT / 9W / 650–750 lm / Remote Driver / 120V / White

The SATCO S11841 is a 4 in square gimbal remote driver LED downlight with ColorQuick selectable CCT technology. Choose from 2700K, 3000K, 3500K, 4000K, or 5000K at installation. The gimbal head offers 360° rotation and 0°–80° tilt for precise accent lighting on flat or sloped ceilings. Remote driver design requires no recessed can — fits shallow ceilings, cabinets, and low-clearance spaces. Delivers 650–750 lm at 9W, CRI 90+, 36° focused beam. Phase-cut dimmable. CA T24 JA8 Listed. cETLus Listed. 5-year warranty. L70: 50,000 hours.

Key Features

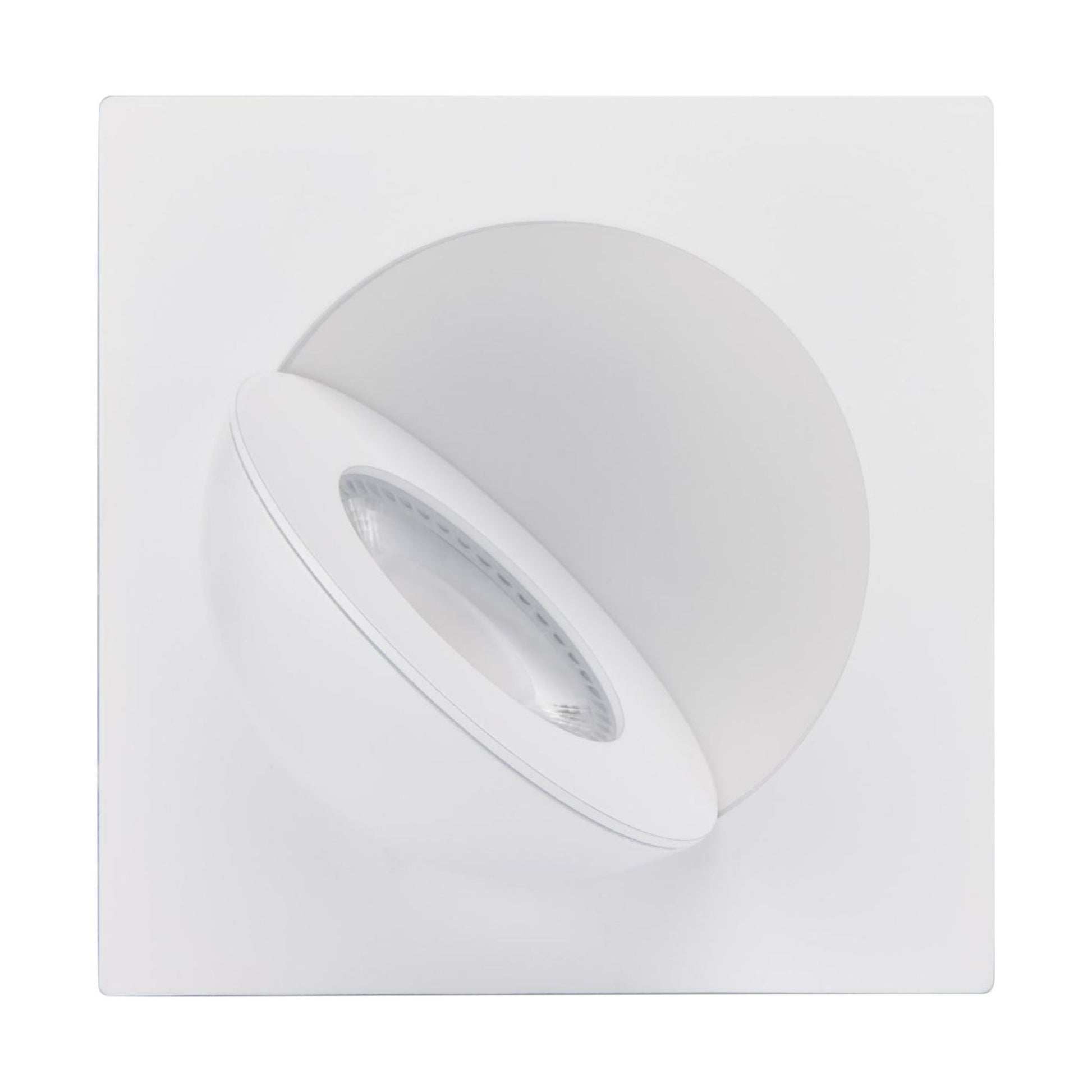

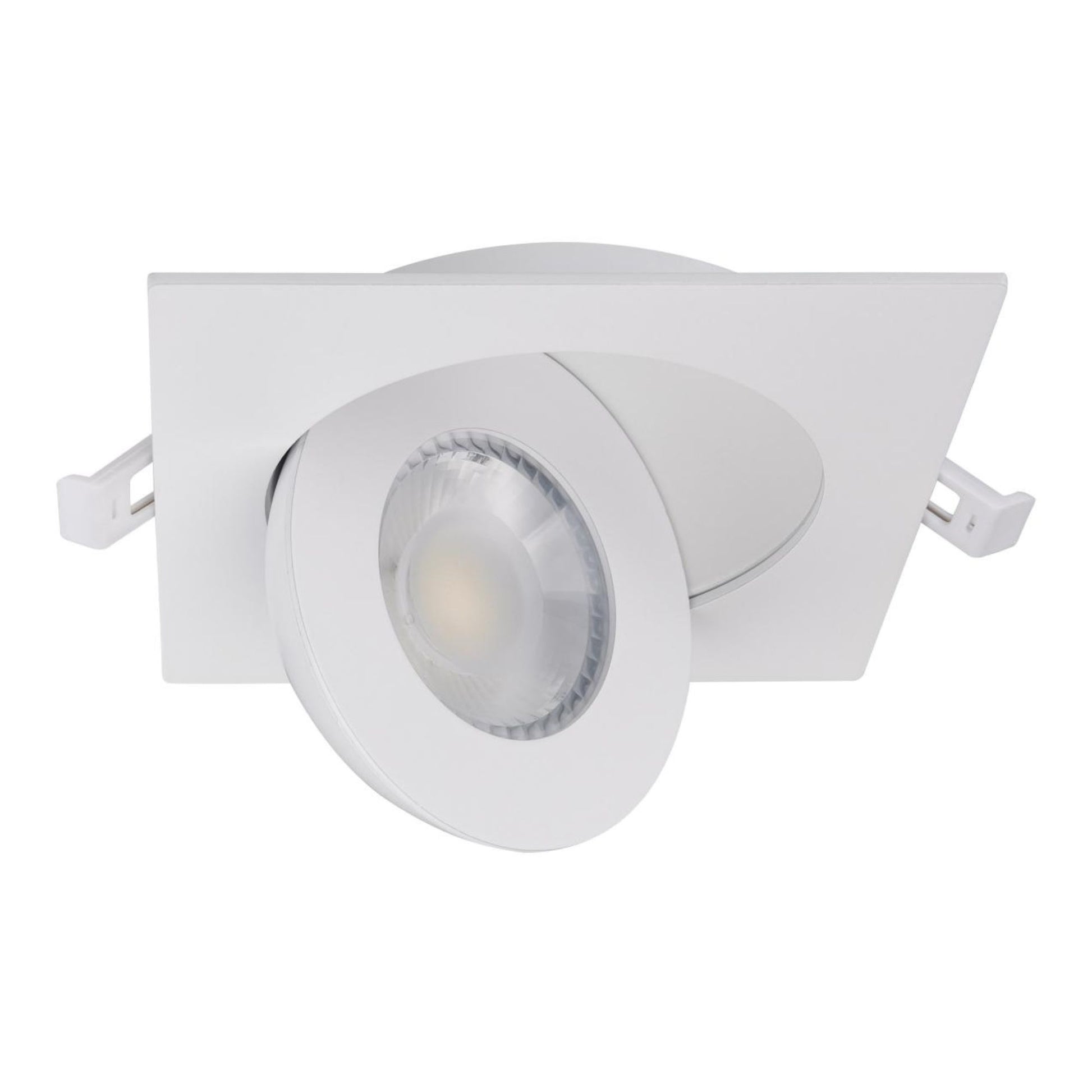

• Gimbal: 360° rotation, 0°–80° aiming angle — sloped ceiling compatible

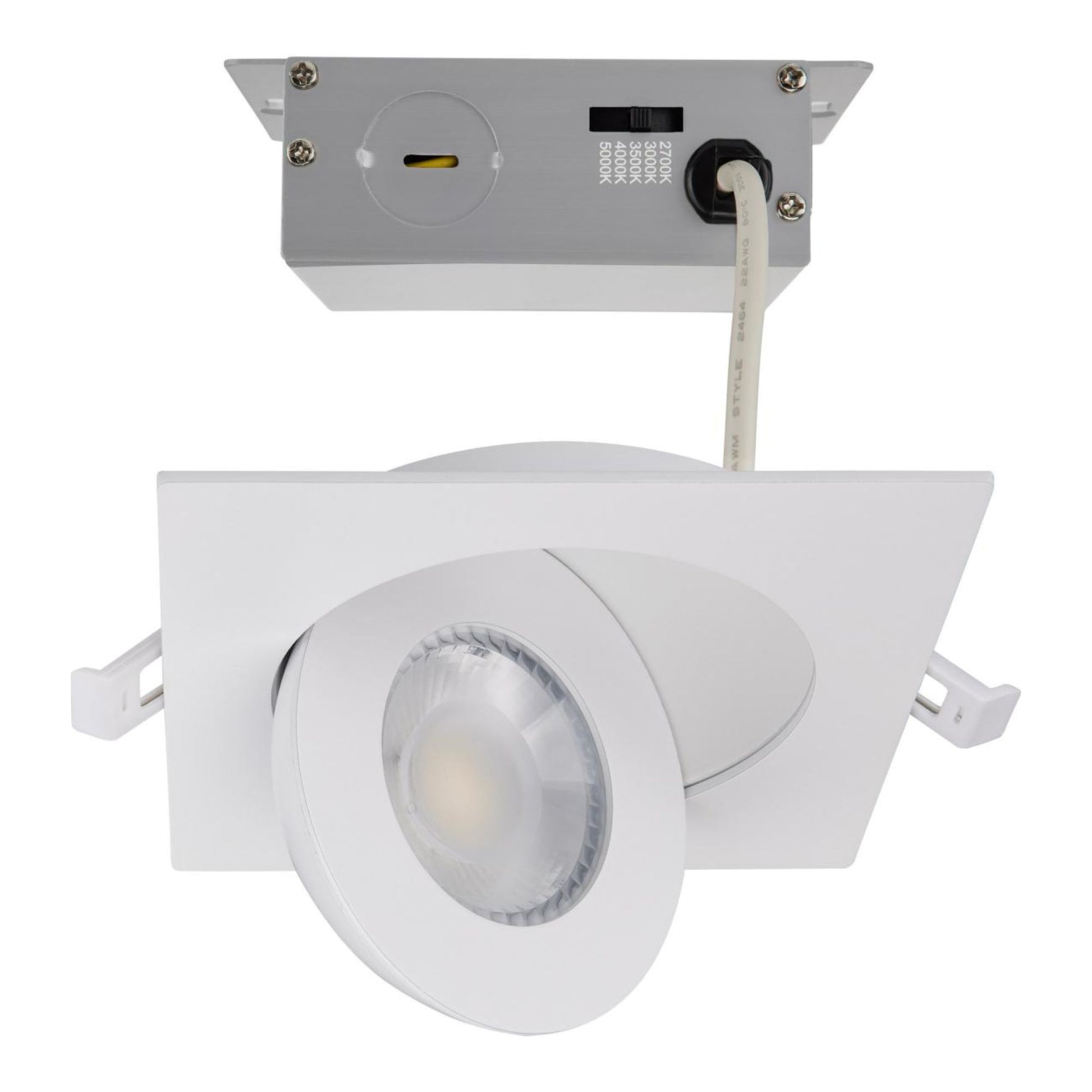

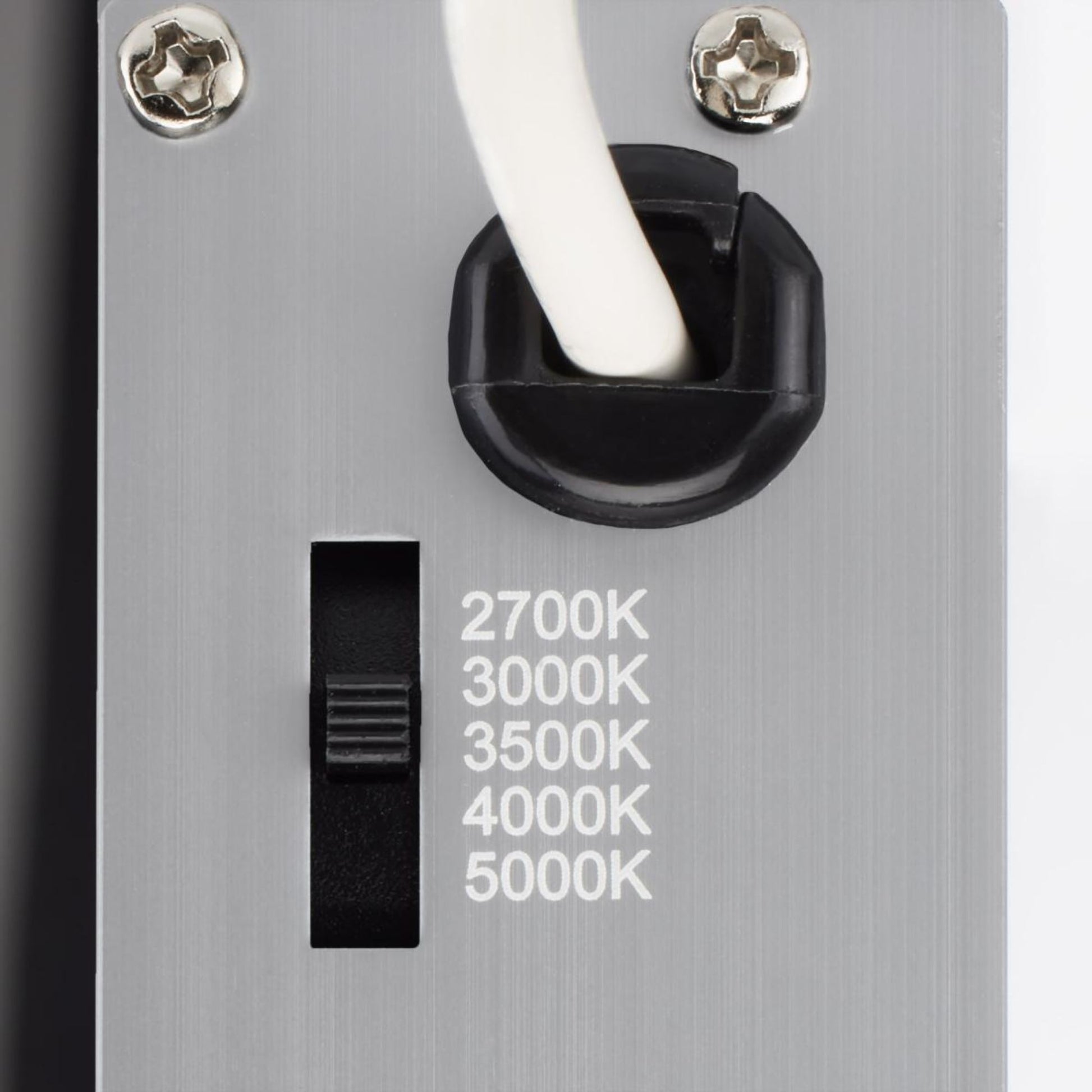

• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K — set at installation
• Light Output: 650–750 lm at 9W, CRI 90+, 36° beam angle — replaces 50W incandescent
• Dimming: Forward phase, reverse phase, phase-selectable TRIAC — compatible with standard wall dimmers
• Voltage: 120V / 60Hz
• Amps: 0.075A
• Power Factor: >0.9
• IP Rating: IP42

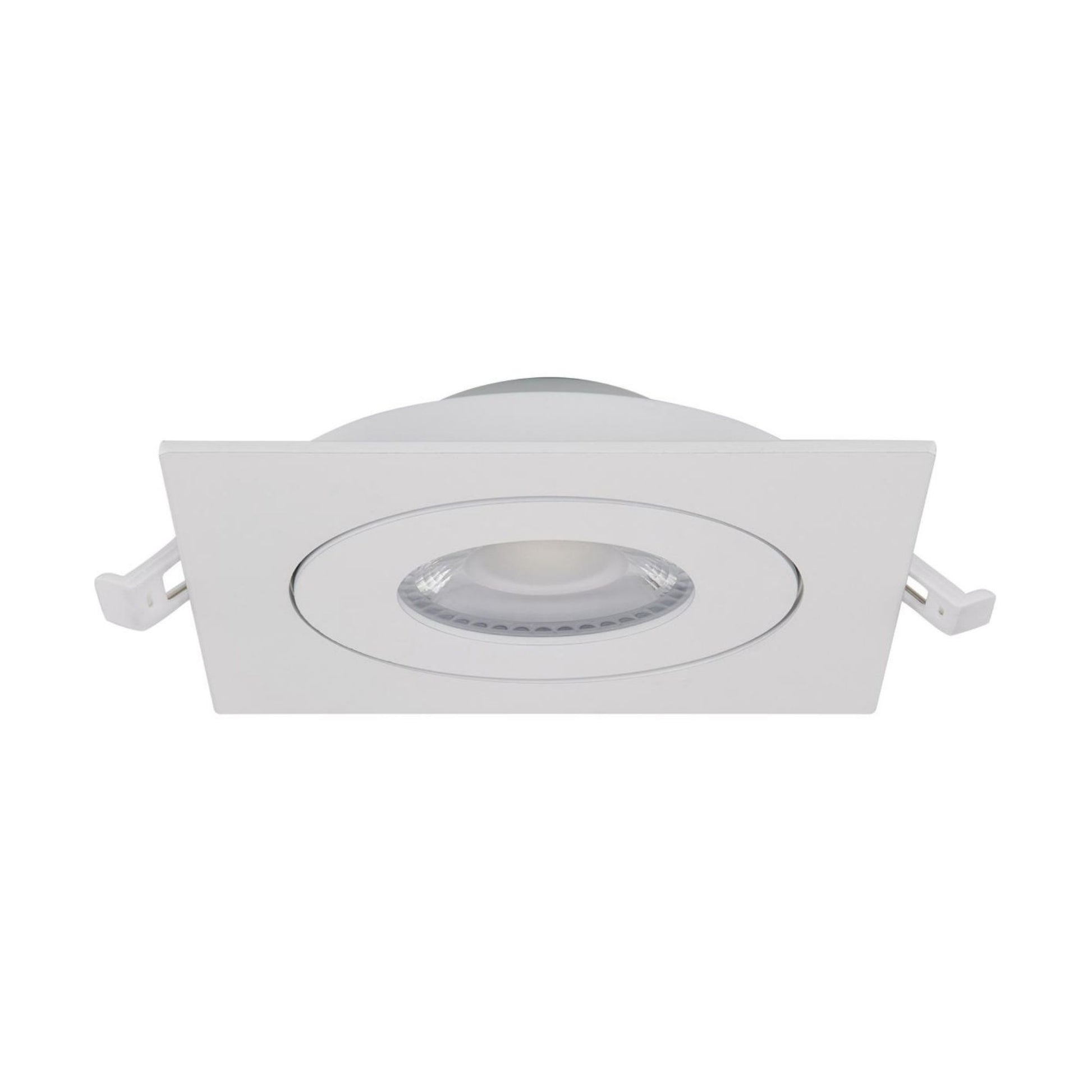

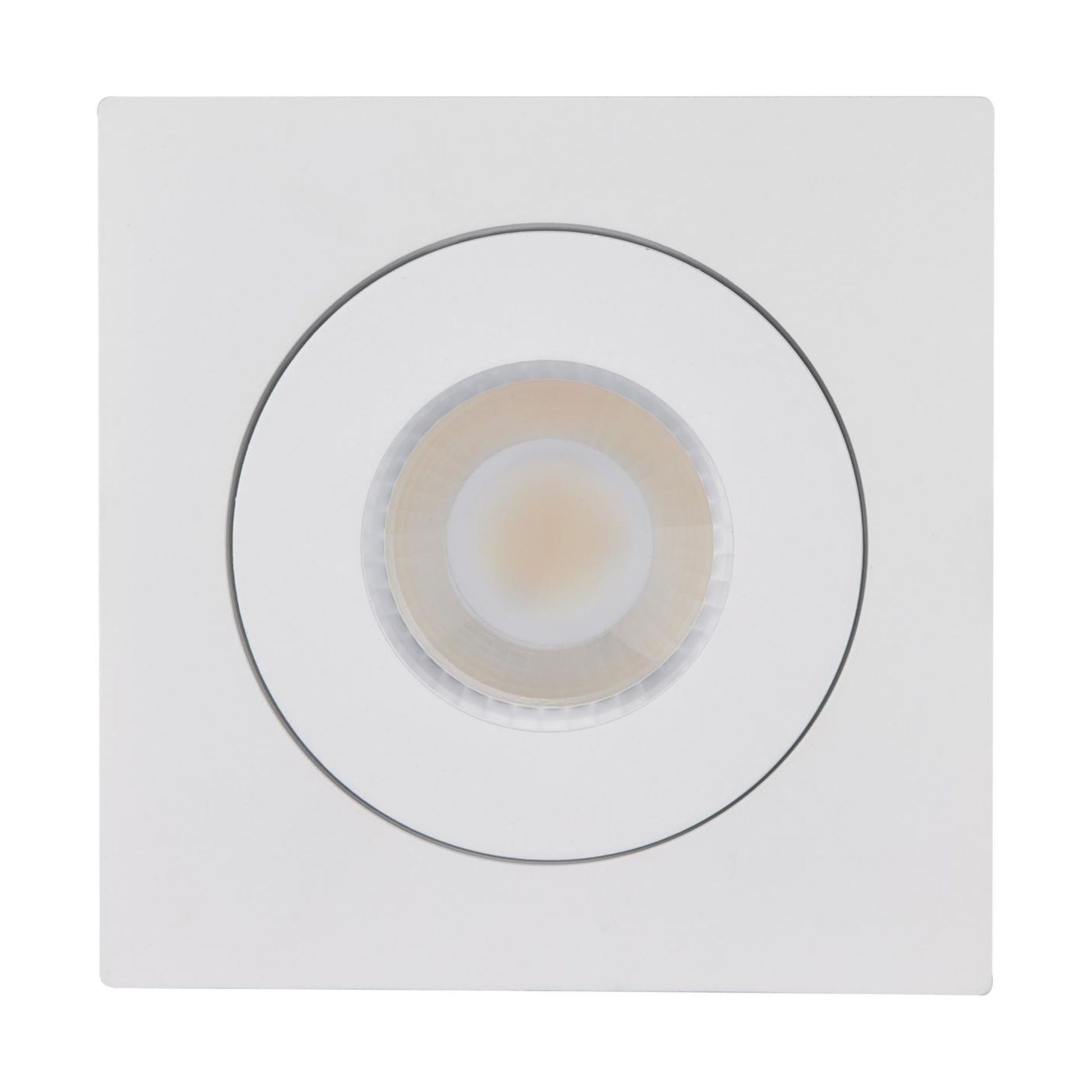

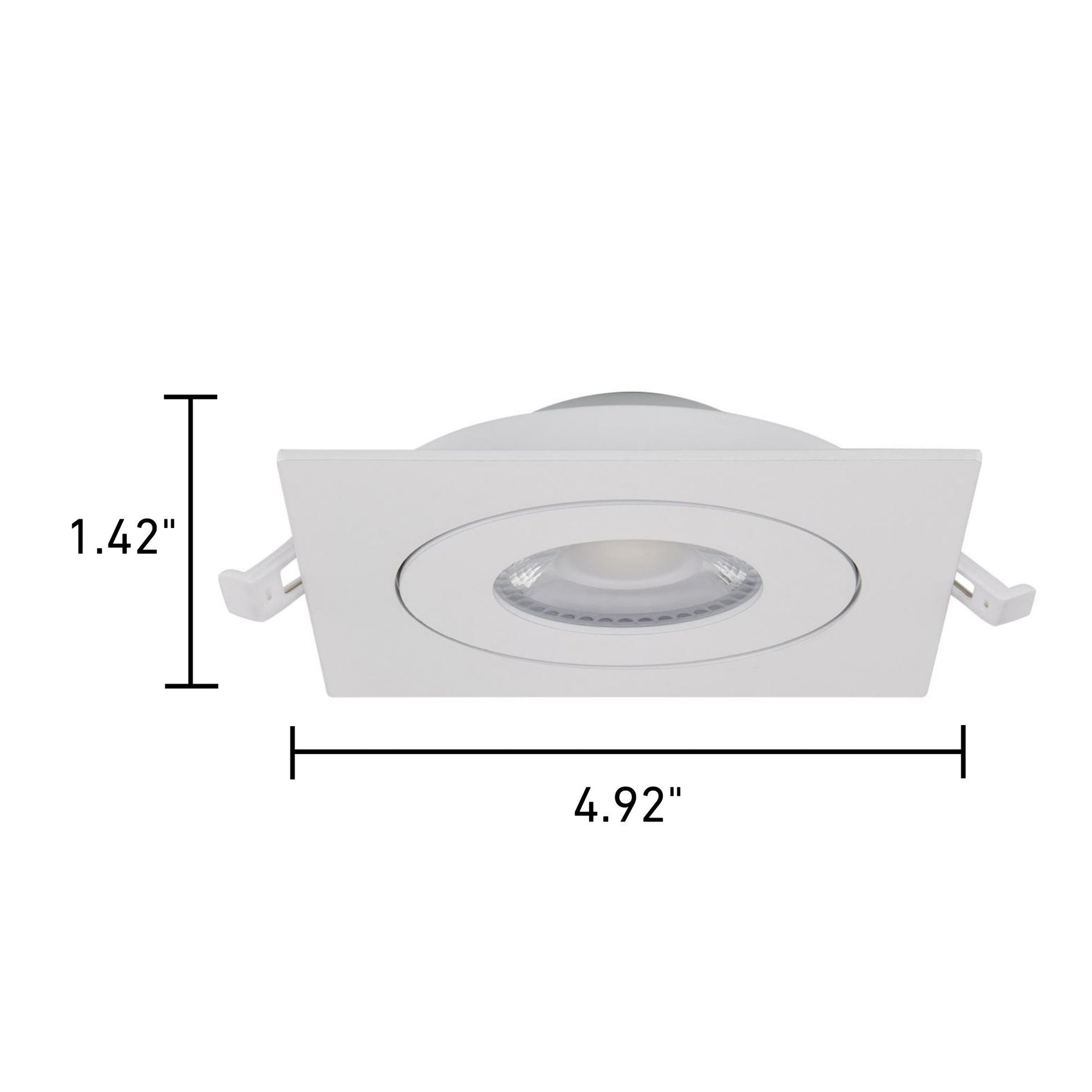

• Fixture: 4 in square, white finish, clear plastic (PS) lens, aluminum construction — depth 1.42 in, width 4.92 in, weight 1.06 lbs
• Ratings: Damp rated, IC rated, airtight
• Certifications: CA T24 2016–2025 JA8 Listed, cETLus Listed, FCC Compliant, ROHS Compliant, Title 20 Exempt, T24 Compliant
• EM Driver Compatible: S8000 (5W) or S8002 (10W) — must also purchase emergency driver enclosure 80-973
• Lifespan & Warranty: 50,000 hours L70 — 5-year manufacturer warranty

Construction & Design

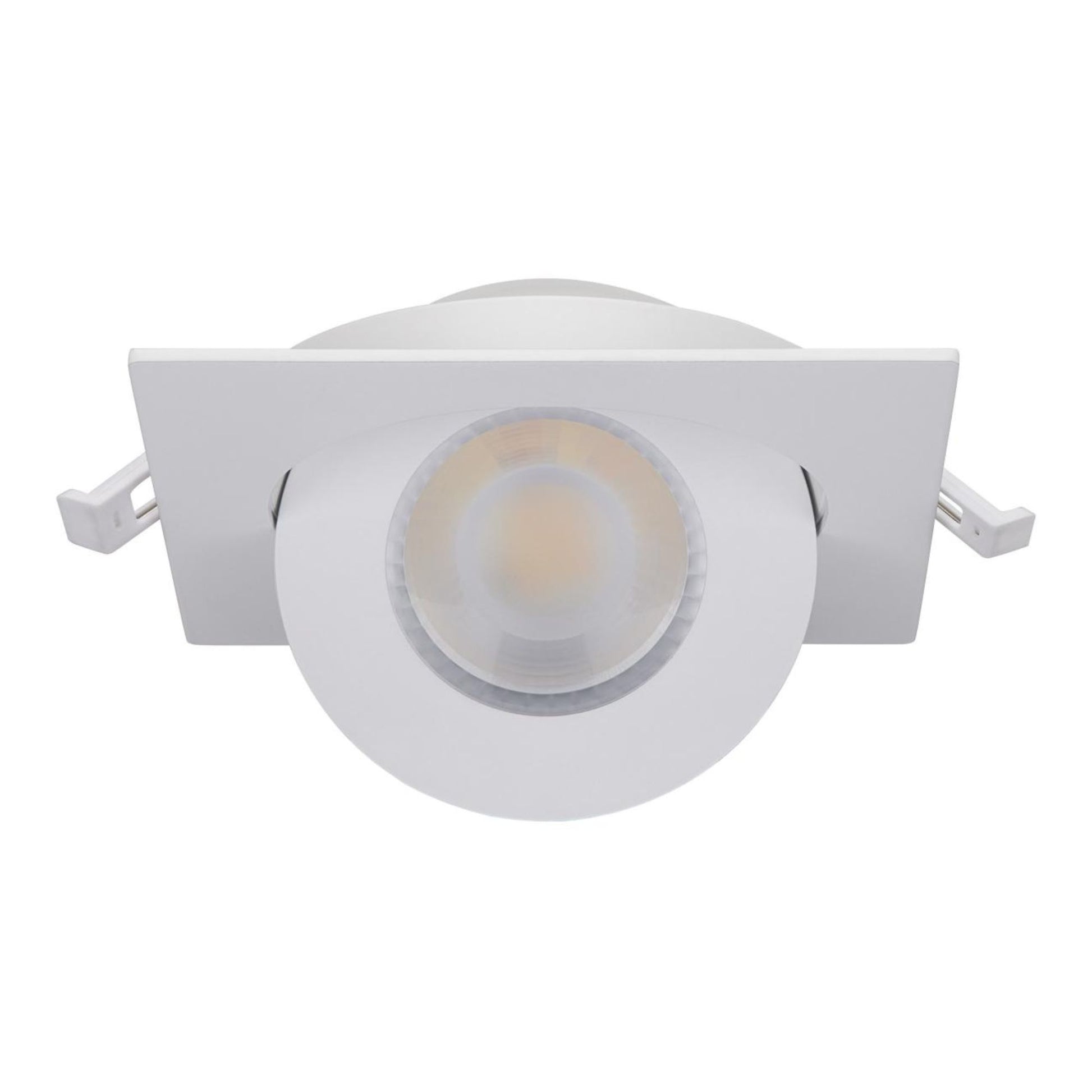

Square, 4 in, white finish, clear polystyrene lens, aluminum housing. Damp rated, IC rated, and airtight. IP42 rated. Remote driver with no recessed can required. For the black finish version, see S11843. For the round version, see S11840. For 6 in square, see S11861.

Light Output & Performance

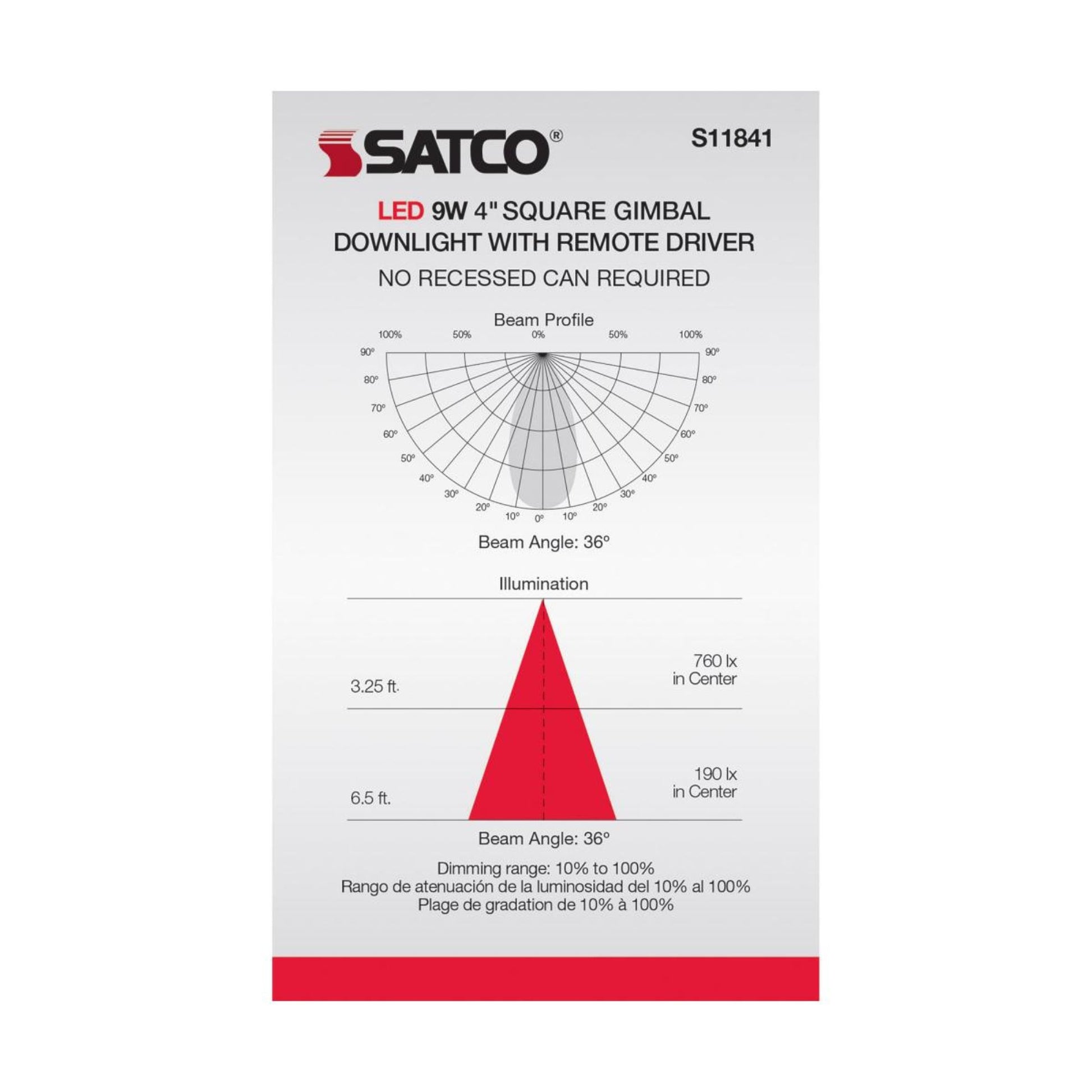

Delivers 650–750 lm at 9W, CRI 90+, 36° focused beam angle. Selectable CCT 2700K–5000K. Replaces 50W incandescent. L70: 50,000 hours.

Electrical & Installation

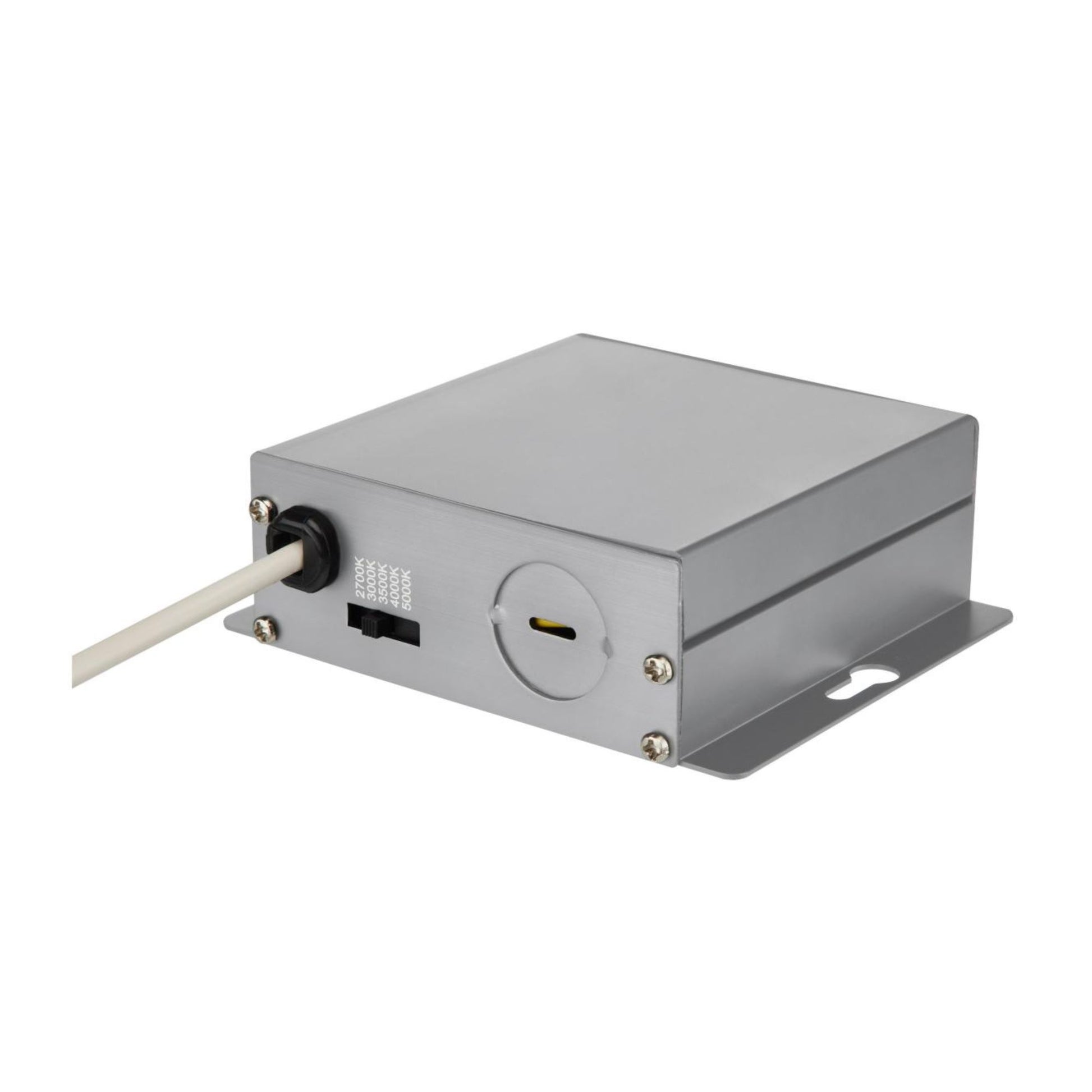

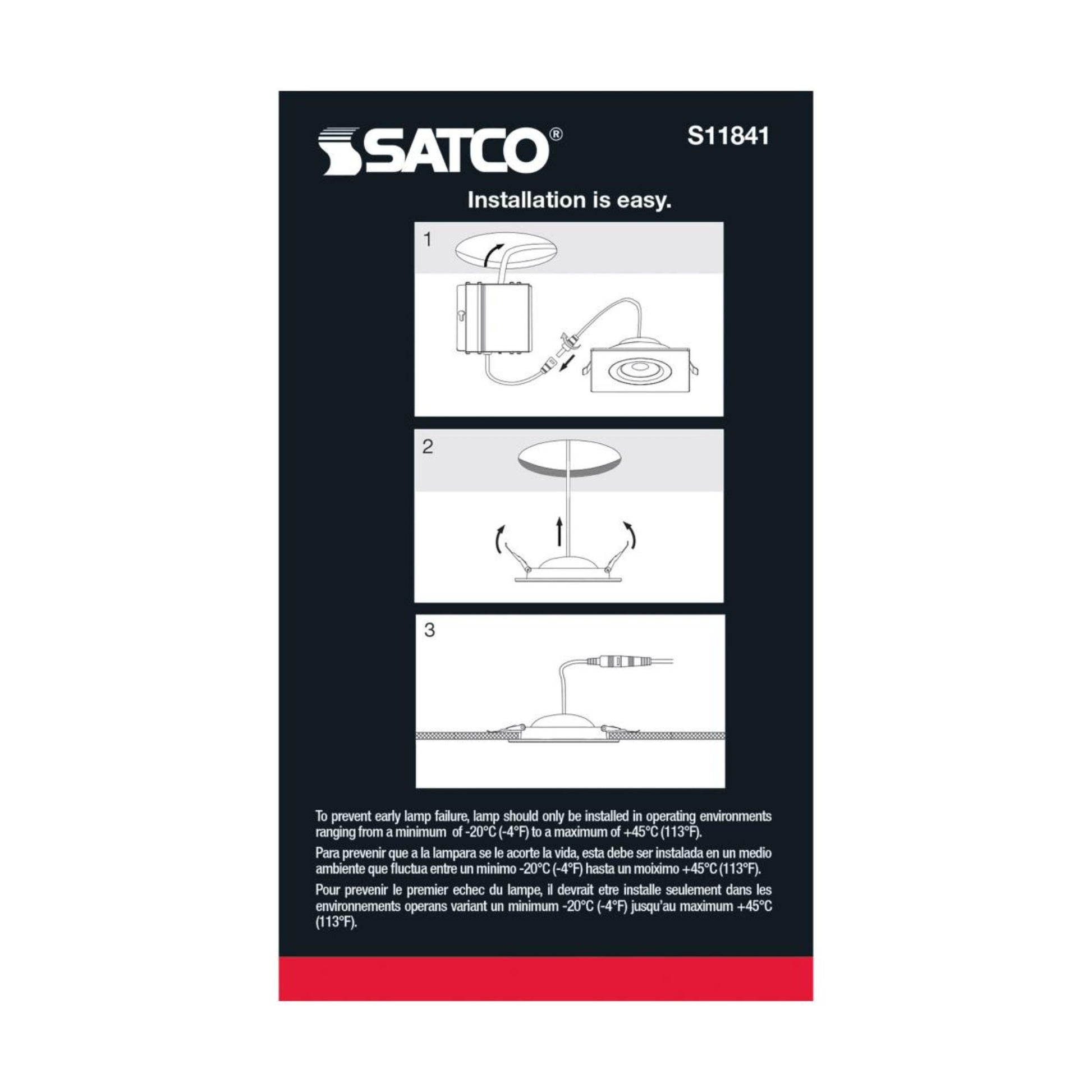

120V / 60Hz. Forward phase, reverse phase, or phase-selectable TRIAC dimming. PF >0.9; op temp: -20°C (-4°F) to +45°C (+113°F). Remote driver — no recessed can required. Fits shallow ceilings, cabinets, and low-clearance spaces. For new construction, use rough-in plate with bars (80-943) or direct wire rough-in plate (80-950).

Compatible Accessories (Sold Separately)

• 4 in Rough-In Plate with Bars: SATCO 80-943
• 4 in Rough-In Plate Direct Wire: SATCO 80-950
• 4 in Goof Ring (6 in OD): SATCO 80-946

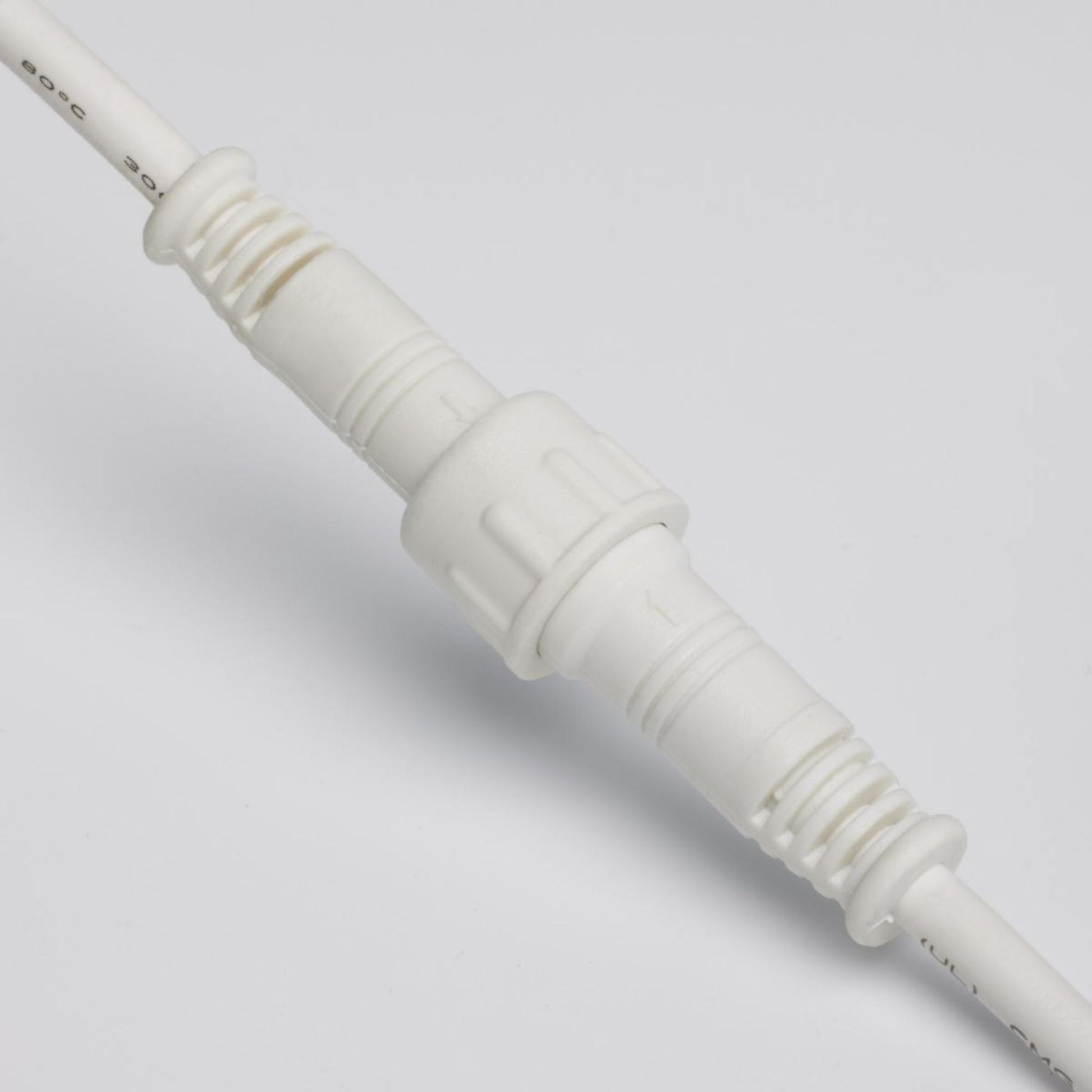

• Remote Driver 6 ft Extension Cable: SATCO 80-985
• 5W EM Driver: SATCO S8000 — must also purchase SATCO 80-973 enclosure
• 10W EM Driver: SATCO S8002 — must also purchase SATCO 80-973 enclosure

Typical Applications

• Residential accent and task lighting
• Sloped and vaulted ceiling installations
• Shallow ceiling, cabinet, and low-clearance installations
• Hospitality and retail directional lighting

What’s Included

• SATCO S11841 4 in square gimbal LED downlight with remote driver (white)
