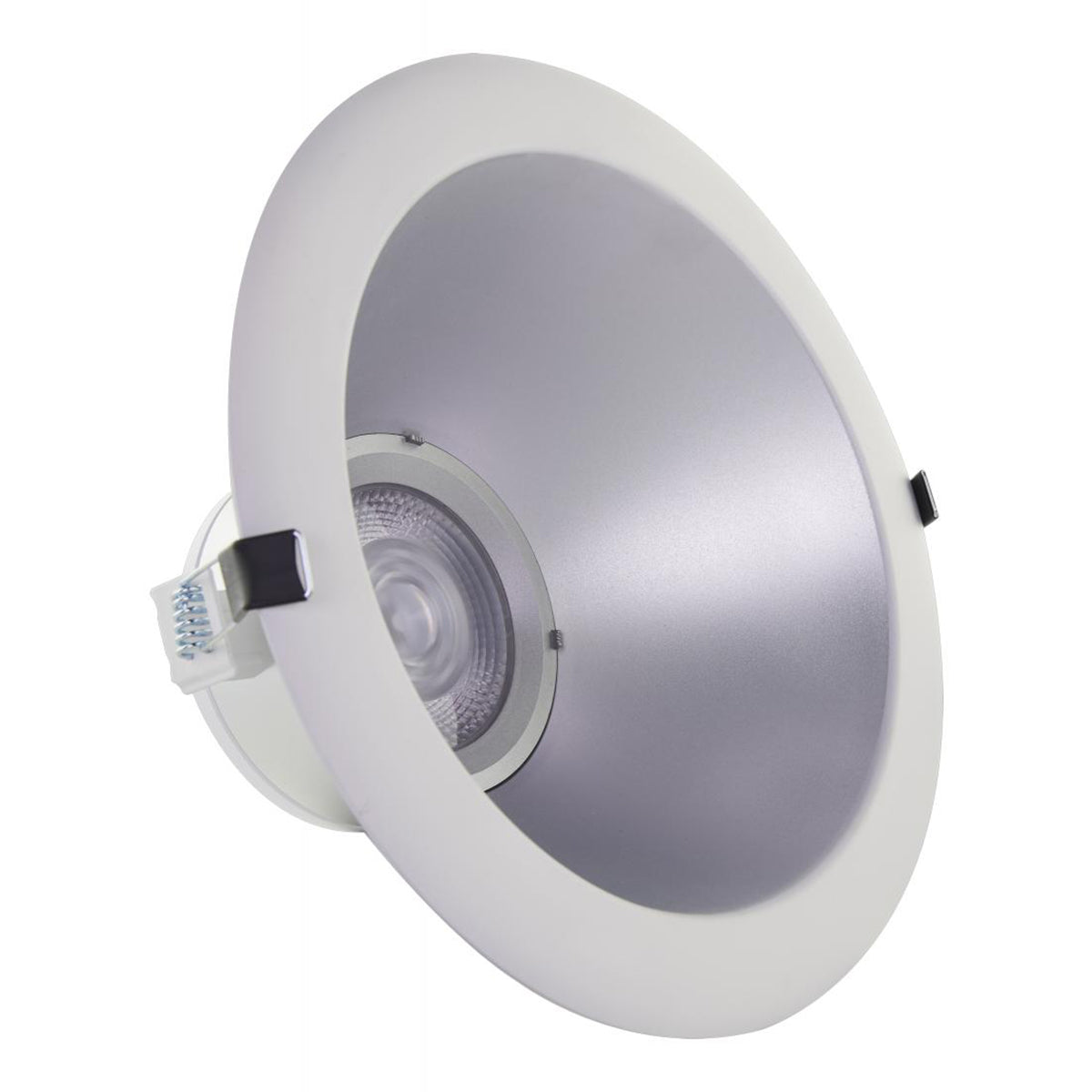

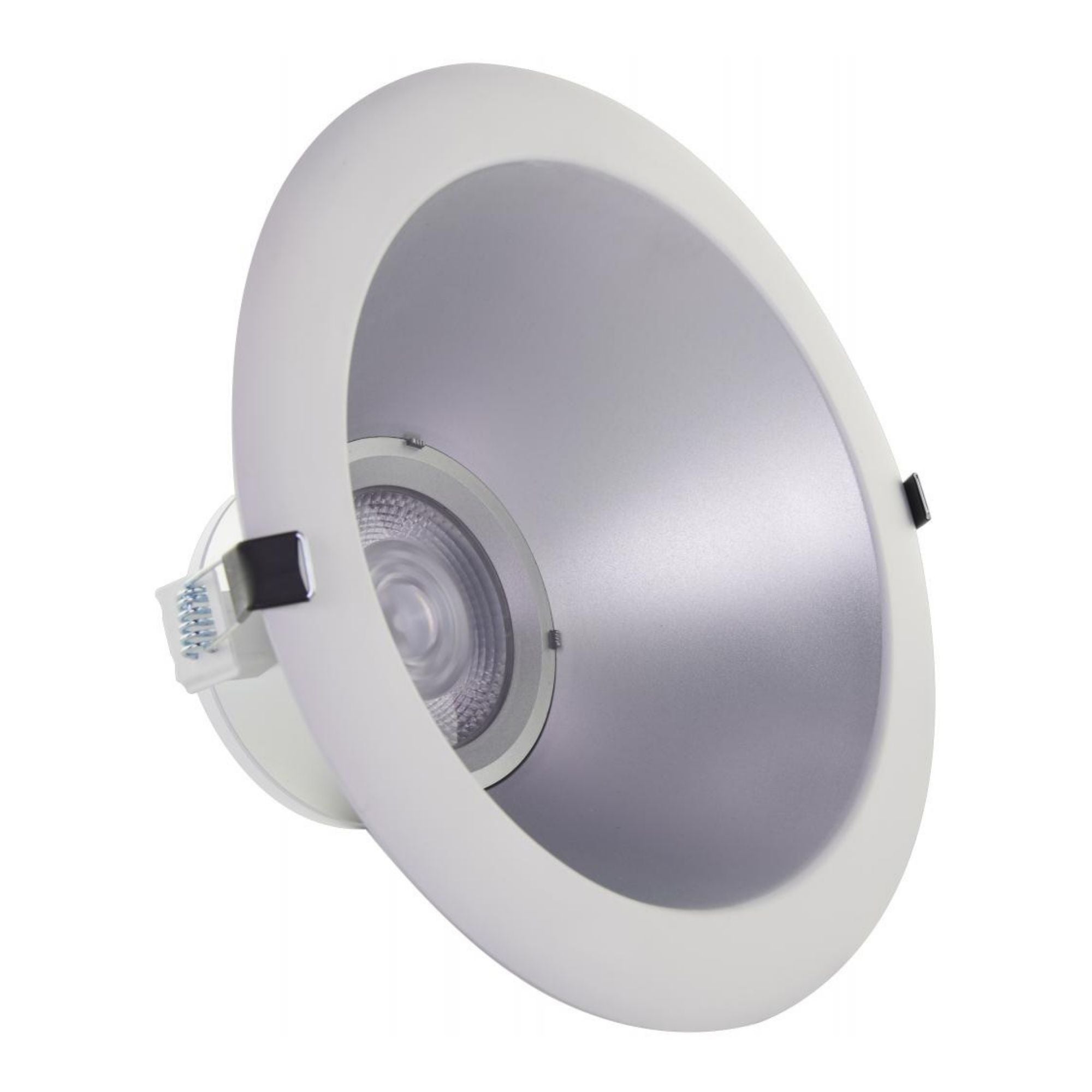

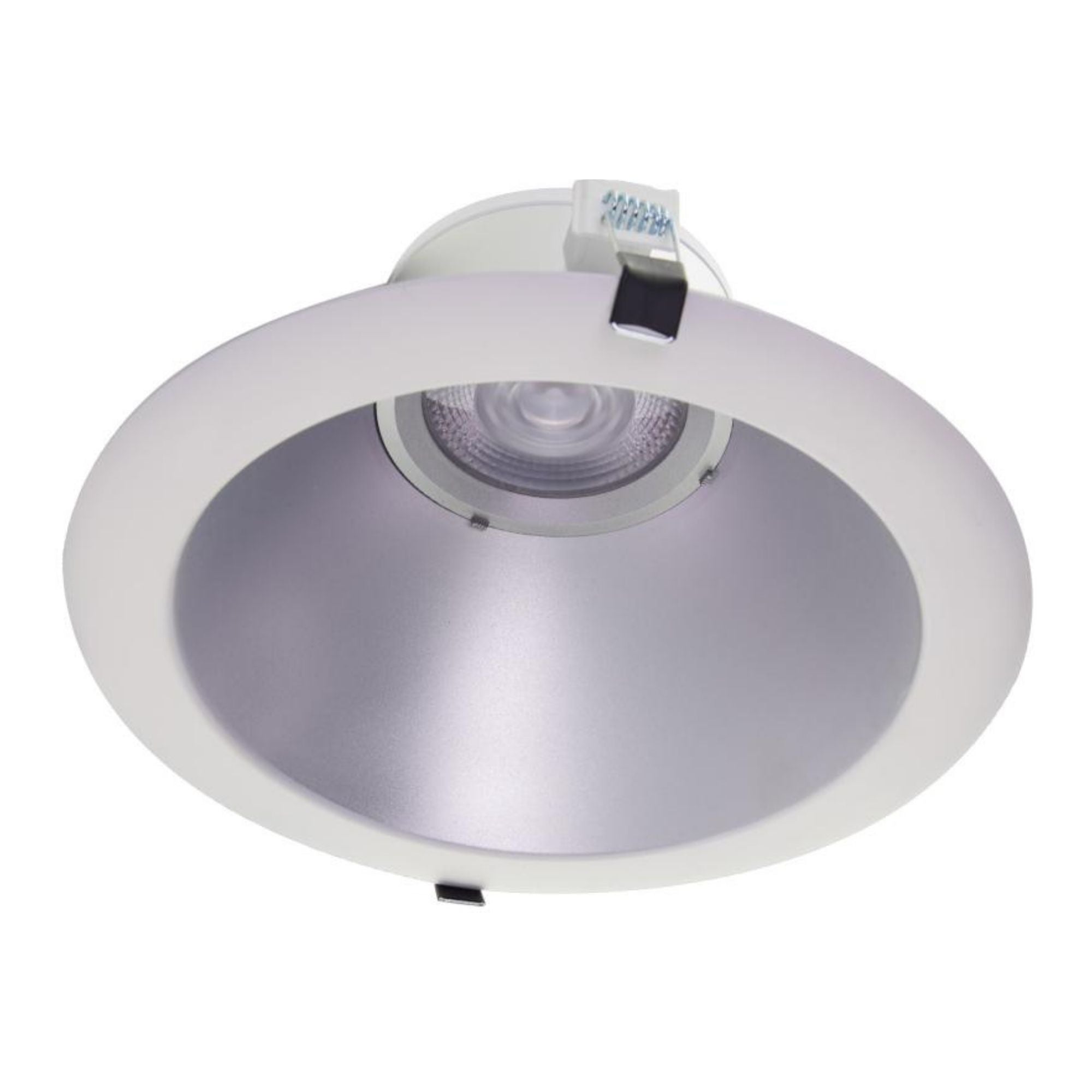

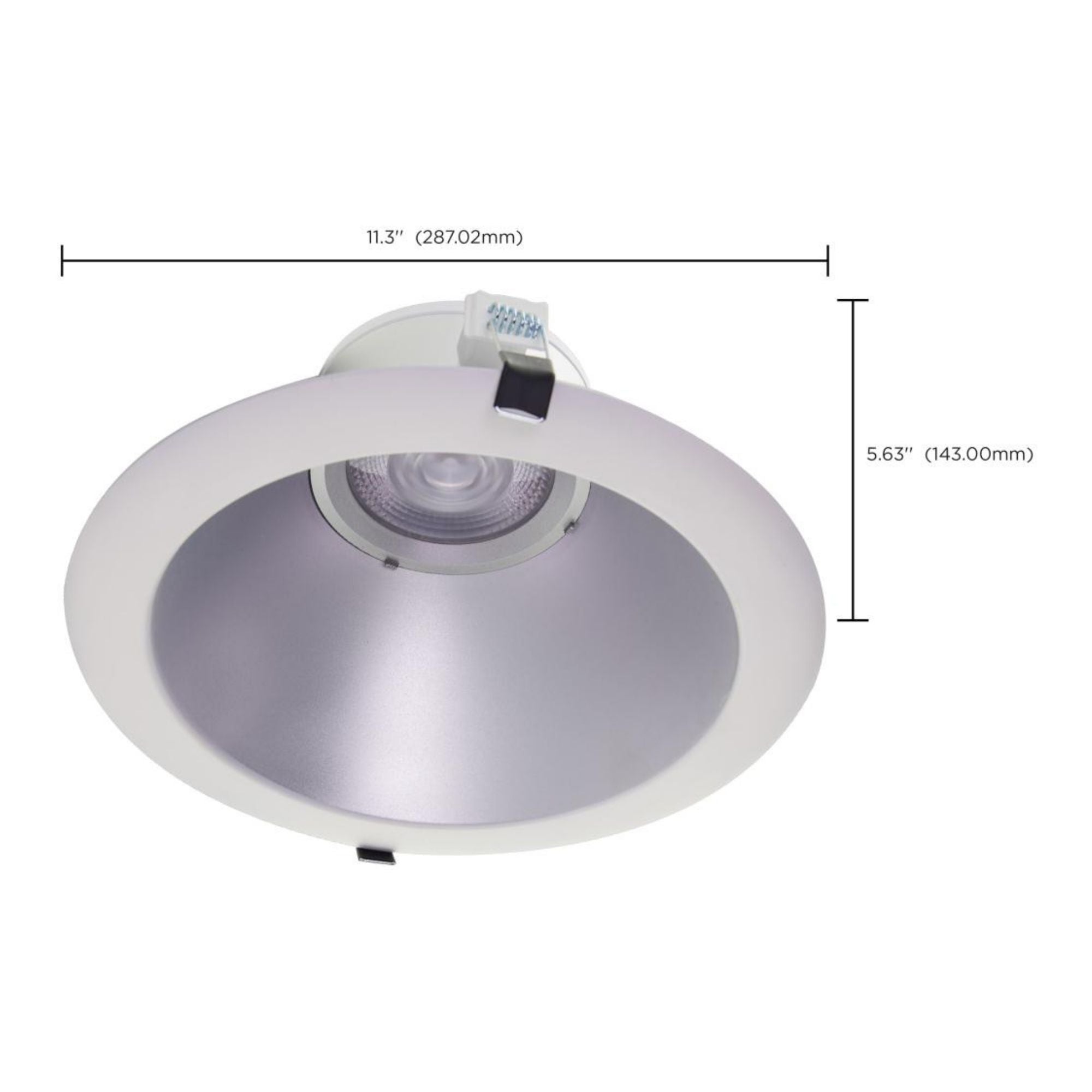

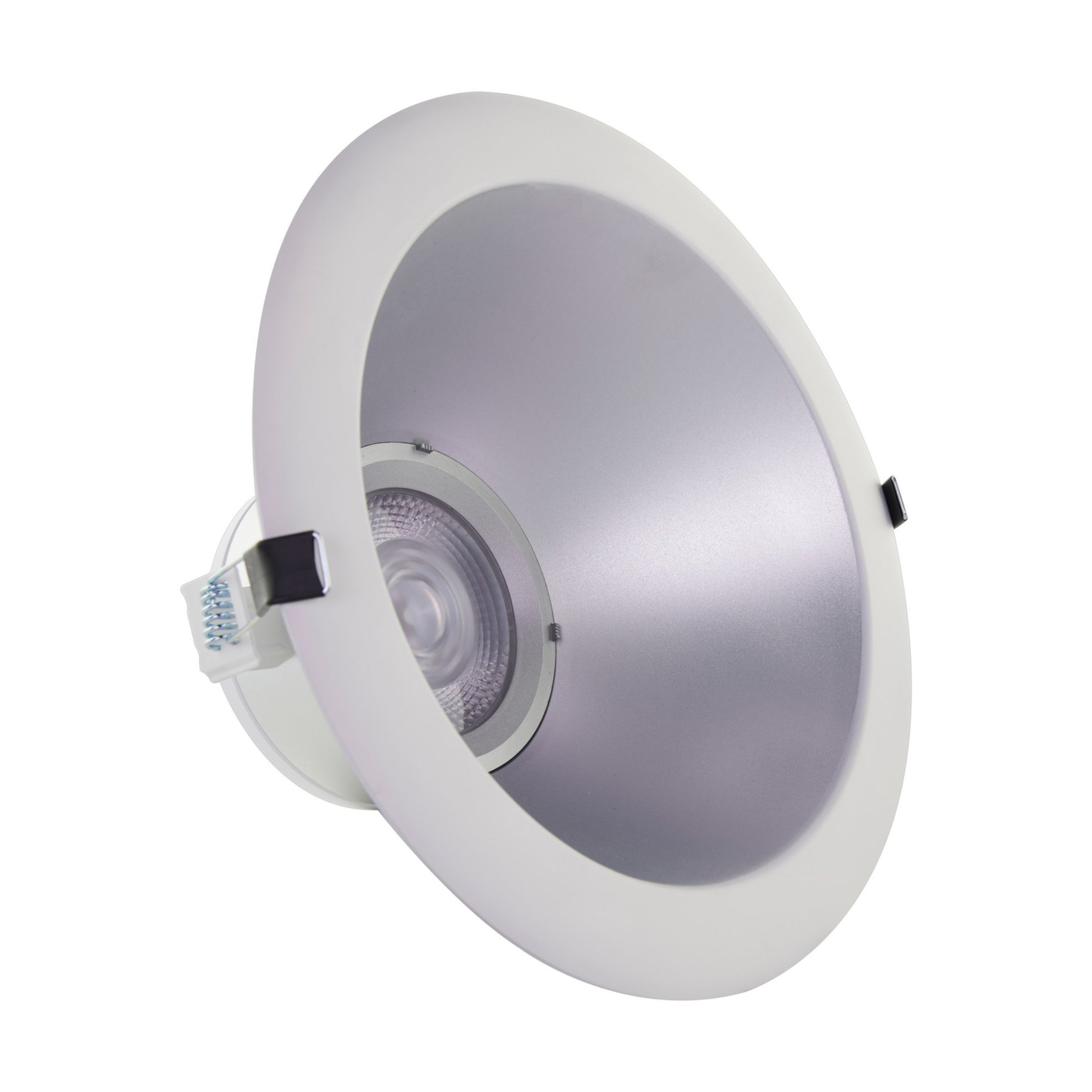

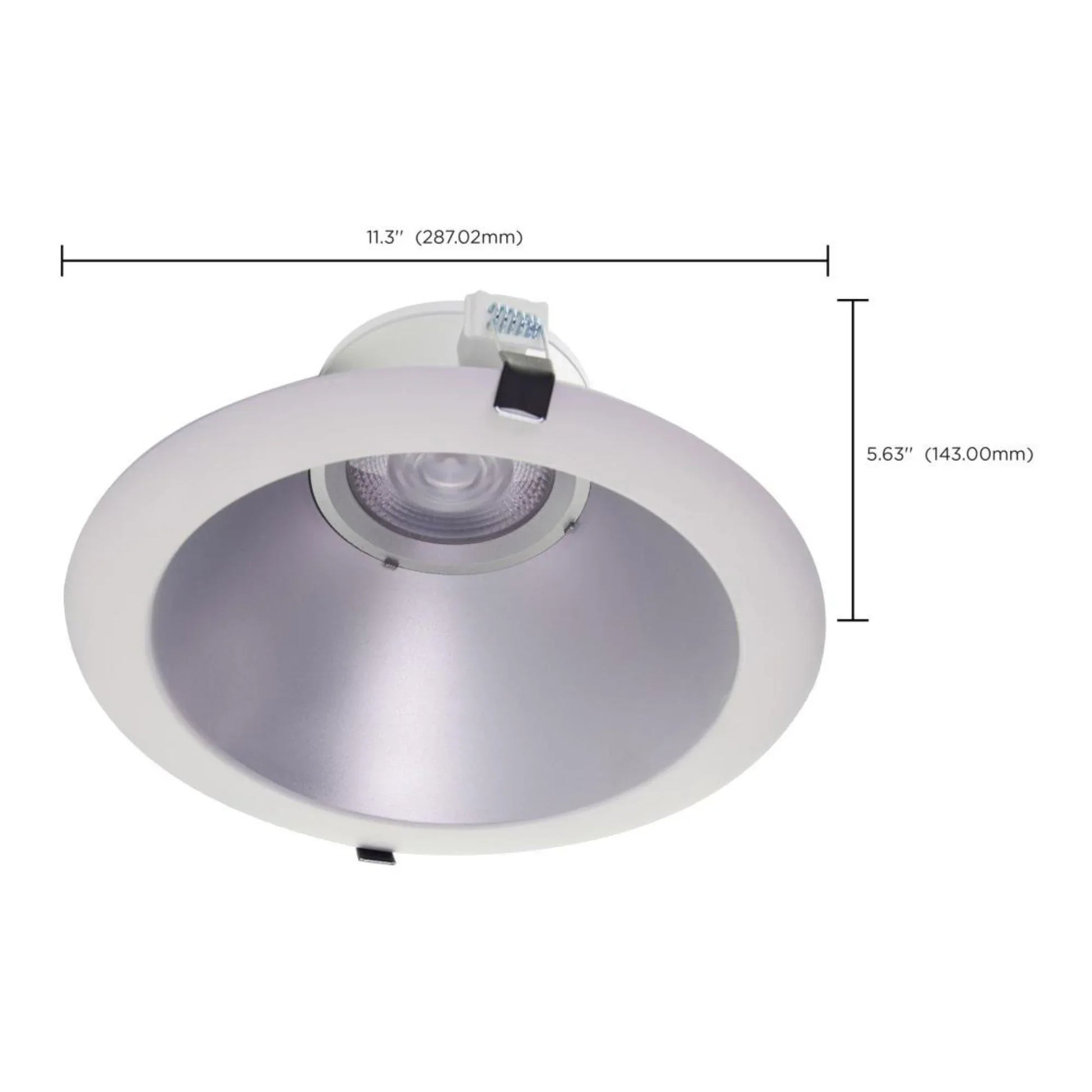

Satco S11817 10 in. Commercial Downlight — 46W / Selectable CCT

The Satco S11817 is a versatile 10-inch commercial downlight retrofit designed for flexible lighting solutions. Delivering up to 3500 lumens using 46W, this fixture offers selectable color temperatures ranging from 2700K to 5000K, making it ideal for various environments.

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Adjustable Lumens: 2500L, 3000L, 3500L
• Wattage Options: 33W, 40W, 46W
• Dimming Capability: 0-10V dimming
• Voltage Range: 120-277V
• Beam Angle: 40 degrees
• CRI: 80+
• Material: Aluminum with polycarbonate lens
• Power Factor: 0.98
• Operating Temperature: -20C to +40C
• Compliance: ROHS Compliant, cETLus Listed
• Warranty: 5-Year

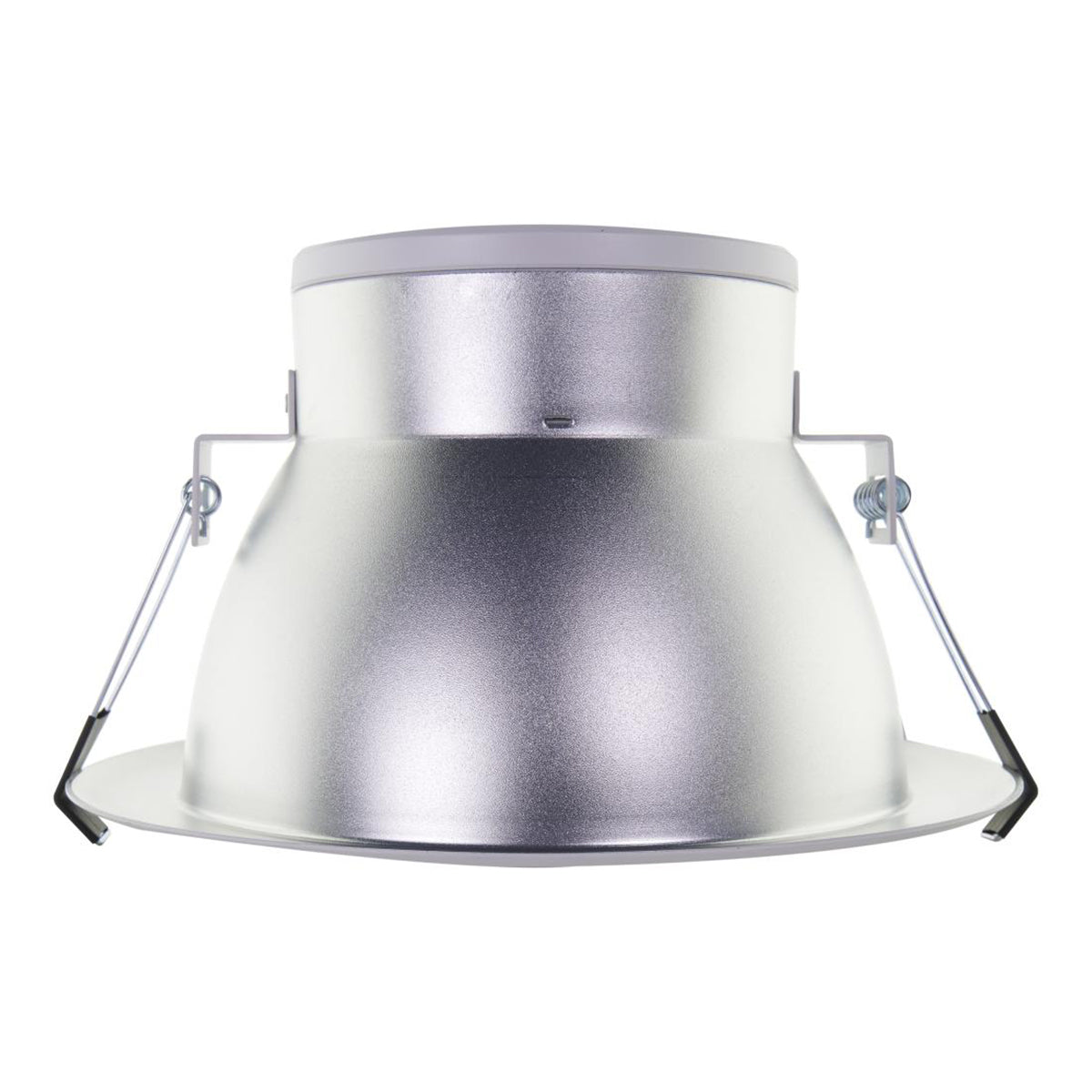

Construction & Aesthetics

Constructed from durable aluminum with a clear polycarbonate lens, the fixture features a sleek silver finish. It is designed for use in damp locations and can be accessorized with a rough-in plate (80-959) for new installations.

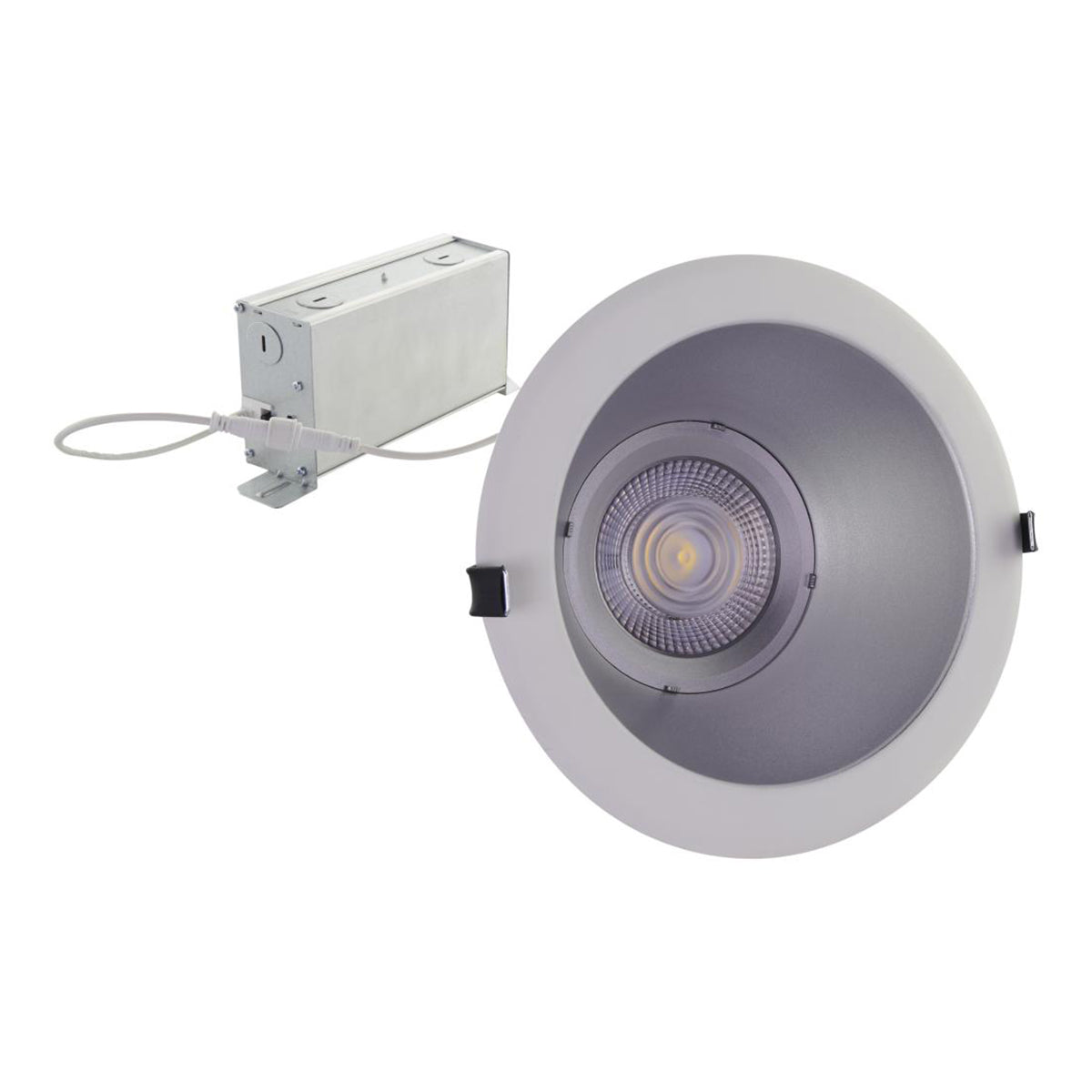

Electrical & Installation

Operating on a voltage range of 120-277V, this downlight supports 0-10V dimming for customizable light levels. It can be installed with or without the rough-in plate, providing flexibility for various project requirements.

Light Output & Performance

With a lumen output adjustable between 2500 and 3500 lumens and a CRI of 80+, this fixture ensures high-quality illumination. The 40-degree beam angle offers wide light distribution, and the LED technology promises a lifespan of 50,000 hours.

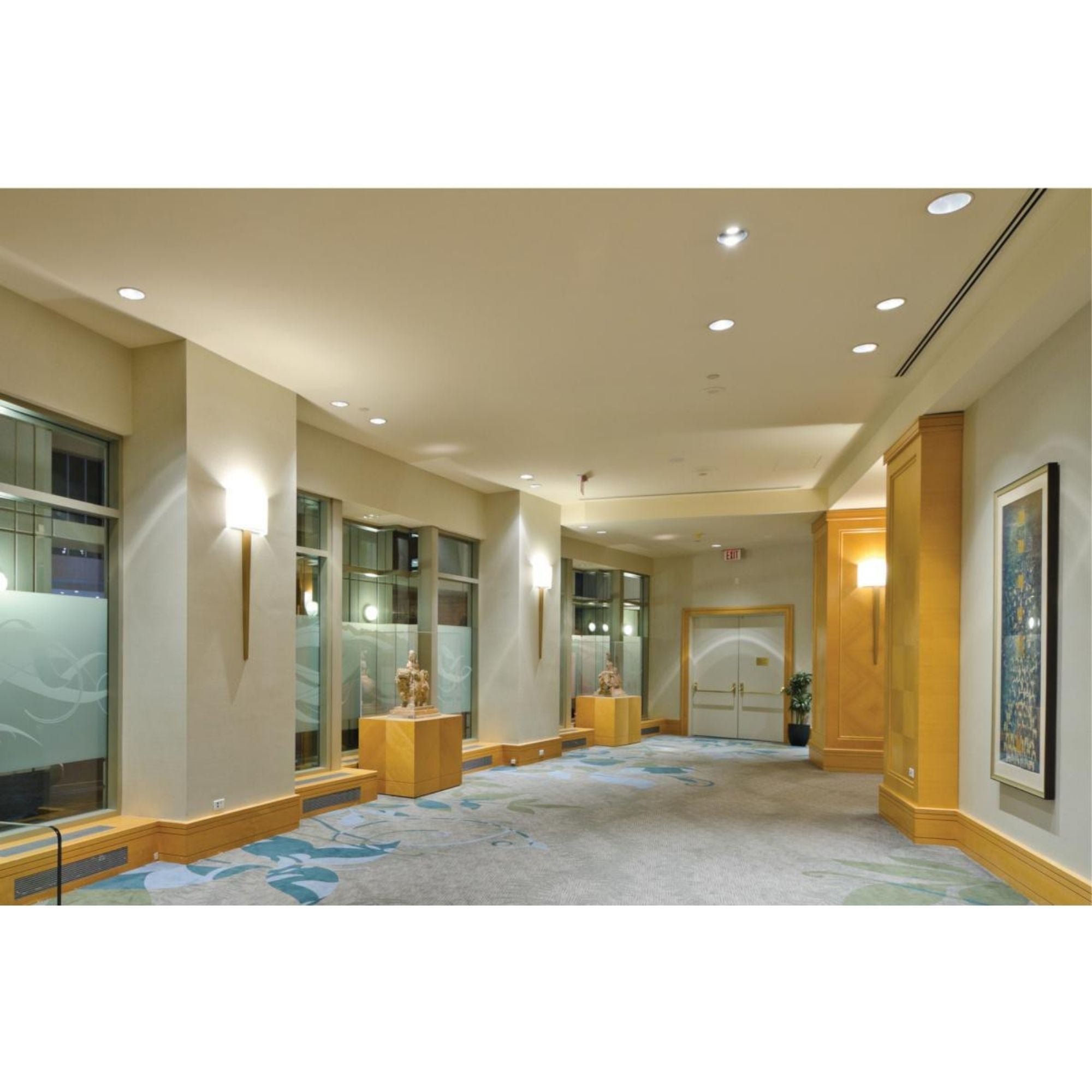

Typical Applications

• Commercial spaces
• Retail environments
• Offices
• Hospitality venues
• Educational facilities
