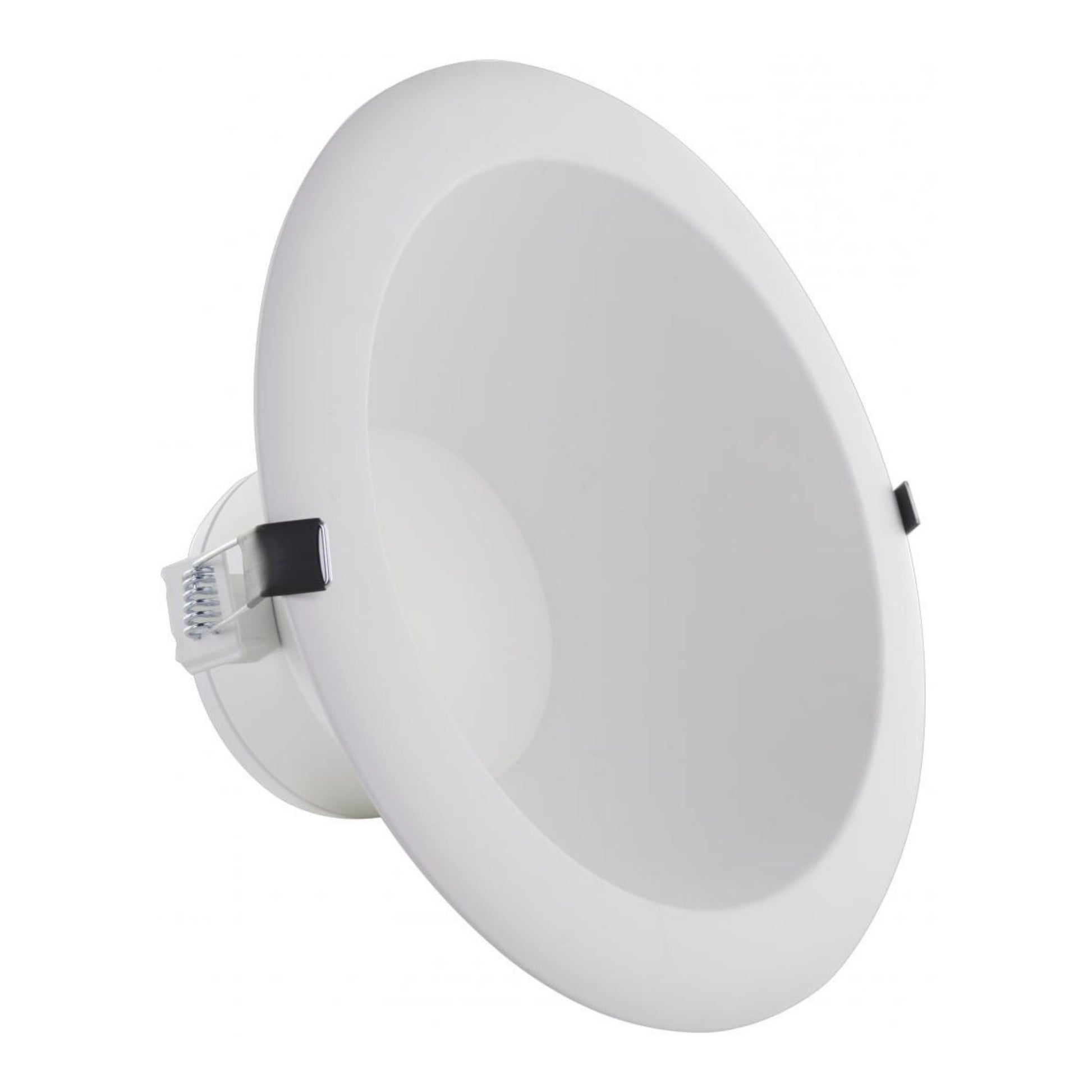

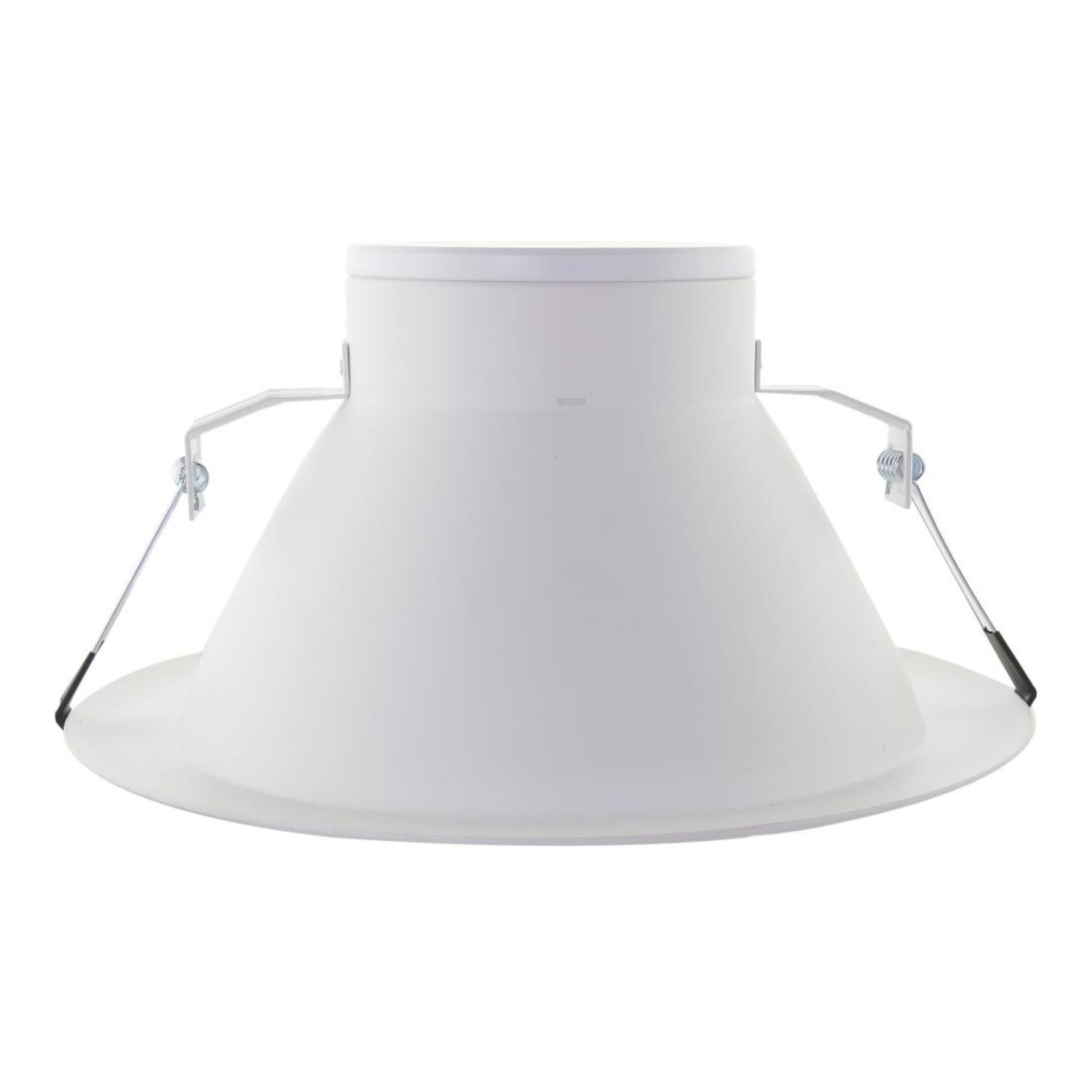

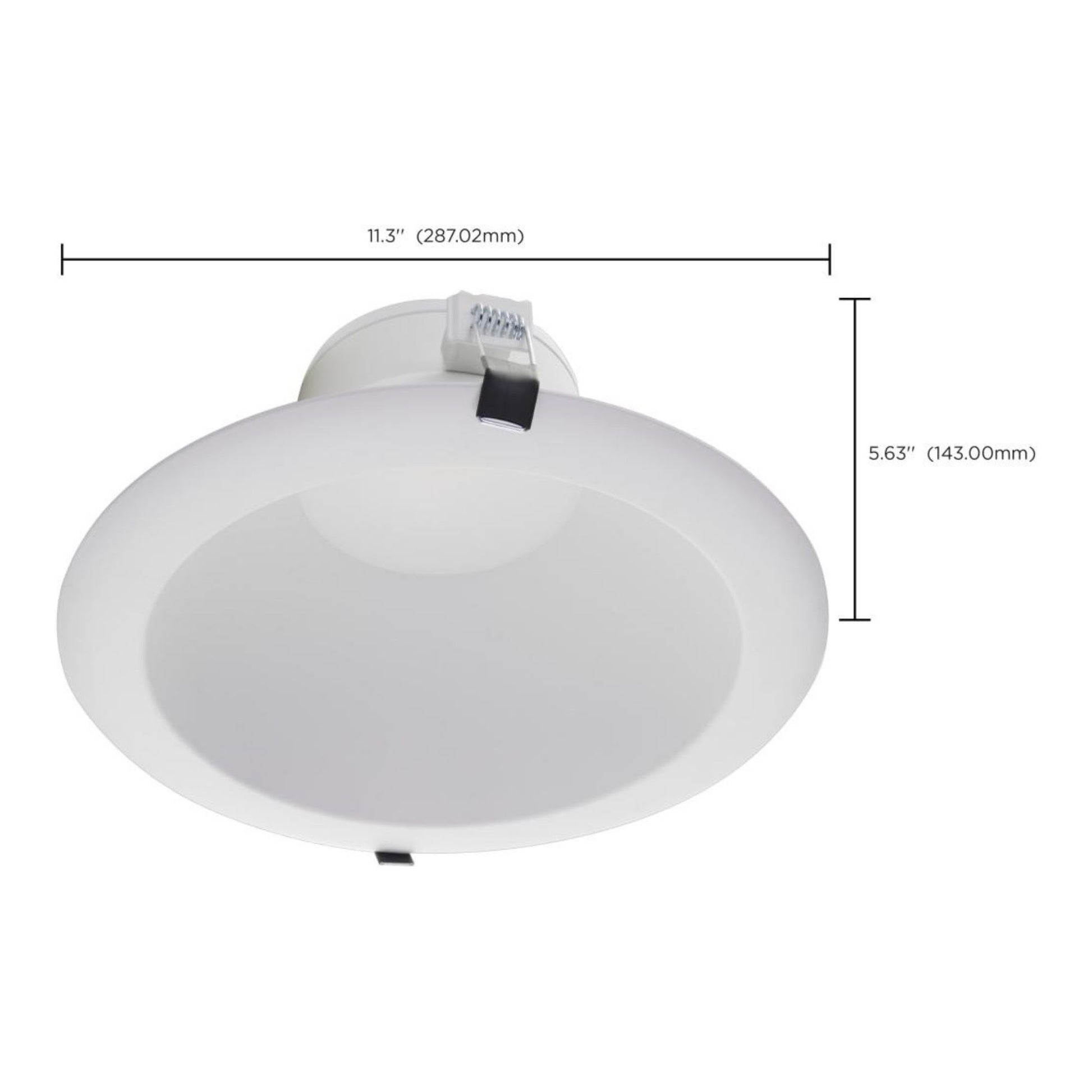

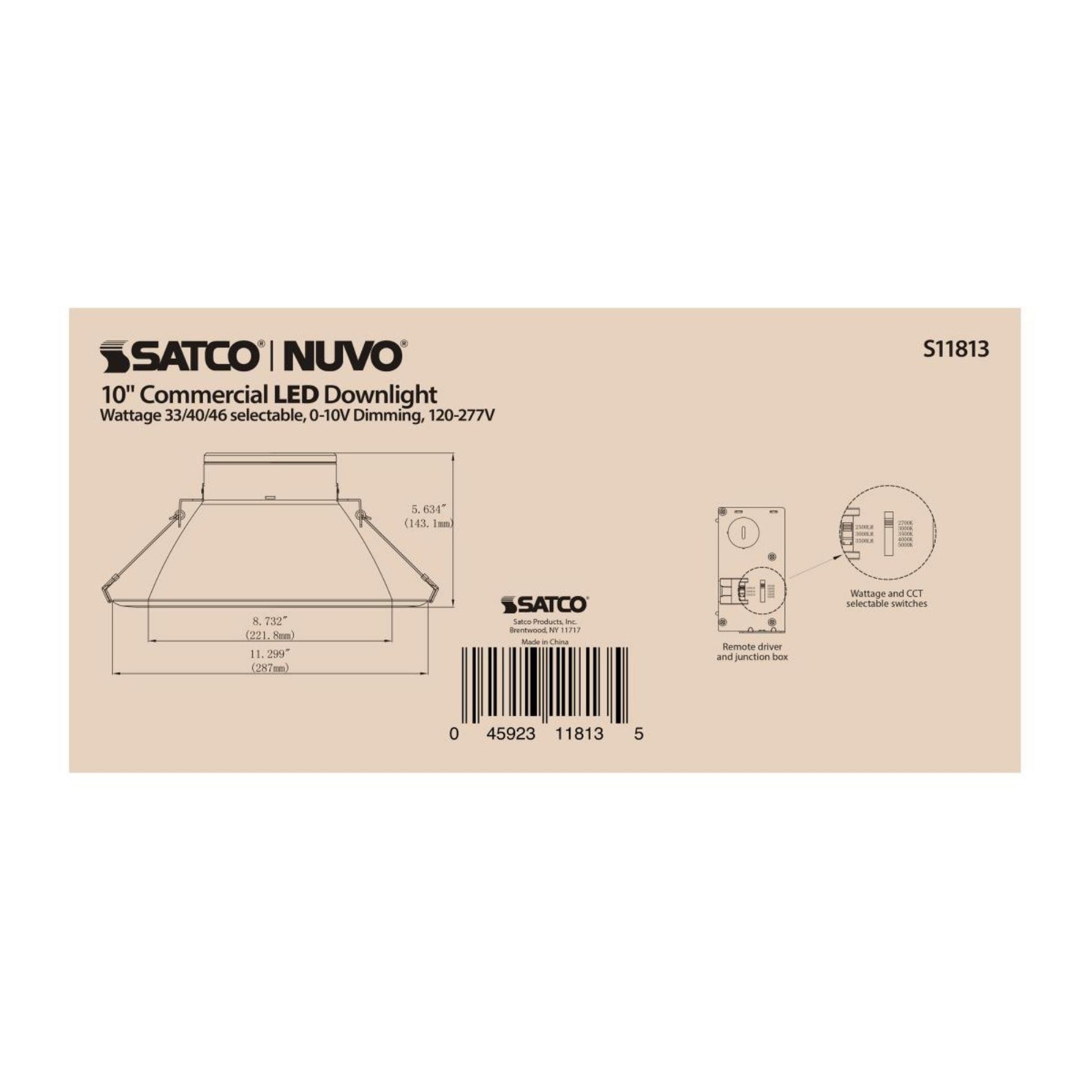

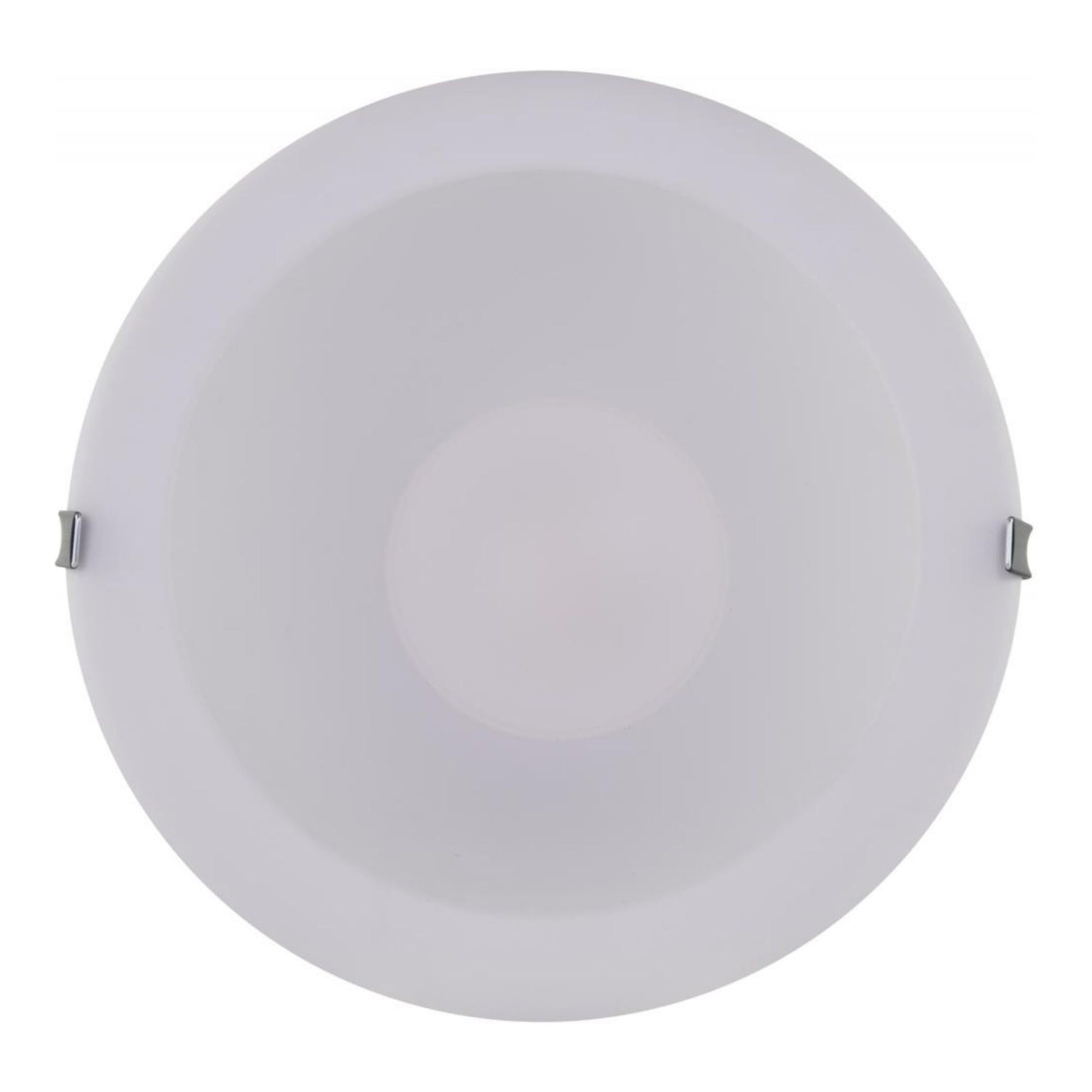

Satco S11813 10 in. Round Downlight — 46W / Selectable CCT

The Satco S11813 is a 10 in. round commercial downlight retrofit delivering up to 3500 lumens using 46W. This fixture features selectable CCT ranging from 2700K to 5000K, making it ideal for various lighting needs. The integrated LED technology ensures energy efficiency and a long lifespan.

Key Features

• Wattage Options: 33W, 40W, 46W
• Lumen Output: 2500L/3000L/3500L
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Voltage: 120-277V
• Dimming: 0-10V dimming capability
• Beam Angle: 80 degrees
• CRI: 80+
• Material: Aluminum with polycarbonate lens
• Compliance: ROHS Compliant, cETLus Listed
• Installation: Can be installed with or without rough-in plate

Construction & Aesthetics

The fixture is constructed from durable aluminum with a clear polycarbonate lens, providing a sleek and modern appearance. It is finished in white, complementing various interior styles. Optional accessories include a rough-in plate for flexible installation.

Electrical & Installation

This downlight operates on a voltage range of 120-277V and supports 0-10V dimming, allowing for smooth lighting adjustments. It can be installed with or without the rough-in plate (80-959), offering versatility in new or retrofit applications.

Light Output & Performance

With a lumen output of up to 3500 lumens and a CRI of 80+, this fixture ensures bright and accurate color rendering. The 80-degree beam angle provides wide coverage, and the LED technology guarantees a lifespan of 50,000 hours.

Typical Applications

• Commercial spaces
• Offices
• Retail environments
• Educational facilities
• Healthcare settings
