SATCO S11810 4 in Round Commercial LED Downlight Retrofit — Selectable CCT & Wattage / 8.5–14.5W / 600–1020 lm / 120–277V / White

The SATCO S11810 is a 4 in round commercial downlight retrofit with ColorQuick selectable CCT and wattage technology. Choose from 8.5W (600 lm), 11W (800 lm), or 14.5W (1020 lm) at installation, with five CCT options: 2700K, 3000K, 3500K, 4000K, and 5000K. Operates on 120–277V universal voltage with 0-10V dimming. Outboard remote LED driver with J-box and knockouts. Spring-loaded arms for easy retrofit into existing 4 in cans. cETLus Listed. 5-year warranty. L70: 50,000 hours.

Key Features

• Selectable Wattage: 8.5W / 11W / 14.5W — default factory setting is 14.5W
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K — set at installation
• Lumen Output: 600 lm / 800 lm / 1020 lm (corresponding to wattage tiers)
• CRI: 80+
• Beam Angle: 80°
• Dimming: 0-10V dimming only — not compatible with TRIAC dimmers
• Voltage: 120–277V universal voltage / 60Hz
• Amps: 0.071–0.031A (120V) / 0.092–0.040A (208V) / 0.121–0.052A (277V) across wattage tiers
• Power Factor: >0.9
• Driver: Remote outboard LED driver with J-box and knockouts — mounts into available mounting plates

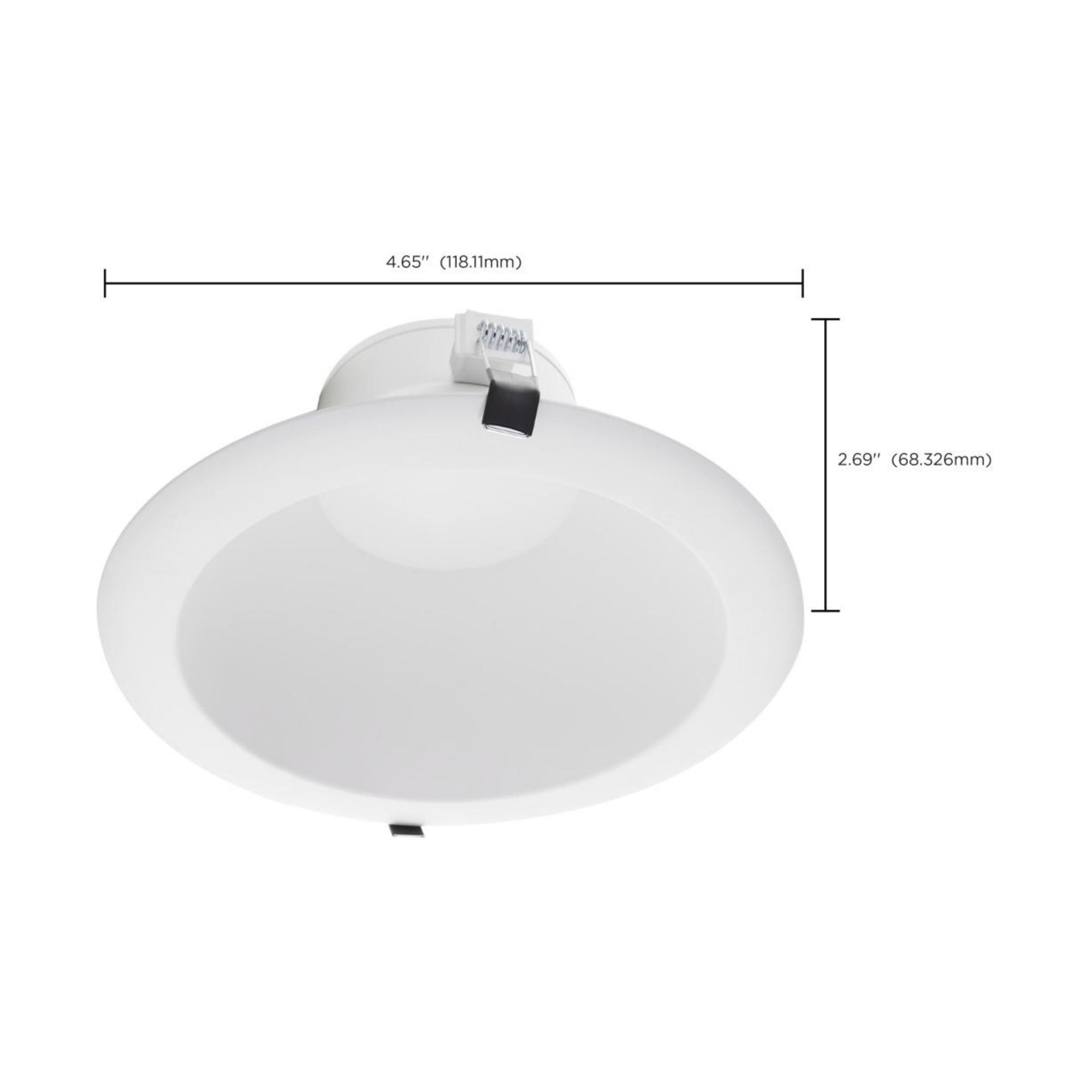

• Fixture: 4 in round, white finish, clear polycarbonate lens, aluminum construction — diameter 4.65 in, MOL 2.69 in, weight 1.45 lbs
• Ratings: Damp rated, IC rated, not airtight — indoor use
• Certifications: cETLus Listed, ROHS Compliant, FCC Compliant, Title 20 Exempt
• Lifespan & Warranty: 50,000 hours L70 — 5-year manufacturer warranty

Construction & Design

Round, 4 in, white finish, clear polycarbonate lens, aluminum housing. Damp rated and IC rated. Spring-loaded arms ensure a tight fit in existing ceilings or mounting plates. Outboard LED driver and J-box with knockouts mounts securely into available mounting plates for new construction. For the silver finish version, see S11814. For larger sizes, see S11811 (6 in), S11812 (8 in), and S11813 (10 in).

Light Output & Performance

Delivers 600–1020 lm across three selectable wattage tiers (8.5/11/14.5W), CRI 80+, 80° beam angle. Five selectable CCTs from 2700K to 5000K. Replaces 1×18W CFL (45W/65W/85W incandescent equivalent). L70: 50,000 hours.

Electrical & Installation

120–277V universal voltage / 60Hz. 0-10V dimming only. PF >0.9; op temp -20°C (-4°F) to +40°C (+104°F). Remote outboard driver with J-box. Spring-loaded arms for retrofit into 4 in cans. Can be installed with or without rough-in plate (80-959).

Compatible Accessories (Sold Separately)

• 4 in Goof Ring — Flat (8 in OD): SATCO S13540
• Rough-In Plate CDL 4/6/8/10: SATCO 80-959
• 6W LED/CDL EM Driver: SATCO S8003

Typical Applications

• Office and retail accent and general lighting
• Hospitality and healthcare facilities
• Interior and covered exterior canopy lighting
• Commercial retrofit and new construction projects

What’s Included

• SATCO S11810 4 in round commercial LED downlight retrofit with remote driver and J-box (white)
