SATCO S11801R1 5/6" Round LED Retrofit Downlight ColorQuick 5-CCT 9W 120V White Steel
Available in stock (21988)
About this item
About this item

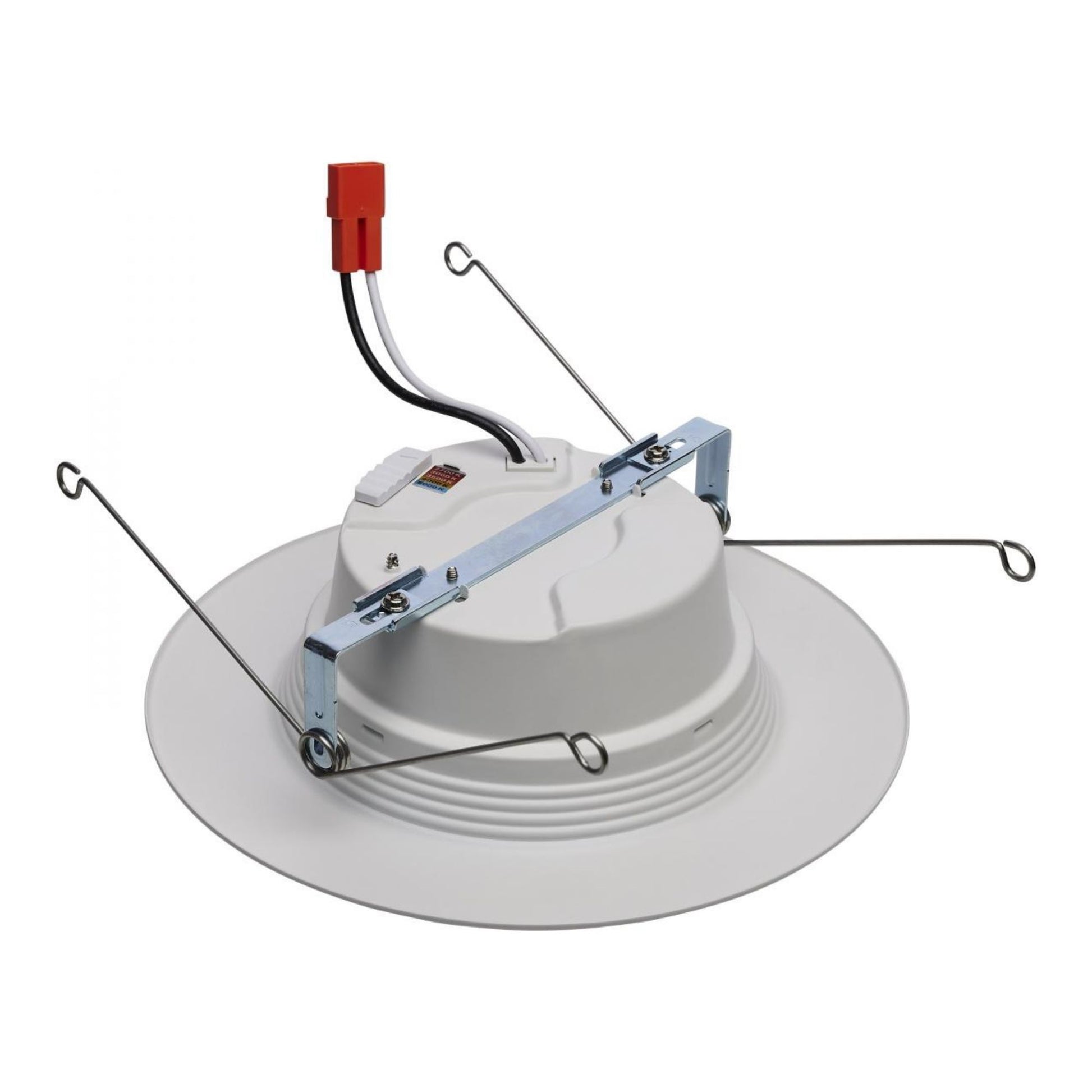

- ColorQuick 5-CCT Selectable — 5/6 in Round Retrofit Downlight: E26 screw-in adapter (S9001 included); fits existing 5-6 in recessed cans (min 5.36 in dia × 7.5 in height); white finish

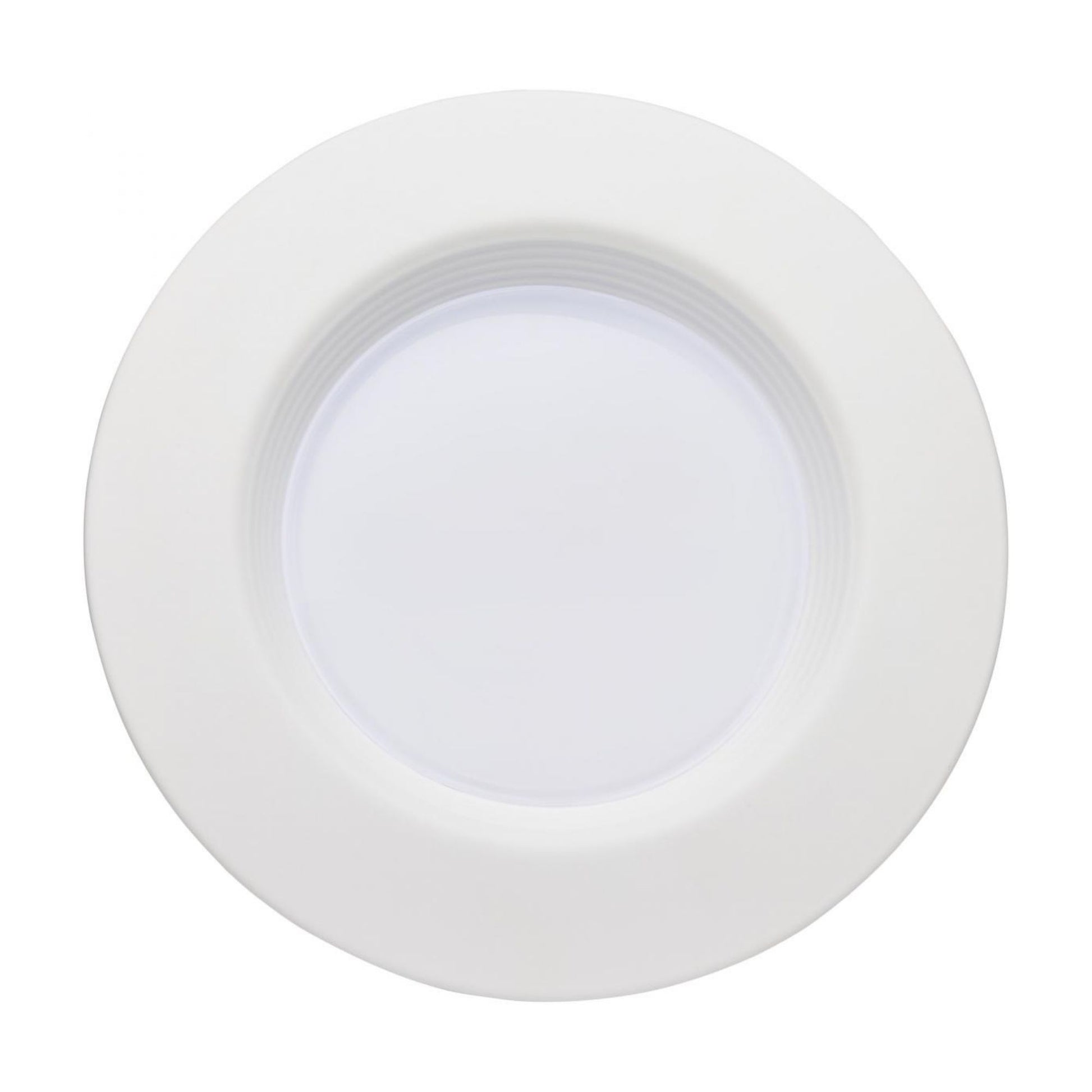

- Stepped Baffle for Reduced Glare: Steel construction; frosted polycarbonate lens; wet rated and suitable for bathrooms
- 800 lm at 9W / up to 89 LPW: CRI 90+; 90° beam angle; replaces 65W incandescent; L70: 50,000 hrs
- Phase-Cut Dimmable to 10% — 120V Only: CCT adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 2KV surge protection; PF 0.9
- California T24 JA8 Listed / Title 20 Listed / cETLus Listed: FCC; RoHS; 5-year warranty
Description
Description
SATCO S11801R1 5/6 in Round LED Retrofit Downlight — ColorQuick / 5-CCT Selectable / 9W / 800 lm / 120V / White
The SATCO S11801R1 is a 5/6 in round LED retrofit downlight in white finish, featuring ColorQuick selectable color technology. Delivering 800 lm at 9W (up to 89 LPW) with field-selectable CCT (2700K/3000K/3500K/4000K/5000K). E26 medium adapter (S9001) included — screws into any compatible 5-6 in recessed can. Stepped baffle design reduces glare. Steel construction with frosted polycarbonate lens. Wet rated and suitable for bathroom applications. Phase-Cut dimmable to 10% at 120V. Built-in 2KV surge protection. California T24 JA8 Listed. Title 20 Listed. cETLus Listed. FCC. RoHS. 5-year warranty. L70: 50,000 hours. Replaces 65W incandescent.

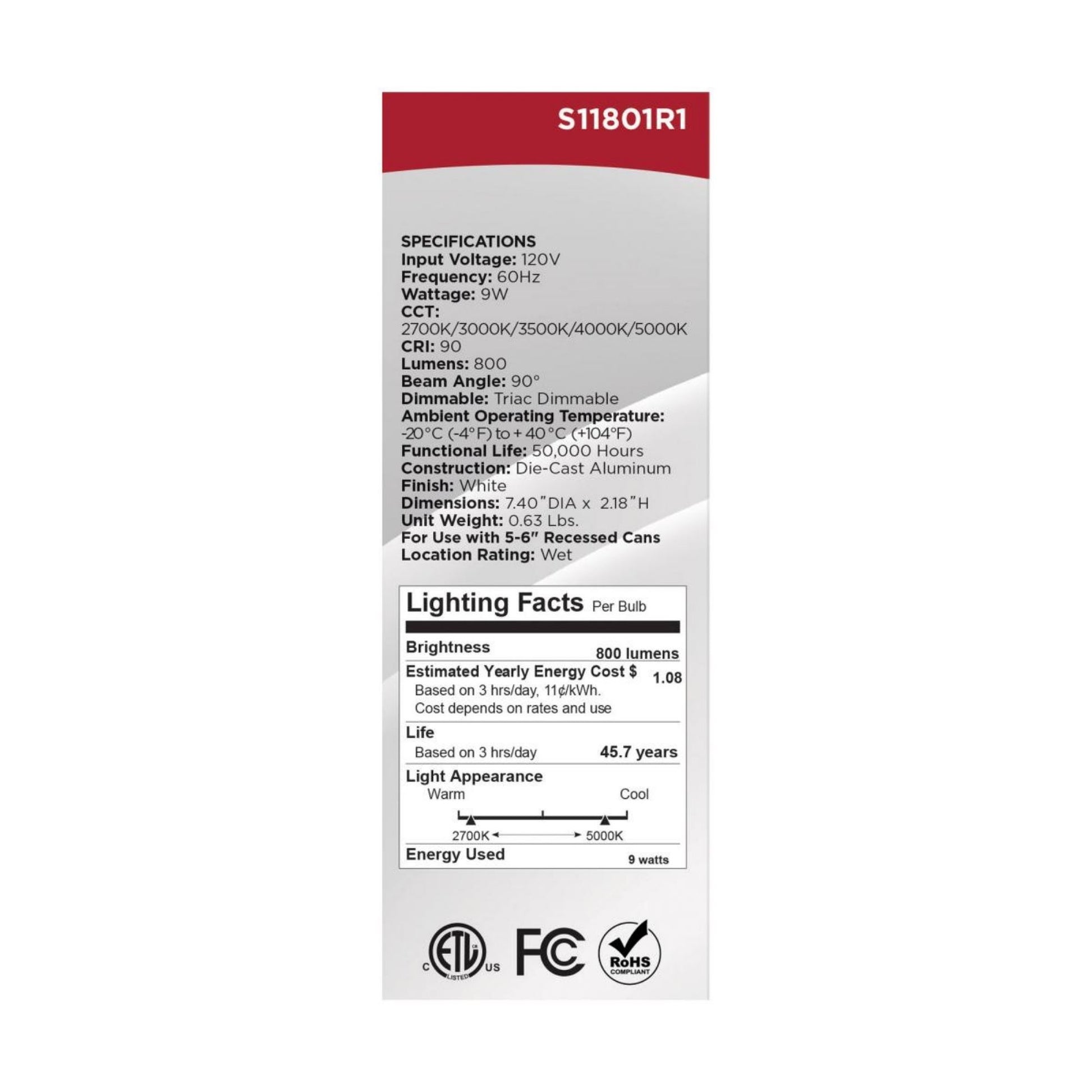

Key Features
- Wattage: 9W (fixed)
- Light Output: 800 lm
- Efficacy: Up to 89 LPW
- Beam Angle: 90°

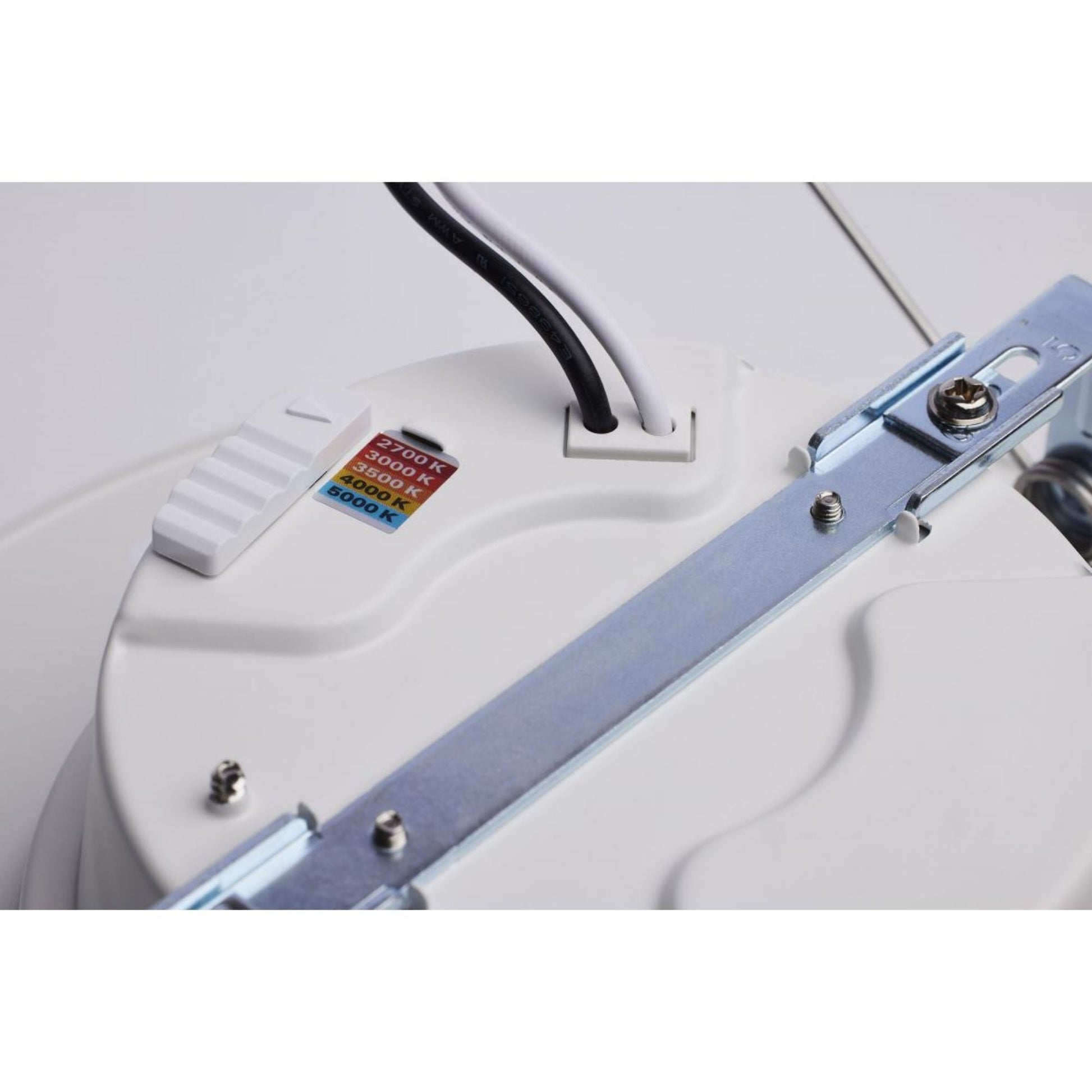

- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+

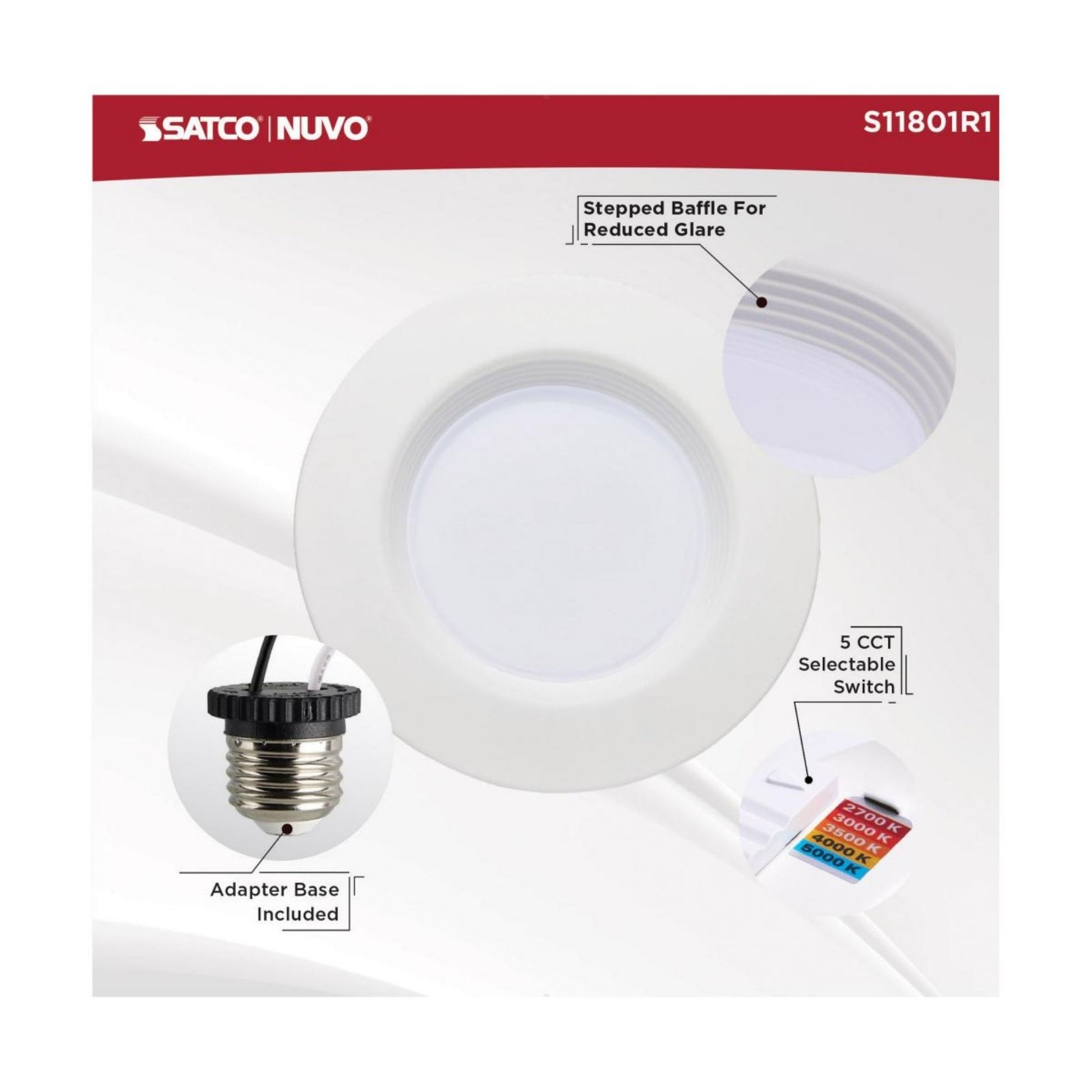

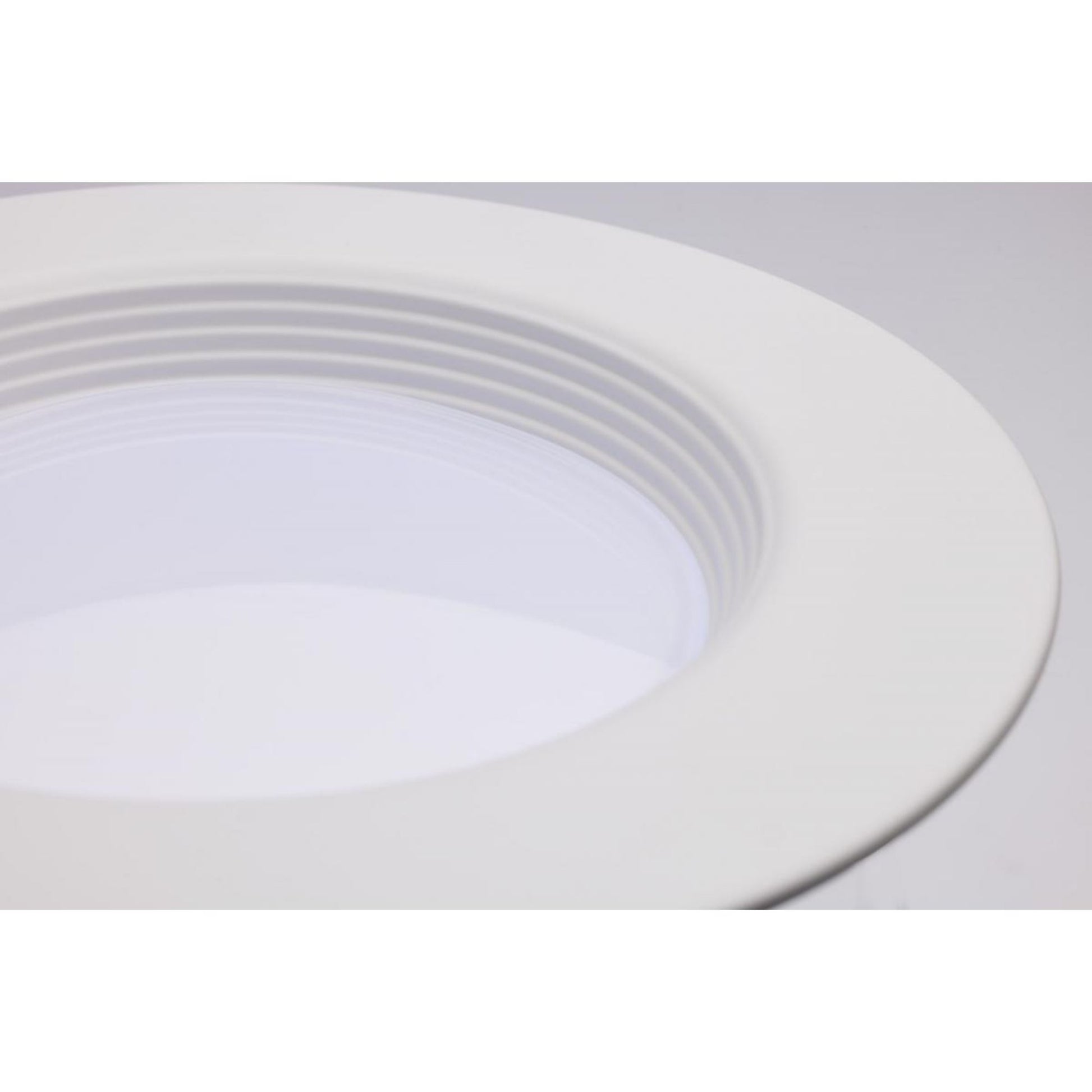

- Baffle: Stepped baffle for reduced glare
- Compatible Housing: 5-6 in recessed can (min 5.36 in dia × 7.5 in height)
- Includes: E26 medium adapter (S9001)
- Finish: White | Lens: Frosted polycarbonate | Construction: Steel

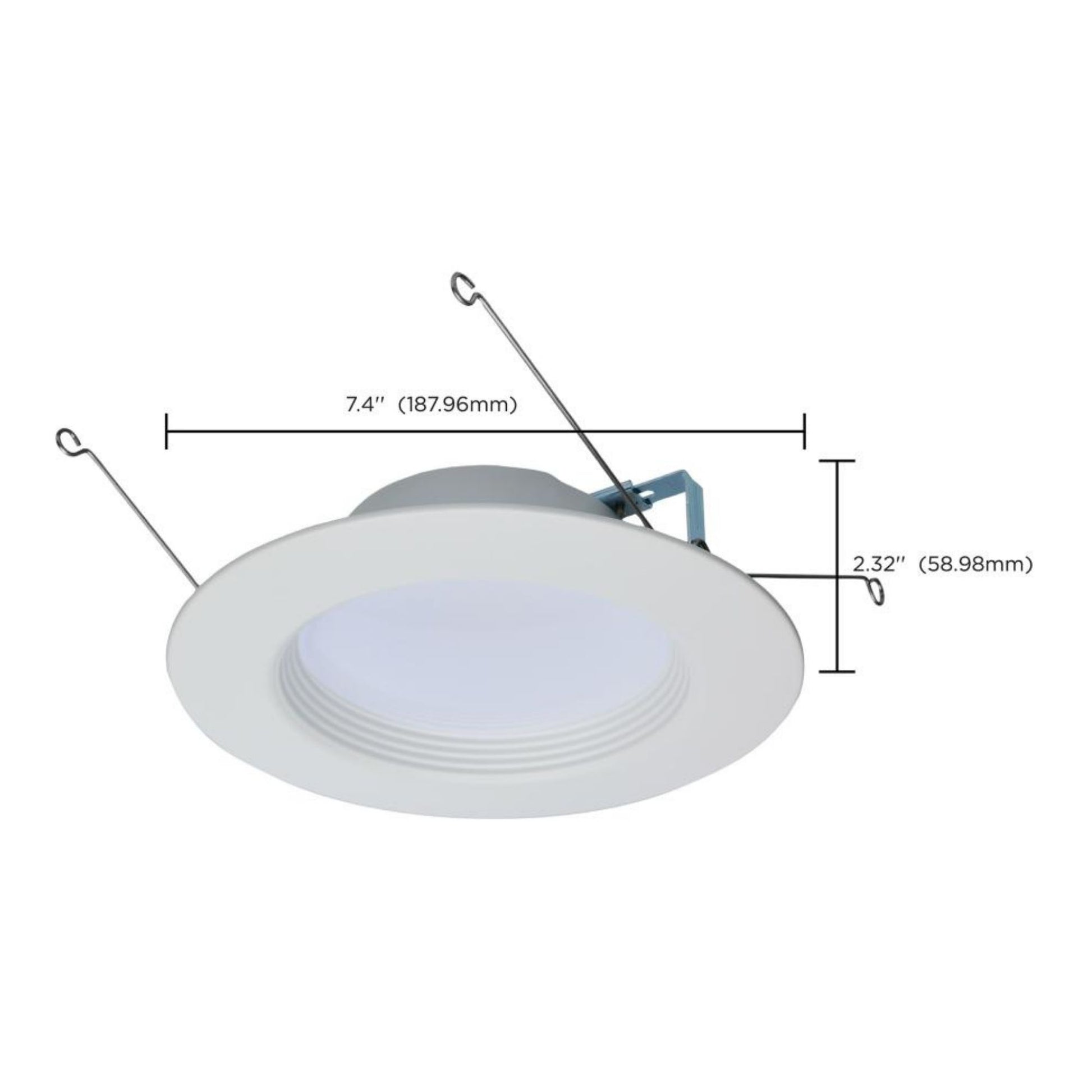

- Diameter: 7.4 in | Weight: 0.83 lbs
- Input Voltage: 120V only | 60Hz
- Dimming: Phase-Cut | Down to 10%
- Power Factor: 0.9 | Surge Protection: 2KV
- Air Tight: No
- Location Rating: Wet | Indoor only
- Suitable for Bathrooms: Yes
- Replaces: 65W incandescent
- Lifespan: 50,000 hours L70 | Warranty: 5-year
- Certifications: CA T24 JA8 Listed | Title 20 Listed | cETLus Listed | FCC | RoHS
- Note: Not ENERGY STAR certified. Not DLC approved.
Construction & Aesthetics
Shape: Round | Size: 5/6 in | Finish: White | Lens: Frosted polycarbonate | Construction: Steel | Diameter: 7.4 in. Stepped baffle reduces glare. Also available in black (S11835R1), brushed nickel (S11836R1), and bronze (S11837R1). For the 5/6 in high lumen version, see S11825R1. For 4 in round versions, see S11800R1 (white), S11832R1 (black), S11833R1 (brushed nickel), S11834R1 (bronze). For square versions, see S11820R1 (4 in) and S11821R1 (5/6 in).
Light Output & Performance
The SATCO S11801R1 delivers 800 lm at 9W (up to 89 LPW) with CRI 90+ and a 90° beam angle. CCT is field-selectable: 2700K–5000K. Wattage is fixed at 9W. L70 lifespan is 50,000 hours.
Electrical & Installation

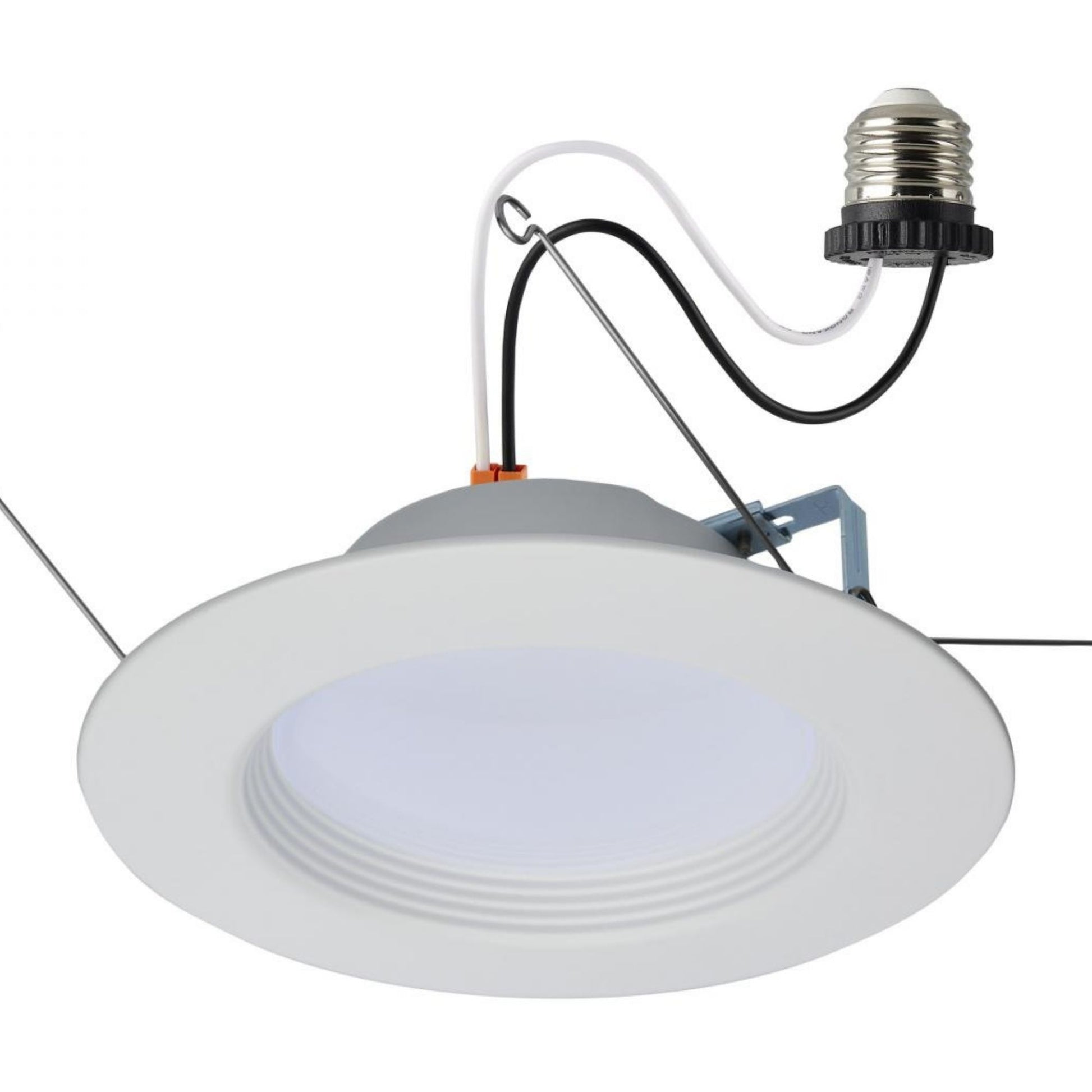

The SATCO S11801R1 operates at 120V only (60Hz) with Phase-Cut dimming to 10%. PF 0.9; built-in 2KV surge protection. Screw the included E26 adapter into the existing socket in any compatible 5-6 in recessed can — no tools, no rewiring. Minimum can size: 5.36 in diameter × 7.5 in height.
Compatible Accessories (Sold Separately)

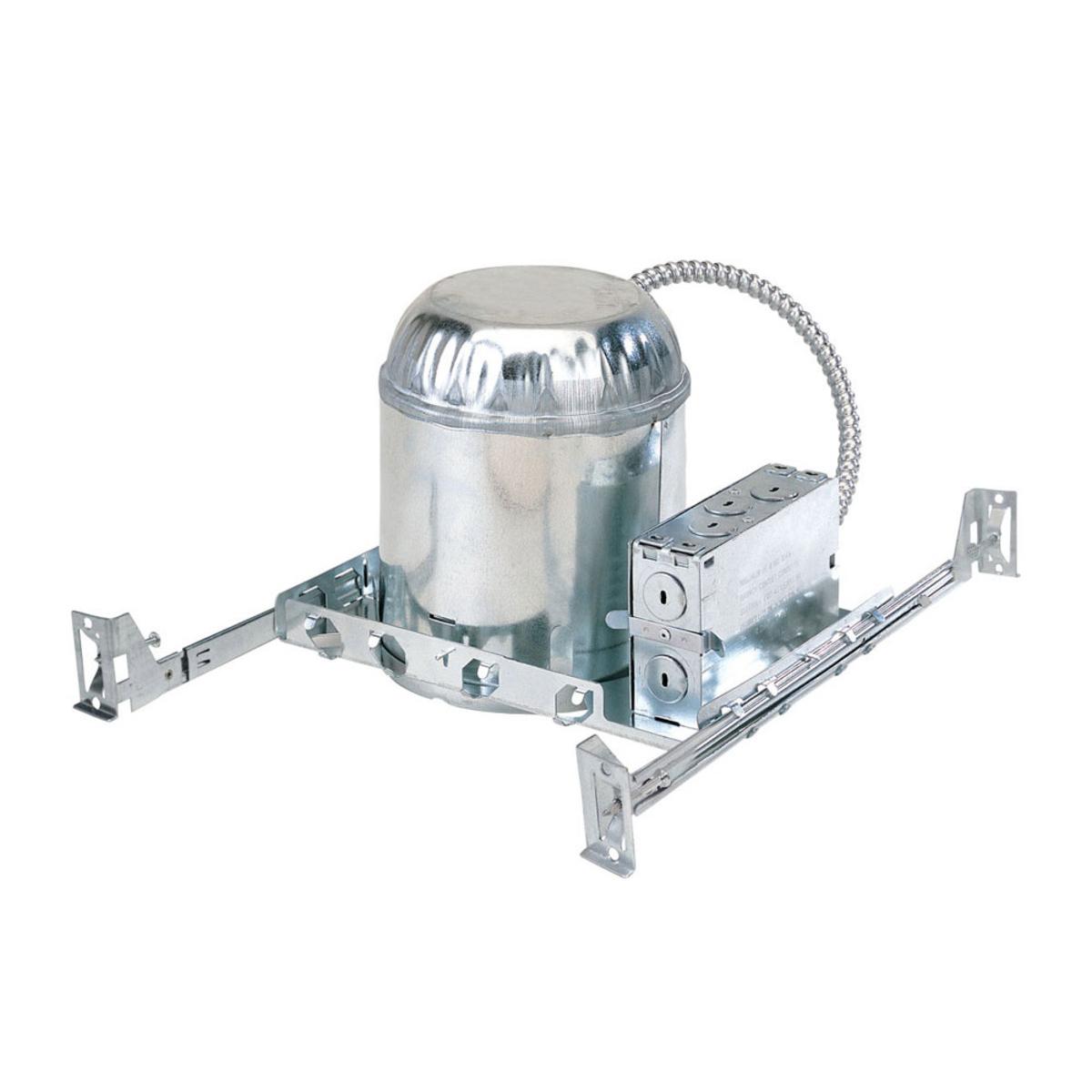

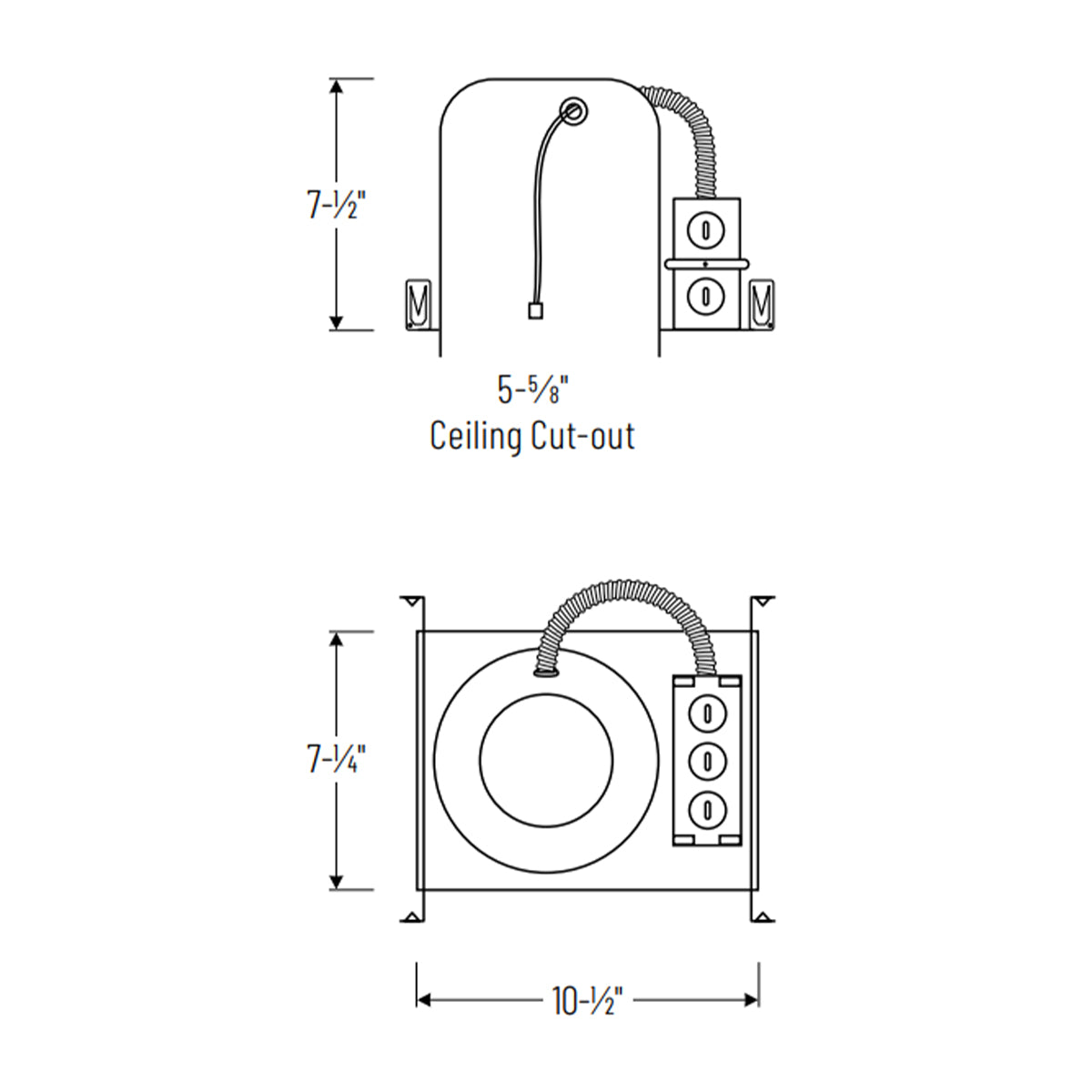

- 5 in Recessed Can — New Construction: SATCO 80-982

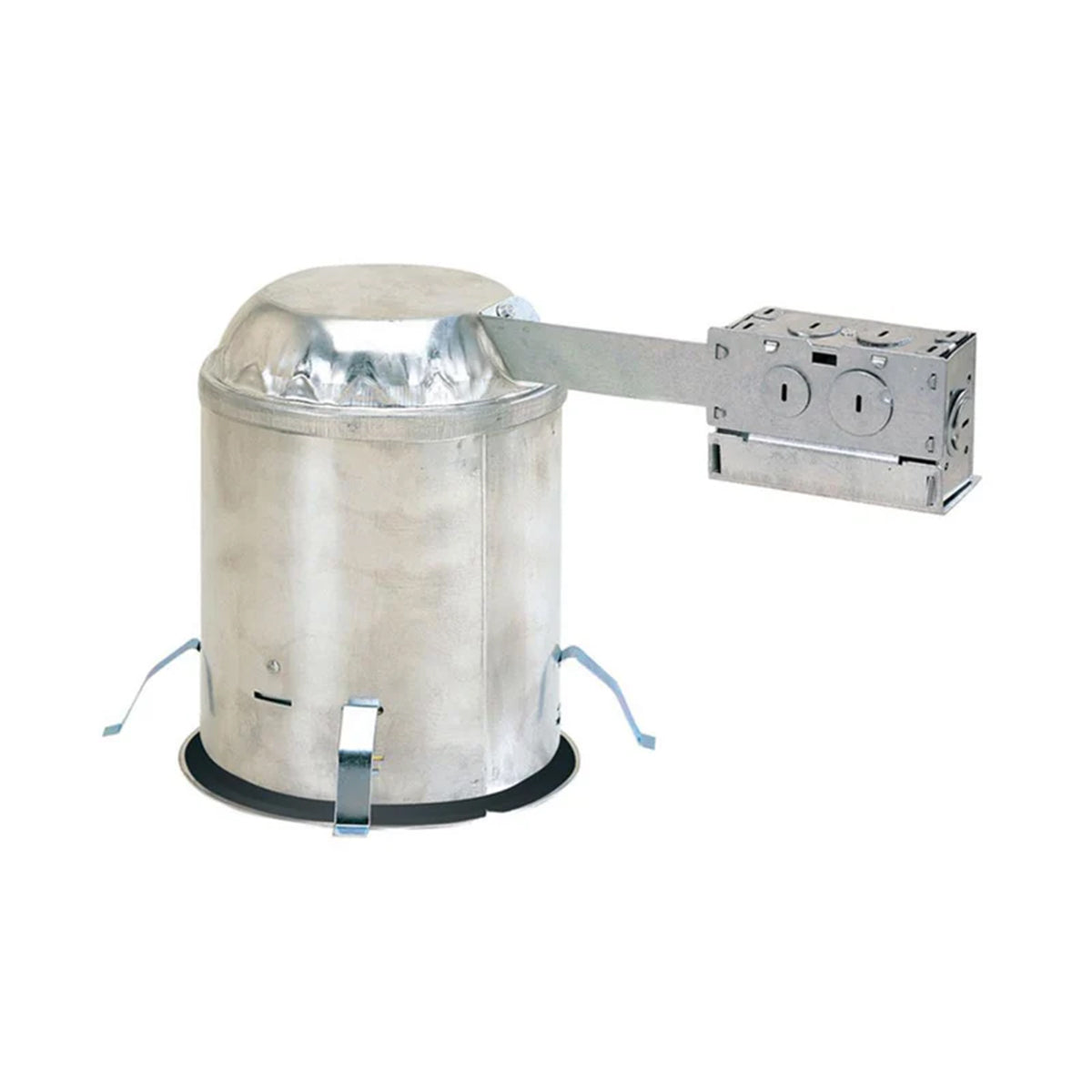

- 5 in Recessed Can — Remodel: SATCO 80-983
- Pressure Brackets 2-pk (5/6 in): SATCO 80-2676
- GU10 Socket Adapter: SATCO S9000
- GU24 Socket Adapter: SATCO S8999

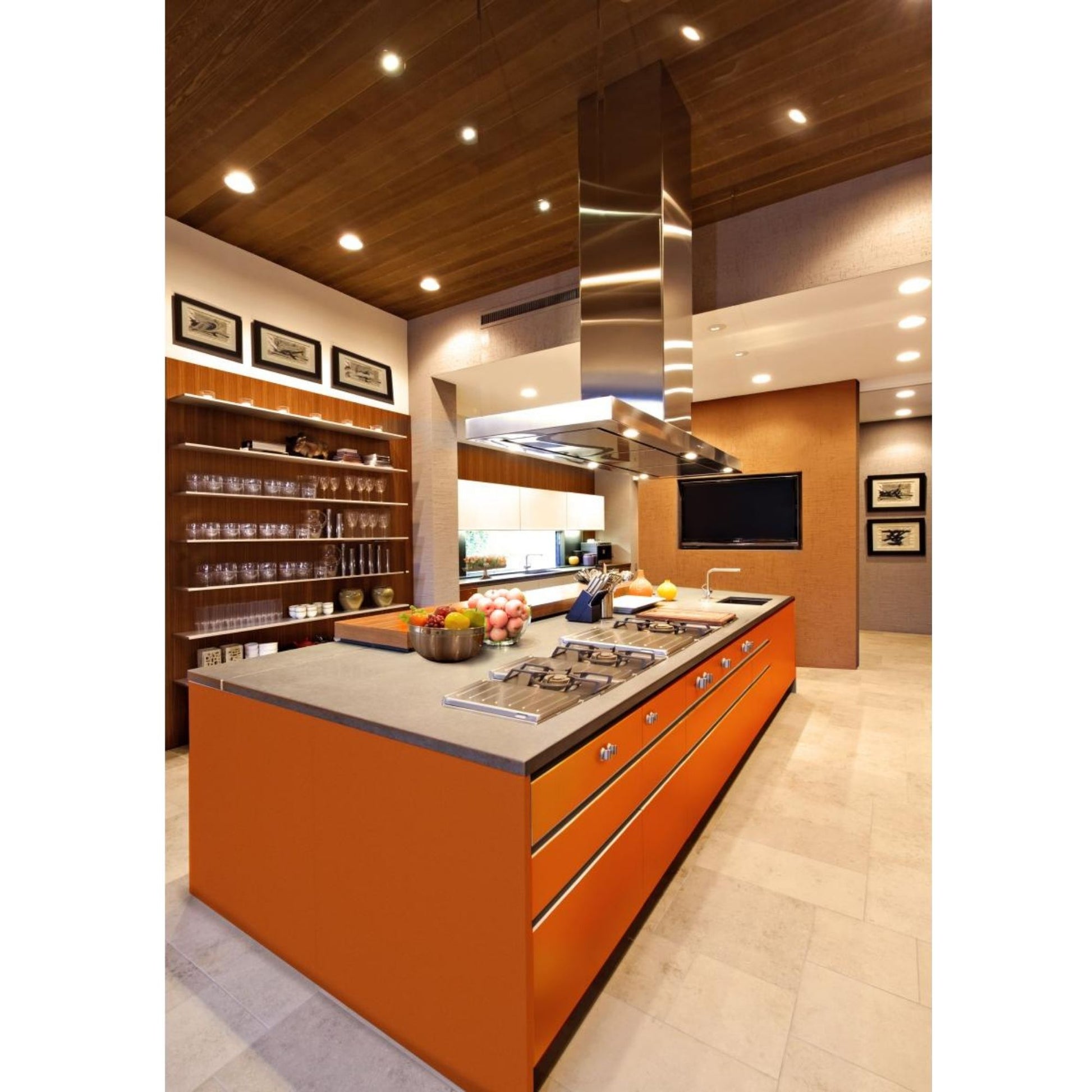

Typical Applications
- Retrofit of existing 5-6 in recessed incandescent fixtures
- Residential bedrooms, living rooms, kitchens, and bathrooms
- Multifamily common areas
- Retail environments and offices
What’s Included
- SATCO S11801R1 5/6 in round LED retrofit downlight (white)

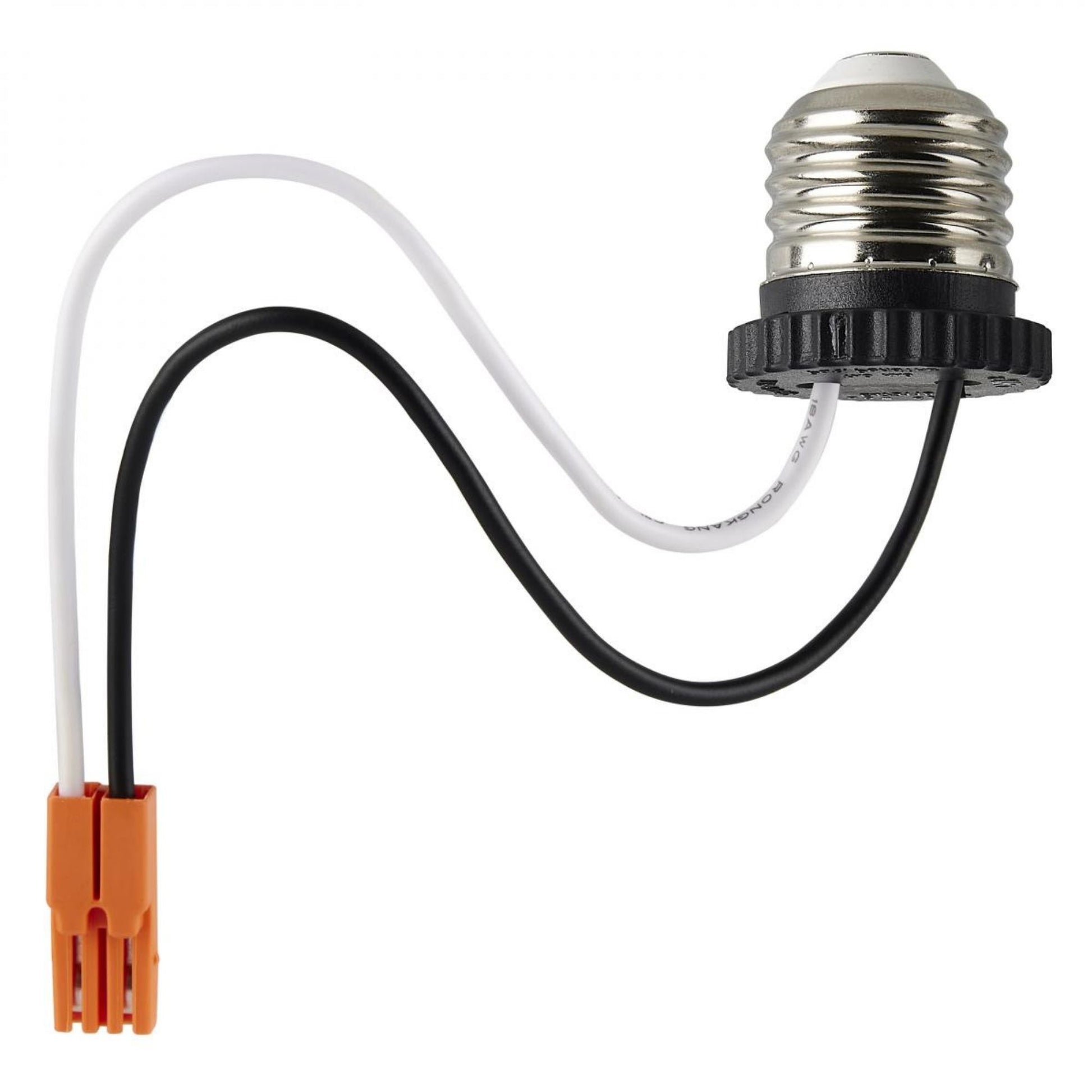

- E26 medium adapter (S9001)
