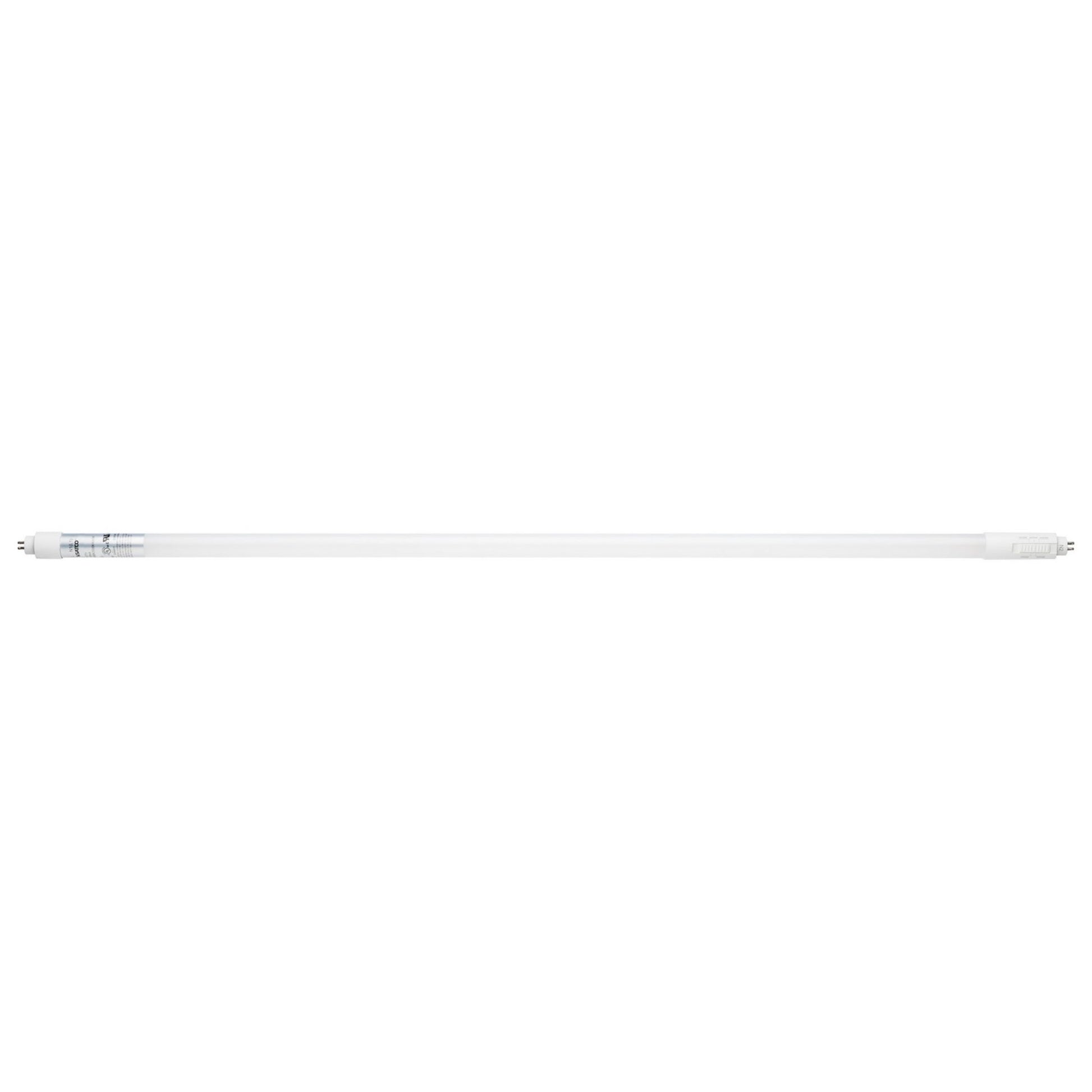

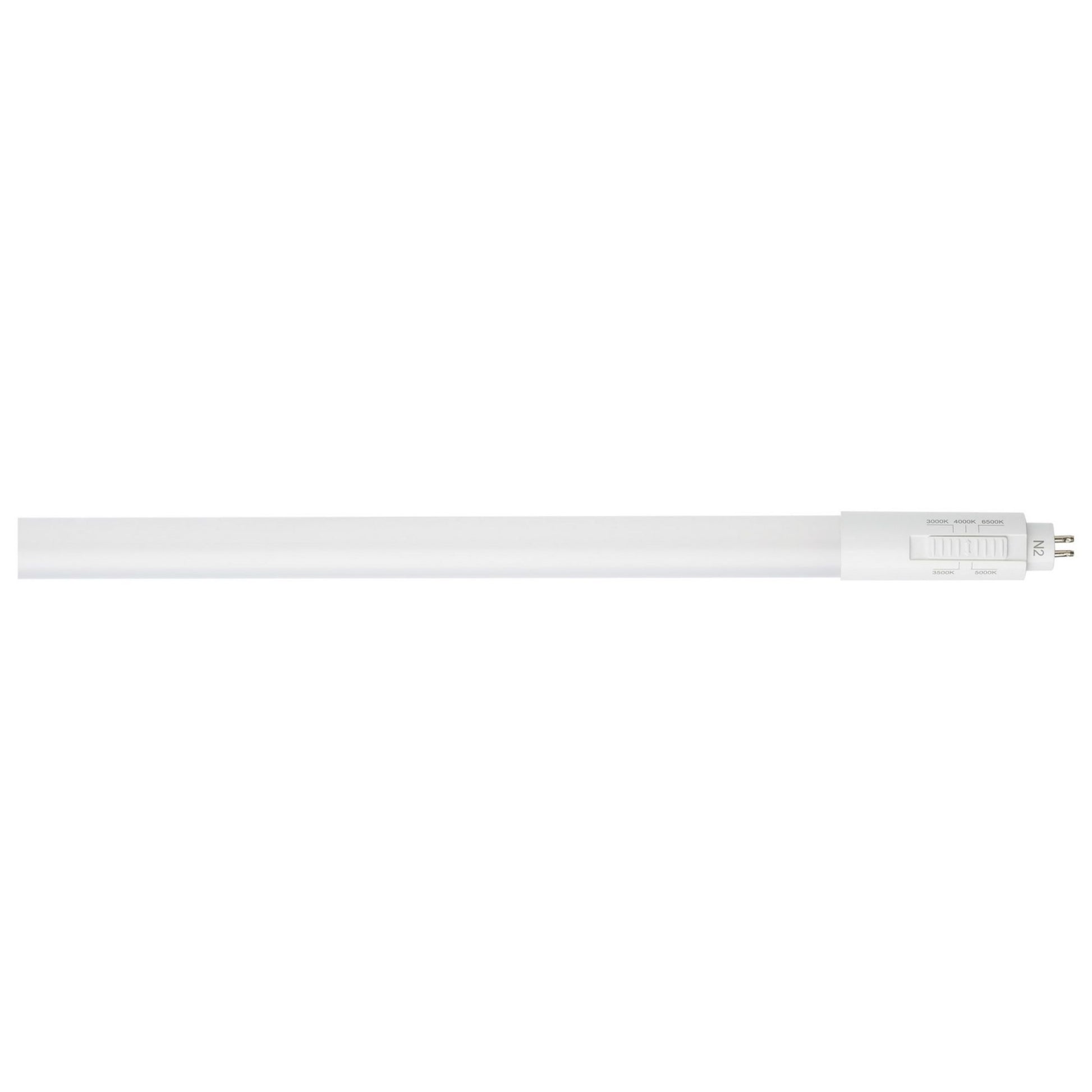

Satco T5 LED Bulb — 25W / Selectable CCT

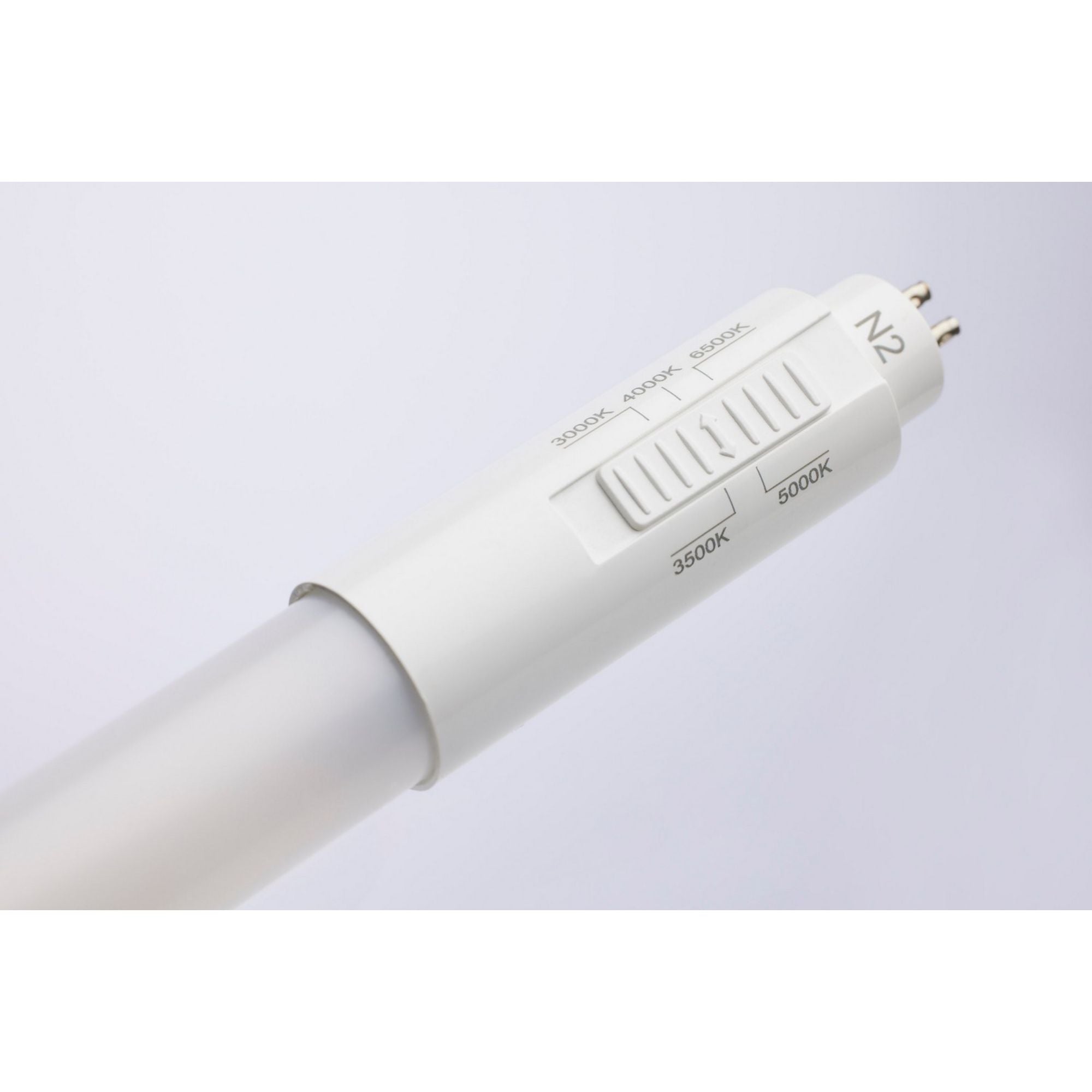

The Satco S11656 T5 LED bulb features a G5 base and offers a 25W power consumption, replacing traditional 54W fluorescent tubes. This bulb provides selectable color temperatures ranging from 3000K to 6500K, making it versatile for various lighting needs. It is enclosed fixture rated, ensuring safe operation in enclosed environments.

Key Features

• Base Type: G5 Miniature Bi-Pin
• Bulb Shape: T5
• Wattage Equivalency: 54W Fluorescent
• Enclosed Fixture Rated: Yes
• Certifications: DLC Approved, ROHS Compliant
• Voltage: 120-347V
• Beam Angle: 160 degrees
• CRI: 80+
• Operating Temperature: -20C to +45C
• Surge Protection: Built-in 0.7KV
• Power Factor: >0.9
• Warranty: 5 Years

Construction & Aesthetics

This LED bulb is constructed with a durable plastic housing and features a frosted finish for even light distribution. It measures 45.28 inches in length and 0.87 inches in diameter.

Electrical & Installation

Designed for a voltage range of 120-347V, this bulb requires a Type B ballast bypass installation, meaning it operates directly on line voltage. It is not dimmable.

Light Output & Performance

With a lumen output of up to 3600 lumens and a CRI of 80+, this bulb delivers bright and accurate color rendering. It has a lifespan of 50,000 hours, ensuring long-term performance.

Typical Applications

• Commercial Offices
• Retail Spaces
• Educational Facilities
• Industrial Warehouses
• Healthcare Facilities
