Satco Nuvo TH723 30W H-Type LED Track Head 5CCT 48 Degree Matte White
Available in stock (1443)
About this item
About this item
- Wider Directed Illumination: Fixed 48° beam, 2100 lumens from 30W, 70 lm/W.
- Five White Light Settings: ColorQuick switch, 2700K, 3000K, 3500K, 4000K or 5000K, 90 CRI.
- Contemporary Adjustable Design: Matte White aluminum and steel cylinder, horizontal and vertical positioning, PMMA lens.
- Brightness Control: Phase-cut dimming down to 10% with a compatible dimmer, 30,000-hour rated life.
- Halo Track Installation: SATCO H-Type compatibility, 120V, dry indoor use, 6.71 in length.
Description
Description

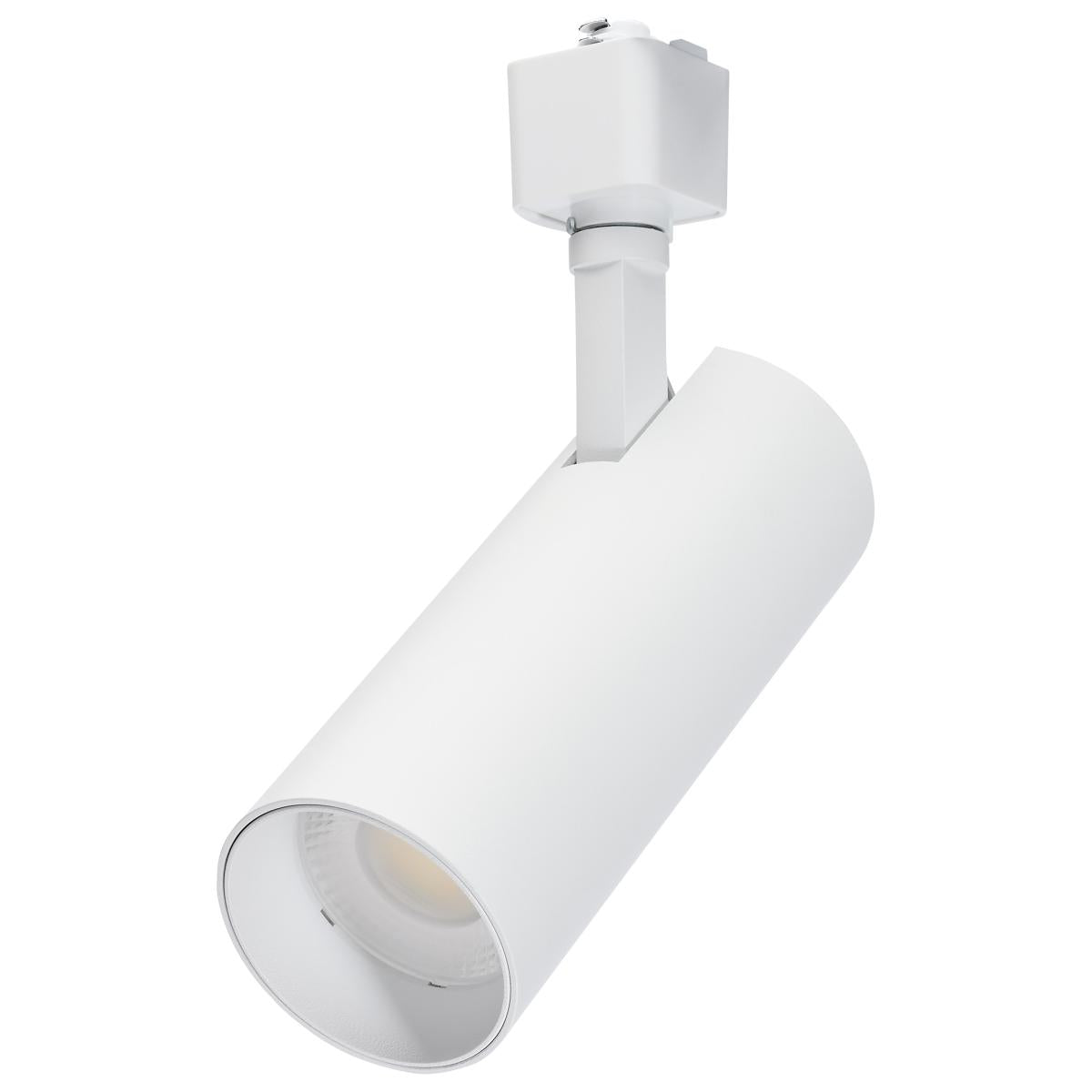

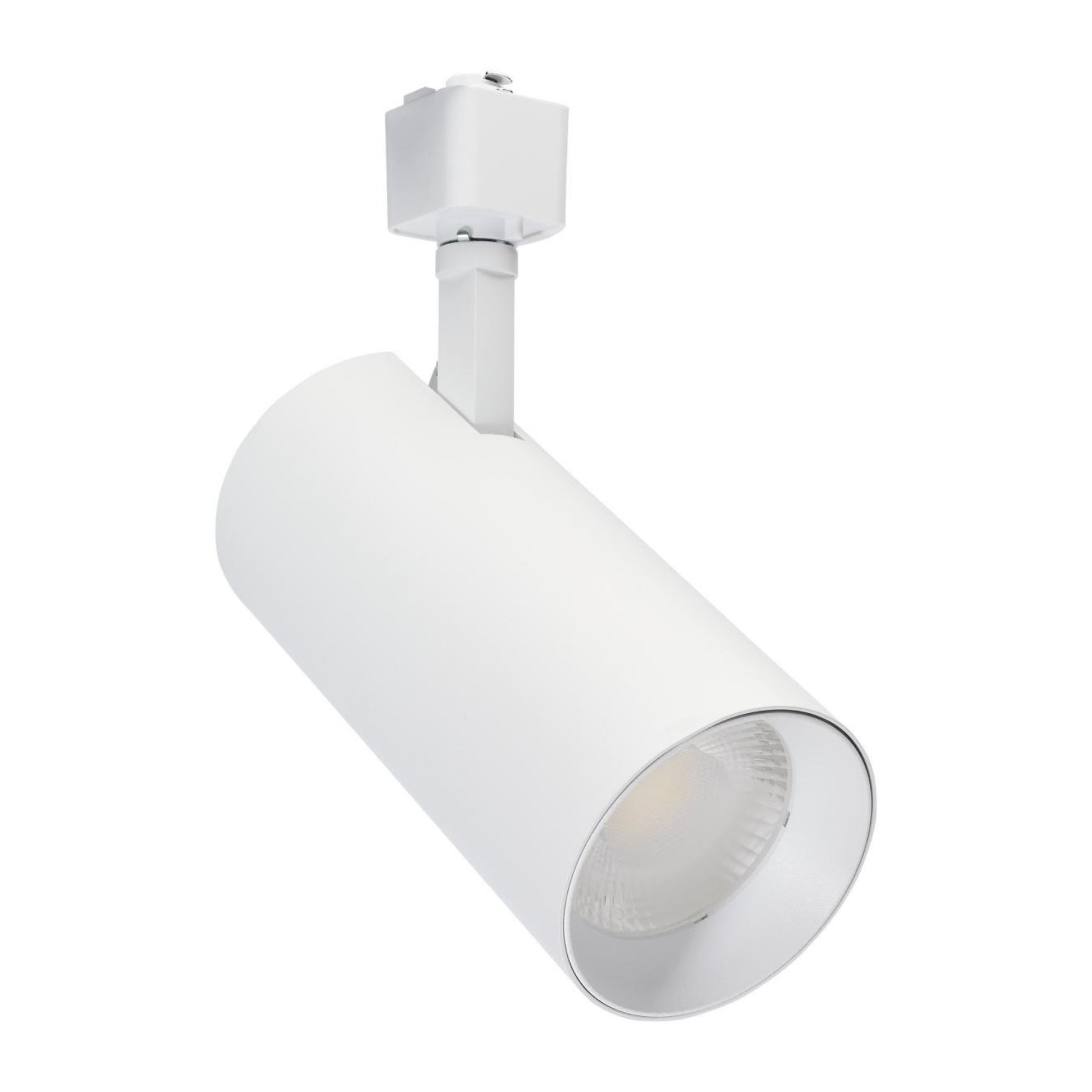

Satco Nuvo TH723 CCT Selectable LED Track Head
The Satco Nuvo TH723 combines a contemporary cylindrical profile in Matte White with five selectable color temperatures for adaptable interior lighting. Its 30W integrated LED delivers 2100 lumens through a fixed 48° beam, with 90 CRI. Choose 2700K, 3000K, 3500K, 4000K or 5000K using the ColorQuick switch to suit merchandise, artwork or a task area. The matte white finish coordinates with lighter ceilings and white track, while the wider beam offers an alternative to narrowly concentrated accent lighting.
Key Features
- Track System: SATCO H-Type (Halo) track compatibility.

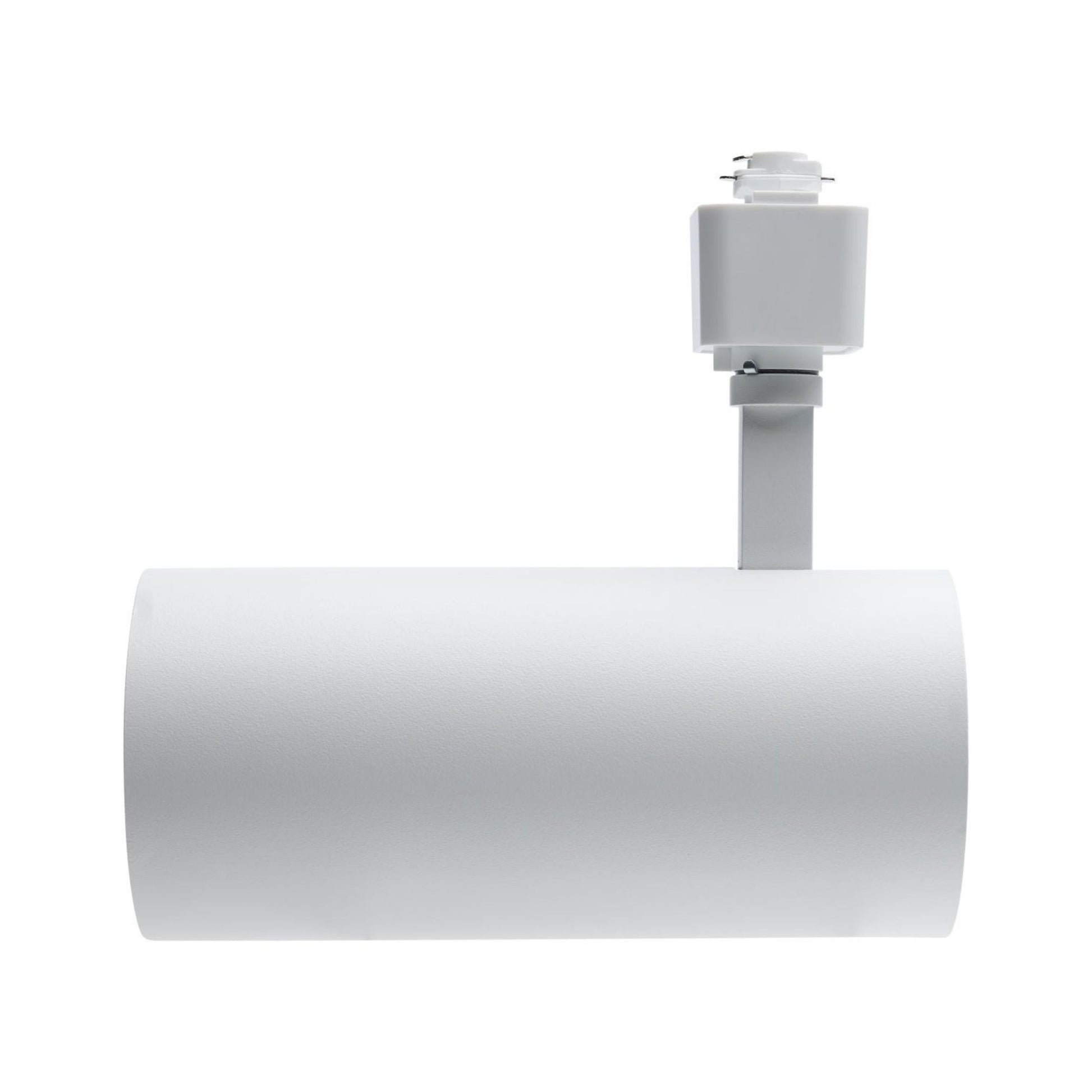

- Design: Matte White cylindrical head, horizontal and vertical positioning.
- Light Source: 30W integrated LED, 2100 lumens, 70 lm/W.

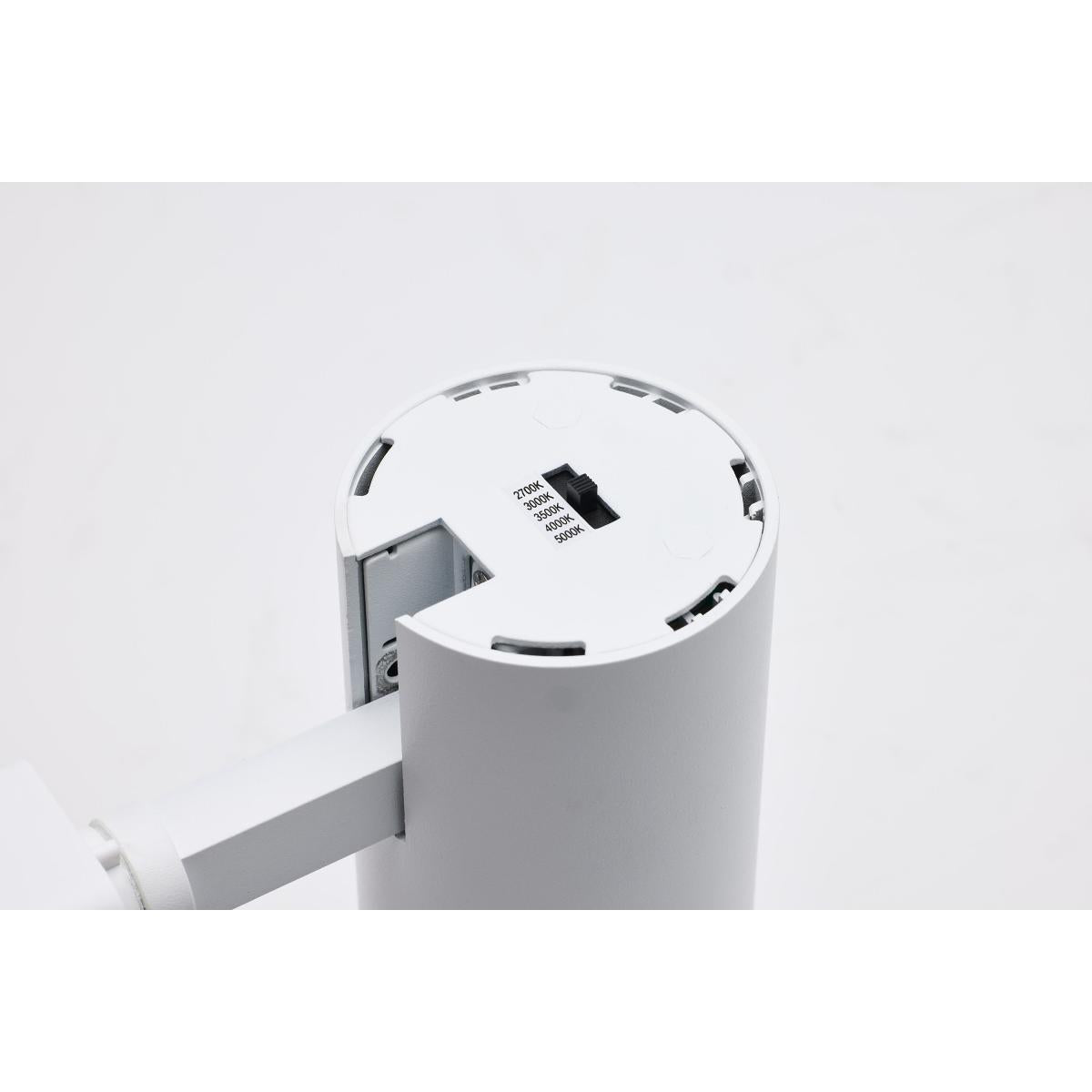

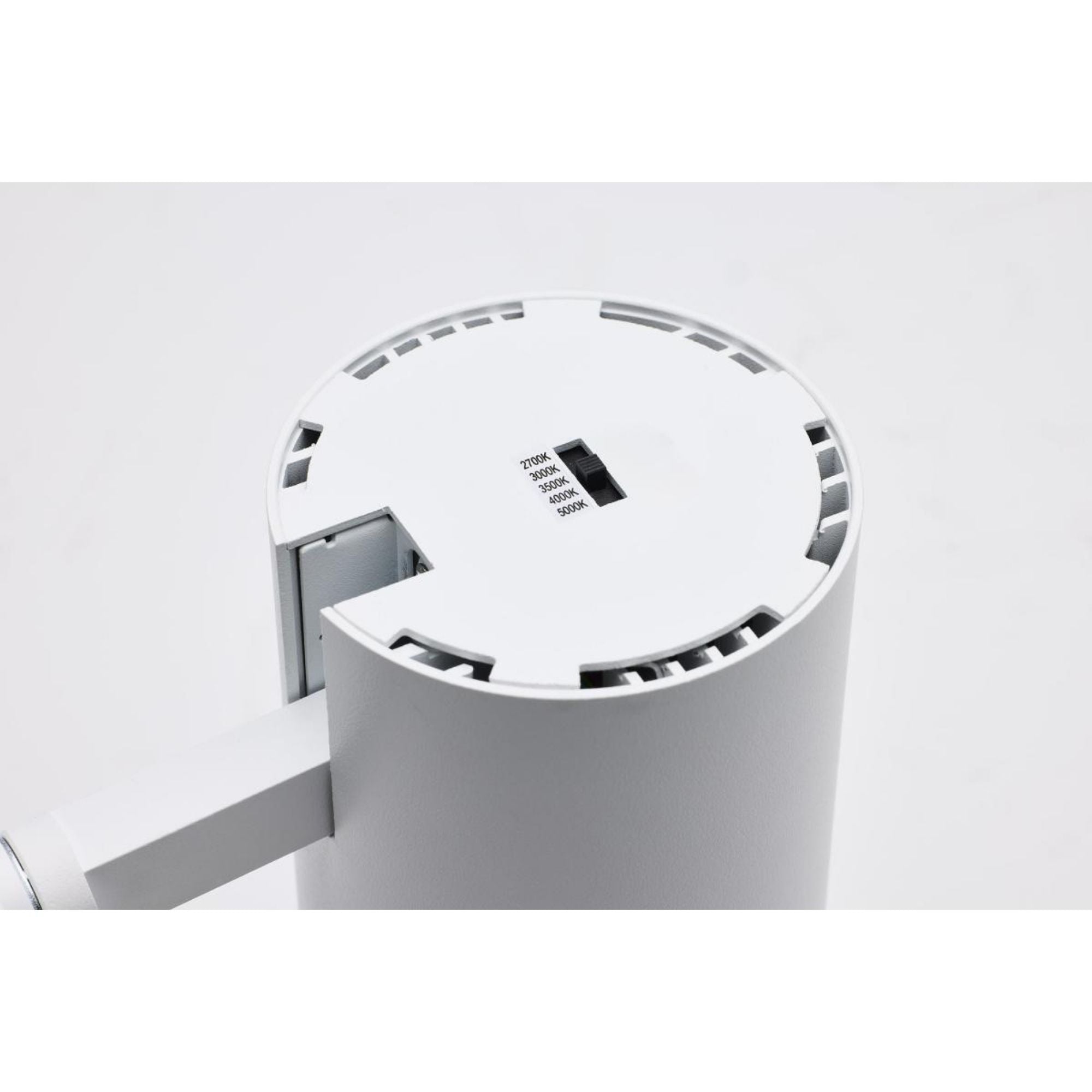

- Color Selection: ColorQuick switch, 2700K, 3000K, 3500K, 4000K or 5000K.
- Color Rendering: 90 CRI.

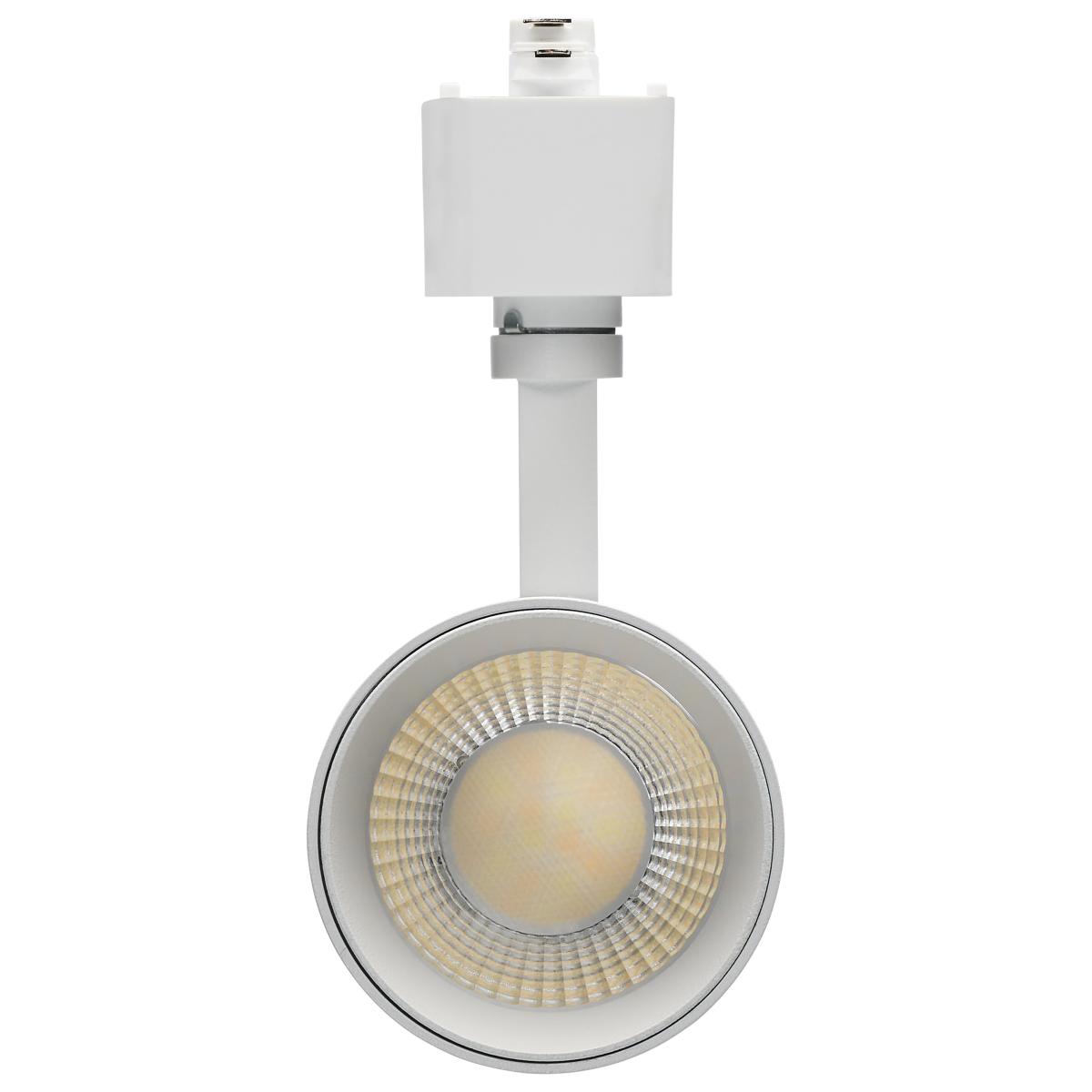

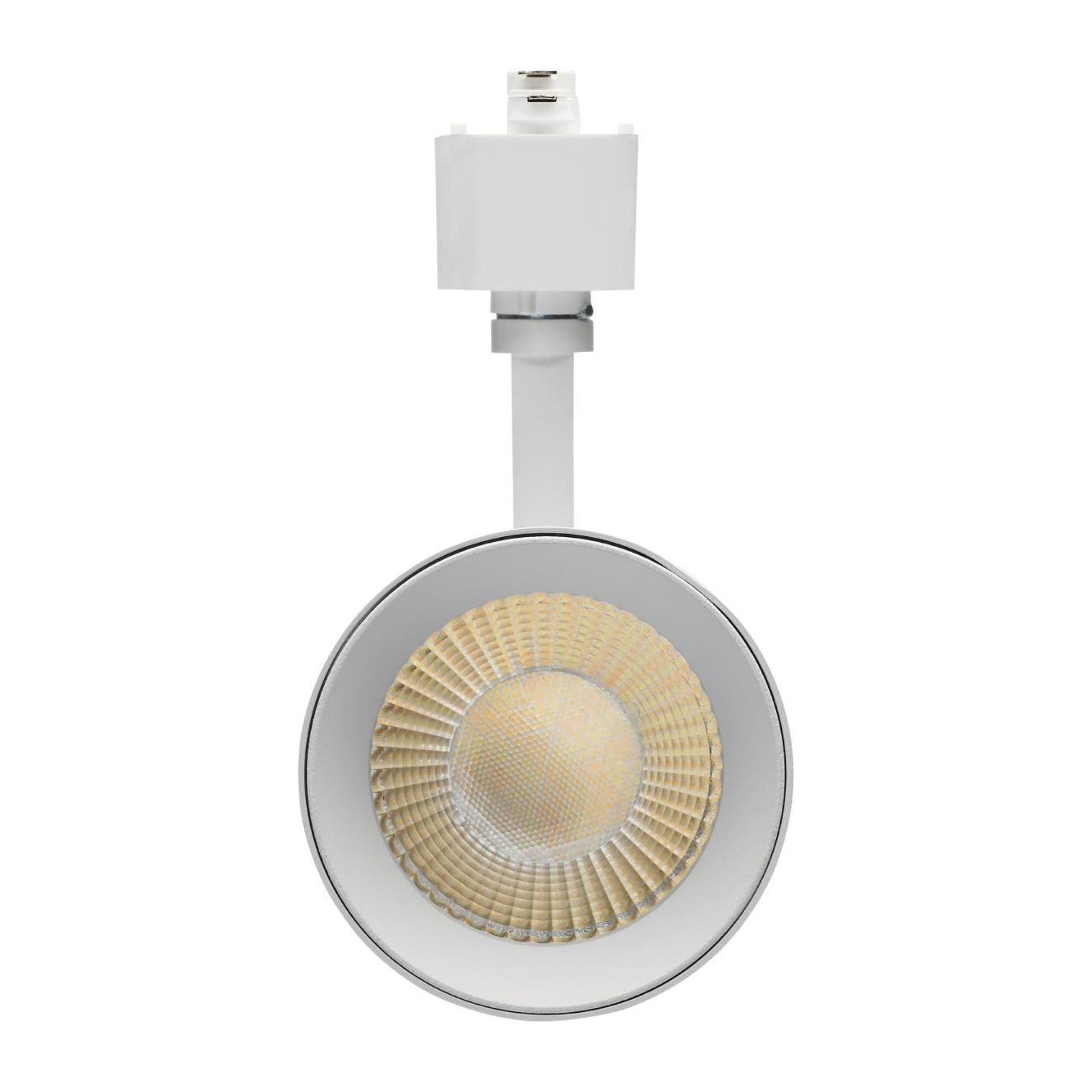

- Optics: Fixed 48° beam, PMMA lens.
- Dimming: Phase-cut dimming down to 10% with a compatible dimmer.
- Construction: Aluminum and steel.

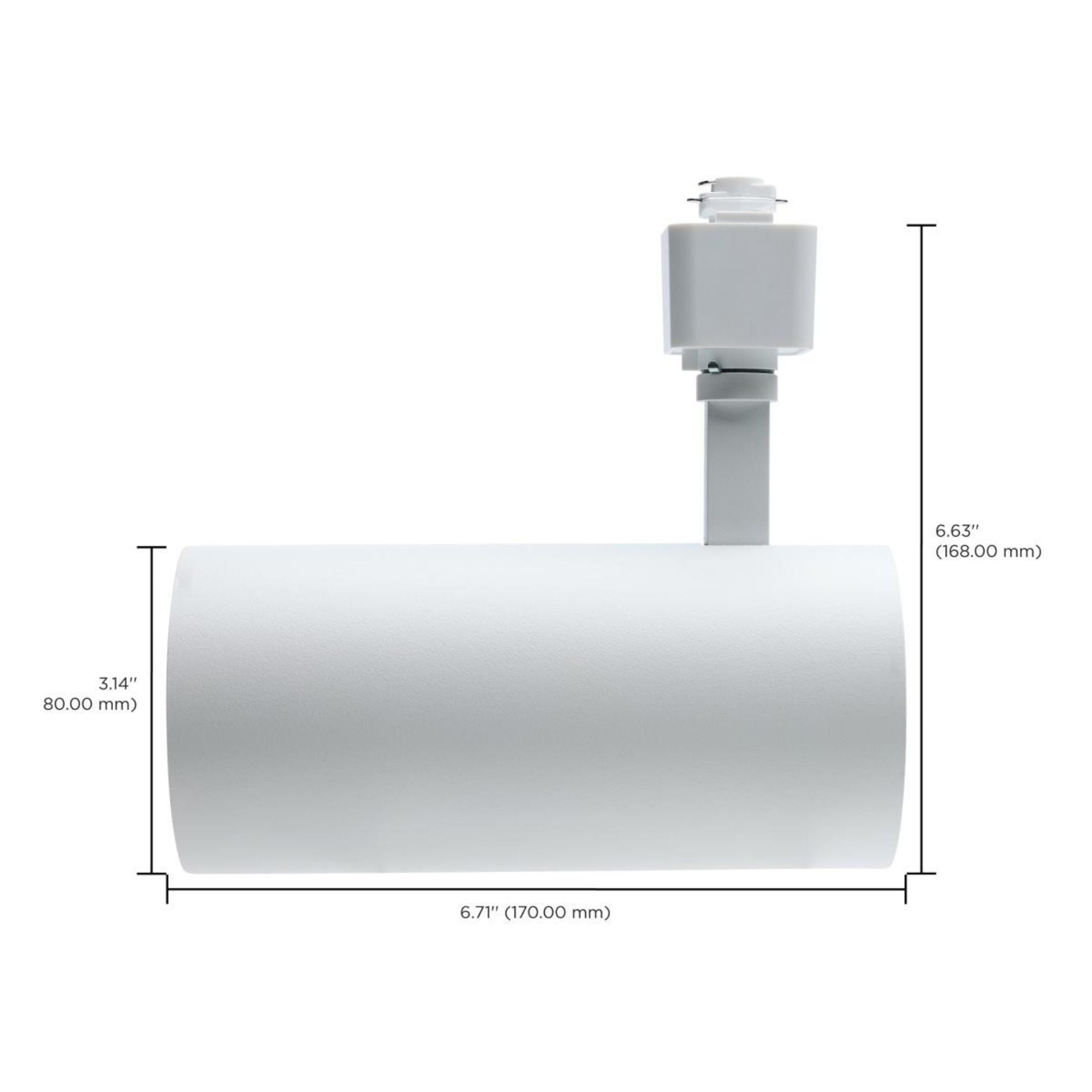

- Dimensions: 6.71 in length, 3.14 in width, 6.63 in height, 9.06 in extension.
- Electrical: 120V, 60Hz, 0.27A, power factor greater than 0.9.
- Rated Life: 30,000 hours.
- Location & Temperature: Dry indoor use, -4°F to 104°F.
Construction & Design

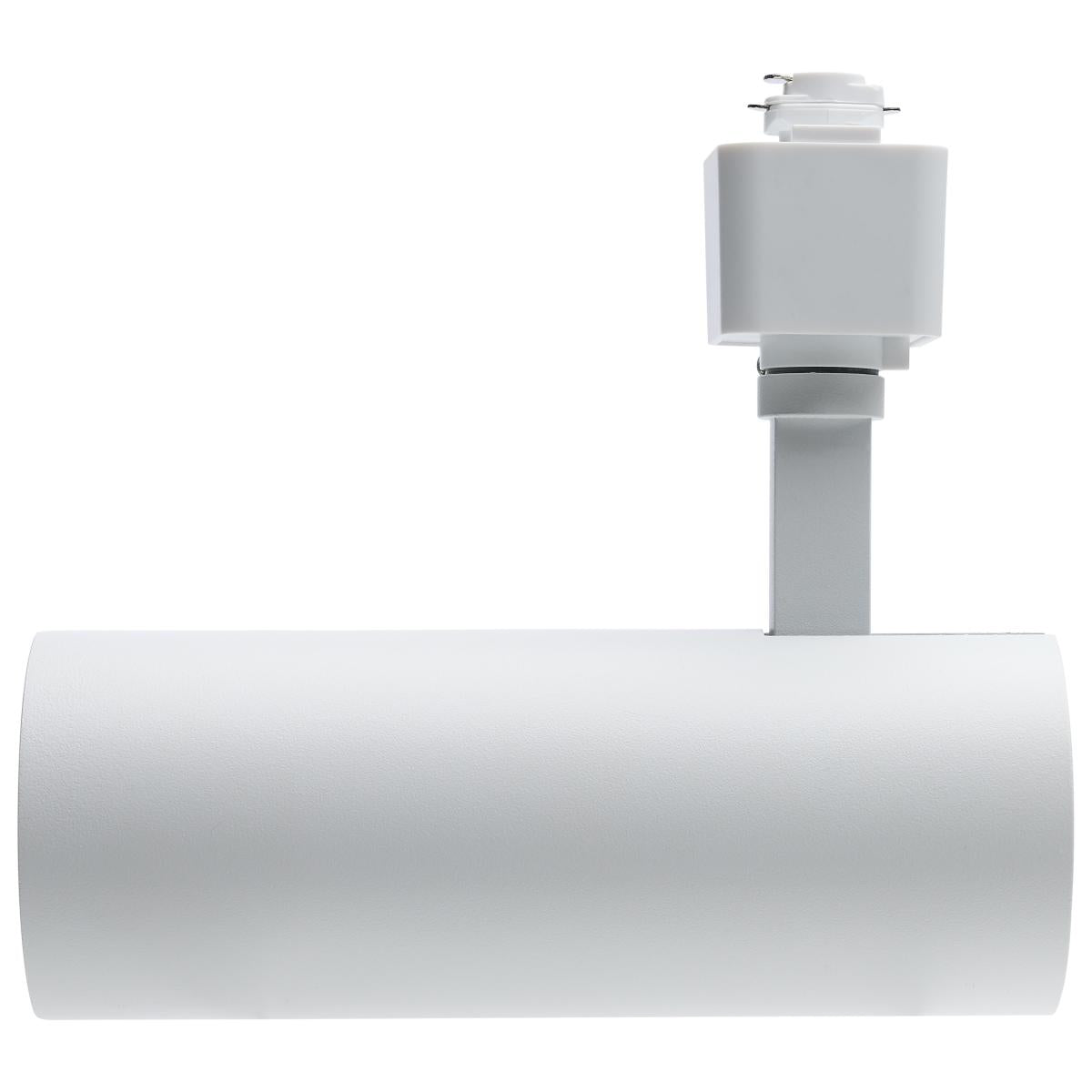

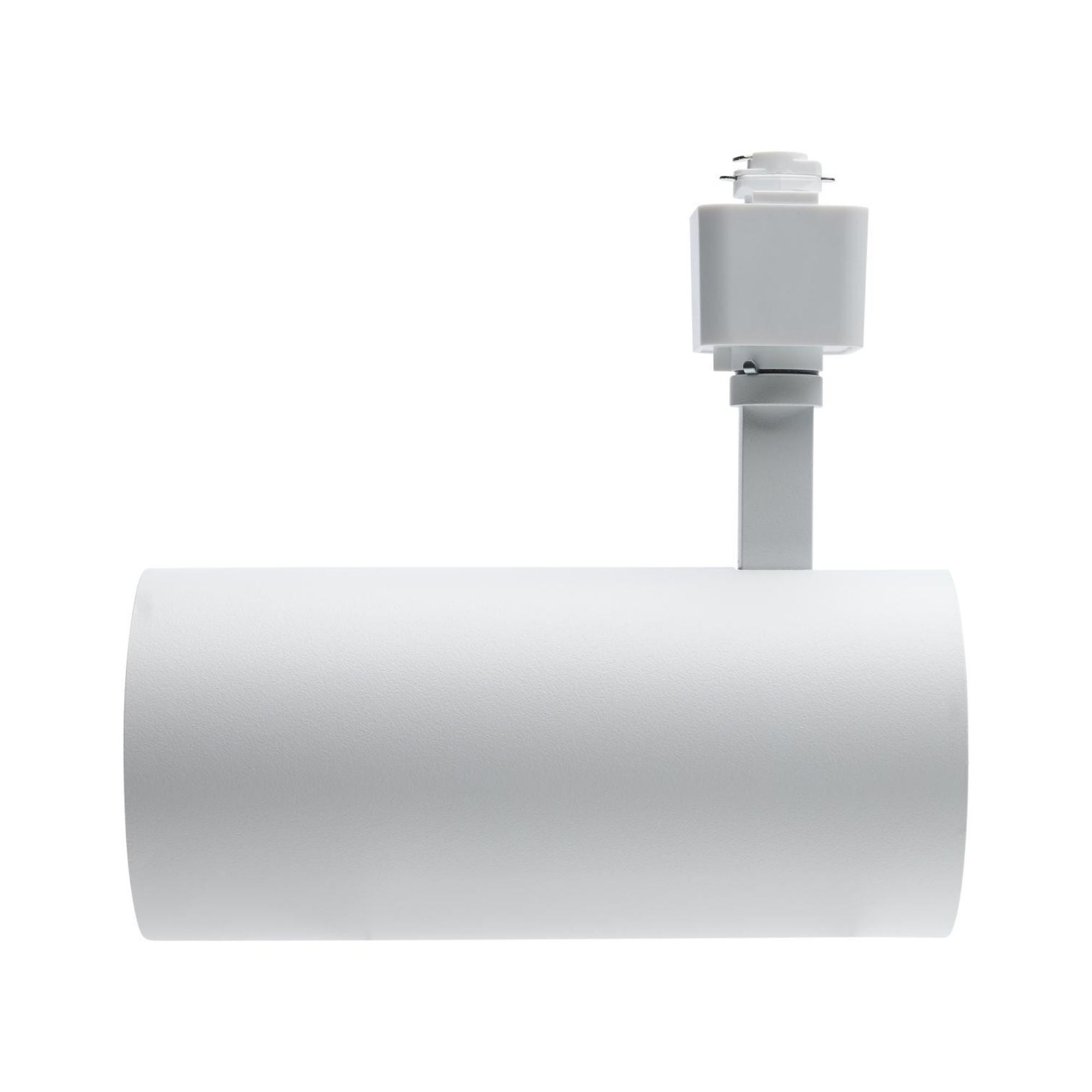

The Matte White aluminum and steel housing gives this track head a clean cylindrical appearance suited to contemporary interiors. Horizontal and vertical positioning help direct illumination toward a display or architectural detail as the layout changes. A PMMA lens forms the fixed beam; adjusting the head changes its direction rather than its optical spread. Coordinating white track components carry the light finish throughout the installation.
Light Output & Performance
The Satco Nuvo TH723 produces 2100 lumens from 30W, with 70 lm/W efficacy and 90 CRI. The ColorQuick switch provides five settings: 2700K, 3000K, 3500K, 4000K and 5000K. Its fixed 48° beam supports display, accent and directed task lighting with a wider spread than the family's 36° models. Phase-cut dimming down to 10% with a compatible dimmer allows brightness to be balanced with surrounding illumination. Rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH723 operates at 120V, 60Hz, with 0.27A input current and power factor greater than 0.9. Install on SATCO H-Type (Halo) track in dry indoor locations within the -4°F to 104°F operating range. Use a compatible phase-cut dimmer for brightness control. Track rails, power feeds and connectors are sold separately.
Compatible Accessories
Complete your CCT selectable track lighting arrangement with coordinating white Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.
- Track Rails: TR118 (2 ft), TR120 (4 ft), TR124 (6 ft) and TR122 (8 ft), single-circuit H-Type.
- Power Feeds: TP152 live end and canopy, TP154 floating canopy, TP156 live end cord kit, TP169 conduit live end and TP171 inline feed.
- Track Connectors: TP144 mini straight, TP146 L, TP148 T, TP150 X and TP167 flexible connector.
- Track Mounting: TP240 white aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).
Typical Applications

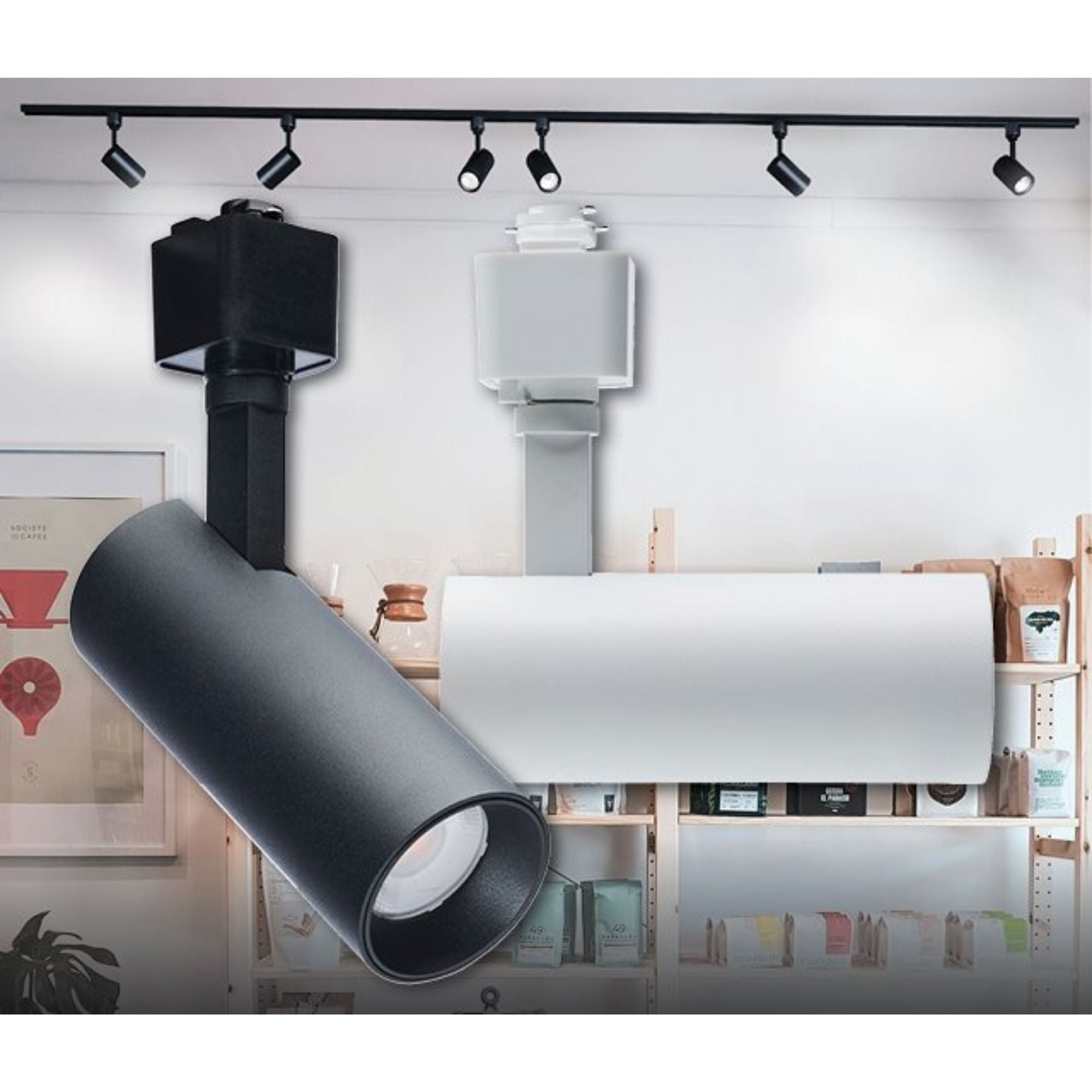

- Retail merchandise and showroom displays.
- Artwork and interior wall accents.
- Directed task lighting.

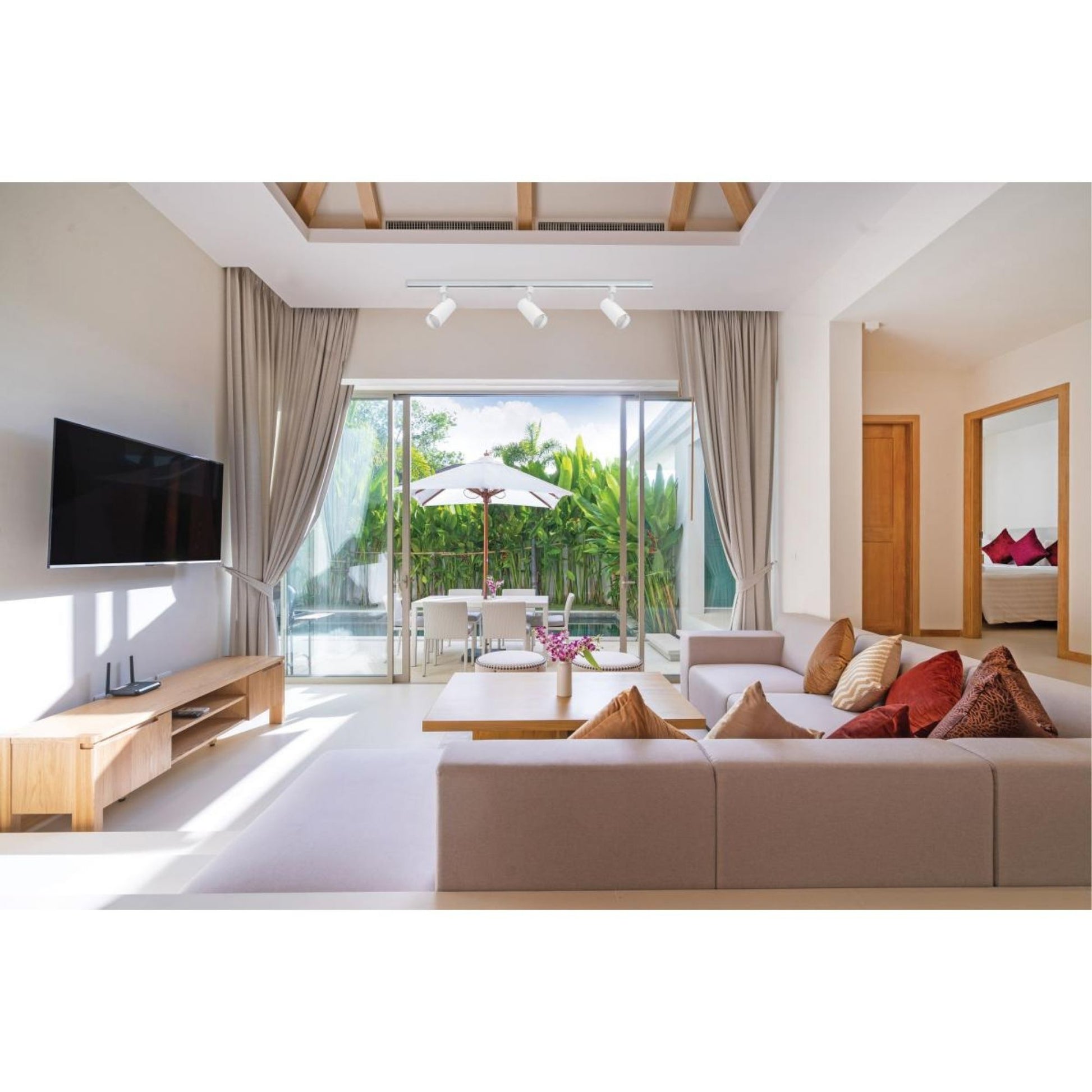

- Residential and hospitality room ambience.
What's Included
- Satco Nuvo TH723 Matte White track head with integrated LED and H-Type adapter.
