Satco Nuvo TH673 Orb LED Track Head

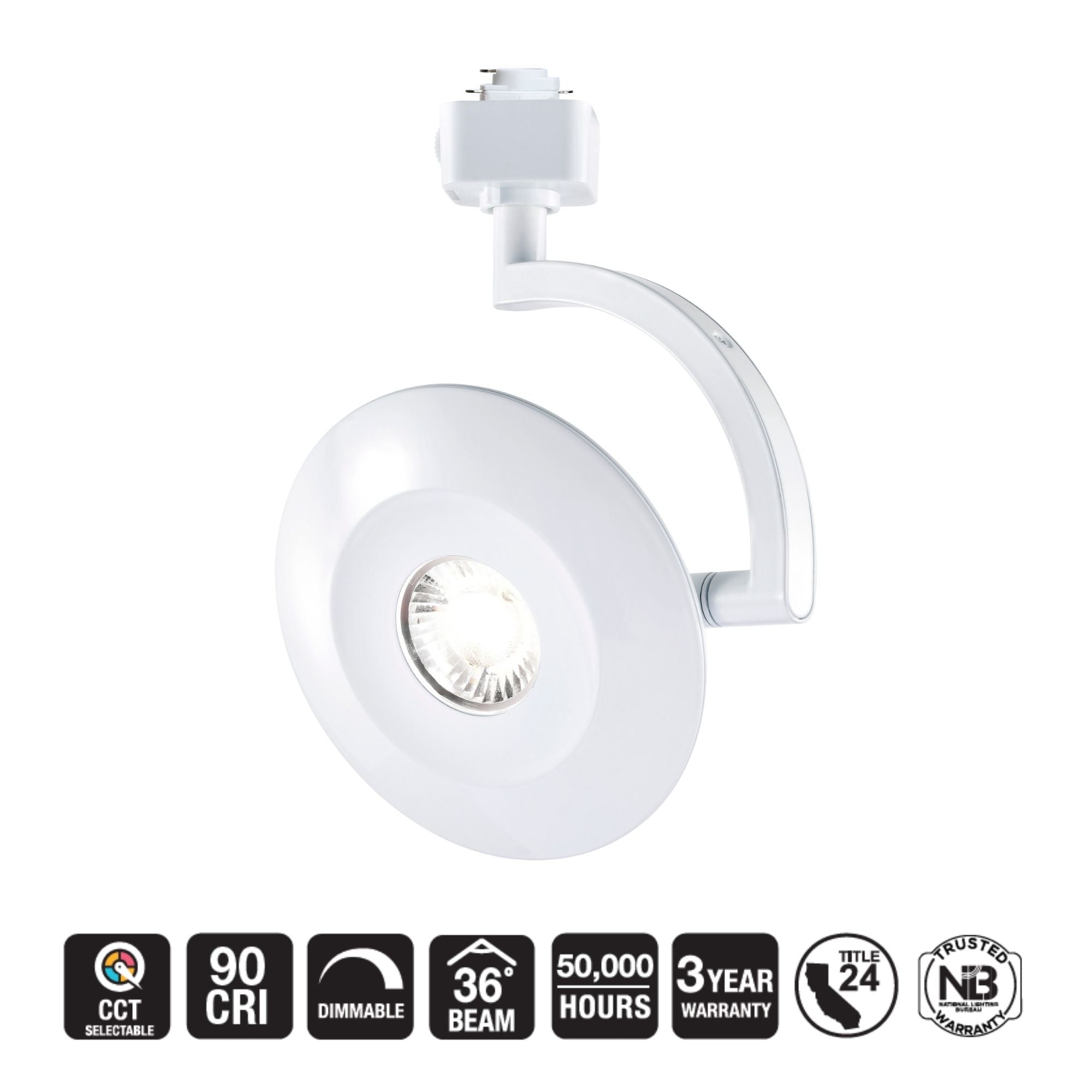

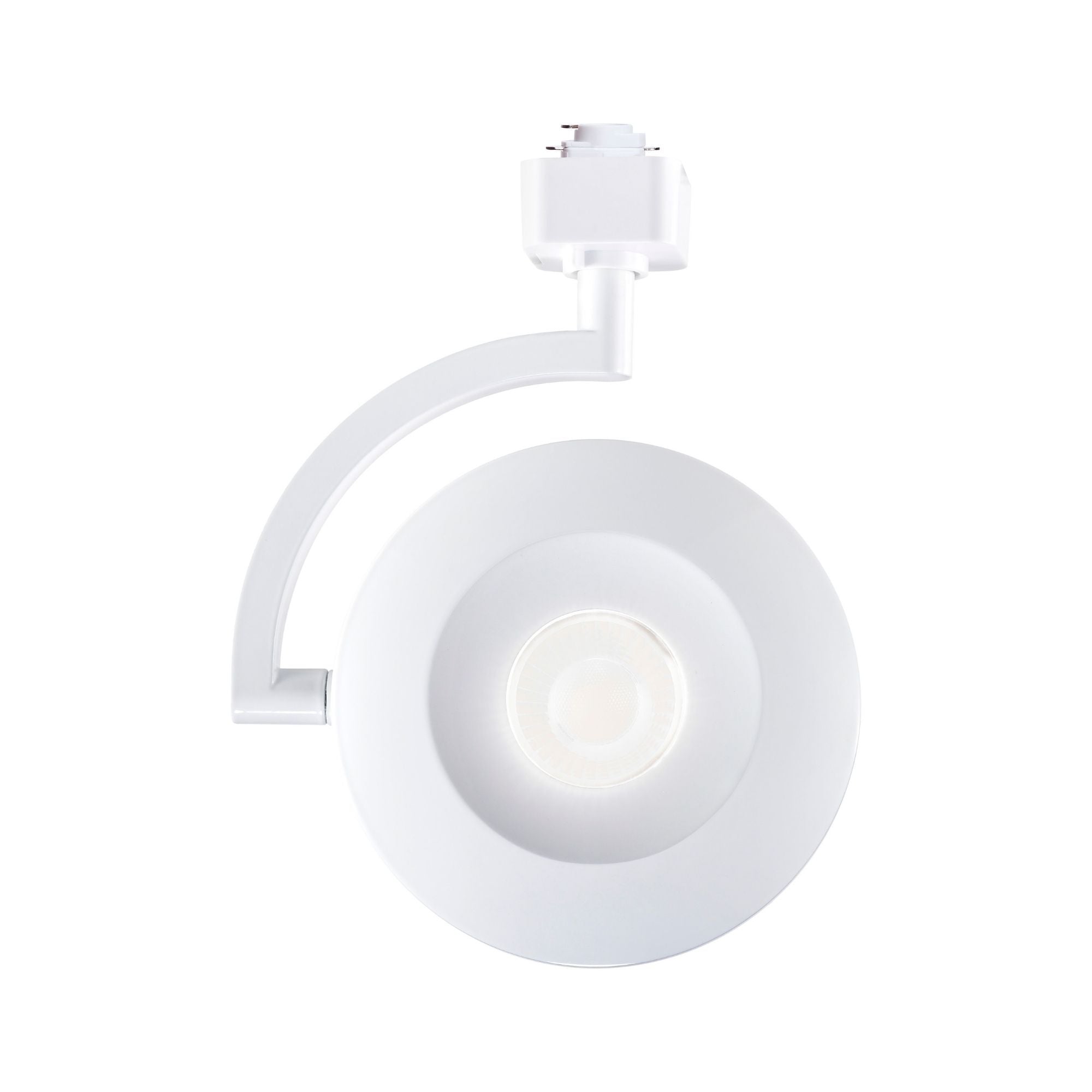

The Satco Nuvo TH673 combines a slim, round White Orb design with a curved swivel arm for contemporary accent lighting. Its 12W integrated LED delivers up to 1020 lumens through a fixed 36° beam, providing a broader accent than the Orb collection's 24° models. A recessed ColorQuick selector offers 3000K, 4000K and 5000K, letting you choose warm, neutral or cool white illumination for your display. The white finish coordinates with lighter ceilings and white track, while the circular head adds a distinctive profile above artwork, merchandise or an interior focal point.

Key Features

• Track System: H-Type (Halo) adapter.
• Finish & Design: White aluminum housing, slim Orb profile, curved swivel arm.
• Light Source: 12W integrated LED, up to 1020 lumens, up to 85 lm/W.

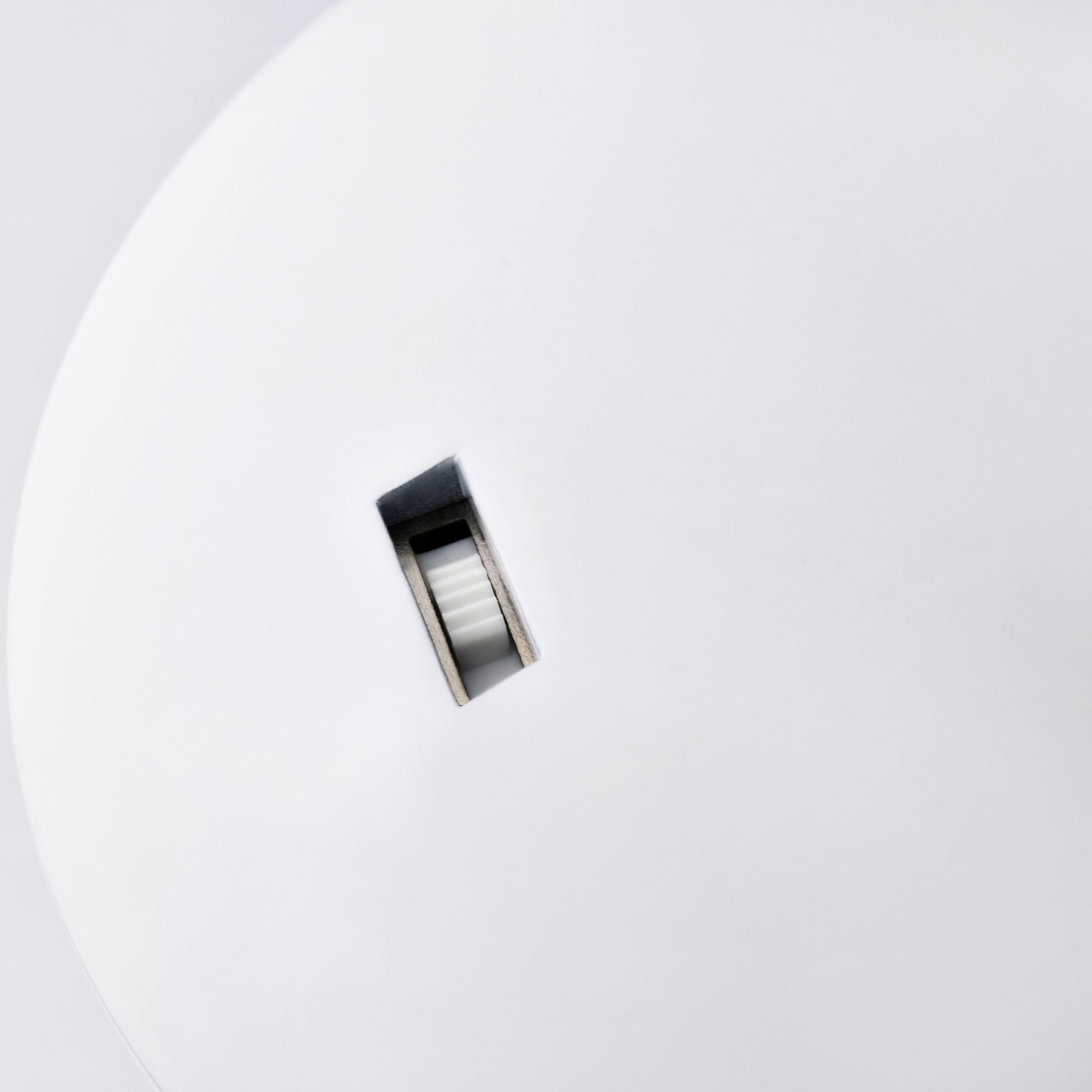

• Color Selection: ColorQuick recessed switch, 3000K, 4000K or 5000K.
• Color Rendering: 90 CRI.

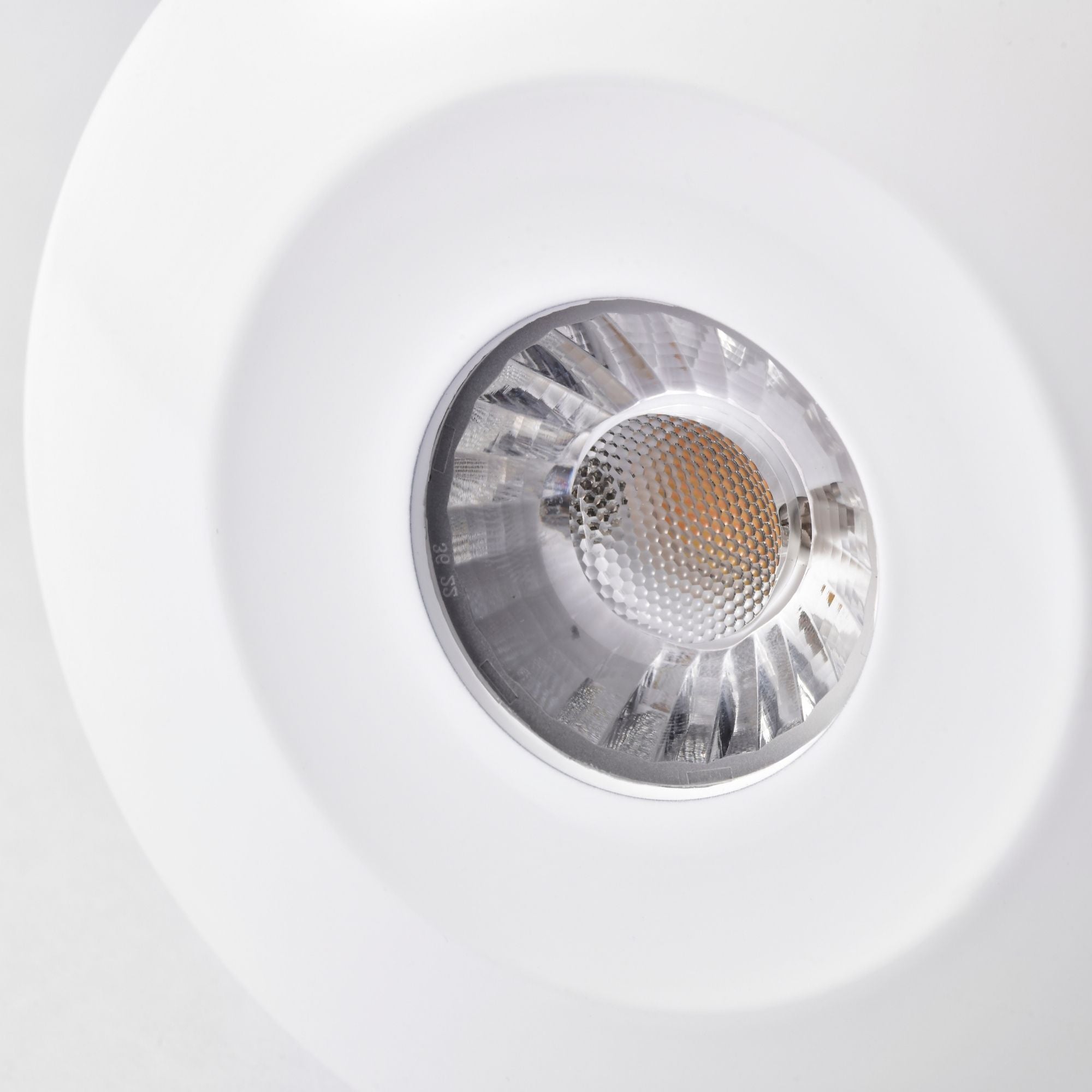

• Optics: Fixed 36° beam, prismatic PMMA lens.
• Aiming: Horizontal and vertical positioning, 355° head rotation.
• Dimming: Phase-cut dimming down to 10% with a compatible dimmer.

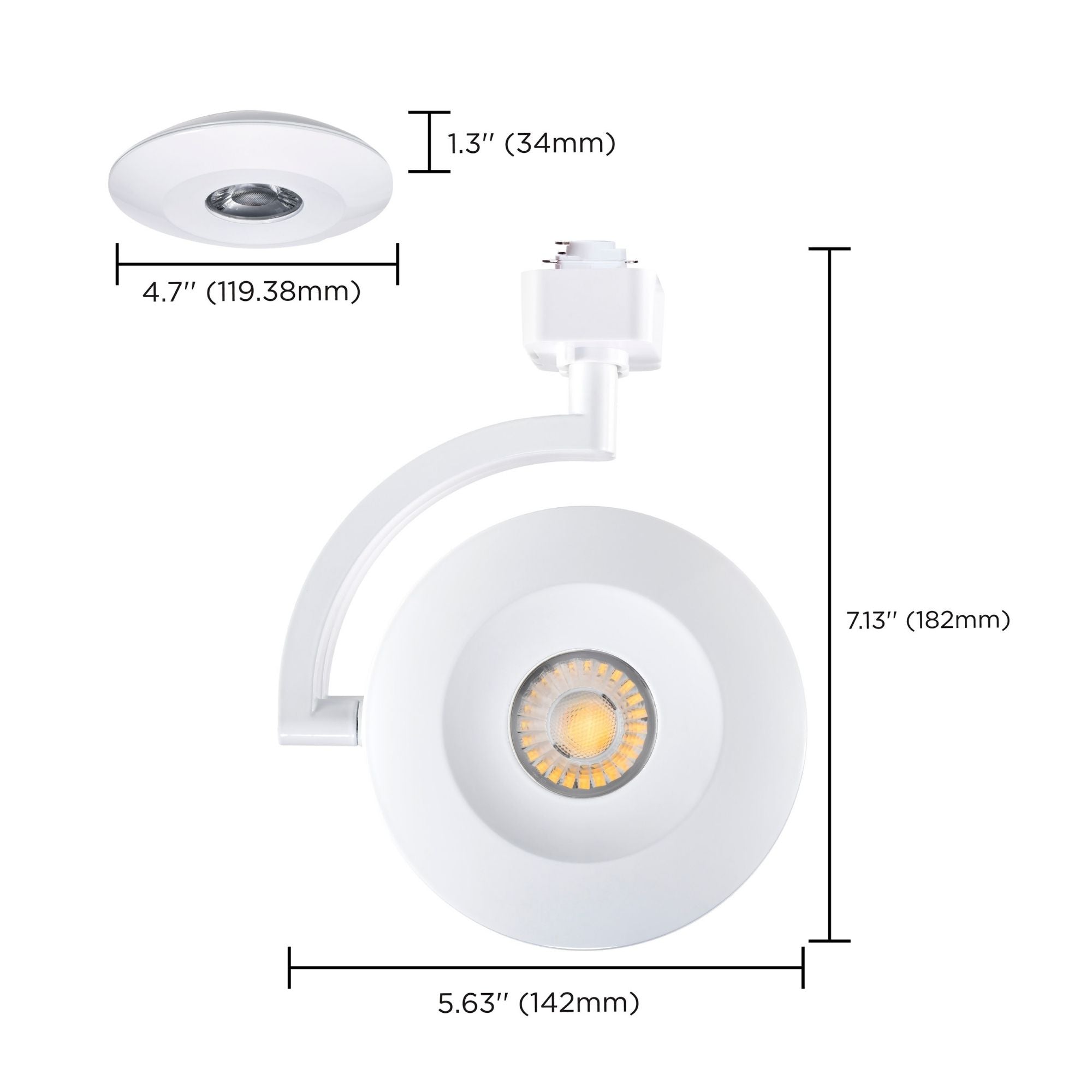

• Dimensions: 5.63 in overall length, 7.13 in height, 1.30 in width, 4.70 in head diameter.
• Electrical: 120V, 60Hz, 0.12A, 0.9 power factor.
• Rated Life: 50,000 hours.
• Location & Temperature: Dry indoor use, IP20, -4°F to 104°F.

Construction & Design

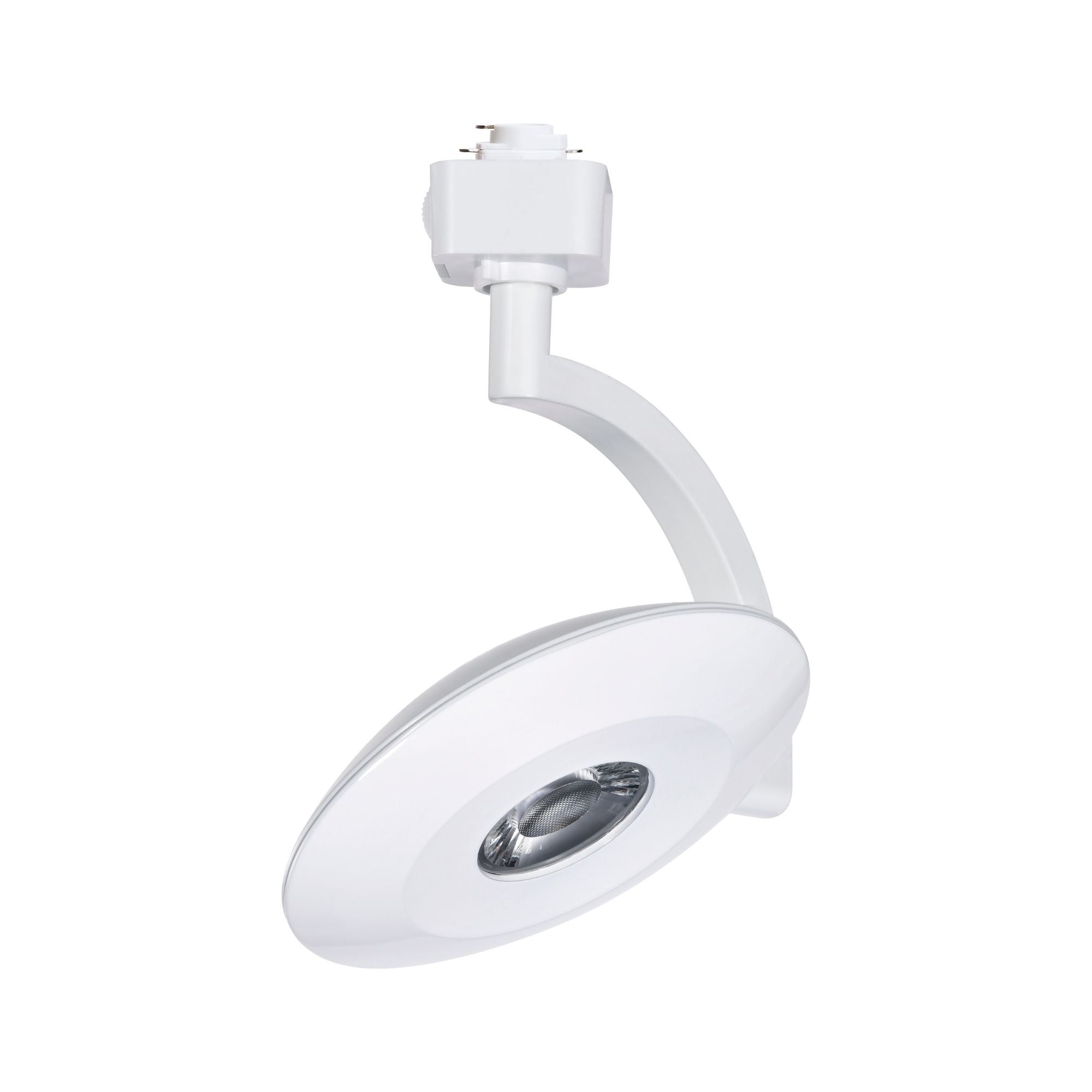

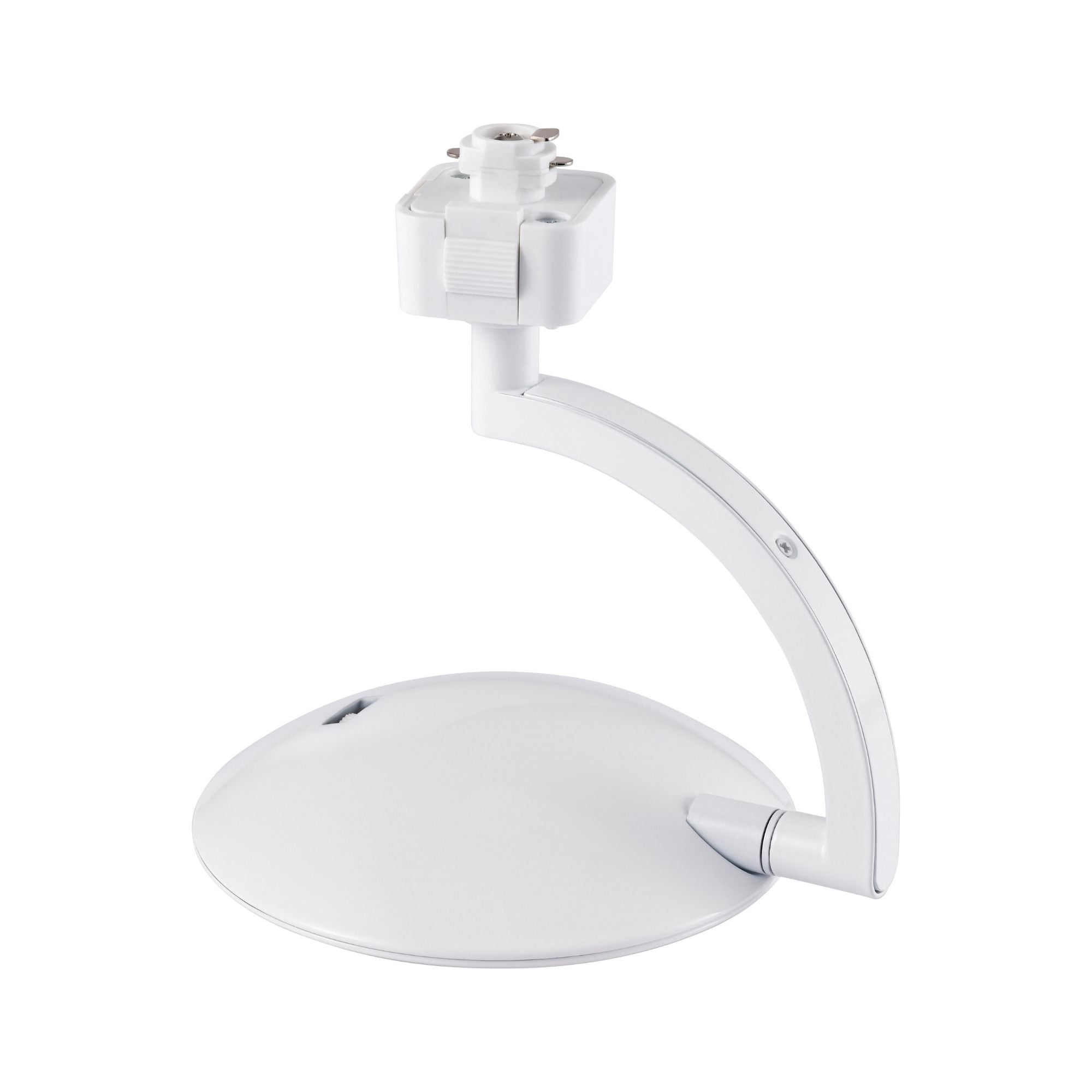

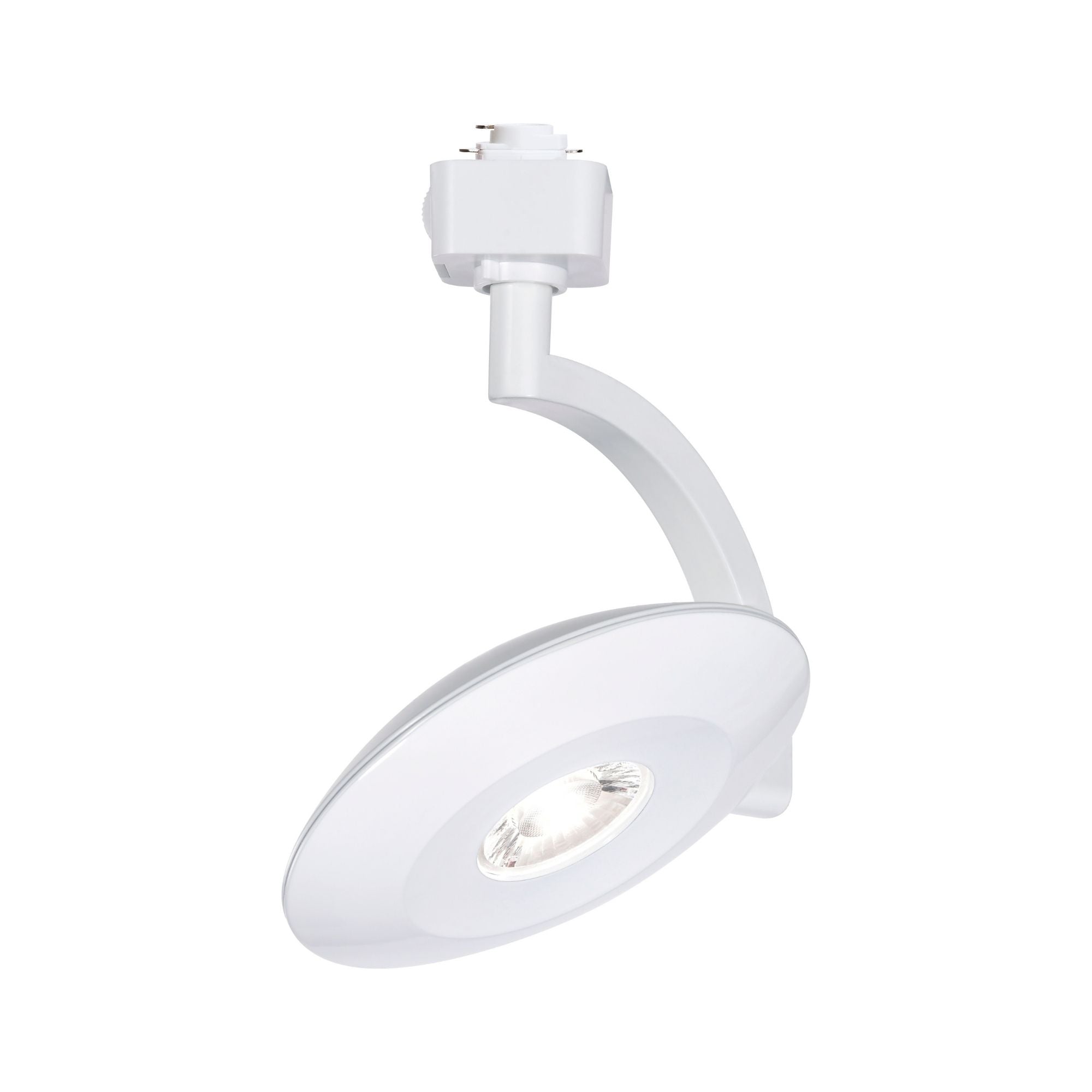

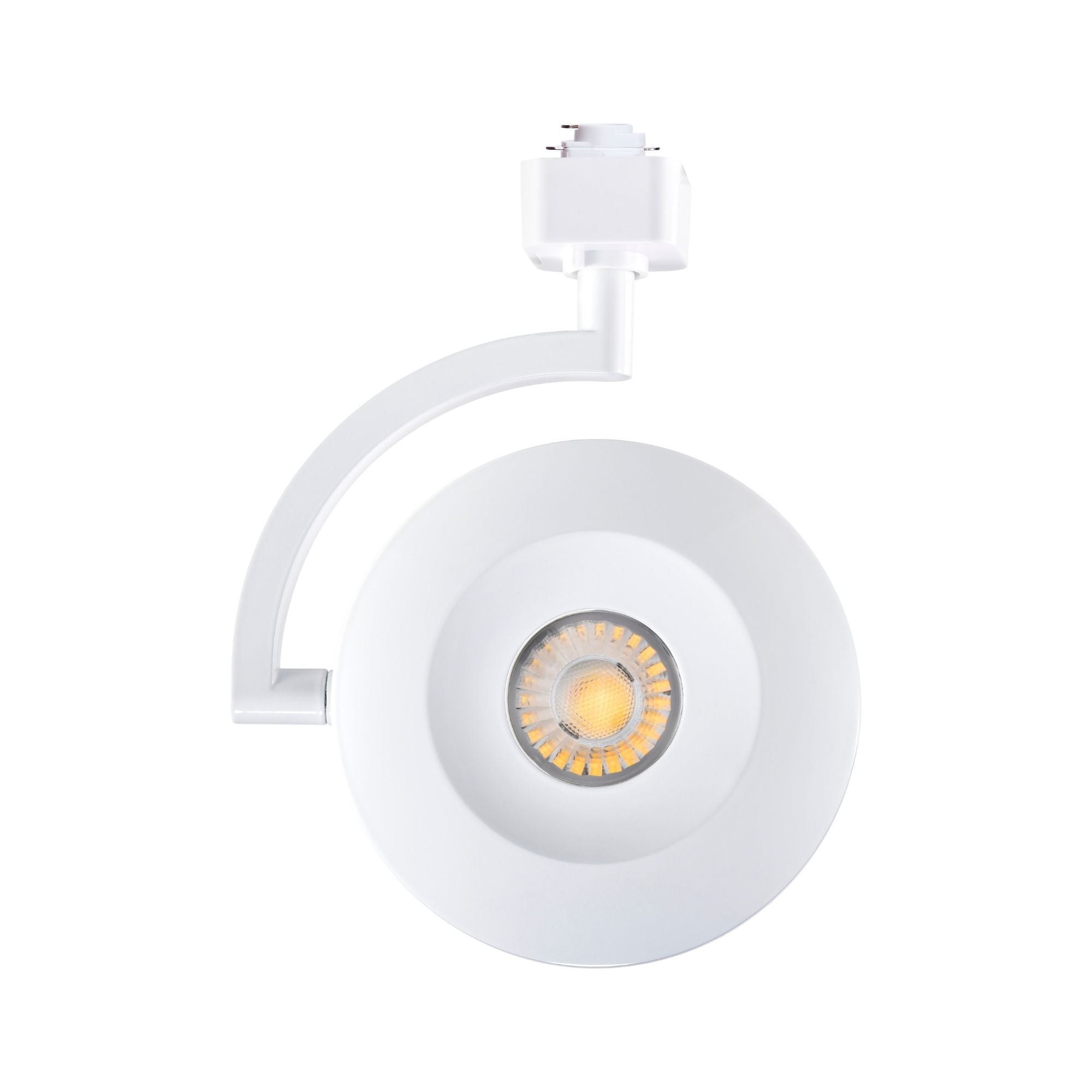

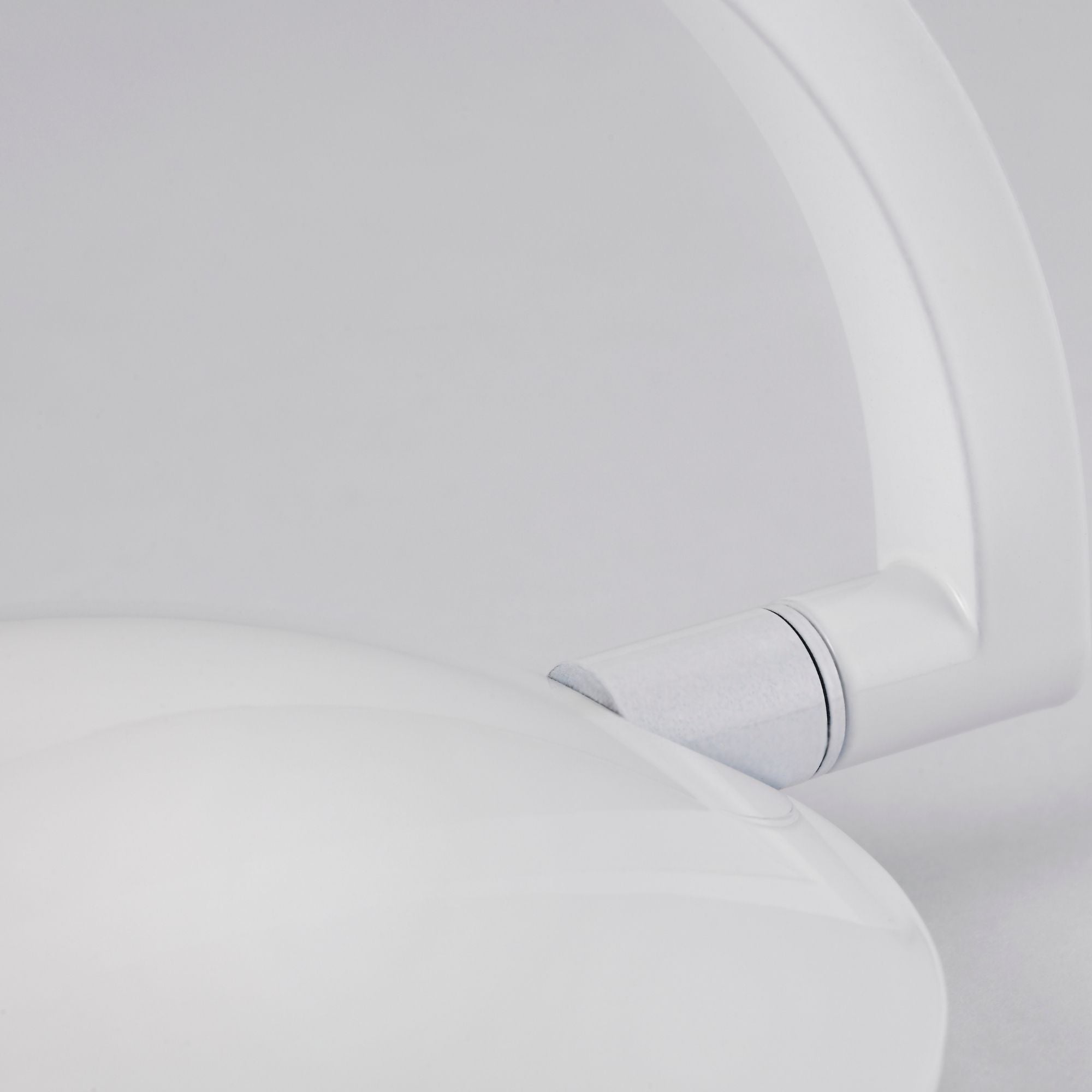

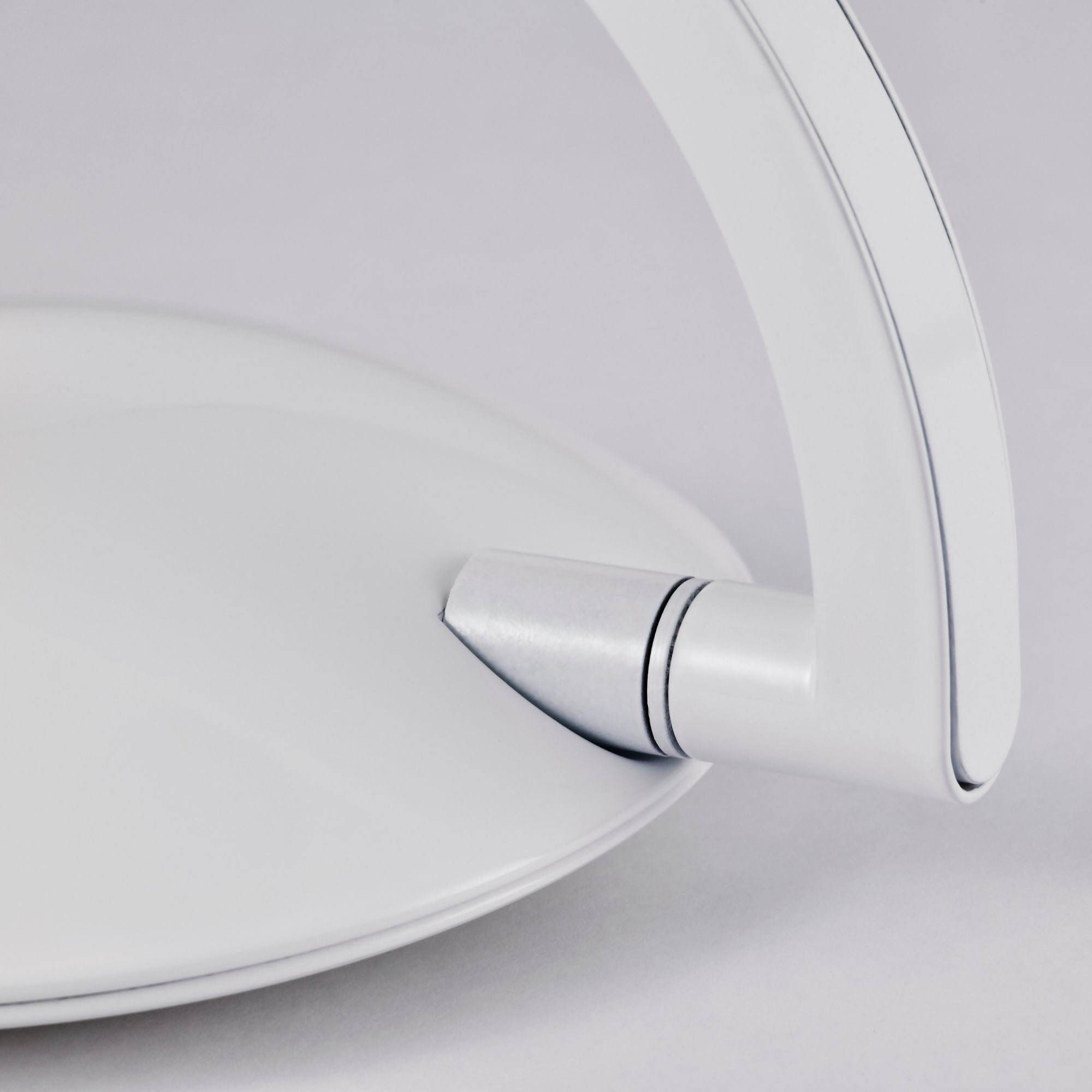

The White aluminum housing forms a low-profile circular head supported by a curved swivel arm. Its 4.70 in diameter face gives the Orb a different silhouette from a conventional cylindrical spotlight, while the prismatic PMMA lens optimizes beam quality. Horizontal and vertical positioning and 355° head rotation help direct illumination as the display changes; aiming adjusts direction, not the fixed optical spread. Matching white rails and components create a consistent appearance against light surfaces.

Light Output & Performance

The Satco Nuvo TH673 provides up to 1020 lumens at 12W and up to 85 lm/W. Select 3000K, 4000K or 5000K using the recessed ColorQuick switch to suit the room and objects being illuminated. 90 CRI supports color rendering, while the fixed 36° beam suits displays where a wider accent is preferred over a narrow spotlight. Phase-cut dimming down to 10% with a compatible dimmer allows brightness adjustment. Rated LED life is 50,000 hours.

Electrical & Installation

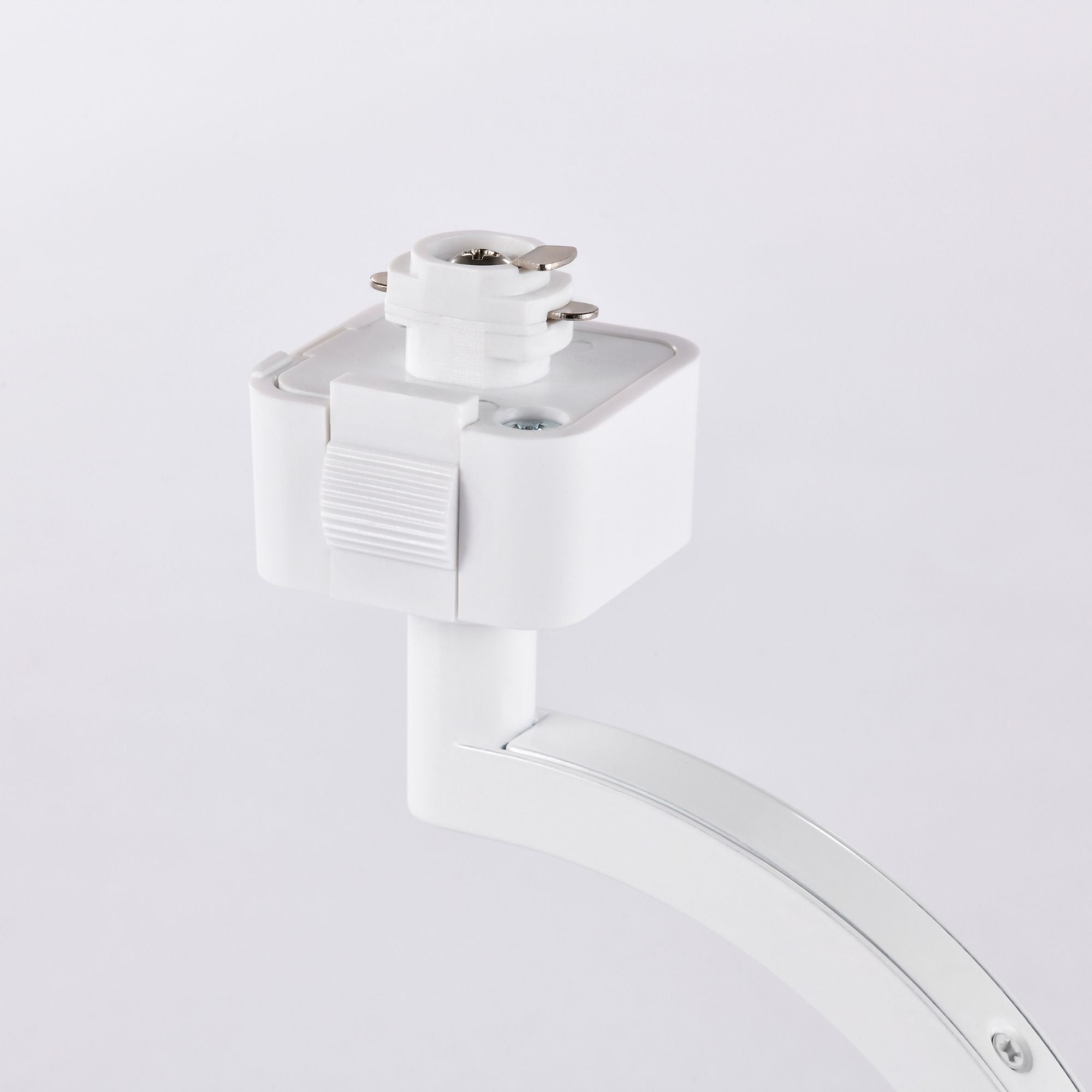

The Satco Nuvo TH673 uses an H-Type (Halo) adapter and operates at 120V, 60Hz, with 0.12A input current and 0.9 power factor. Install in dry indoor locations within the -4°F to 104°F operating range and use a compatible phase-cut dimmer. Track rails, power feeds and connectors are sold separately.

Compatible Accessories

Complete your Orb lighting arrangement with coordinating white Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.

• Track Rails: TR118 (2 ft), TR120 (4 ft), TR124 (6 ft) and TR122 (8 ft), single-circuit H-Type.
• Power Feeds: TP152 live end and canopy, TP154 floating canopy, TP156 live end cord kit, TP169 conduit live end and TP171 inline feed.
• Track Connectors: TP144 mini straight, TP146 L, TP148 T, TP150 X and TP167 flexible connector.
• Track Mounting: TP240 white aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

Typical Applications

• Retail merchandise and artwork accents.
• Restaurant and hospitality focal points.
• Office display lighting.
• Residential interior accents.

What's Included

• Satco Nuvo TH673 White Orb track head with integrated LED and H-Type (Halo) adapter.
