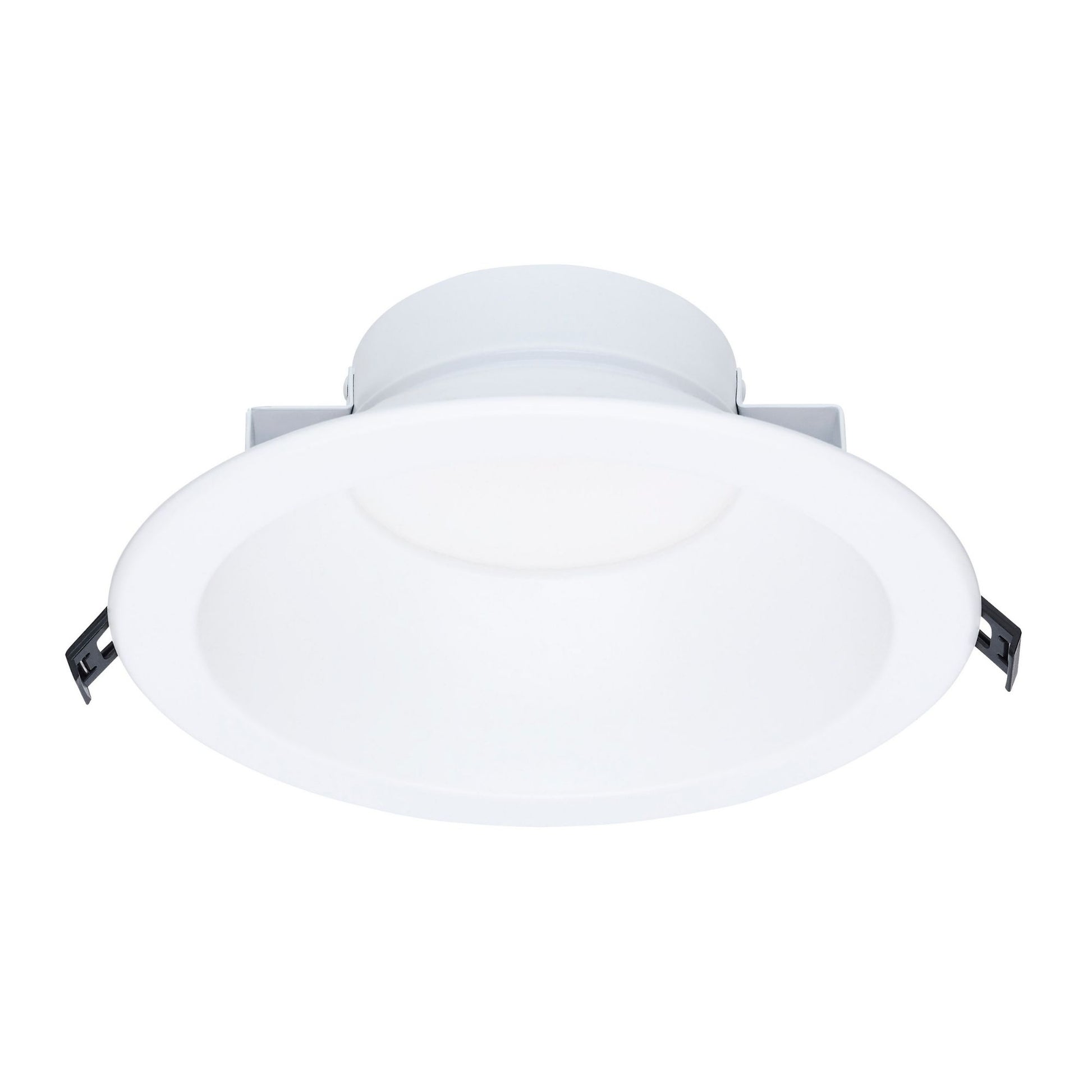

8 in. round LED downlight with white trim and adjustable mounting clips
Satco Nuvo 8 in. round commercial downlight LED box with field-selectable CCT

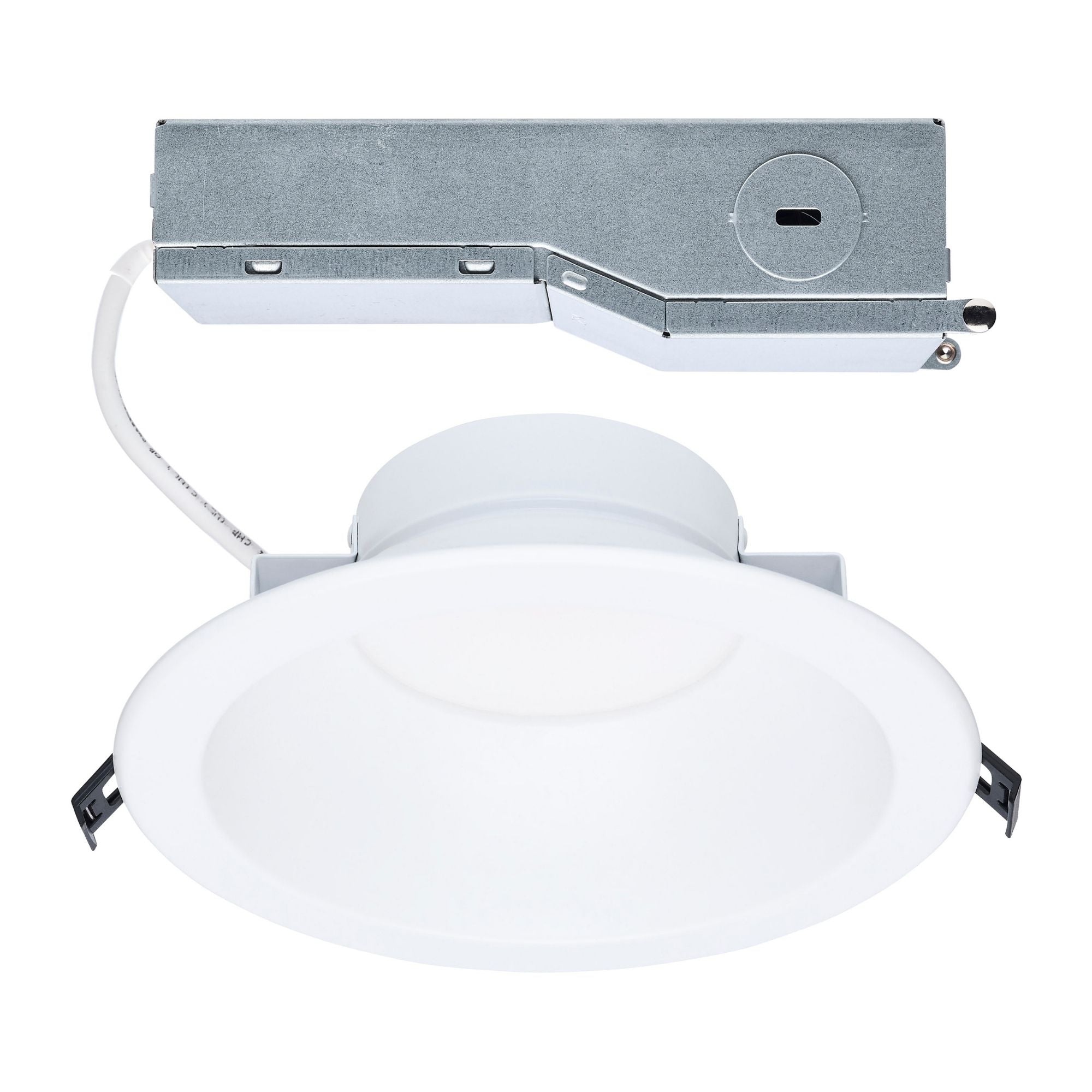

8 in. round LED downlight with white trim and gray remote driver bracket

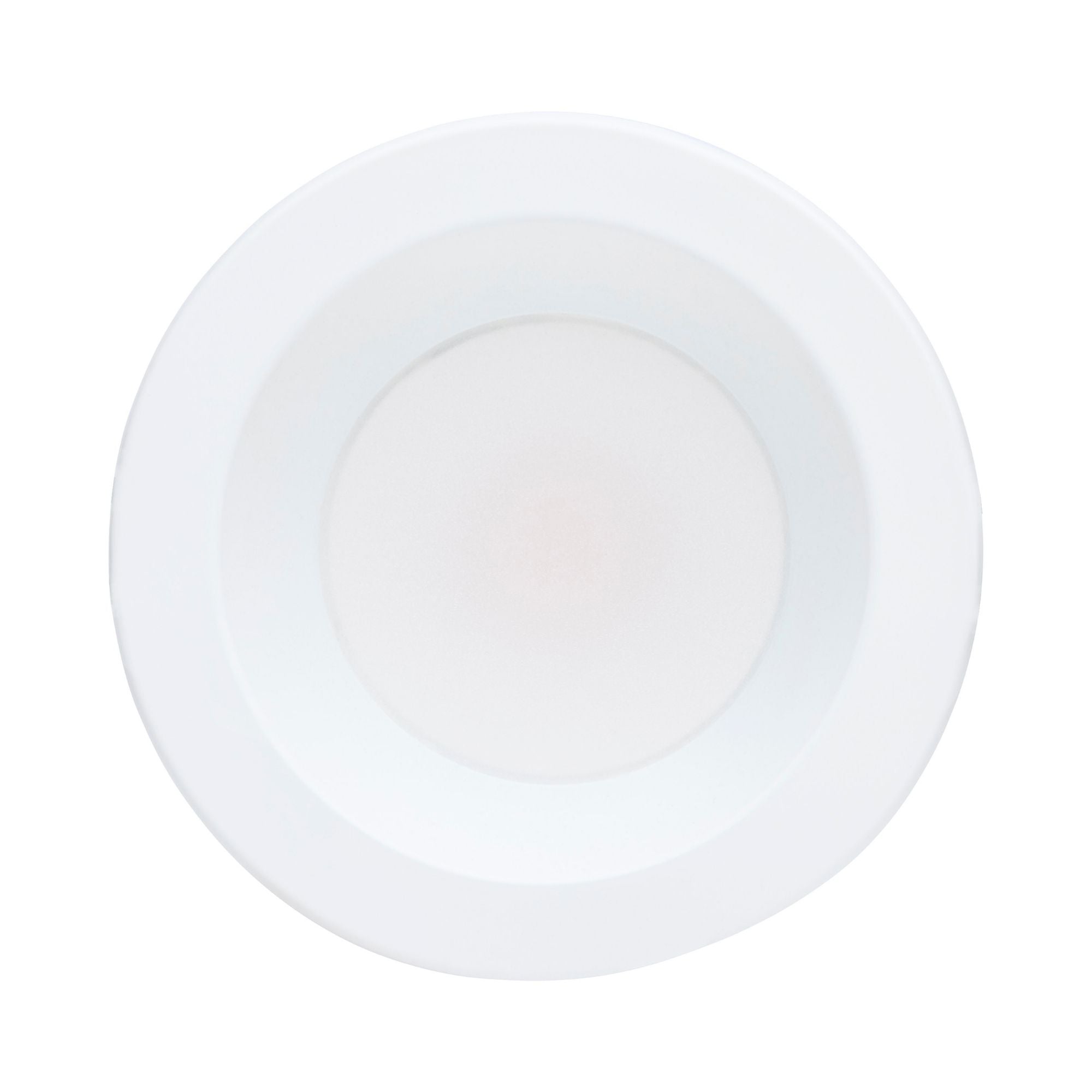

White round LED downlight trim with centered reflective lens

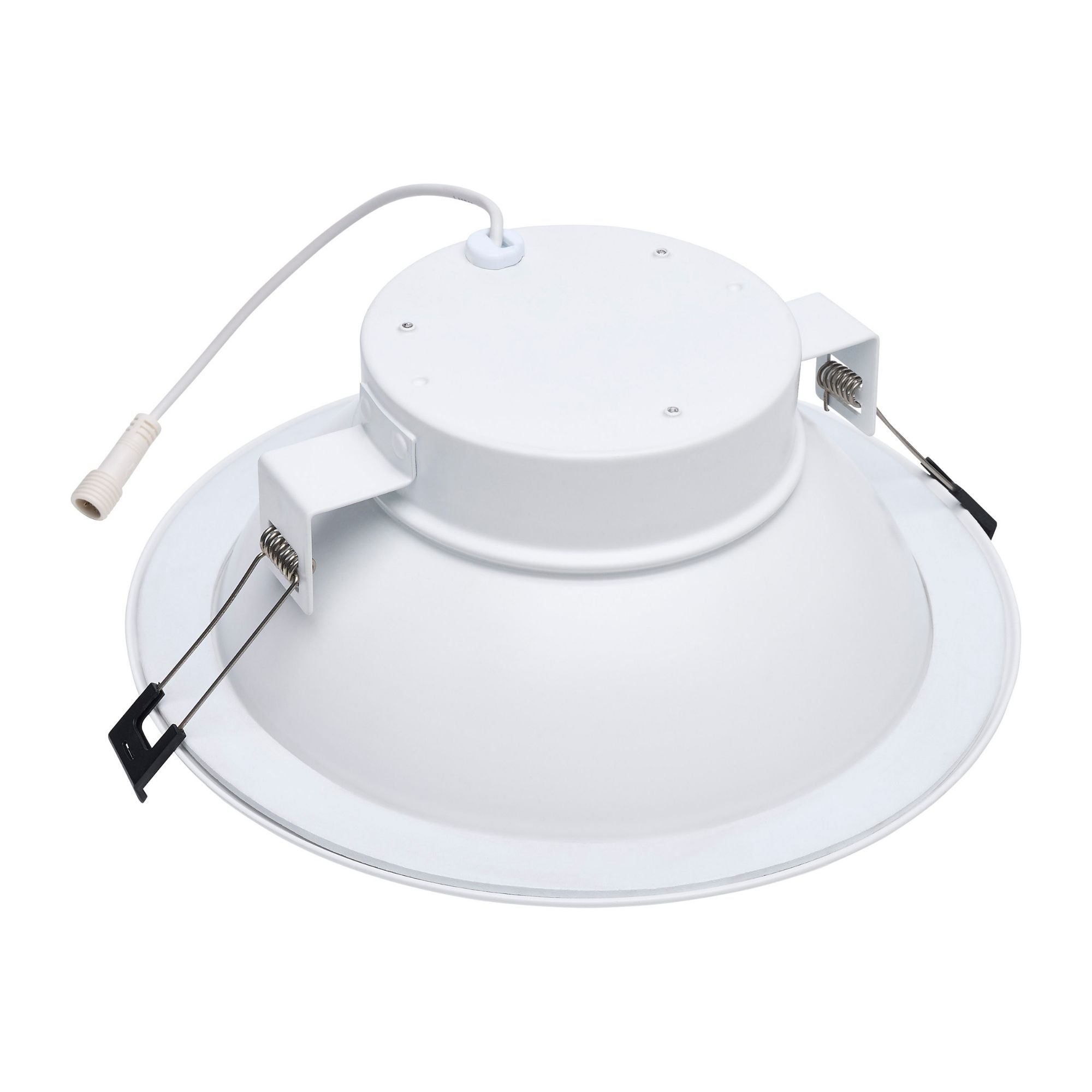

White 8 in. round downlight with cable leads and spring mounting brackets

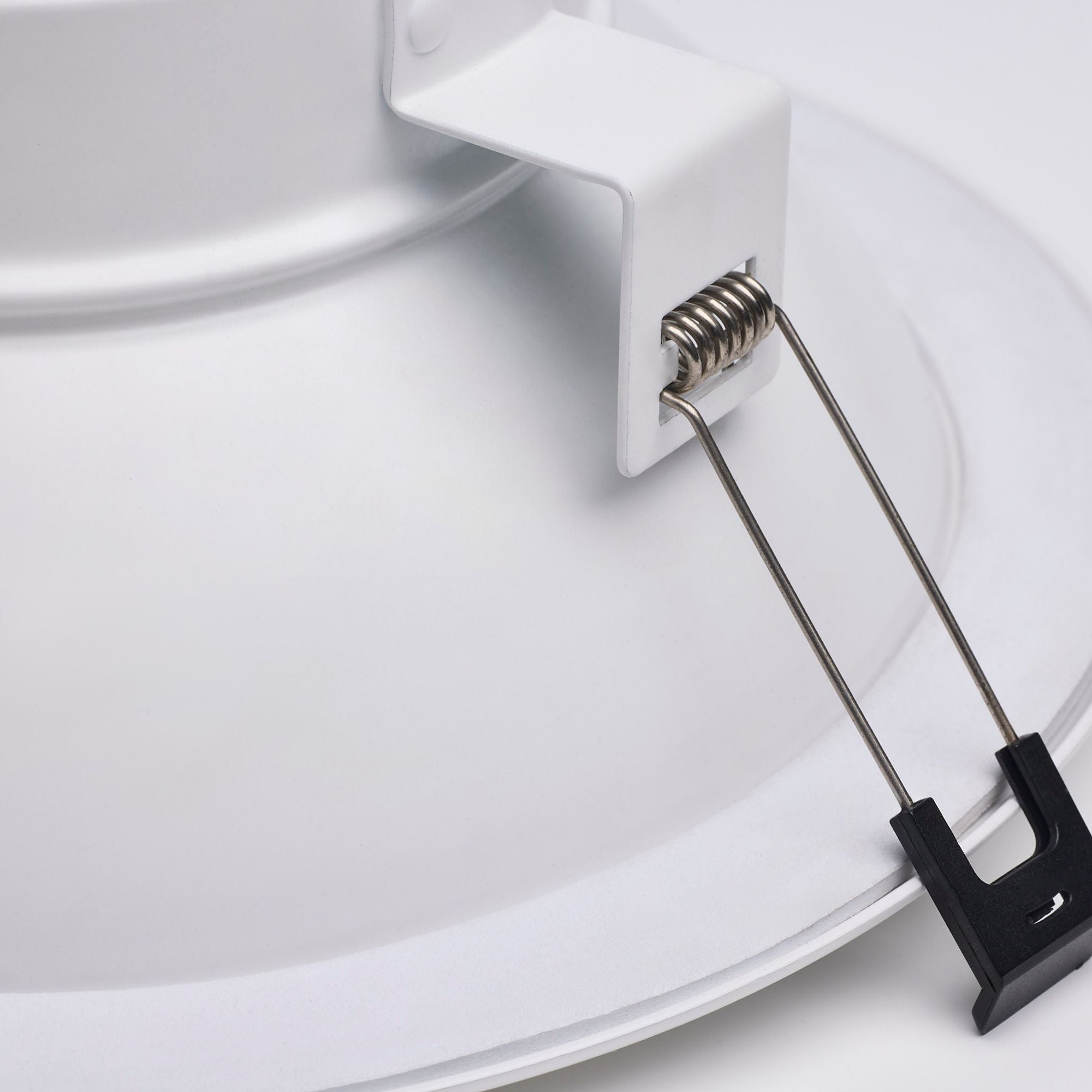

LED downlight spring clip with metal fasteners and wiring harness
Remote driver enclosure with black knockout openings and attached wire lead

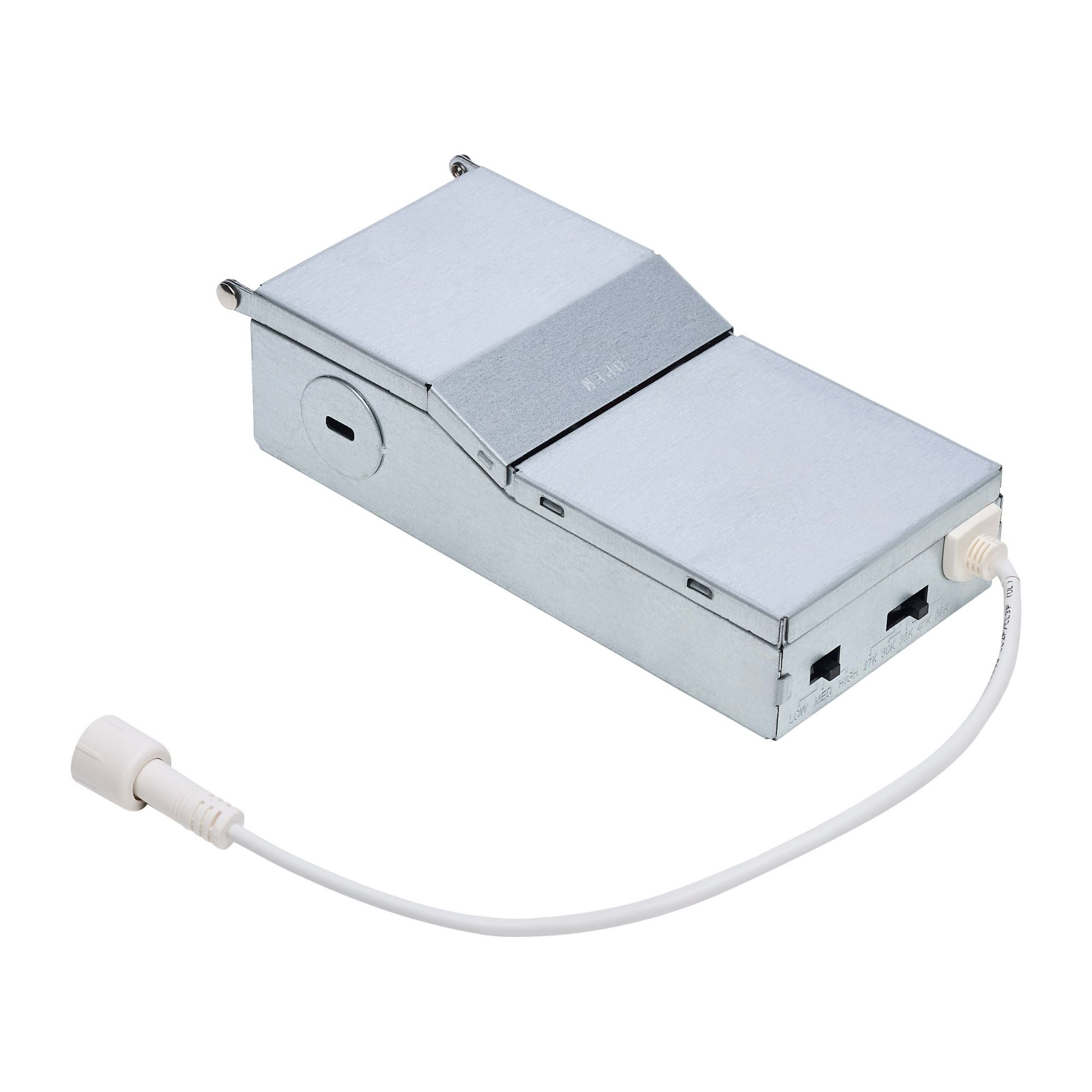

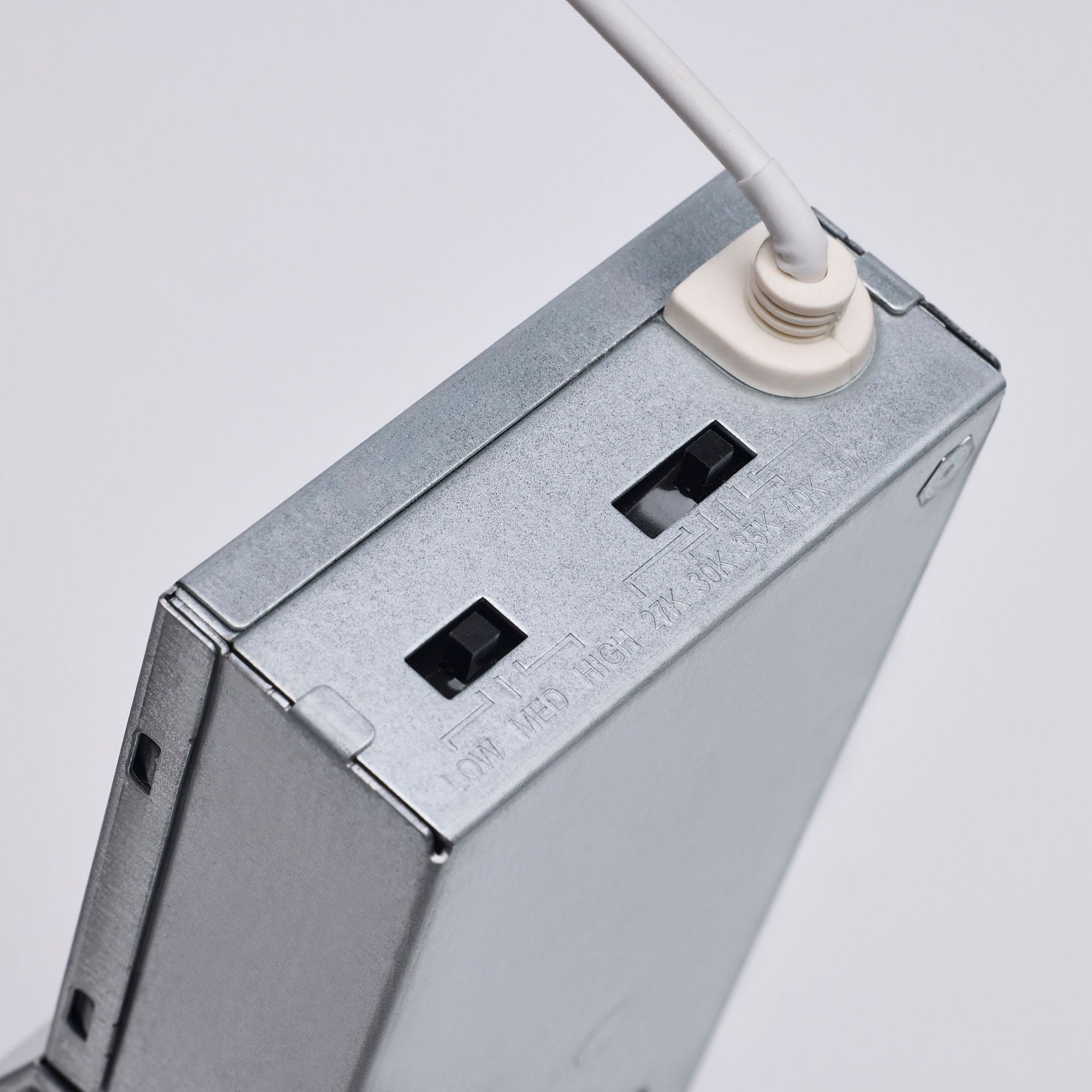

Metal remote LED driver box with white cable connector

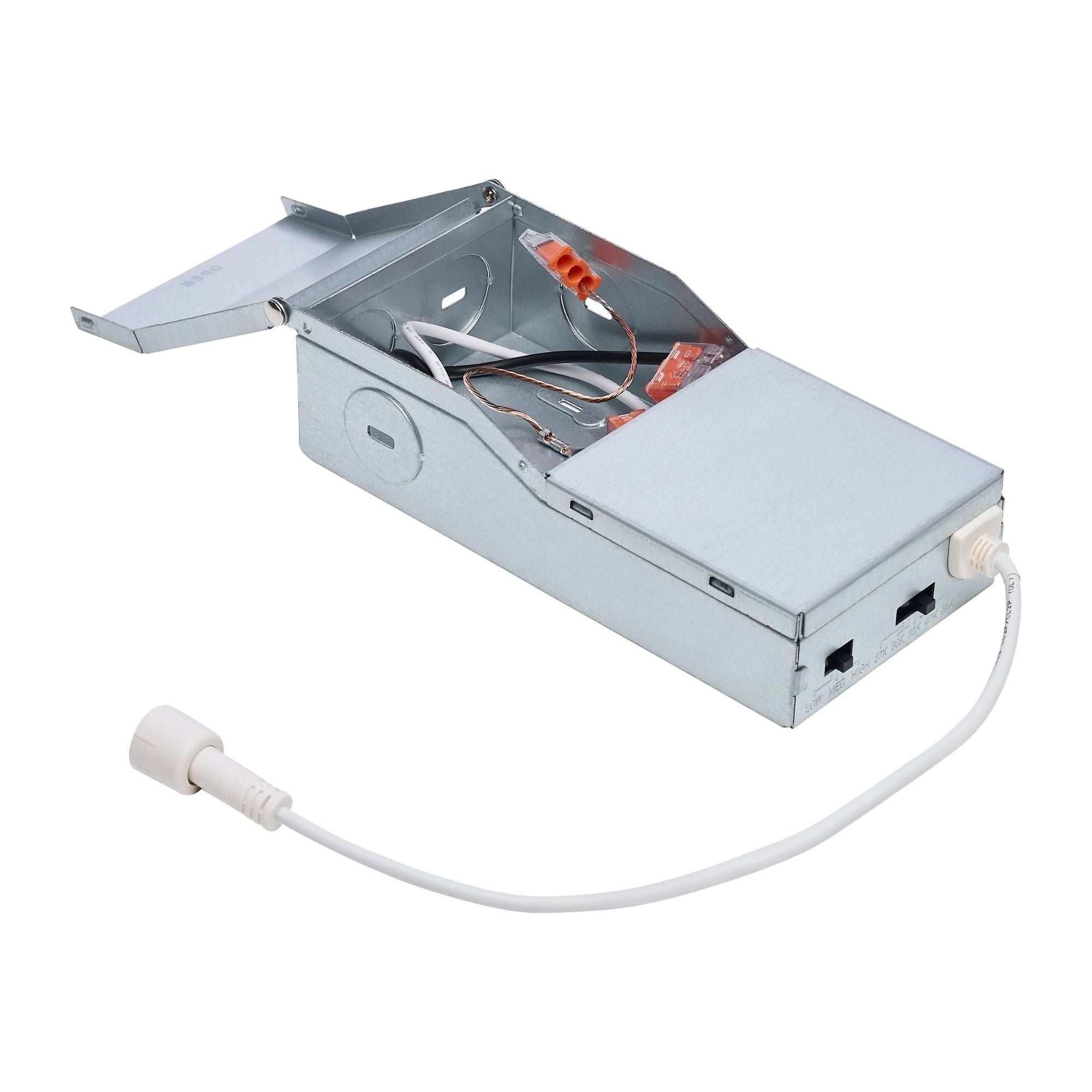

Remote LED driver with open metal housing and internal wiring components

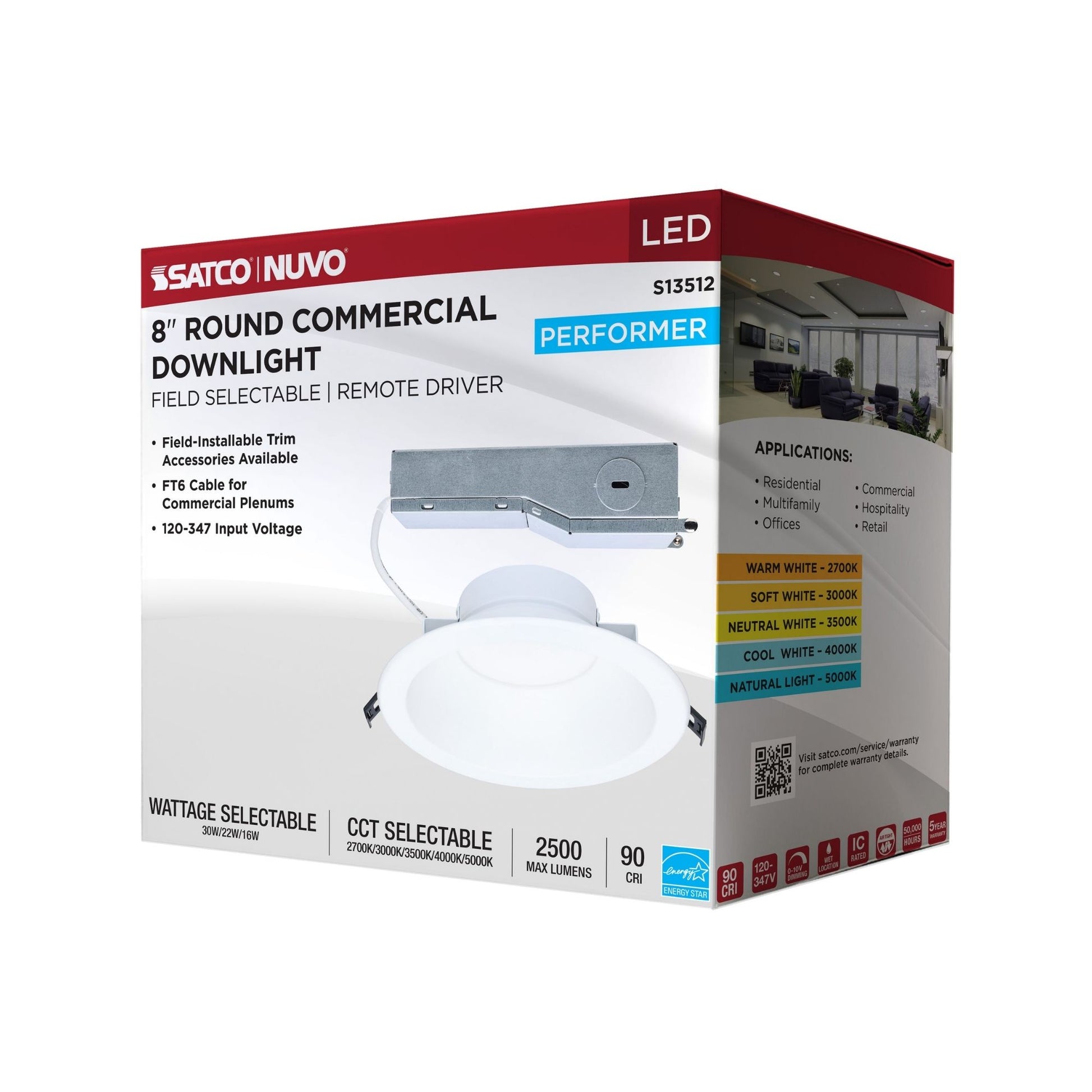

Satco Nuvo LED 8 in. round commercial downlight retail box front view

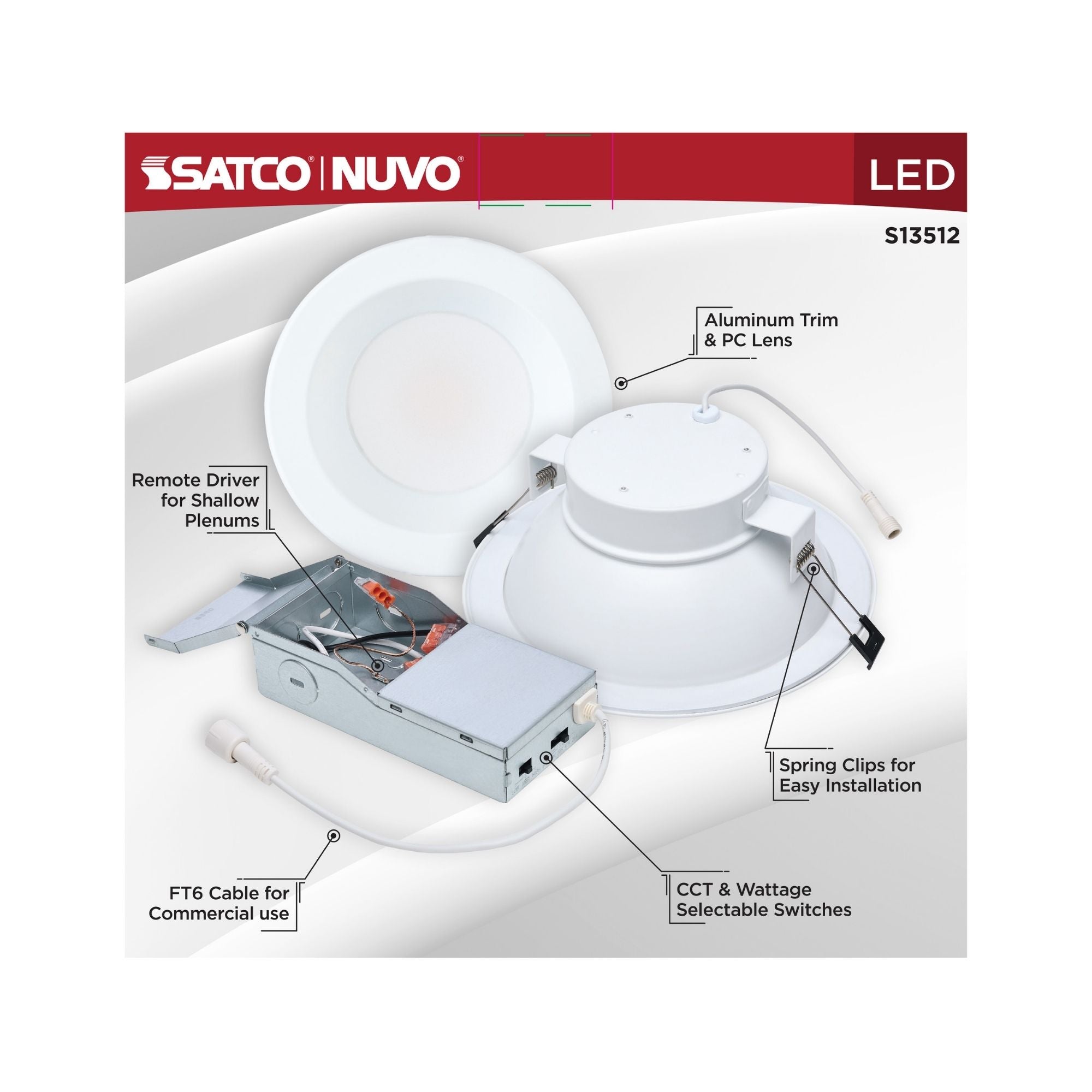

Round LED downlight retrofit with white trim and remote driver wiring
Back of downlight packaging showing selectable color temperatures and QR code

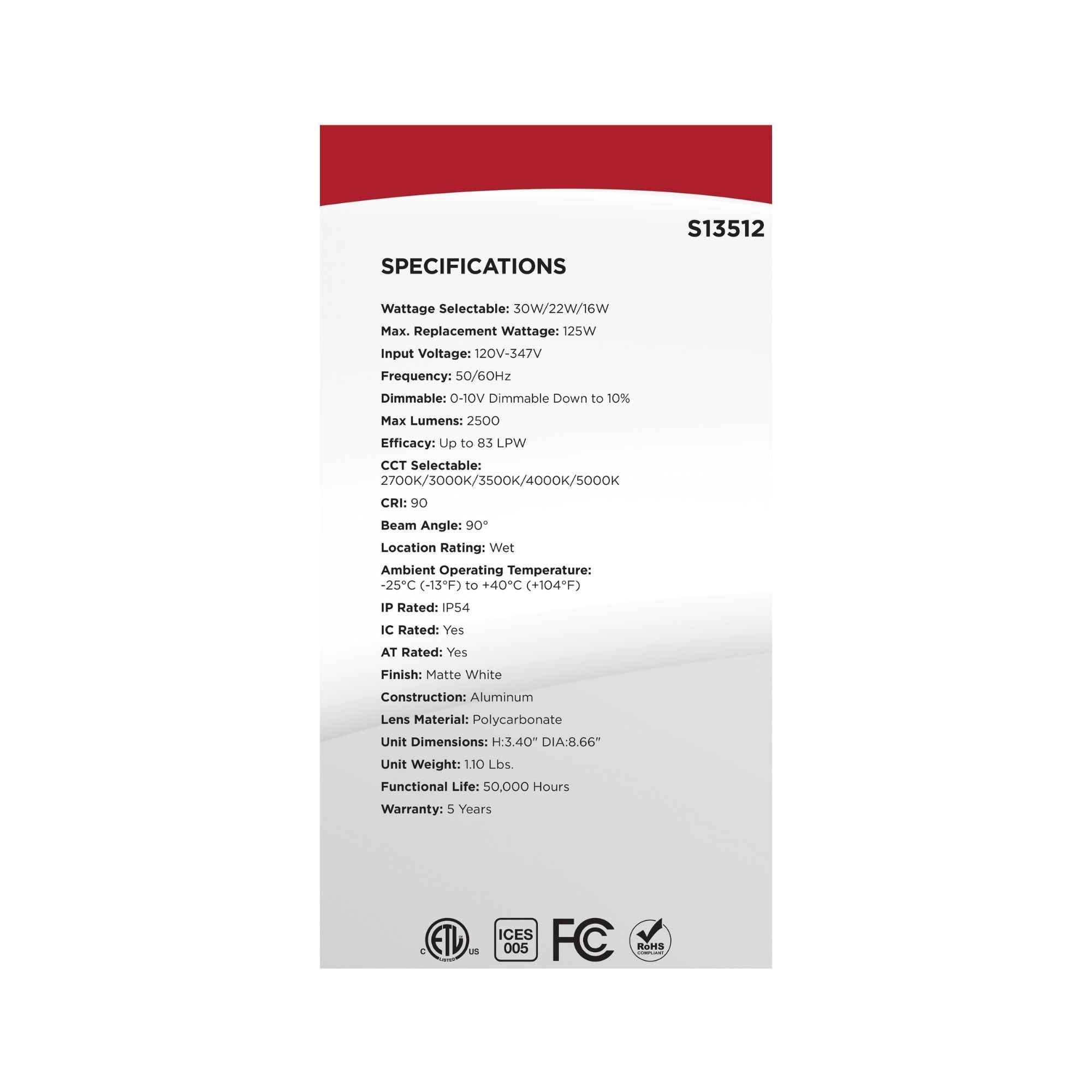

Downlight packaging back with technical specifications text and certification icons
8 in. round commercial downlight box label with wattage and CCT selectable options
Retail box for 8 in. round commercial LED downlight with remote driver and selectable settings

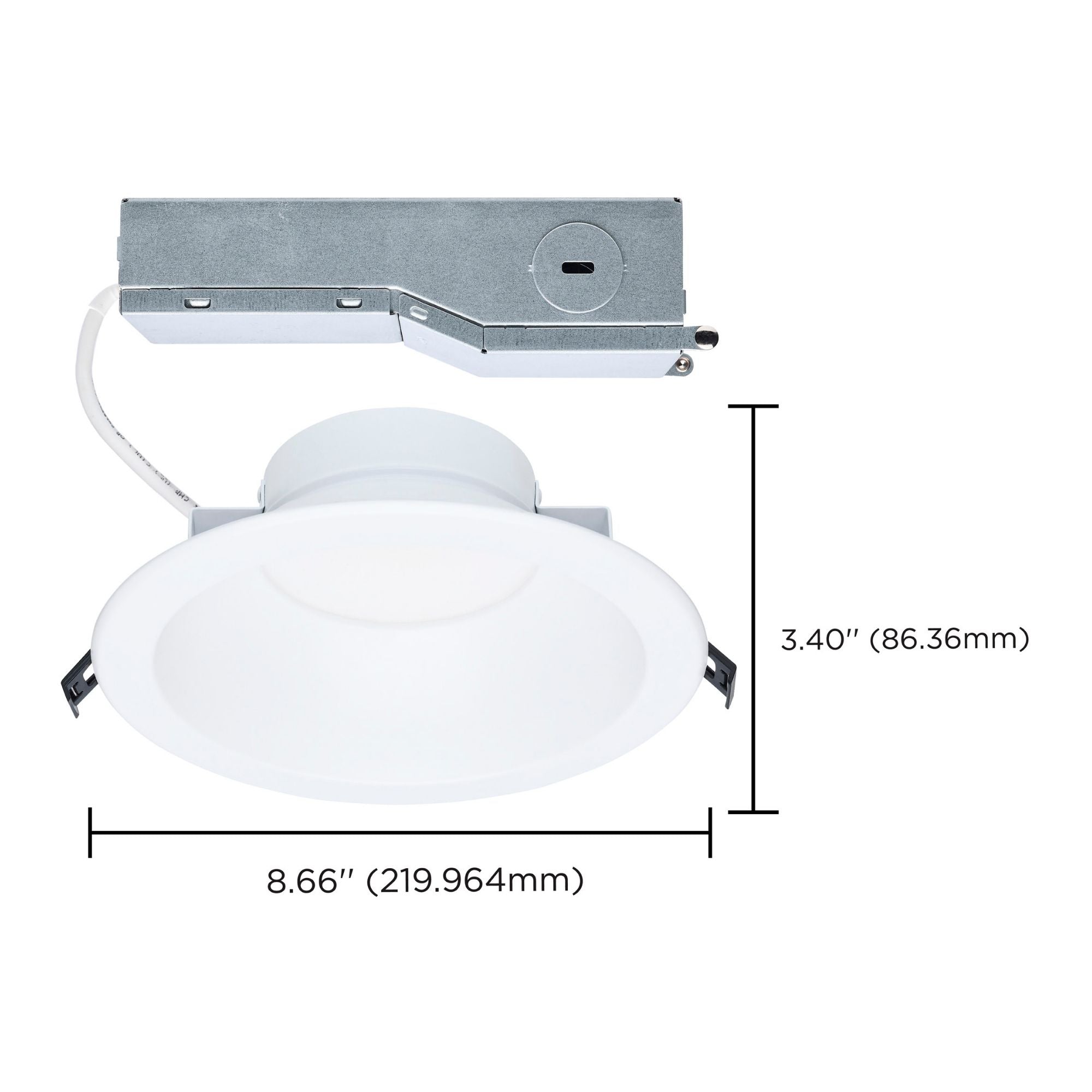

8.66 in. round LED downlight with white trim and metal housing, shown with dimensions

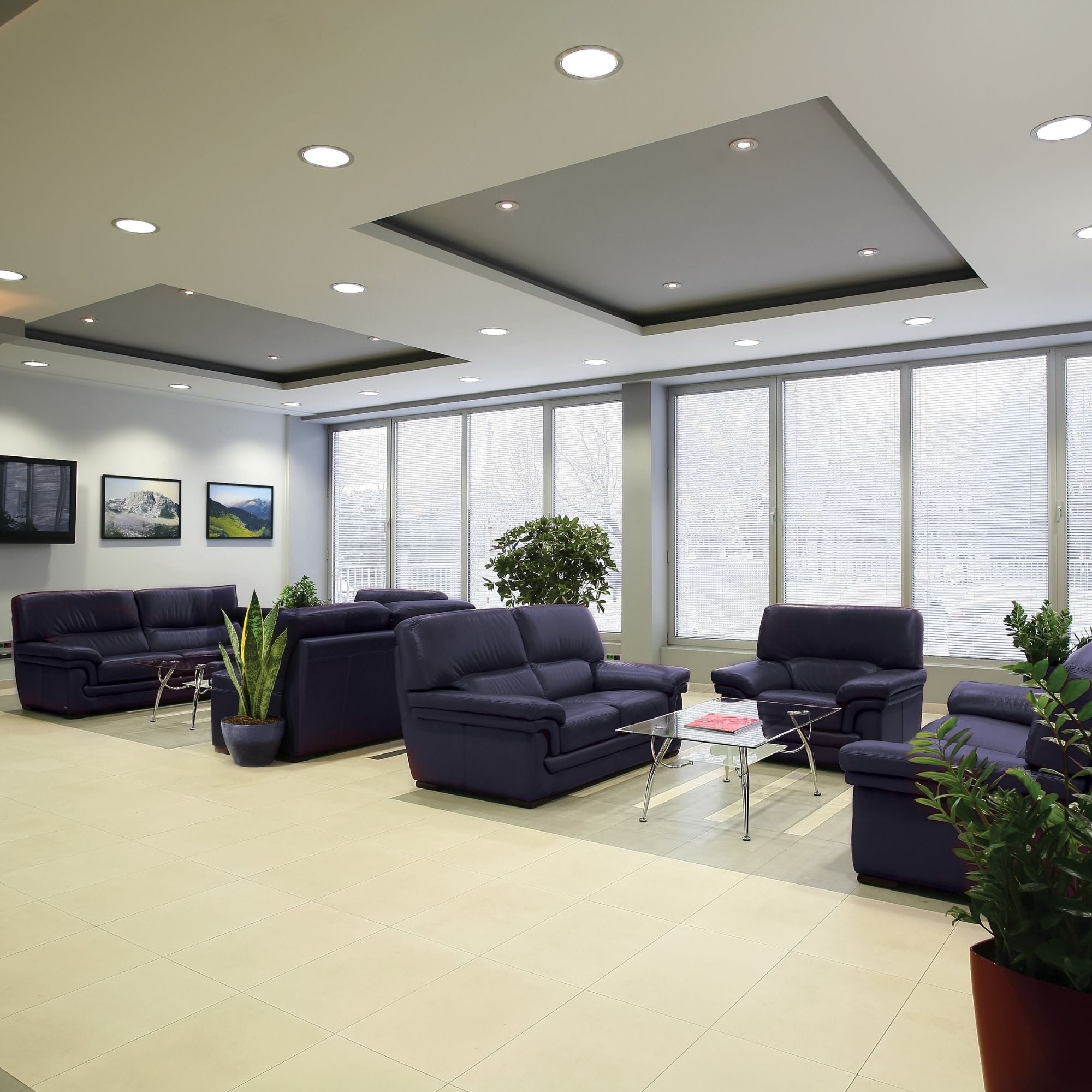

Ceiling downlight fixtures with recessed round LED lights in an office room
8 in. round LED downlight with white trim and adjustable mounting clips
Satco Nuvo 8 in. round commercial downlight LED box with field-selectable CCT
8 in. round LED downlight with white trim and gray remote driver bracket
White round LED downlight trim with centered reflective lens
White 8 in. round downlight with cable leads and spring mounting brackets
LED downlight spring clip with metal fasteners and wiring harness
Remote driver enclosure with black knockout openings and attached wire lead
Metal remote LED driver box with white cable connector
Remote LED driver with open metal housing and internal wiring components
Satco Nuvo LED 8 in. round commercial downlight retail box front view
Round LED downlight retrofit with white trim and remote driver wiring
Back of downlight packaging showing selectable color temperatures and QR code
Downlight packaging back with technical specifications text and certification icons
8 in. round commercial downlight box label with wattage and CCT selectable options
Retail box for 8 in. round commercial LED downlight with remote driver and selectable settings
8.66 in. round LED downlight with white trim and metal housing, shown with dimensions
Ceiling downlight fixtures with recessed round LED lights in an office room

SATCO S13512 8 in Commercial LED Downlight Retrofit Performer Series 30W Selectable CCT 120V-347V Matte White

Vendor: SATCO|NUVO

SKU: S13512

$61.95
$0.00
Shipping calculated at checkout.
Size: 8"

Available in stock (735)

Must be ordered in quantities of .

About this item
  • 8 in Round Commercial LED Downlight Retrofit — IC Rated / Wet Rated / IP54 / Air Tight: Integrated LED; aluminum construction; fits 8 in nominal housing; FT6 cable between remote driver and lighting head; matte frosted polycarbonate lens; matte white finish; flicker free
  • Field-Selectable CCT & Wattage: 2700K / 3000K / 3500K / 4000K / 5000K; 30W / 22W / 16W; CRI 90+; 90° beam angle
  • Up to 2500 lm / 83 LPW: Replaces 125W incandescent / 2×26W CFL; L70: 50,000 hrs; built-in 2KV surge protection; THD <30%; PF >0.9
  • 0-10V Dimmable to 10%: 120V–347V | 50/60Hz | Op temp: -13°F to +104°F (-25°C to +40°C)
  • ENERGY STAR / Title 24 / cETLus Listed: ICES 005; FCC; RoHS; 5-year warranty; remote driver for shallow plenum applications
View More Details

Description

SATCO S13512 8 in Round Commercial LED Downlight Retrofit — Performer Series / 30W/22W/16W Selectable / up to 2500 lm / Selectable CCT / 120V–347V / Matte White

The SATCO S13512 is an 8 in round commercial LED downlight retrofit from the SATCO Performer Series. Delivering up to 2500 lm at 30W (up to 83 LPW) with field-selectable wattage (30W/22W/16W) and CCT (2700K/3000K/3500K/4000K/5000K). Aluminum construction with matte frosted polycarbonate lens. FT6 cable between remote driver and lighting head for shallow plenum installations. IC rated, airtight, IP54, and wet rated. 0-10V dimmable to 10%. Operates on 120V–347V. Built-in 2KV surge protection. ENERGY STAR certified. California Title 24 compliant. cETLus Listed. Flicker free. 5-year warranty. L70: 50,000 hours. Replaces 125W incandescent / 2×26W CFL. Default wattage: 30W. Default CCT: 3000K.

Key Features

  • Selectable Wattage: 30W (2500 lm) / 22W (2000 lm) / 16W (1500 lm)
  • Max Light Output: 2500 lm
  • Efficacy: Up to 83 LPW
  • Beam Angle: 90°
  • Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
  • Default Settings: 30W | 3000K
  • CRI: 90+
  • Construction: Aluminum | Lens: Matte frosted polycarbonate
  • Finish: Matte white
  • Nominal Size: 8 in | Diameter: 8.66 in | Mounting height: 3.5 in
  • Input Voltage: 120V–347V | 50/60Hz
  • Dimming: 0-10V | Down to 10%
  • Driver: Remote driver with FT6 cable (for shallow plenum applications)
  • Power Factor: >0.9 | THD: <30% | Surge Protection: 2KV
  • IC Rating: Yes
  • Air Tight: Yes
  • IP Rating: IP54
  • Environment: Wet rated | Indoor and Outdoor
  • Flicker Free: Yes
  • Replaces: 125W incandescent | 2×26W CFL
  • Weight: 2.13 lbs
  • Lifespan: 50,000 hours L70 | Warranty: 5-year
  • Certifications: ENERGY STAR Certified | CA Title 24 Compliant | cETLus Listed | ICES 005 | FCC | RoHS

Construction & Aesthetics

Size: 8 in nominal | Diameter: 8.66 in | Mounting height: 3.5 in | Finish: Matte white | Lens: Matte frosted polycarbonate | Construction: Aluminum. Field-installable trim accessories available separately in clear/white, clear, and black finishes. For 4 in and 6 in Performer Series versions, see SATCO S13510 and S13511.

Light Output & Performance

The SATCO S13512 delivers up to 2500 lm at 30W (up to 83 LPW) with CRI 90+ and a 90° beam angle. Wattage and lumen output are field-selectable: 30W (2500 lm) / 22W (2000 lm) / 16W (1500 lm). CCT independently selectable: 2700K–5000K. Default wattage: 30W. Default CCT: 3000K. Flicker free. L70 lifespan is 50,000 hours.

Electrical & Installation

The SATCO S13512 operates on 120V–347V at 50/60Hz with 0-10V dimming to 10%. Remote driver with FT6 cable allows driver placement in shallow plenum spaces. PF >0.9; THD <30%; built-in 2KV surge protection. IC rated and airtight. Mounts down only.

Field-Installable Trim Accessories (Sold Separately)

  • 8 in Round Commercial DL Trim — Clear/White: SATCO S13530
  • 8 in Round Commercial DL Trim — Clear: SATCO S13531
  • 8 in Round Commercial DL Trim — Black: SATCO S13532
  • 8 in Round Goof Ring — White: SATCO S13542
  • 8 in Mounting Plate with Hanger Bars — New Construction: SATCO 80-945
  • 8 in Mounting Plate for Stud/Joist — New Construction: SATCO 80-953

Typical Applications

  • Commercial office spaces and conference rooms
  • Hospitality lobbies, guest rooms, and corridors
  • Retail environments and showrooms
  • Healthcare facilities
  • Covered outdoor commercial areas
  • Any application requiring 347V compatibility or shallow plenum installation

What’s Included

  • SATCO S13512 8 in round commercial LED downlight retrofit (matte white)
  • Remote driver with FT6 cable

Specifications

Dimensions

Length/Depth
8.66 in
Width/Diameter
8.66 in
Height
3.4 in
Weight
1.1 lb

Documents

Style & Materials

Finish
Matte White
Material
Aluminum
Style
Transitional
Shape
Round

Characteristics & Features

Lamp Source
LED
Base Type
Integrated
Bulb Included
Yes
Bulb
Integrated LED
Number of Lights
1
Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
2500

Electrical Information

Voltage
120-347V
Total Wattage
30W
Bulb Wattage
30W

Item Details

MPN
S13512
Brand
SATCO|NUVO
Catalog Number
30WLED/CDL/8/RD/FS/RND
UPC
045923135125

Warranty & Certifications

Product Warranty
5-Years
Lamp Life
50000 hours
Product Rating
Wet

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What locations is the SATCO S13512 rated for?
Yes — the SATCO S13512 is wet rated, IC rated for direct contact with ceiling insulation, airtight, and IP54 rated. It is suitable for indoor and outdoor commercial applications including covered outdoor areas, offices, hospitality spaces, and retail environments.

What dimming method does the SATCO S13512 support?
Yes — the SATCO S13512 is 0-10V dimmable down to 10%. It operates on 120V–347V, making it compatible with standard US commercial power as well as Canadian 347V systems.

What is the FT6 cable on the SATCO S13512 used for?
Yes — the SATCO S13512 includes an FT6-rated cable between the remote driver and the lighting head, allowing the driver to be mounted remotely in shallow plenum spaces where a traditional integrated driver would not fit. This makes it well suited for commercial installations with space constraints above the ceiling.

What is the difference between the SATCO S13512, S13510, and S13511?
Yes — all three are Performer Series commercial LED downlight retrofits with identical electrical and compliance specs. The difference is size and output: S13510 is 4 in (up to 1100 lm, 12W, replaces 75W), S13511 is 6 in (up to 2000 lm, 24W, replaces 100W), and S13512 is 8 in (up to 2500 lm, 30W, replaces 125W).

What trim and mounting accessories are available for the SATCO S13512?
Yes — the following field-installable accessories are available separately: S13530 (8 in round commercial DL trim, clear/white finish), S13531 (8 in round commercial DL trim, clear finish), S13532 (8 in round commercial DL trim, black finish), S13542 (8 in round goof ring, white finish), 80-945 (8 in mounting plate with hanger bars for new construction), 80-953 (8 in mounting plate for stud/joist mounting for new construction).
