SATCO S11897 6 in Round Regressed Wafer DLR PRO LED Downlight Retrofit — 9/11/13W Selectable / up to 1400 lm / Selectable CCT / 120V / Matte White

The SATCO S11897 (catalog: 13WLED/DLR/6/FS/WR/RND/WH) is a 6 in round regressed wafer LED downlight retrofit from the SATCO PRO Series family. Delivering up to 1400 lm at 13W (up to 109 LPW) with field-selectable wattage (9W/11W/13W) and CCT (2700K/3000K/3500K/4000K/5000K). E26 medium adapter base — retrofits directly into existing 6 in recessed housings with no tools. Non-conductive dead-front trim. Regressed trim style. IC rated, airtight, and wet rated. Matte frosted polycarbonate lens. Phase-Cut dimmable down to 10% at 120V. Built-in 2KV surge protection. ENERGY STAR certified. California T24 JA8 Listed. Title 20 Listed. ETL Classified. 5-year warranty. L70: 50,000 hours. Replaces 85W incandescent.

Key Features

• Selectable Wattage: 9W (900 lm) / 11W (1200 lm) / 13W (1400 lm)
• Max Light Output: 1400 lm
• Efficacy: Up to 109 LPW
• Beam Angle: 110°
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 90
• Trim Style: Regressed | Non-conductive dead-front trim
• Compatible Housing: 6 in recessed

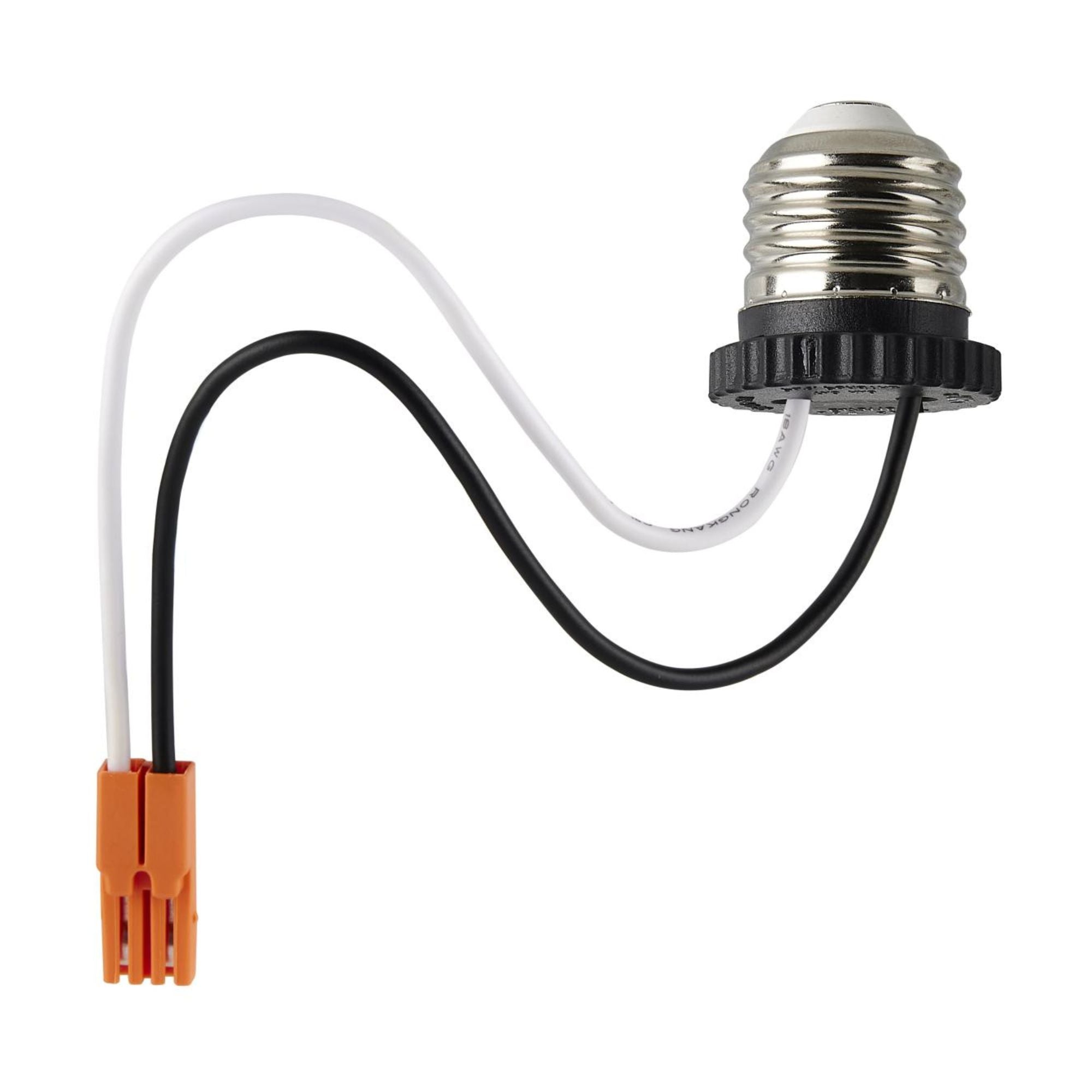

• Base: E26 medium adapter (screw-in)
• Finish: Matte white | Lens: Matte frosted polycarbonate
• Input Voltage: 120V only
• Dimming: Phase-Cut | Down to 10%
• Power Factor: >0.9 | THD: <20% | Surge Protection: 2KV
• IC Rating: Yes — IC rated for direct contact with ceiling insulation
• Air Tight: Yes
• Environment: Wet rated | Indoor | Op temp: -4°F to 104°F (-20°C to +40°C)
• Sloped Ceiling: Not compatible
• Replaces: 85W incandescent

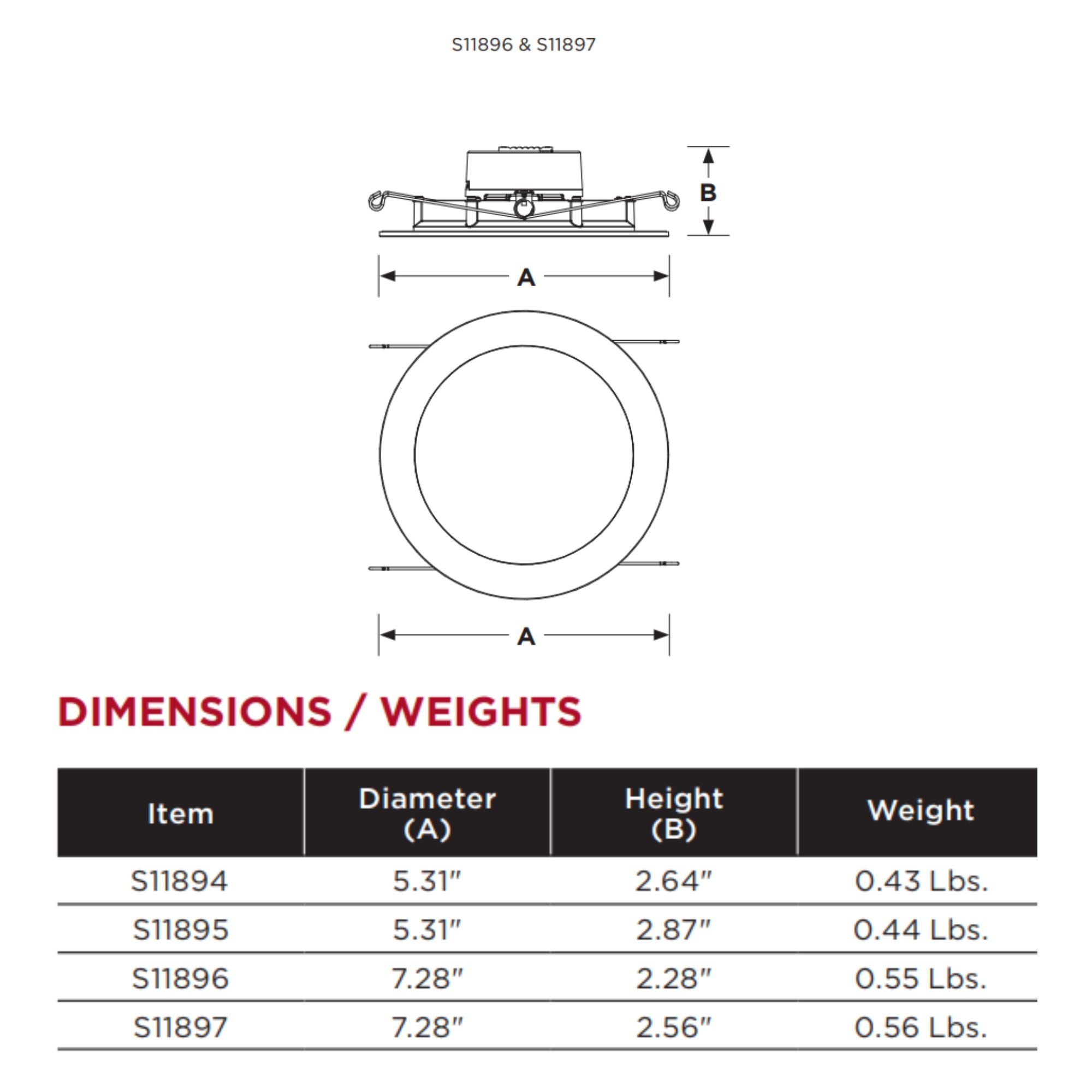

• Dimensions: 7.28 in diameter × 2.56 in height | Weight: 0.56 lbs
• Lifespan: 50,000 hours L70 | Warranty: 5-year
• Certifications: ENERGY STAR Certified | CA T24 JA8 Listed | Title 20 Listed | ETL Classified | ICES 005 | FCC | RoHS

Construction & Aesthetics

Size: 6 in round | Trim Style: Regressed | Finish: Matte white | Lens: Matte frosted polycarbonate | Dimensions: 7.28 in diameter × 2.56 in height. Non-conductive dead-front trim provides safety for shower and bathroom applications. For the flat trim version at 6 in, see SATCO S11896. For 4 in PRO Series versions, see SATCO S11894 (flat) and S11895 (regressed).

Light Output & Performance

The SATCO S11897 delivers up to 1400 lm at 13W (up to 109 LPW) with CRI 90 and a 110° beam angle. Wattage and lumen output are field-selectable: 9W (900 lm) / 11W (1200 lm) / 13W (1400 lm). CCT is independently selectable: 2700K–5000K. L70 lifespan is 50,000 hours.

Electrical & Installation

The SATCO S11897 operates at 120V only with Phase-Cut dimming down to 10%. PF >0.9; THD <20%; built-in 2KV surge protection. Screw the E26 adapter into the existing socket in any 6 in recessed housing — no tools, no rewiring. IC rated and airtight. Not compatible with sloped ceilings.

Compatible Accessories (Sold Separately)

• 6 in Regressed Wafer DLR Trim — Matte Black: SATCO 80-2906
• 6 in Regressed Wafer DLR Trim — Matte Bronze: SATCO 80-2907
• 6 in Recessed Can — New Construction: SATCO 80-988
• 6 in Recessed Can — Remodel: SATCO 80-989
• DLR Socket Whip for DL Cans: SATCO 80-868
• GU24 Socket Adapter: SATCO S8999
• GU10 Socket Adapter: SATCO S9000

Typical Applications

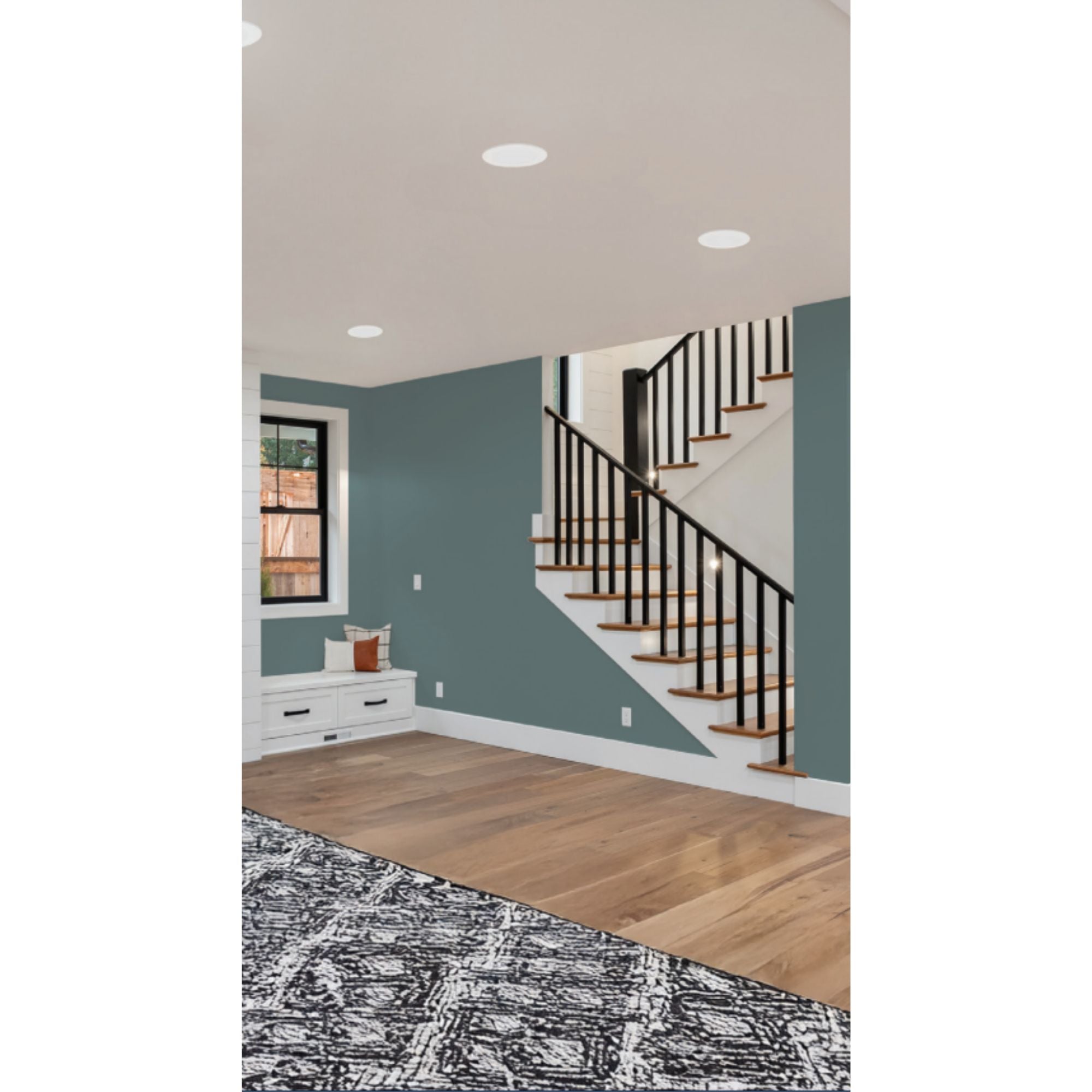

• Retrofit of existing 6 in recessed incandescent fixtures
• Residential bathrooms, kitchens, bedrooms, and hallways
• Multifamily common areas
• Hospitality guest rooms and corridors
• Any application previously using 85W incandescent in a 6 in recessed housing

What’s Included

• SATCO S11897 6 in round regressed wafer DLR PRO LED downlight retrofit (matte white)
• E26 medium adapter
