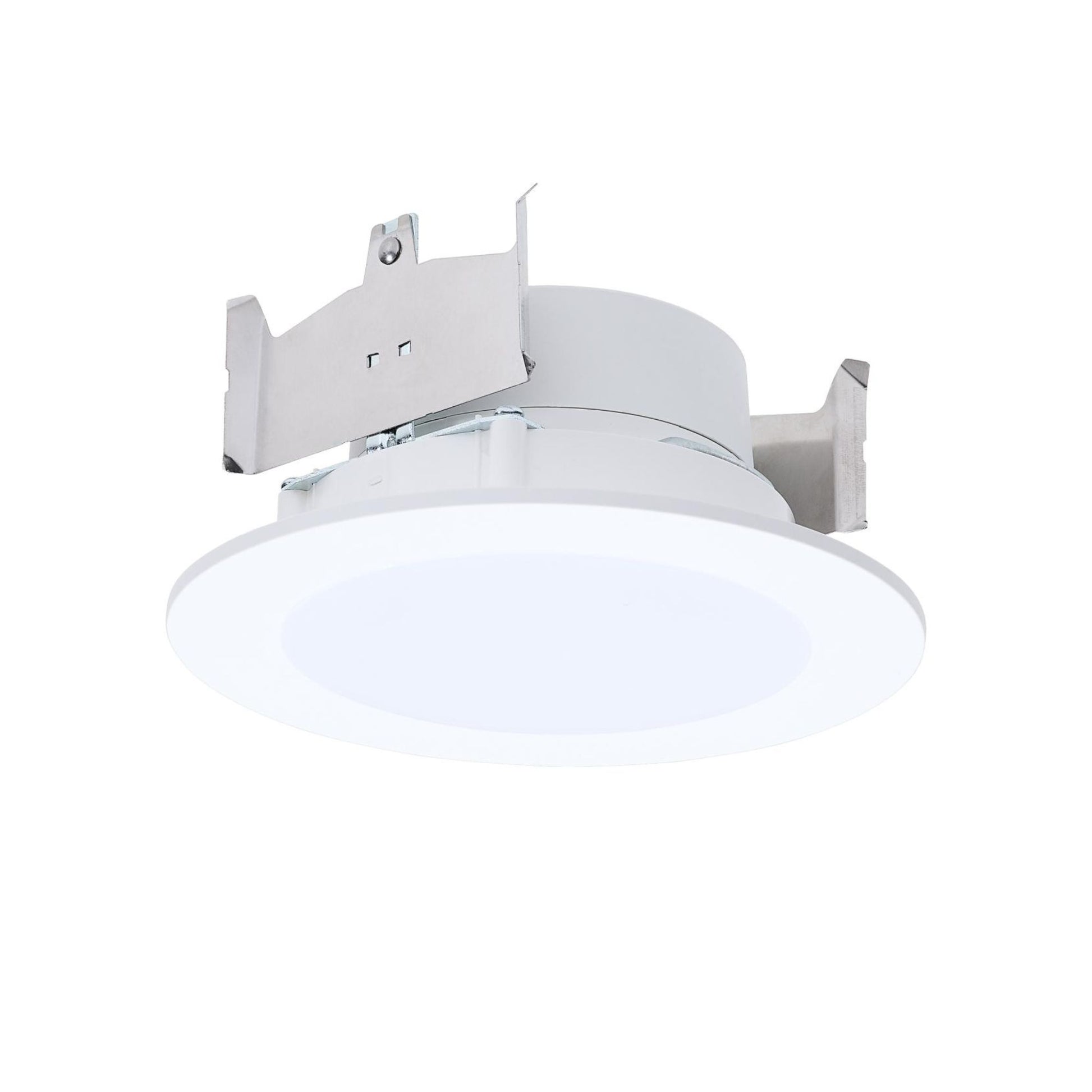

SATCO S11894 4 in Round Flat Wafer DLR PRO LED Downlight Retrofit — 6.5/8/9.3W Selectable / up to 900 lm / Selectable CCT / 120V / Matte White

The SATCO S11894 is a 4 in round flat wafer LED downlight retrofit from the SATCO PRO Series family. Delivering up to 900 lm at 9.3W (up to 96 LPW) with field-selectable wattage (6.5W/8W/9.3W) and CCT (2700K/3000K/3500K/4000K/5000K). E26 medium adapter base — retrofits directly into existing 4 in recessed housings with no tools. Flat trim style for a flush, contemporary ceiling appearance. Non-conductive dead-front trim. IC rated, airtight, and wet rated. Matte frosted polycarbonate lens. Phase-Cut dimmable down to 10% at 120V. Built-in 2KV surge protection. ENERGY STAR certified. California T24 JA8 Listed. Title 20 Listed. ETL Classified. 5-year warranty. L70: 50,000 hours. Replaces 65W incandescent.

Key Features

• Selectable Wattage: 6.5W (600 lm) / 8W (750 lm) / 9.3W (900 lm)
• Max Light Output: 900 lm
• Efficacy: Up to 96 LPW
• Beam Angle: 110°

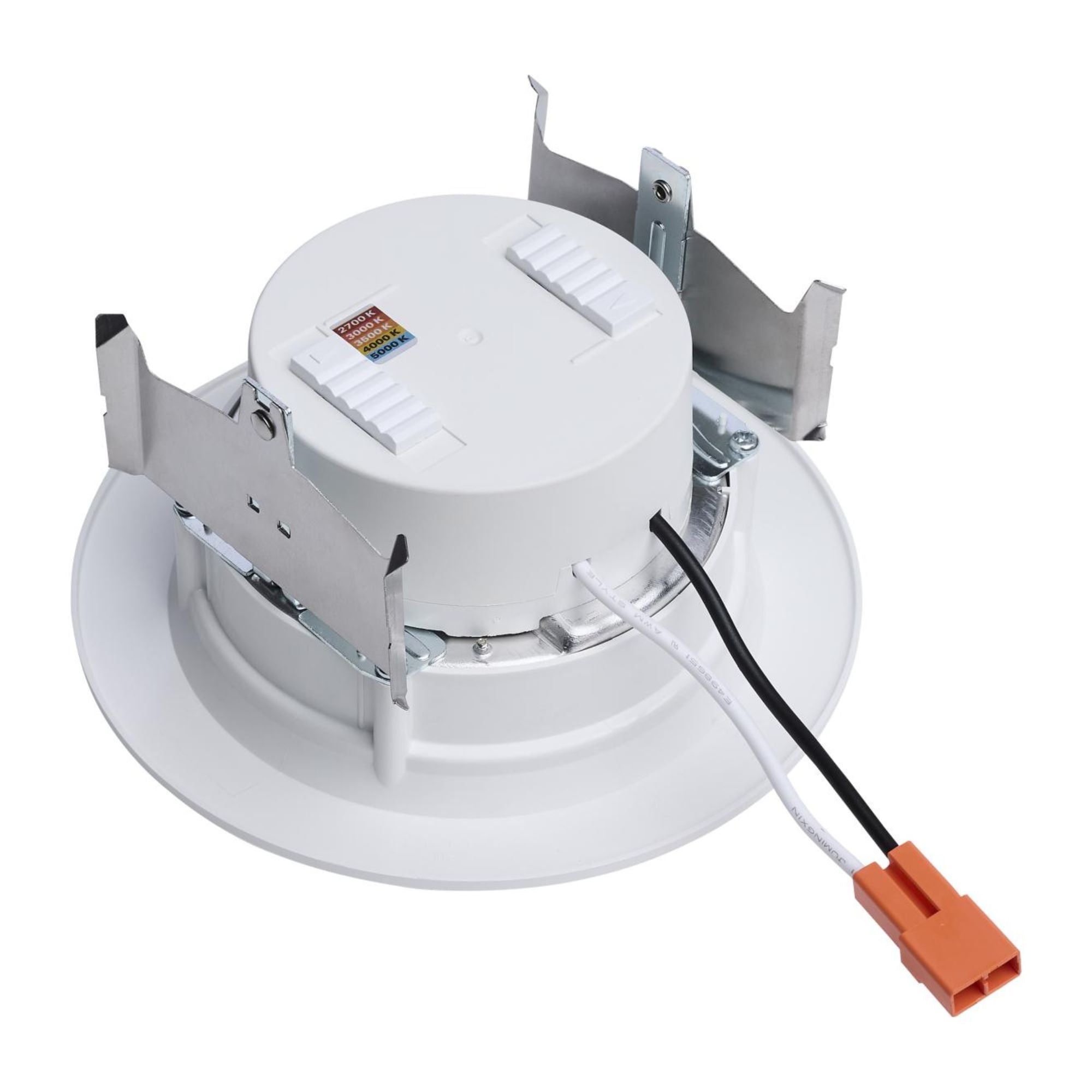

• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 90
• Trim Style: Flat | Non-conductive dead-front trim
• Compatible Housing: 4 in recessed

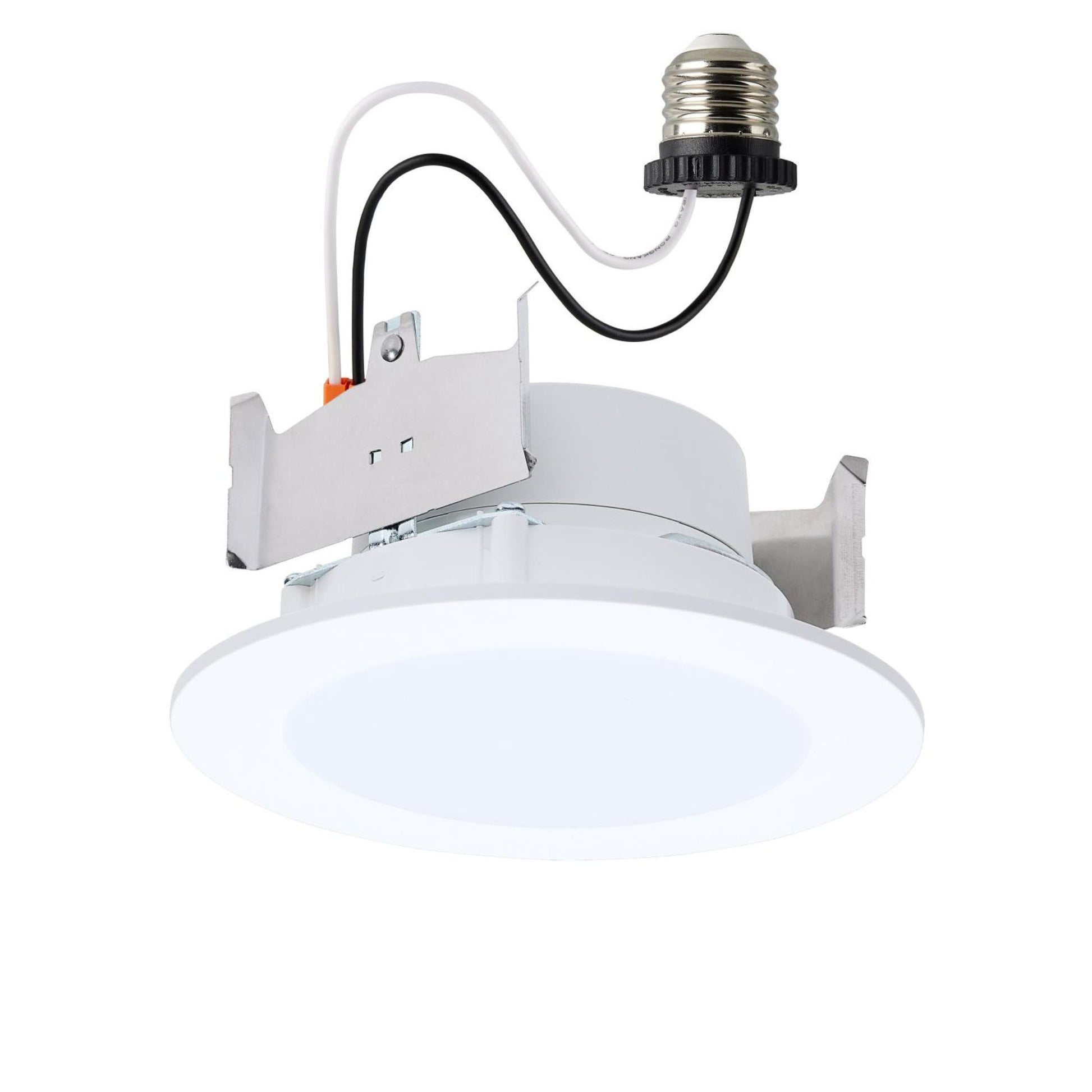

• Base: E26 medium adapter (screw-in)
• Finish: Matte white | Lens: Matte frosted polycarbonate
• Input Voltage: 120V only
• Dimming: Phase-Cut | Down to 10%
• Power Factor: >0.9 | THD: <20% | Surge Protection: 2KV
• IC Rating: Yes — IC rated for direct contact with ceiling insulation
• Air Tight: Yes
• Environment: Wet rated | Indoor | Op temp: -4°F to 104°F (-20°C to +40°C)
• Replaces: 65W incandescent
• Dimensions: 5.31 in diameter × 2.64 in height | Weight: 0.55 lbs
• Lifespan: 50,000 hours L70 | Warranty: 5-year
• Certifications: ENERGY STAR Certified | CA T24 JA8 Listed | Title 20 Listed | ETL Classified | ICES 005 | FCC | RoHS

Construction & Aesthetics

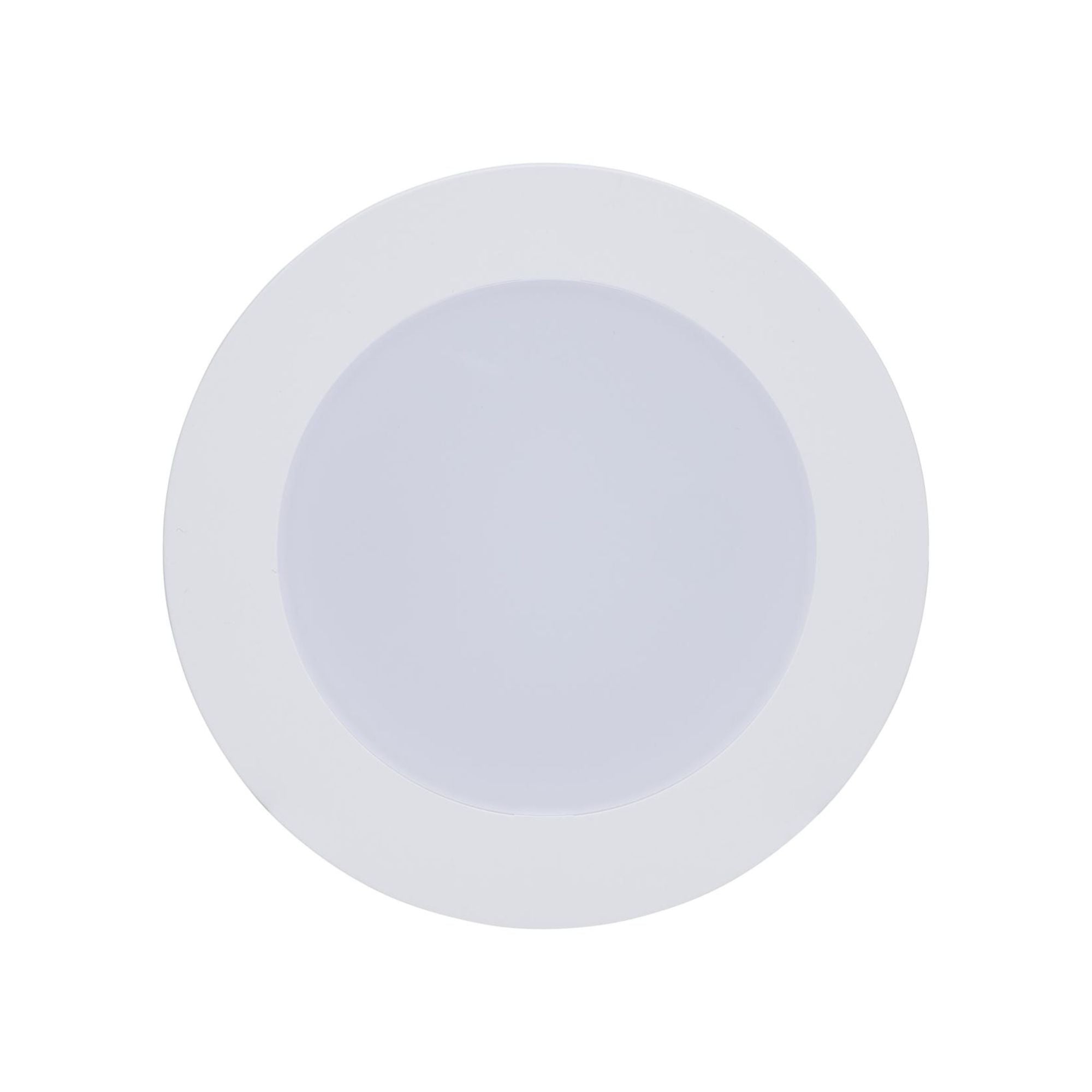

Size: 4 in round | Trim Style: Flat | Finish: Matte white | Lens: Matte frosted polycarbonate | Dimensions: 5.31 in diameter × 2.64 in height. Flat trim provides a flush, contemporary ceiling appearance. For the regressed trim version at 4 in, see SATCO S11895. For 6 in PRO Series versions, see SATCO S11896 (flat) and S11897 (regressed).

Light Output & Performance

The SATCO S11894 delivers up to 900 lm at 9.3W (up to 96 LPW) with CRI 90 and a 110° beam angle. Wattage and lumen output are field-selectable: 6.5W (600 lm) / 8W (750 lm) / 9.3W (900 lm). CCT independently selectable: 2700K–5000K. Default wattage setting is 8W. L70 lifespan is 50,000 hours.

Electrical & Installation

The SATCO S11894 operates at 120V only with Phase-Cut dimming down to 10%. PF >0.9; THD <20%; built-in 2KV surge protection. Screw the E26 adapter into the existing socket in any 4 in recessed housing — no tools, no rewiring. IC rated and airtight.

Compatible Accessories (Sold Separately)

• 4 in Flat Wafer DLR Trim — Matte Black: SATCO 80-2900
• 4 in Flat Wafer DLR Trim — Matte Bronze: SATCO 80-2901
• 4 in Recessed Can — New Construction: SATCO 80-980
• 4 in Recessed Can — Remodel: SATCO 80-981
• DLR Socket Whip for DL Cans: SATCO 80-868
• GU24 Socket Adapter: SATCO S8999
• GU10 Socket Adapter: SATCO S9000

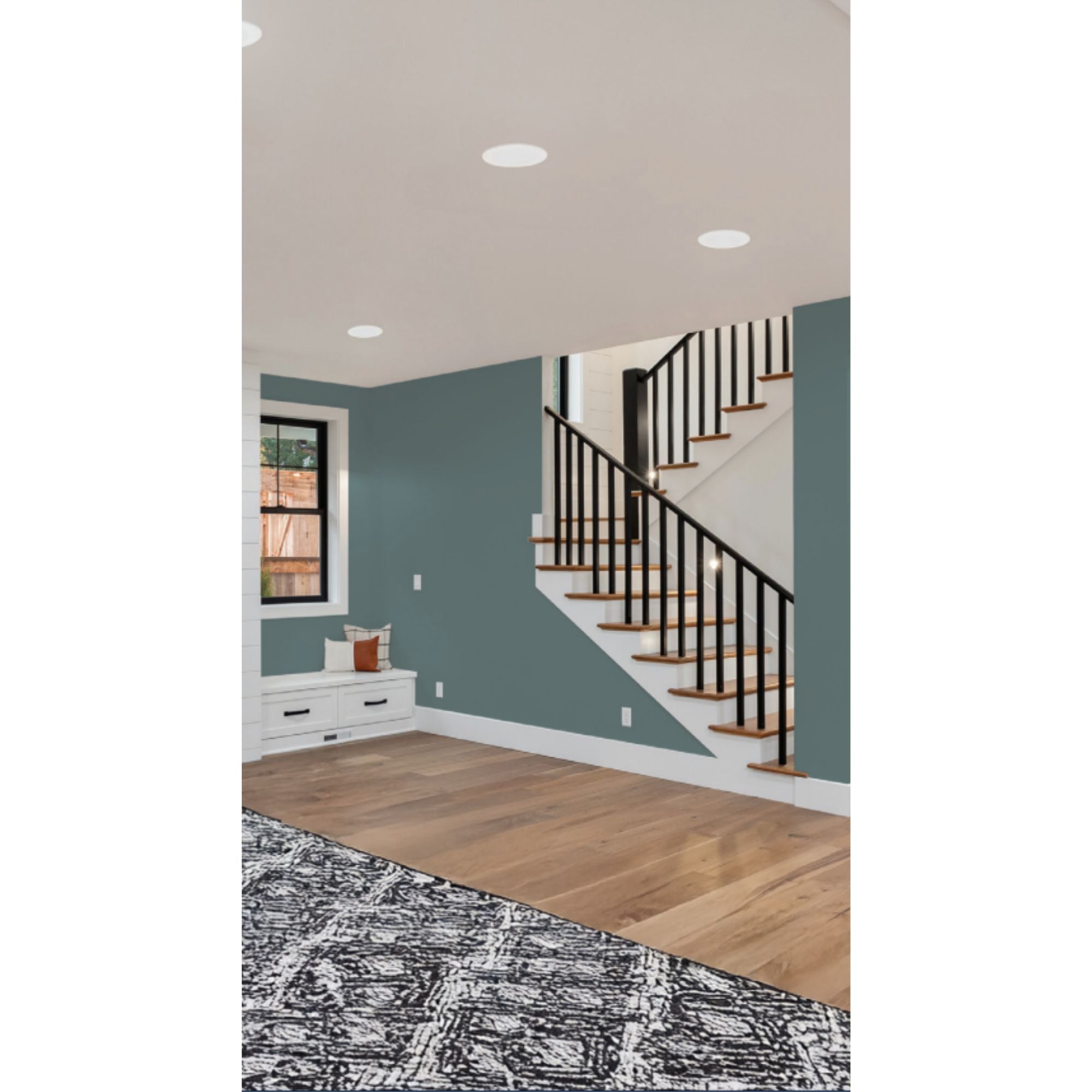

Typical Applications

• Retrofit of existing 4 in recessed incandescent fixtures
• Residential bathrooms, kitchens, bedrooms, and hallways
• Multifamily common areas
• Hospitality guest rooms and corridors
• Any application previously using 65W incandescent in a 4 in recessed housing

What’s Included

• SATCO S11894 4 in round flat wafer DLR PRO LED downlight retrofit (matte white)

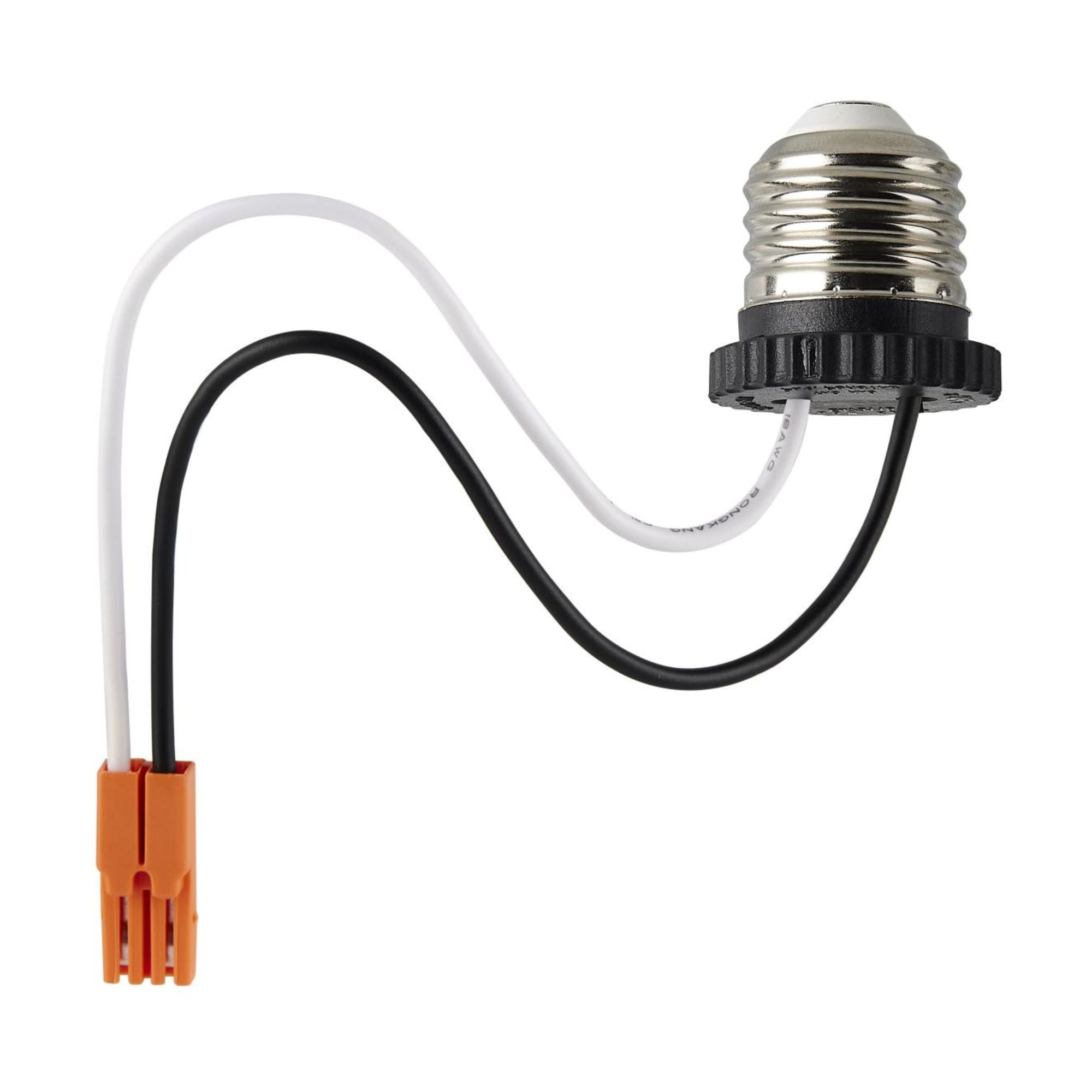

• E26 medium adapter
