SATCO S11890 4 in Round Flat Wafer LED Downlight Retrofit 8W Selectable CCT 120V White
Available in stock (4072)
About this item
About this item
- 4 in Round Flat Wafer DLR Retrofit — Matte White / IC Rated / Air Tight: E26 screw-in adapter retrofits into existing 4 in recessed housings; IC rated; airtight; wet rated; flat trim style; matte frosted polycarbonate lens; not for sloped ceilings
- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K; CRI 90+; 110° beam angle; uniform glare-free illumination
- 8W / 700 lm / up to 87 LPW: L70: 50,000 hrs; replaces 50W incandescent; built-in 2KV surge protection; THD <20%; PF >0.9
- Phase-Cut Dimmable: 120V only | Op temp: -4°F to 104°F (-20°C to +40°C)
- ENERGY STAR / Title 20 / T24 JA8: cETLus Classified; FCC; RoHS; 5-year warranty
Description
Description

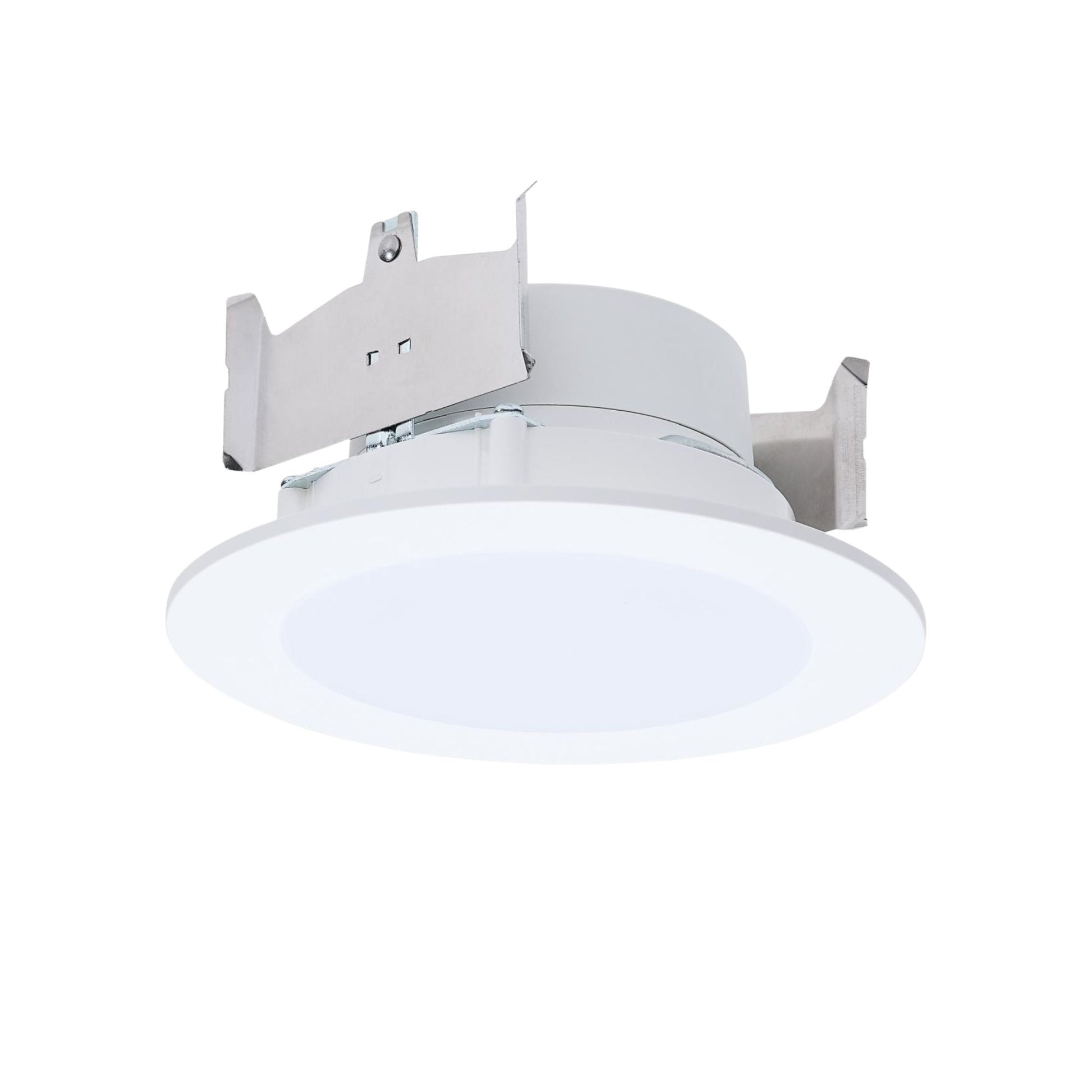

SATCO S11890 4 in Round Flat Wafer DLR LED Downlight Retrofit — 8W / 700 lm / Selectable CCT / 120V / Matte White
The SATCO S11890 is a 4 in round flat wafer LED downlight retrofit from the SATCO Wafer DLR family. Delivering 700 lm at 8W (up to 87 LPW) with field-selectable CCT (2700K/3000K/3500K/4000K/5000K) and a 110° beam angle. E26 medium adapter base — retrofits directly into existing 4 in recessed housings with no tools. Flat trim style for a flush, contemporary ceiling appearance. IC rated, airtight, and wet rated. Matte frosted polycarbonate lens with matte white finish. Phase-Cut dimmable at 120V. Built-in 2KV surge protection. ENERGY STAR certified. California T24 JA8 Listed. Title 20 Listed. cETLus Classified. 5-year warranty. L70: 50,000 hours. Replaces 50W incandescent.
Key Features
- Wattage: 8W
- Light Output: 700 lm
- Efficacy: Up to 87 LPW
- Beam Angle: 110°
- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Trim Style: Flat
- Compatible Housing: 4 in recessed (can size 4 in)
- Base: E26 medium adapter (screw-in)
- Finish: Matte white | Lens: Matte frosted polycarbonate
- Input Voltage: 120V only
- Dimming: Phase-Cut
- Power Factor: >0.9 | THD: <20% | Surge Protection: 2KV
- IC Rating: Yes — IC rated for direct contact with ceiling insulation
- Air Tight: Yes
- Environment: Wet rated | Indoor | Op temp: -4°F to 104°F (-20°C to +40°C)
- Sloped Ceiling: Not compatible
- Replaces: 50W incandescent

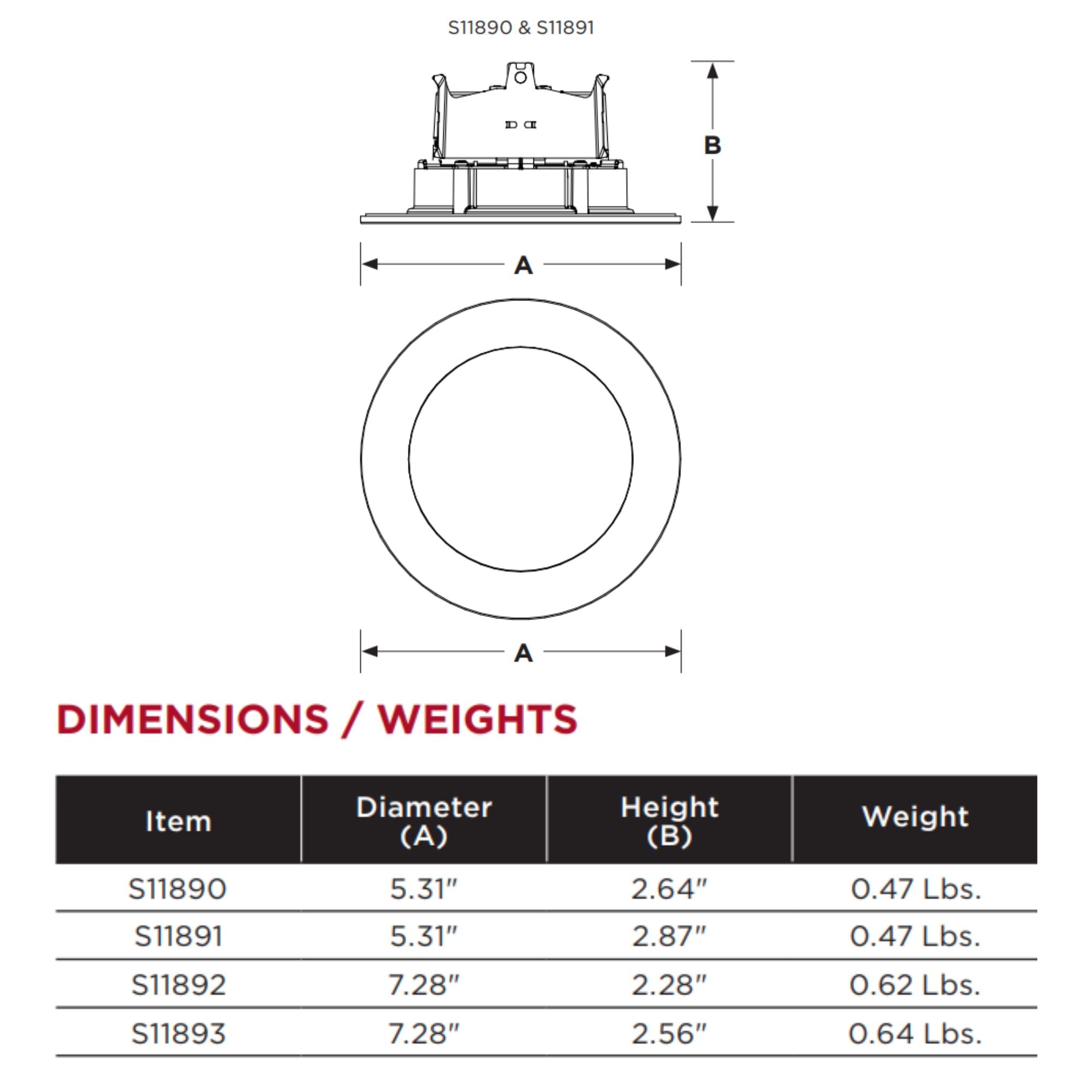

- Dimensions: 5.31 in diameter × 2.64 in height
- Lifespan: 50,000 hours L70 | Warranty: 5-year
- Certifications: ENERGY STAR Certified | CA T24 JA8 Listed | Title 20 Listed | cETLus Classified | FCC | RoHS
Construction & Aesthetics
Size: 4 in round | Trim Style: Flat | Finish: Matte white | Lens: Matte frosted polycarbonate | Dimensions: 5.31 in diameter × 2.64 in height. Flat trim provides a flush, contemporary ceiling appearance. For the regressed trim version at 4 in, see SATCO S11891. For 6 in versions, see SATCO S11892 (flat) and S11893 (regressed).
Light Output & Performance
The SATCO S11890 delivers 700 lm at 8W (up to 87 LPW) with CRI 90+ and a 110° beam angle for uniform, glare-free illumination. Field-selectable CCT allows a single SKU to serve multiple applications from warm white (2700K) to natural light (5000K). L70 lifespan is 50,000 hours.
Electrical & Installation
The SATCO S11890 operates at 120V only with Phase-Cut dimming. PF >0.9; THD <20%; built-in 2KV surge protection. Screw the E26 adapter into the existing socket in any 4 in recessed housing — no tools, no rewiring. IC rated and airtight. Not compatible with sloped ceilings.
Compatible Accessories (Sold Separately)
- 4 in Flat Wafer DLR Trim — Matte Black: SATCO 80-2900
- 4 in Flat Wafer DLR Trim — Matte Bronze: SATCO 80-2901
- 4 in Recessed Can — New Construction: SATCO 80-980
- 4 in Recessed Can — Remodel: SATCO 80-981
- DLR Socket Whip for DL Cans: SATCO 80-868
- GU24 Socket Adapter: SATCO S8999
- GU10 Socket Adapter: SATCO S9000

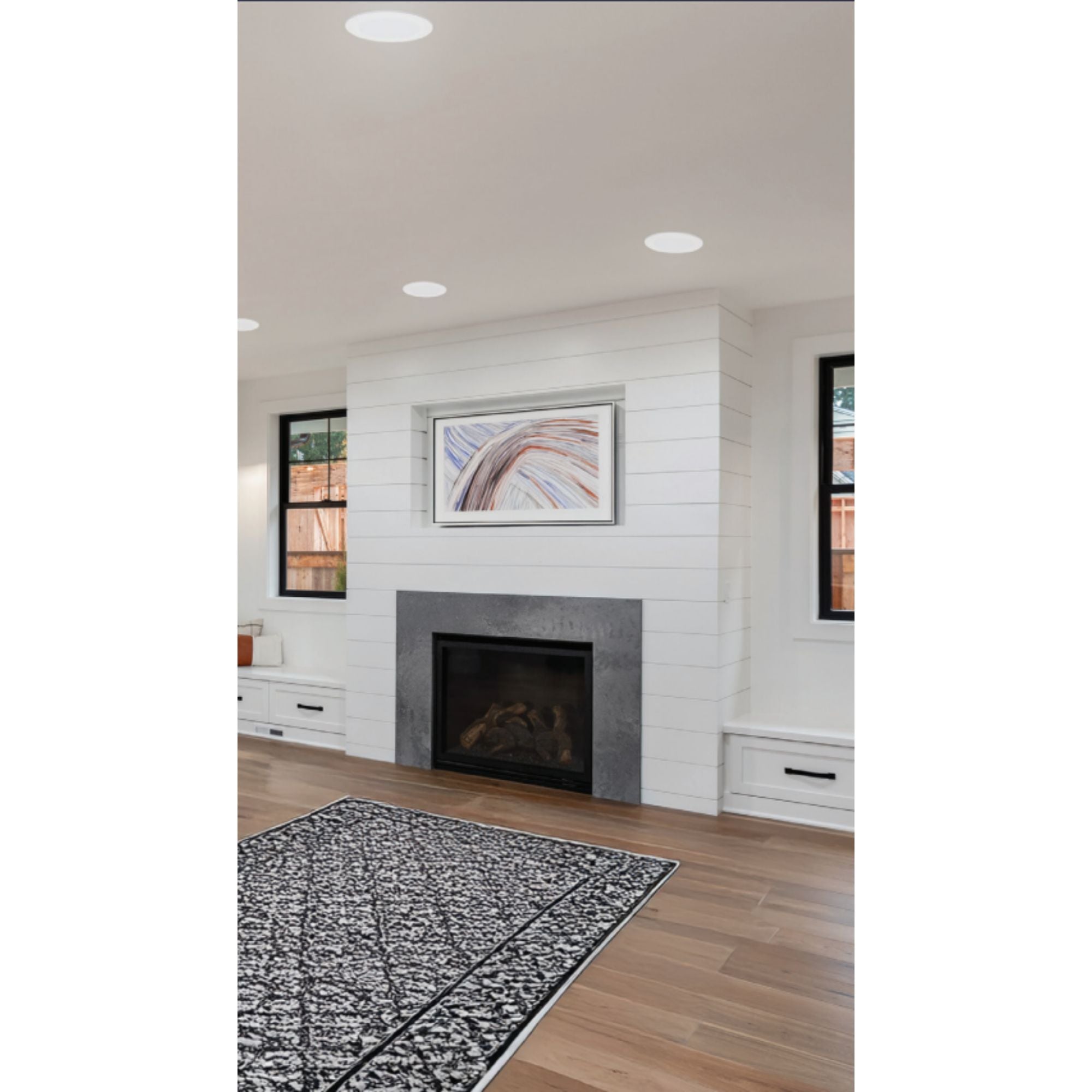

Typical Applications
- Retrofit of existing 4 in recessed incandescent fixtures
- Residential bedrooms, living rooms, kitchens, and bathrooms
- Hospitality guest rooms and corridors
- Closets and wet locations
- Any application previously using 50W incandescent in a 4 in recessed housing
What’s Included
- SATCO S11890 4 in round flat wafer DLR LED downlight retrofit (matte white)

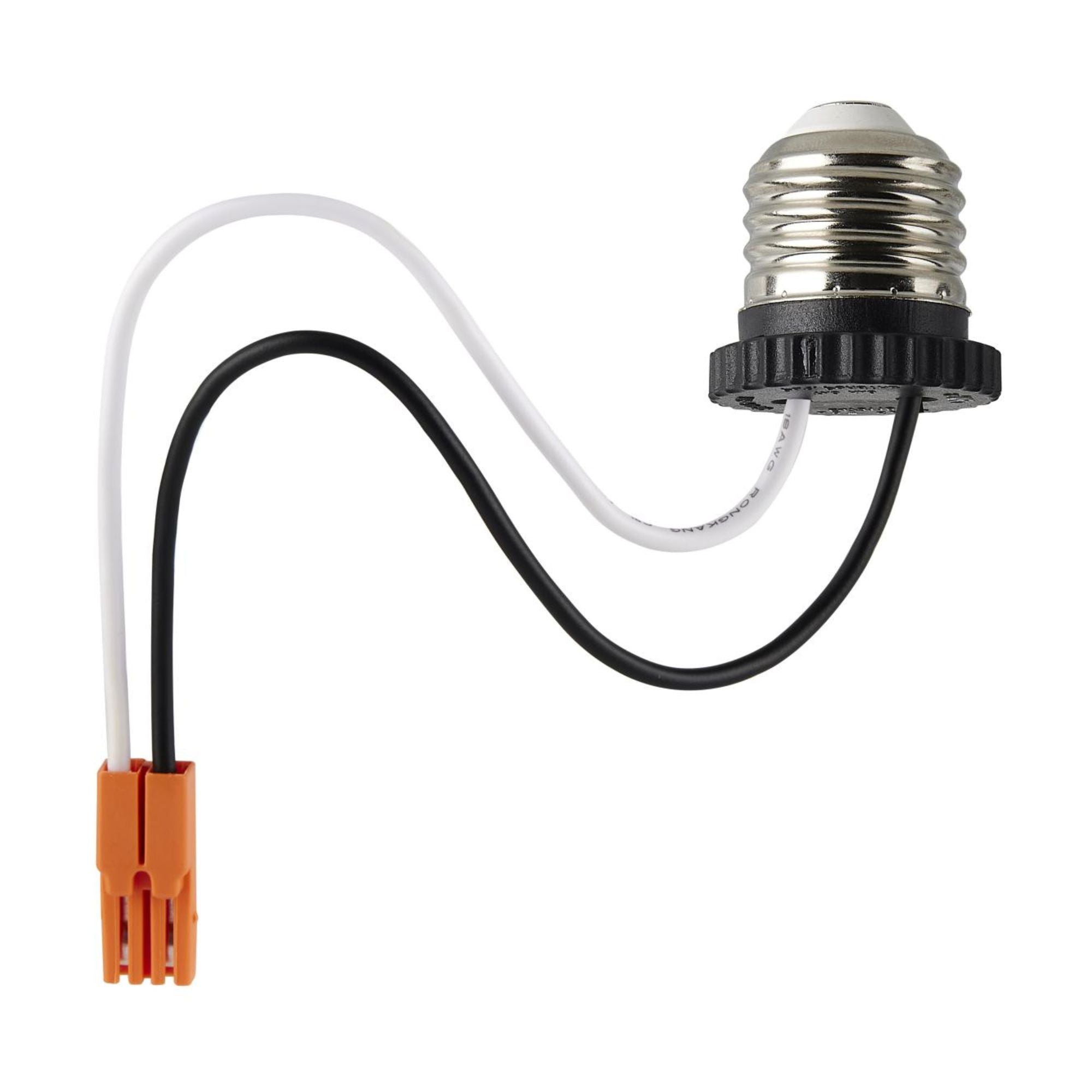

- E26 medium adapter
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Frequently Asked Questions
What locations is the SATCO S11890 rated for?
What locations is the SATCO S11890 rated for?
What dimming method does the SATCO S11890 support?
What dimming method does the SATCO S11890 support?
Is the SATCO S11890 Title 24 JA8 compliant?
Is the SATCO S11890 Title 24 JA8 compliant?
What is the difference between the SATCO S11890 and S11891?
What is the difference between the SATCO S11890 and S11891?
What does the SATCO S11890 replace and what accessories are available?
What does the SATCO S11890 replace and what accessories are available?
