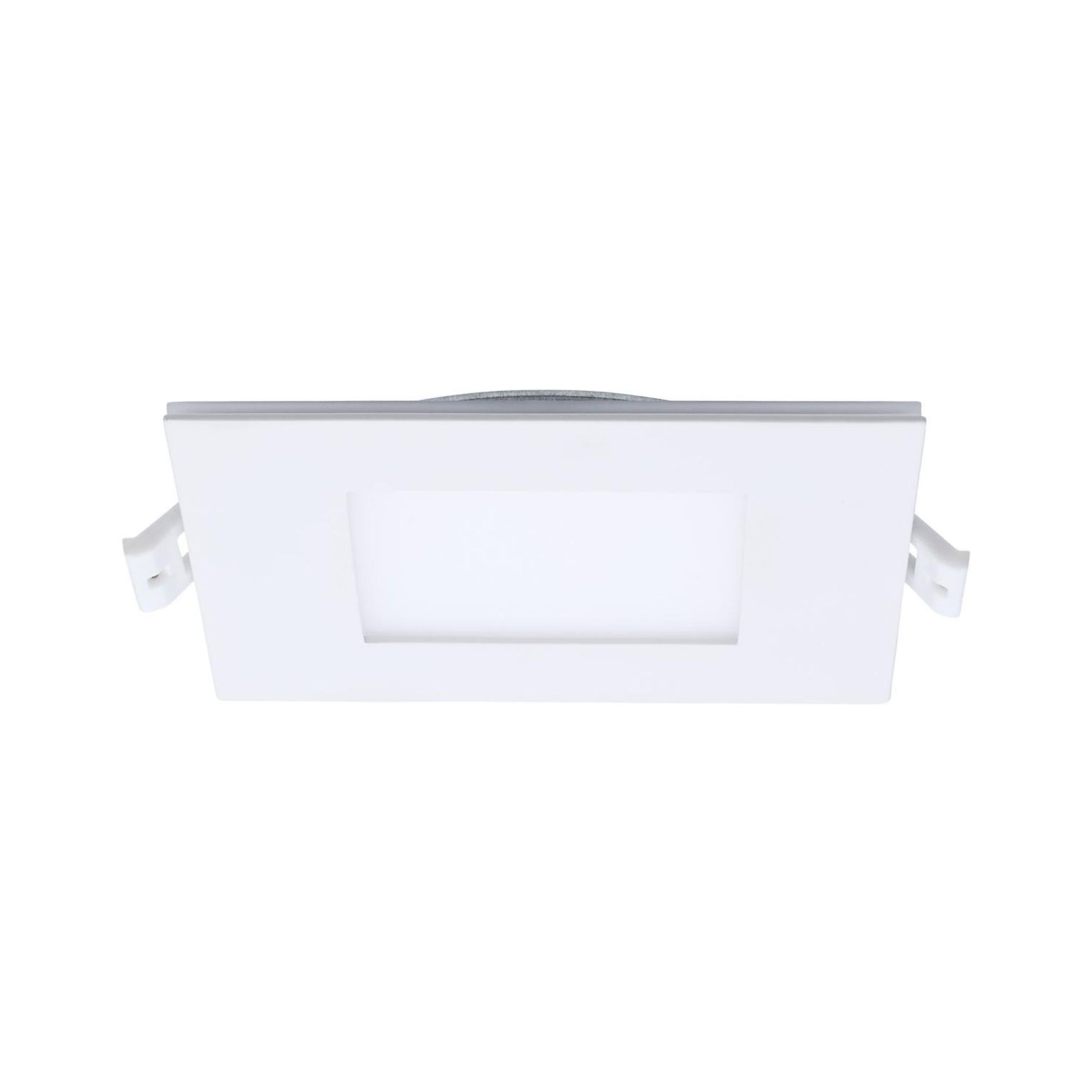

SATCO S11888 4 in Square LED Downlight with Night Light ColorQuick 5-CCT 9W 120V White
Available in stock (365)
About this item
About this item
- ColorQuick 5-CCT Selectable — 4 in Square LED Downlight with Integrated Night Light: 3W / 50 lm night light mode via switch on-off-on at wall plate; remote driver with convenient mounting; aluminum and steel construction; acrylic frosted lens; white finish
- IC Rated and Airtight: AT rated (airtight); wet rated and suitable for bathrooms; mounting diameter 4.25 in; mounting height 1.97 in; sloped ceiling not compatible
- 760 lm at 9W / up to 84 LPW: CRI 90+; 107° beam angle; replaces 65W incandescent; L70: 50,000 hrs; 2KV surge protection; PF >0.9; THD <30%
- Phase-Cut Dimmable to 20% — 120V Only: CCT adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 50/60Hz; op temp: -4°F to +113°F (-20°C to +45°C)
- ENERGY STAR / California T24 JA8 Listed / cETLus Listed: FCC; RoHS; 5-year warranty
Description
Description

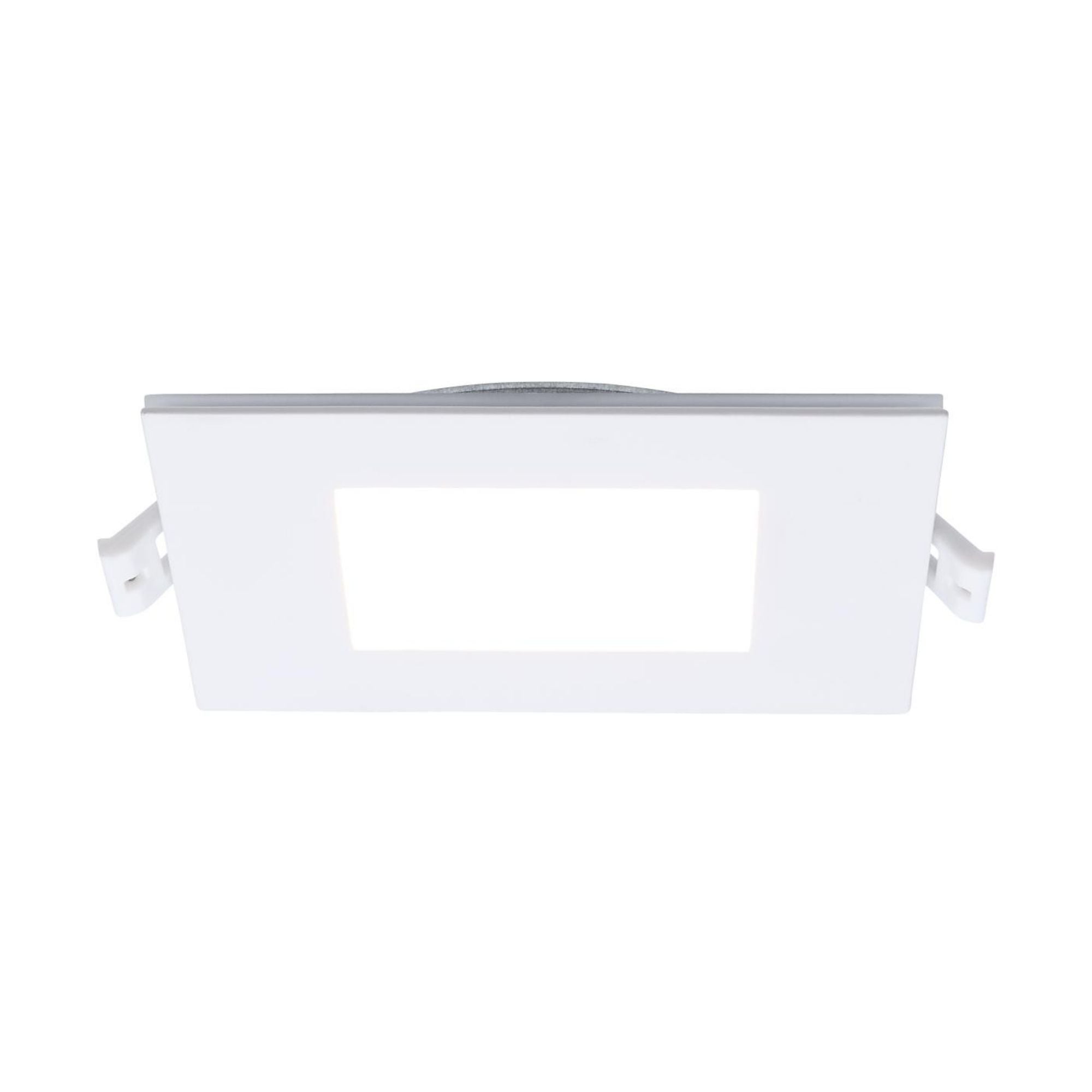

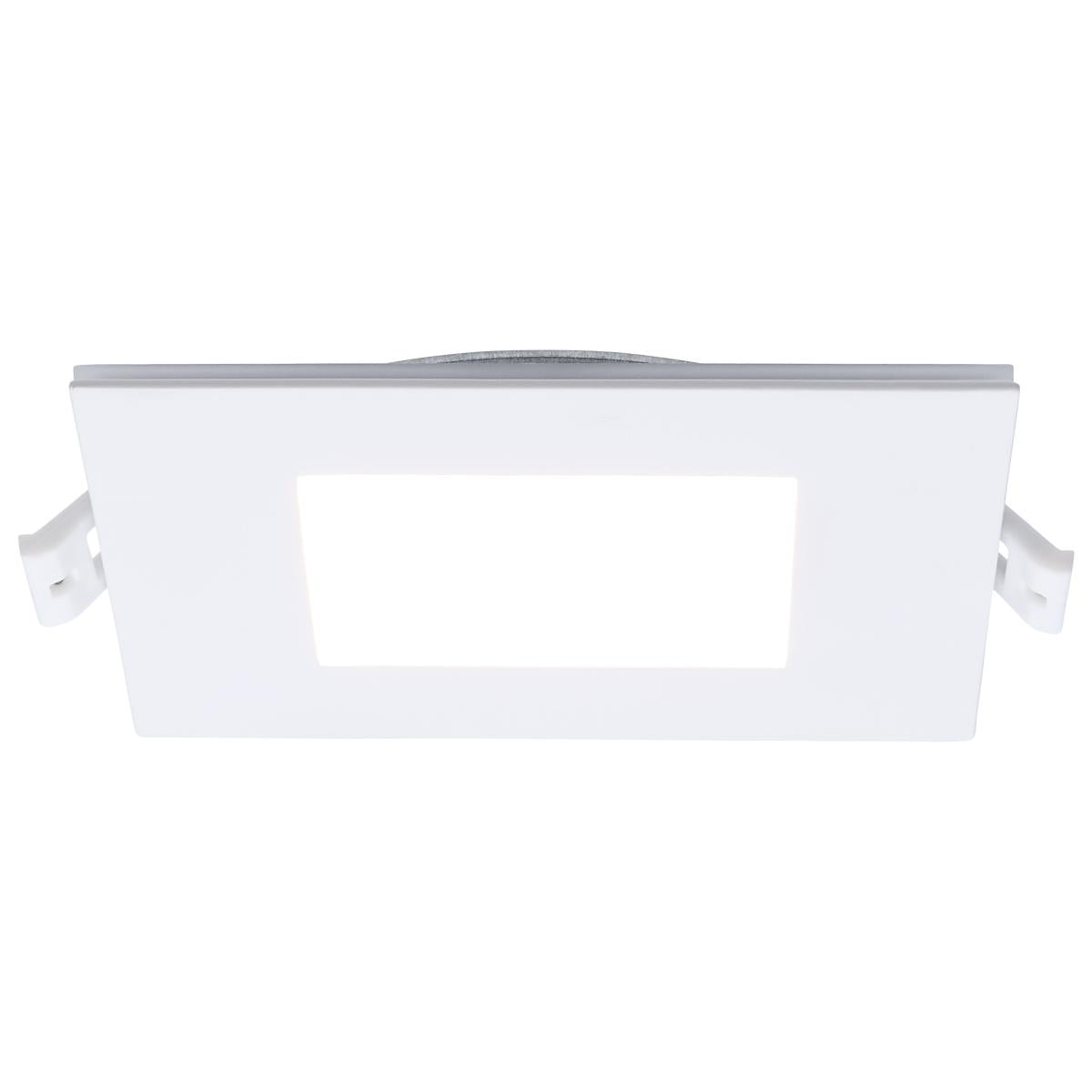

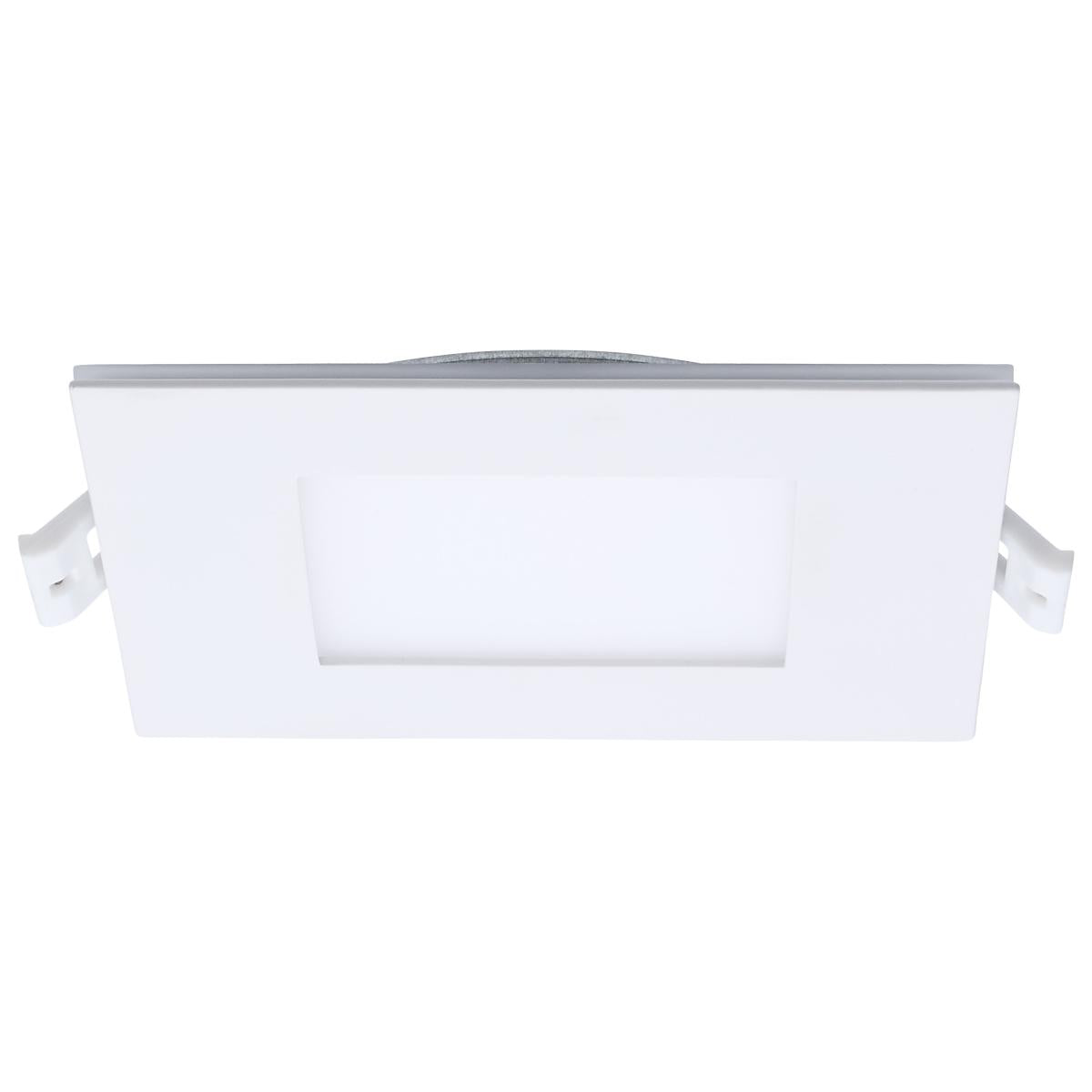

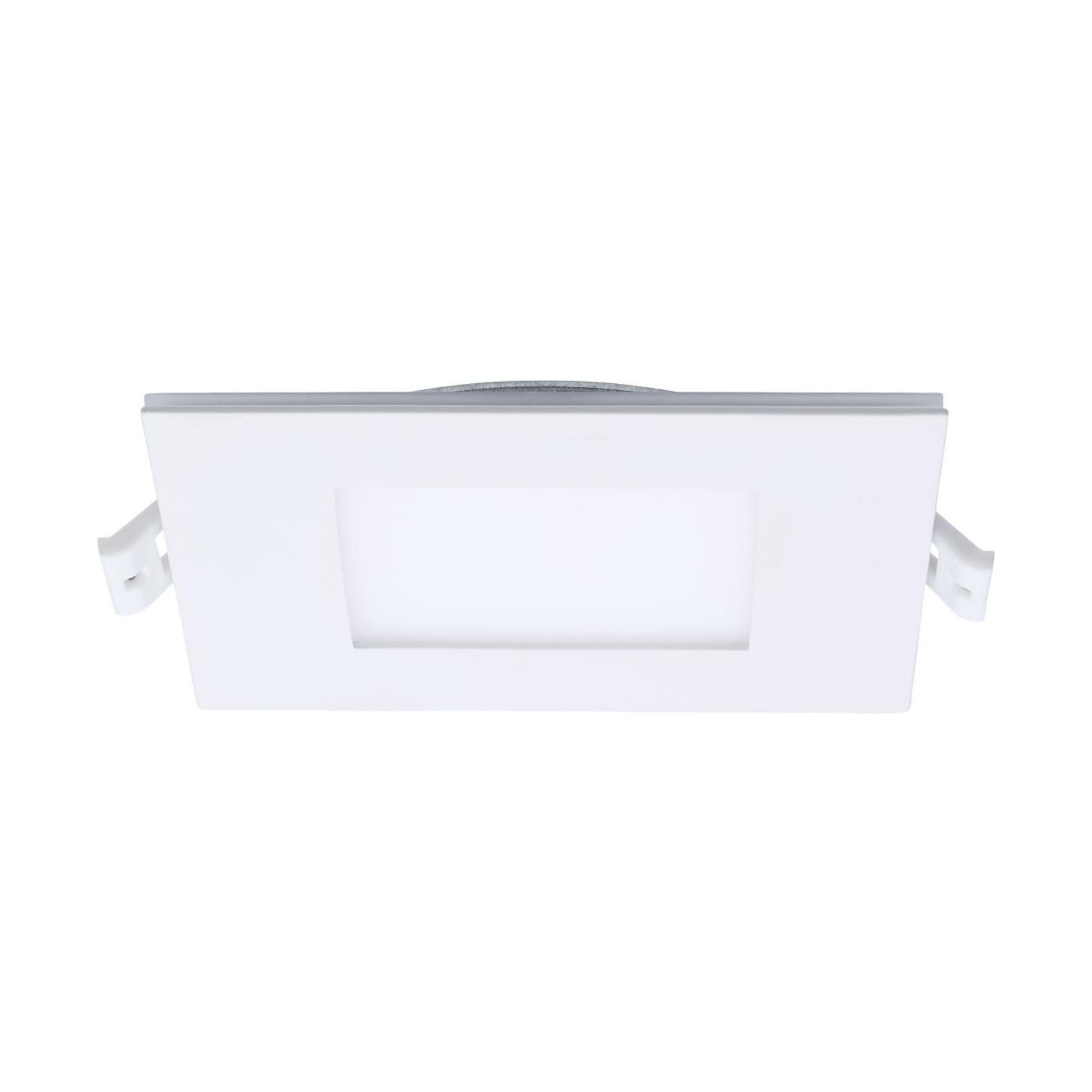

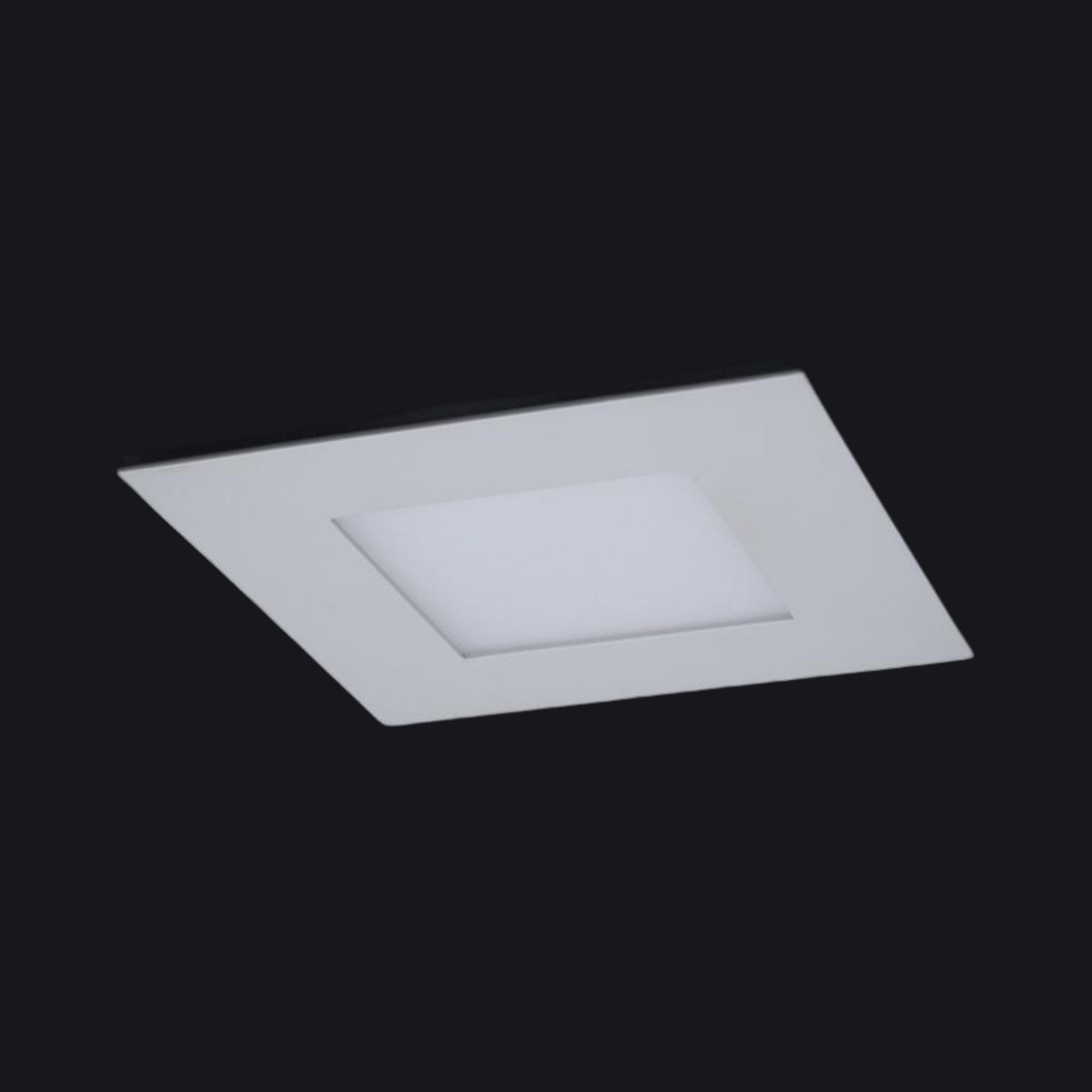

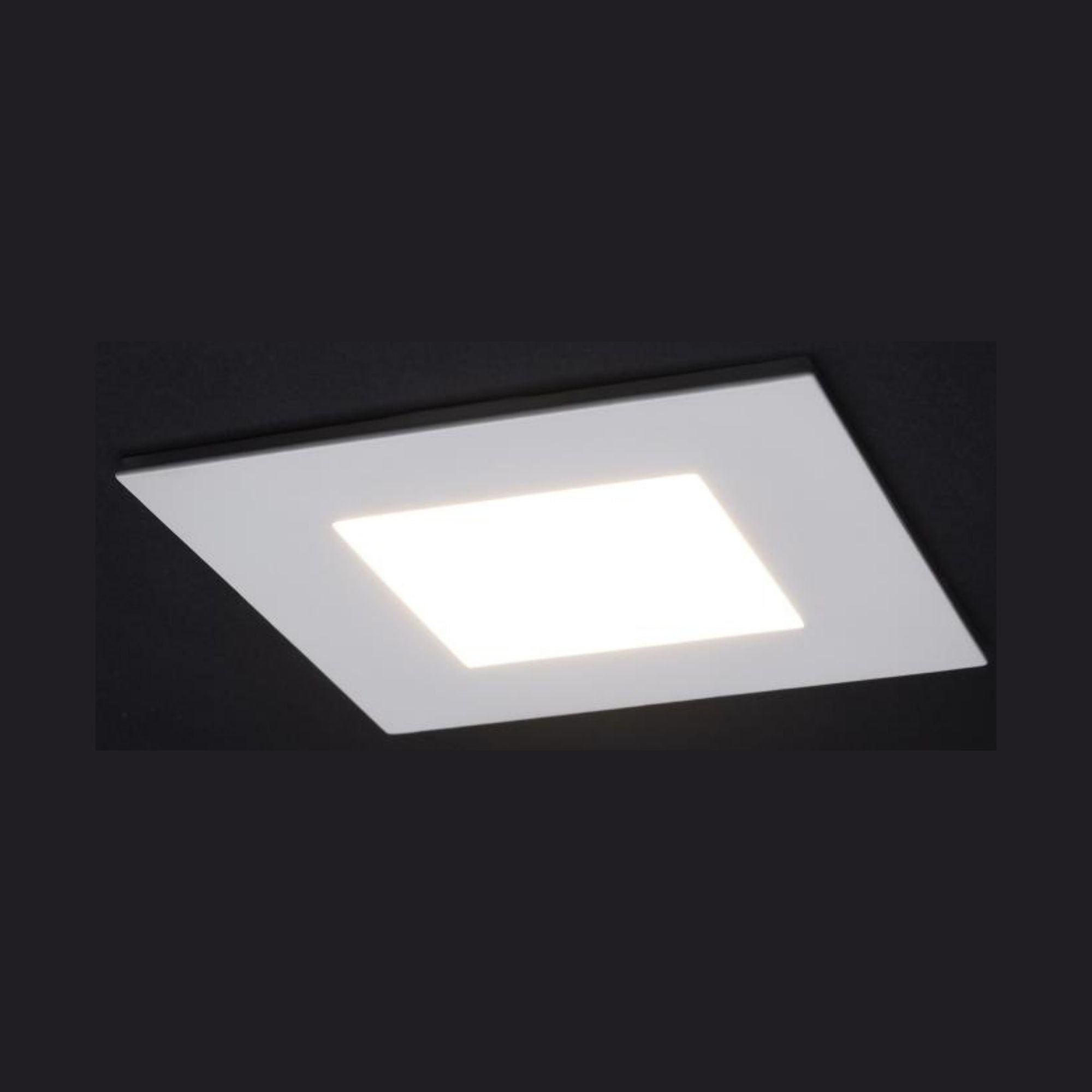

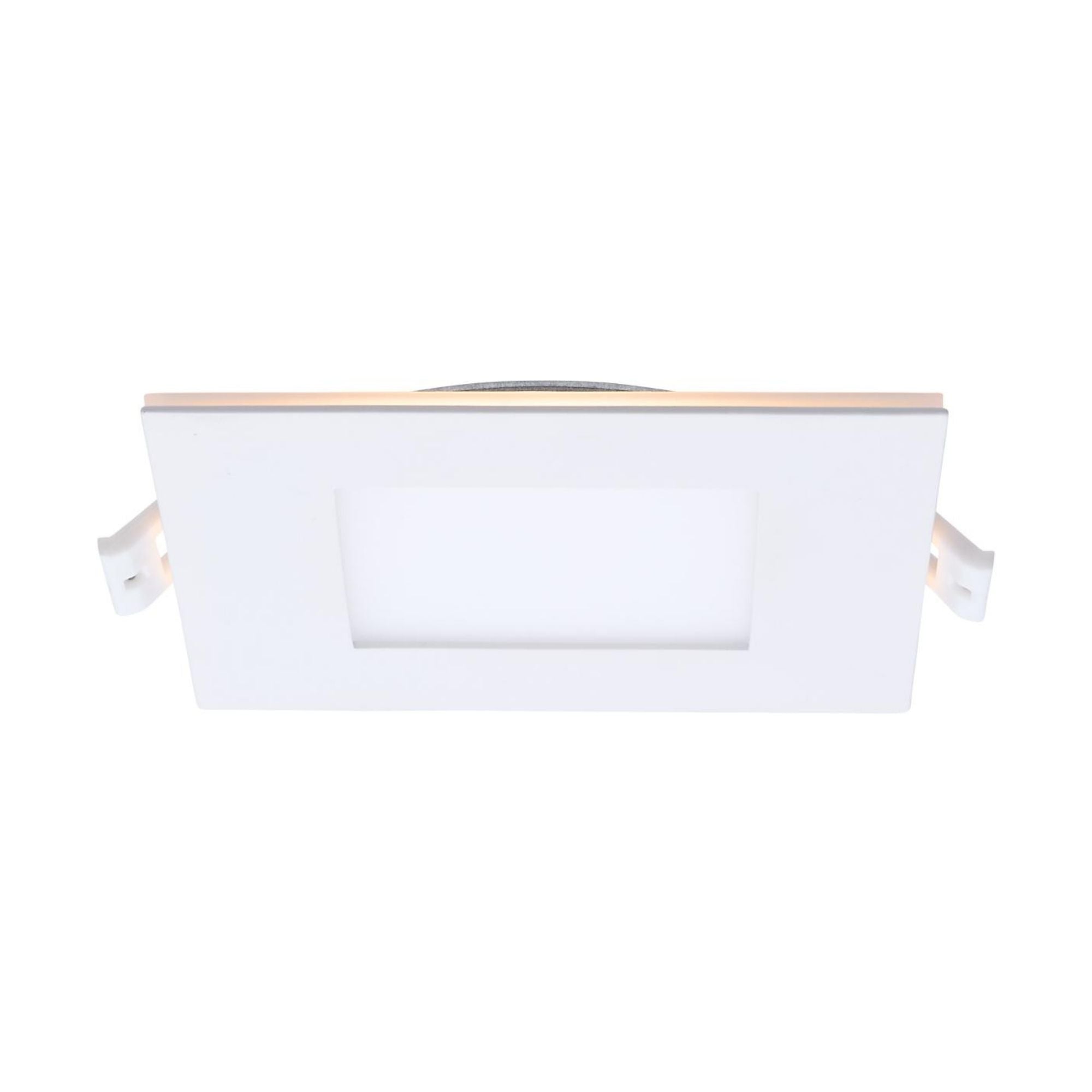

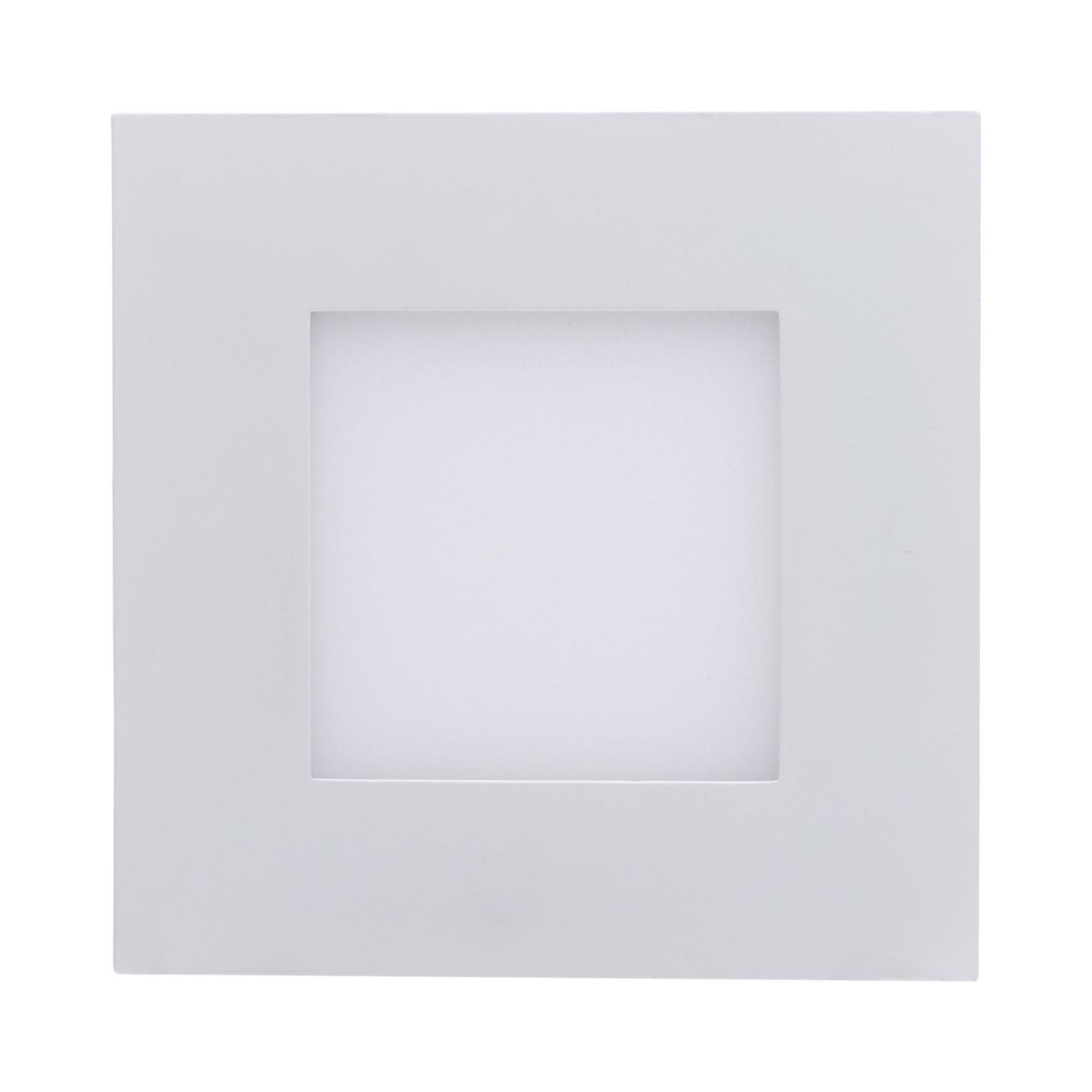

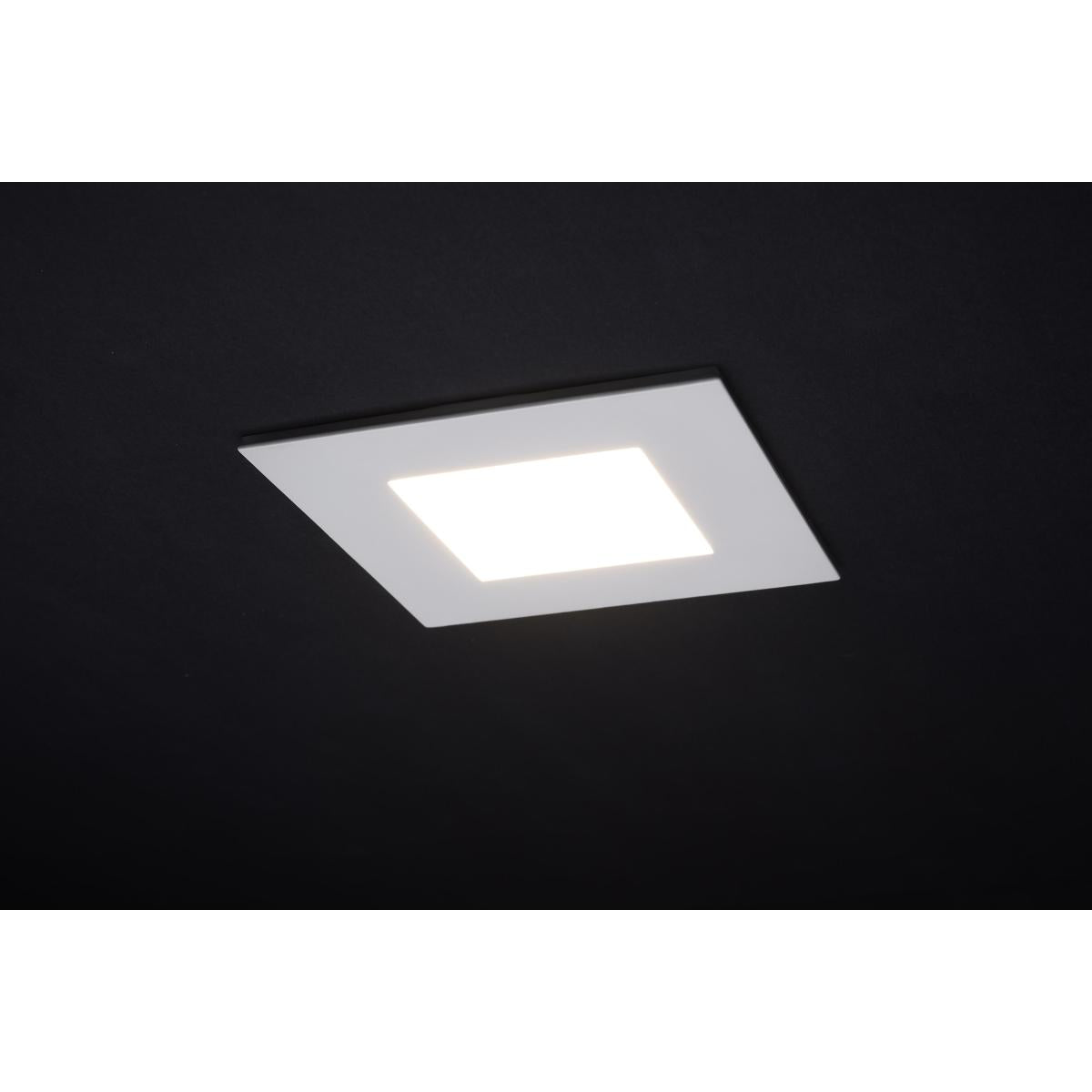

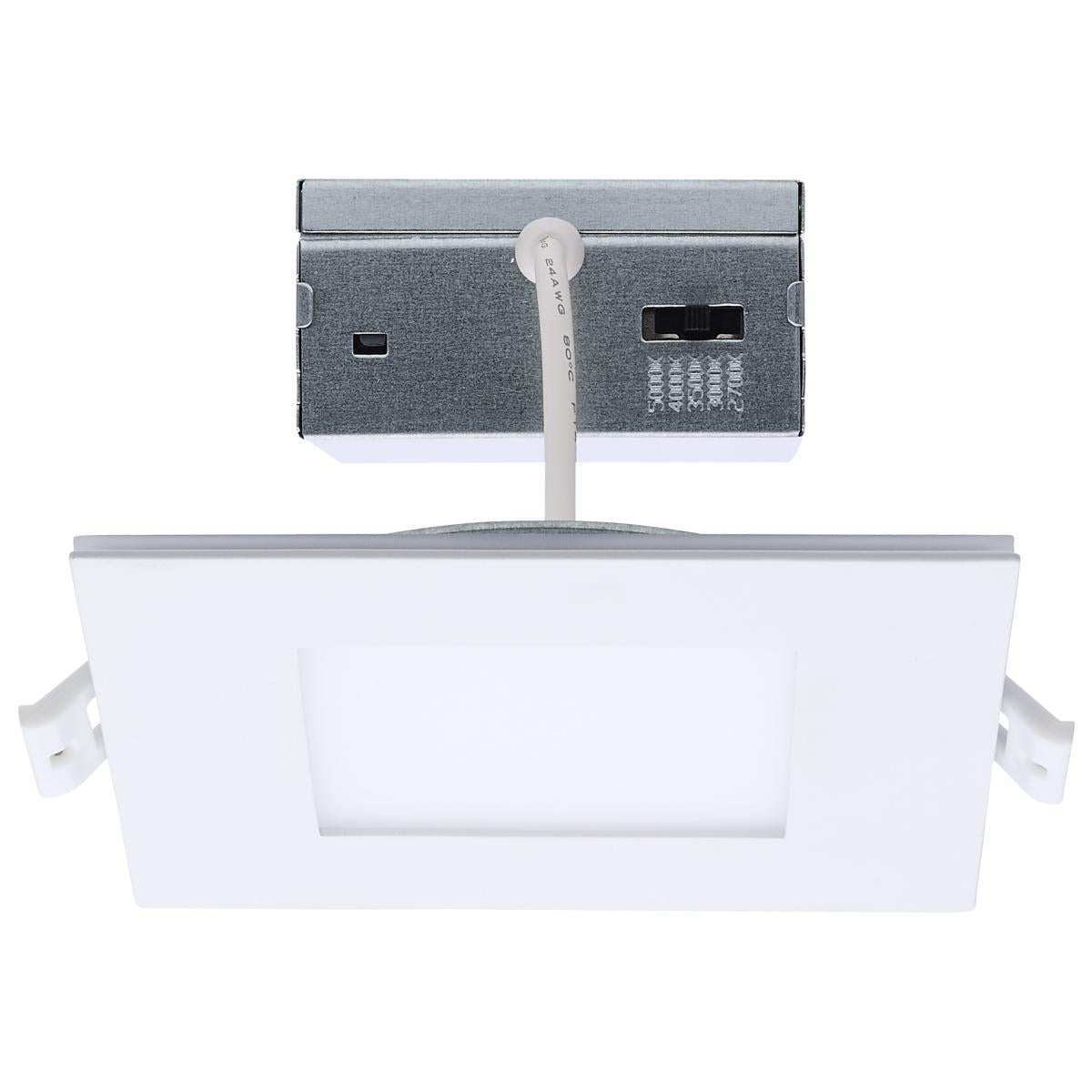

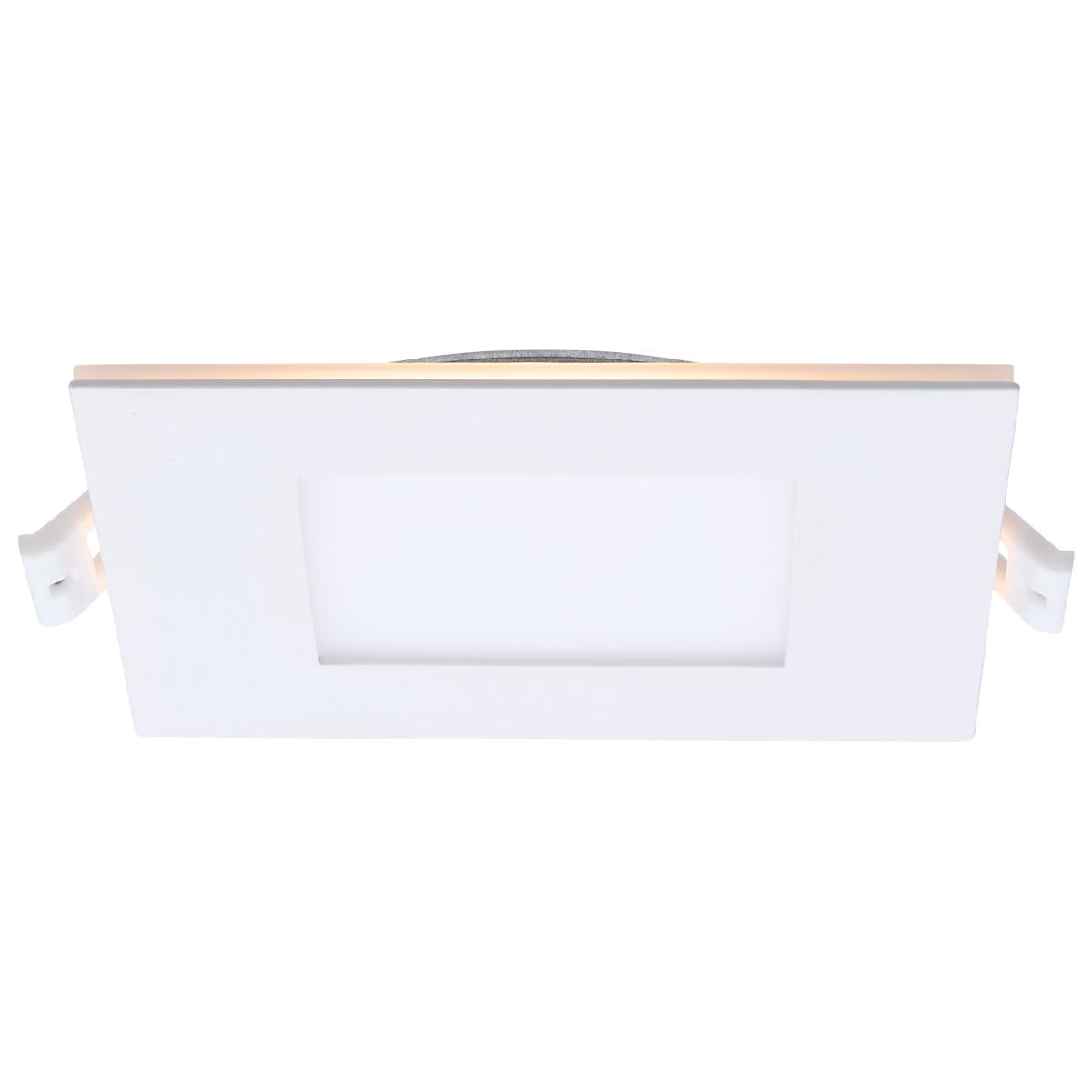

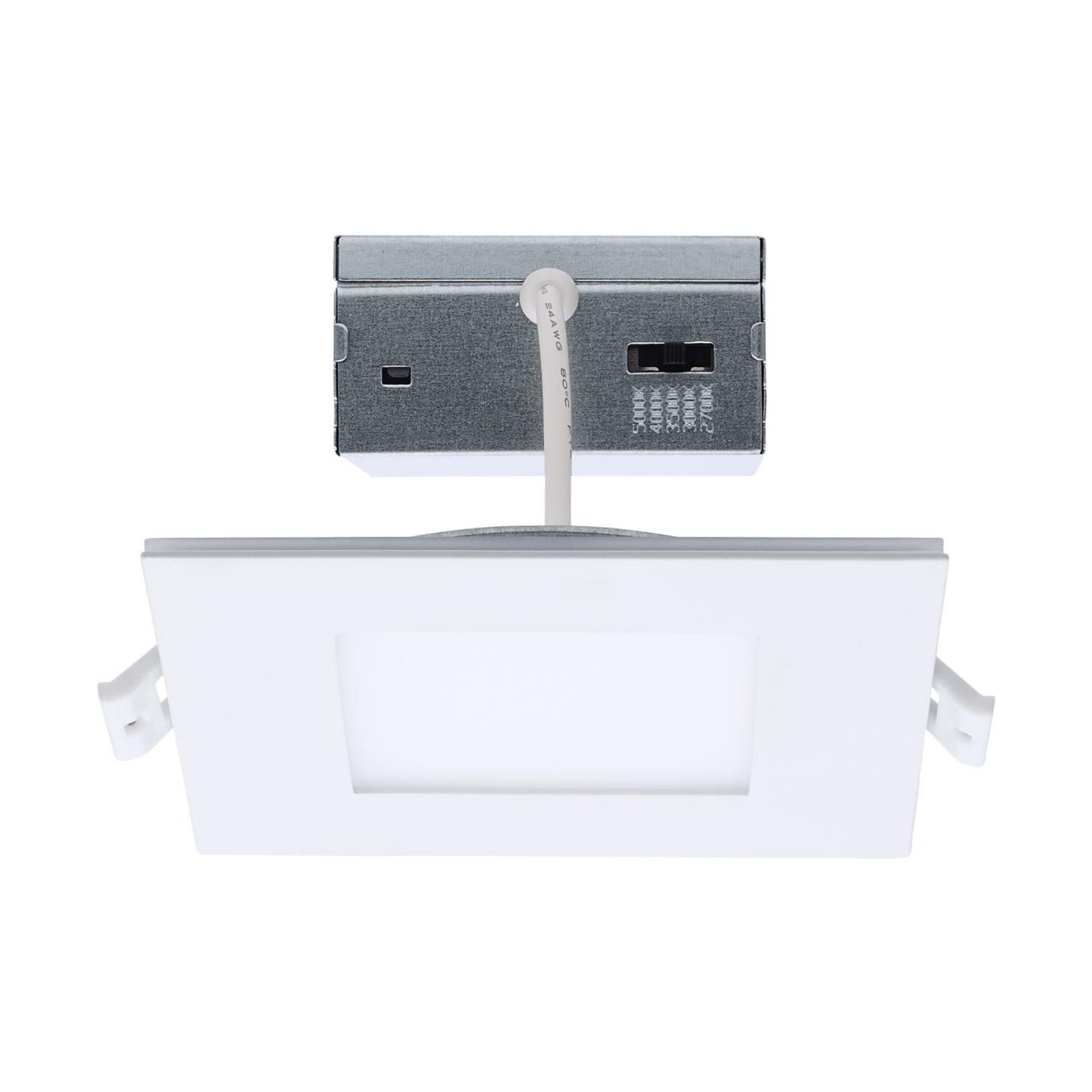

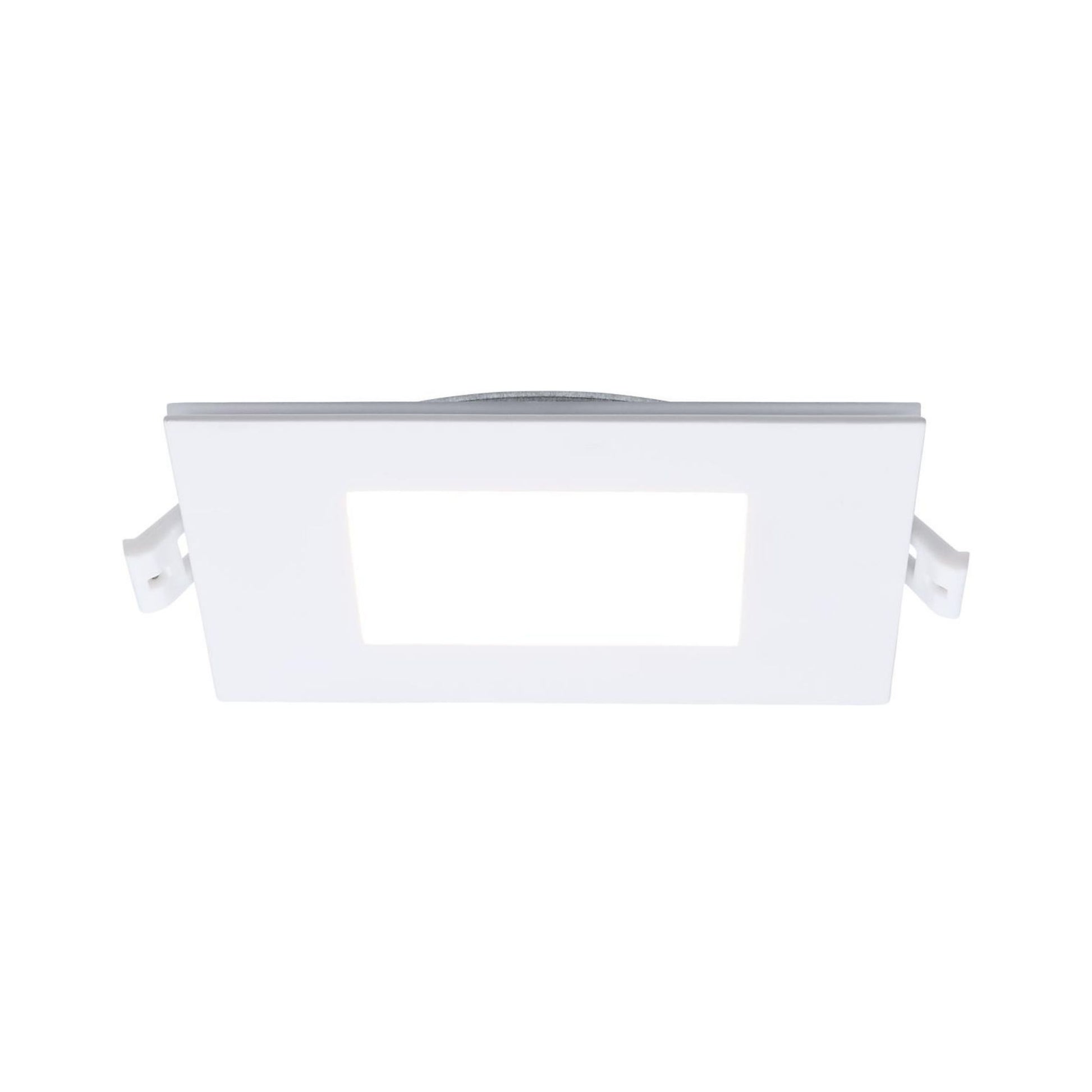

SATCO S11888 4 in Square LED Downlight with Integrated Night Light — ColorQuick / 5-CCT Selectable / 9W / 760 lm / 120V / White

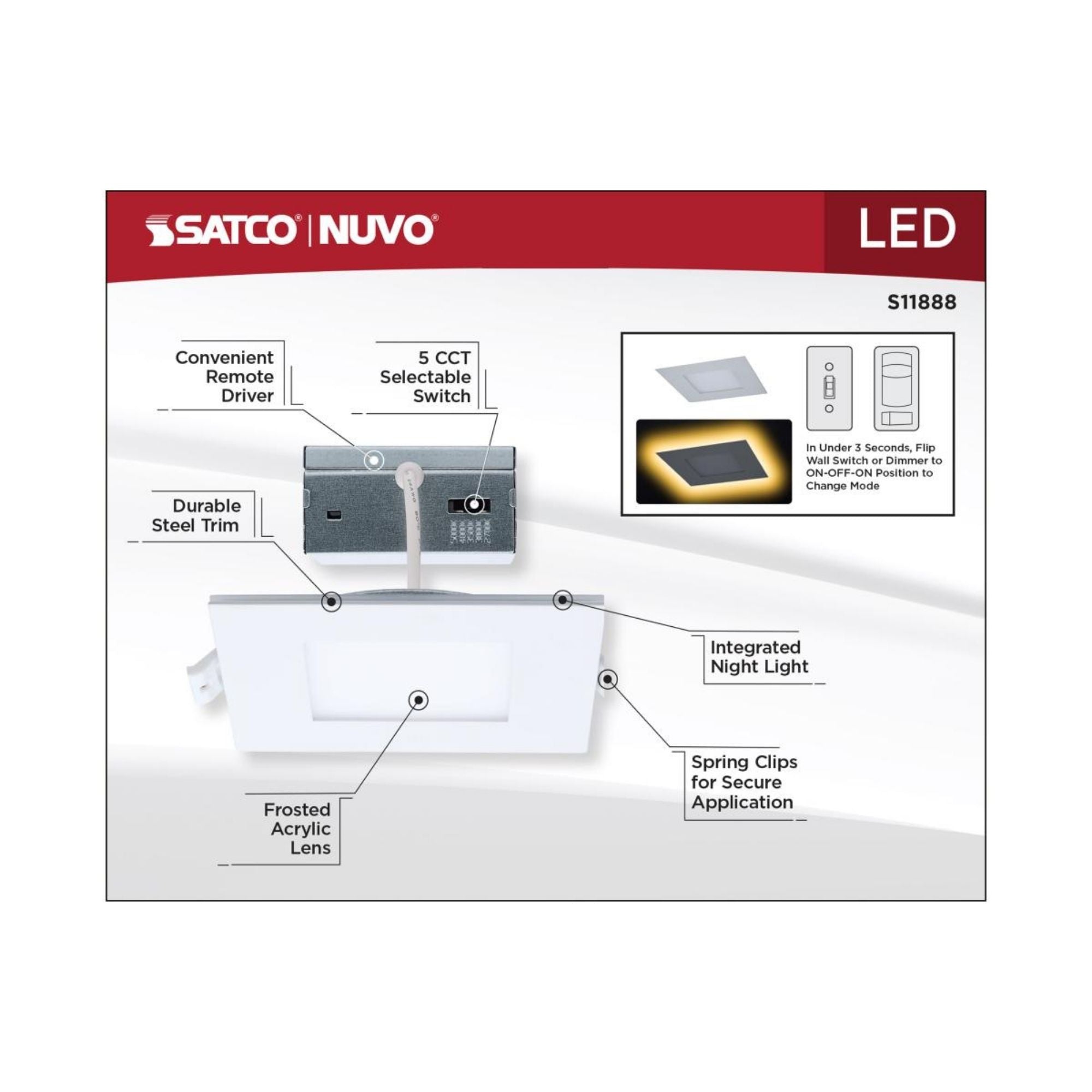

The SATCO S11888 is a 4 in square LED downlight featuring an integrated 3W night light and ColorQuick selectable color technology. Delivering 760 lm at 9W (up to 84 LPW) with field-selectable CCT (2700K/3000K/3500K/4000K/5000K). Remote driver with convenient mounting. Aluminum and steel construction with frosted acrylic lens. IC rated and airtight. Wet rated and suitable for bathrooms. Phase-Cut dimmable to 20% at 120V. Built-in 2KV surge protection. ENERGY STAR certified. California T24 JA8 Listed. cETLus Listed. FCC. RoHS. 5-year warranty. L70: 50,000 hours. Replaces 65W incandescent.

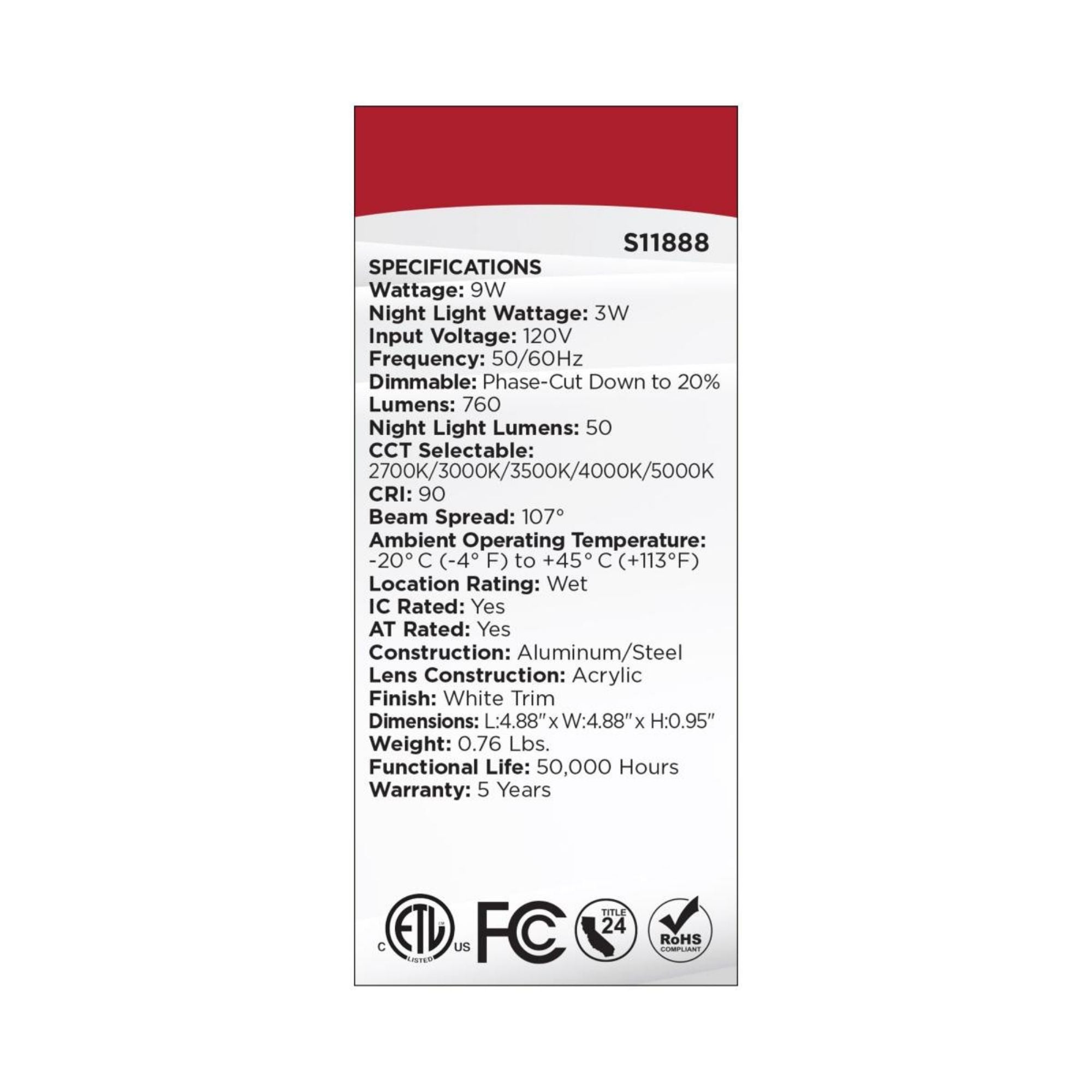

Key Features
- Wattage: 9W (fixed) + 3W night light
- Light Output: 760 lm (downlight) | 50 lm (night light)
- Efficacy: Up to 84 LPW
- Beam Angle: 107°

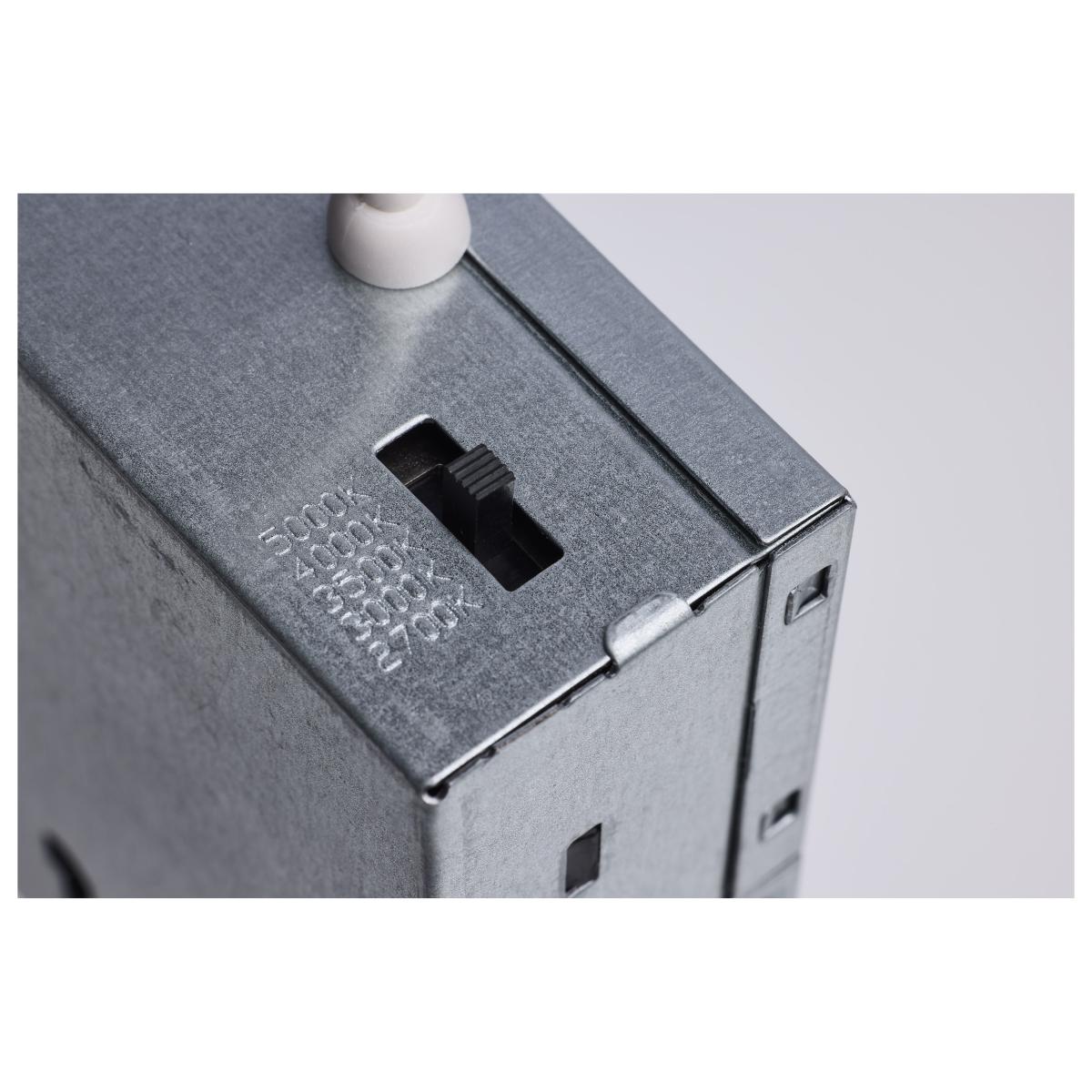

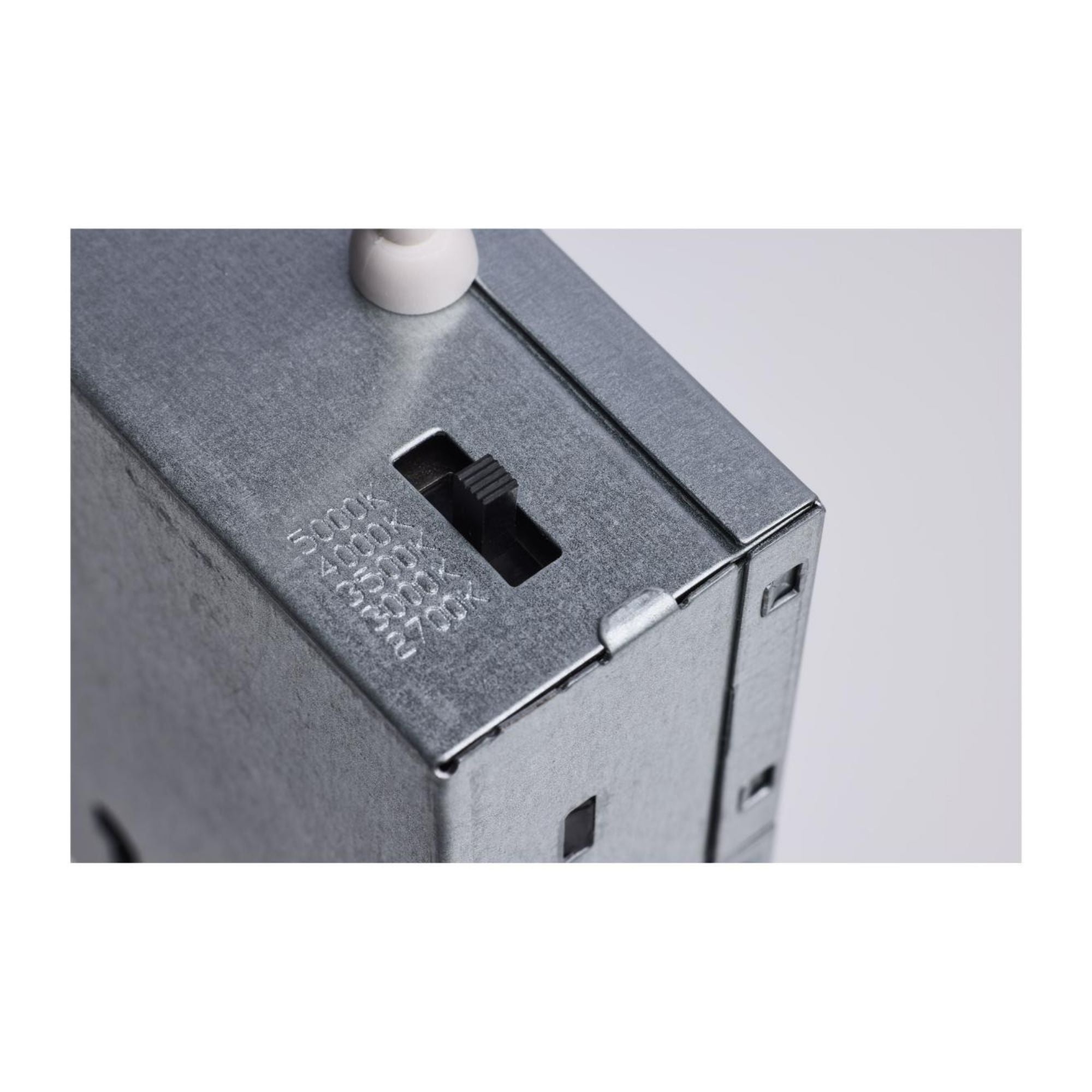

- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Night Light: 3W / 50 lm | Switch via on-off-on at wall plate

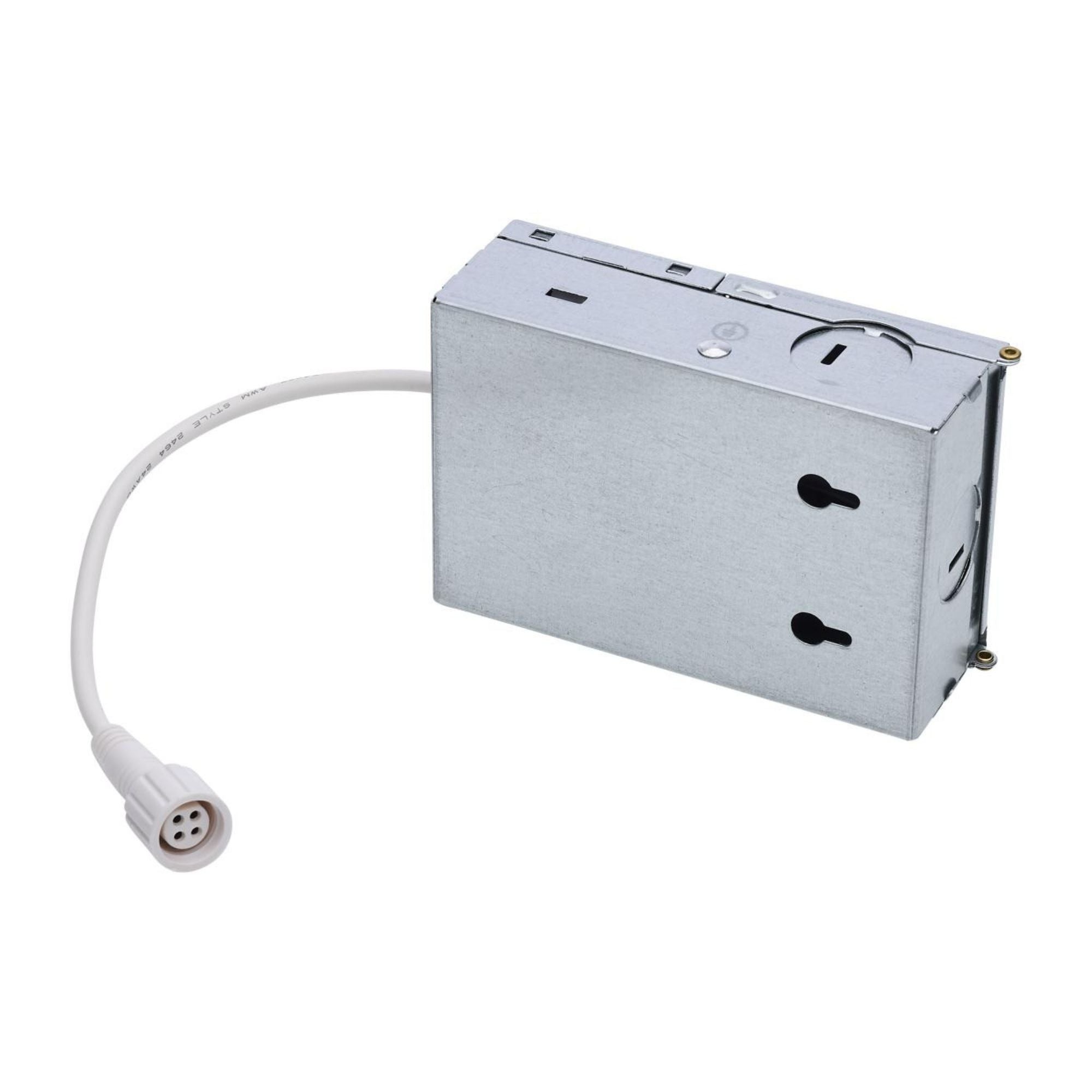

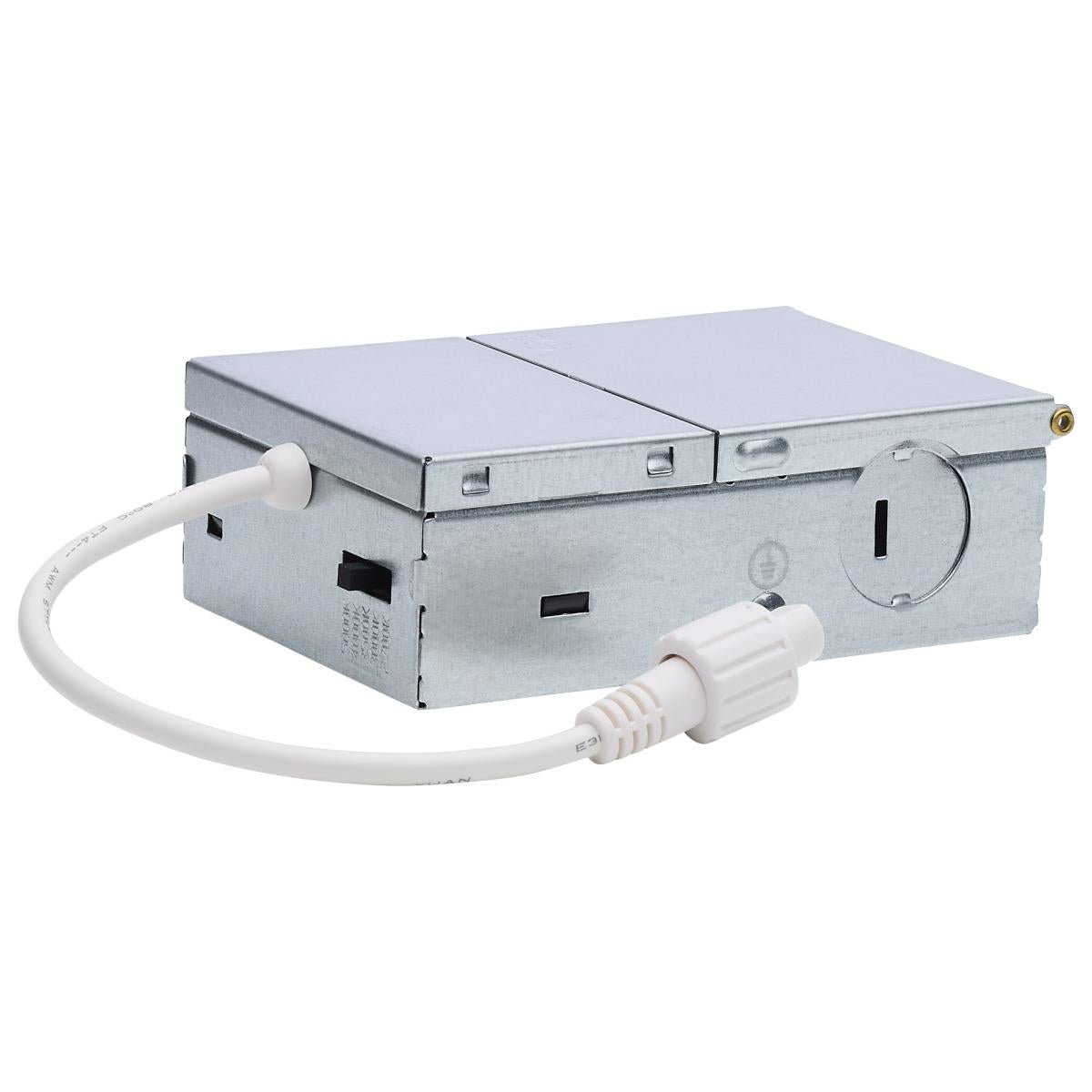

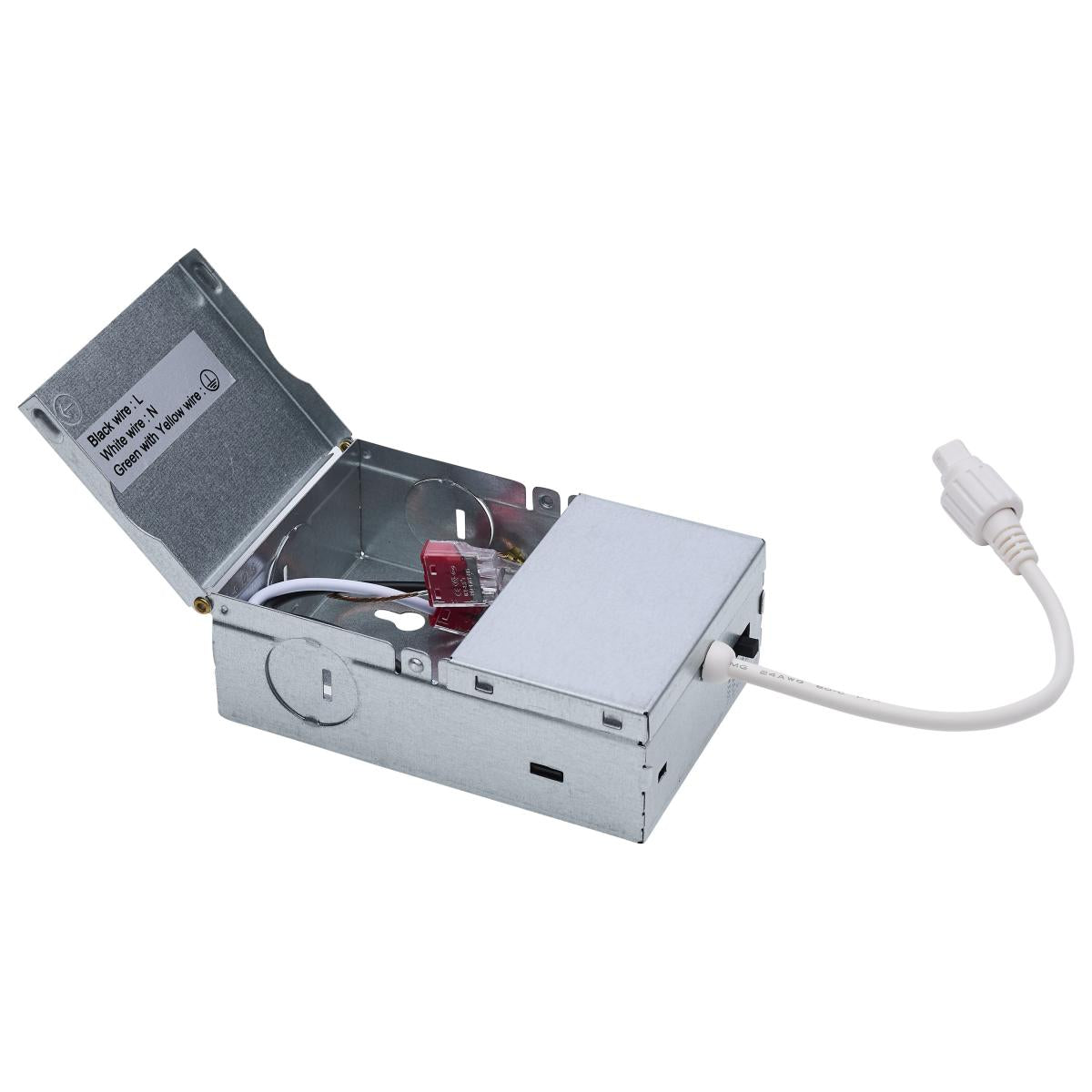

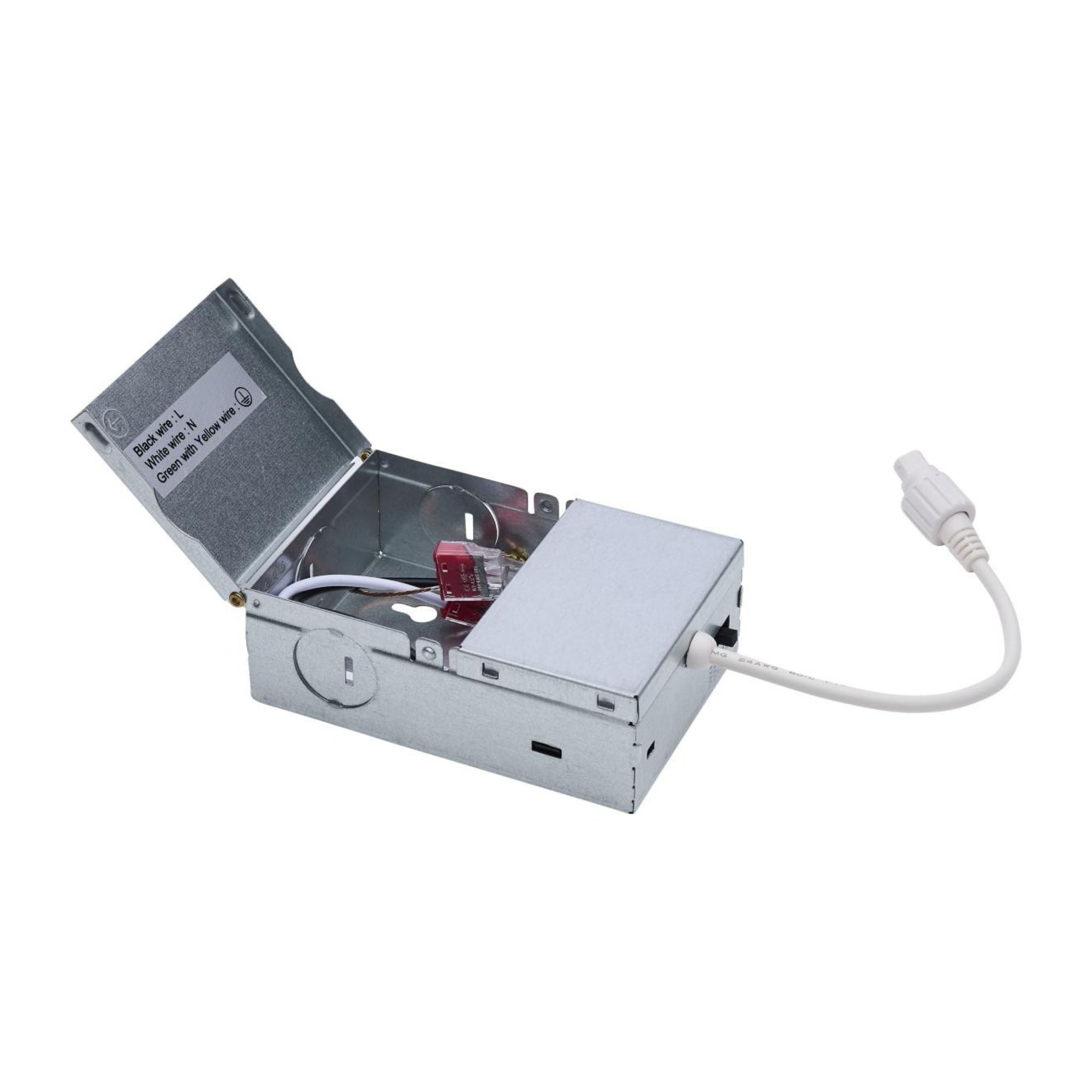

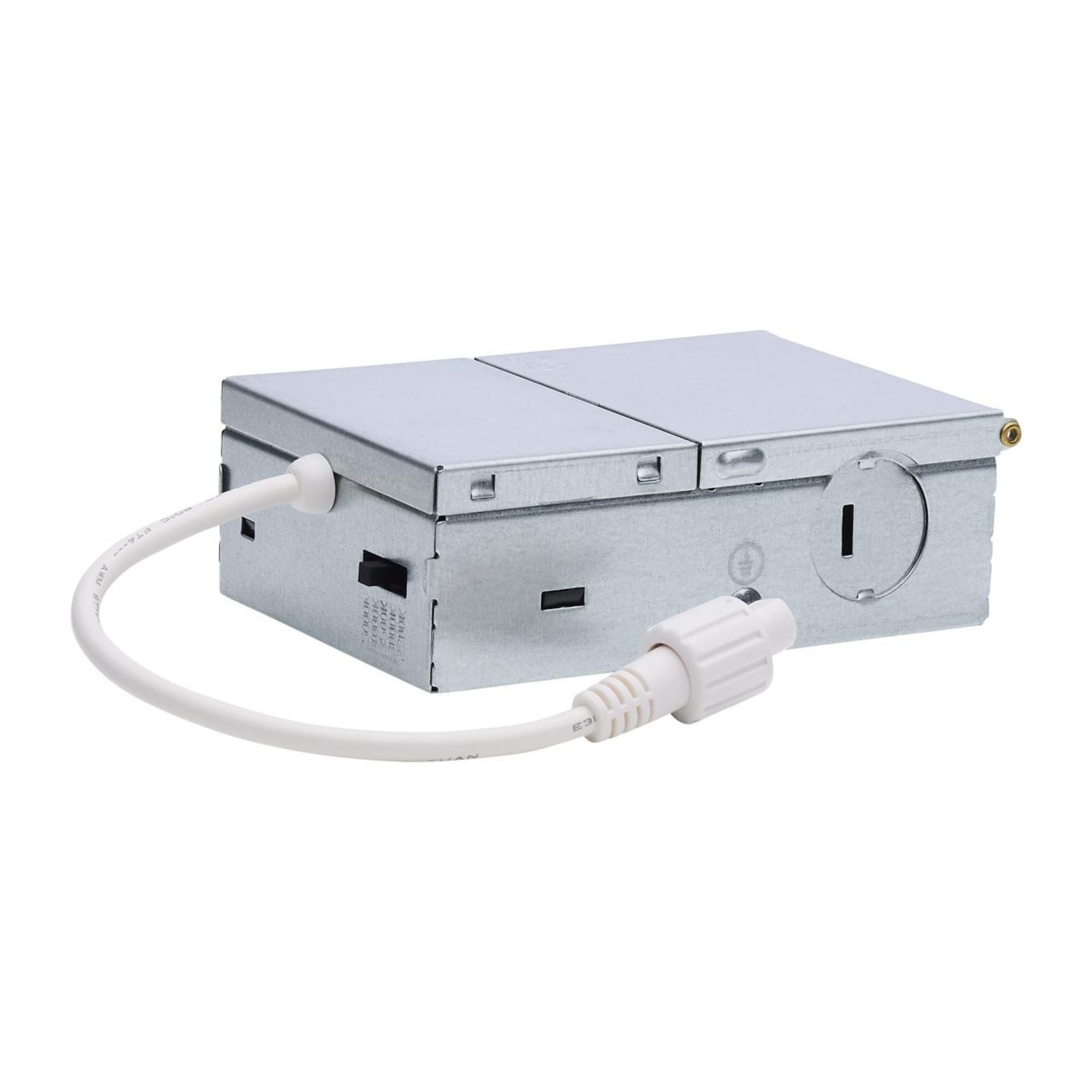

- Driver: Remote driver with convenient mounting
- Finish: White | Lens: Frosted acrylic | Construction: Aluminum / Steel

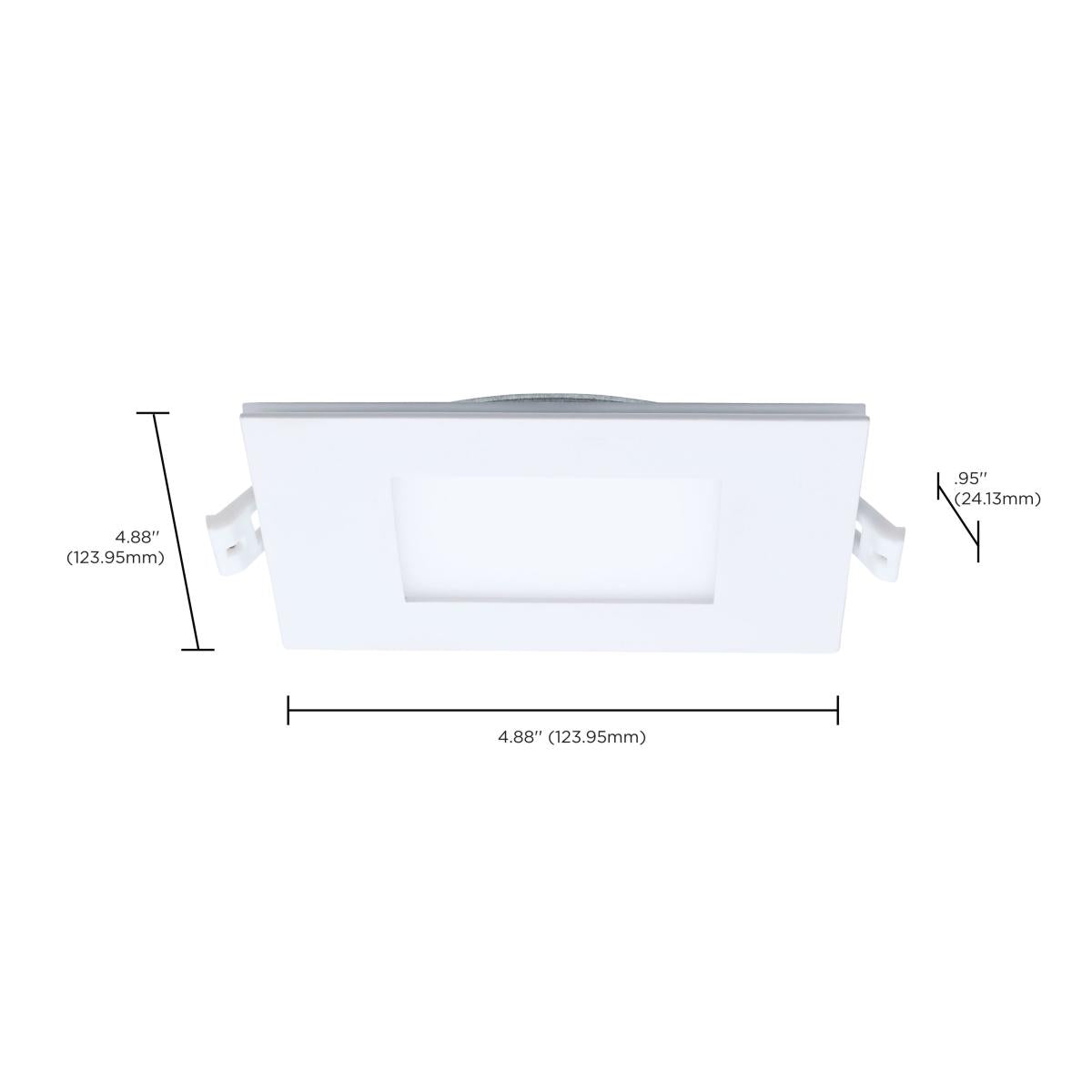

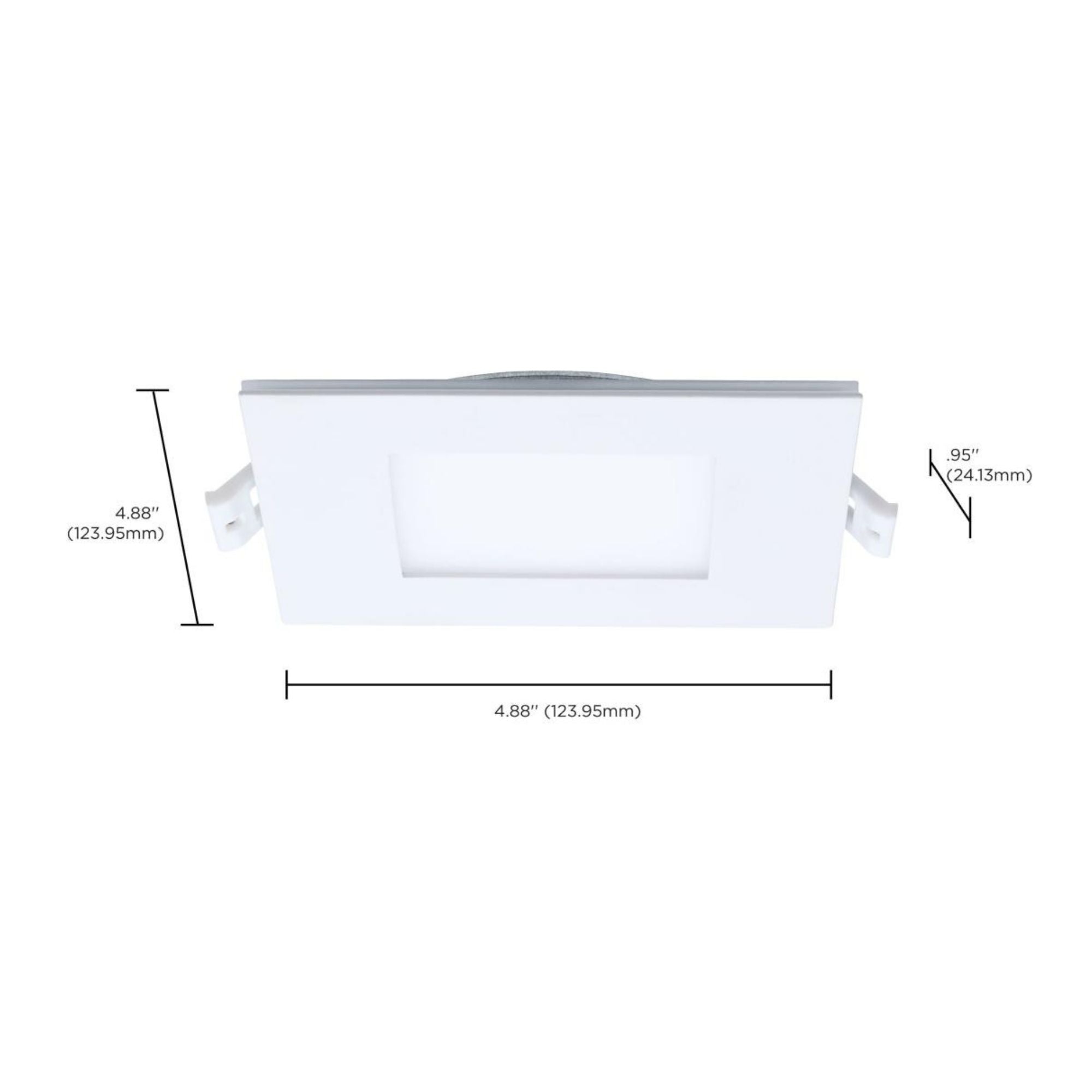

- Width: 4.88 in | Length: 4.88 in | Mounting Diameter: 4.25 in | Mounting Height: 1.97 in | Height: 0.95 in | Weight: 0.76 lbs
- Input Voltage: 120V only | 50/60Hz
- Dimming: Phase-Cut | Down to 20%
- Power Factor: >0.9 | THD: <30% | Surge Protection: 2KV
- IC Rating: Yes | Air Tight: Yes
- Location Rating: Wet | Indoor only
- Suitable for Bathrooms: Yes | Sloped Ceiling: Not compatible
- Replaces: 65W incandescent
- Lifespan: 50,000 hours L70 | Warranty: 5-year
- Certifications: ENERGY STAR Certified | CA T24 JA8 Listed | cETLus Listed | FCC | RoHS | Title 20: Exempt
Construction & Aesthetics
Shape: Square | Size: 4 in | Finish: White | Lens: Frosted acrylic | Construction: Aluminum / Steel | Width: 4.88 in | Mounting Diameter: 4.25 in. IC rated and airtight. For the 4 in round version, see S11886. For the 6 in square version, see S11889. For the 6 in round version, see S11887.

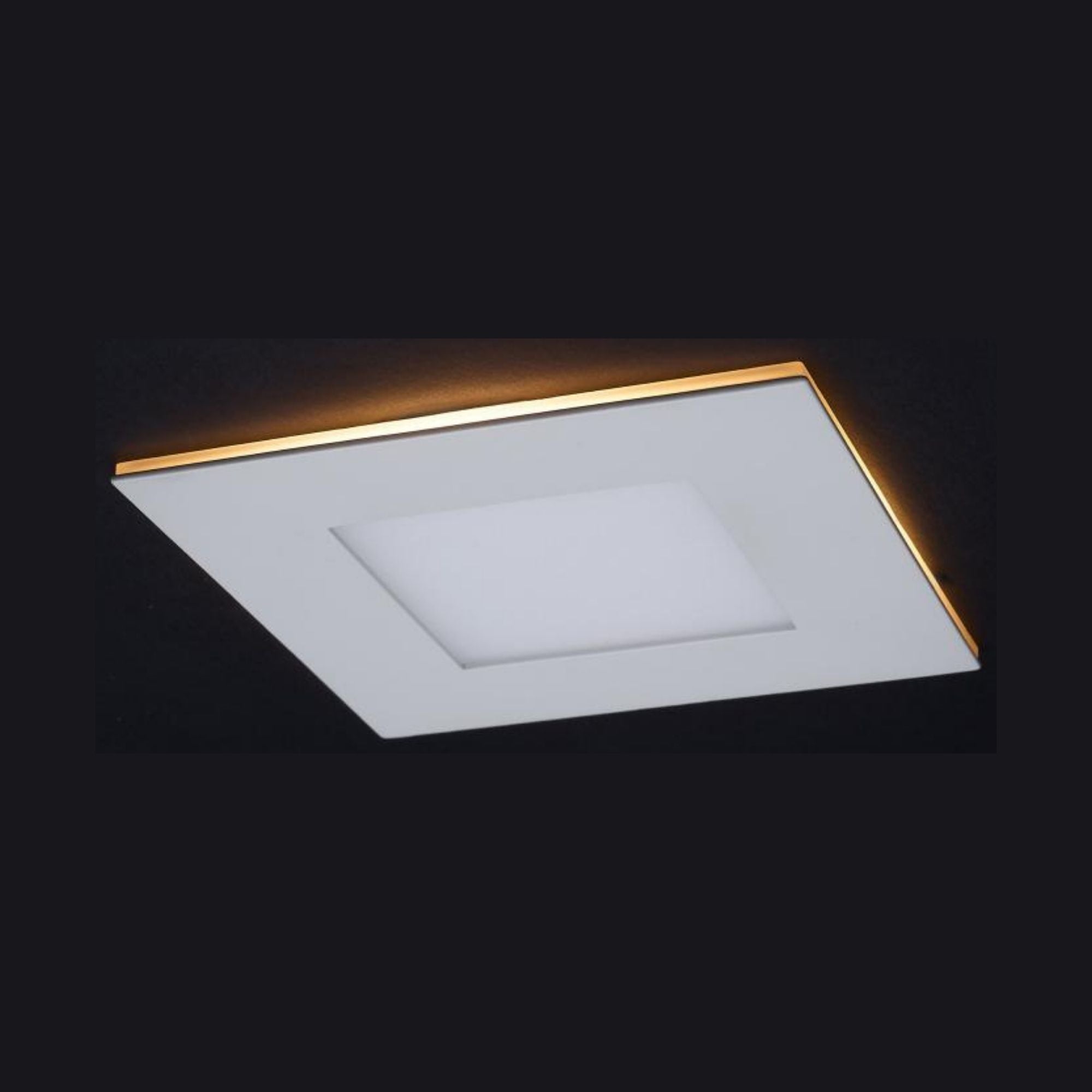

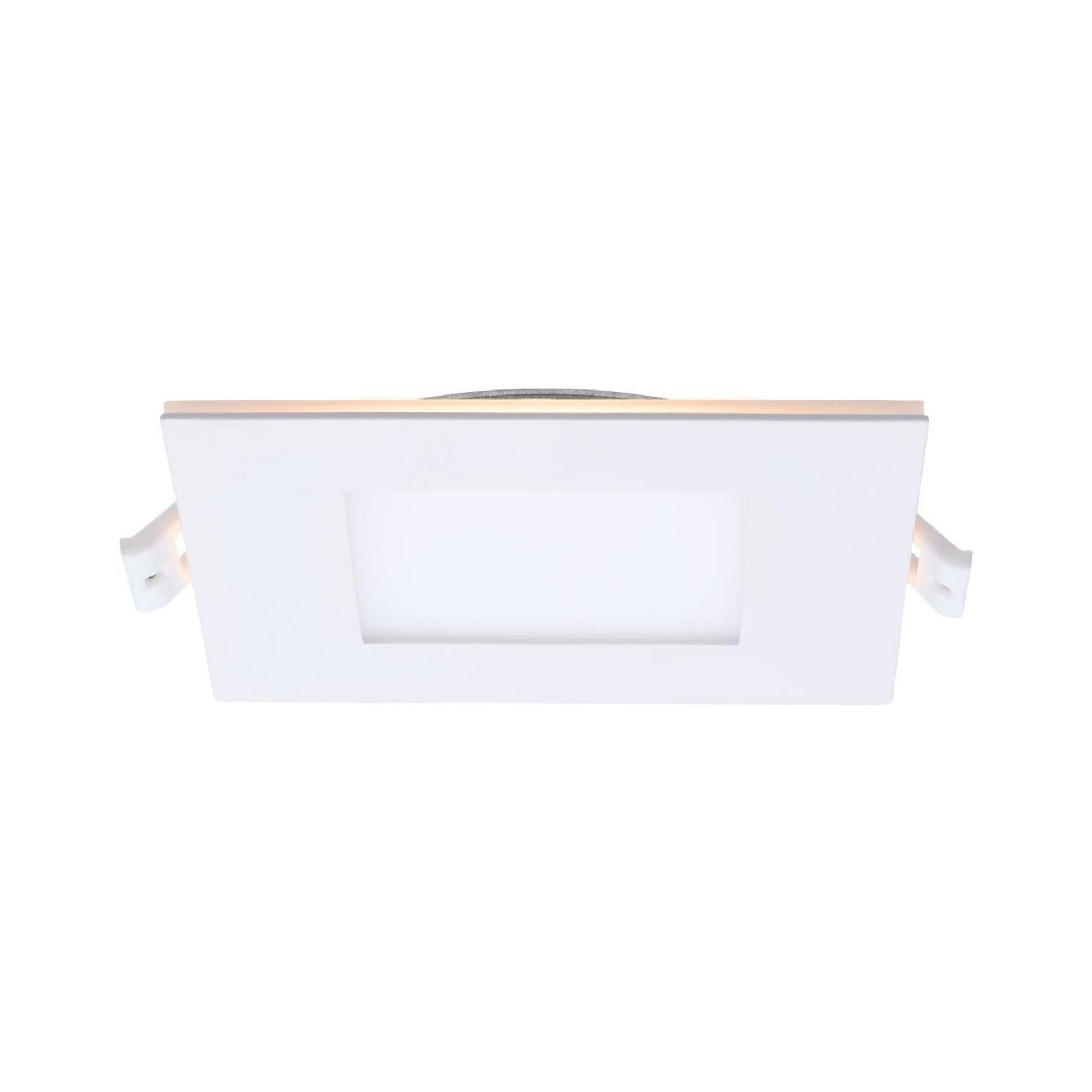

Night Light Mode

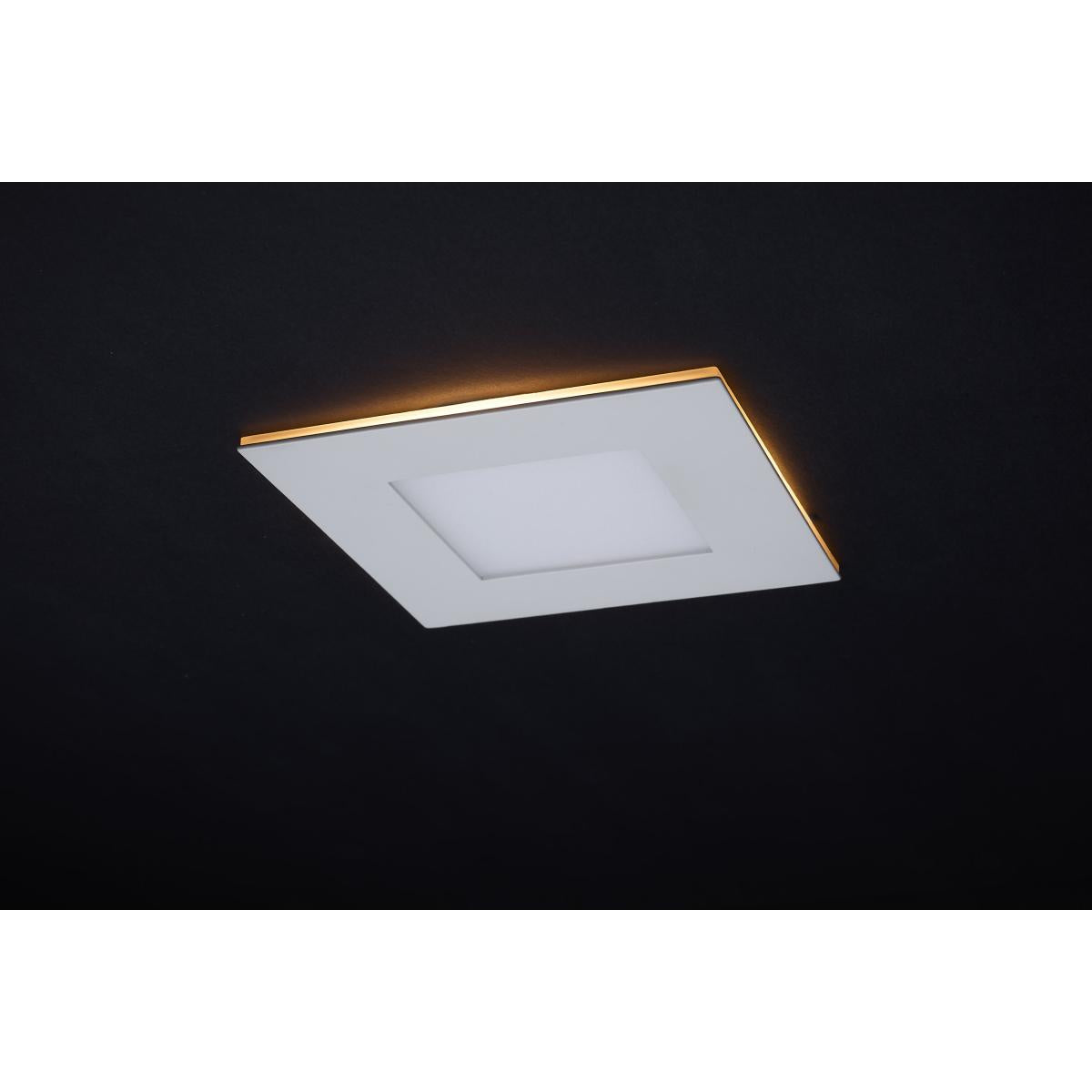

The SATCO S11888 includes a built-in 3W / 50 lm integrated night light. Toggle between downlight and night light mode using the standard wall plate switch (on-off-on sequence) — no special controls required. Night light uses the same CCT as selected for downlight mode.
Light Output & Performance
The SATCO S11888 delivers 760 lm at 9W (up to 84 LPW) in downlight mode, with CRI 90+ and a 107° beam angle. Night light mode delivers 50 lm at 3W. CCT is field-selectable: 2700K–5000K. L70 lifespan is 50,000 hours.
Electrical & Installation
The SATCO S11888 operates at 120V only (50/60Hz) with Phase-Cut dimming to 20%. PF >0.9; THD <30%; built-in 2KV surge protection. Features a remote driver with convenient mounting. Mounting diameter: 4.25 in; mounting height: 1.97 in. Not compatible with sloped ceilings.
Compatible Accessories (Sold Separately)
- Remote Driver 6 ft Extension Cable (4-pin): SATCO 80-864
- 4 in New Construction Plate: SATCO 80-865
- 4 in New Construction Plate: SATCO 80-950
- Universal 3.5/4/6/8 in New Construction Plate: SATCO 80-867
- 4 in New Construction Plate with Hang Bars: SATCO 80-943
- Hanger Bar Kit (for use with 80-864 and 80-865): SATCO 80-997
Typical Applications
- Residential bedrooms, living rooms, kitchens, and bathrooms
- Multifamily common areas
- Hospitality spaces requiring ambiance control
What’s Included
- SATCO S11888 4 in square LED downlight with integrated night light (white)
- Remote driver
