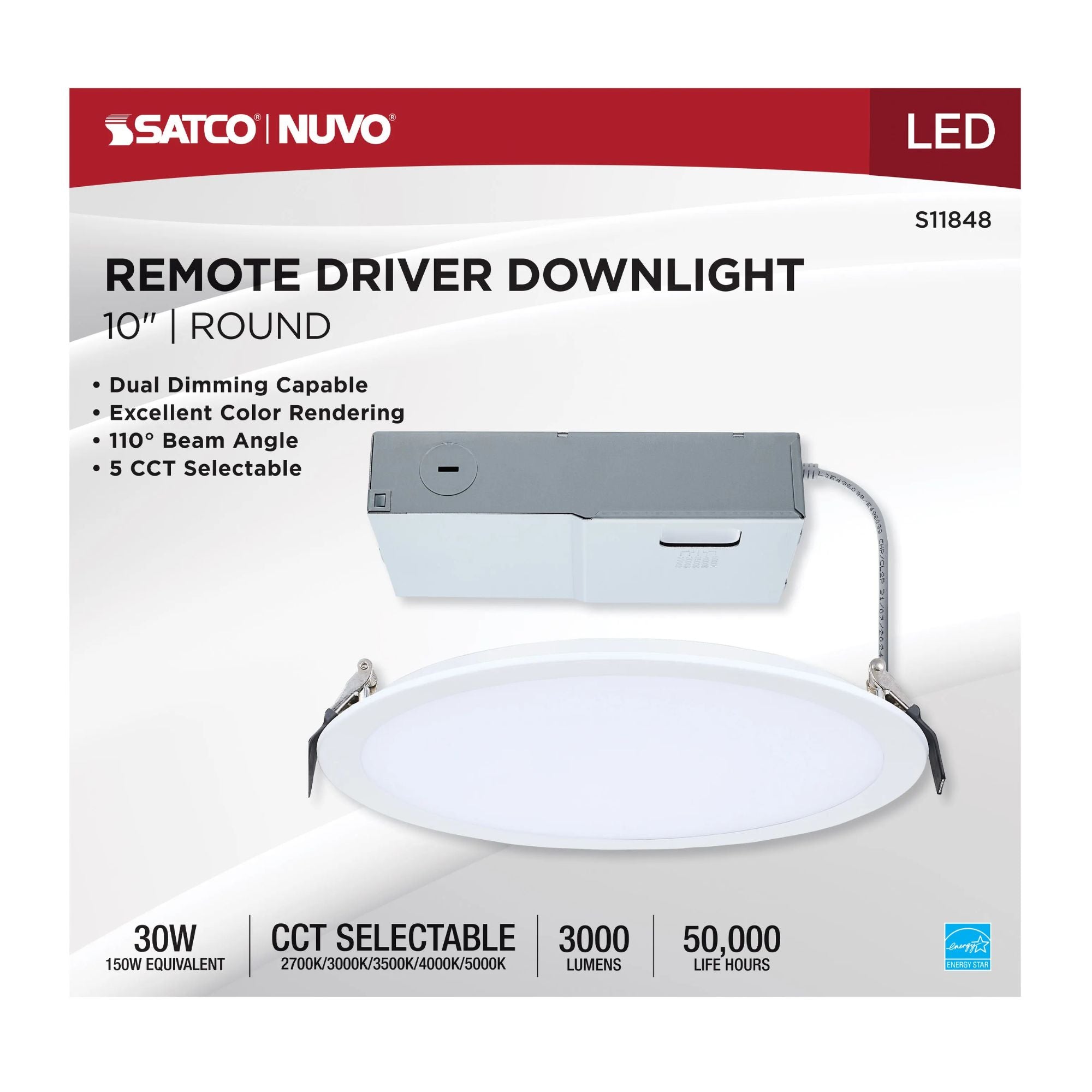

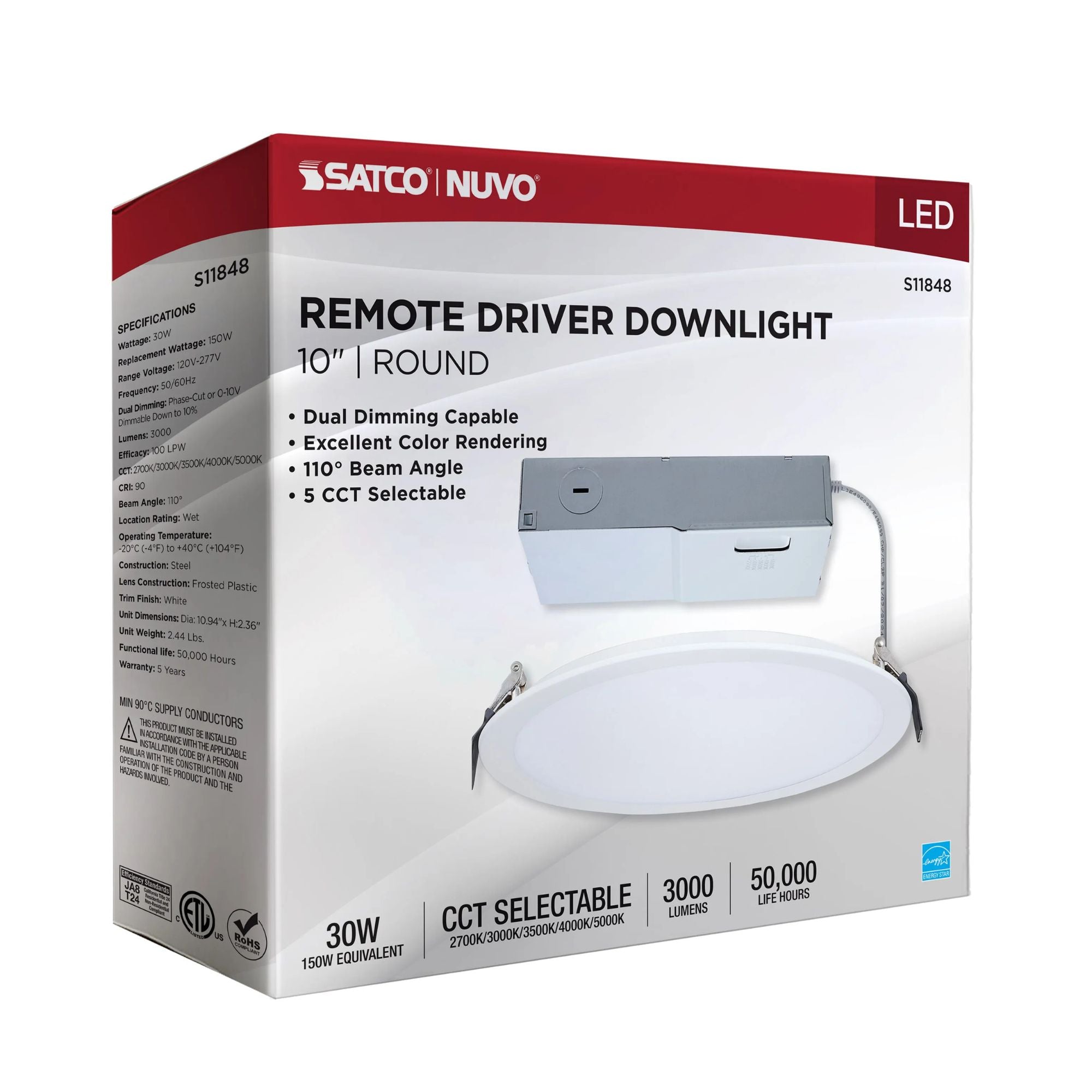

SATCO S11848 10" Round Slim LED Downlight ColorQuick 5-CCT 30W 120-277V White
Available in stock (326)
About this item
About this item
- ColorQuick 5-CCT Selectable — 10 in Round Large Format Slim LED Downlight: Direct wire; steel construction; matte frosted polycarbonate lens; white finish; indoor use only; down installation only; 10 in can size
- IC Rated and Airtight — Wet Rated: Suitable for bathrooms; sloped ceiling not compatible; diameter 10.94 in; mounting diameter 9.84 in; weight 2.81 lbs; height 0.99 in
- 3000 lm at 30W / up to 100 LPW: CRI 90+; 110° beam angle; replaces 150W incandescent; L70: 50,000 hrs; 1.6KV surge protection; PF >0.9; THD <20%
- Dual Dimming — Triac at 120V / 0-10V at 120V–277V / 50-60Hz: CCT adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 0.28A; op temp: -4°F to +104°F (-20°C to +40°C)
- ENERGY STAR / California T24 JA8 Listed / cETLus Listed: FCC; RoHS; Title 20: Exempt; 5-year warranty
Description
Description

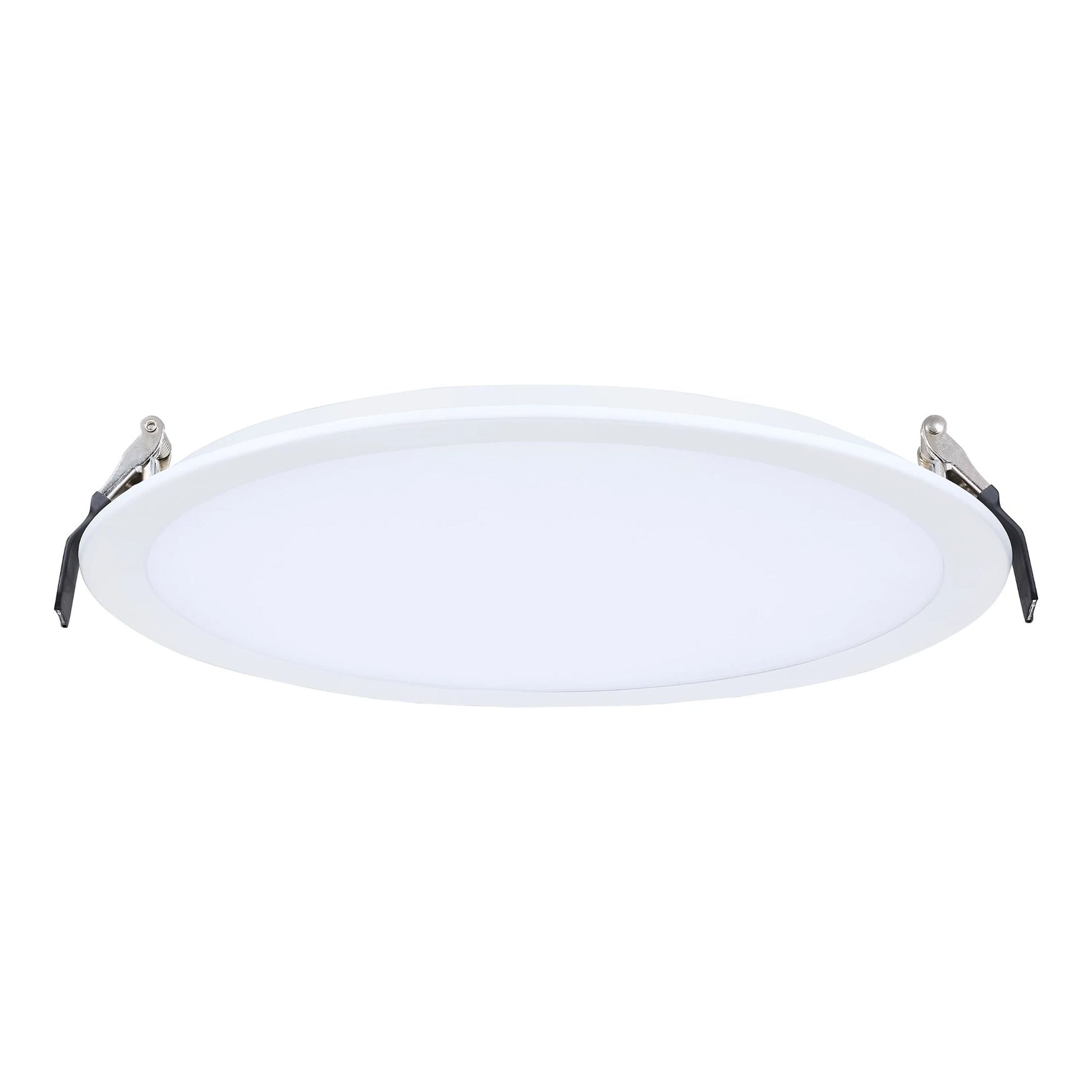

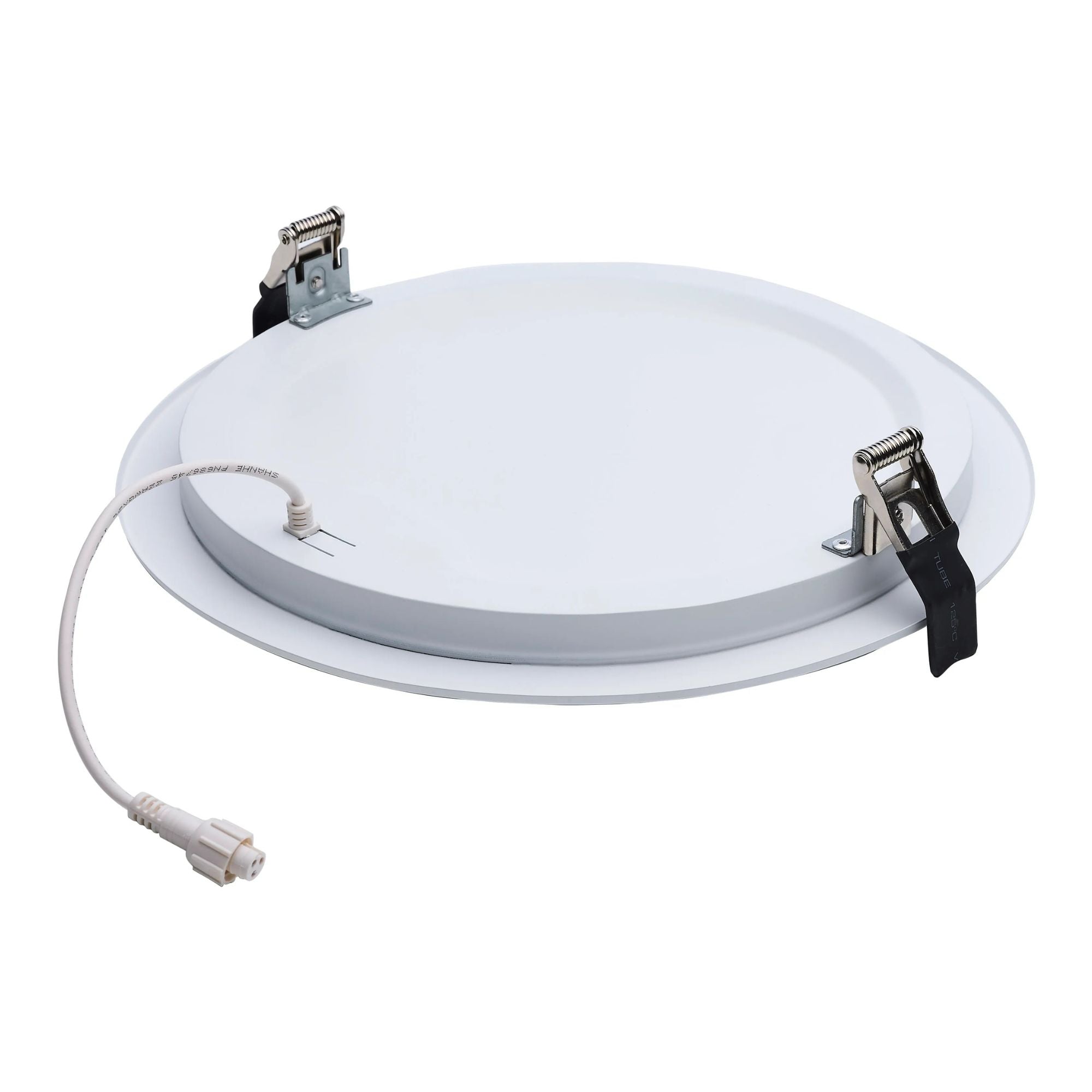

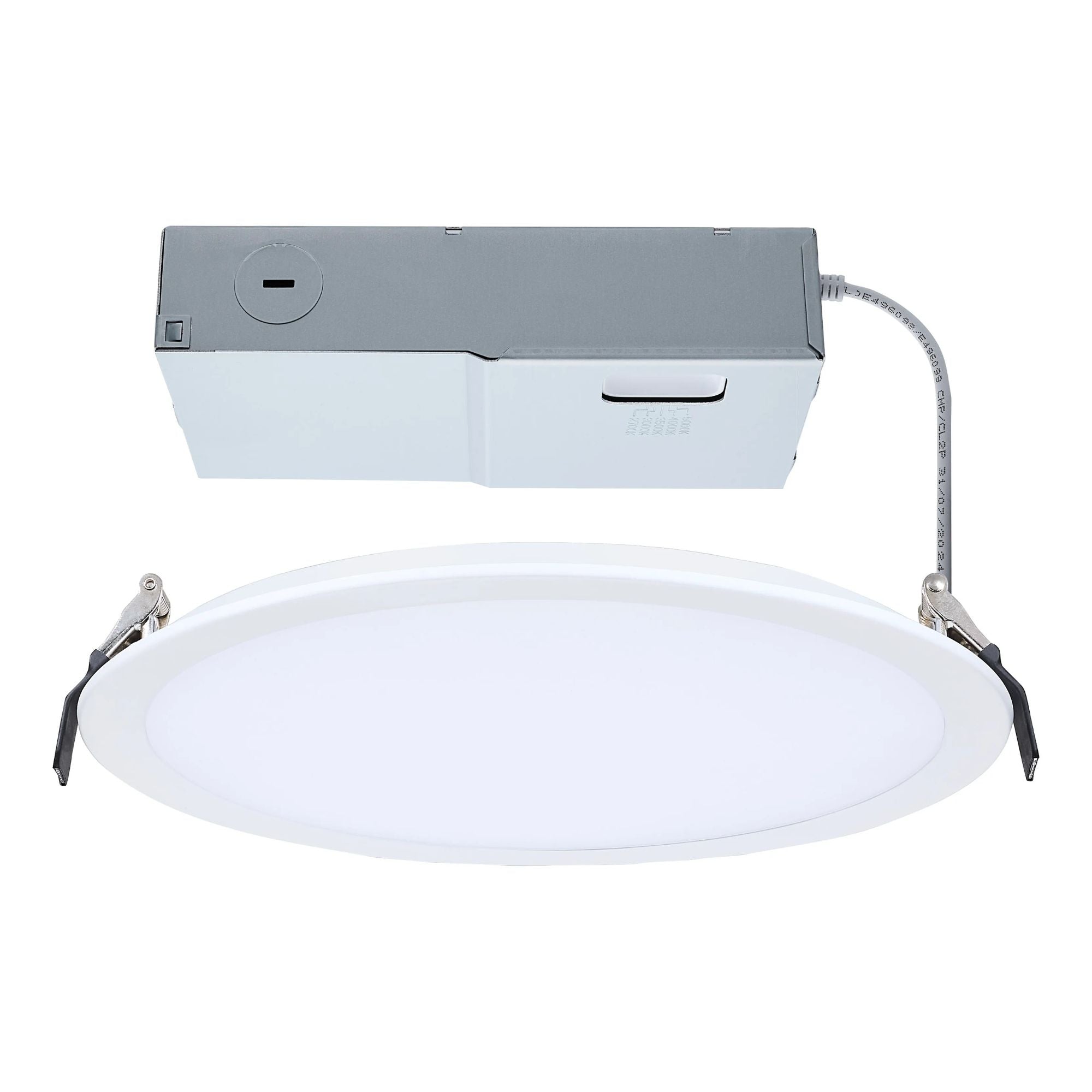

SATCO S11848 10 in Round Large Format Slim LED Downlight — ColorQuick / 5-CCT Selectable / 30W / 3000 lm / 120V–277V / White
The SATCO S11848 is a 10 in round large format slim LED downlight with ColorQuick selectable color technology and dual dimming capability. Delivering 3000 lm at 30W (up to 100 LPW) with a wide 110° beam angle. Direct wire; steel construction with matte frosted polycarbonate lens. IC rated and airtight. Wet rated. Triac dimmable at 120V and 0-10V dimmable at 120V–277V. Built-in 1.6KV surge protection. ENERGY STAR certified. California T24 JA8 Listed. cETLus Listed. FCC. RoHS. 5-year warranty. L70: 50,000 hours. Replaces 150W incandescent.
Key Features
- Wattage: 30W (fixed)
- Light Output: 3000 lm | Efficacy: Up to 100 LPW
- Beam Angle: 110°
- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Can Size: 10 in | Direct wire

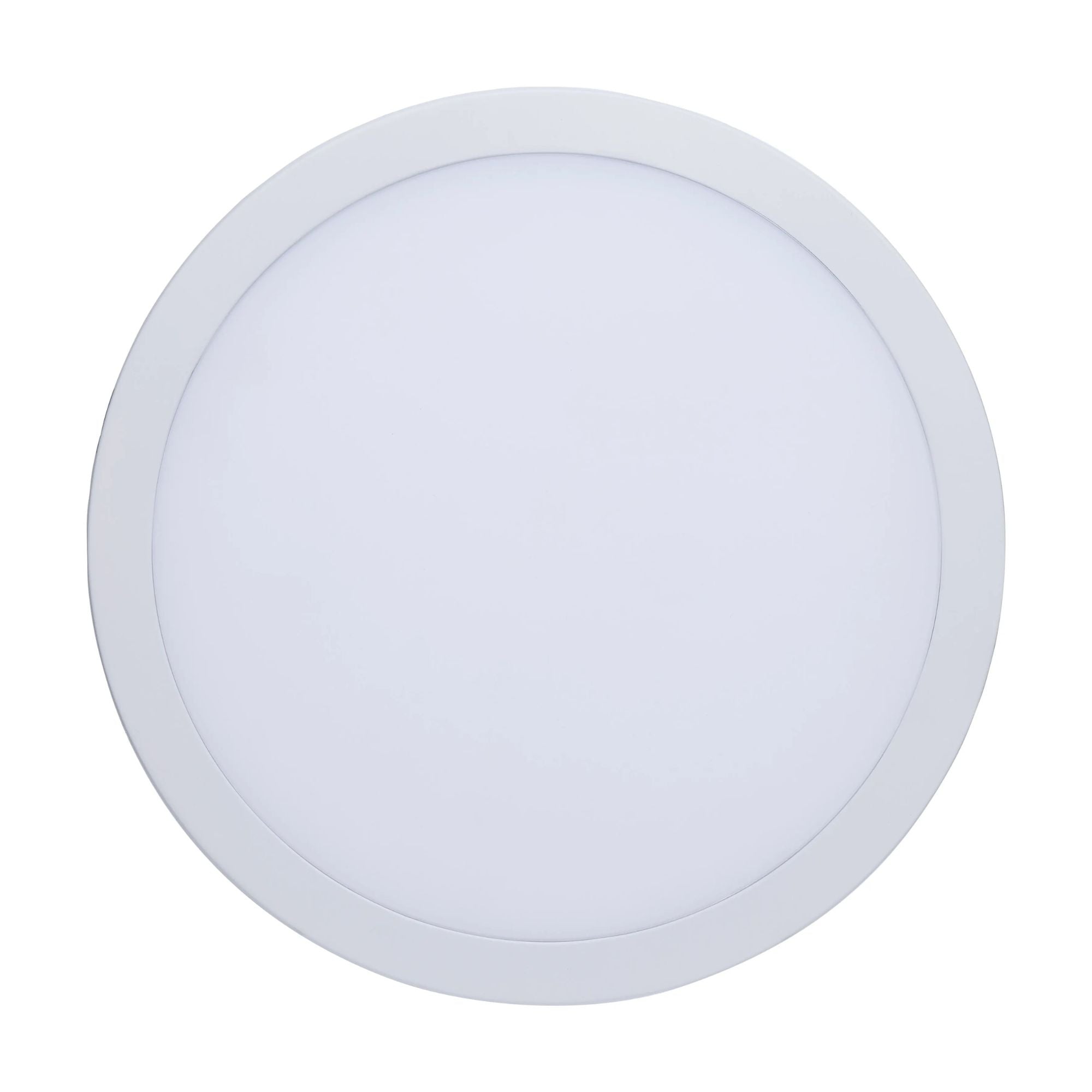

- Finish: White | Lens: Matte frosted polycarbonate | Construction: Steel

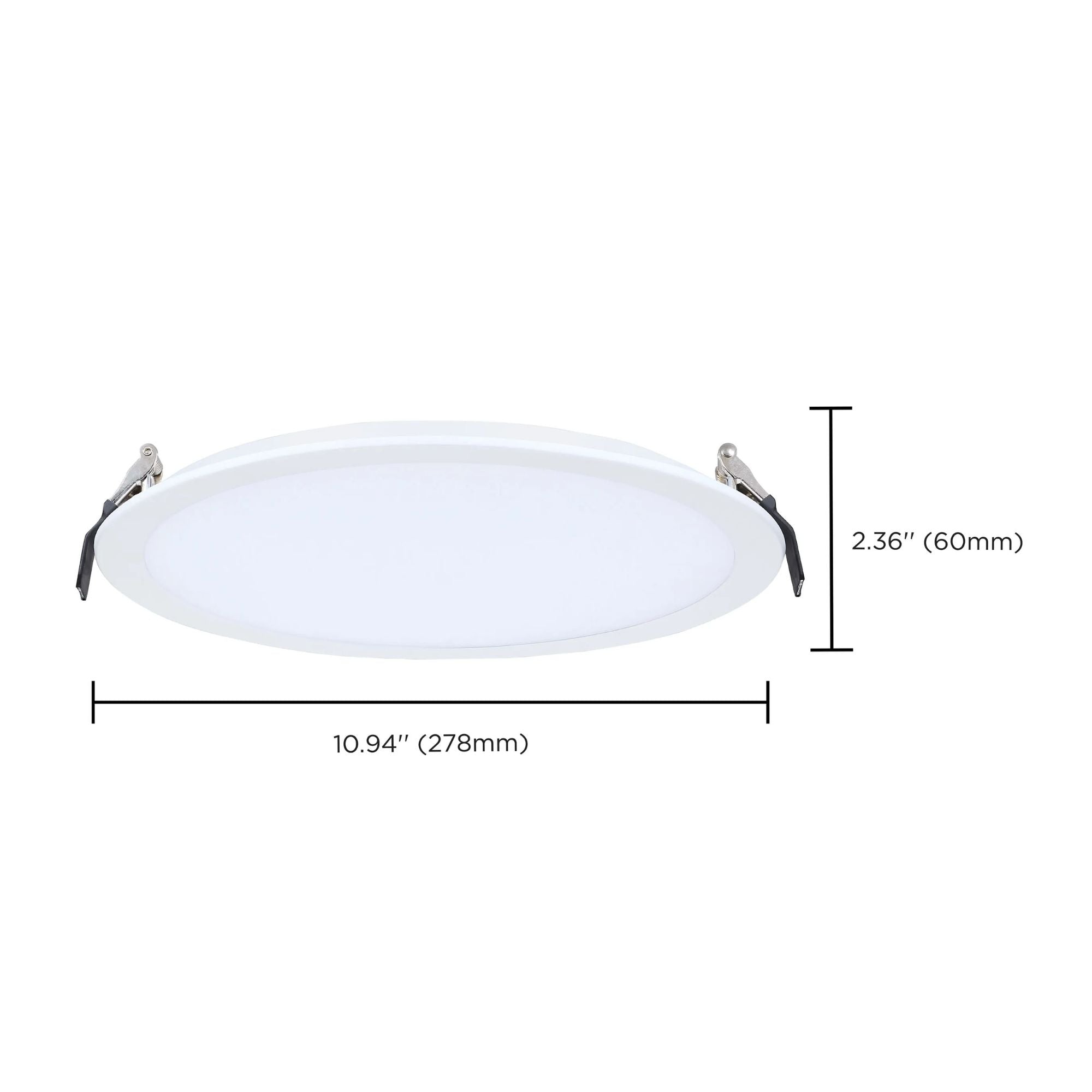

- Diameter: 10.94 in | Mounting Diameter: 9.84 in | Height: 0.99 in | Weight: 2.81 lbs
- Input Voltage: 120V–277V | 50/60Hz | Amps: 0.28A
- Dimming: Triac at 120V / 0-10V at 120V–277V (Dual Dimming)
- Power Factor: >0.9 | THD: <20% | Surge Protection: 1.6KV
- IC Rating: Yes | Air Tight: Yes
- Location Rating: Wet | Indoor only
- Suitable for Bathrooms: Yes | Sloped Ceiling: Not compatible
- Replaces: 150W incandescent
- Lifespan: 50,000 hours L70 | Warranty: 5-year
- Certifications: ENERGY STAR Certified | CA T24 JA8 Listed | cETLus Listed | FCC | RoHS | Title 20: Exempt

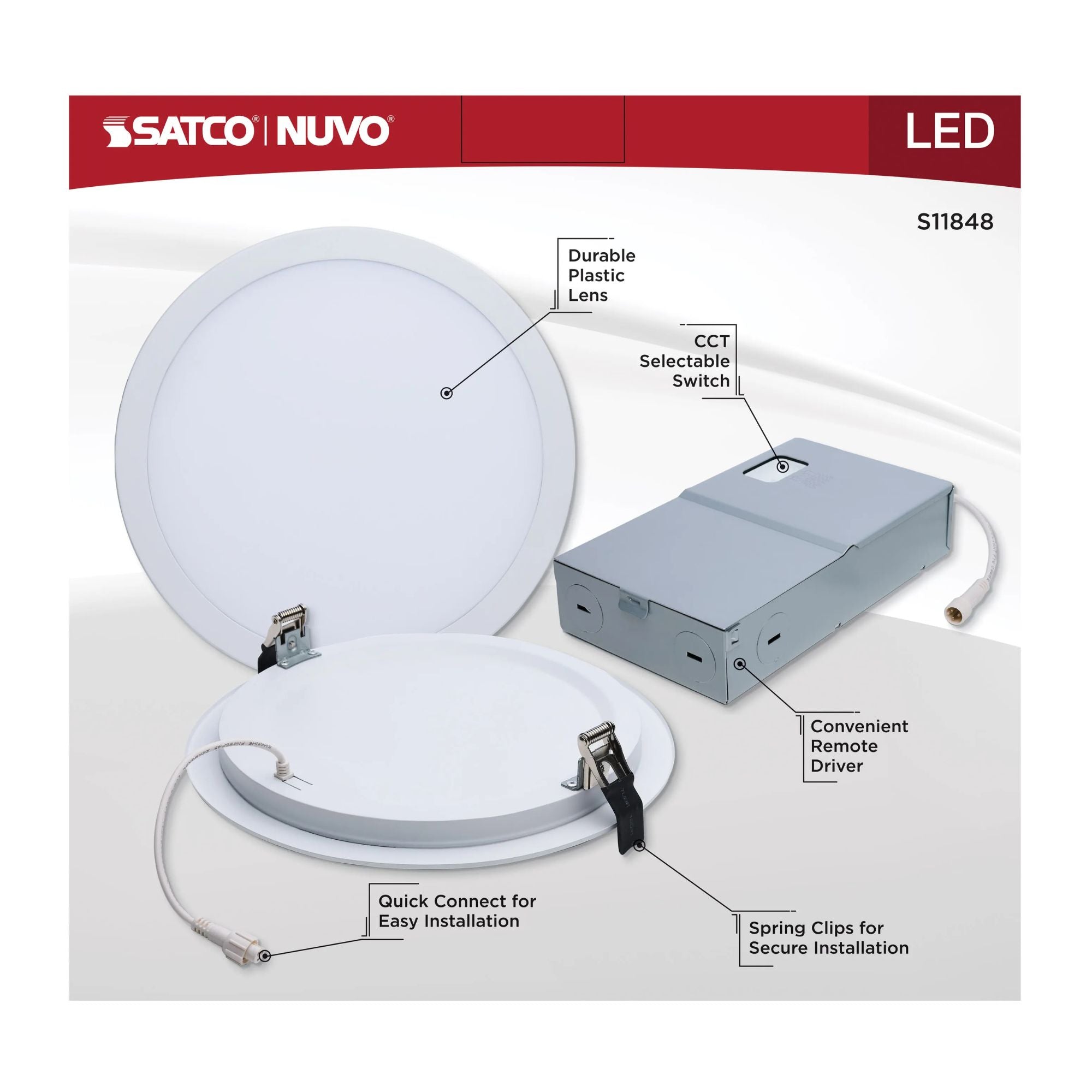

Construction & Design
Shape: Round | Size: 10 in | Finish: White | Lens: Matte frosted polycarbonate | Construction: Steel | Diameter: 10.94 in | Weight: 2.81 lbs. IC rated and airtight. Indoor use only; not compatible with sloped ceilings. For the 8 in version, see S11847. For the 12 in version, see S11849.
Light Output & Performance
The SATCO S11848 delivers 3000 lm at 30W (up to 100 LPW) with CRI 90+ and a 110° beam angle. CCT field-selectable: 2700K–5000K. Replaces 150W incandescent. L70: 50,000 hours.
Electrical & Installation
The SATCO S11848 operates at 120V–277V (50/60Hz) with dual dimming: Triac at 120V and 0-10V at 120V–277V. PF >0.9; THD <20%; built-in 1.6KV surge protection. Op temp: -4°F to +104°F. Direct wire into a 10 in can. IC rated and airtight. Indoor use only.
Compatible Accessories (Sold Separately)
- 5W Emergency Driver: SATCO S8000
- 10W Emergency Driver: SATCO S8002
- Emergency Driver Enclosure: SATCO 80-973
- Emergency Remote Test Switch Single Gang Plate: SATCO 80-987
- 6 ft Extension Cable: SATCO 80-985
- Rough-In Mounting Plate for New Construction: SATCO 80-959

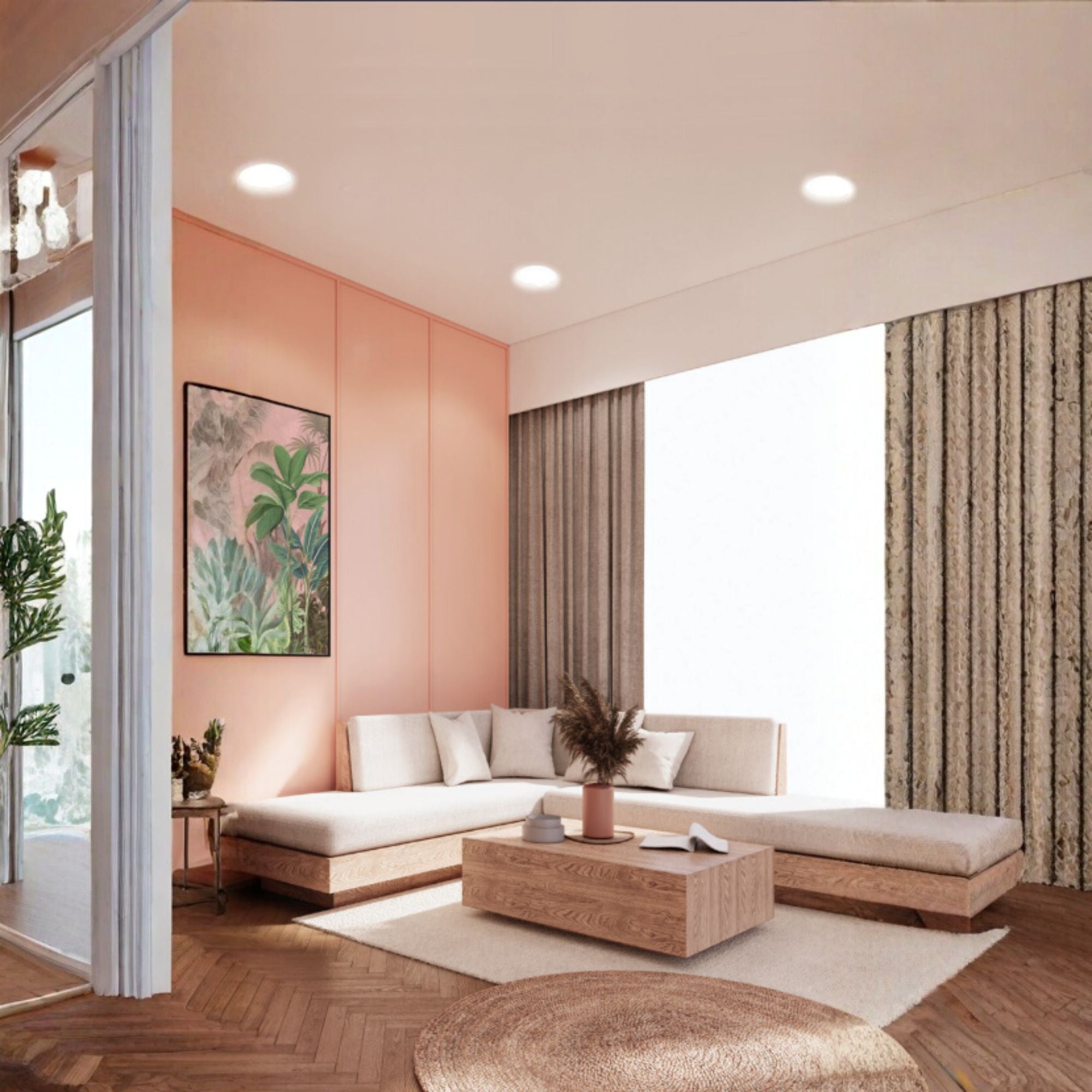

Typical Applications
- Commercial offices and retail spaces
- Hospitality lobbies and common areas
- Residential great rooms, kitchens, and bathrooms
- Multifamily common areas
What’s Included
- SATCO S11848 10 in round slim LED downlight (white)
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What locations is the SATCO S11848 rated for?
What locations is the SATCO S11848 rated for?
What dimming methods does the SATCO S11848 support?
What dimming methods does the SATCO S11848 support?
Is the SATCO S11848 ENERGY STAR and Title 24 JA8 compliant?
Is the SATCO S11848 ENERGY STAR and Title 24 JA8 compliant?
Can the SATCO S11848 be used with emergency drivers?
Can the SATCO S11848 be used with emergency drivers?
Is the SATCO S11848 compatible with sloped or vaulted ceilings?
Is the SATCO S11848 compatible with sloped or vaulted ceilings?
