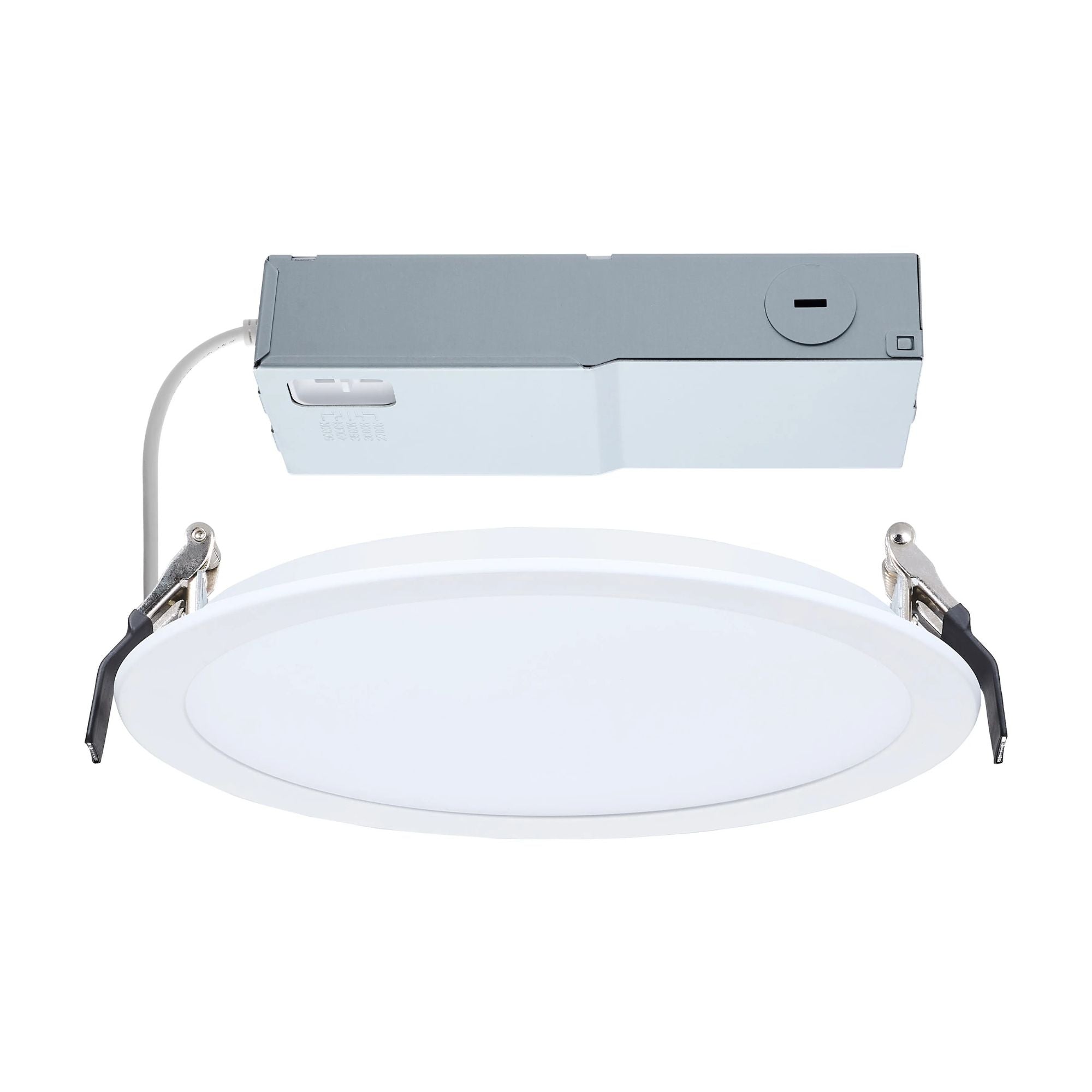

Satco Ultra Thin S11847 8 in. Flat Face Downlight — 20W / Selectable CCT

The Satco S11847 is an 8-inch round LED downlight featuring a flat face design and selectable CCT ranging from 2700K to 5000K. Delivering 2000 lumens using only 20W, this fixture is an energy-efficient replacement for 100W incandescent lights. With its integrated LED technology, it ensures long-lasting performance and reliability.

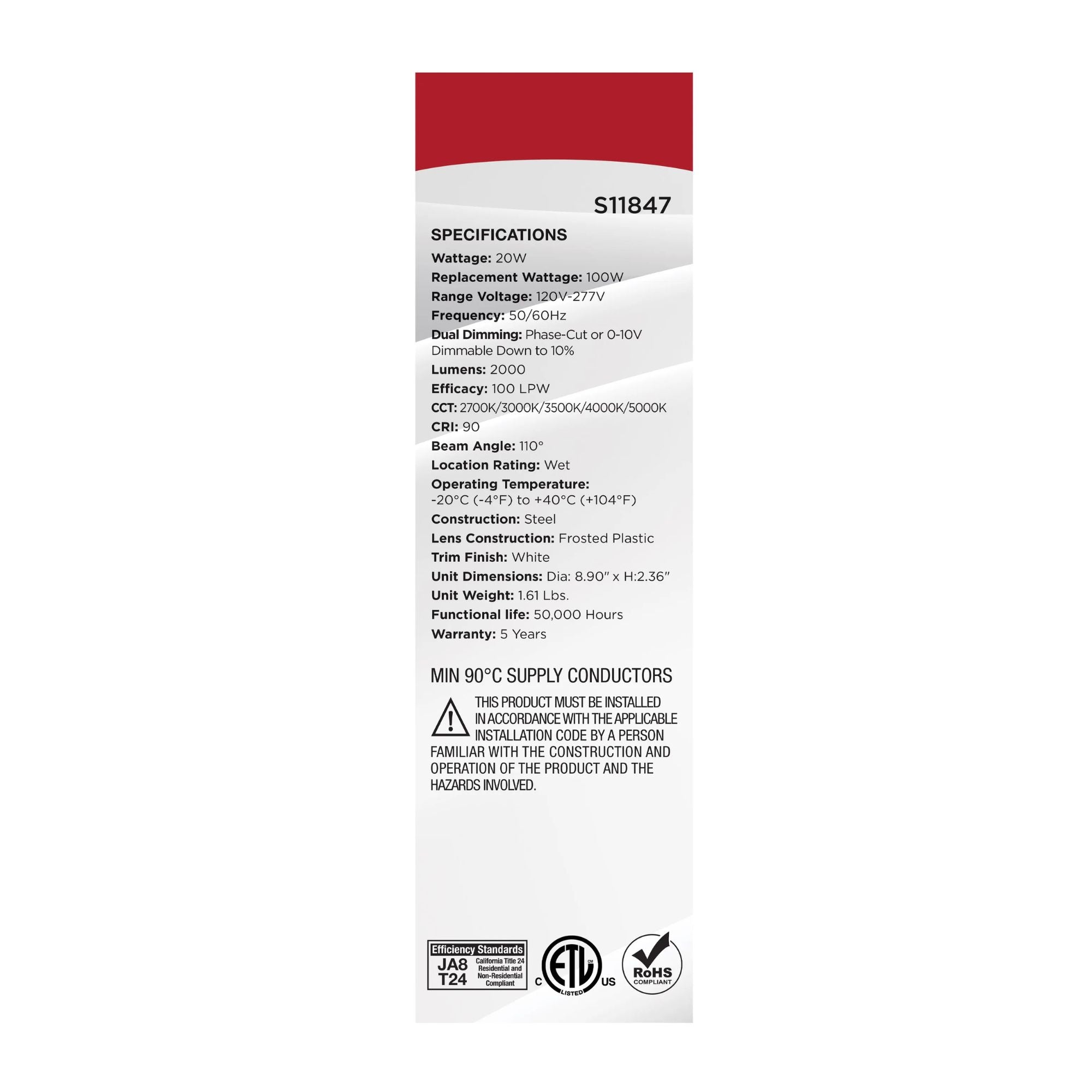

Key Features

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: 2000
• Wattage: 20W
• Voltage: 120-277V
• Dimming Type: Triac at 120V / 0-10V at 120-277V
• Beam Angle: 110 degrees
• CRI: 90+
• IC Rated: True
• Energy Star Certified: Yes
• Title 24 JA8 Compliant: Yes
• ROHS Compliant: Yes
• Warranty: 5 years

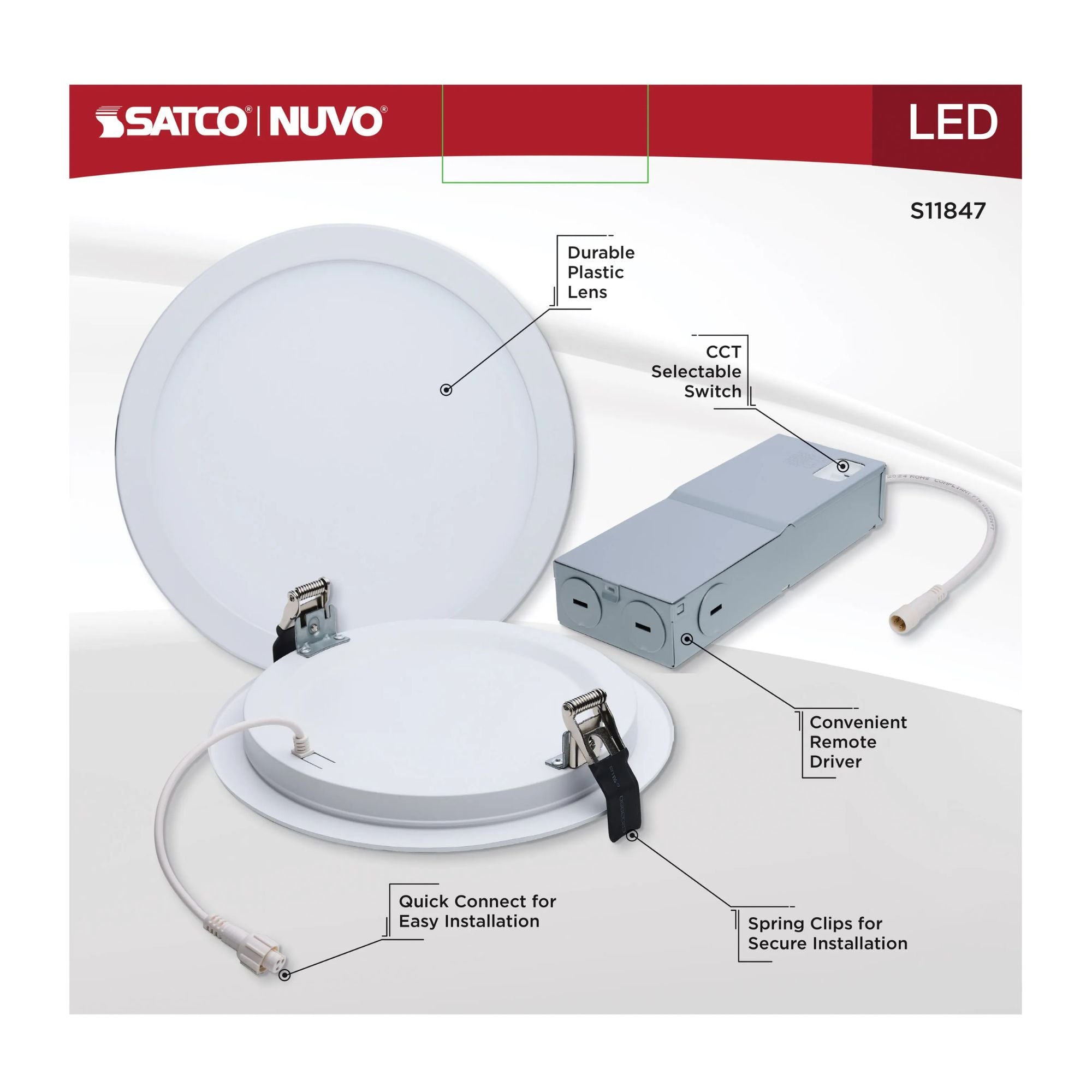

Construction & Aesthetics

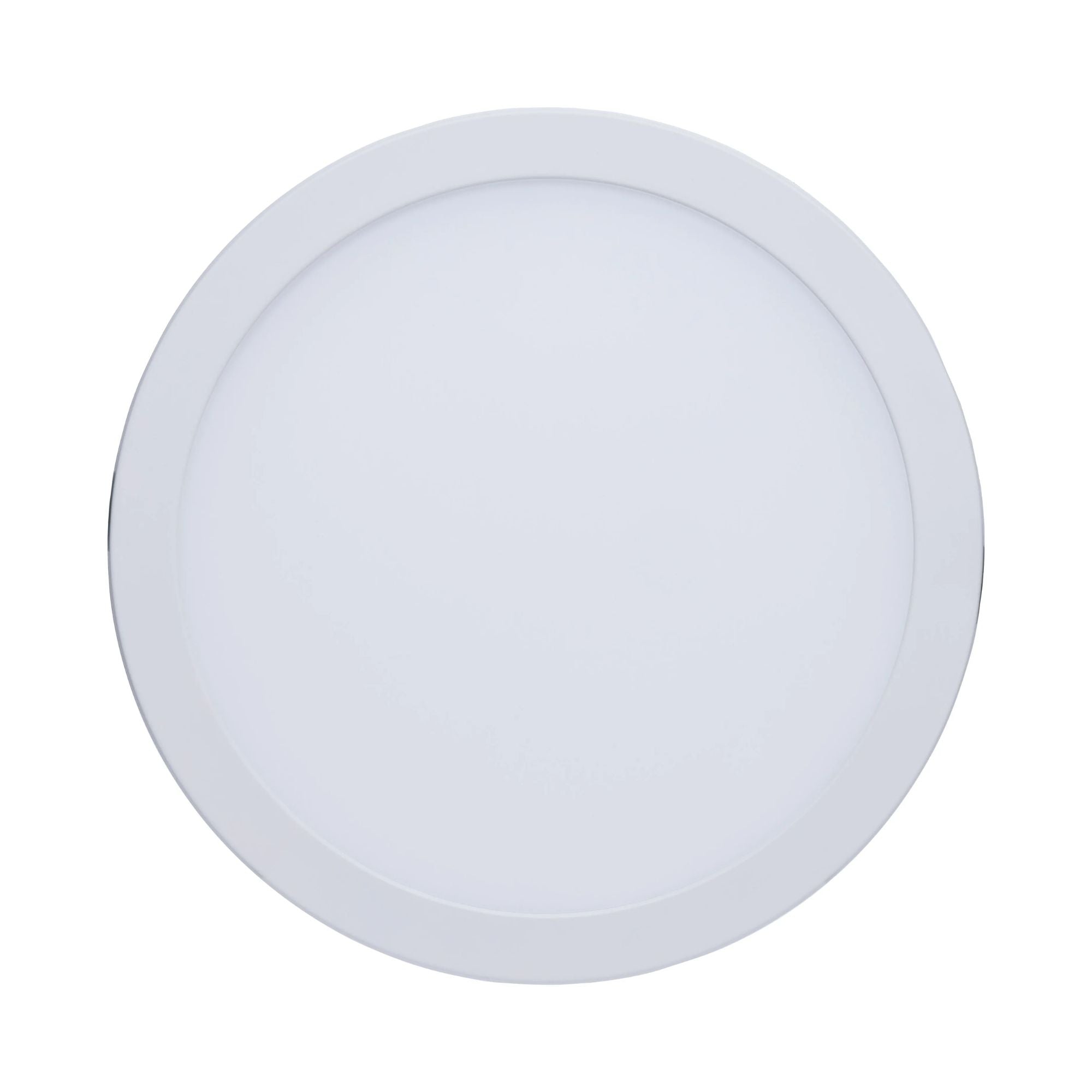

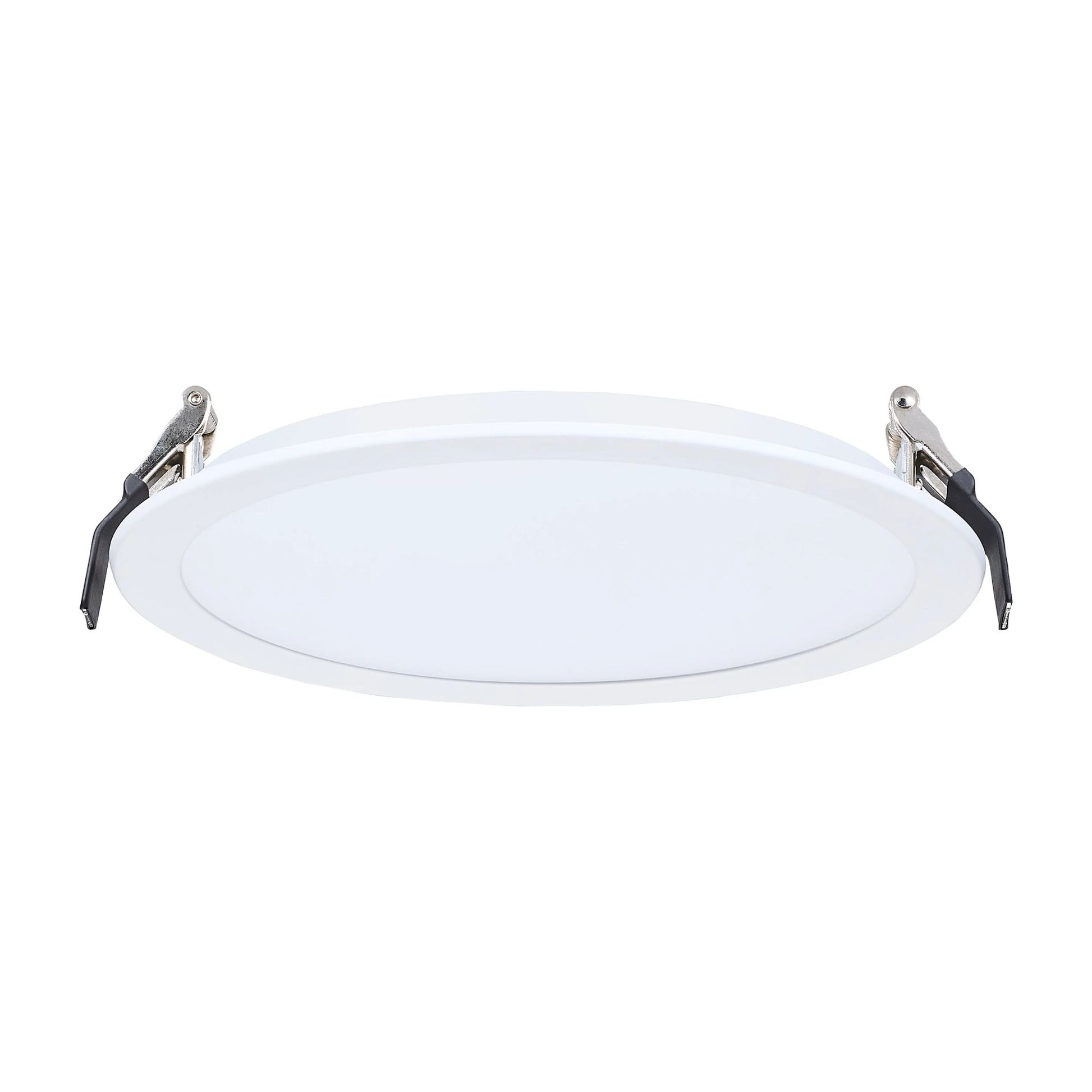

Constructed with a durable steel housing and a matte frosted polycarbonate lens, the fixture features a sleek white finish. The flat face design complements modern aesthetics, making it suitable for various architectural styles.

Electrical & Installation

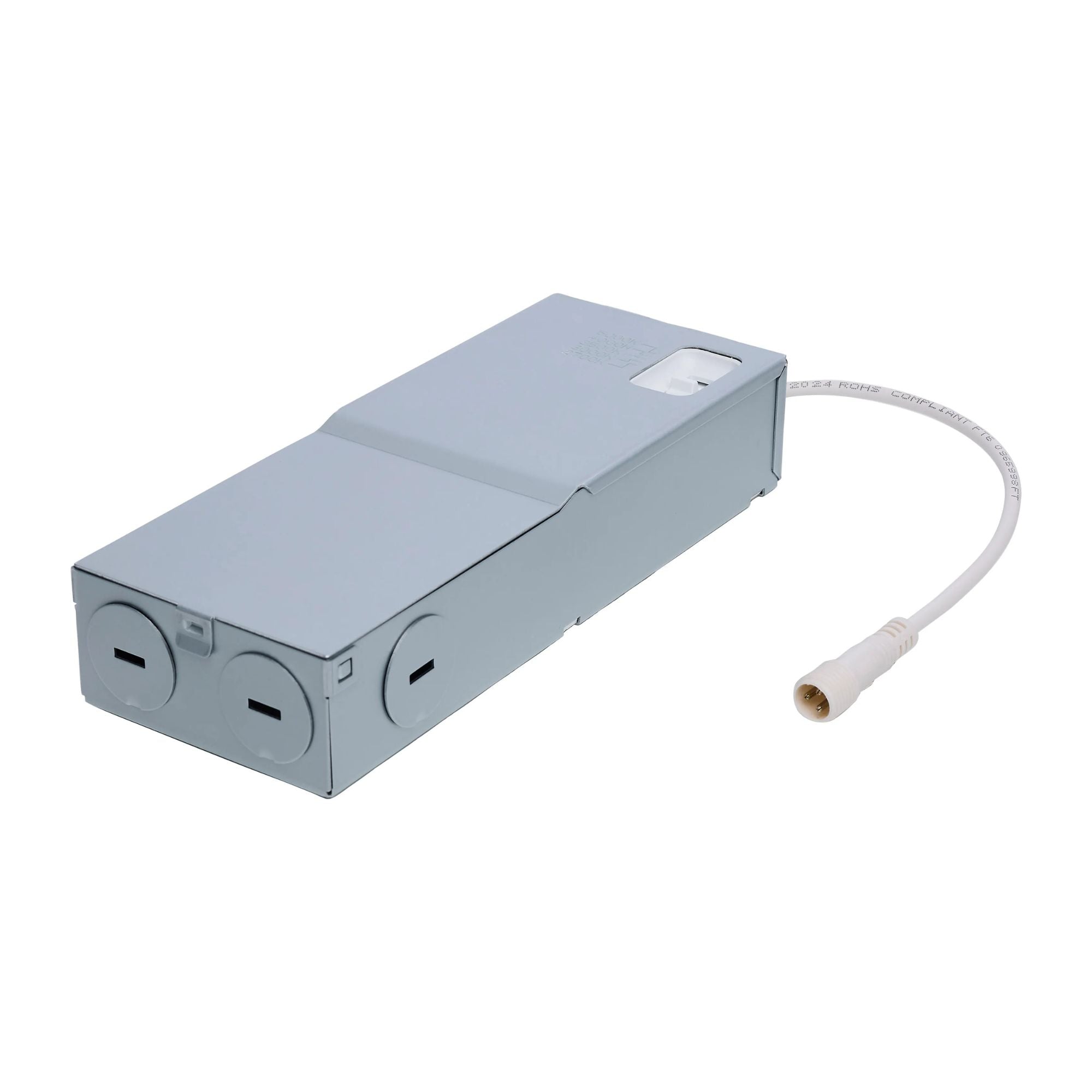

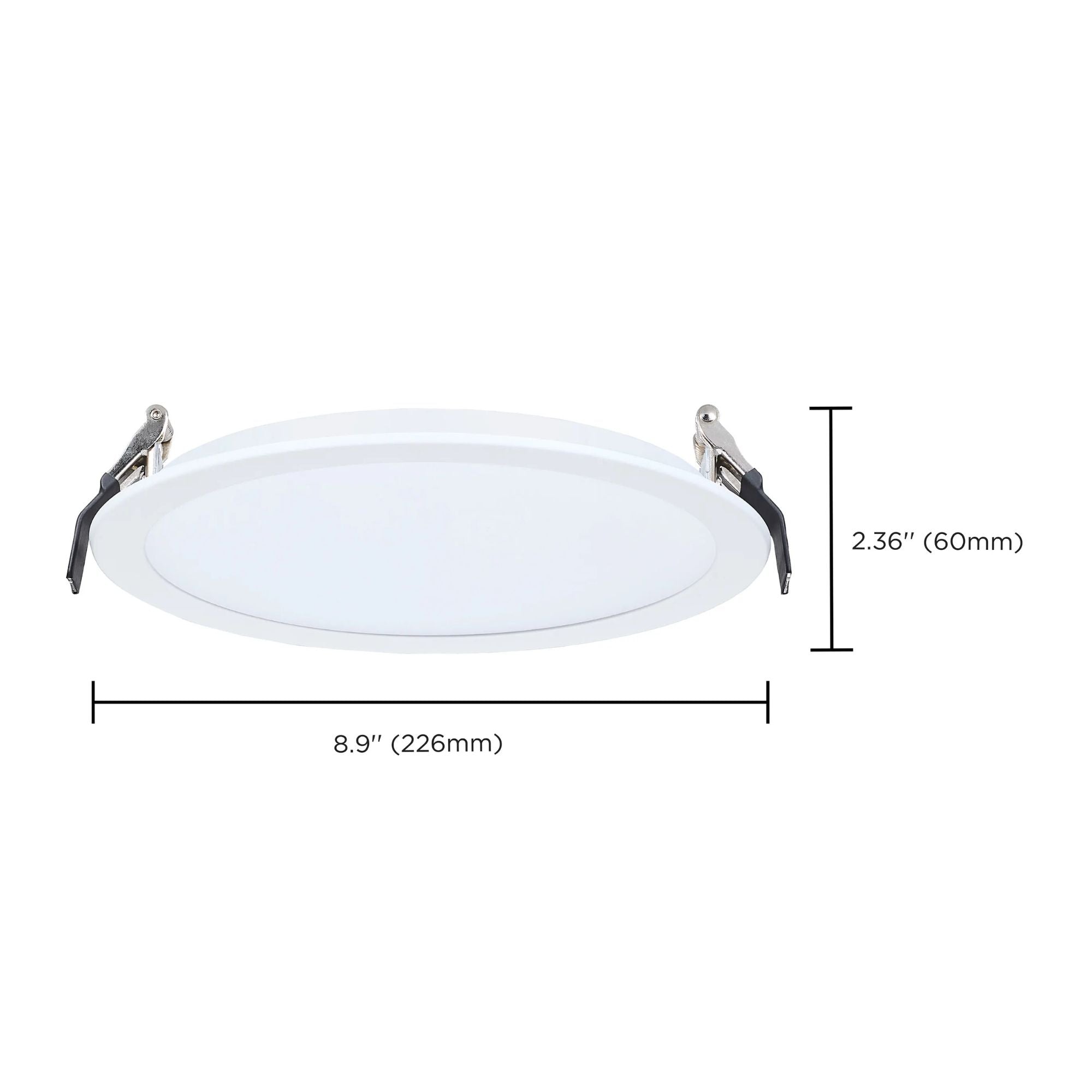

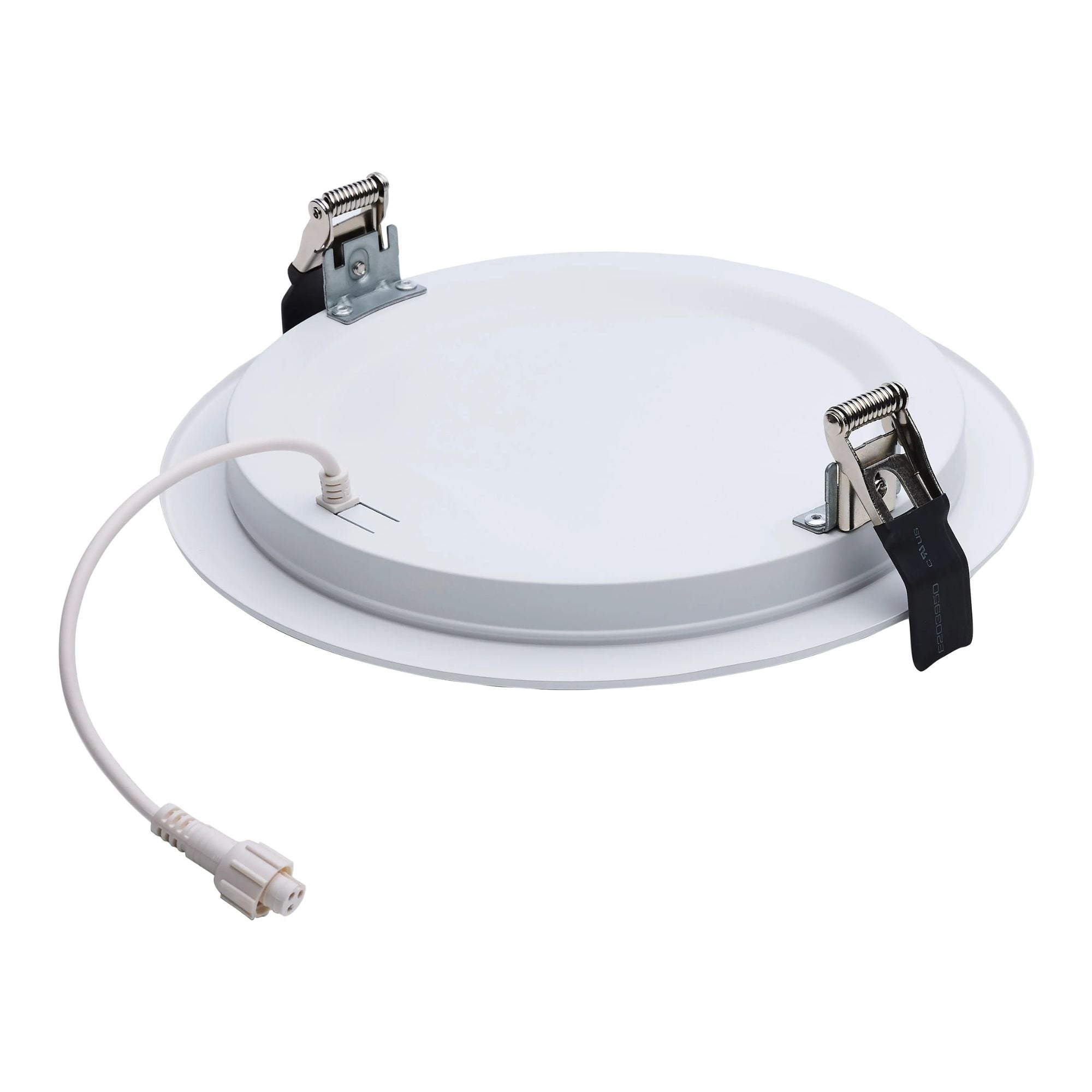

This direct wire LED downlight operates on 120-277V and includes built-in surge protection. It supports dual dimming with Triac and 0-10V options, providing flexibility in lighting control. The fixture is designed for easy installation with a mounting diameter of 7.87 inches.

Light Output & Performance

With a high CRI of 90+, this downlight ensures accurate color rendering. It offers a wide beam angle of 110 degrees, making it ideal for general lighting applications. The integrated LED has a rated lifespan of 50,000 hours.

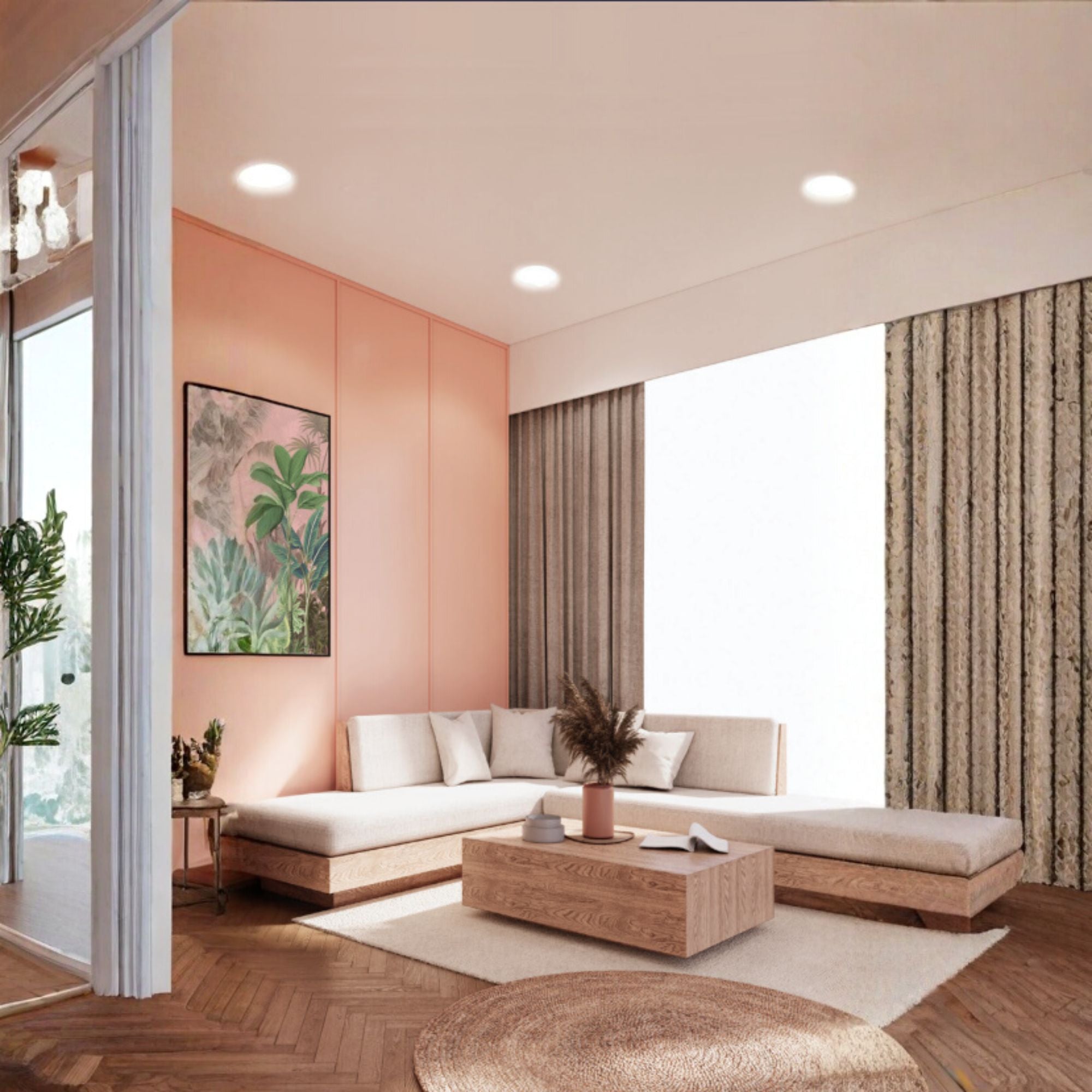

Typical Applications

• Commercial spaces
• Residential areas
• Hospitality environments
• Retail settings
• Wet locations
