SATCO S11830R1 6" Square Slim LED Downlight ColorQuick 5-CCT 12W 120V White
Available in stock (60)
About this item
About this item
- ColorQuick 5-CCT Selectable — 6 in Square Slim Fit LED Downlight: Direct wire; NEC-compliant junction box; FT6 cable; aluminum construction; frosted PMMA lens; white finish; down installation only
- IC Rated, Airtight, and Closet Rated: Wet rated; suitable for bathrooms and clothes closets (NEC 410.16); sloped ceiling compatible; width 6.75 in; mounting length 6.18 in; mounting height 1.34 in; height 0.99 in; weight 1.19 lbs
- 1050 lm at 12W / up to 87 LPW: CRI 90+; 110° beam angle; CBCP 400; replaces 75W incandescent; L70: 50,000 hrs; 2.5KV surge protection; PF >0.9; THD <20%
- Line Voltage Dimmable — 120V / 60Hz Only: CCT adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; op temp: -4°F to +113°F (-20°C to +45°C)
- ENERGY STAR / California T24 JA8 Listed / cETLus Listed: FCC; RoHS; Title 20: Exempt; 5-year warranty
Description
Description

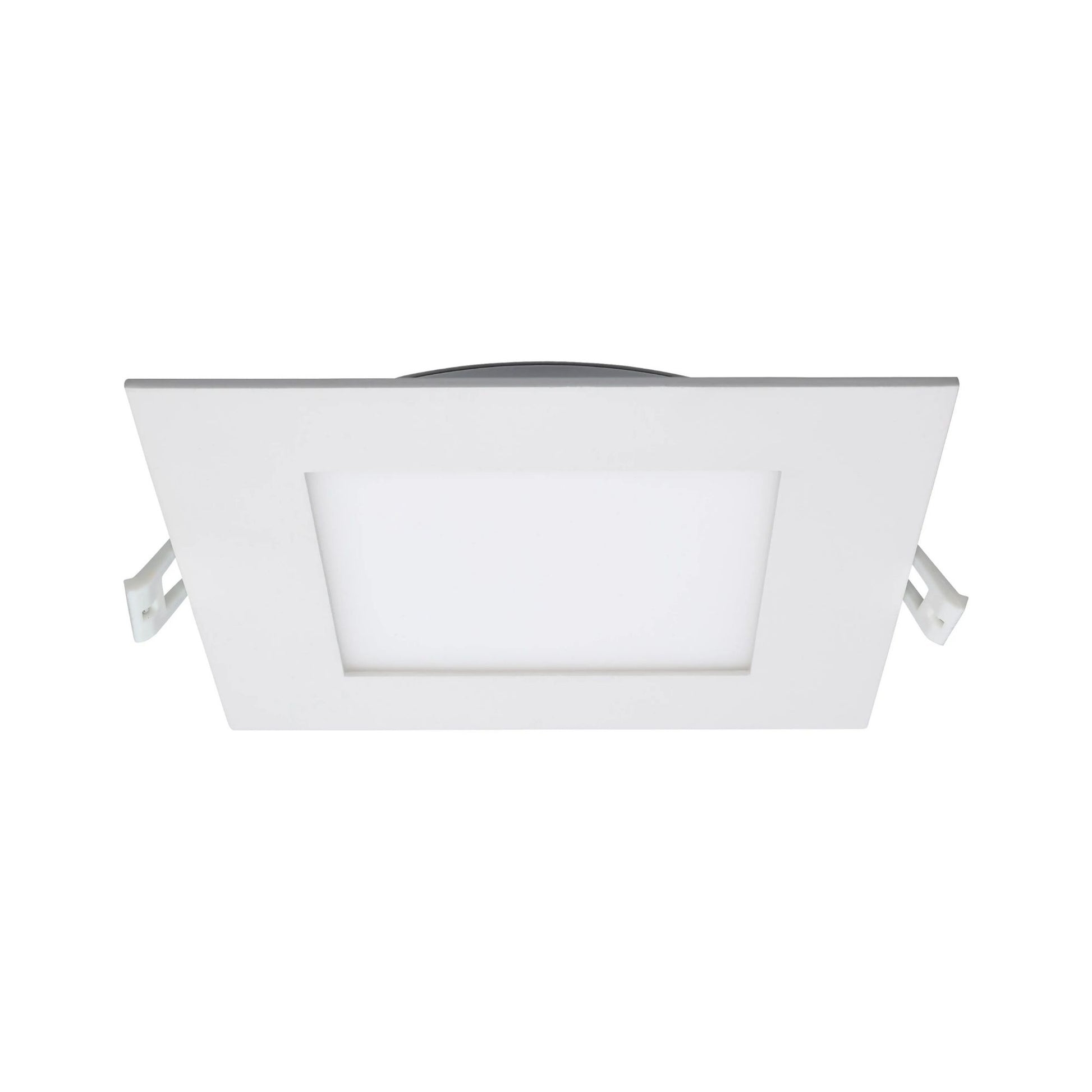

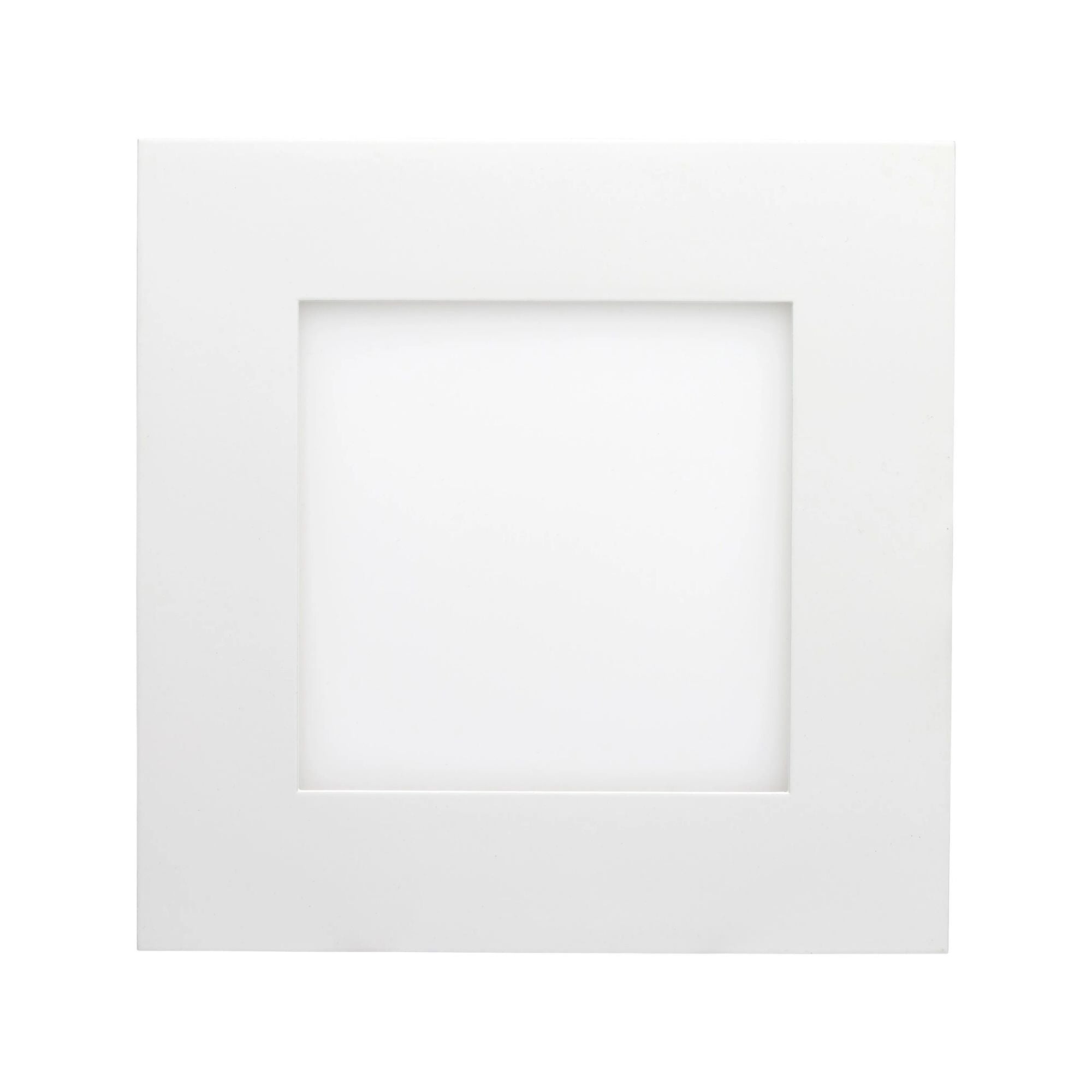

SATCO S11830R1 6 in Square Slim LED Downlight — ColorQuick / 5-CCT Selectable / 12W / 1050 lm / 120V / White
The SATCO S11830R1 is a 6 in square slim fit LED downlight from the Plus Series, featuring ColorQuick selectable color technology. Delivering 1050 lm at 12W (up to 87 LPW) with a wide 110° beam angle. Direct wire with NEC-compliant junction box and FT6 cable. Aluminum construction with frosted PMMA lens. IC rated, airtight, closet rated, and wet rated. Sloped ceiling compatible. Line Voltage dimmable at 120V. Built-in 2.5KV surge protection. ENERGY STAR certified. California T24 JA8 Listed. cETLus Listed. FCC. RoHS. 5-year warranty. L70: 50,000 hours. Replaces 75W incandescent.
Key Features
- Wattage: 12W (fixed)
- Light Output: 1050 lm | Efficacy: Up to 87 LPW
- Beam Angle: 110° | CBCP: 400

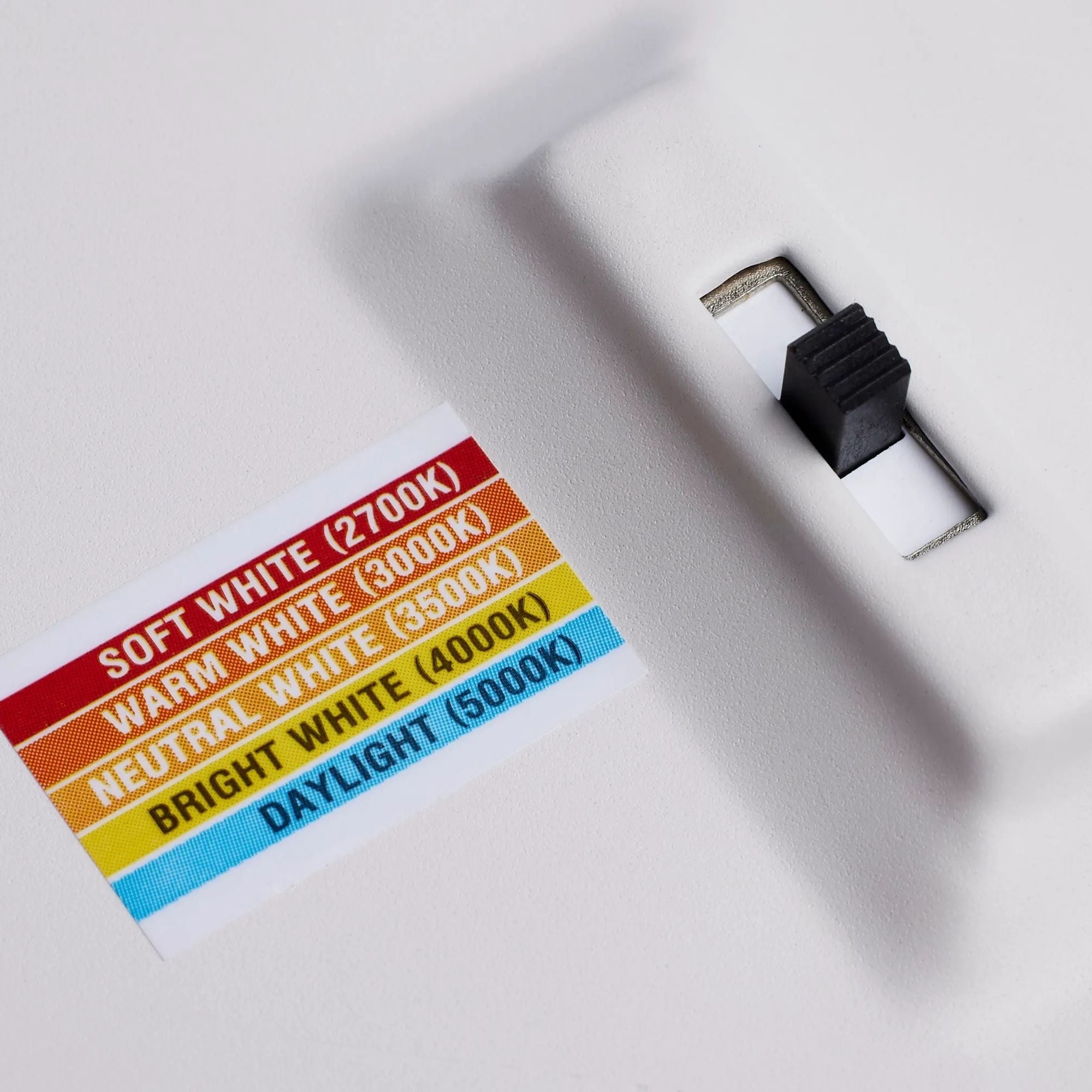

- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+
- Installation: Direct wire | Down only | NEC-compliant junction box | FT6 cable
- Finish: White | Lens: Frosted PMMA | Construction: Aluminum

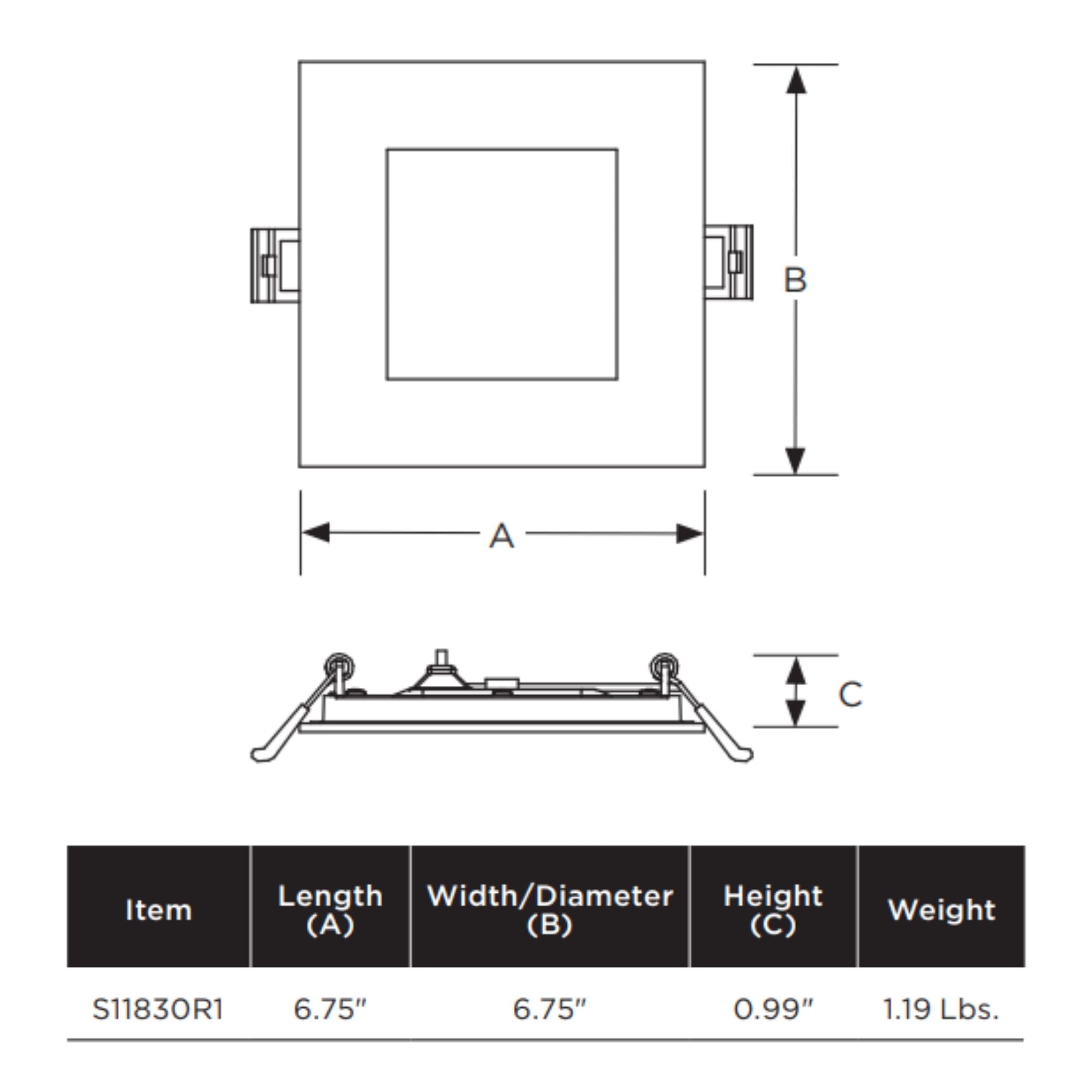

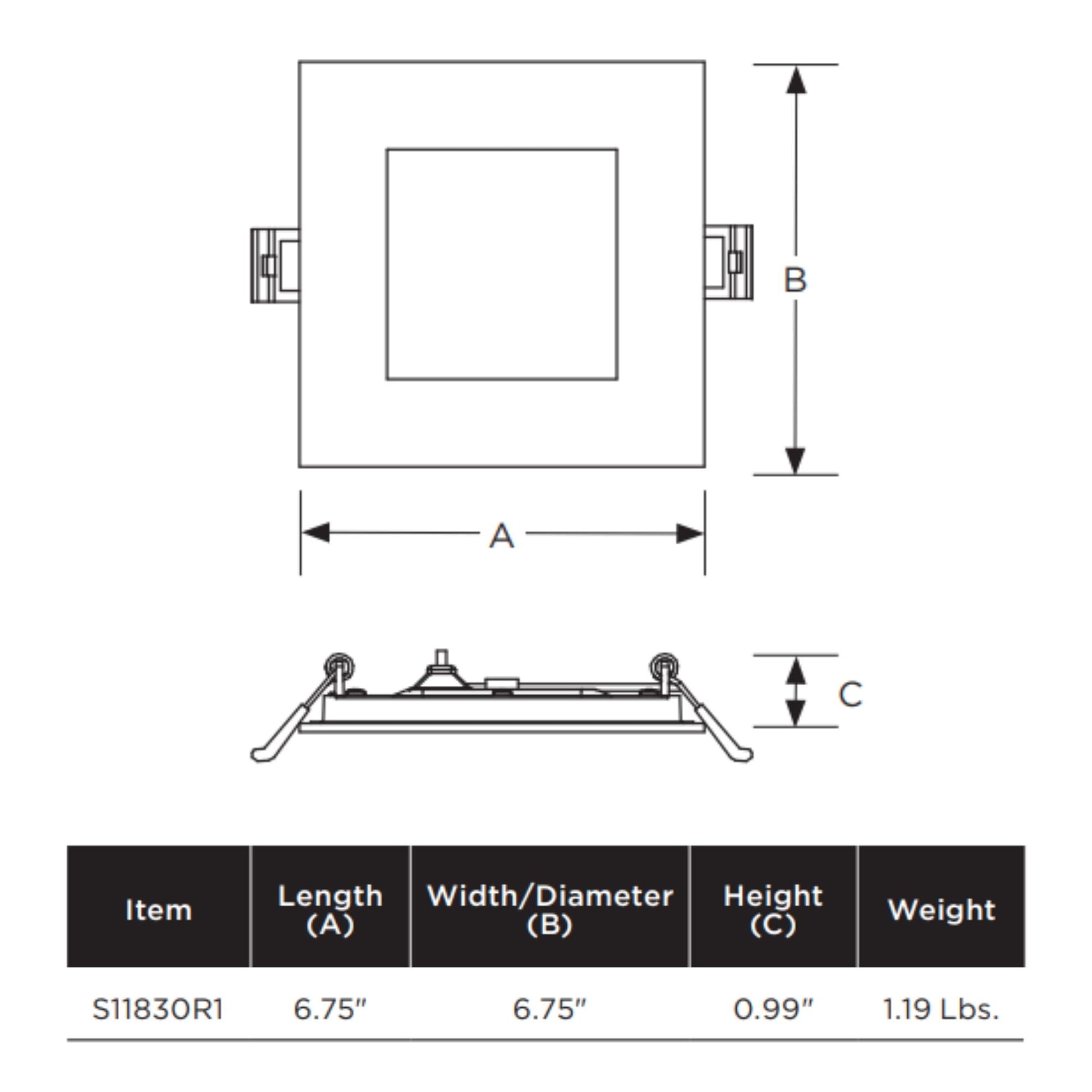

- Width: 6.75 in | Mounting Length: 6.18 in | Mounting Height: 1.34 in | Height: 0.99 in | Weight: 1.19 lbs
- Input Voltage: 120V only | 60Hz
- Dimming: Line Voltage
- Power Factor: >0.9 | THD: <20% | Surge Protection: 2.5KV
- IC Rating: Yes | Air Tight: Yes | Closet Rated: Yes
- Location Rating: Wet | Indoor and Outdoor
- Suitable for Bathrooms: Yes | Sloped Ceiling: Compatible
- Replaces: 75W incandescent
- Lifespan: 50,000 hours L70 | Warranty: 5-year
- Certifications: ENERGY STAR Certified | CA T24 JA8 Listed | cETLus Listed | FCC | RoHS | Title 20: Exempt
Construction & Design
Shape: Square | Size: 6 in | Finish: White | Lens: Frosted PMMA | Construction: Aluminum | Width: 6.75 in | Height: 0.99 in | Weight: 1.19 lbs. Slim profile for ceilings with limited clearance. IC rated, airtight, and closet rated. Sloped ceiling compatible. For the round version in white, see S11827R1. For black finish versions, see S11876R1 (4 in square) and S11877R1 (6 in square).
Light Output & Performance
The SATCO S11830R1 delivers 1050 lm at 12W (up to 87 LPW) with CRI 90+ and a 110° beam angle. CCT field-selectable: 2700K–5000K. CBCP: 400. Replaces 75W incandescent. L70: 50,000 hours.
Electrical & Installation
The SATCO S11830R1 operates at 120V only (60Hz) with Line Voltage dimming. PF >0.9; THD <20%; built-in 2.5KV surge protection. Op temp: -4°F to +113°F. Direct wire installation; down orientation only. NEC-compliant junction box included. FT6 cable. Sloped ceiling compatible.
Typical Applications

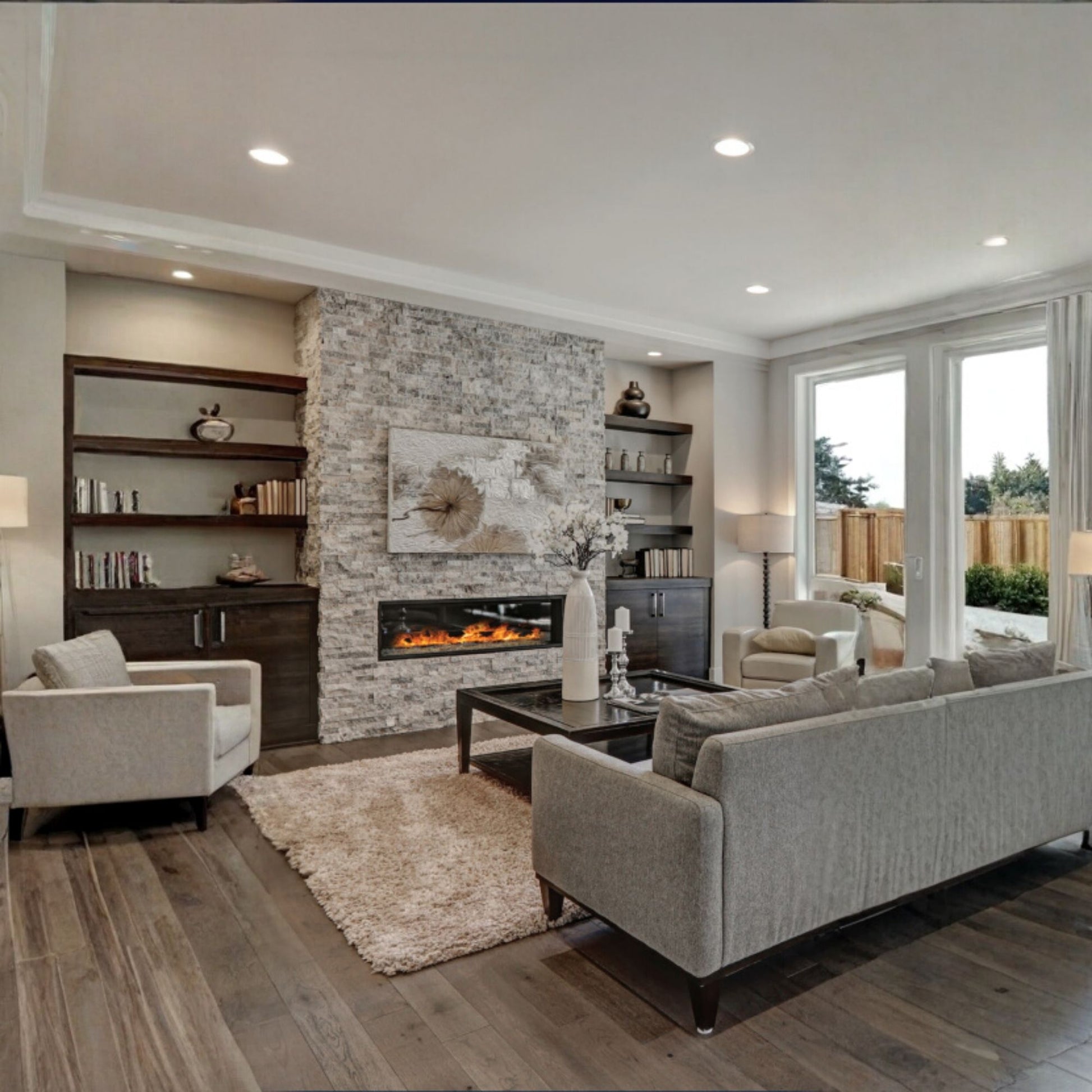

- Residential bedrooms, living rooms, kitchens, and bathrooms
- Clothes closets (NEC 410.16 compliant)
- Hospitality and multifamily spaces
- Commercial applications requiring slim-profile downlights
What’s Included
- SATCO S11830R1 6 in square slim LED downlight (white)

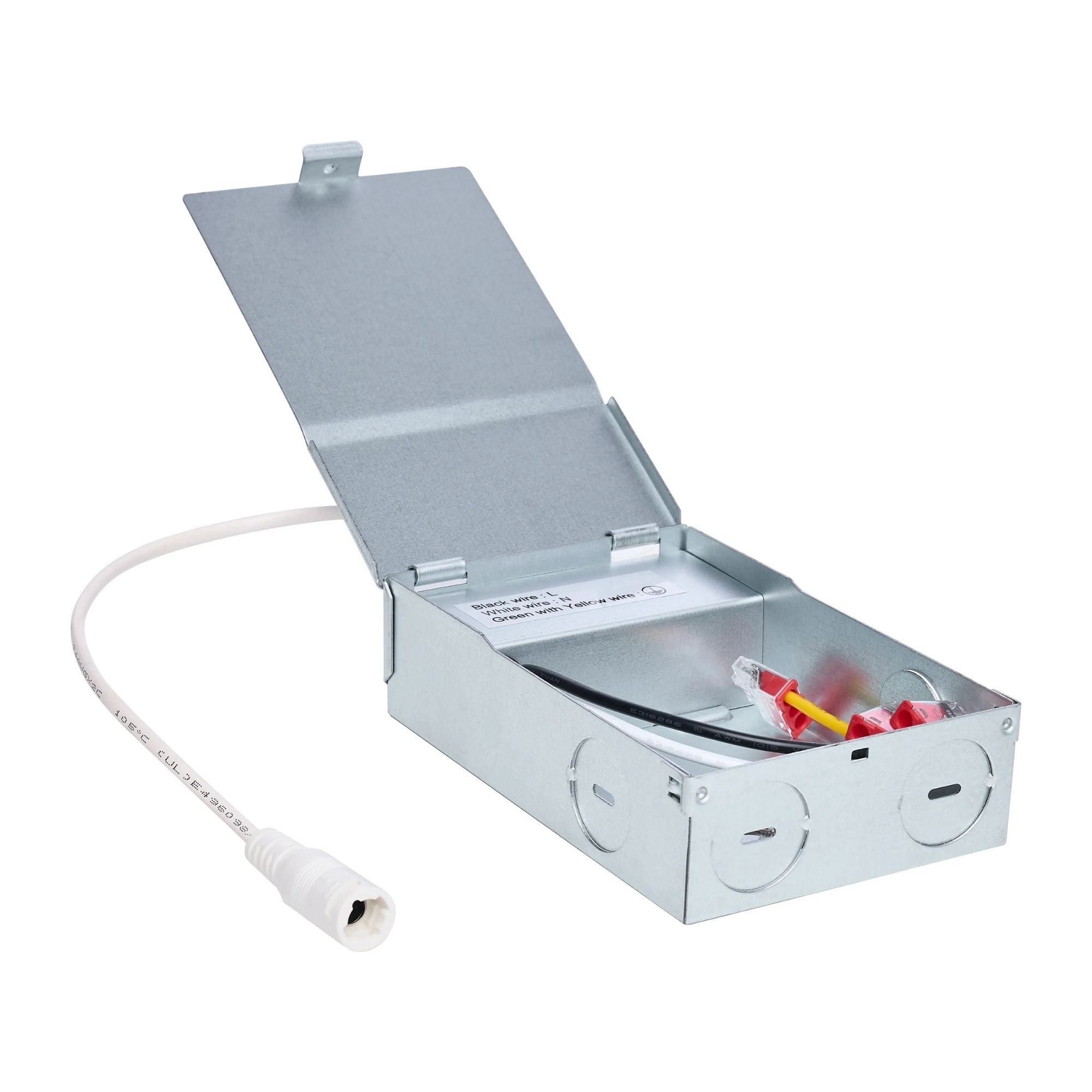

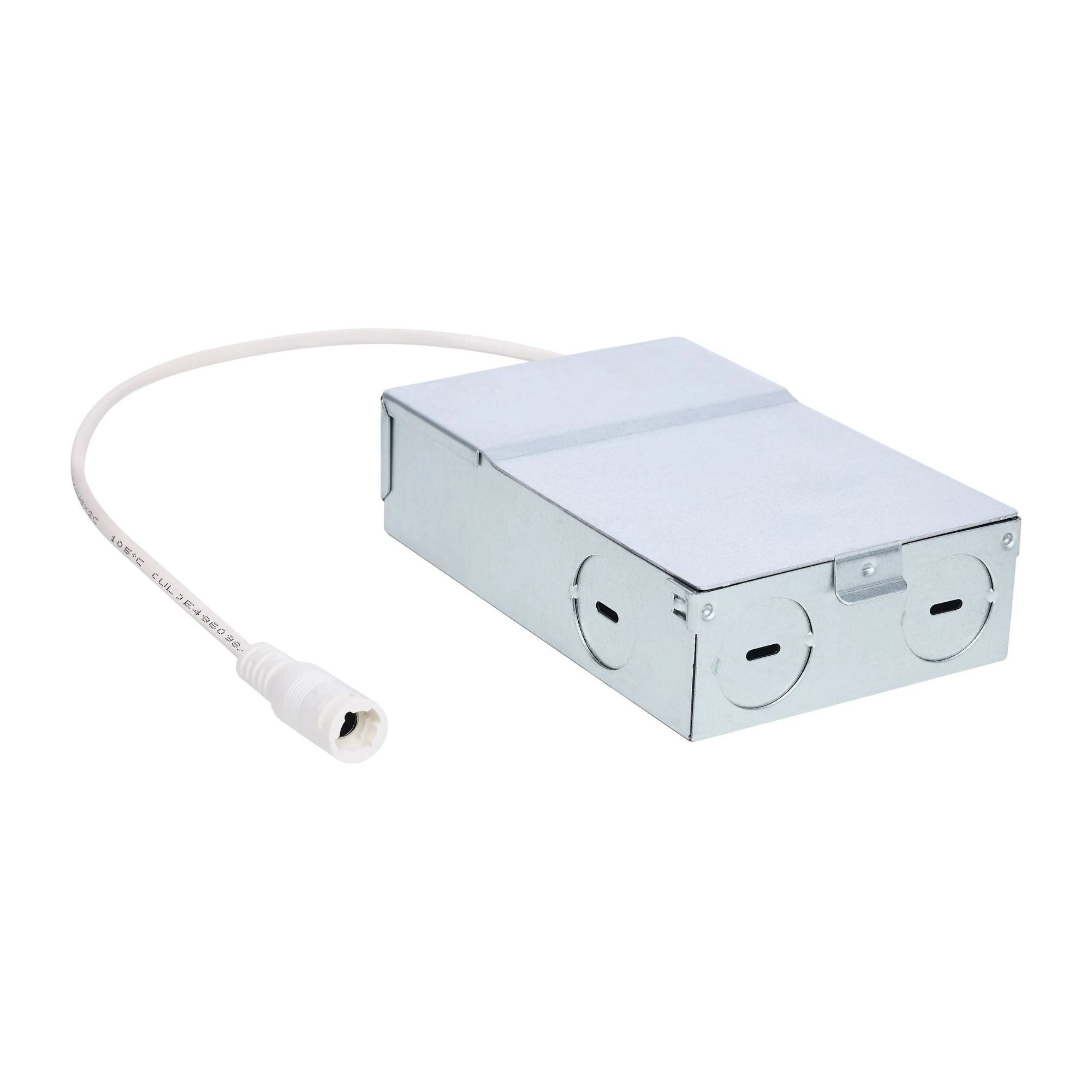

- NEC-compliant junction box
