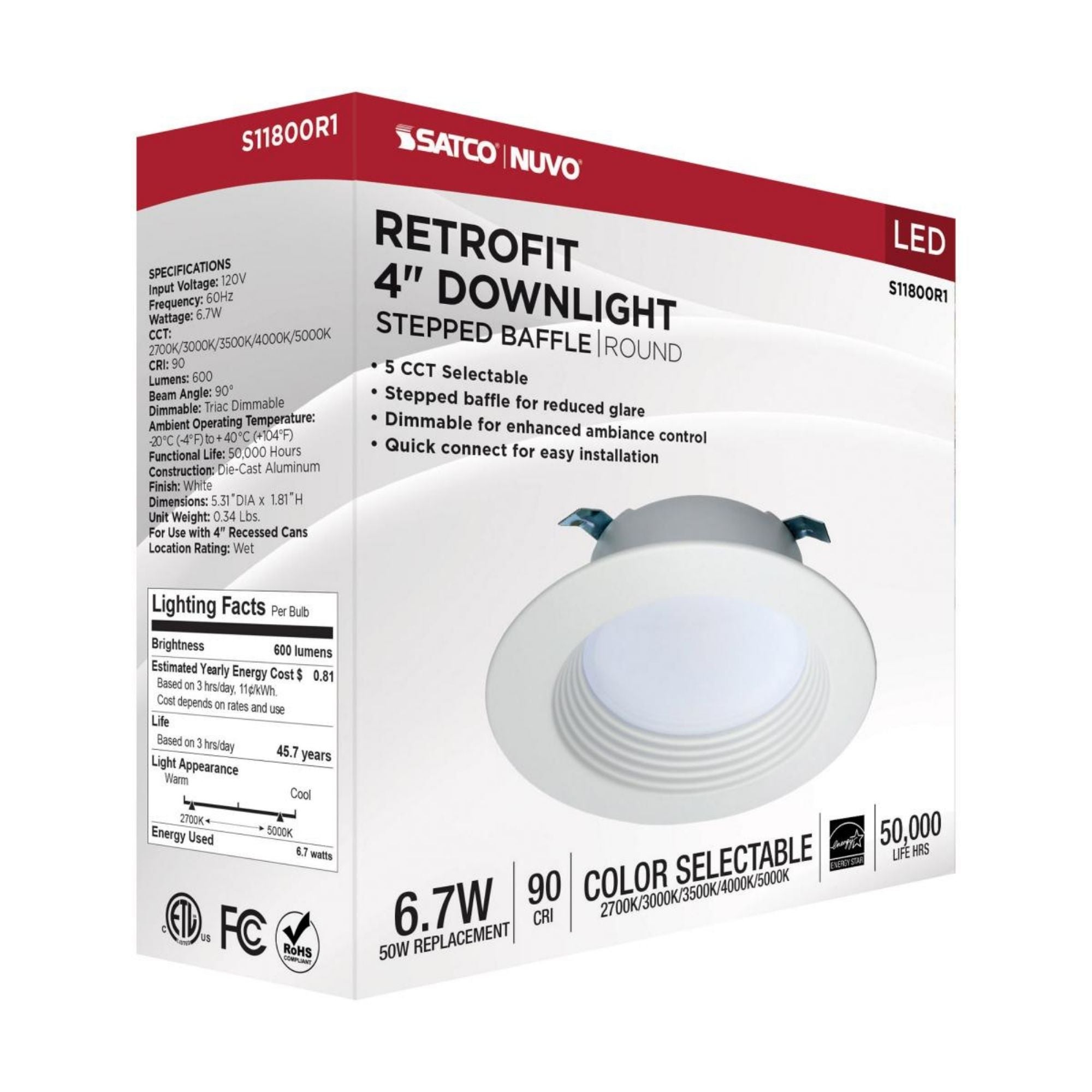

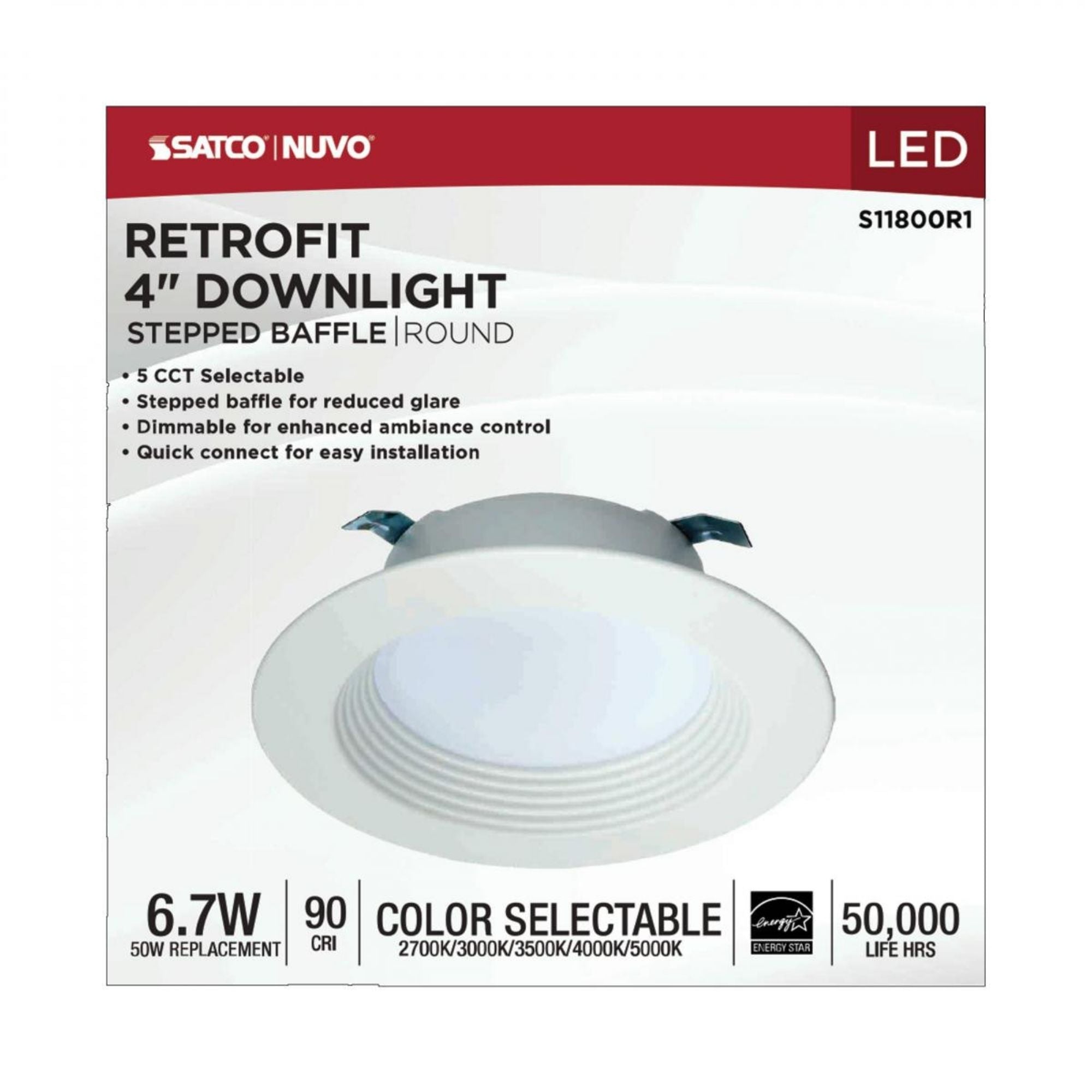

SATCO S11800R1 4 in Round LED Retrofit Downlight ColorQuick 5-CCT 6.7W 600 lm 120V White Steel
Available in stock (6303)
About this item
About this item

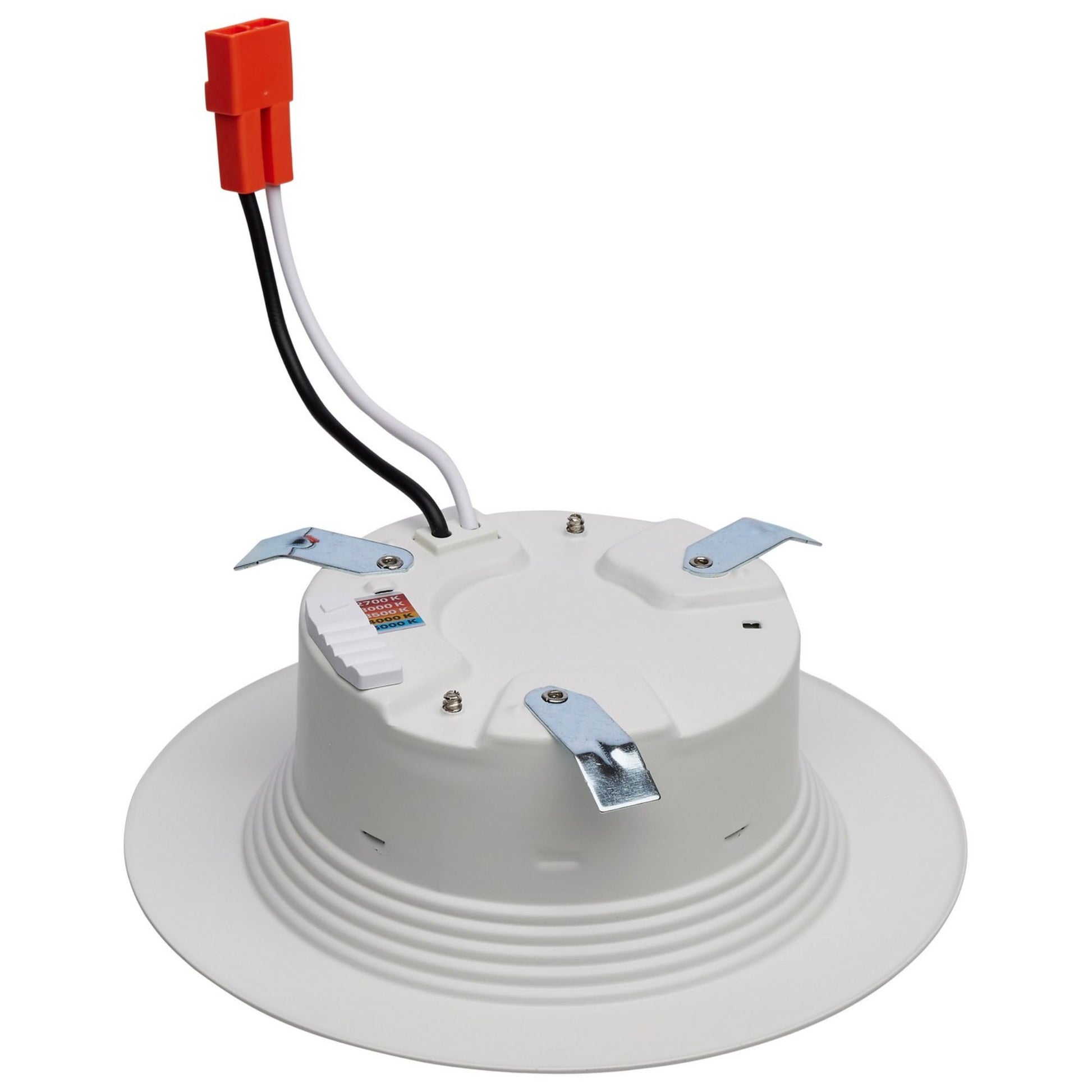

- ColorQuick 5-CCT Selectable — 4 in Round Retrofit Downlight: E26 screw-in adapter included; fits existing 4 in recessed cans; rotating and collapsible tabs for secure install and easy removal

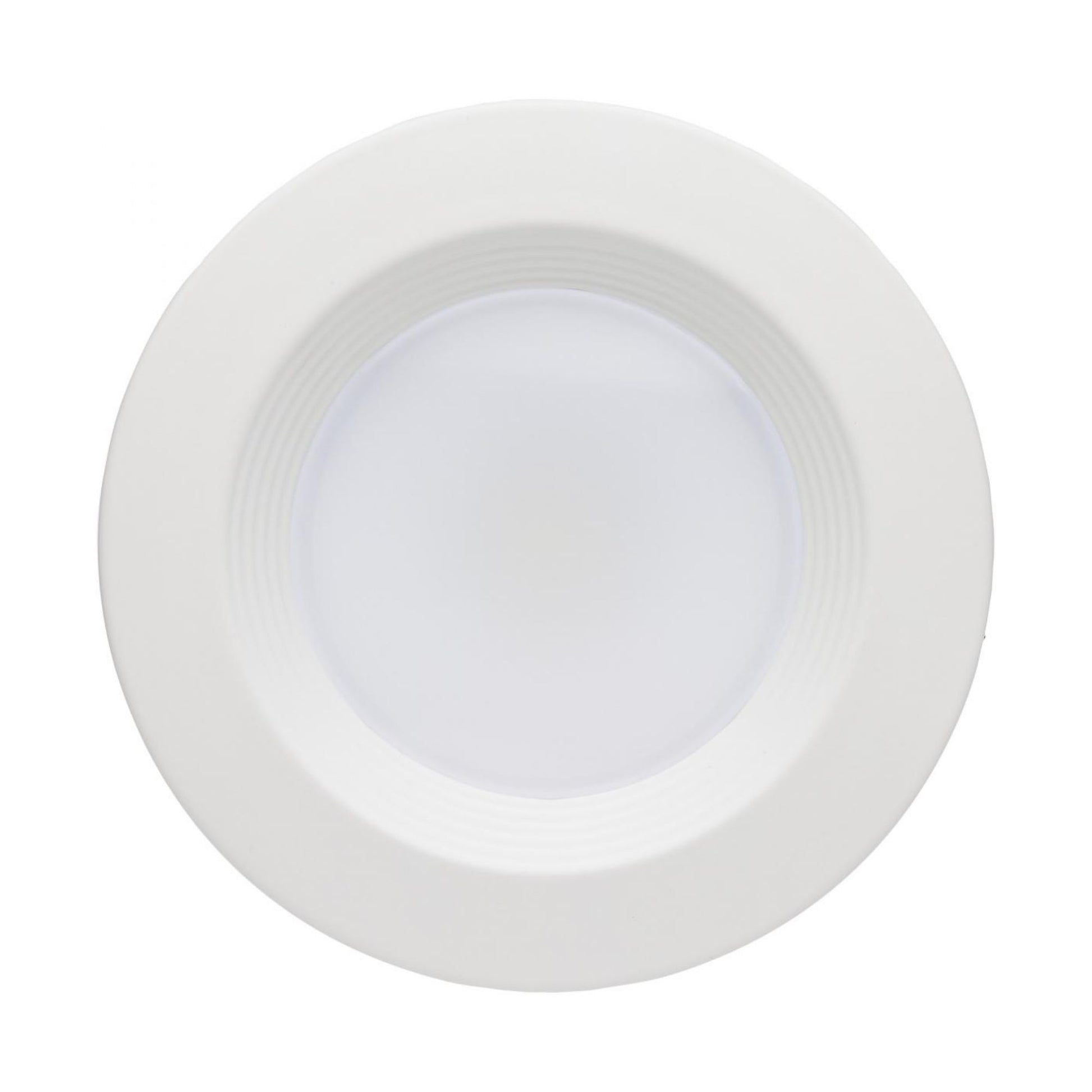

- Stepped Baffle for Reduced Glare: Steel construction; frosted polycarbonate lens; white finish; wet rated and suitable for bathrooms
- 600 lm at 6.7W / up to 89 LPW: CRI 90+; 90° beam angle; replaces 50W incandescent; L70: 50,000 hrs
- Phase-Cut Dimmable to 10% — 120V Only: CCT adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 2KV surge protection; PF 0.9
- California T24 JA8 Listed / Title 20 Listed / cETLus Listed: FCC; RoHS; 5-year warranty
Description
Description

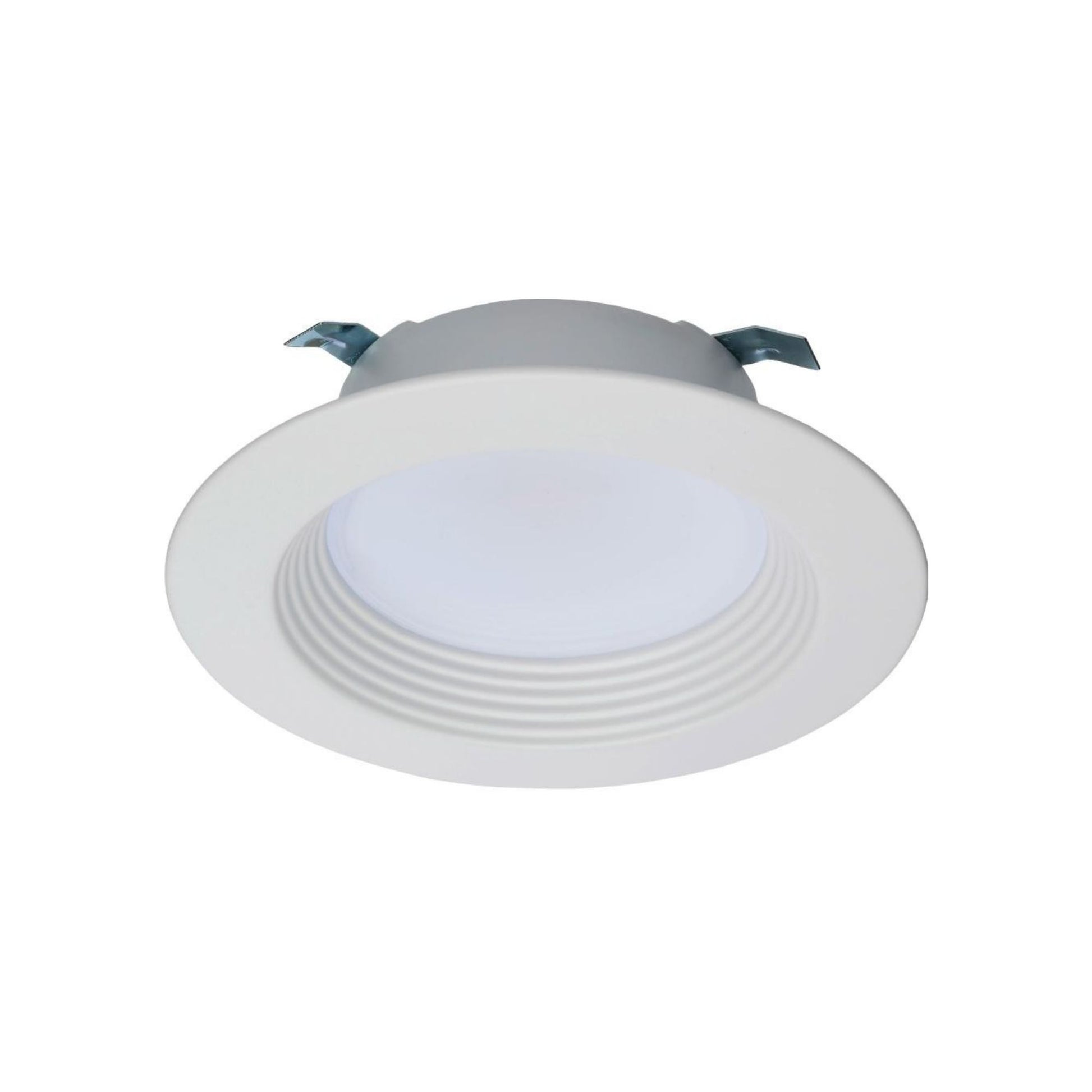

SATCO S11800R1 4 in Round LED Retrofit Downlight — ColorQuick / 5-CCT Selectable / 6.7W / 600 lm / 120V / White

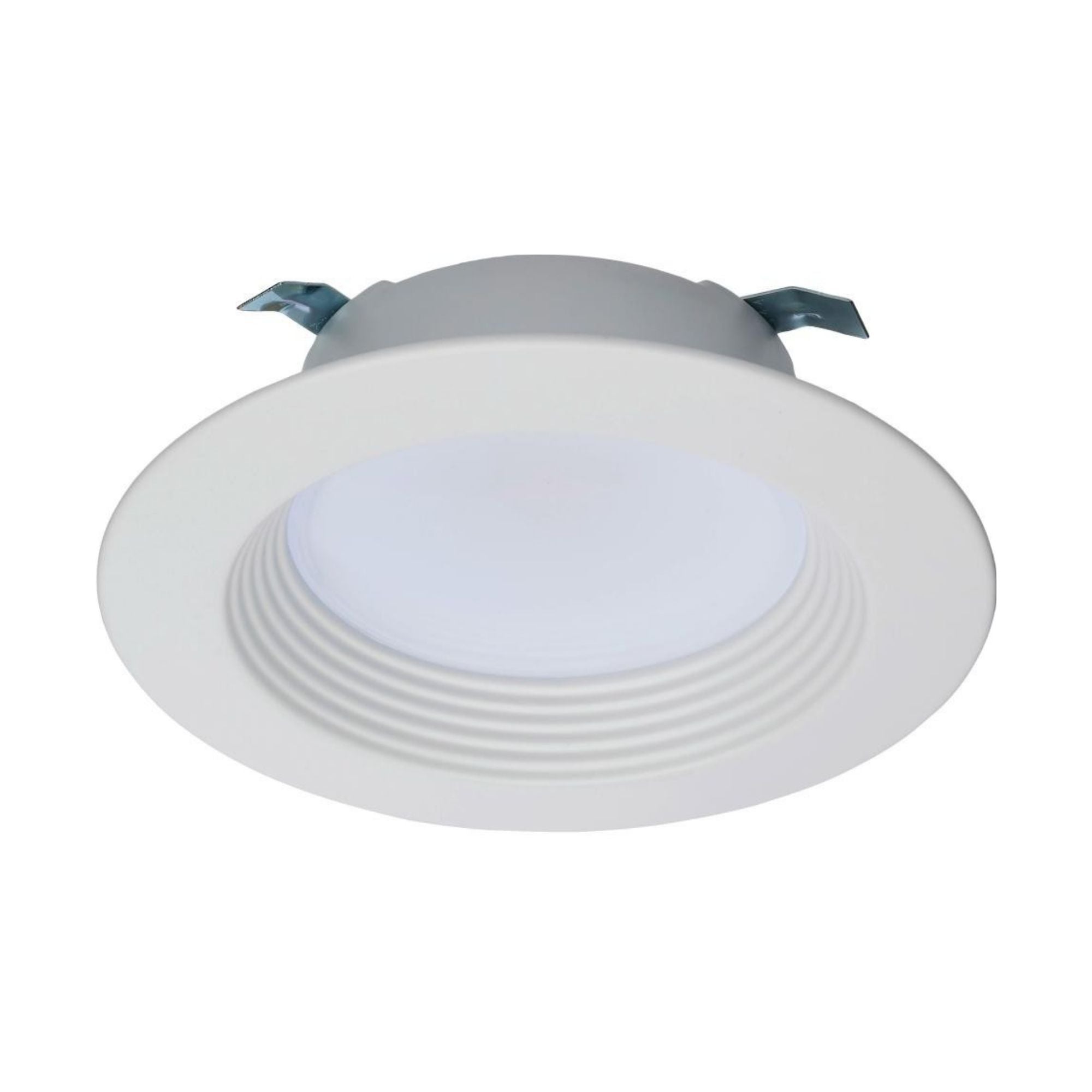

The SATCO S11800R1 is a 4 in round LED retrofit downlight featuring ColorQuick selectable color technology. Delivering 600 lm at 6.7W (up to 89 LPW) with field-selectable CCT (2700K/3000K/3500K/4000K/5000K). E26 medium adapter (S9001) included — screws into any compatible 4 in recessed can. Stepped baffle design reduces glare. Rotating and collapsible tabs for secure installation and easy removal. Steel construction with frosted polycarbonate lens. Wet rated and suitable for bathroom applications. Phase-Cut dimmable to 10% at 120V. Built-in 2KV surge protection. California T24 JA8 Listed. Title 20 Listed. cETLus Listed. FCC. RoHS. 5-year warranty. L70: 50,000 hours. Replaces 50W incandescent.

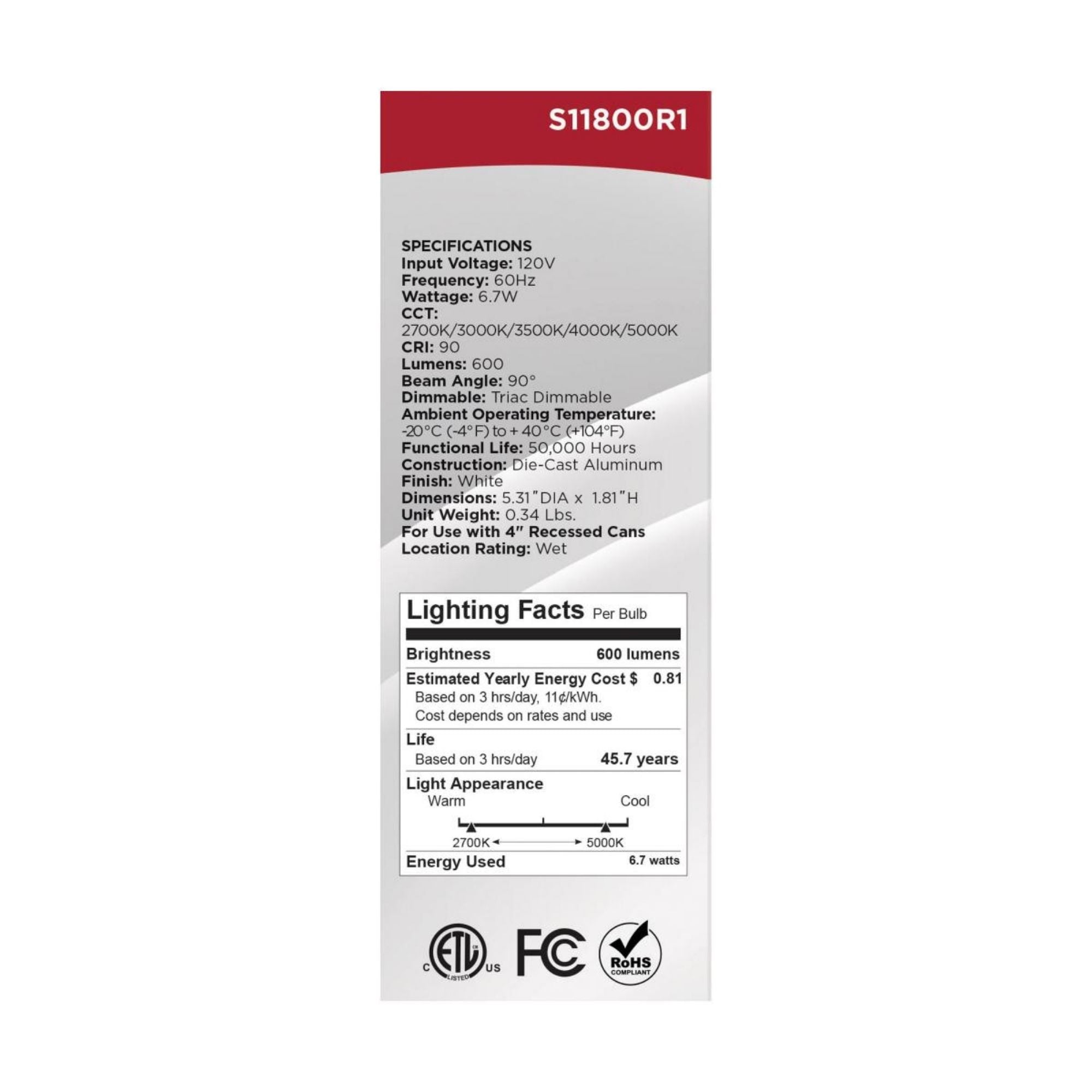

Key Features
- Wattage: 6.7W (fixed)
- Light Output: 600 lm
- Efficacy: Up to 89 LPW
- Beam Angle: 90°

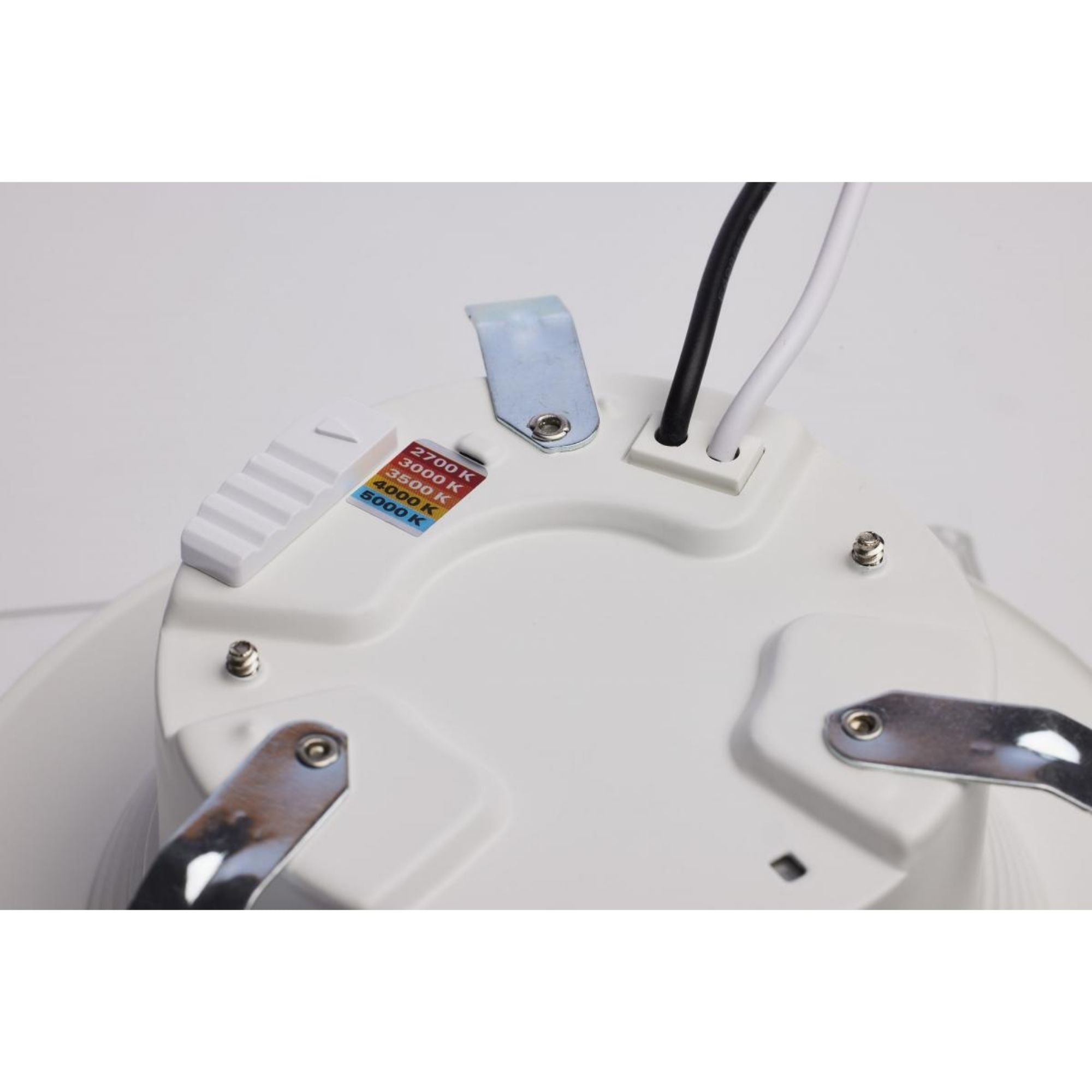

- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- CRI: 90+

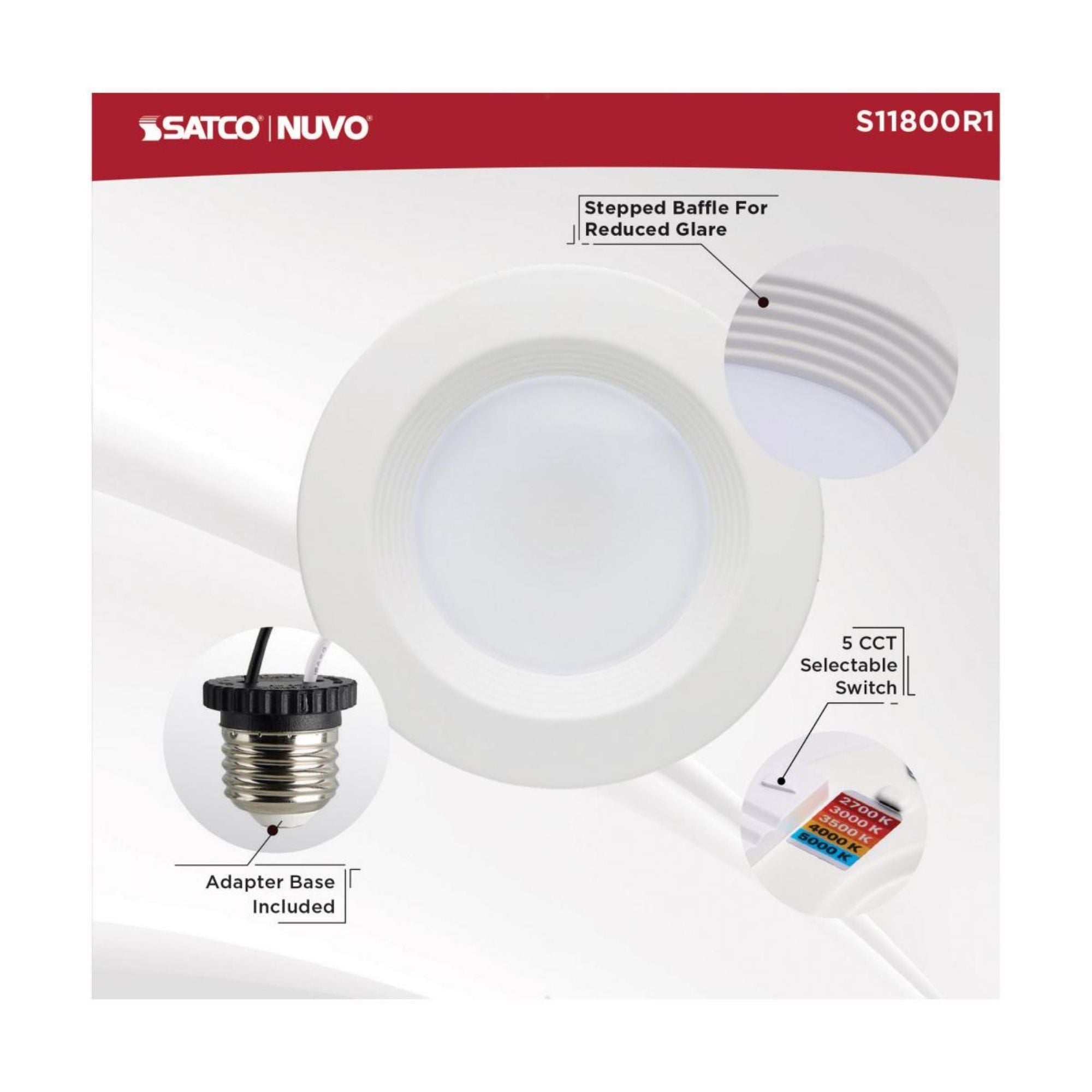

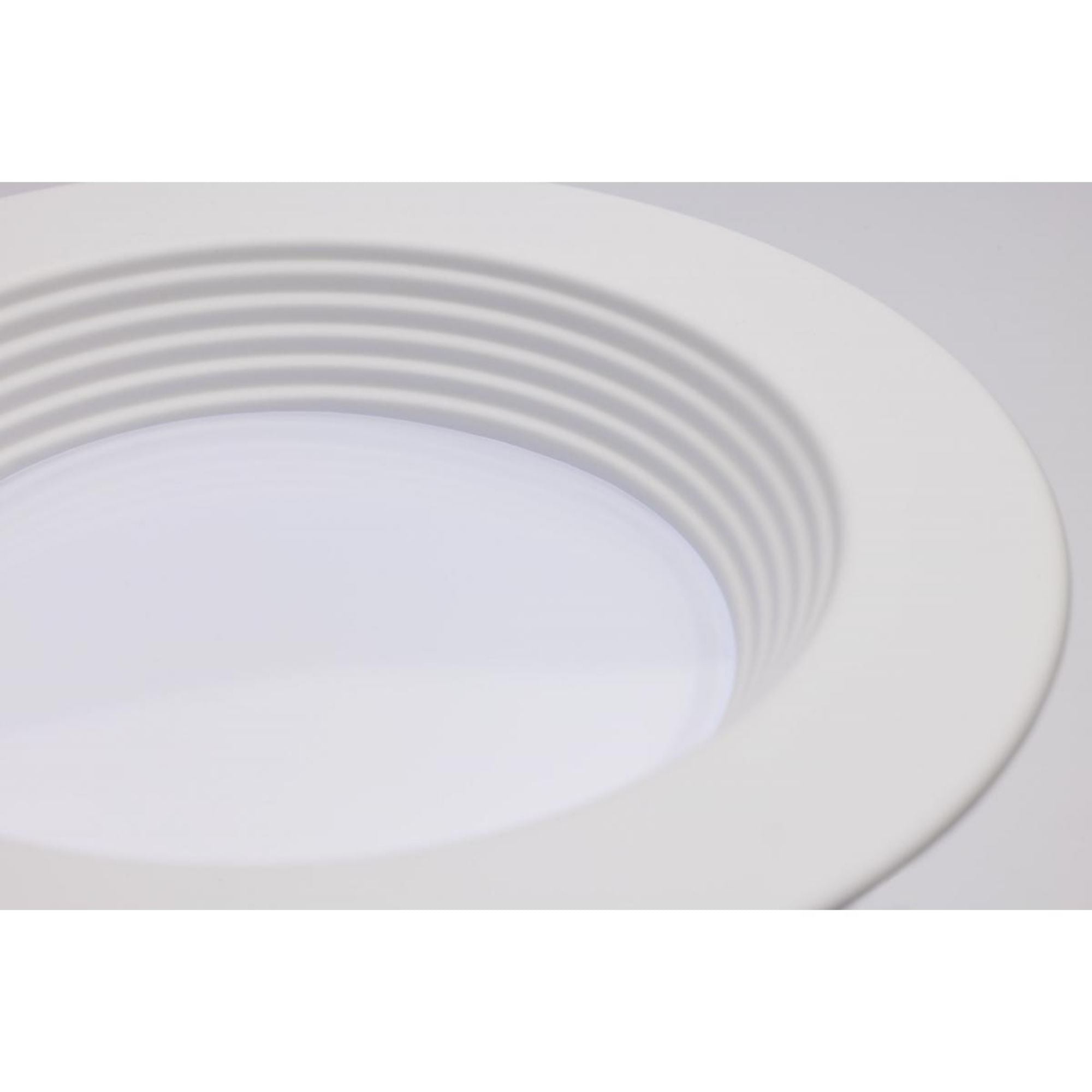

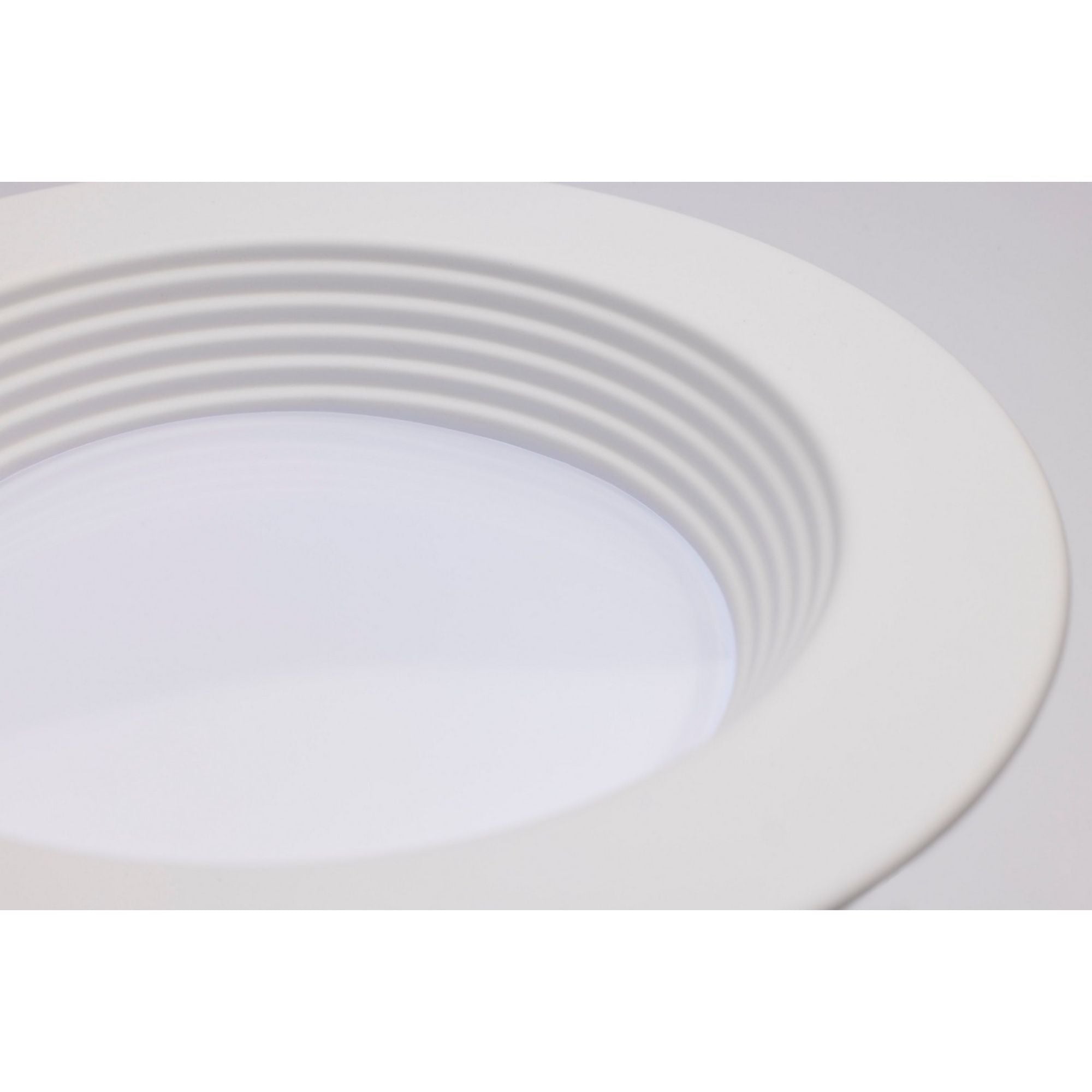

- Baffle: Stepped baffle for reduced glare
- Compatible Housing: 4 in recessed can (min 4.06 in dia × 5.6 in height)

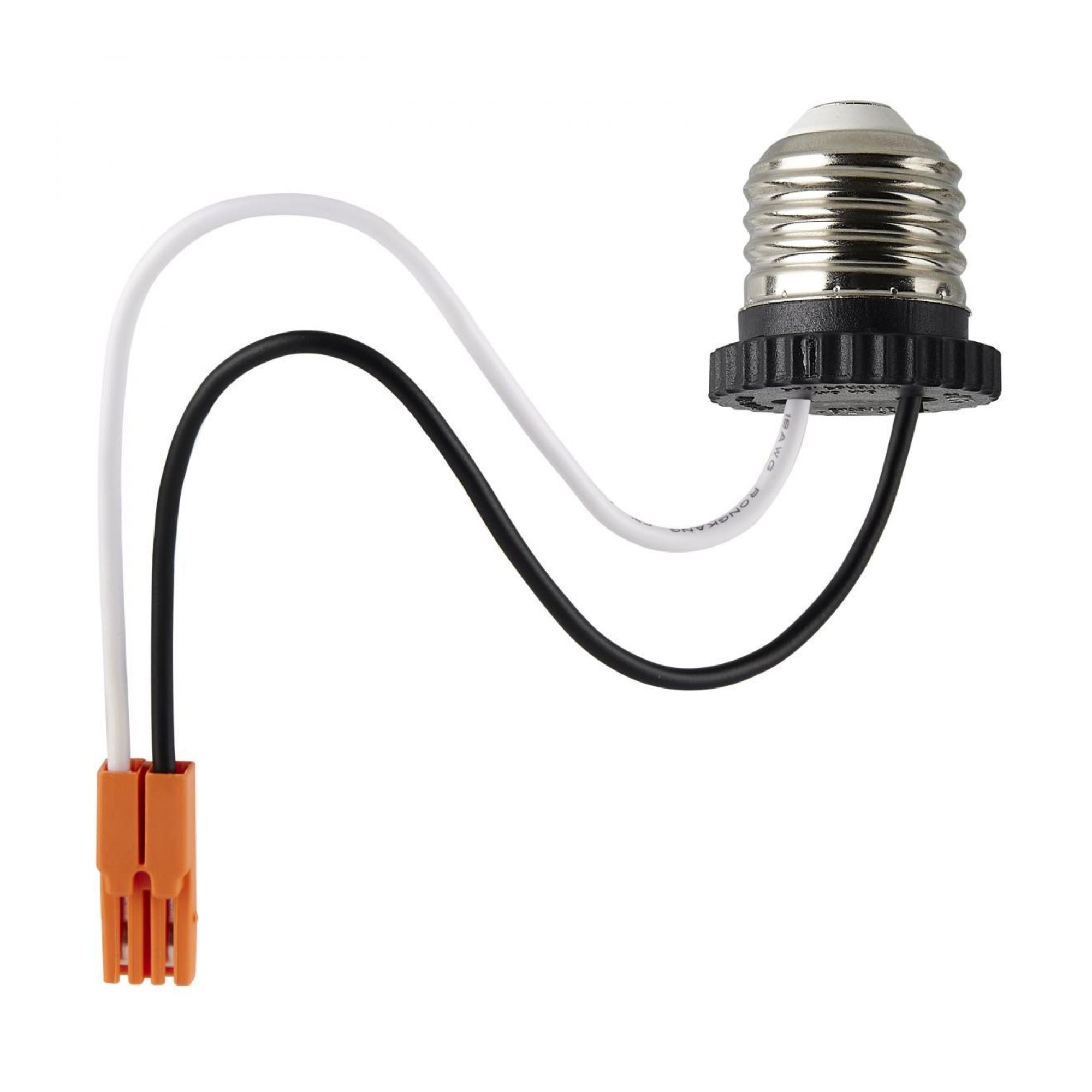

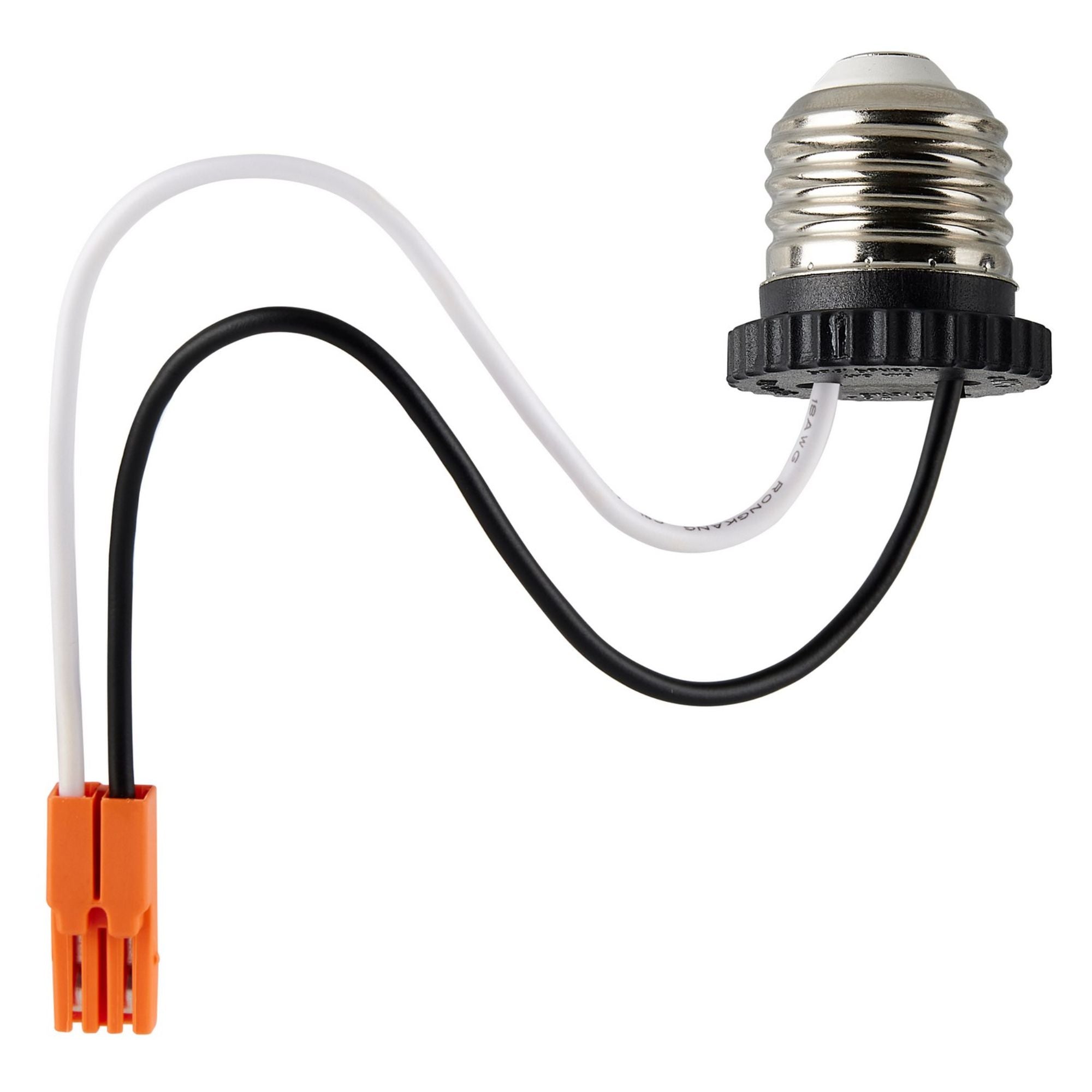

- Includes: E26 medium adapter (S9001)
- Finish: White | Lens: Frosted polycarbonate | Construction: Steel

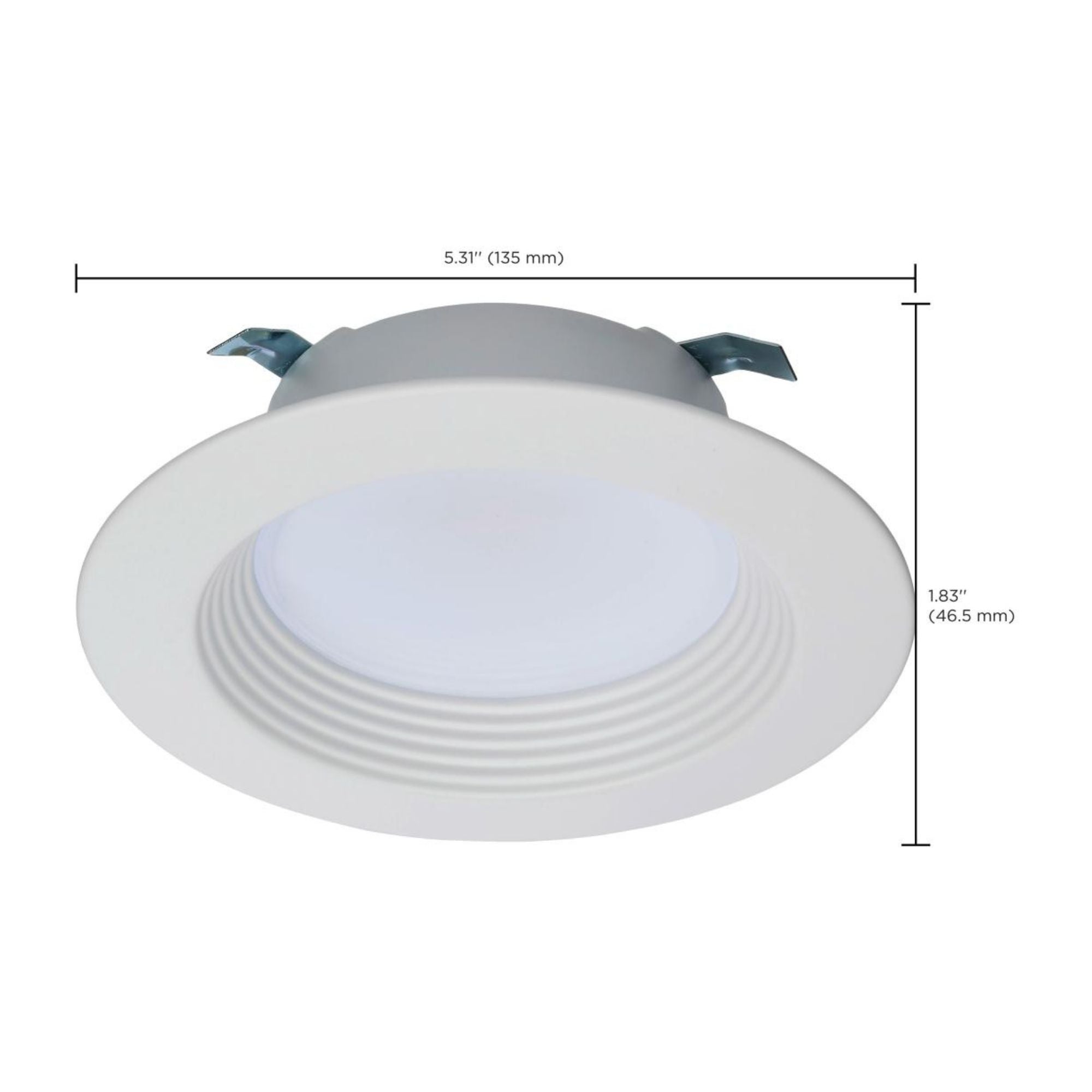

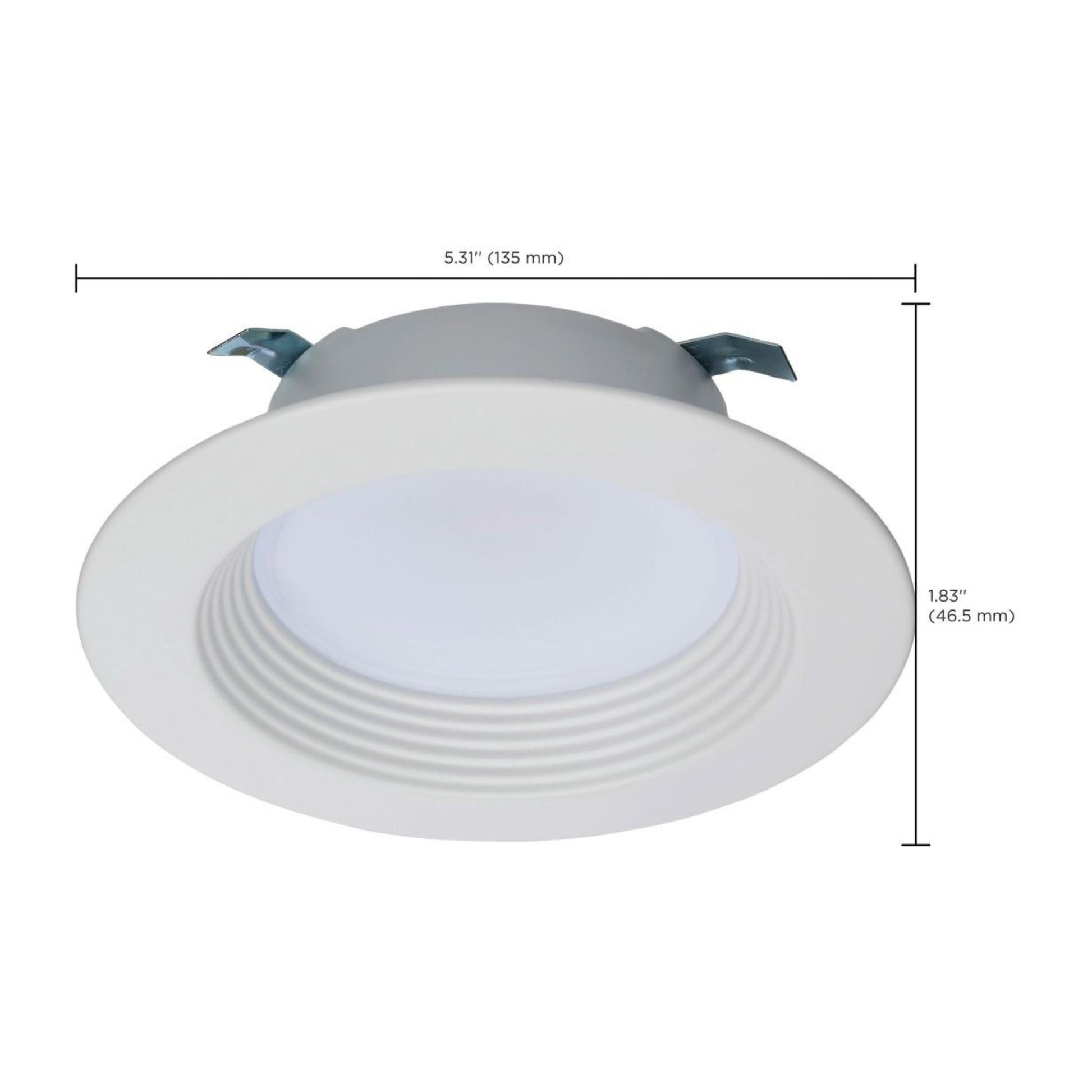

- Diameter: 5.31 in | Weight: 0.48 lbs
- Input Voltage: 120V only | 60Hz
- Dimming: Phase-Cut | Down to 10%
- Power Factor: 0.9 | Surge Protection: 2KV
- Air Tight: No
- Location Rating: Wet | Indoor only
- Suitable for Bathrooms: Yes
- Replaces: 50W incandescent
- Lifespan: 50,000 hours L70 | Warranty: 5-year
- Certifications: CA T24 JA8 Listed | Title 20 Listed | cETLus Listed | FCC | RoHS
- Note: Not ENERGY STAR certified. Not DLC approved.
Construction & Aesthetics

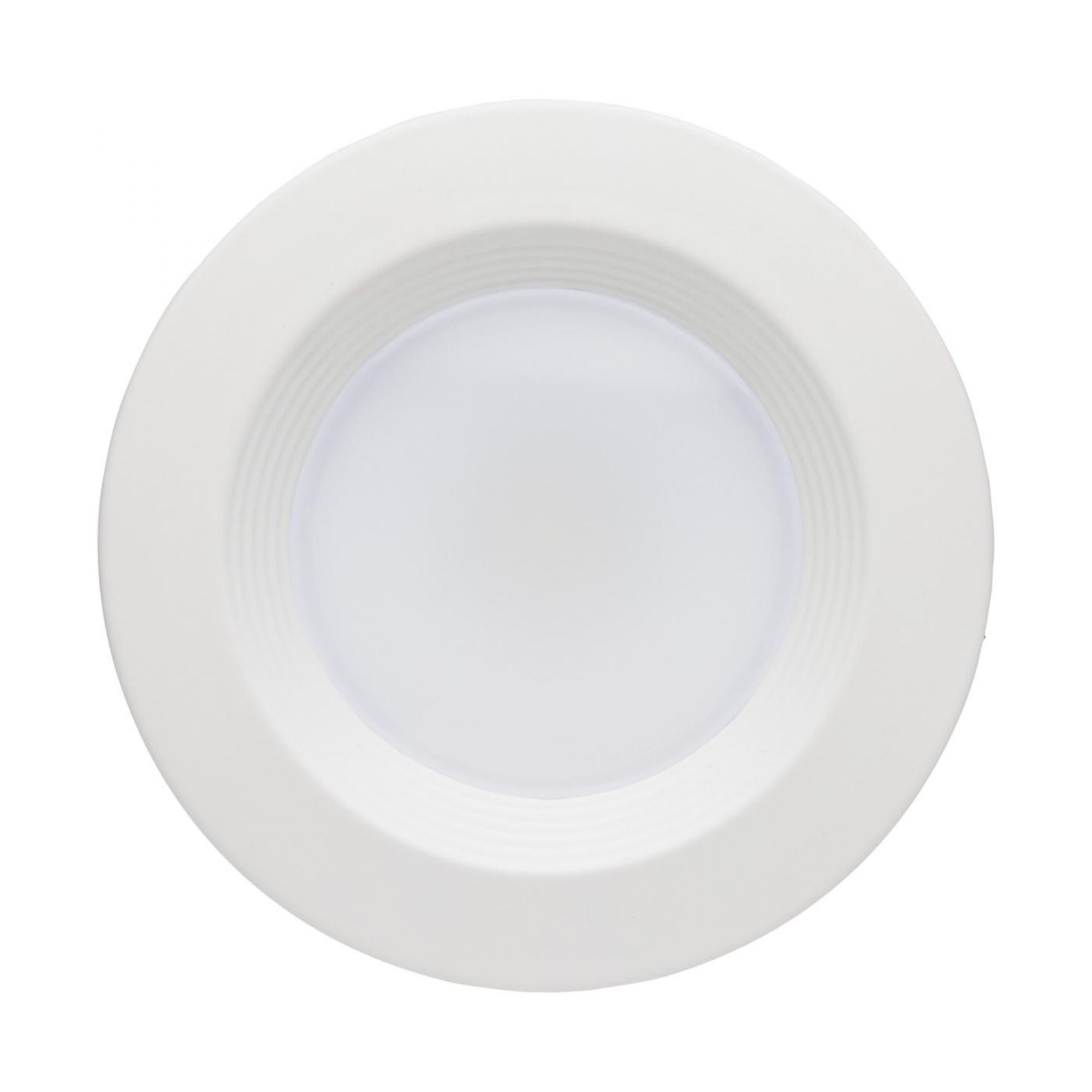

Shape: Round | Size: 4 in | Finish: White | Lens: Frosted polycarbonate | Construction: Steel | Diameter: 5.31 in. Stepped baffle reduces glare. Rotating and collapsible tabs enable secure installation and easy removal. Also available in black (S11832R1), brushed nickel (S11833R1), and bronze (S11834R1). For 5/6 in round versions, see S11801R1 (white), S11835R1 (black), S11836R1 (brushed nickel), S11837R1 (bronze). For square versions, see S11820R1 (4 in) and S11821R1 (5/6 in).
Light Output & Performance
The SATCO S11800R1 delivers 600 lm at 6.7W (up to 89 LPW) with CRI 90+ and a 90° beam angle. CCT is field-selectable: 2700K–5000K. Wattage is fixed at 6.7W. L70 lifespan is 50,000 hours.
Electrical & Installation

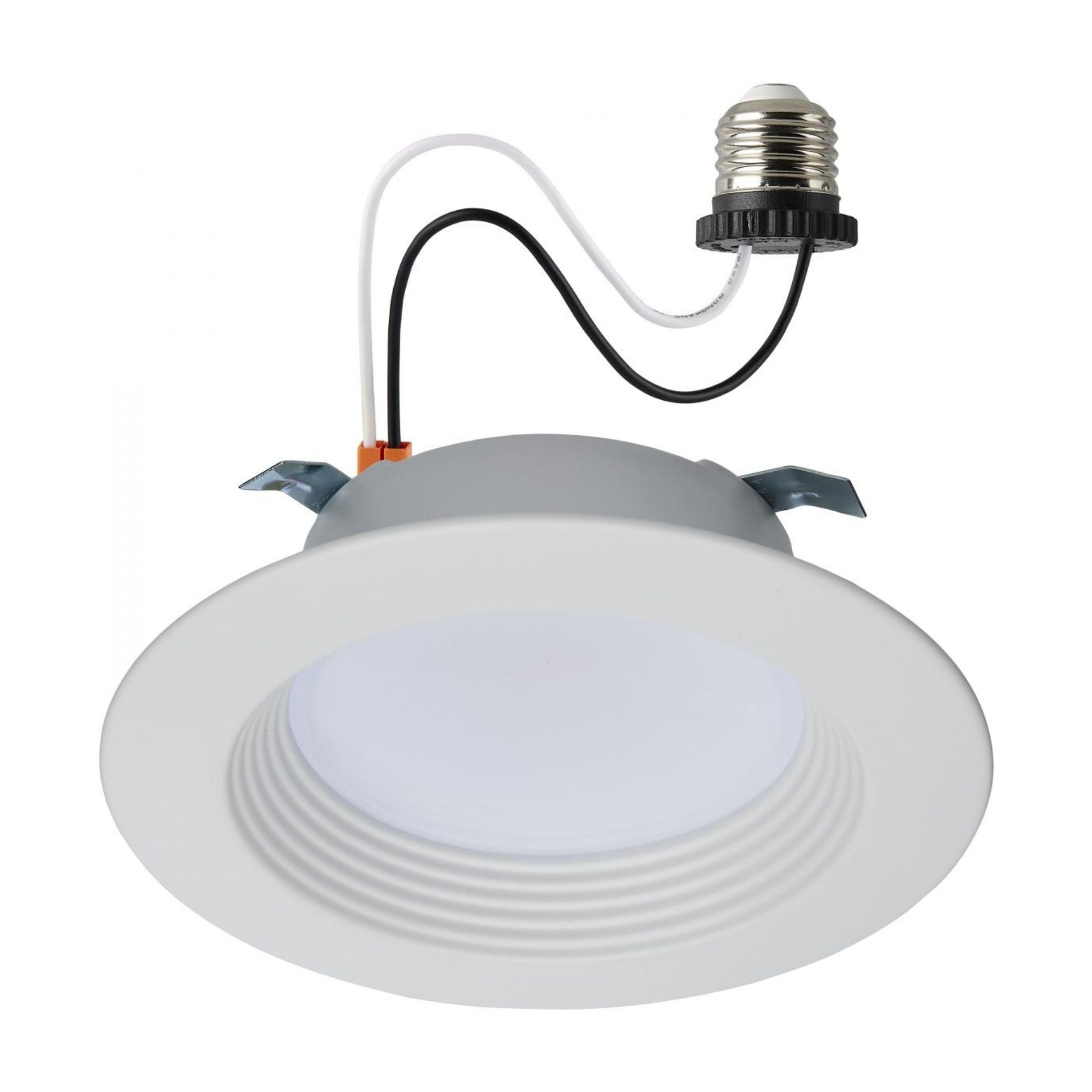

The SATCO S11800R1 operates at 120V only (60Hz) with Phase-Cut dimming to 10%. PF 0.9; built-in 2KV surge protection. Screw the included E26 adapter into the existing socket in any compatible 4 in recessed can — no tools, no rewiring. Minimum can size: 4.06 in diameter × 5.6 in height. Rotating and collapsible tabs secure the fixture in place.
Compatible Accessories (Sold Separately)
- 4 in Recessed Can — New Construction: SATCO 80-980
- 4 in Recessed Can — Remodel: SATCO 80-981
- GU10 Socket Adapter: SATCO S9000
- GU24 Socket Adapter: SATCO S8999
Typical Applications

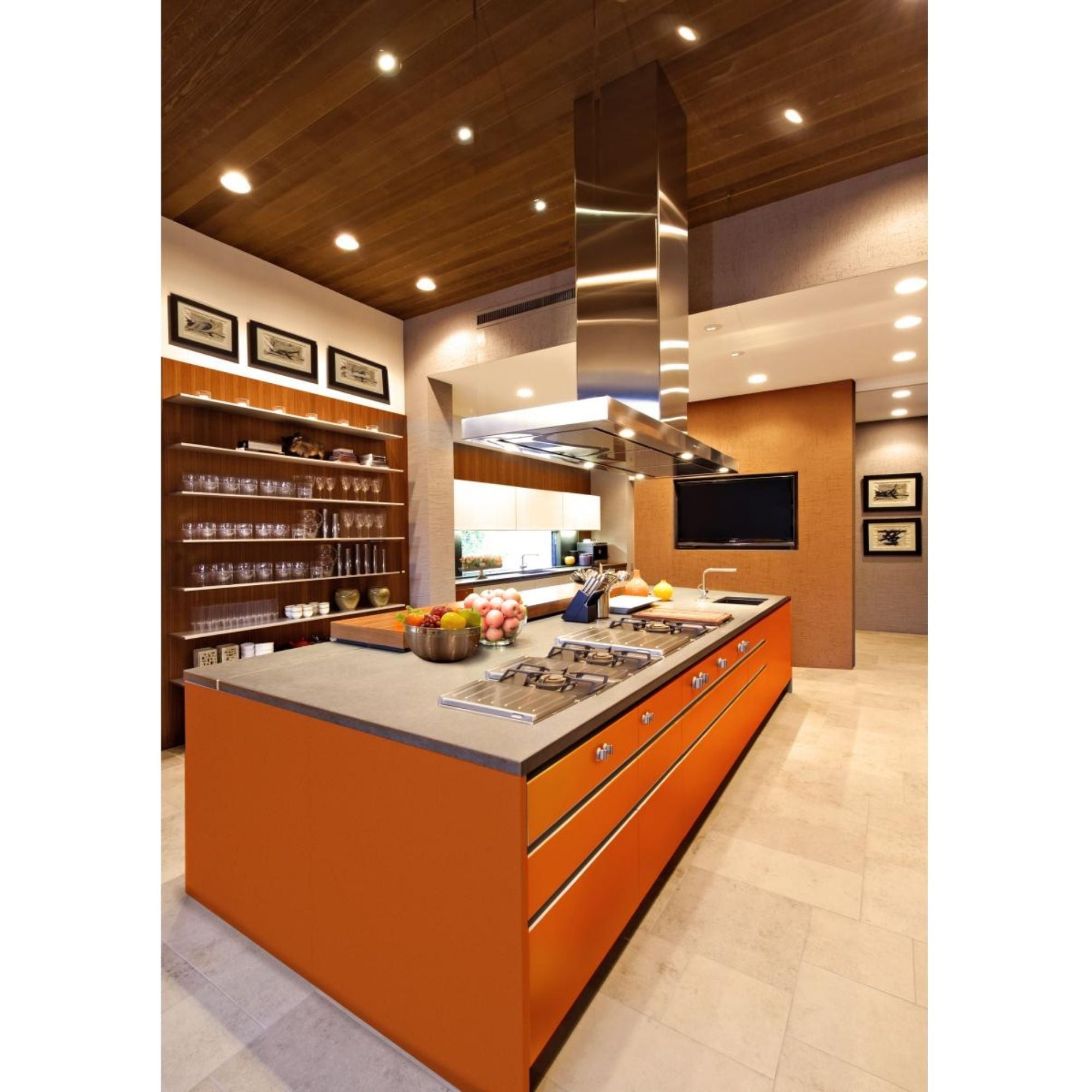

- Retrofit of existing 4 in recessed incandescent fixtures
- Residential bedrooms, living rooms, kitchens, and bathrooms
- Multifamily common areas
- Retail environments and offices
What’s Included
- SATCO S11800R1 4 in round LED retrofit downlight (white)
- E26 medium adapter (S9001)
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
