Satco 3FT T5 LED Bulb — 12W / Selectable CCT

The Satco S11651R1 T5 LED bulb offers a versatile lighting solution with a G5 base and selectable CCT options ranging from 3500K to 6500K. This 12W LED bulb is designed to replace 21W fluorescent tubes, providing energy savings and enhanced lighting performance. The bulb is dimmable at 120V, allowing for customized lighting levels.

Key Features

• Base Type: G5 Miniature Bi Pin
• Bulb Shape: T5
• Fluorescent Equivalent: 21W
• Enclosed Fixture Rated: Yes

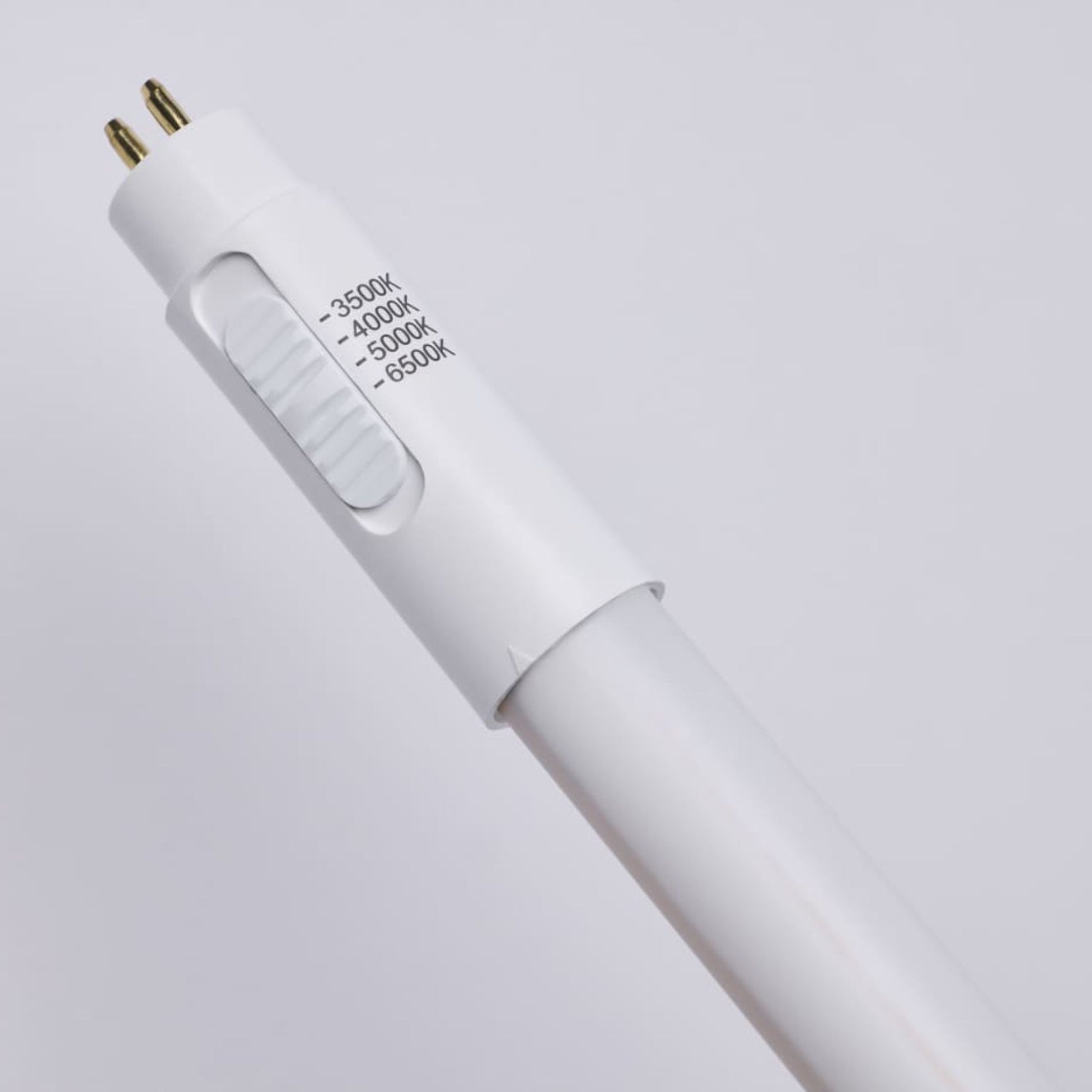

• Selectable CCT: 3500K, 4000K, 5000K, 6500K
• Dimmable: Yes, 120V only
• Voltage: 120-347V
• Beam Angle: 180 degrees
• Certifications: RoHS, cRUus, cULus
• Surge Protection: Built-in 0.5KV
• Power Factor: >0.9
• CRI: 80+

Construction & Aesthetics

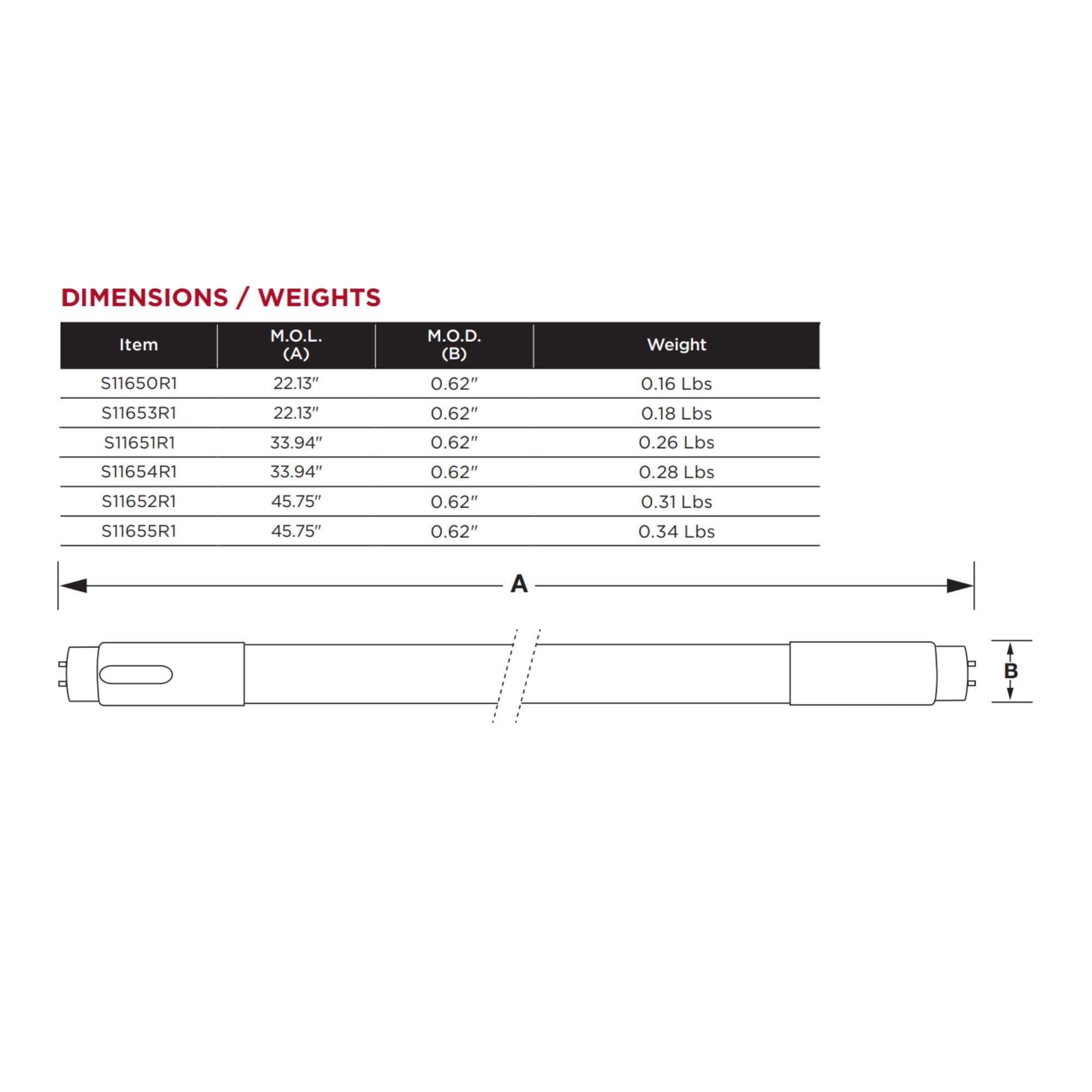

The bulb features a frosted finish with PET coating for durability and shatter resistance. It measures 33.94 inches in length and 0.62 inches in diameter, providing a sleek and compact design suitable for various fixtures.

Electrical & Installation

Operating at 120-347V, this bulb is compatible with a wide range of voltage systems. It is dimmable with reverse phase dimming at 120V, offering flexibility in lighting control. The Type B installation requires direct wiring, bypassing the ballast for efficient operation.

Light Output & Performance

With a light output of 1500 lumens and a CRI of 80+, this LED bulb delivers consistent and high-quality illumination. The 180-degree beam angle ensures even light distribution, and the bulb boasts a lifespan of 50,000 hours.

Typical Applications

• Offices
• Retail Spaces
• Schools
• Hospitals
• Commercial Buildings
