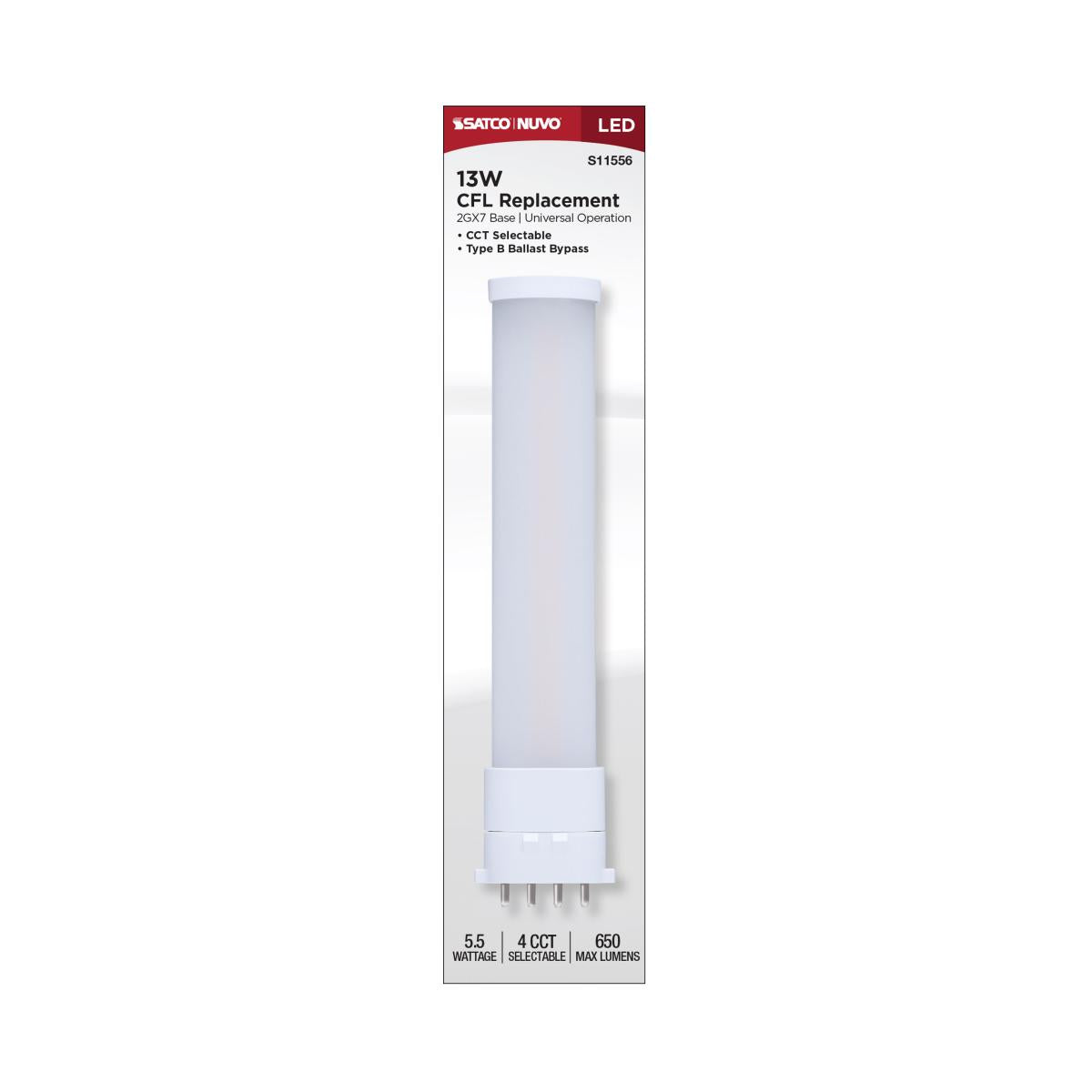

Satco 4-Pin PL LED Bulb — 6W / Selectable CCT

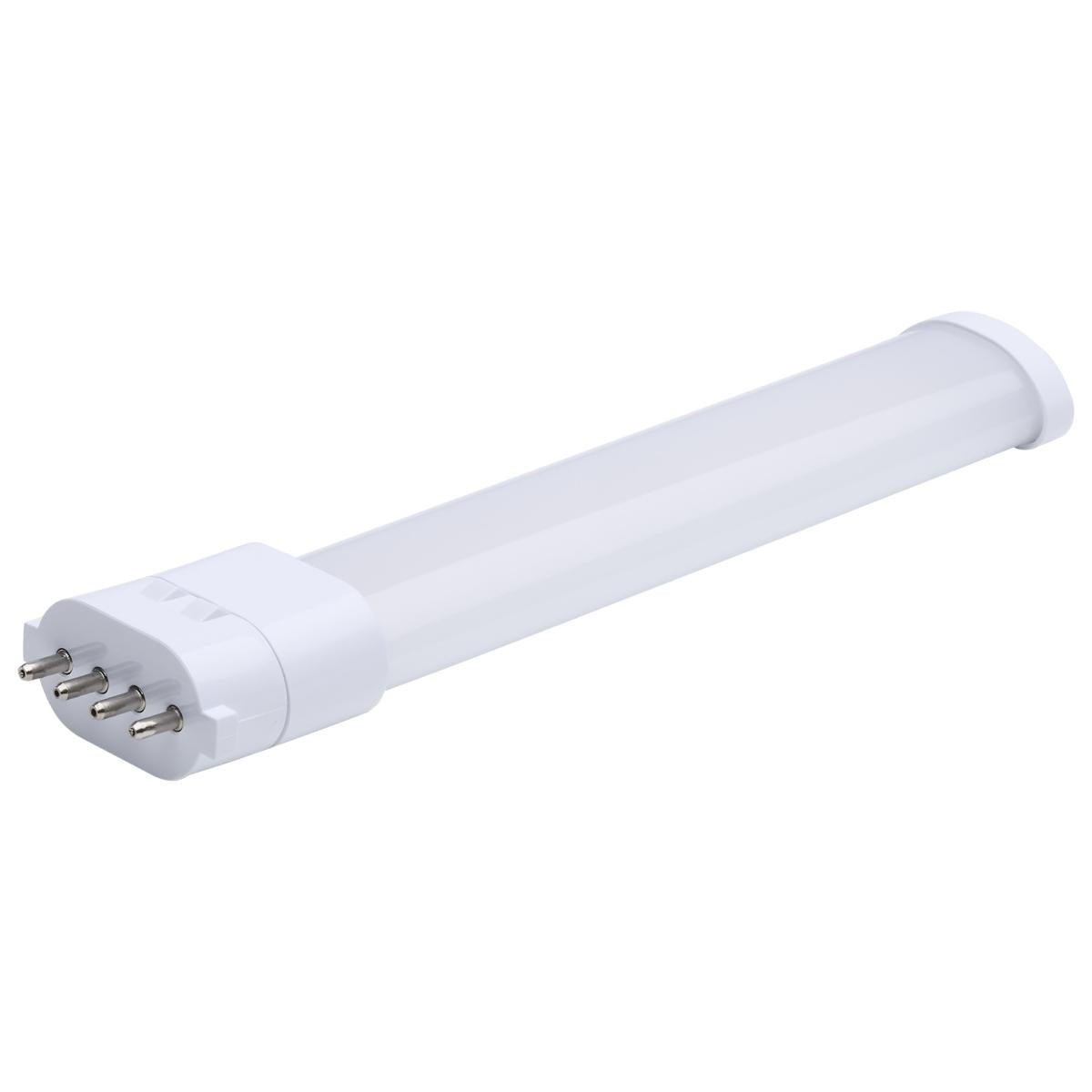

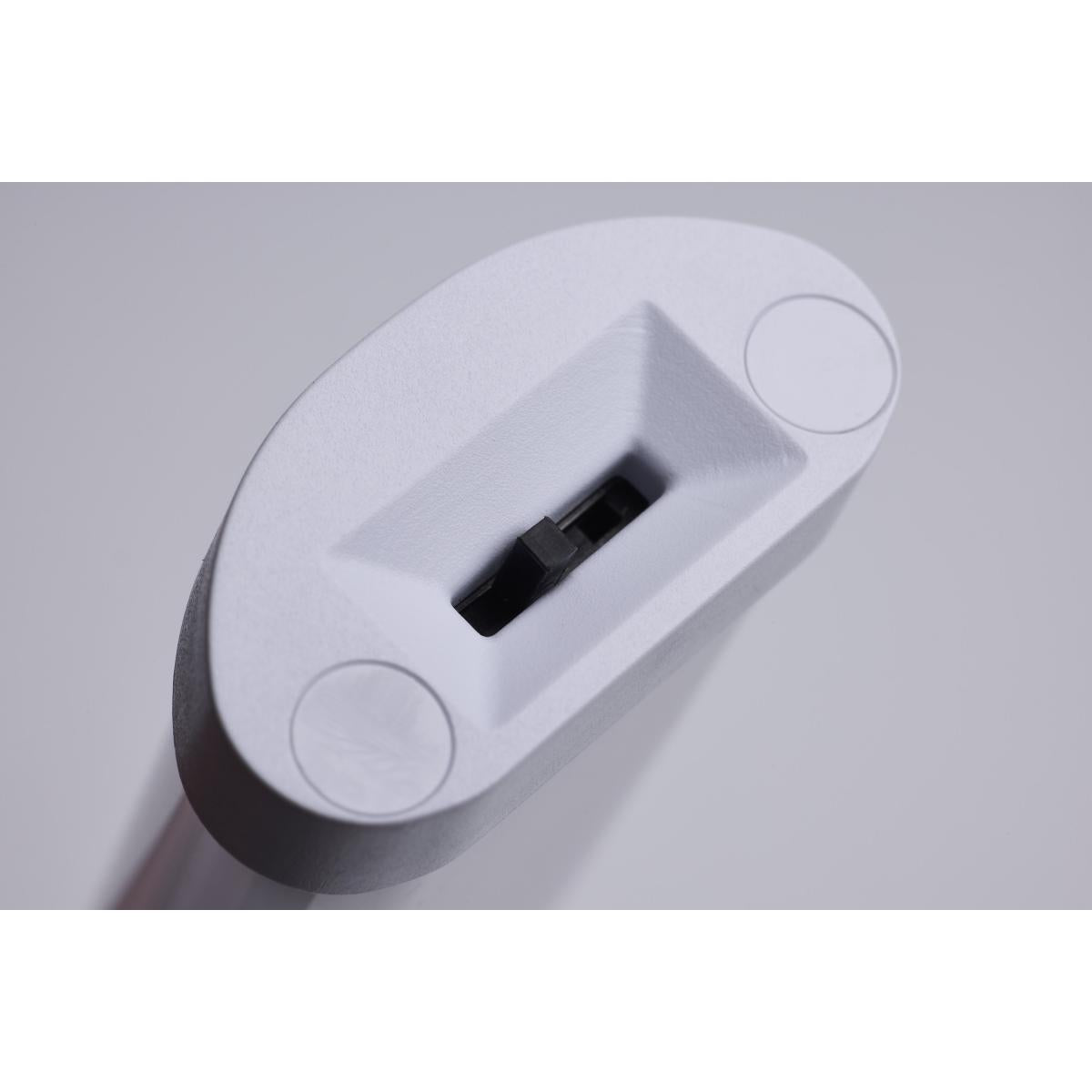

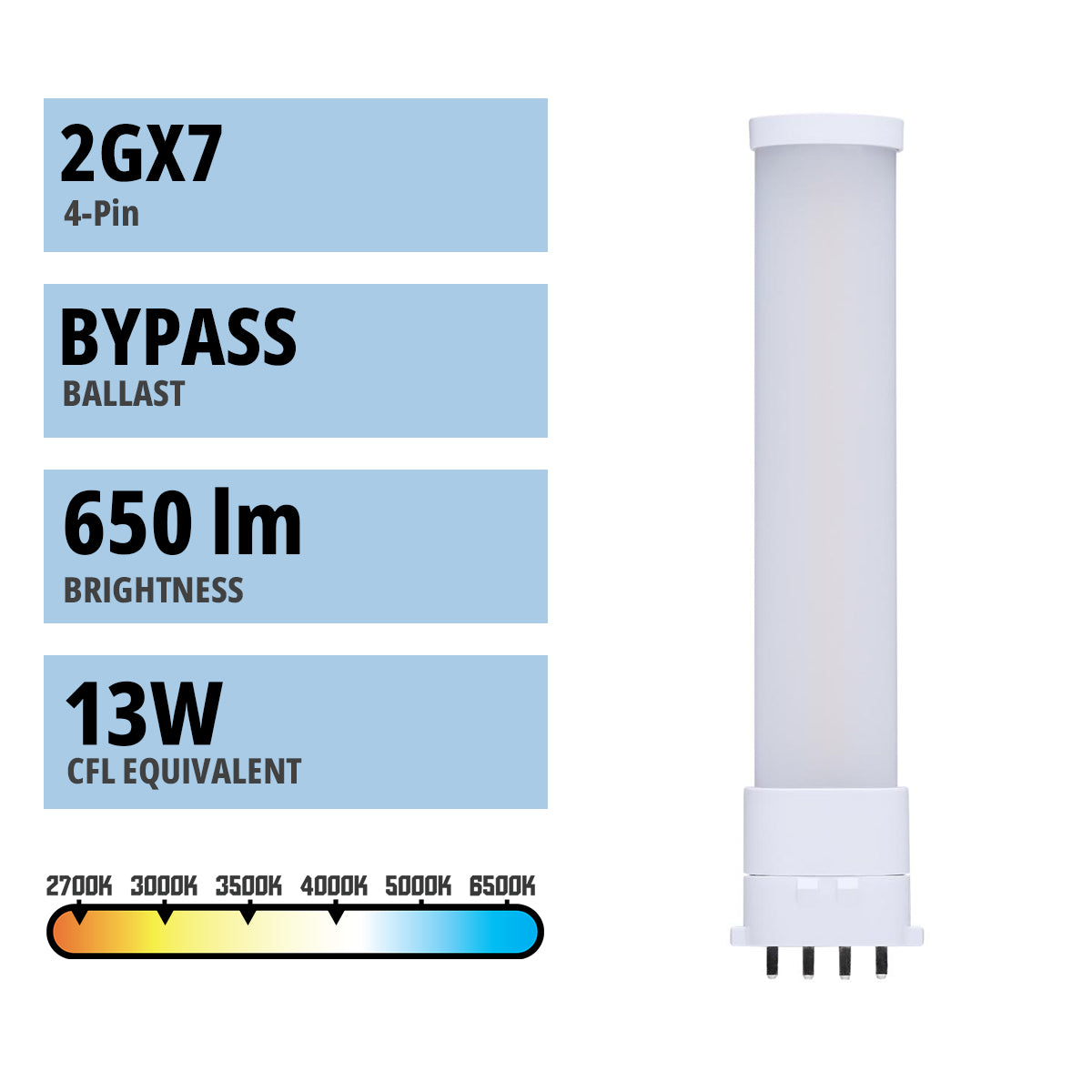

The Satco S11556 is a versatile PL LED bulb designed for a 4-Pin (2GX7) base, offering an energy-efficient replacement for 13W CFL bulbs. With a wattage of 6W, this bulb provides selectable color temperatures ranging from 2700K to 4000K, making it adaptable to various lighting needs. The bulb operates on a wide voltage range of 120-277V, ensuring compatibility with different electrical systems.

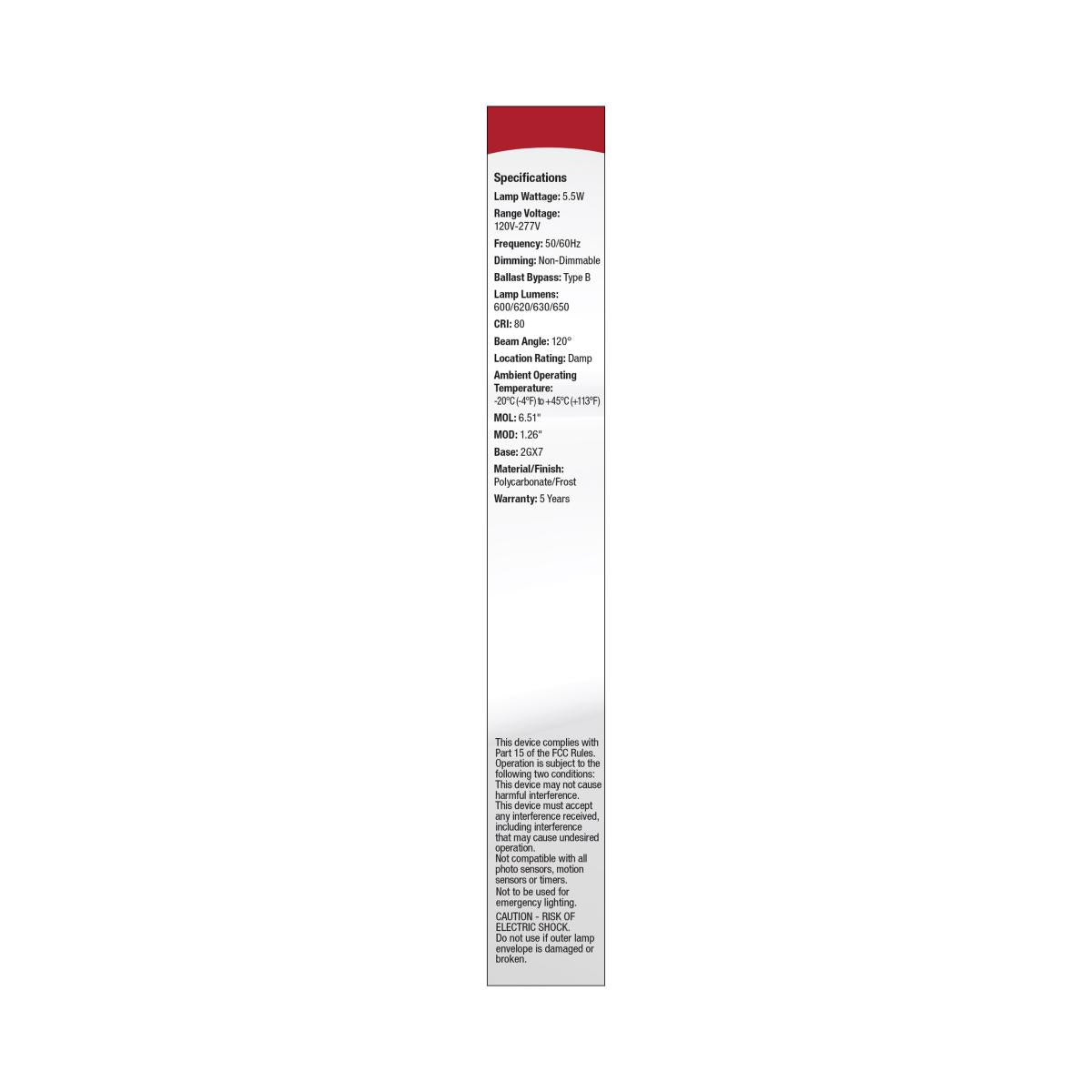

Key Features

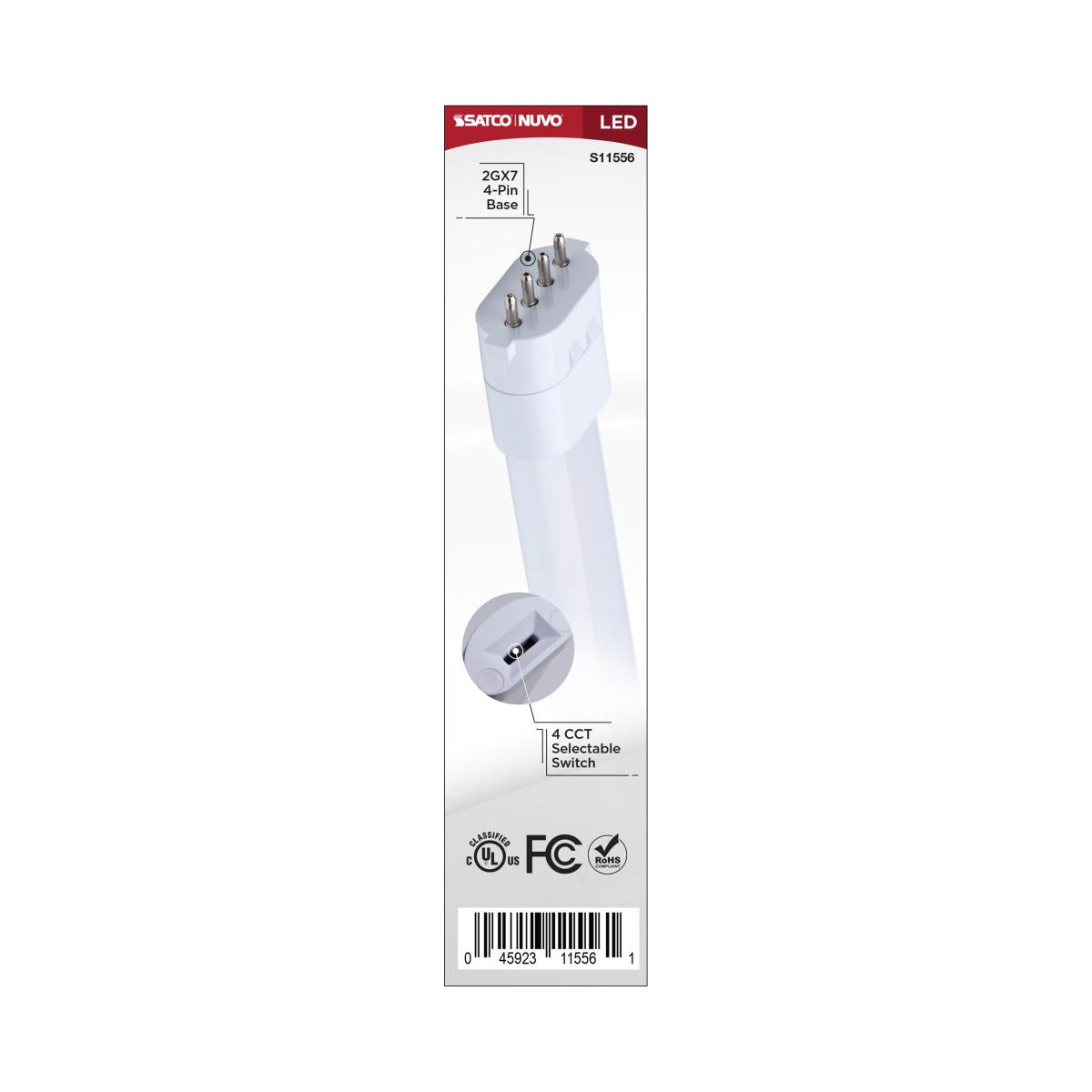

• Base Type: 4-Pin (2GX7)
• Bulb Shape: PL
• Equivalent Wattage: 13W CFL
• Enclosed Fixture Rating: Not rated for enclosed fixtures
• Certifications: RoHS Compliant, cULus Classified
• Beam Angle: 120 degrees for wide light distribution
• Surge Protection: Built-in 0.5KV
• Power Factor: 0.9
• Operating Temperature: -20C to +45C
• CRI: 80+ for accurate color rendering
• Lifespan: 50,000 hours
• Non-Dimmable: Consistent light output

Construction & Aesthetics

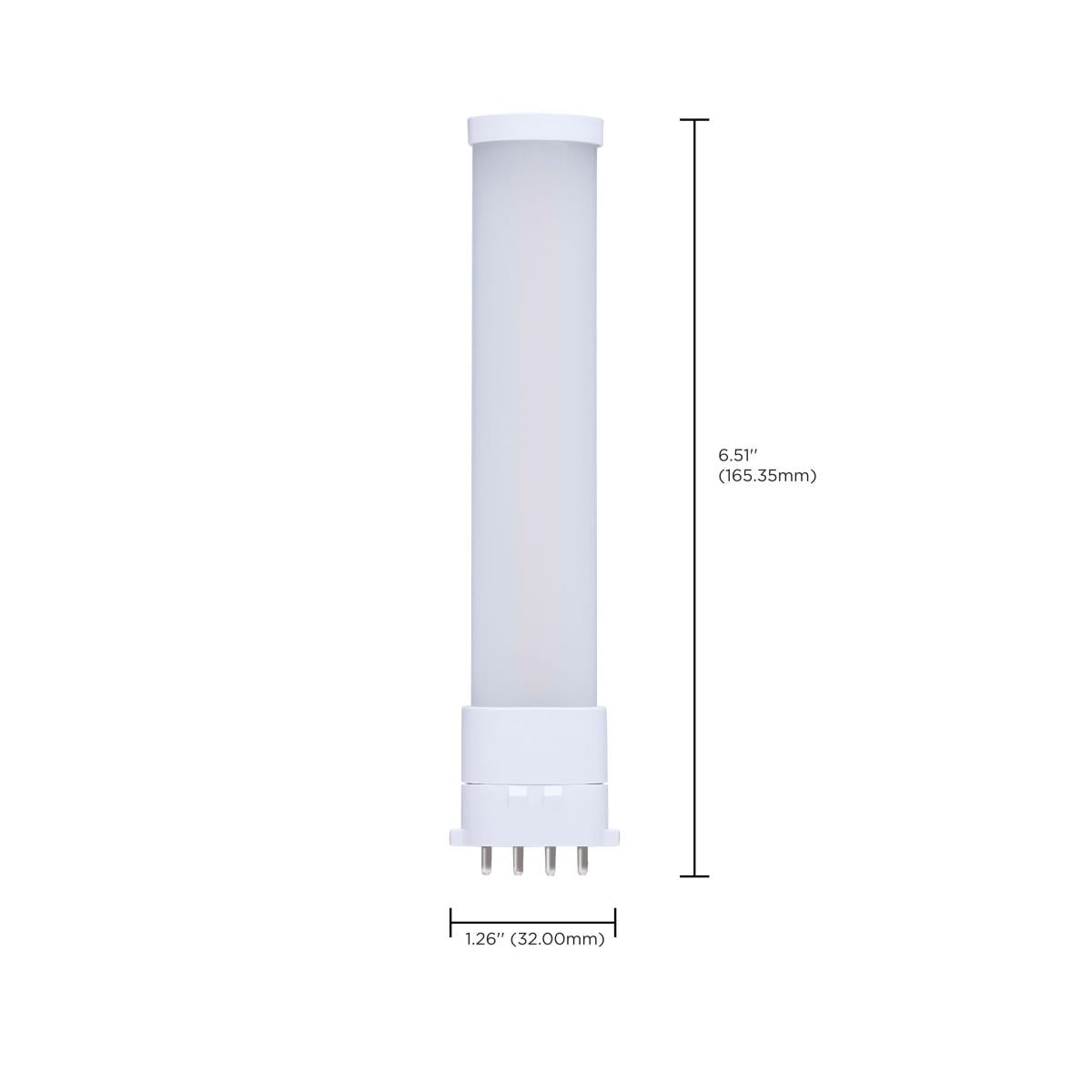

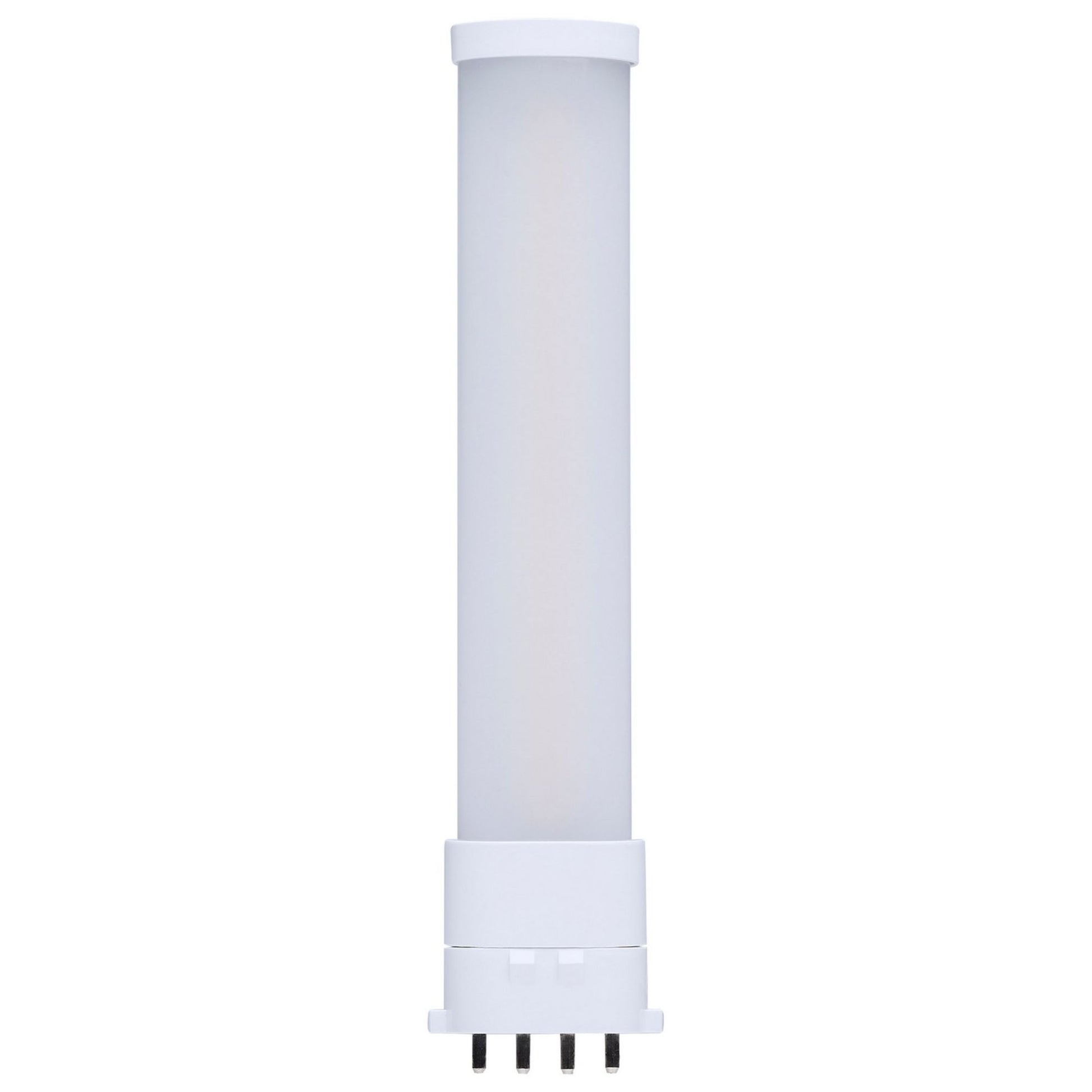

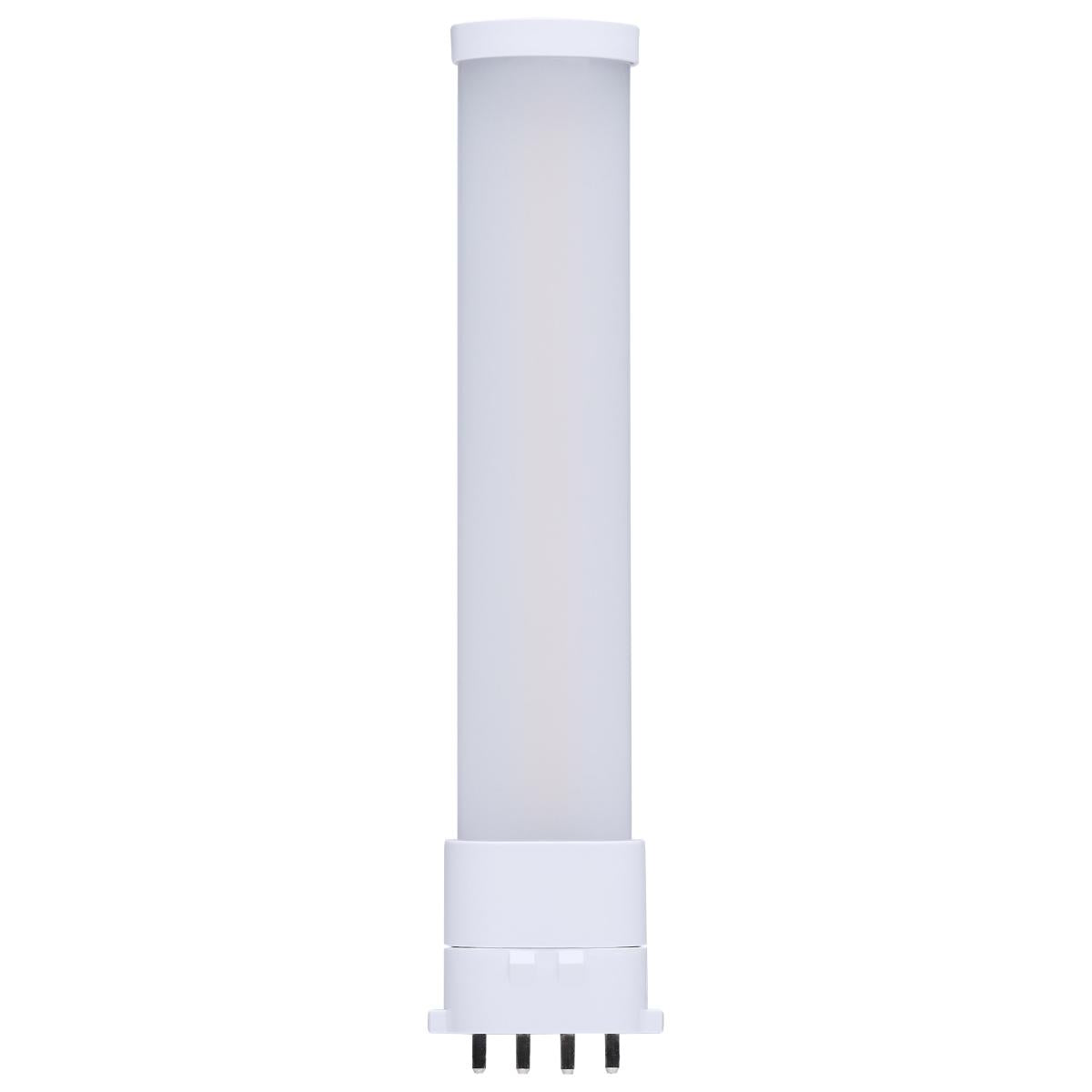

Constructed with durable polycarbonate material, the Satco S11556 features a frosted finish that provides a soft, diffused light. Its compact dimensions (MOL: 6.51 inches, MOD: 1.26 inches) make it suitable for a variety of fixtures.

Electrical & Installation

This LED bulb is designed for ballast bypass installation (Type B), requiring direct wiring to the fixture. It is non-dimmable, ensuring a steady light output across its operational range.

Light Output & Performance

With a lumen output of up to 650 lumens and a CRI of 80+, this bulb delivers bright and accurate lighting. The 120-degree beam angle ensures broad coverage, ideal for general illumination.

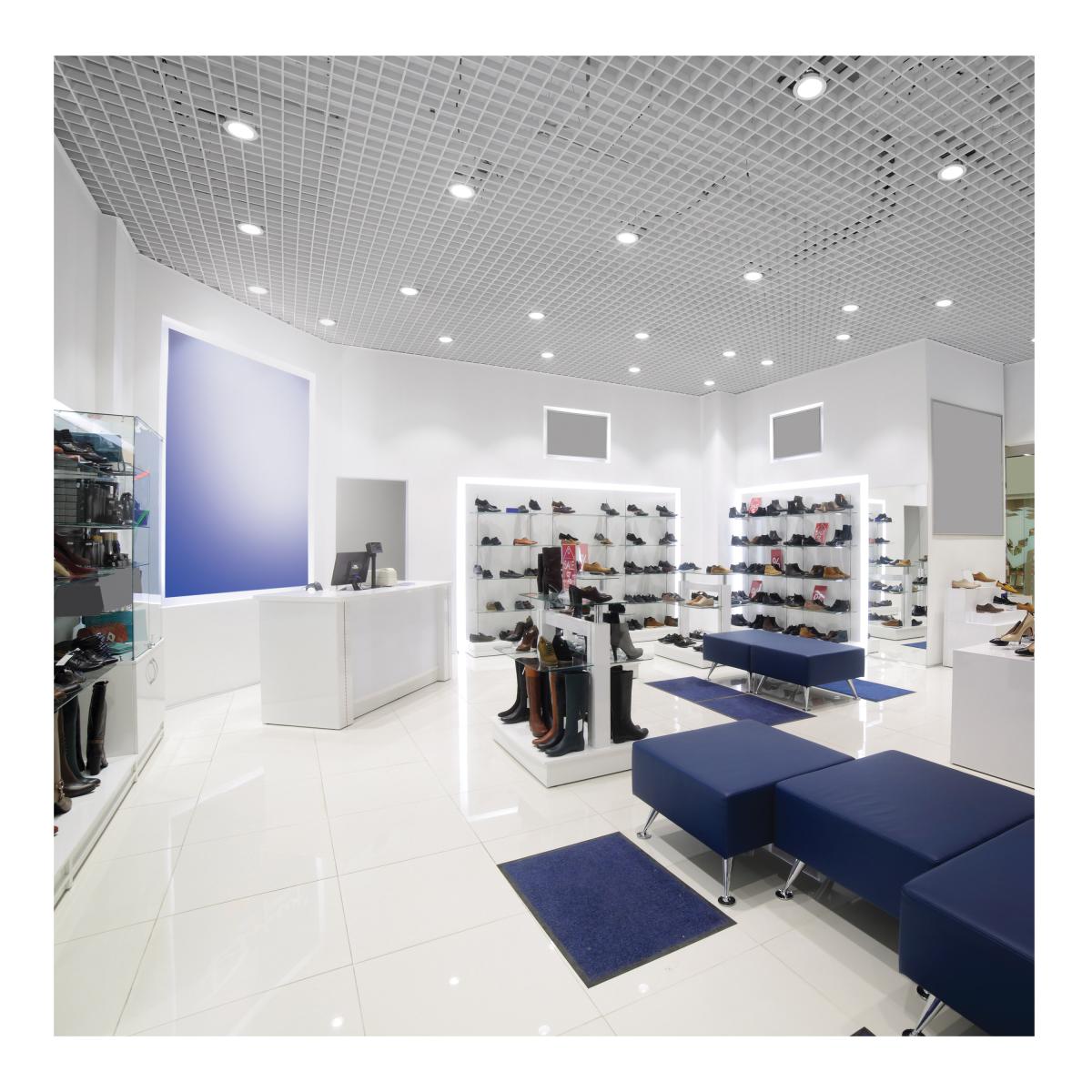

Typical Applications

• Office Lighting
• Retail Spaces
• Commercial Buildings
• Hospitality Venues
• Educational Facilities
