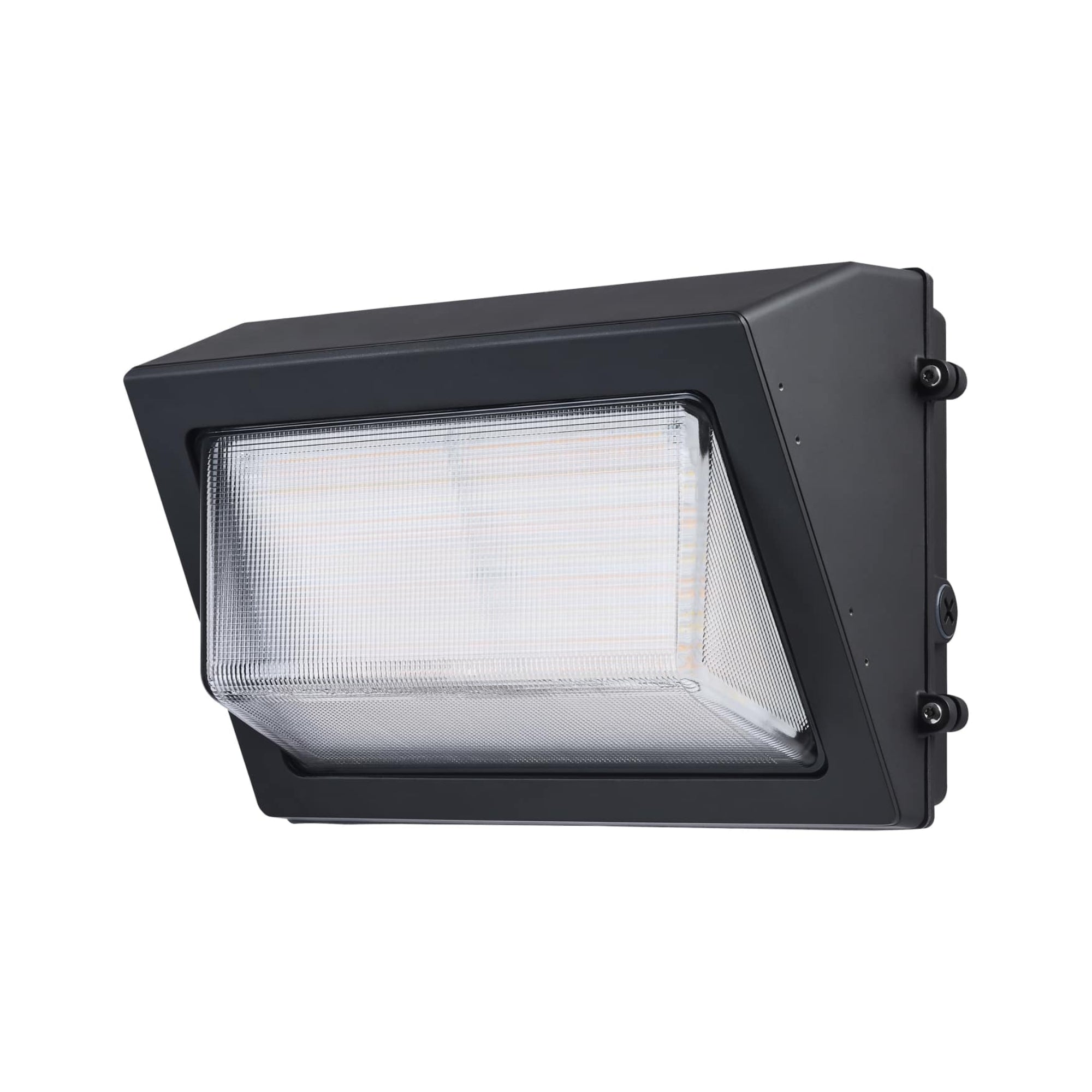

Satco|Nuvo Beam Selectable LED Wall Pack, 29-100W Selectable, 3000K/4000K/5000K, Up to 15305lm, 120-347V, IP65, Bronze
Available in stock (516)
-
Estimated delivery: May 25 - May 31
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Satco|Nuvo Beam Selectable LED Wall Pack — 60W & 100W, Selectable CCT, 120-347V, Bronze
The Satco|Nuvo Beam Selectable LED Wall Pack is a rugged, high-performance commercial LED wall pack engineered to deliver precise, adaptable perimeter illumination for building exteriors, loading docks, pathways, and storefronts. Available in a 60W (65-1500) and a 100W (65-1501) configuration, both models feature an innovative beam selectable design that switches between 60°, 90°, and 110° distributions on-site. Field-selectable wattage, selectable 3000K/4000K/5000K CCT, 0-10V dimming, and 6kV surge protection are standard across both models. The clear borosilicate glass lens and IP65 / IK08 ratings ensure long-term outdoor durability. Optional accessories — a cutoff shield (65-1503) and protective steel cage (65-1502) — are available separately.
Satco|Nuvo Beam Selectable Wall Pack Features
- Beam Selectable Technology: Integrated optics switch between 60° (focused/cutoff), 90° (intermediate), and 110° (wide forward throw) distributions — one fixture adaptable to any perimeter lighting layout.
- Two Wattage Tiers: Choose 60W (9,193lm) or 100W (15,305lm) to match mounting height and illumination requirements.
- Field-Selectable Wattage: 60W model: 60W/40W/29W; 100W model: 100W/80W/60W — set on-site to fine-tune energy consumption without rewiring.
- Selectable CCT: Field-adjustable 3000K, 4000K, and 5000K color temperatures via on-fixture switch.
- High Efficacy: Up to 153 LPW (60W model) with 80 CRI across both configurations.
- Borosilicate Glass Lens: Clear, impact-resistant glass lens maintains optical clarity and resists yellowing over time — superior to standard polycarbonate.
- IP65 Wet Location Rated: Complete protection against dust and water jets for reliable outdoor performance.
- IK08 Impact Resistance: Lens and housing rated for protection against physical strikes and vandalism.
- 0-10V Dimming: Full dimming interface for compatibility with commercial lighting control systems.
- Universal Voltage: 120-347V input compatible with standard commercial and higher-voltage industrial systems.
- 6kV Surge Protection: Guards internal components against severe power transients on exterior circuits.
- Optional Accessories: Compatible cutoff shield (65-1503) to minimize light trespass and protective steel cage (65-1502) for added physical defense — sold separately.
- 50,000-Hour Lifespan: L70-rated LED life with a 5-year warranty minimizes maintenance on long-term installations.
Beam Selectable Technology
The integrated beam selectable optics lock into the selected distribution during installation — no additional components required:
- 60° (Focused/Cutoff): Concentrated downward illumination for dark-sky-friendly applications and tight perimeter coverage with minimal light trespass.
- 90° (Intermediate): Balanced distribution for general building perimeter and pathway lighting.
- 110° (Wide Forward Throw): Maximum spread for loading docks, storefronts, and large exterior areas requiring broad coverage.
Wattage Options & Lumen Output
Select the output tier that matches your facility’s mounting height and illumination requirements:
- 60W (65-1500): 60W: 9,193lm at 153 LPW | 40W: ~6,100lm | 29W: 4,225lm — 14.36”×7.45”×9.3”, 8.2 lbs
- 100W (65-1501): 100W: 15,305lm | 80W: ~12,200lm | 60W: 8,660lm — larger form factor
CCT Options: Both models offer 3000K (warm white), 4000K (neutral white), and 5000K (daylight) — selectable on-site to match existing site lighting or architectural requirements.
Typical Applications
- Commercial and industrial building perimeters.
- Loading docks and service area lighting.
- Facility exteriors and security lighting.
- Pathways, entryways, and storefronts.
- Applications requiring optional cutoff or vandal protection accessories.
Performance & Light Output
Both models deliver high-efficacy output — up to 153 LPW — with 80 CRI and field-selectable 60°/90°/110° beam distributions for precise perimeter coverage. The borosilicate glass lens maintains optical clarity without yellowing over time. The 50,000-hour L70 lifespan dramatically reduces re-lamping and maintenance costs versus legacy HID wall packs.
Electrical & Controls
Each model is powered by a robust driver operating on 120-347V AC with a power factor greater than 0.9 and THD below 20%. All configurations include 0-10V dimming and 6kV surge protection for reliable performance on exterior circuits.
Construction & Durability
The heavy-duty die-cast aluminum housing is finished in bronze and fitted with a clear borosilicate glass lens. IP65 rated for complete protection against dust and water jets, and IK08 rated for impact resistance. The fixture operates reliably in extreme ambient temperatures from -40°F to 122°F (-40°C to 50°C).
Installation & Mounting
Designed for secure surface wall mounting. The beam distribution is selected during installation and locks in the chosen 60°, 90°, or 110° position. Optional accessories — cutoff shield (65-1503) and protective steel cage (65-1502) — are available separately for enhanced light control and physical protection.
What’s Included
- Satco|Nuvo Beam Selectable LED Wall Pack — Bronze (wattage selected above)
- Mounting Hardware
