Satco|Nuvo 65-942 Selectable Semi Cutoff LED Wall Pack, 80W/60W/45W, 3K/4K/5K, 120-277V, Photocell, Bronze
Available in stock (272)
About this item
About this item
- Cutoff Classification: Features a versatile semi cutoff design that provides forward-throw illumination for excellent perimeter visibility and safety.
- Selectable Output: Provides adjustable 80W, 60W, and 45W power settings to deliver tailored brightness for dynamic building exteriors.

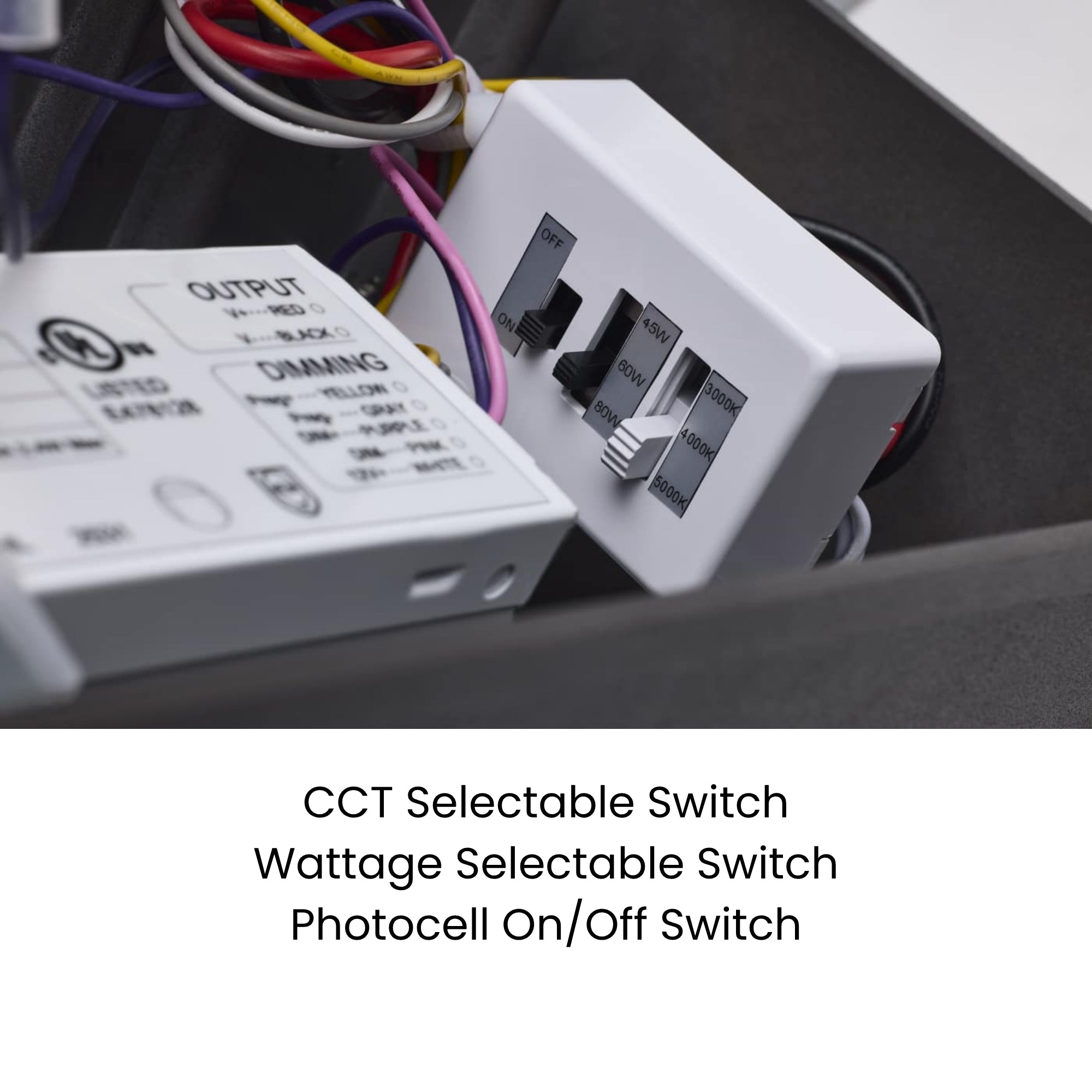

- Color Temperature Control: Includes field-selectable CCT switches allowing contractors to toggle between 3000K, 4000K, and 5000K for optimal architectural matching.

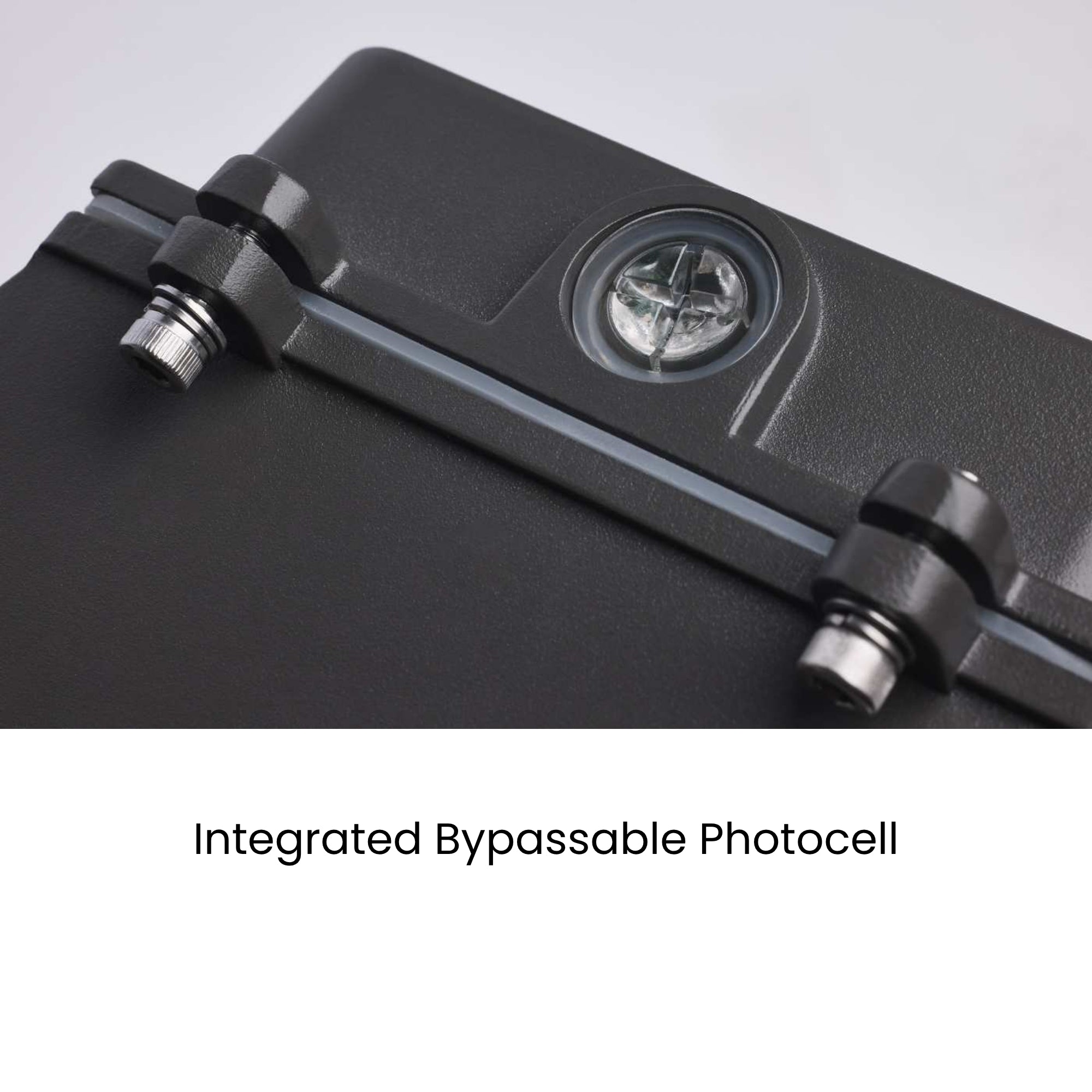

- Automated Energy Management: Comes equipped with an integrated dusk-to-dawn photocell that can be easily bypassed if exterior wall controls are preferred.

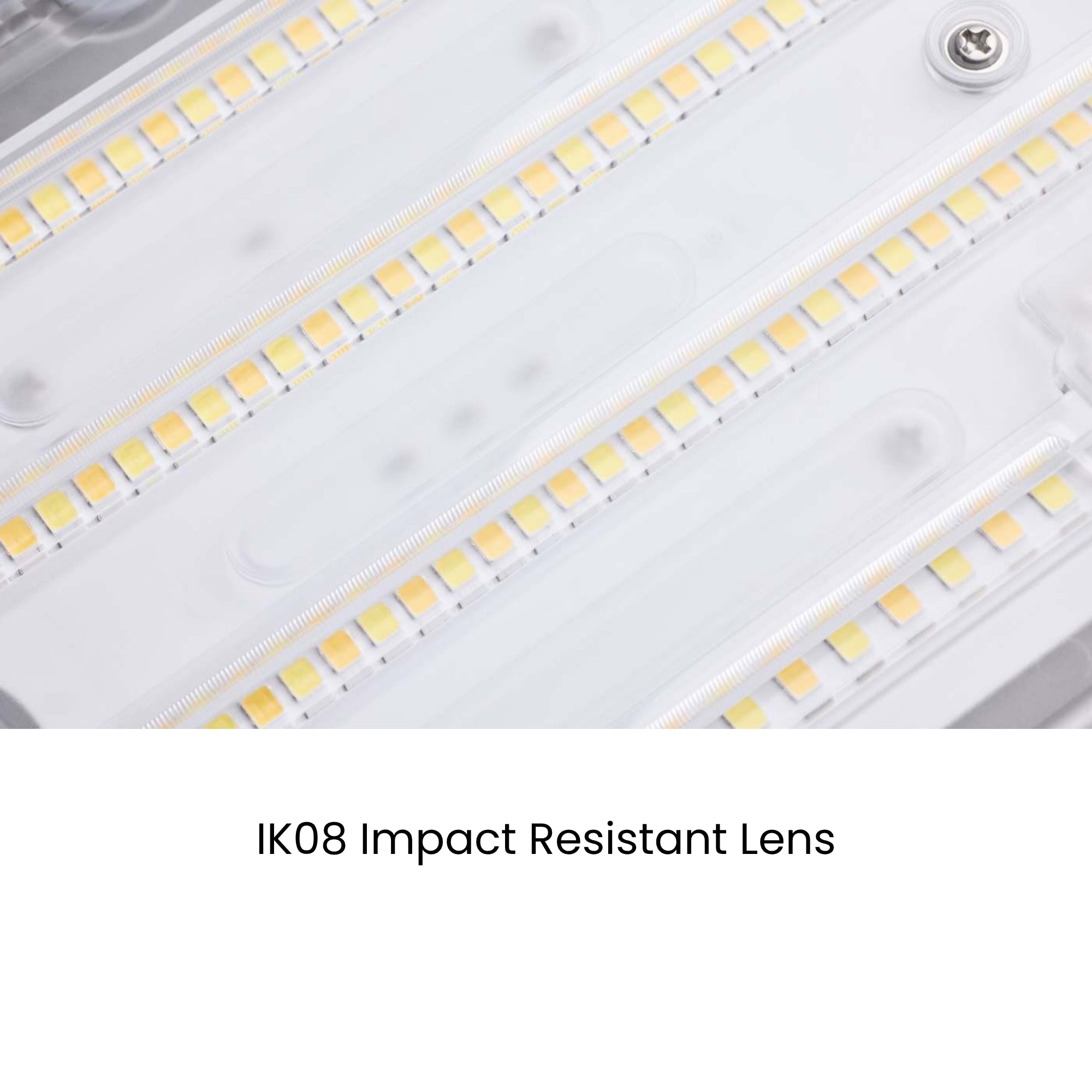

- Rugged Durability: Housed in a heavy-duty bronze die-cast aluminum enclosure with a resilient lens for long-term reliability in harsh weather.
We process payments securely and do not store credit card information.
Description
Description

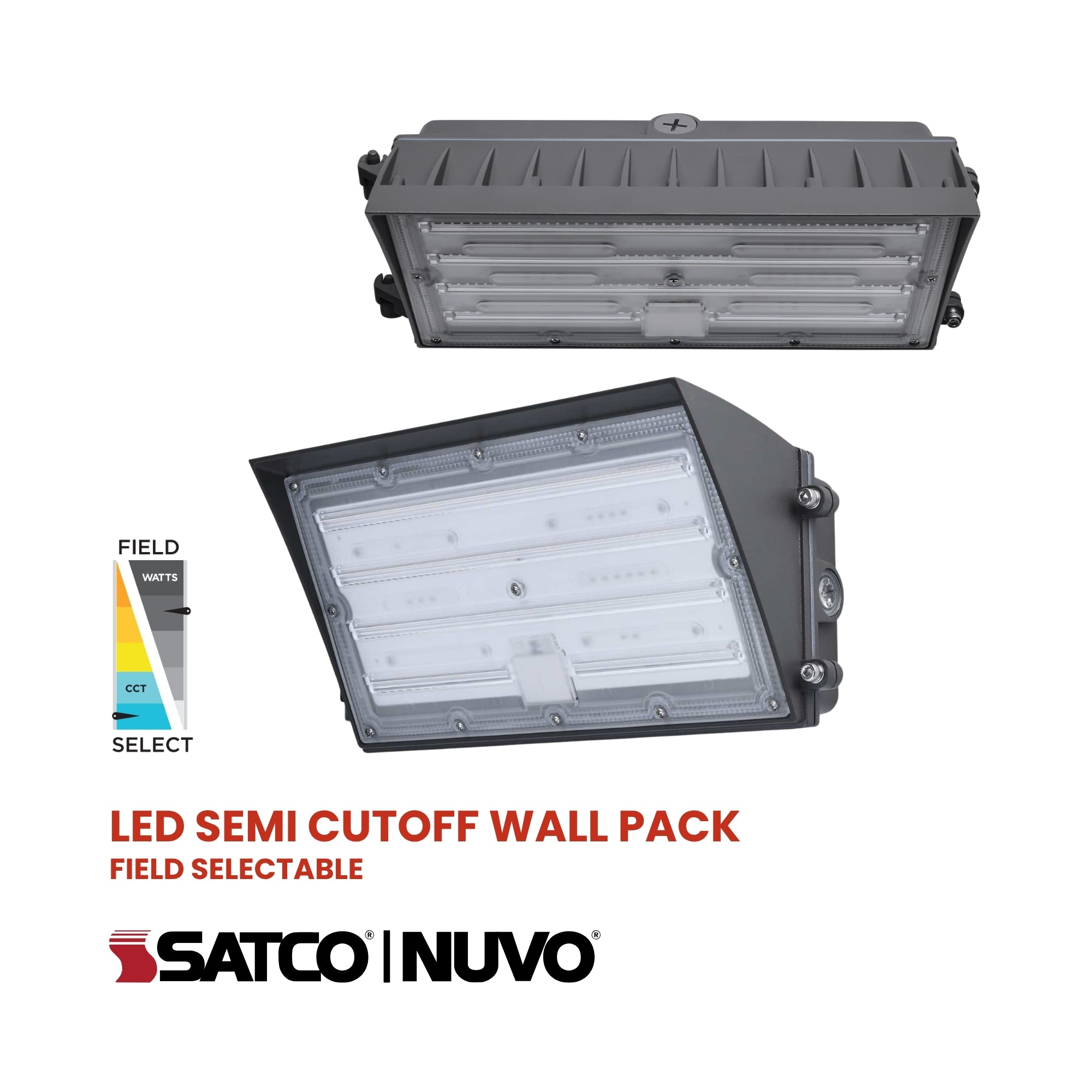

Satco|Nuvo Semi Cutoff LED Wall Pack — Selectable 80W/60W/45W
The 65-942 is an architectural semi cutoff LED wall pack operating on a 120-277V input. This selectable 80W fixture provides targeted forward-throw illumination while allowing adjustable power settings. It ensures efficient perimeter lighting for commercial facilities.
Key Features
- Cutoff Classification: Semi cutoff design provides excellent forward and downward lighting.
- Wattage: Field-selectable 80W, 60W, and 45W power outputs for customizable brightness.
- Input Voltage: Operates efficiently across universal 120-277V circuits.
- Photocell: Integrated bypassable dusk-to-dawn photocell for automated control.
- Color Temperature: Selectable 3000K, 4000K, and 5000K settings to match existing environments.
- Dimming: Standard 0-10V dimming capabilities for advanced energy savings.
- Surge Protection: Built-in 4KV defense guards against unexpected grid fluctuations.
- Housing Material: Heavy-duty die-cast aluminum with a bronze finish.

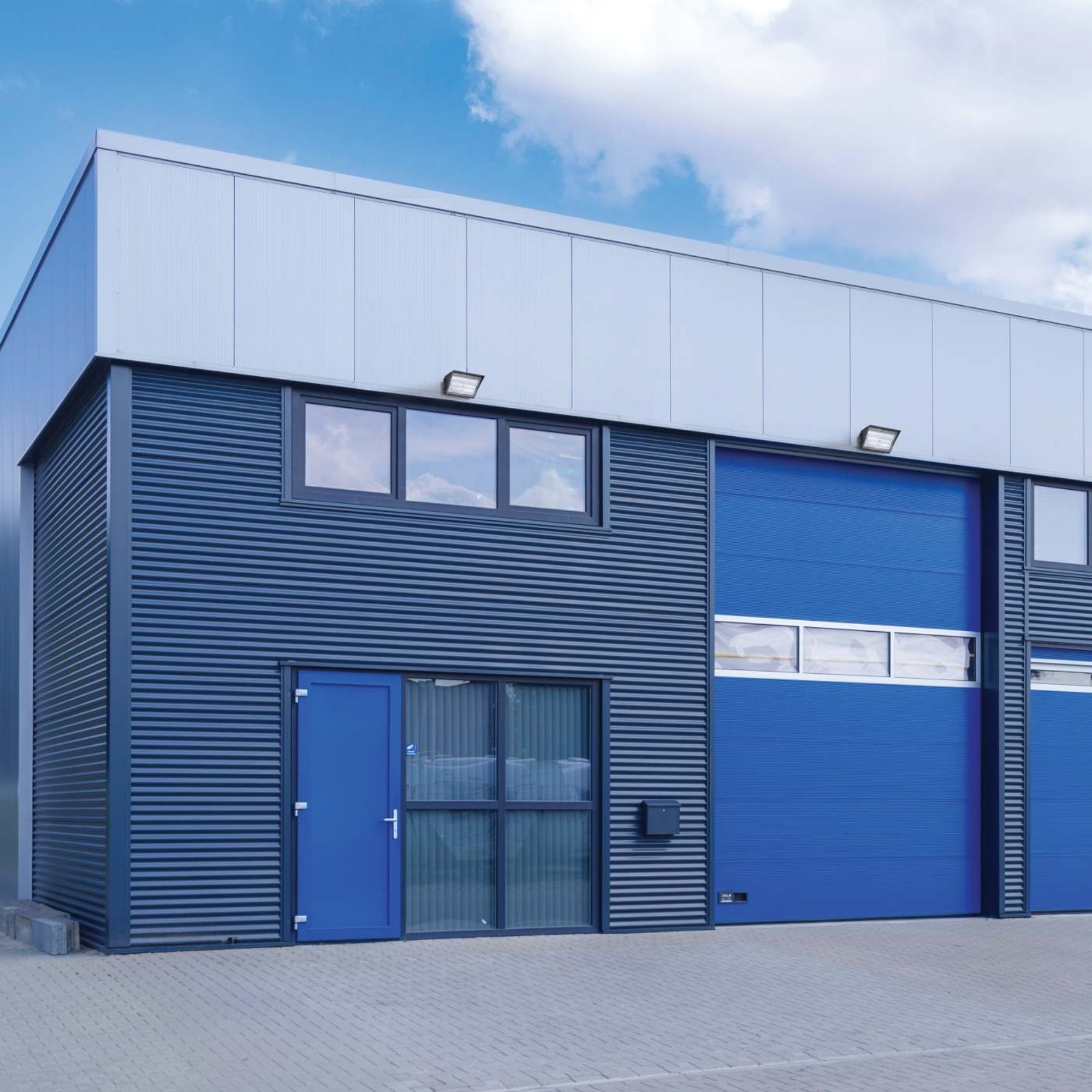

Typical Applications
- Commercial building perimeters
- Warehouse loading docks
- Educational facility exteriors
- Hospitality pathways
- Retail storefronts
Performance & Light Output
Generating robust lumens, this luminaire features a wide beam angle that projects light effectively across outdoor areas. With field-selectable color temperatures and an 80 CRI, it ensures visual clarity for perimeter security over a 50,000-hour lifespan.
Electrical & Controls
Powered by a 120-277V driver, it delivers smooth 0-10V dimming. It features built-in 4KV surge protection to safeguard internal components and includes a bypassable photocell for immediate dusk-to-dawn automation.
Construction & Durability
Housed in rugged die-cast aluminum with a corrosion-resistant bronze finish and an impact-resistant lens. It carries an IP65 rating, ensuring protection against driving rain and heavy dust in extreme ambient temperatures.
Installation & Mounting
Engineered for secure exterior wall mounting directly over standard electrical junction boxes. The fixture features an accessible wiring compartment, allowing electrical contractors to perform rapid installations and field adjustments.
What's Included
- LED Semi Cutoff Wall Pack
- Integrated Photocell
- Mounting Hardware
Specifications
Specifications

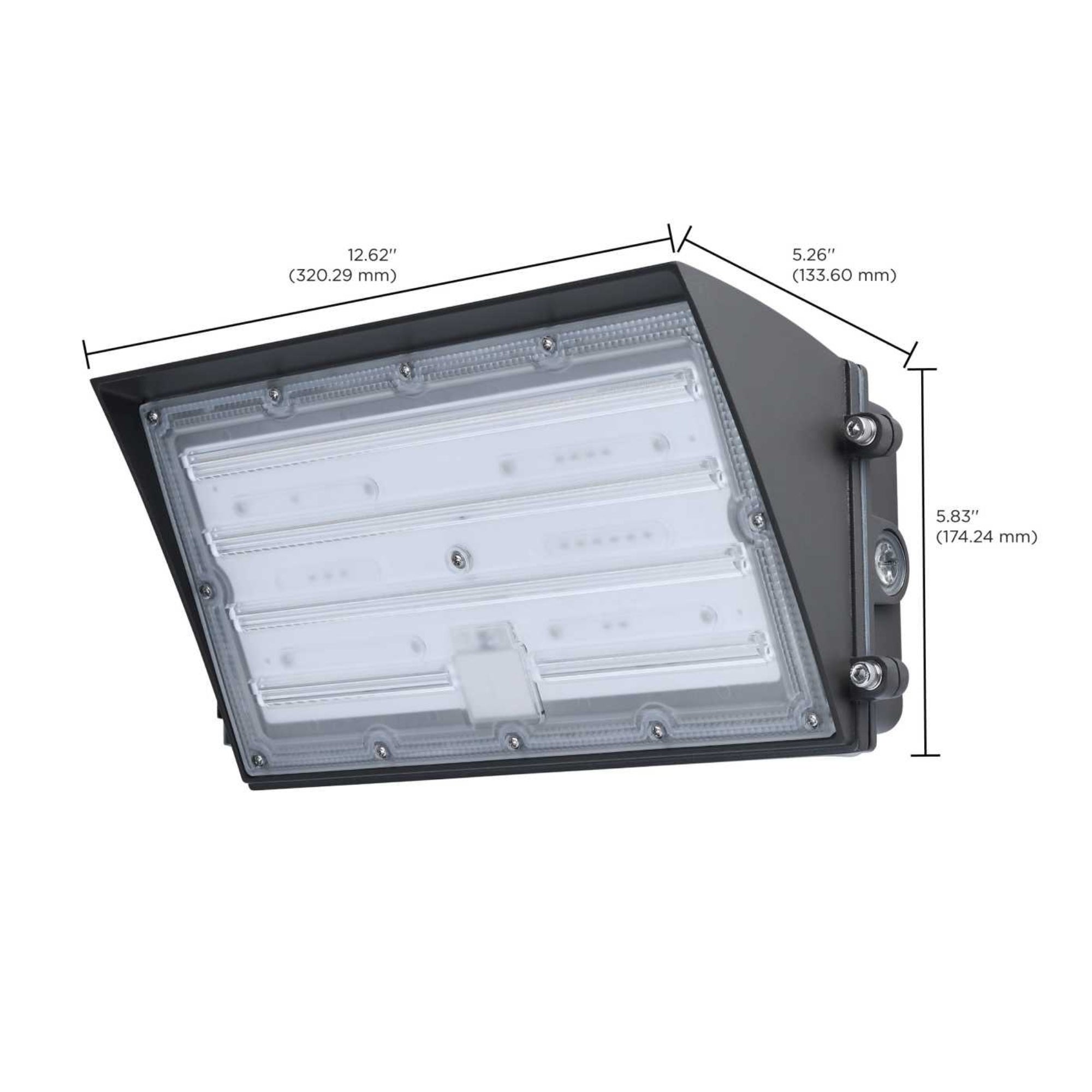

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can I change the wattage on this Satco|Nuvo wall pack?
Can I change the wattage on this Satco|Nuvo wall pack?
Does this fixture have a built-in photocell?
Does this fixture have a built-in photocell?
What input voltage does this LED wall pack accept?
What input voltage does this LED wall pack accept?
How does a semi cutoff design differ from a full cutoff?
How does a semi cutoff design differ from a full cutoff?
What traditional lighting does this 80W fixture replace?
What traditional lighting does this 80W fixture replace?
