Satco|Nuvo 65-911 3-Foot Dual T8 Lamp Ready Fixture 120-347V Surface/Suspension Mount White Finish
Out of stock
About this item
About this item
- Ballast Bypass Design: Engineered specifically for Type B ballast bypass applications, streamlining the transition to energy-efficient direct-wire LED tubes.

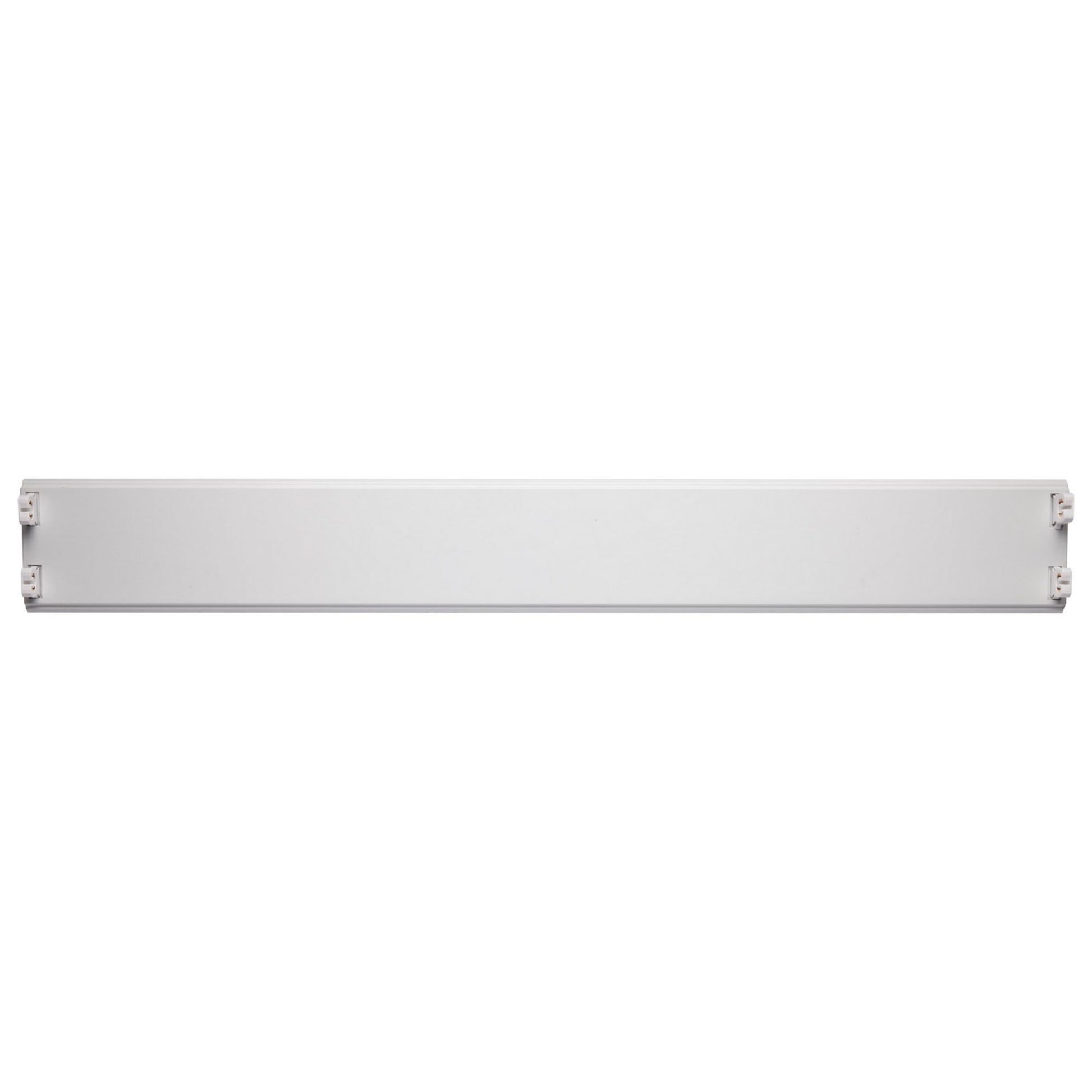

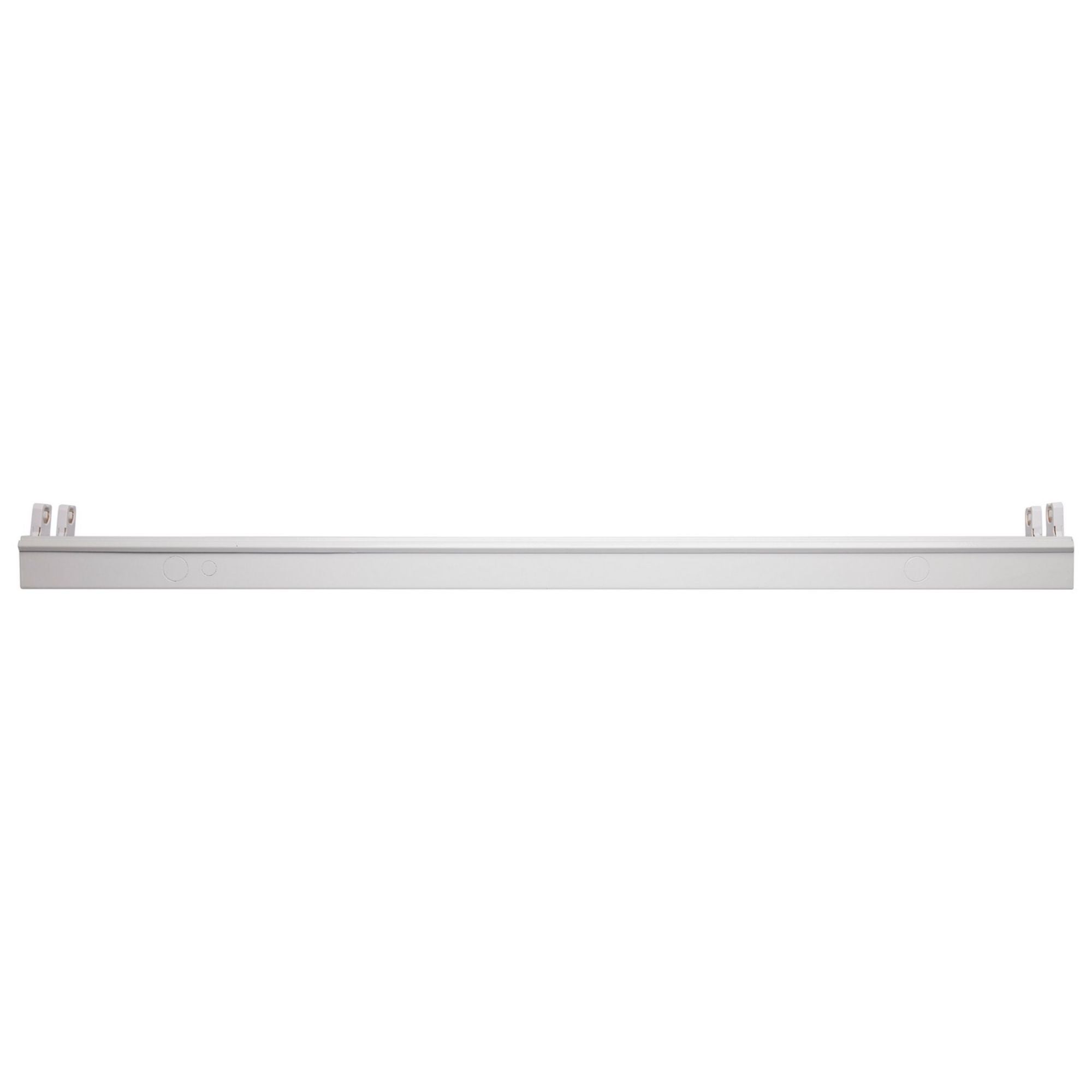

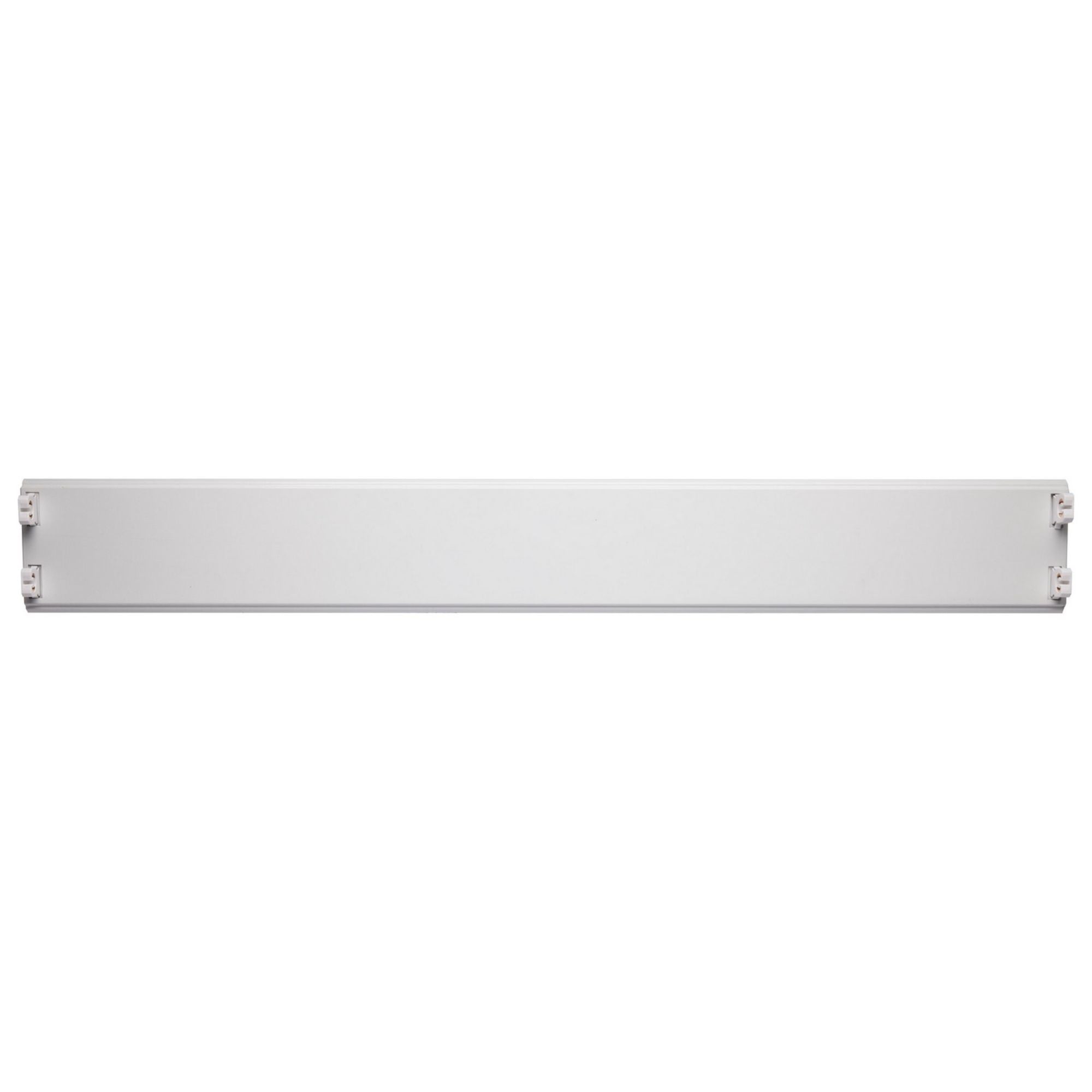

- Fixture Configuration: Designed as a 3-foot empty body fixture channel that supports two T8 LED lamps for flexible commercial and utility illumination.

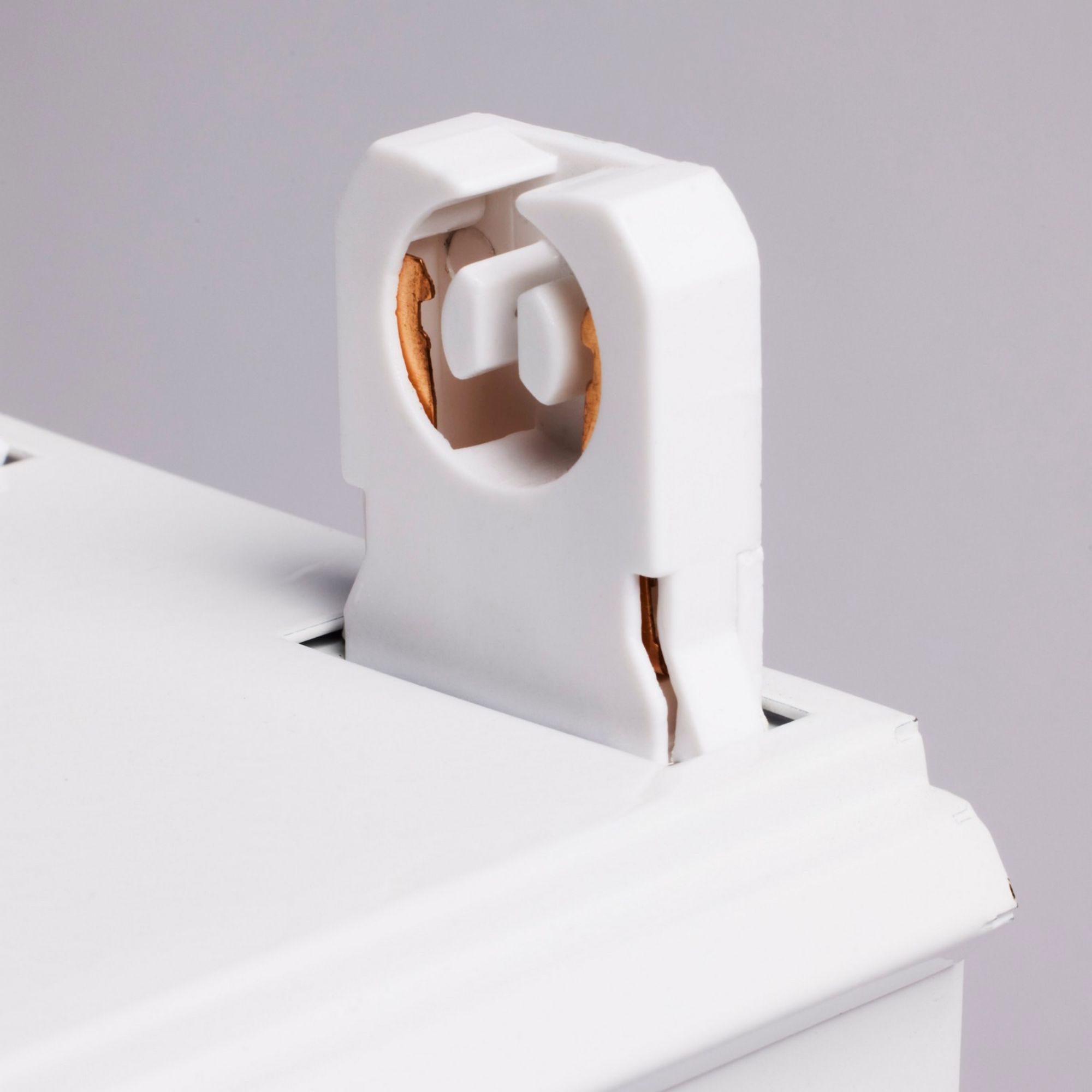

- Socket Integration: Equipped with pre-wired G13 medium bi-pin tombstone sockets to ensure a rapid, secure connection for dual-lamp setups.
- Voltage Compatibility: Operates seamlessly across a wide 120-347V input range, ensuring effortless integration with standard facility electrical systems.
- Durable Construction: Built with an industrial-grade steel housing and a high-reflectance white finish to deliver structural integrity and maximum light distribution.
We process payments securely and do not store credit card information.
Description
Description
Satco|Nuvo 3-Foot Dual T8 Lamp Ready Fixture — Type B Bypass / 120-347V
The 65-911 is a commercial-grade empty body fixture engineered for Type B ballast bypass installations. Operating on a versatile 120-347V circuit, this 3-foot channel efficiently accommodates dual direct-wire T8 LED tubes. It offers a streamlined, ballast-free lighting solution for warehouses, retail spaces, and utility corridors while ensuring compliance with standard facility requirements.
Key Features
- Application: Ideal for Type B ballast bypass direct-wire LED tube installations.
- Fixture Capacity: Accommodates two 3-foot T8 LED lamps in a linear configuration.
- Included Sockets: Equipped with pre-wired G13 medium bi-pin tombstone lamp holders.
- Voltage Range: Accepts 120-347V commercial inputs for broad grid compatibility.
- Housing Construction: Formed from rugged steel to withstand industrial environments.
- Surface Finish: Coated in a high-reflectance white finish to maximize light output.
- Wiring Layout: Pre-configured and internally wired to accelerate direct-wire setups.

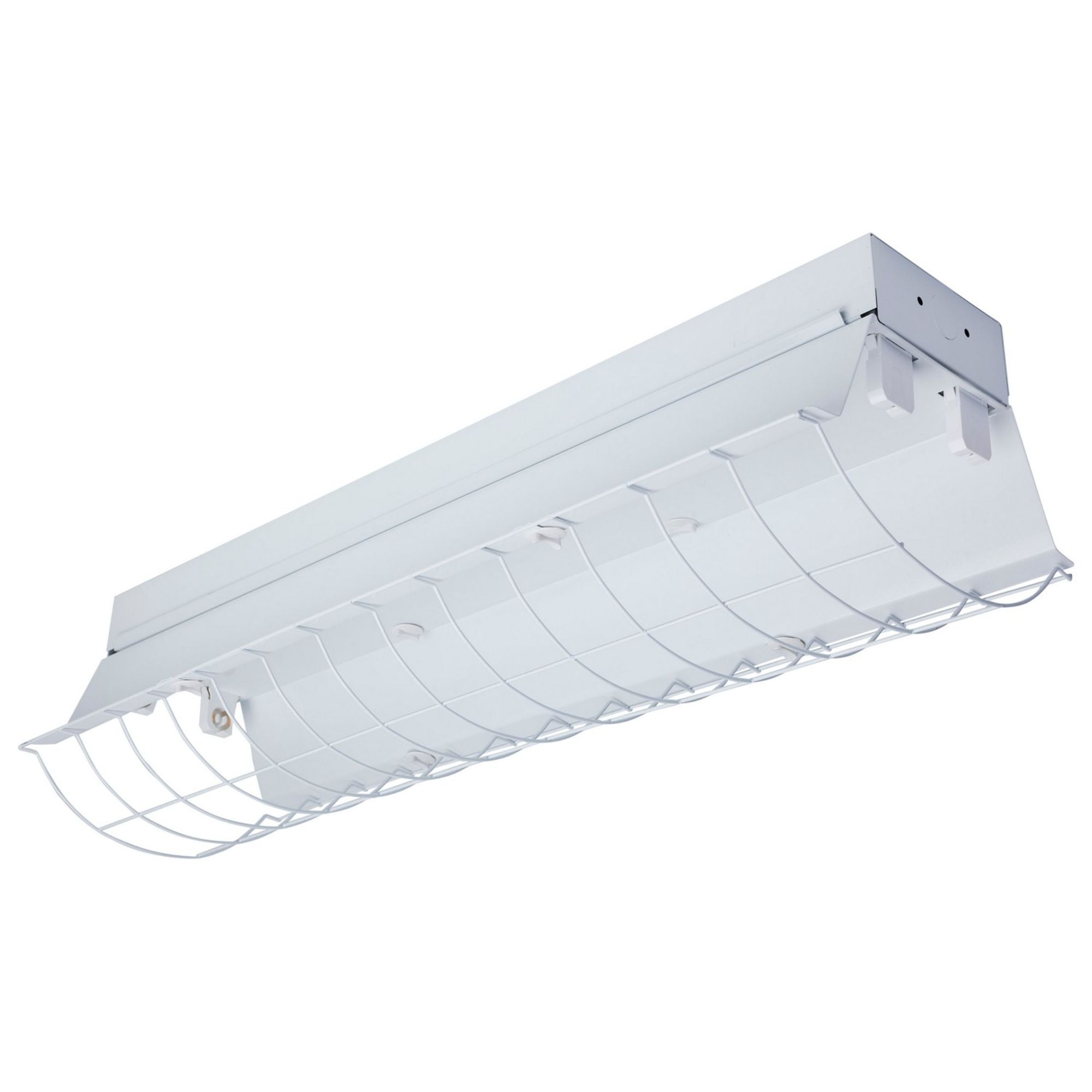

- Accessory Support: Compatible with optional add-on reflectors and wire cages.
Performance & Illumination
As an empty fixture channel, this unit does not emit light independently. The final lumen output, color temperature, and beam distribution are dictated solely by the installed direct-wire LED tubes. The unit’s highly reflective white steel housing is structurally designed to enhance the downward projection of the selected lamps.
Electrical & Battery
Designed for immediate Type B ballast bypass integration, this channel is internally wired to accept a 120-347V AC power supply, completely eliminating the need for a ballast. It operates exclusively on standard AC power and does not feature an internal emergency battery backup or diagnostic circuitry.
Physical & Installation Details

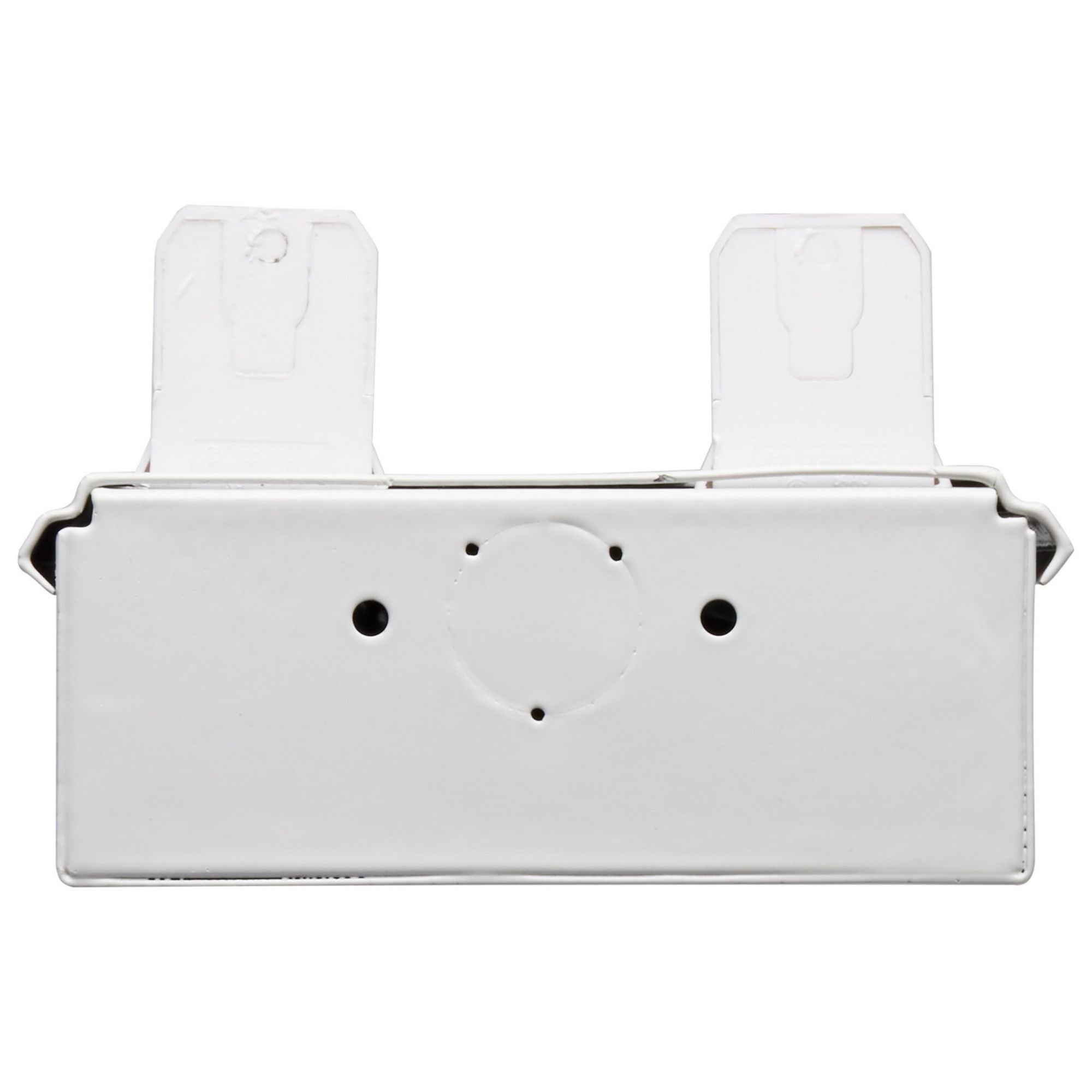

The rugged steel 3-foot housing includes multiple knockouts strategically placed along the sides and back panel. Installers can rapidly secure the fixture via direct surface mounting to commercial ceilings, or suspend it using an optional wire kit. Pre-wired tombstones ensure rapid lamp insertion and locking.
Compliance & Safety
This empty body fixture is fully cETLus listed to meet stringent commercial safety and operational standards. It is officially damp location rated, permitting installation in utility areas exposed to moderate moisture. It is California Title 20 exempt and lawful for sale nationwide.
What's Included
- 1 x 3-Foot Fixture Channel
- 2 x Pre-Wired G13 Lamp Sockets
- 1 x Complete Lamp Wiring Guide
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is this 3-foot fixture designed for Type B ballast bypass setups?
Is this 3-foot fixture designed for Type B ballast bypass setups?
Yes, this empty body fixture is explicitly pre-wired for Type B ballast bypass direct-wire LED tube installations.
Are the LED lamps included with this fixture?
Are the LED lamps included with this fixture?
No, this is an empty body fixture channel, so the necessary 3-foot T8 LED tubes must be purchased separately.
What is the accepted input voltage for this channel?
What is the accepted input voltage for this channel?
The fixture is wired to accommodate a broad voltage range, functioning smoothly on standard 120V to 347V commercial circuits.
Can this unit be safely installed in damp locations?
Can this unit be safely installed in damp locations?
Yes, the fixture is cETLus listed and carries an official damp location rating for use in utility areas with moderate moisture.
Does this fixture come equipped with an emergency battery?
Does this fixture come equipped with an emergency battery?
No, this is strictly an AC-only empty body fixture and does not include any internal battery backup system.
