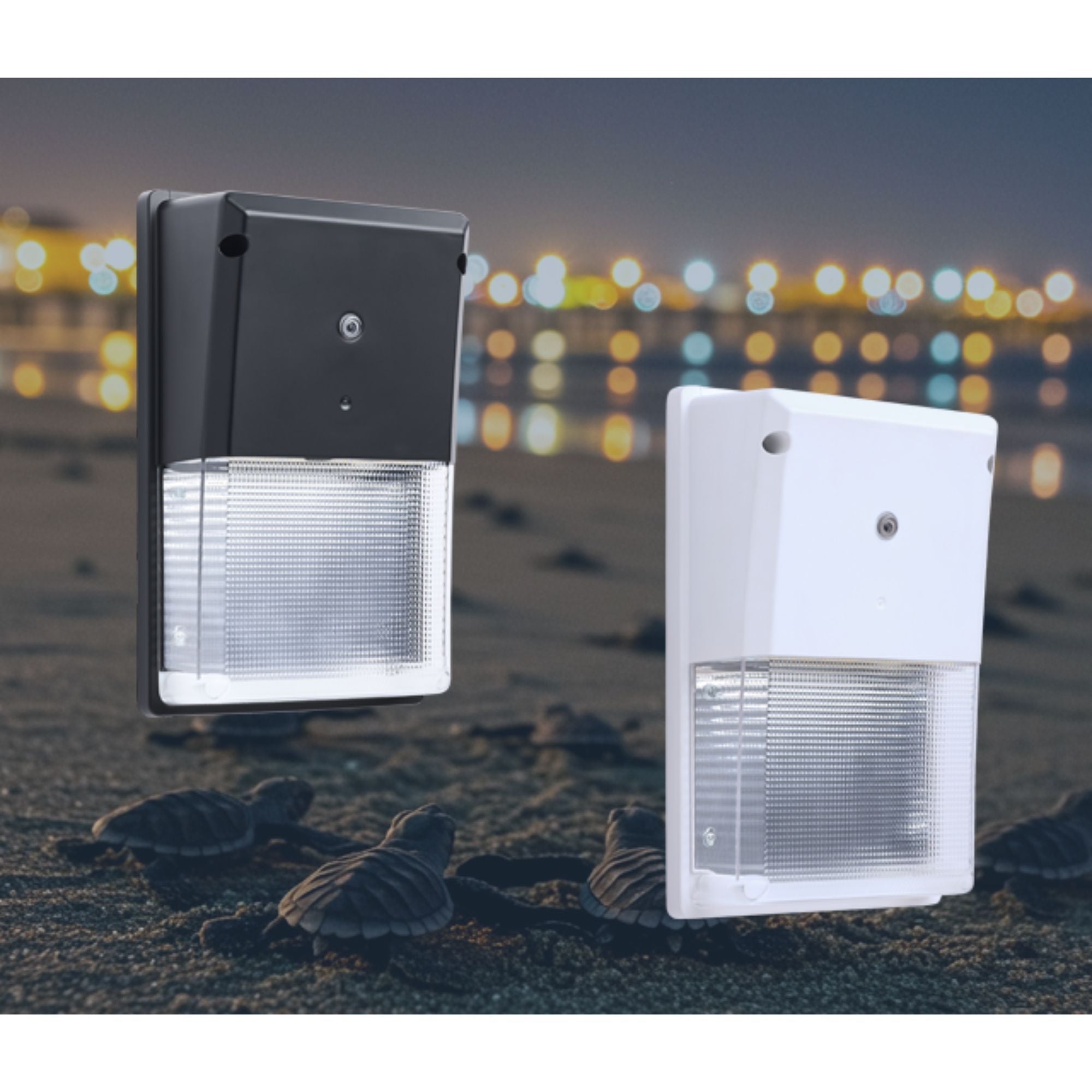

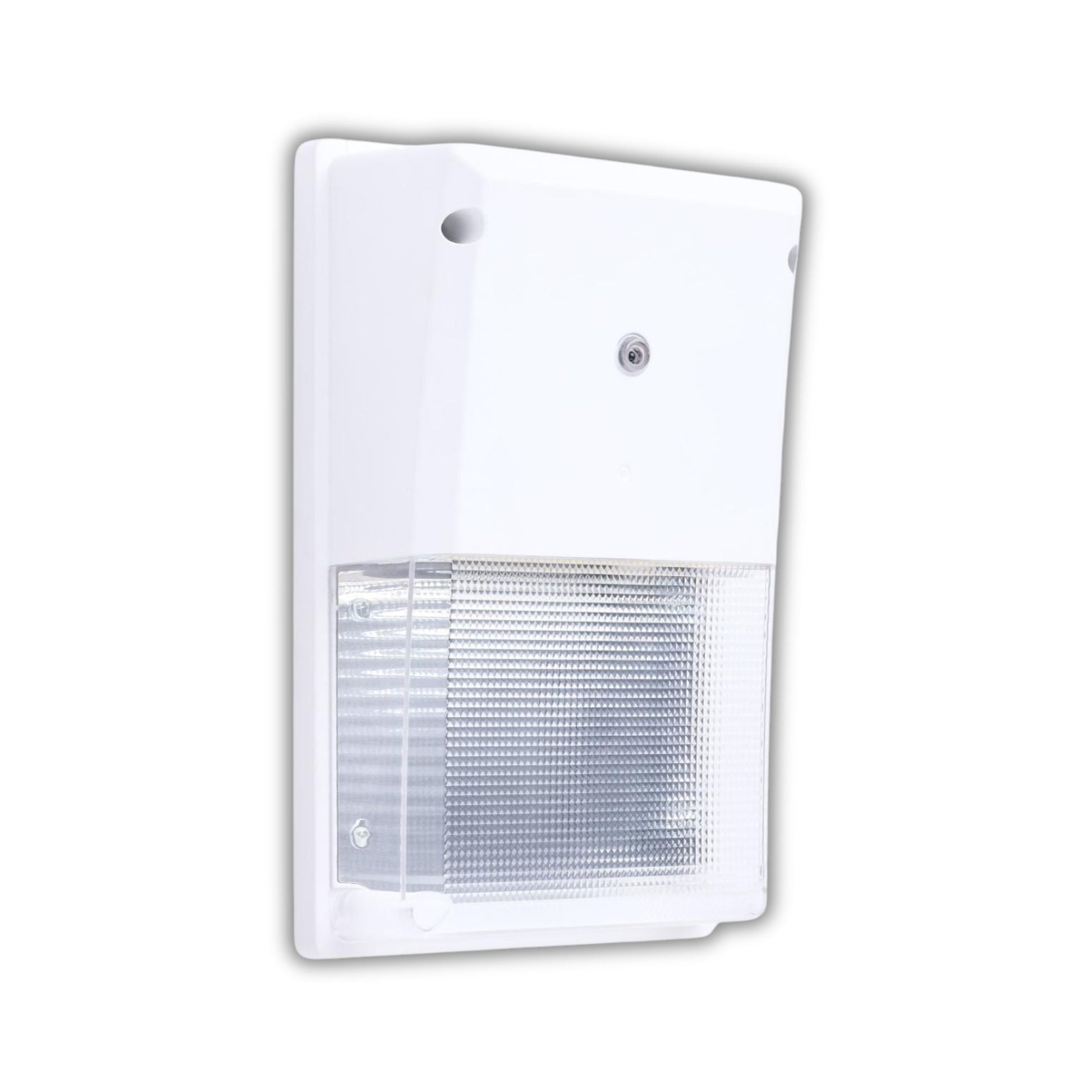

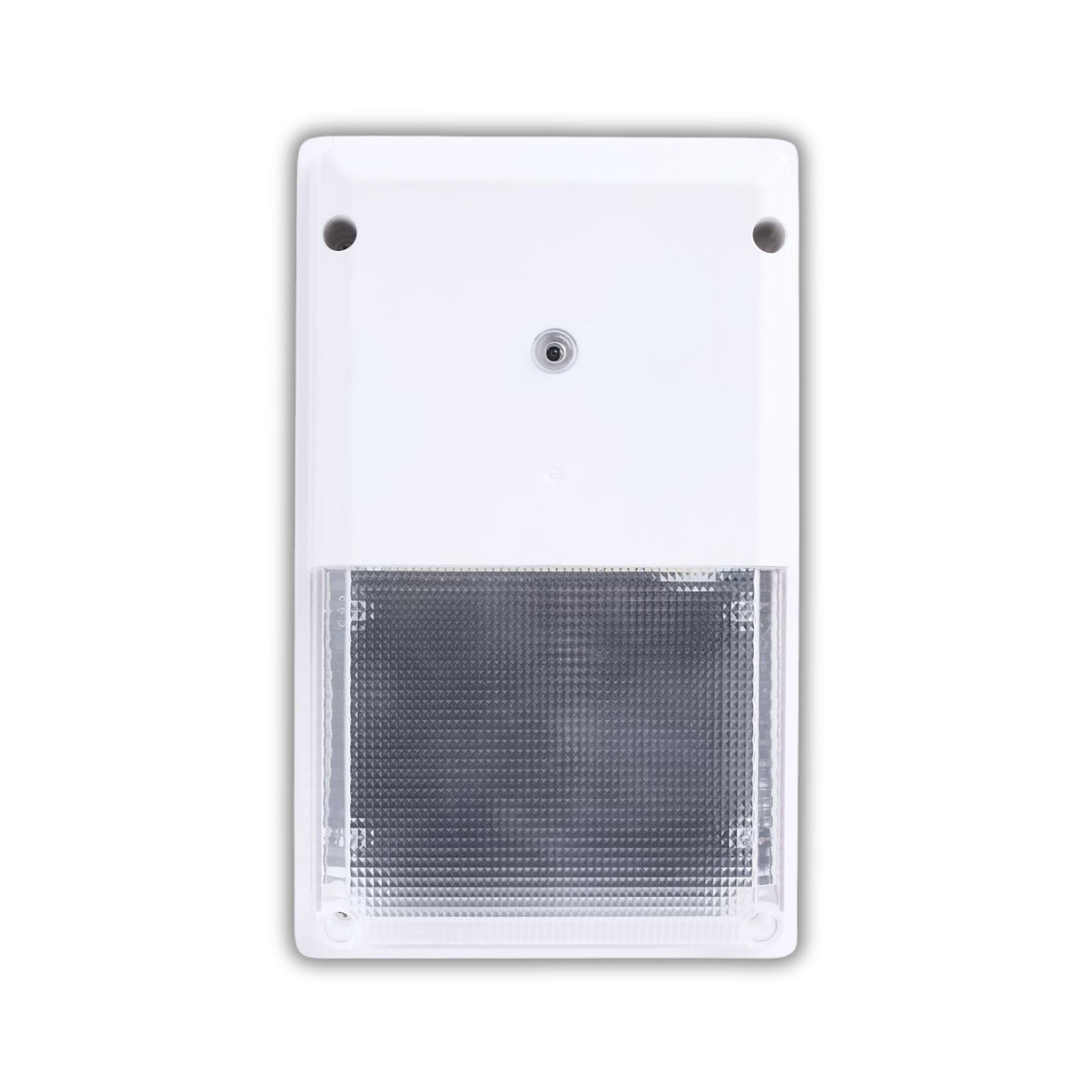

Satco 65-889 Turtle-Friendly Field Selectable Mini LED Wall Pack — 20W — 4000K/590nm Amber — White

The Satco 65-889 is a commercial turtle-friendly field-selectable mini LED wall pack engineered to switch effortlessly between 590-nanometer amber light (344 lumens, factory default) for sea turtle spawning seasons and 4000K cool white light (2,493 lumens at up to 124 lm/W) from a dedicated 20W light engine. Operating on universal 120-277V electrical systems with 0-10V dimming, it replaces 100W incandescent coastal and doorway fixtures while enabling seasonal compliance with municipal wildlife ordinances. Built with a weatherproof IP65 die-cast aluminum frame, IK06 prismatic polycarbonate cover, and cULus wet-location listing, this coastal luminaire features a slim 2.79" ADA-compliant wall extension (8.70" H x 5.35" W), ultra-lightweight 1.25 lb body, a concealed push-button CCT selector accessed via a gasketed 1/2" top knockout, an integrated by-passable photocell, and 2.5kV surge protection.

Key Features

  • Nominal Wattage: Fixed 20W LED system
  • Wattage Equivalency: Replaces 100W incandescent fixtures
  • Dual-Mode Lumen Output: 2,493 lm in 4000K white mode; 344 lm in 590nm amber turtle-friendly mode
  • Peak Efficacy: Up to 124 lm/W (in 4000K white mode)
  • CRI: >80 (in 4000K white mode)
  • Selectable CCT / Wavelength: 4000K Cool White / 590nm Amber (factory default Amber) via concealed push-button switch
  • Lens & Optics: IK06-rated prismatic polycarbonate cover with 90° beam angle
  • Photocell & Controls: Integrated by-passable dusk-to-dawn photocell included
  • Dimming: 0-10V continuous dimming
  • Voltage & Surge Protection: 120-277V AC, 50/60Hz; 2.5kV surge protection
  • Location & Body Rating: cULus Wet Location certified; IP65 weatherproof rated; IK06 impact rated; ADA Compliant
  • Operating Temperature: -40°F (-40°C) to 122°F (50°C)
  • Certifications: cULus Certified, IP65, IK06, ADA Compliant, FCC Part 15, CAN ICES-005 Issue 5 Class A, RoHS Compliant
  • Rated Life: L70 50,000 hours functional life
  • Warranty: 5-year limited warranty under the NLB Trusted Warranty Program - Satco

Performance & Light Output

Operating Mode System Wattage Color / Wavelength Lumen Output Efficacy Legacy Equivalent
Turtle-Friendly Amber Mode (Default) 20W 590nm Amber 344 lm 17.2 lm/W 100W Incandescent
White Light Mode 20W 4000K (>80 CRI) 2,493 lm Up to 124 lm/W 100W Incandescent

Delivers >80 CRI in 4000K white light mode and true 590-nanometer long-wavelength amber output in turtle-friendly mode. Rated functional life of 50,000 hours (L70).

Lens & Optics

Engineered with a durable IK06-rated prismatic polycarbonate lens cover delivering a controlled 90° beam angle from a slim 2.79" ADA-compliant profile. The lower prismatic diffuser and upper die-cast aluminum shield project uniform downward and outward walkway illumination while providing turtle-friendly coastal illumination that minimizes upward light scatter along boardwalks, beachfront entryways, and hotel perimeters.

Smart & Control Features

Engineered for seasonal coastal code compliance, automated dusk-to-dawn operation, and commercial dimming:

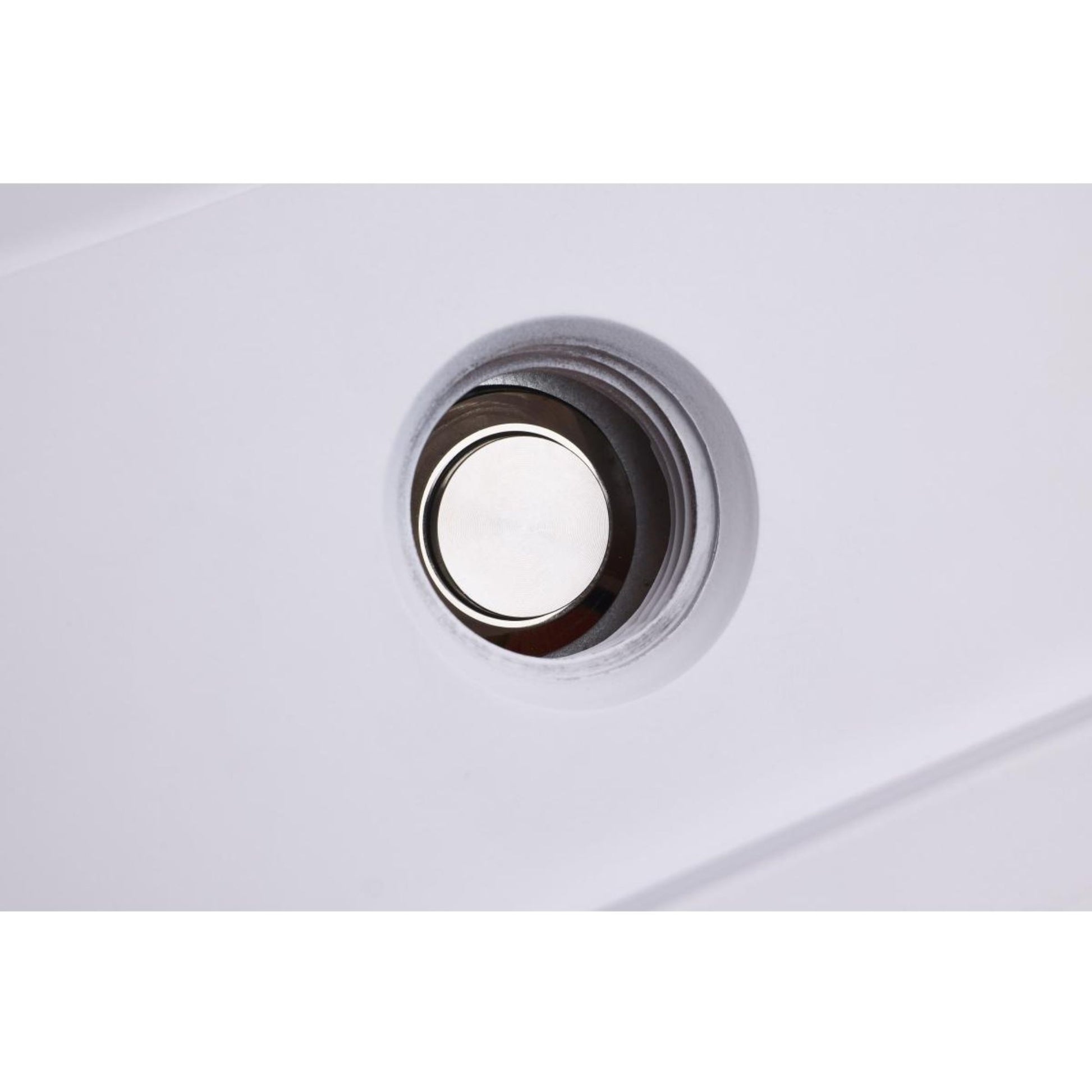

  • Concealed 4000K / 590nm Amber Push-Button Switch: Accessed by unscrewing the gasketed 1/2" top knockout plug with a screwdriver. The factory default setting is 590nm Amber; pressing the internal push button switches the fixture to 4000K white light, and pressing it again returns the fixture to Amber for turtle nesting and hatching seasons.

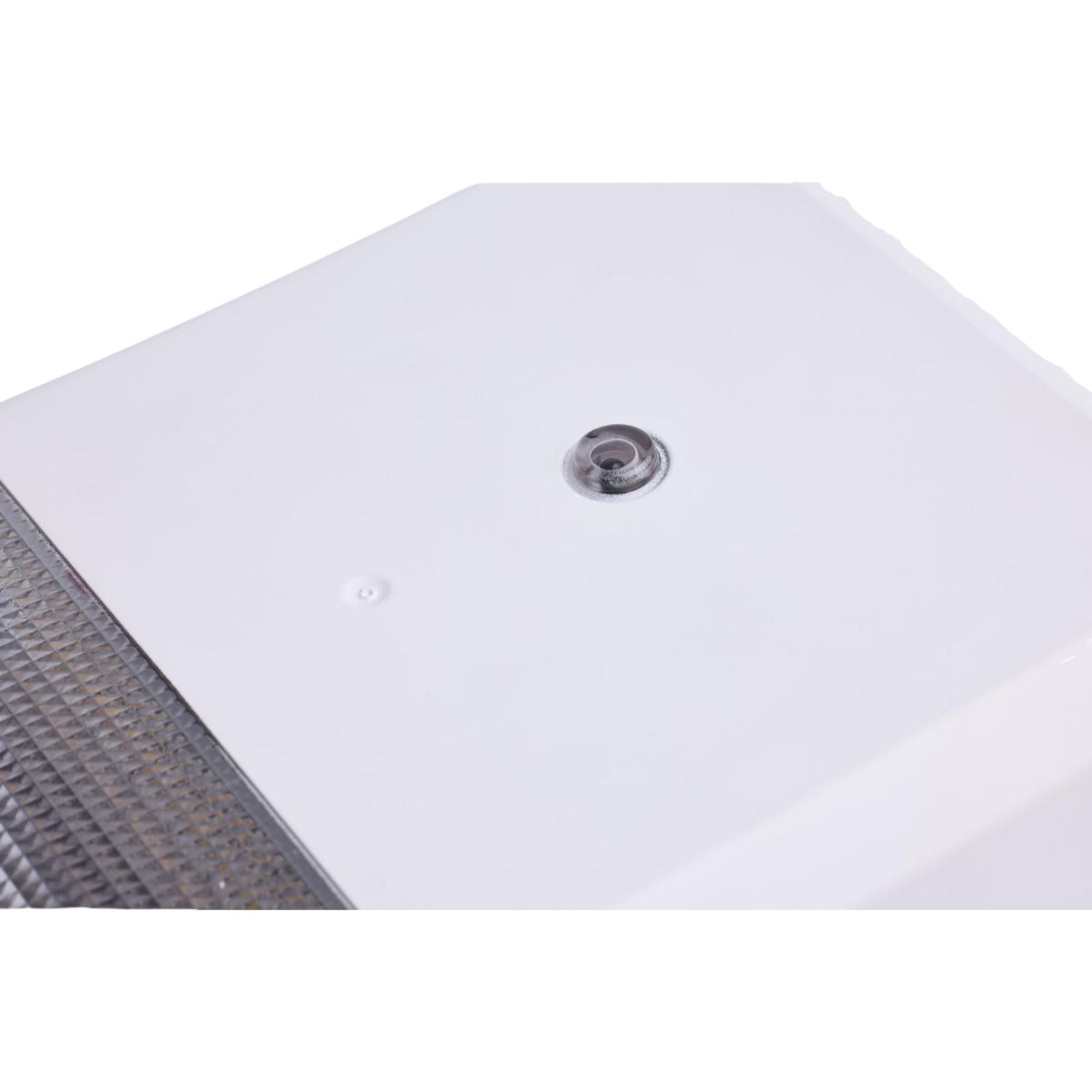

  • Integrated By-Passable Photocell: Front-mounted dusk-to-dawn photocell automatically activates the luminaire at nightfall and turns it off at dawn, or can be bypassed for manual wall-switch, timer, or panel control.
  • 0-10V Continuous Dimming: Compatible with commercial 0-10V dimming systems and lighting control panels.

Electrical

Powered by a constant current driver operating on universal 120-277V AC at 50/60Hz with a Power Factor of 0.99 and Total Harmonic Distortion (THD) >20%. Integrated 2.5kV surge protection shields internal driver and LED circuitry against coastal utility line transients. Includes 0-10V dimming leads.

Operating current and amp draw across 120V–277V input voltages for branch circuit and breaker loading calculations:

Wattage 120V Current (A) 277V Current (A)
20W 0.17A 0.07A

Construction

Housing & Thermal: Small-footprint die-cast aluminum frame with a prismatic polycarbonate cover and an IK06 mechanical impact rating engineered for coastal durability.

Finish: Architectural White powder-coat finish formulated to withstand coastal outdoor environments.

Environmental Sealing: IP65 weatherproof rated and cULus Certified for wet locations with a gasketed 1/2" top access plug. Ambient operating temperature: -40°F (-40°C) to 122°F (50°C).

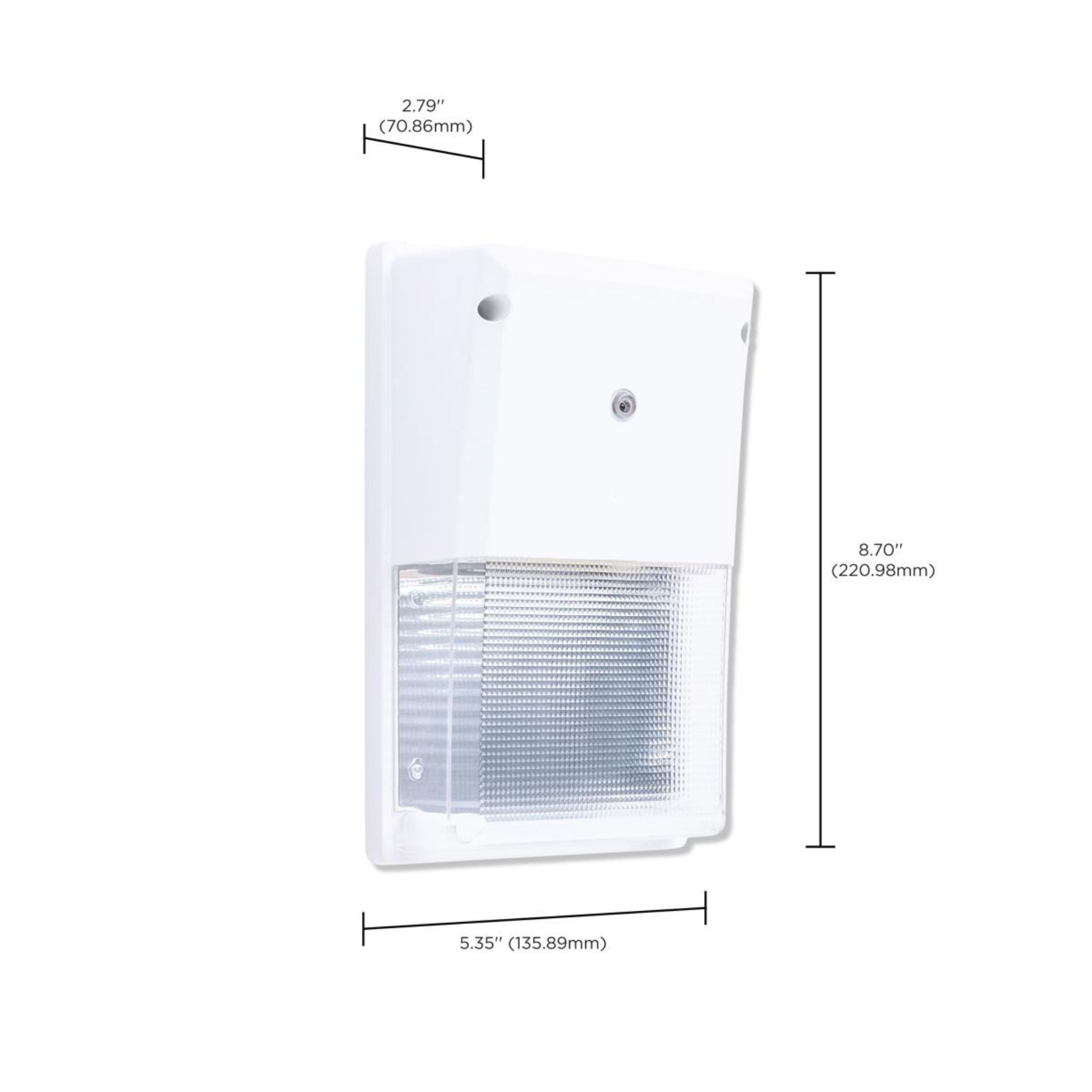

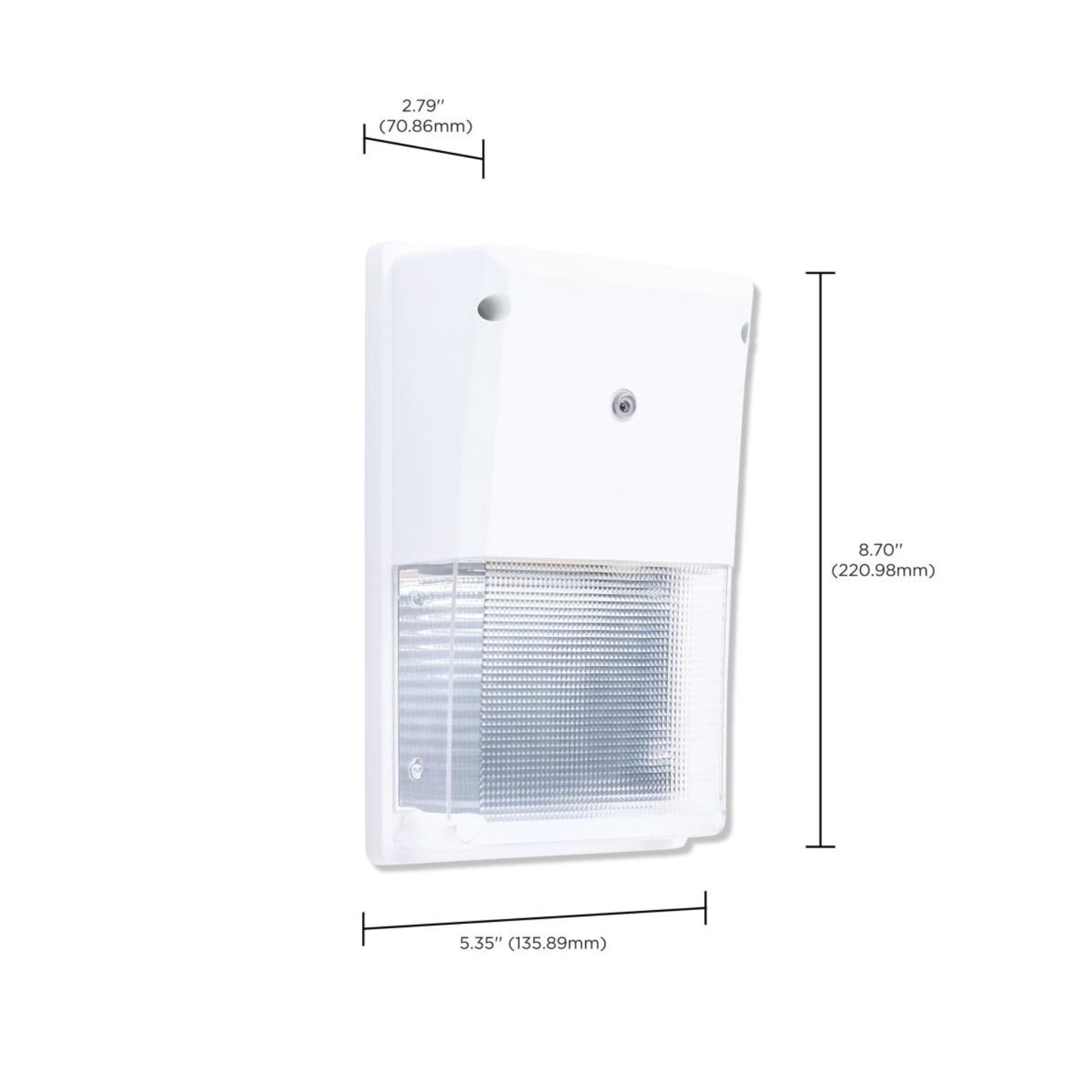

Dimensions & Weight: 8.70" H x 5.35" W x 2.79" D. Fixture weight: 1.25 lbs.

Installation & Mounting

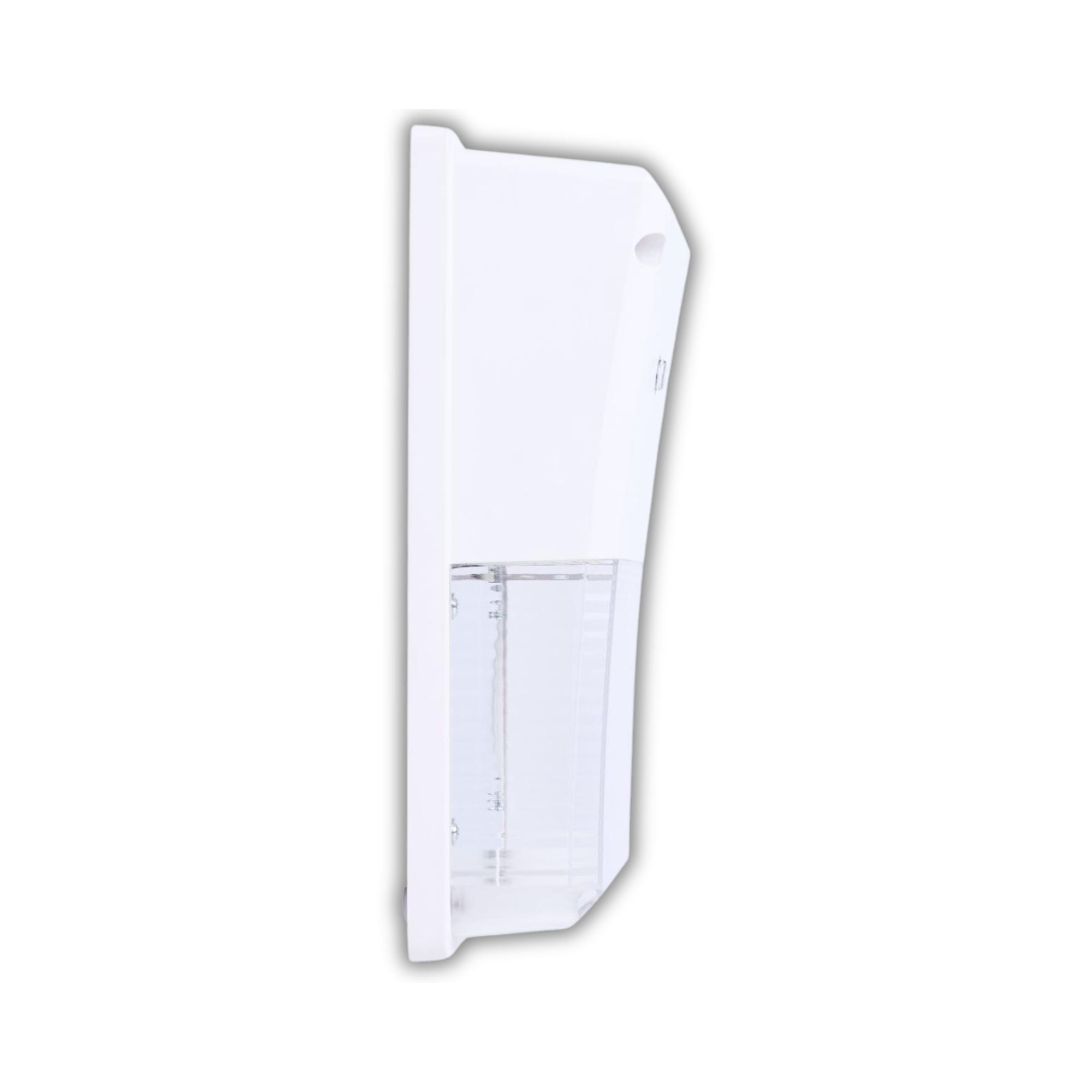

Mounting Hardware: Ultra-lightweight 1.25 lb die-cast aluminum backplate with a compact 8.70" H x 5.35" W footprint extends only 2.79" from the wall surface, meeting ADA (Americans with Disabilities Act) wall-protrusion limits (<4") along pedestrian boardwalks, balconies, and hotel corridors.

Conduit & Wiring Access: Mounts directly over standard recessed wall junction boxes and includes a gasketed 1/2" top knockout plug that provides screwdriver access to the internal 4000K/Amber push-button selector.

Certifications & Rebates

  • cULus Certified: UL and cULus certified for wet locations
  • IP65 & IK06 Rated: IP65 ingress protection against dust and water jets; IK06 impact-rated prismatic polycarbonate cover
  • ADA Compliant: Slim 2.79" wall extension meets ADA requirements for wall-mounted luminaires
  • Coastal Wildlife Ordinance Ready: 590nm amber wavelength supports compliance with coastal sea turtle protection codes during spawning seasons
  • FCC & ICES-005 Compliant: Complies with FCC Part 15 and CAN ICES-005 Issue 5 Class A commercial electromagnetic standards
  • RoHS Compliant: Free of mercury, lead, and restricted hazardous substances

Typical Applications

  • Coastal Hotels & Beachfront Resorts - Concealed push button switches seamlessly between 590nm amber light during turtle spawning seasons and 4000K white light off-season
  • Boardwalks, Piers & Marinas - Slim 2.79" ADA-compliant profile and IP65 die-cast aluminum housing withstand coastal weather while protecting pedestrian clearance
  • Coastal Condominiums & Balconies - Integrated by-passable photocell and 0-10V dimming automate dusk-to-dawn doorway lighting across 120-277V circuits
  • Commercial Entryways & Stairwells - IK06 impact-rated prismatic polycarbonate cover delivers a controlled 90° beam spread over exterior doors
  • Municipal Parks & Nature Centers - 590-nanometer narrow-spectrum amber mode minimizes ecological light pollution near sensitive coastal breeding grounds

What's Included

  • Satco 65-889 Turtle-Friendly Field Selectable Mini LED Wall Pack - White
  • Pre-installed by-passable dusk-to-dawn photocell and concealed 4000K/Amber push-button switch
  • Gasketed 1/2" top knockout plug, installation hardware, and operation manual

Specifications

Dimensions

Length/Depth
5.35 in
Width/Diameter
5.35 in
Height
8.7 in
Weight
1.25 lb

Style & Materials

Finish
White
Material
Aluminum
Style
Shape
Mini

Characteristics & Features

Lamp Source
led
Base Type
Integrated
Bulb Included
Yes
Lamp Color
4000K, Amber
Color Rendering
80 CRI
Delivered Lumens
2493
Beam Angle
90.00
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
20W
Bulb Wattage
20W

Item Details

MPN
65-889
Brand
SATCO|NUVO
UPC
045923404580

Warranty & Certifications

Product Warranty
5 Year Limited - Fixtures
Lamp Life
50000 hours
Product Rating
IP65 Rated
Safety Listing
cULus

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the Satco 65-889 turtle-safe mini wall pack ADA compliant, and what are its dimensions?

Yes, this compact mini wall pack measures 8.70" H x 5.35" W and extends only 2.79" from the wall (1.25 lbs) to meet ADA walkway compliance. Its die-cast aluminum frame mounts directly over standard exterior wall junction boxes and includes a gasketed 1/2-inch top knockout.

How do you switch between 4000K white and 590nm amber turtle-safe light on the Satco 65-889?

Unscrew the gasketed 1/2-inch top knockout plug to press the concealed push-button switch, which toggles between 590nm amber (factory default, 344 lumens) and 4000K white light. In 4000K mode, the 20W fixture delivers 2,493 lumens at up to 124 lm/W (>80 CRI) to replace 100W incandescent lights.

Can the built-in photocell on the Satco 65-889 be bypassed, and does it support dimming?

Yes, this luminaire includes an integrated by-passable dusk-to-dawn photocell for automatic nighttime operation or manual wall-switch and timer control. It operates on universal 120-277V AC circuits (0.17A at 120V; 0.07A at 277V) with a 0.99 power factor and 0-10V continuous dimming.

What lens material, impact rating, and surge protection protect the Satco 65-889 in coastal areas?

The fixture pairs an IK06 impact-rated prismatic polycarbonate cover (90° beam angle) with an IP65 weatherproof white die-cast aluminum frame. It is cULus wet-location certified, protected by 2.5kV surge suppression, and rated for -40°F (-40°C) to 122°F (50°C) ambient temperatures.

What is the rated LED lifespan, compliance status, and warranty coverage for Satco 65-889?

The Satco 65-889 is rated for a 50,000-hour L70 functional life and complies with FCC Part 15, CAN ICES-005 Class A, ADA, and RoHS standards. It is backed by Satco's 5-year limited warranty under the NLB Trusted Warranty Program for dependable coastal exterior operation.
