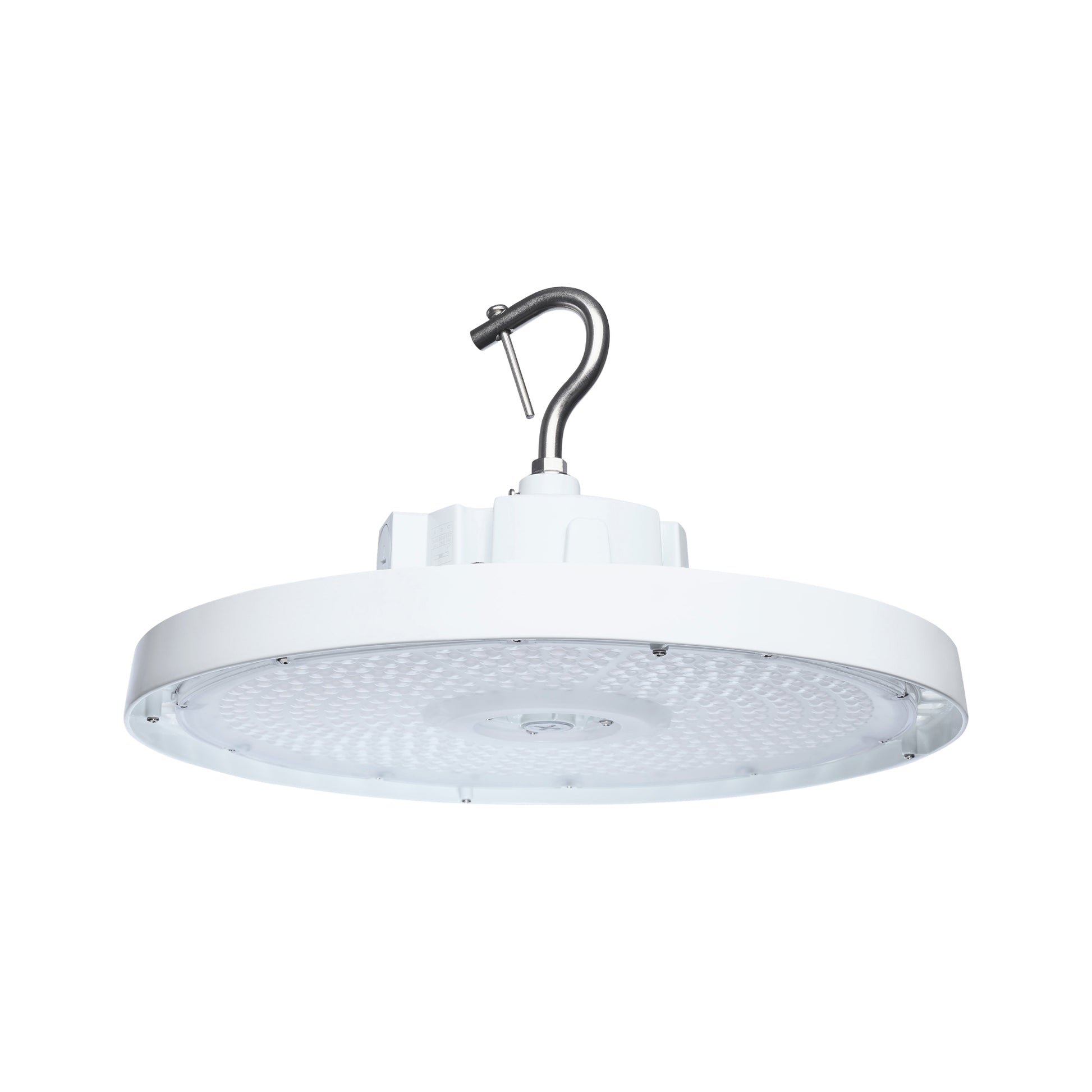

Satco|Nuvo 65-1523 Beam Selectable UFO LED High Bay — 240/200/150W Selectable — 3000K/4000K/5000K — 120–347V — White
The Satco|Nuvo 65-1523, MPN 65/1523, is a beam-selectable UFO LED high bay with field-selectable 240W / 200W / 150W output, 3000K/4000K/5000K CCT, and 60° / 80° / 100° beam distribution. It operates on universal 120–347V AC input with 0–10V continuous dimming, delivers up to 37,938 lm at up to 158 lm/W, and is UL Listed for wet locations, IP65 / NEMA 4X rated, IK08 impact rated, and DLC Premium qualified. The White fixture includes a locking hook; whip connectors and other accessories are sold separately.
Key Features

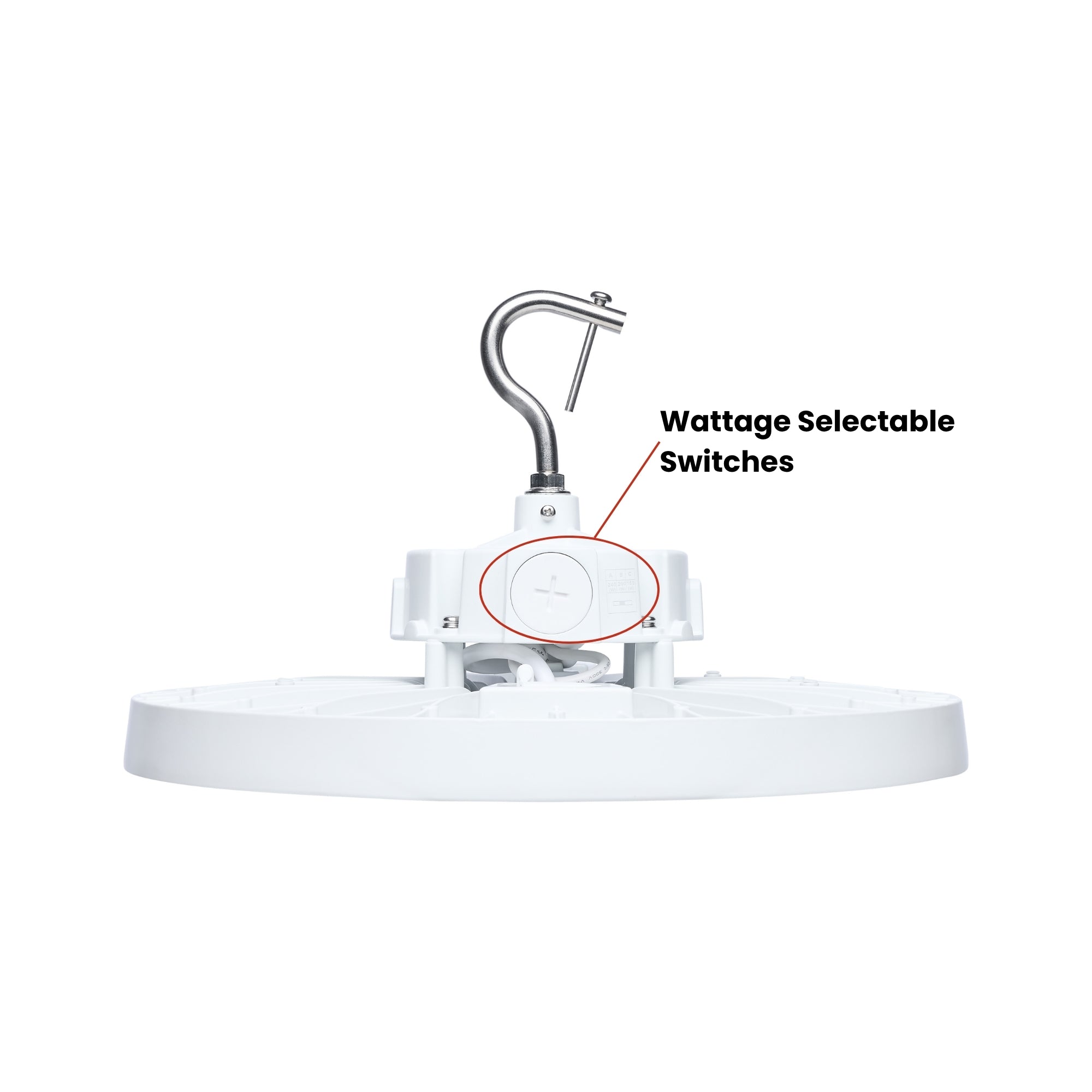

- Selectable Wattage: Field-selectable 240W / 200W / 150W output via on-board switch.
- Wattage Equivalency: Replaces up to 750W HID.
- Maximum Lumen Output: Delivers up to 37,938 lm at 240W.
- Peak Efficacy: Up to 158 lm/W.
- CRI: 80.

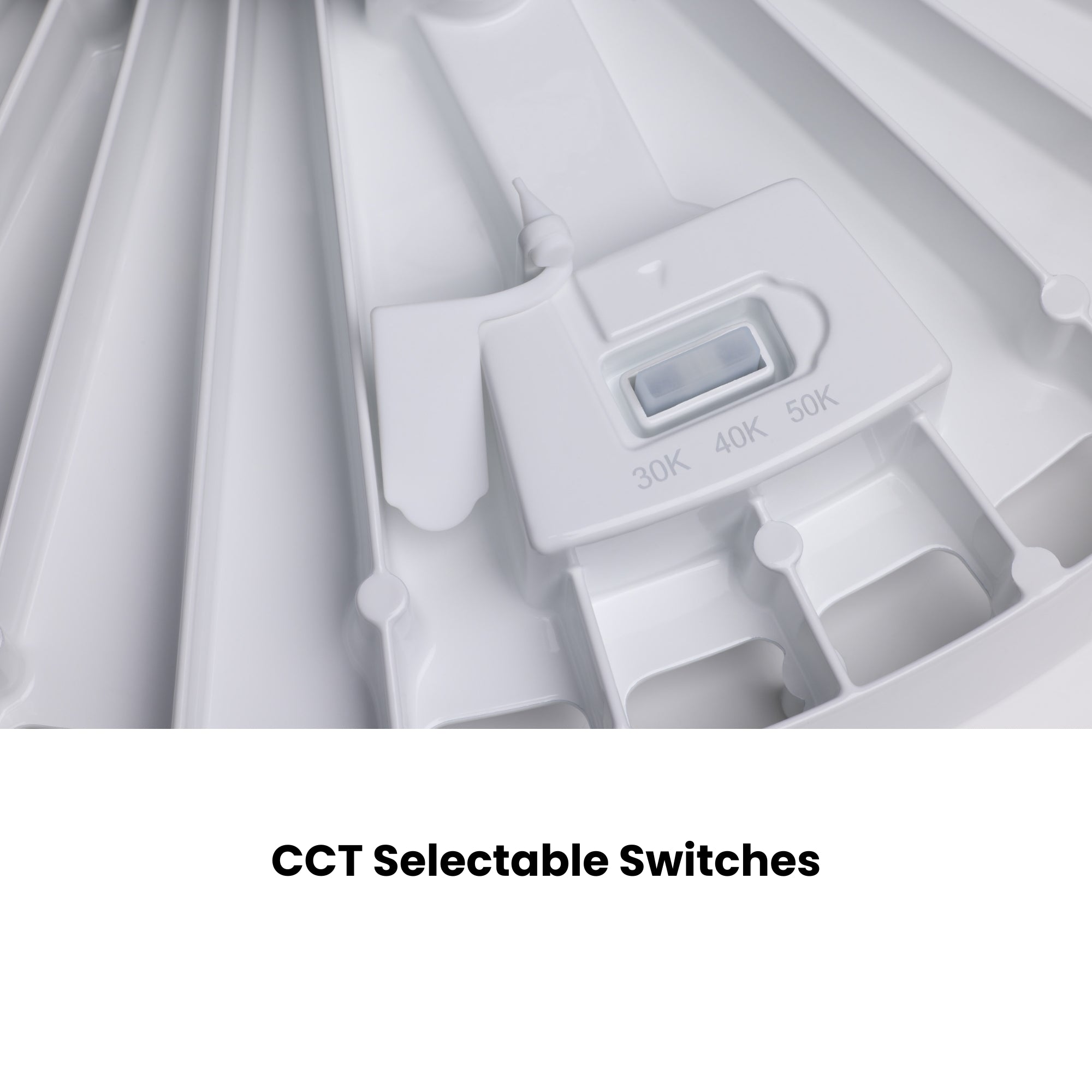

- Selectable CCT: Field-selectable 3000K / 4000K / 5000K via on-board switch.
- Lens and Optics: Polycarbonate lens with field-selectable 60° / 80° / 100° beam distribution.
- Dimming: Standard 0–10V continuous dimming.
- Voltage: Universal 120–347V AC, 50/60Hz input.
- Location and Ingress Rating: UL Listed for wet locations with IP65 / NEMA 4X protection.
- Impact Protection: IK08 impact rated.
- Operating Temperature: -40°C to +50°C (-40°F to +122°F).
- Certifications: UL Listed for wet locations, DLC Premium, FCC certified, ICES-005 compliant, and RoHS compliant.
- Rated Life: 50,000 hours.
- Warranty: 5 years.
Performance & Light Output
The fixture provides field-selectable 60° narrow or aisle distribution, 80° general distribution, and 100° wide-area distribution. Across the selectable wattage settings, the available product data lists 22,822–37,938 lm and up to 158 lm/W. At 240W, maximum output is 37,938 lm at up to 158 lm/W. At 150W, minimum output is 22,822 lm. Input current is listed as 2.00–0.69A at 240W, 1.67–0.58A at 200W, and 1.25–0.43A at 150W across the 120–347V range.
All wattage settings support 3000K / 4000K / 5000K CCT and CRI 80. Rated life is 50,000 hours.
Lens & Optics

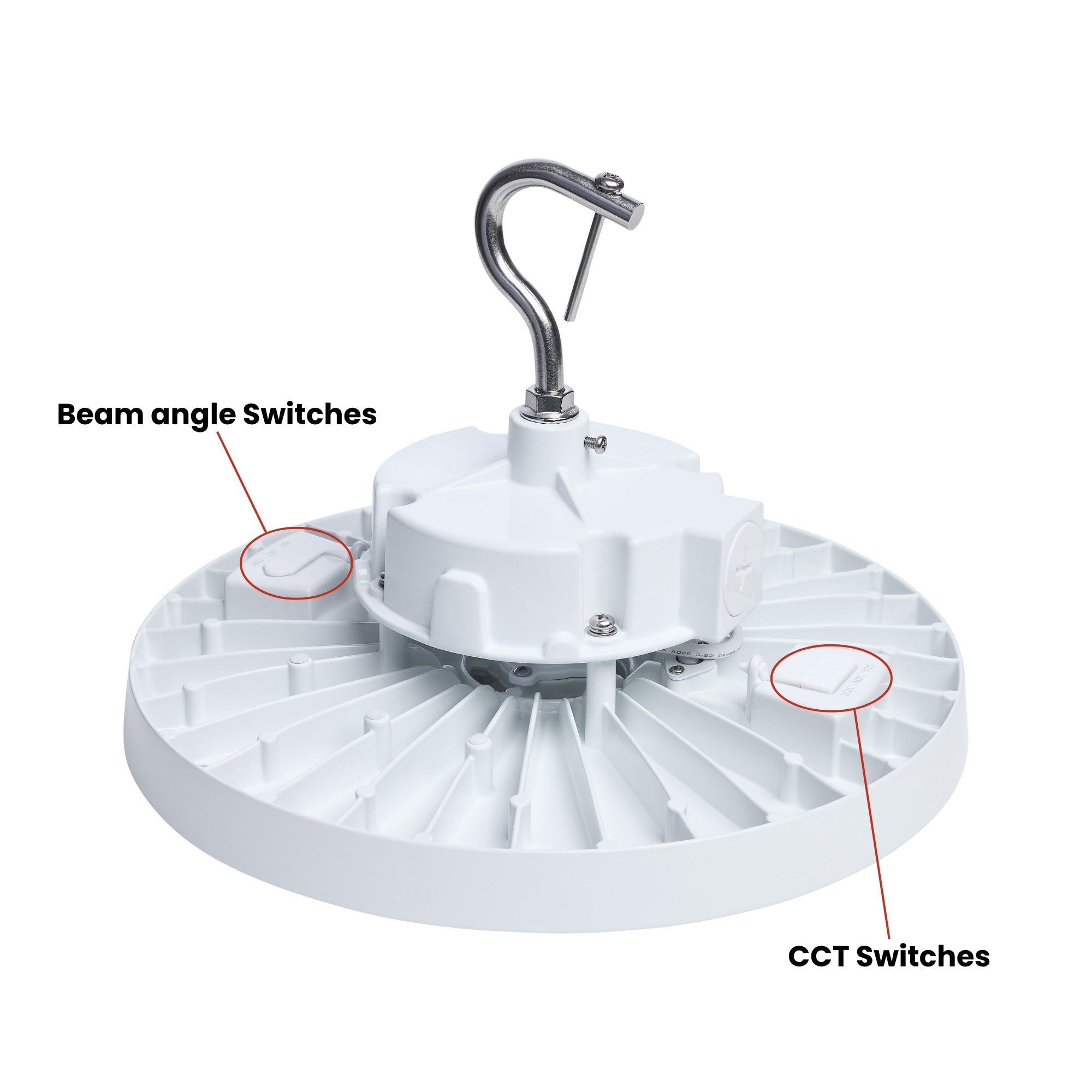

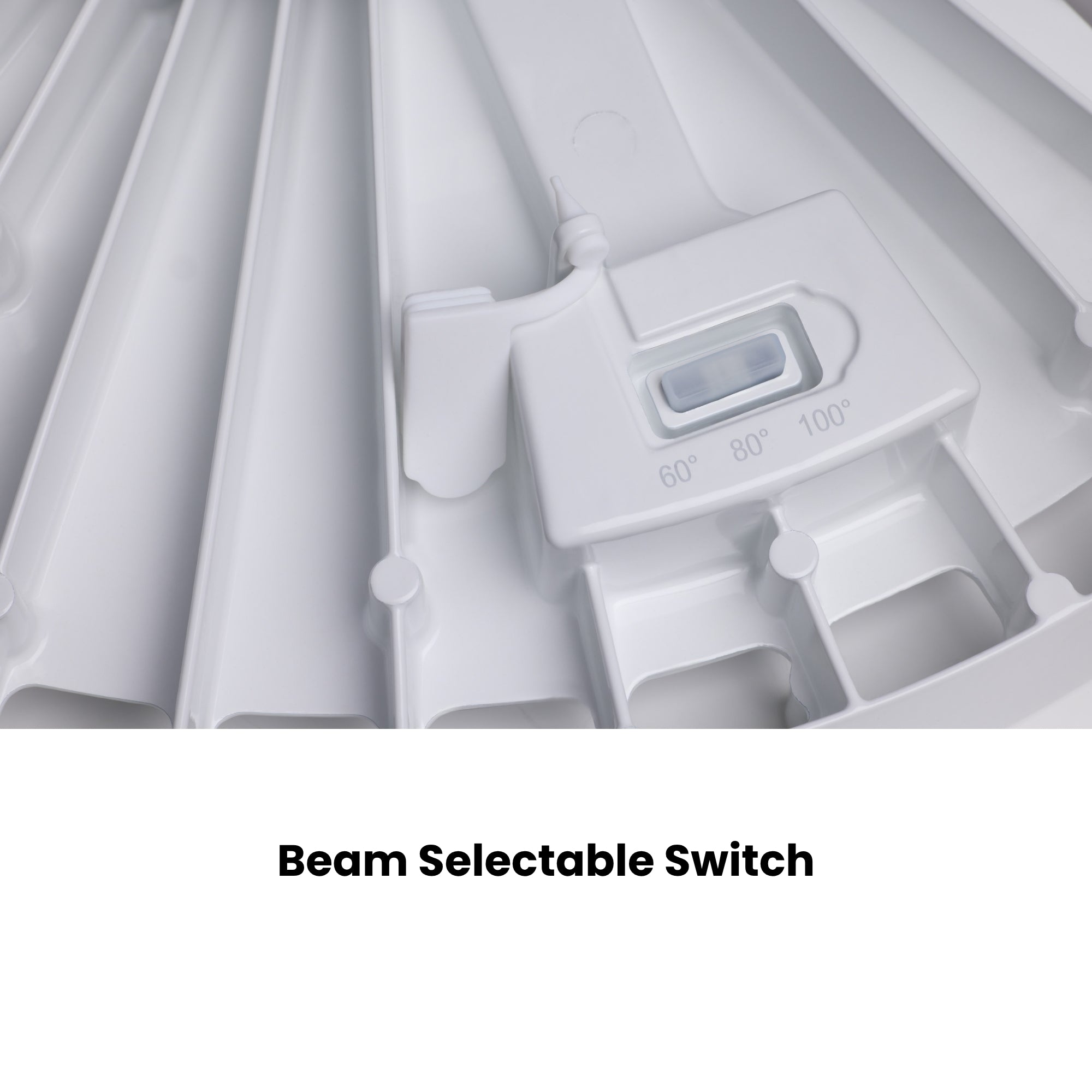

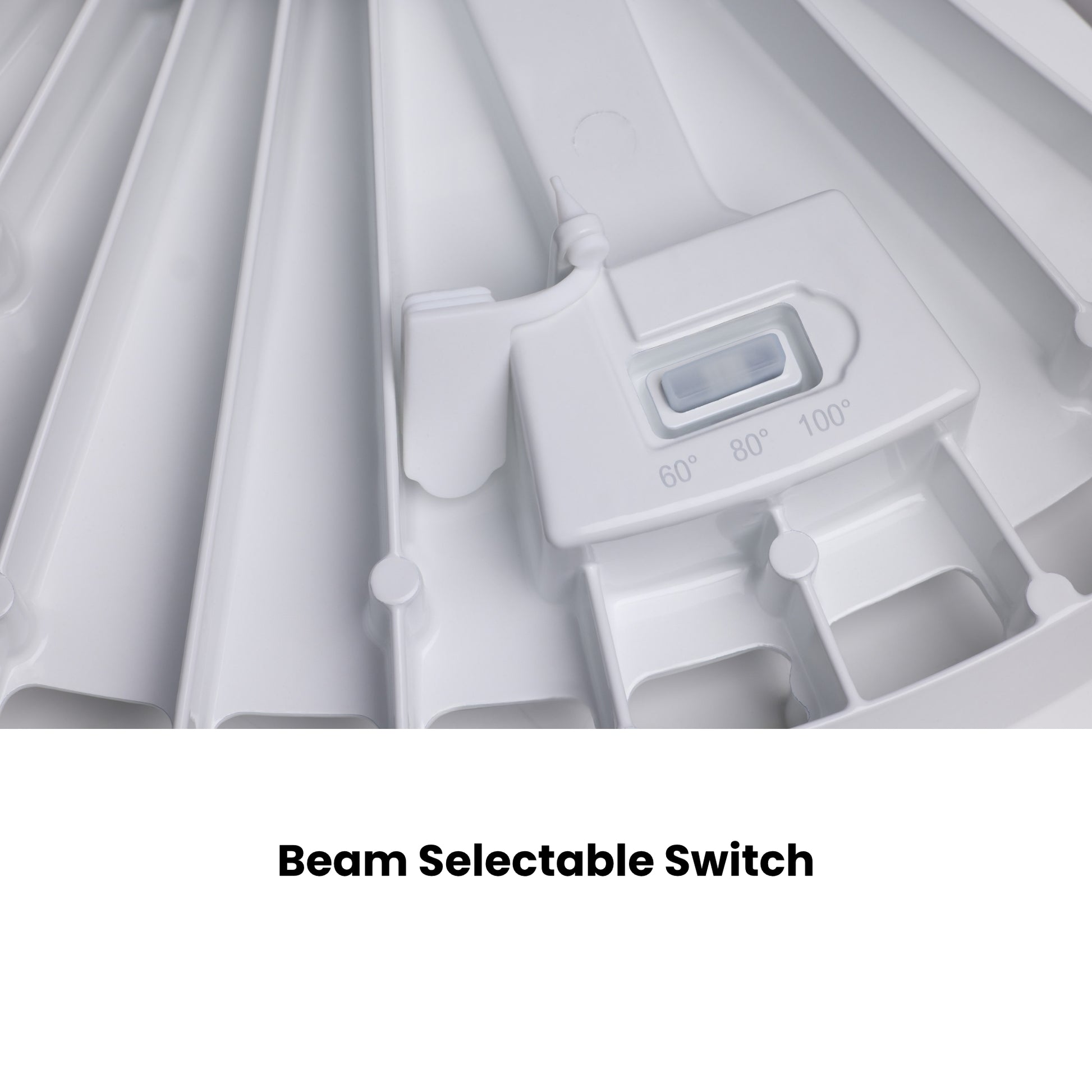

The on-board beam switch selects 60° for narrow or aisle lighting, 80° for general coverage, or 100° for wide-area distribution. The fixture uses a polycarbonate lens.
Smart & Control Features

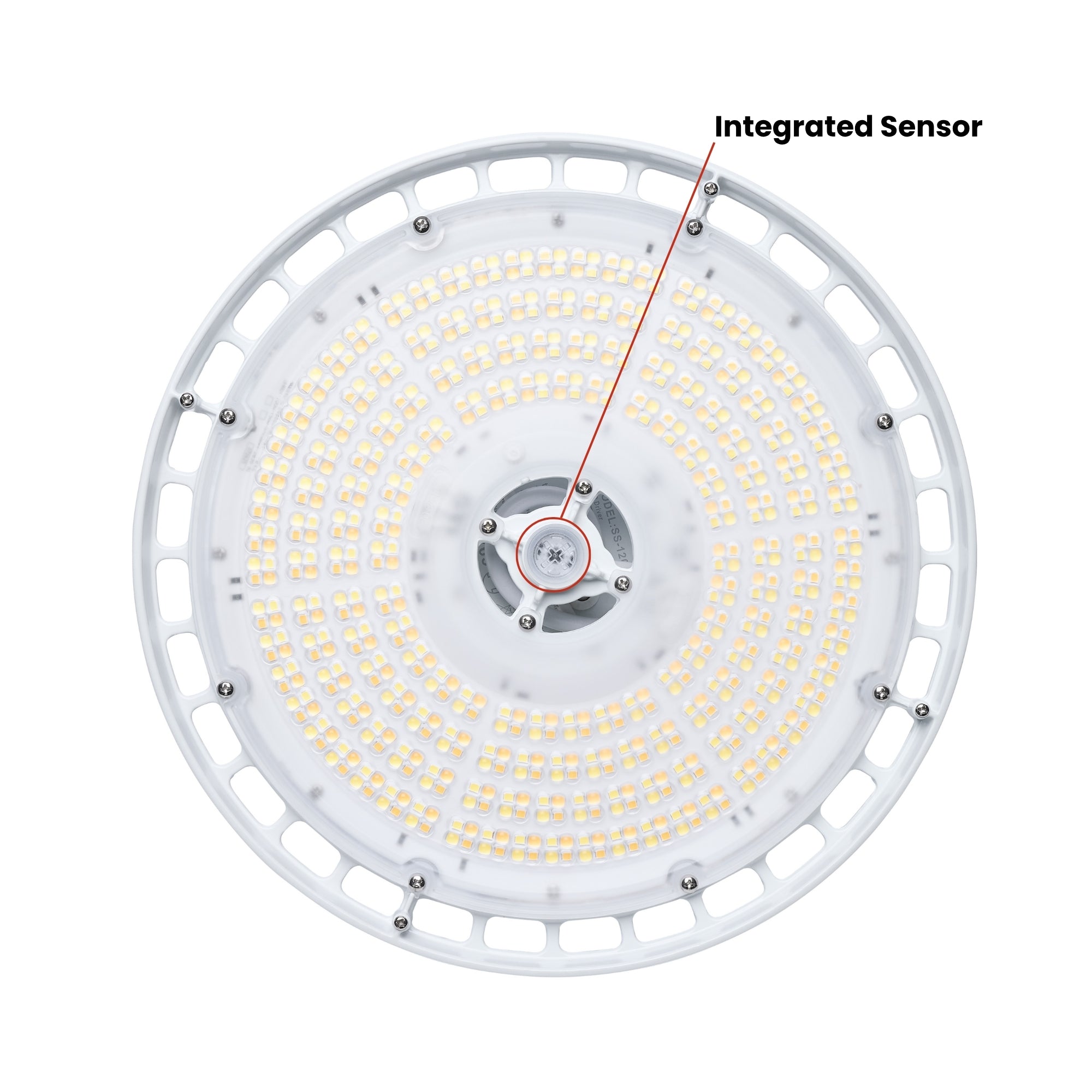

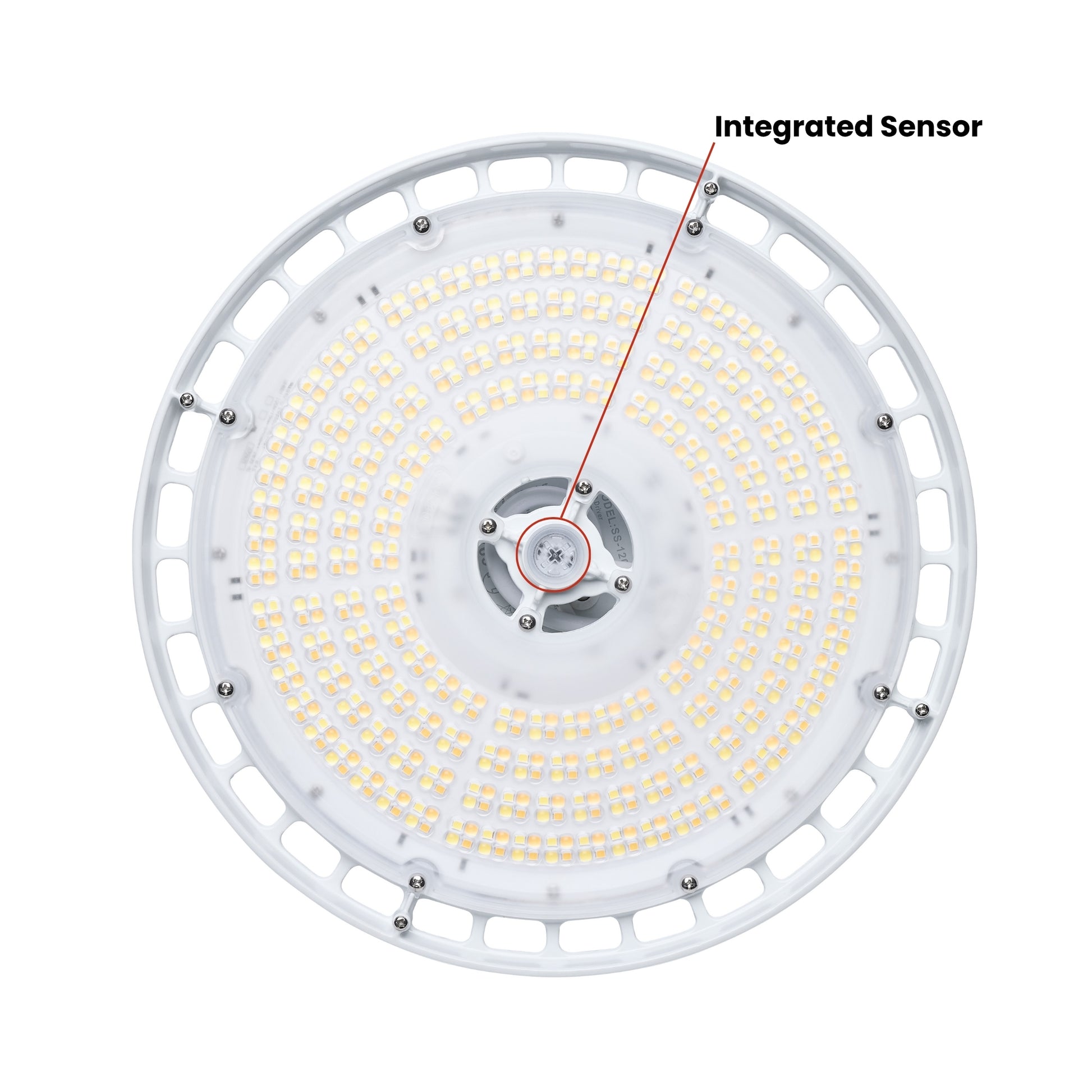

An integrated sensor port supports optional controls, and standard 0–10V continuous dimming provides adjustable light levels.
- Add-On PIR Sensor — 86-238: 12-meter range; use with programming remote 86-237.
- Add-On Microwave Sensor — 86-239: 15-meter range; use with programming remote 86-237.
- Programming Remote — 86-237: Configures sensors 86-238 and 86-239.
Electrical
Universal 120–347V AC, 50/60Hz input with standard 0–10V continuous dimming, power factor greater than 0.9, THD less than 20%, and 6kV surge protection. RoHS compliant.
| Wattage | Input Current, 120–347V |
|---|---|
| 240W | 2.00–0.69A |
| 200W | 1.67–0.58A |
| 150W | 1.25–0.43A |
Construction
Housing & Thermal: Die-cast aluminum housing with an operating range of -40°C to +50°C (-40°F to +122°F).
Lens & Optics: Polycarbonate lens with field-selectable 60° / 80° / 100° beam distribution.
Finish: White.
Environmental & Safety: IP65 / NEMA 4X rated, IK08 impact rated, and UL Listed for wet locations.

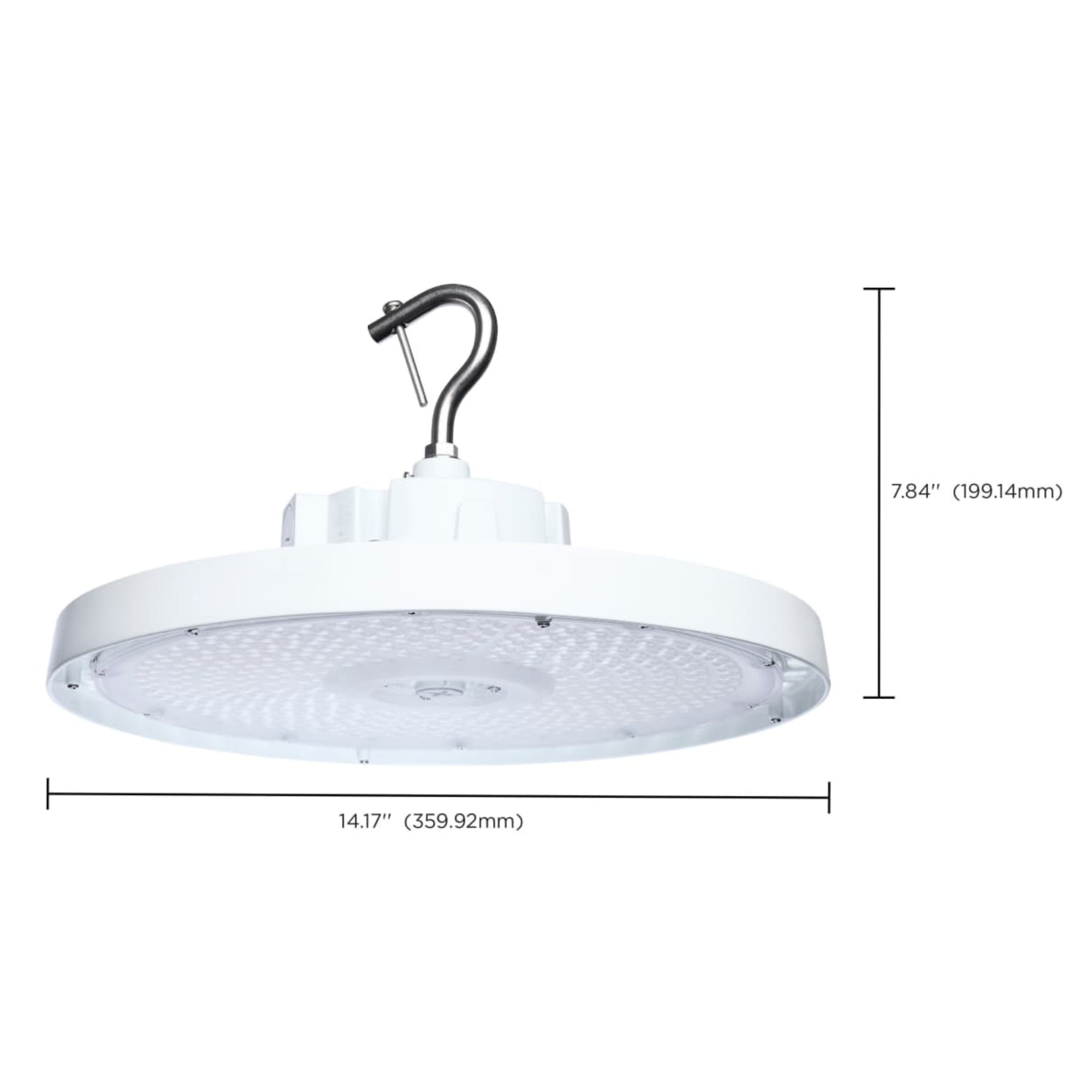

Dimensions & Weight: 14.17 in. diameter × 7.84 in. H; 6.83 lb.
Installation & Mounting
Standard Hardware: Locking hook included.
Mounting Options: Pendant adapter and yoke mount options are available separately.
Wiring: Whip connector sold separately. Choose 65-170 for 0–10V dimming wiring or 65-200 for supply line voltage; both are 5.5-foot, White, IP68 connectors.
Accessories:
- 65-170 — 5.5-foot White IP68 whip connector for 0–10V dimming
- 65-200 — 5.5-foot White IP68 whip connector for supply line voltage
- 65-759 — 3/8-inch to 3/4-inch White pendant adapter
- 65-764 — White yoke mount bracket for 200W and 240W UFO fixtures
- 65-779 — Add-on aluminum reflector for 200W and 240W
- 65-799 — Add-on polycarbonate shade for 200W and 240W
- 65-800 — Add-on bottom diffuser for use with 65-799
- 65-815 — 40W emergency battery backup for 240W, with 40- or 90-minute runtime
- 65-835 — Protective wire guard for 240W UFO high bay
Certifications & Compliance
- UL Listed: Wet location rated.
- IP65 / NEMA 4X: Environmental protection rating.
- IK08: Impact protection rated.
- DLC Premium: Product Code S-7910NQ.
- FCC, ICES-005, and RoHS: Compliant.
Typical Applications

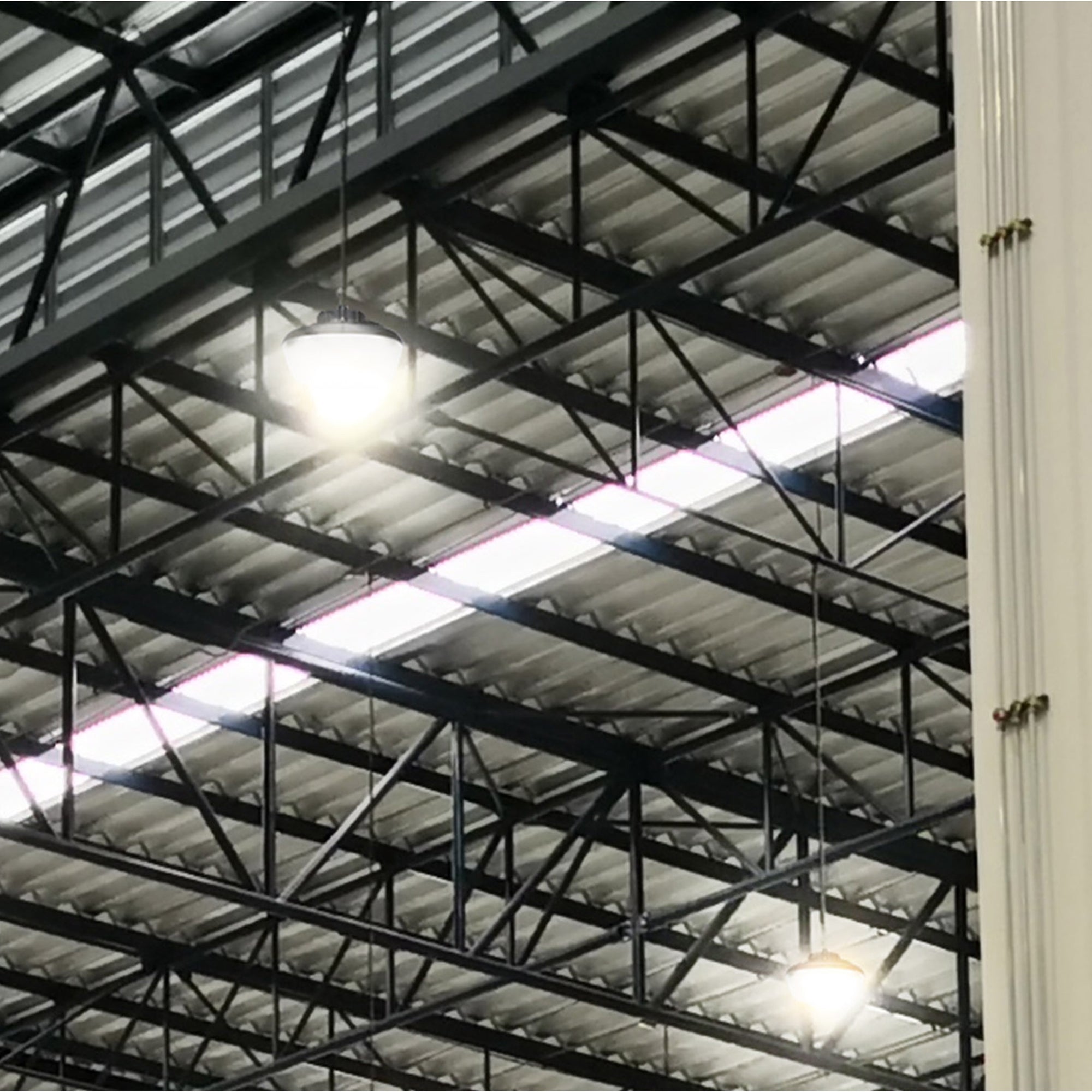

- Tall-ceiling warehouses and distribution centers — 60° or 80° beam selection supports narrow aisles and general bay coverage.
- Factories and heavy manufacturing — 100° wide-area distribution and IP65 / NEMA 4X protection support broad, demanding spaces.
- Retail and commercial facilities — White finish, selectable CCT, and beam adjustment support flexible high-output installations.
- Gymnasiums — selectable beam distribution and up to 37,938 lm support large spaces with tall ceilings.
- U.S. and Canadian retrofit projects — universal 120–347V input supports both standard U.S. and Canadian 347V systems.
- Wet or splash-prone industrial areas — UL wet-location listing, IP65 / NEMA 4X protection, and IK08 impact rating support demanding environments.
What's Included
- Satco|Nuvo 65-1523 Beam Selectable UFO LED High Bay — White
- Locking hook
