Satco|Nuvo 65-1522 Beam Selectable UFO LED High Bay — 120/100/80W Selectable — 3000K/4000K/5000K — White
Available in stock (33)
About this item
About this item
- Selectable Output: Field-select 120W, 100W, or 80W at the fixture — delivers 12,501–19,837 lm at up to 165 lm/W in a compact White UFO.
- Beam Selectable: Choose 60°, 80°, or 100° at the fixture for narrow aisles, general coverage, or wide-area lighting without changing the fixture.
- Selectable CCT: Set 3000K, 4000K, or 5000K on site to match the space without reordering.
- DLC Premium: Qualifies for utility rebate programs in most U.S. markets and Canadian provinces.
- Sensor Ready: The integrated sensor port supports optional occupancy or daylight controls, while standard 0–10V dimming provides adjustable light levels.
We process payments securely and do not store credit card information.
Description
Description
Satco|Nuvo 65-1522 Beam Selectable UFO LED High Bay — 120/100/80W Selectable — 3000K/4000K/5000K — 120–347V — White
The Satco|Nuvo 65-1522, MPN 65/1522, is a beam-selectable UFO LED high bay with field-selectable 120W / 100W / 80W output, 3000K/4000K/5000K CCT, and 60° / 80° / 100° beam distribution. It operates on universal 120–347V AC input with 0–10V continuous dimming, delivers up to 19,837 lm at up to 165 lm/W, and is UL Listed for wet locations, IP65 / NEMA 4X rated, IK08 impact rated, and DLC Premium qualified. The White fixture includes a locking hook; whip connectors and other accessories are sold separately.
Key Features

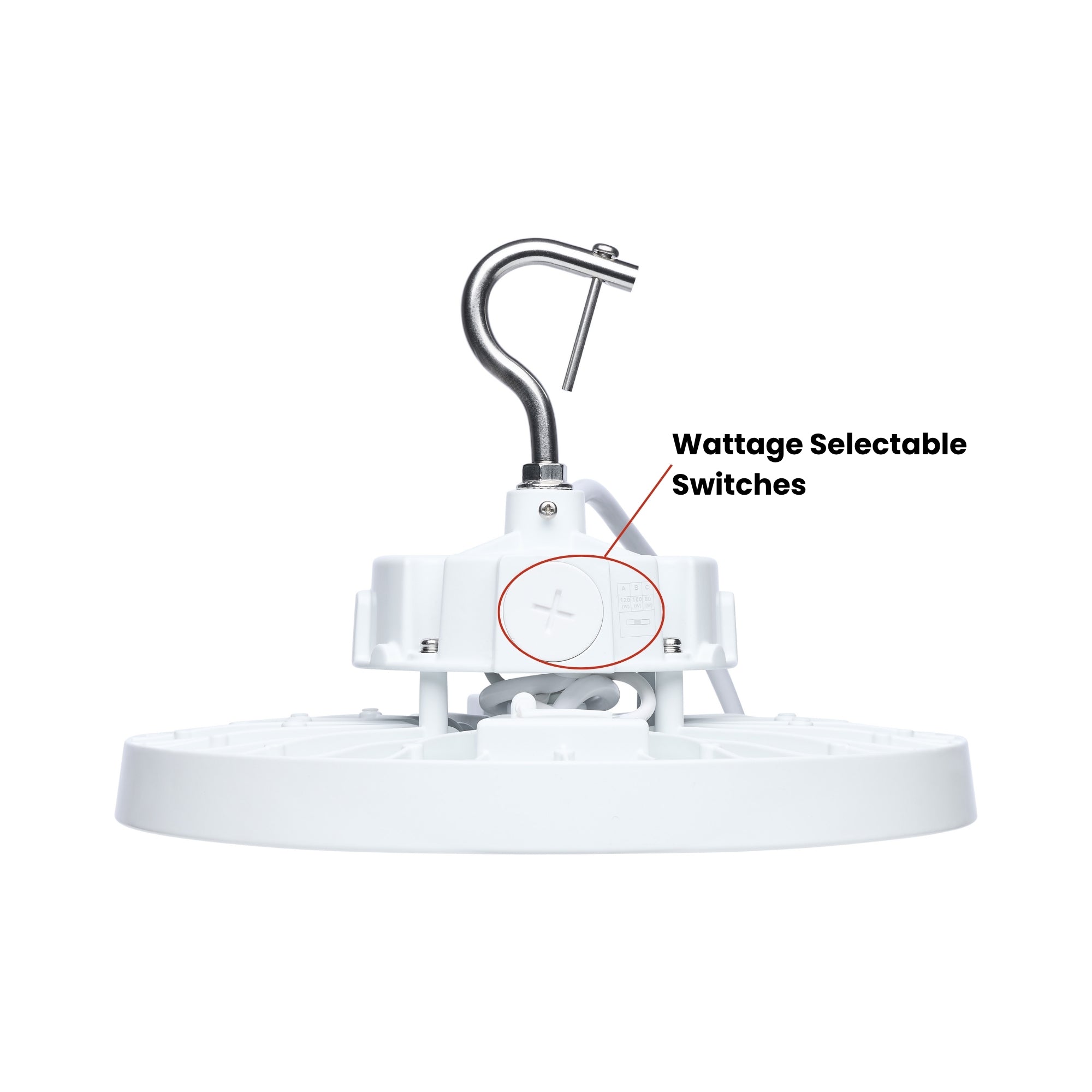

- Selectable Wattage: Field-selectable 120W / 100W / 80W output via on-board switch.
- Wattage Equivalency: Replaces up to 320W HID.
- Maximum Lumen Output: Delivers up to 19,837 lm at 120W.
- Peak Efficacy: Up to 165 lm/W.
- CRI: 80.

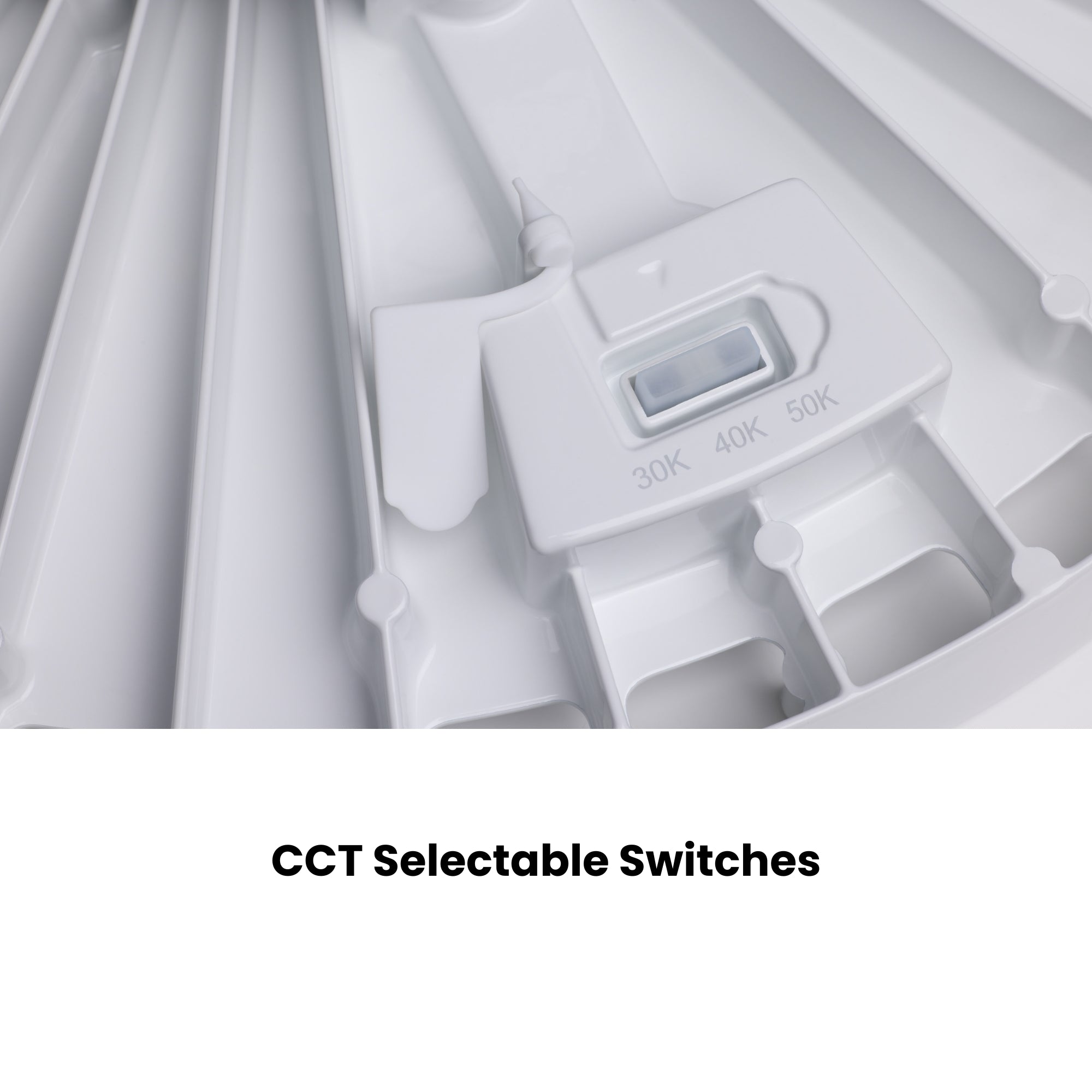

- Selectable CCT: Field-selectable 3000K / 4000K / 5000K via on-board switch.
- Lens and Optics: Polycarbonate lens with field-selectable 60° / 80° / 100° beam distribution.
- Dimming: Standard 0–10V continuous dimming.
- Voltage: Universal 120–347V AC, 50/60Hz input.
- Location and Ingress Rating: UL Listed for wet locations with IP65 / NEMA 4X protection.
- Impact Protection: IK08 impact rated.
- Operating Temperature: -40°C to +50°C (-40°F to +122°F).
- Certifications: UL Listed for wet locations, DLC Premium, FCC certified, ICES-005 compliant, and RoHS compliant.
- Rated Life: 50,000 hours.
- Warranty: 5 years.
Performance & Light Output
The on-board beam switch selects 60° narrow or aisle distribution, 80° general distribution, or 100° wide-area distribution. Across the selectable wattage settings, the available product data lists 12,501–19,837 lm and up to 165 lm/W. At 120W, maximum output is 19,837 lm at up to 165 lm/W. At 80W, minimum output is 12,501 lm. Input current is listed as 1.00–0.35A at 120W, 0.83–0.29A at 100W, and 0.67–0.23A at 80W across the 120–347V range.
All wattage settings support 3000K / 4000K / 5000K CCT and CRI 80. Rated life is 50,000 hours.
Lens & Optics

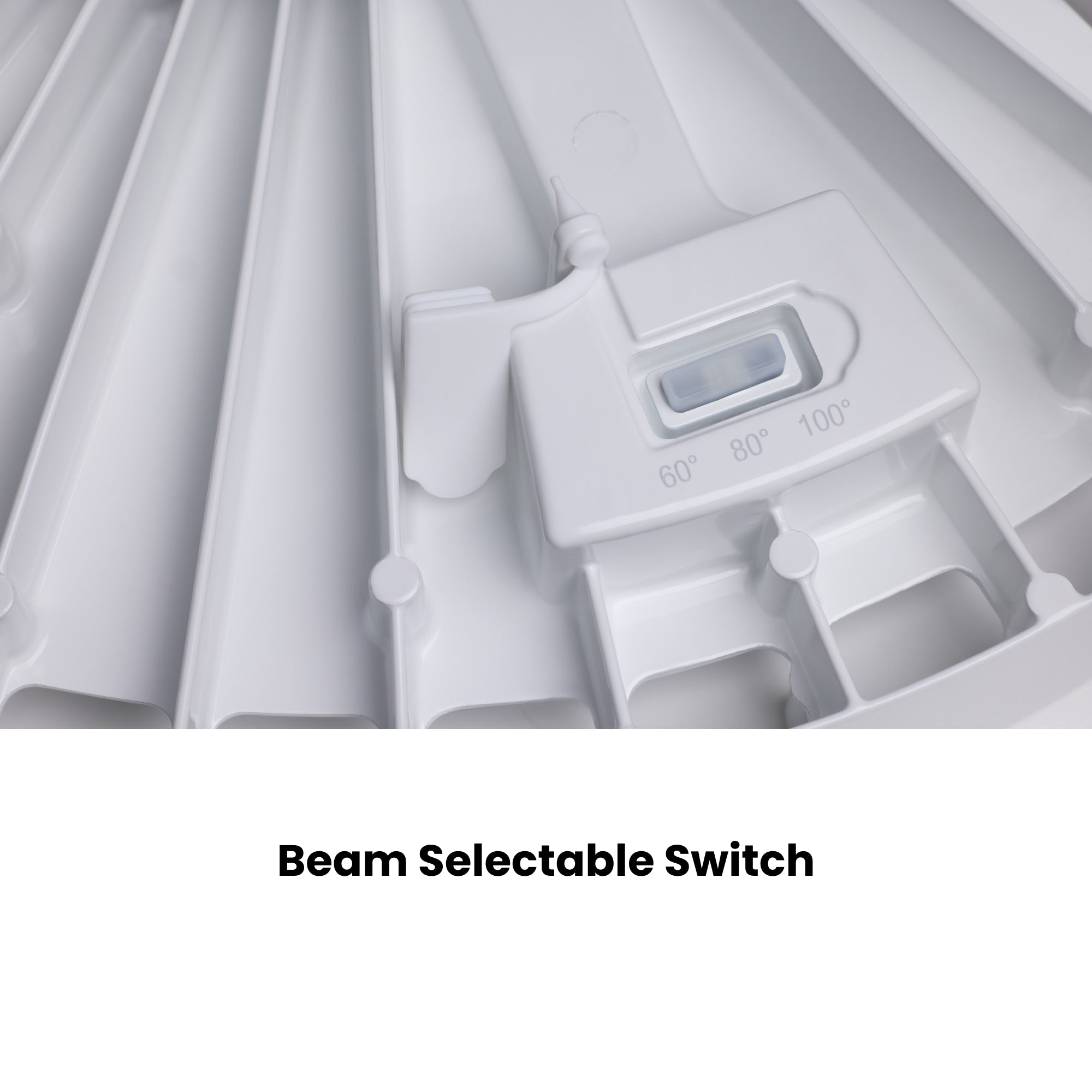

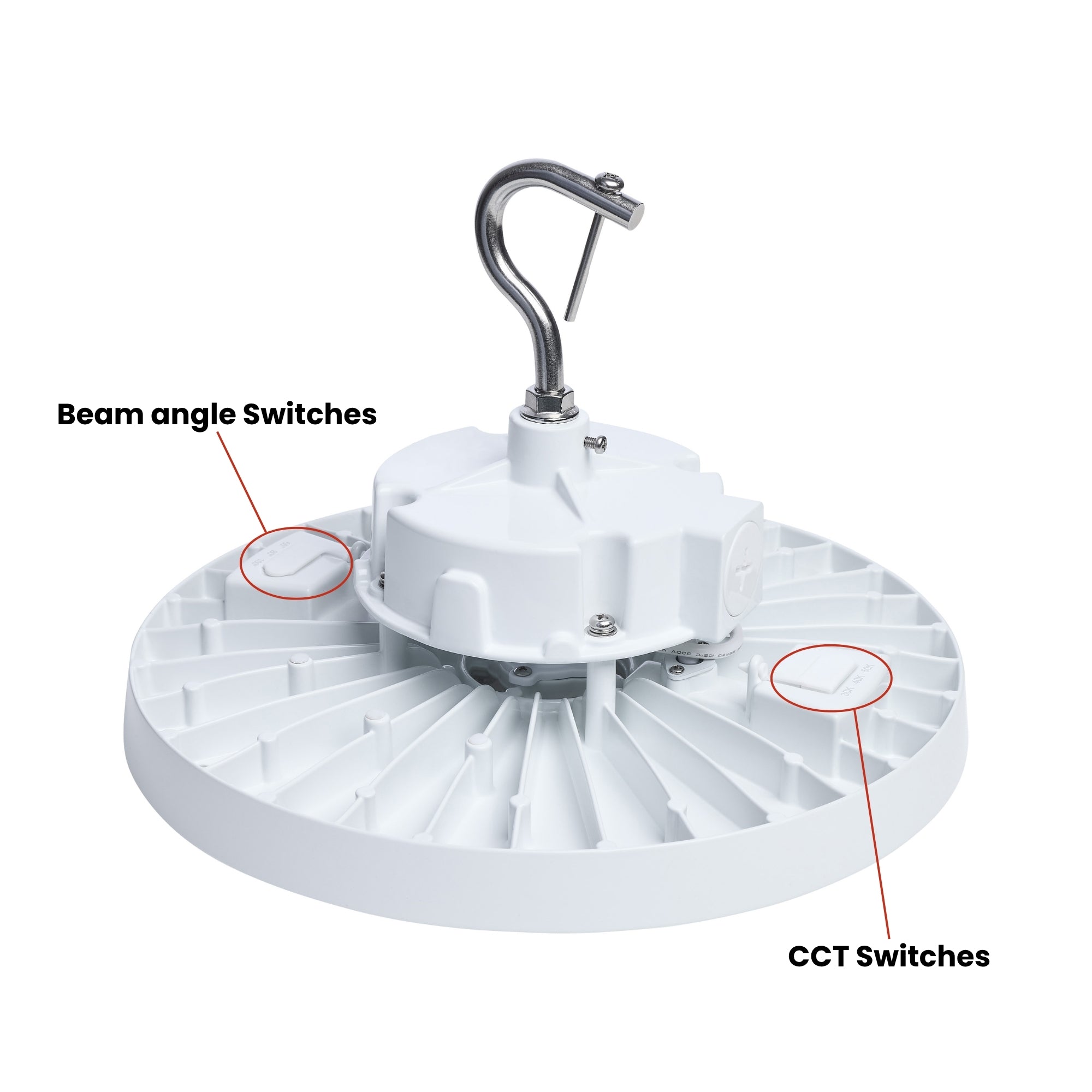

The on-board beam switch selects 60° for narrow or aisle lighting, 80° for general coverage, or 100° for wide-area distribution. The fixture uses a polycarbonate lens.
Smart & Control Features

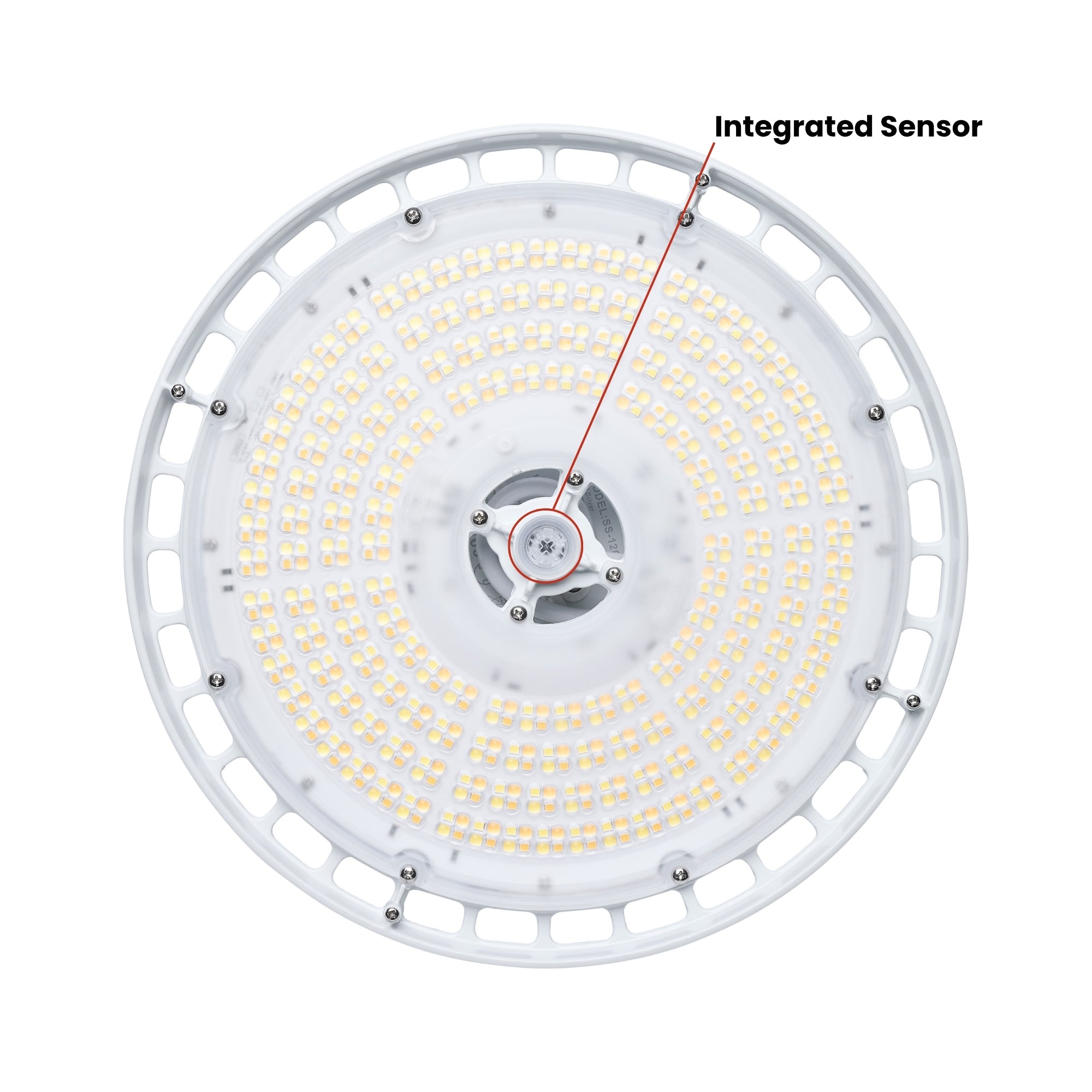

An integrated sensor port supports optional controls, and standard 0–10V continuous dimming provides adjustable light levels.
- Add-On PIR Sensor — 86-238: 12-meter range; use with programming remote 86-237.
- Add-On Microwave Sensor — 86-239: 15-meter range; use with programming remote 86-237.
- Programming Remote — 86-237: Configures sensors 86-238 and 86-239.
Electrical
Universal 120–347V AC, 50/60Hz input with standard 0–10V continuous dimming, power factor greater than 0.9, THD less than 20%, and 6kV surge protection. RoHS compliant.
| Wattage | Input Current, 120–347V |
|---|---|
| 120W | 1.00–0.35A |
| 100W | 0.83–0.29A |
| 80W | 0.67–0.23A |
Construction
Housing & Thermal: Die-cast aluminum housing with an operating range of -40°C to +50°C (-40°F to +122°F).
Lens & Optics: Polycarbonate lens with field-selectable 60° / 80° / 100° beam distribution.
Finish: White.
Environmental & Safety: IP65 / NEMA 4X rated, IK08 impact rated, and UL Listed for wet locations.

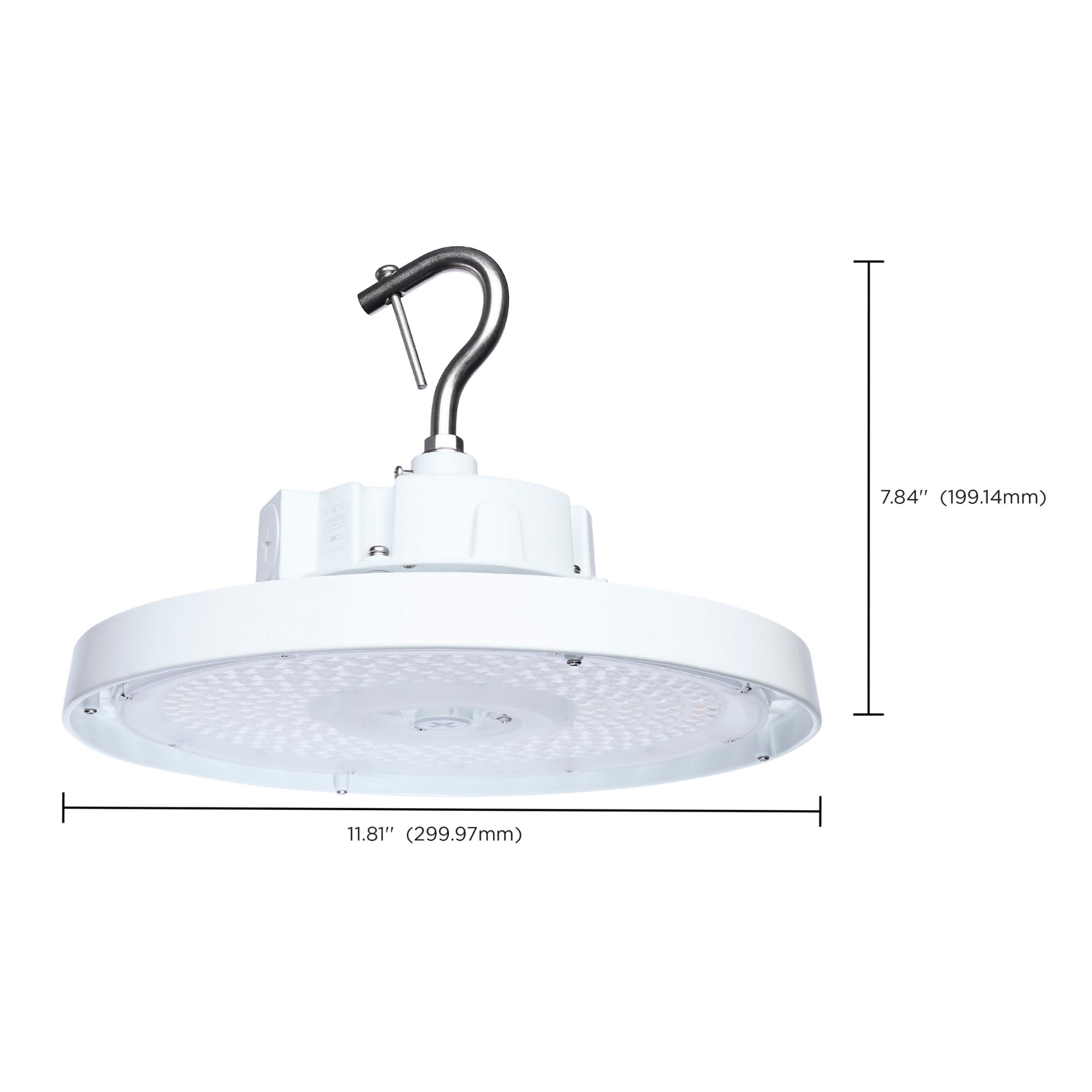

Dimensions & Weight: 11.81 in. diameter × 7.84 in. H; 5.07 lb.
Installation & Mounting
Standard Hardware: Locking hook included.
Mounting Options: Pendant adapter and yoke mount options are available separately.
Wiring: Whip connector sold separately. Choose 65-170 for 0–10V dimming wiring or 65-200 for supply line voltage; both are 5.5-foot, White, IP68 connectors.
Accessories:
- 65-170 — 5.5-foot White IP68 whip connector for 0–10V dimming
- 65-200 — 5.5-foot White IP68 whip connector for supply line voltage
- 65-759 — 3/8-inch to 3/4-inch White pendant adapter
- 65-763 — White yoke mount bracket for 100W and 150W UFO fixtures
- 65-778 — Add-on aluminum reflector for 100W and 150W
- 65-811 — Add-on polycarbonate shade for 100W and 150W
- 65-790 — Add-on bottom diffuser for use with 65-811
- 65-780 — 30W emergency battery backup for 120W, with 30- or 90-minute runtime
- 65-834 — Protective wire guard for 120W UFO high bay
Certifications & Compliance
- UL Listed: Wet location rated.
- IP65 / NEMA 4X: Environmental protection rating.
- IK08: Impact protection rated.
- DLC Premium: Product Code S-QBQLLW.
- FCC, ICES-005, and RoHS: Compliant.
Typical Applications

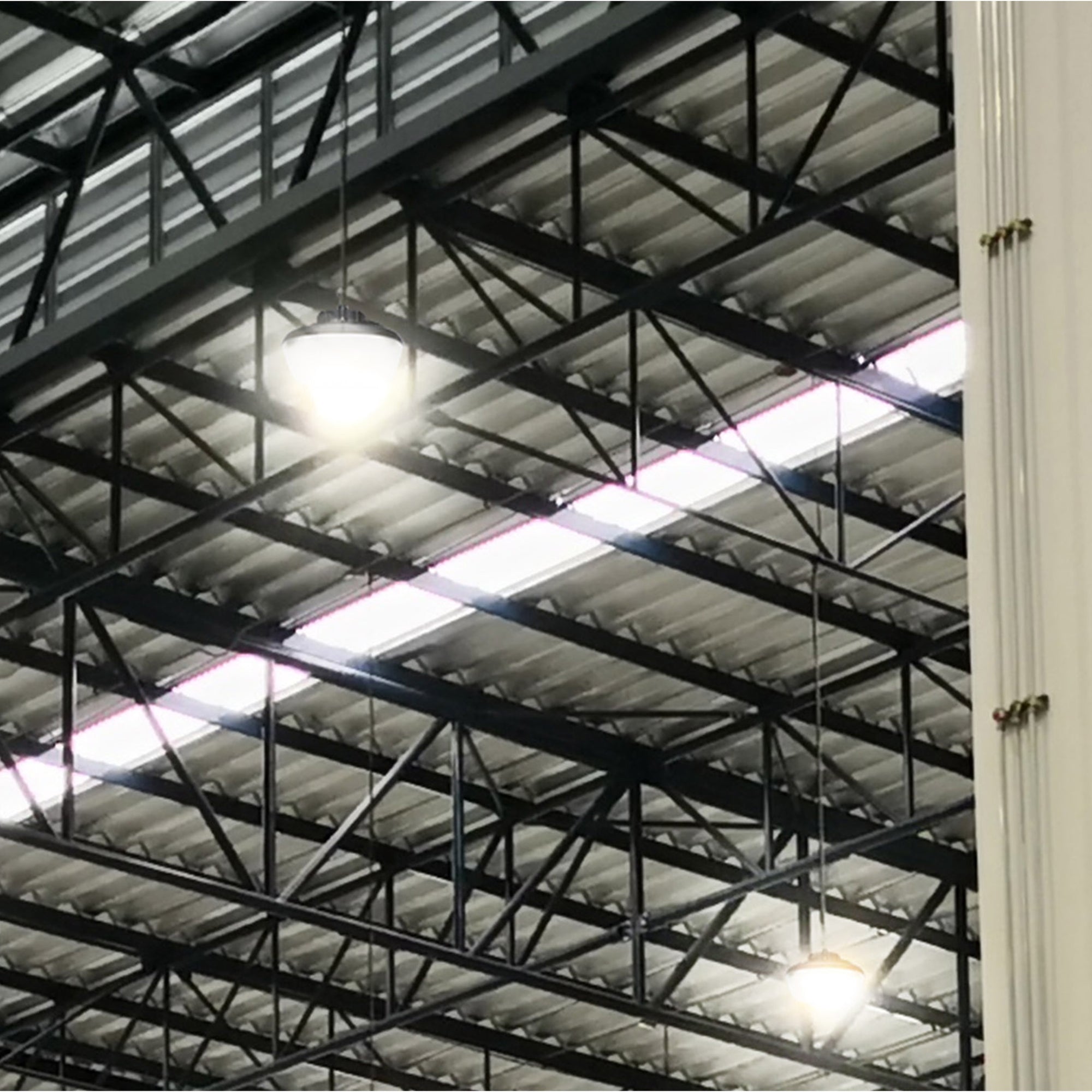

- Warehouses and distribution centers — 60° beam for narrow aisles, 80° for general bays, and selectable wattage for right-sized output.
- Factories and manufacturing floors — 100° wide-area beam and IP65 / NEMA 4X protection support broad, demanding spaces.
- Retail and commercial facilities — White finish, selectable CCT, and beam adjustment support flexible high-bay layouts.
- Gymnasiums — compact 11.81-inch UFO footprint and selectable beam distribution support mid-range ceiling heights.
- U.S. and Canadian retrofit projects — universal 120–347V input supports both standard U.S. and Canadian 347V systems.
- Wet or splash-prone industrial areas — UL wet-location listing, IP65 / NEMA 4X protection, and IK08 impact rating support demanding environments.
What's Included
- Satco|Nuvo 65-1522 Beam Selectable UFO LED High Bay — White
- Locking hook
