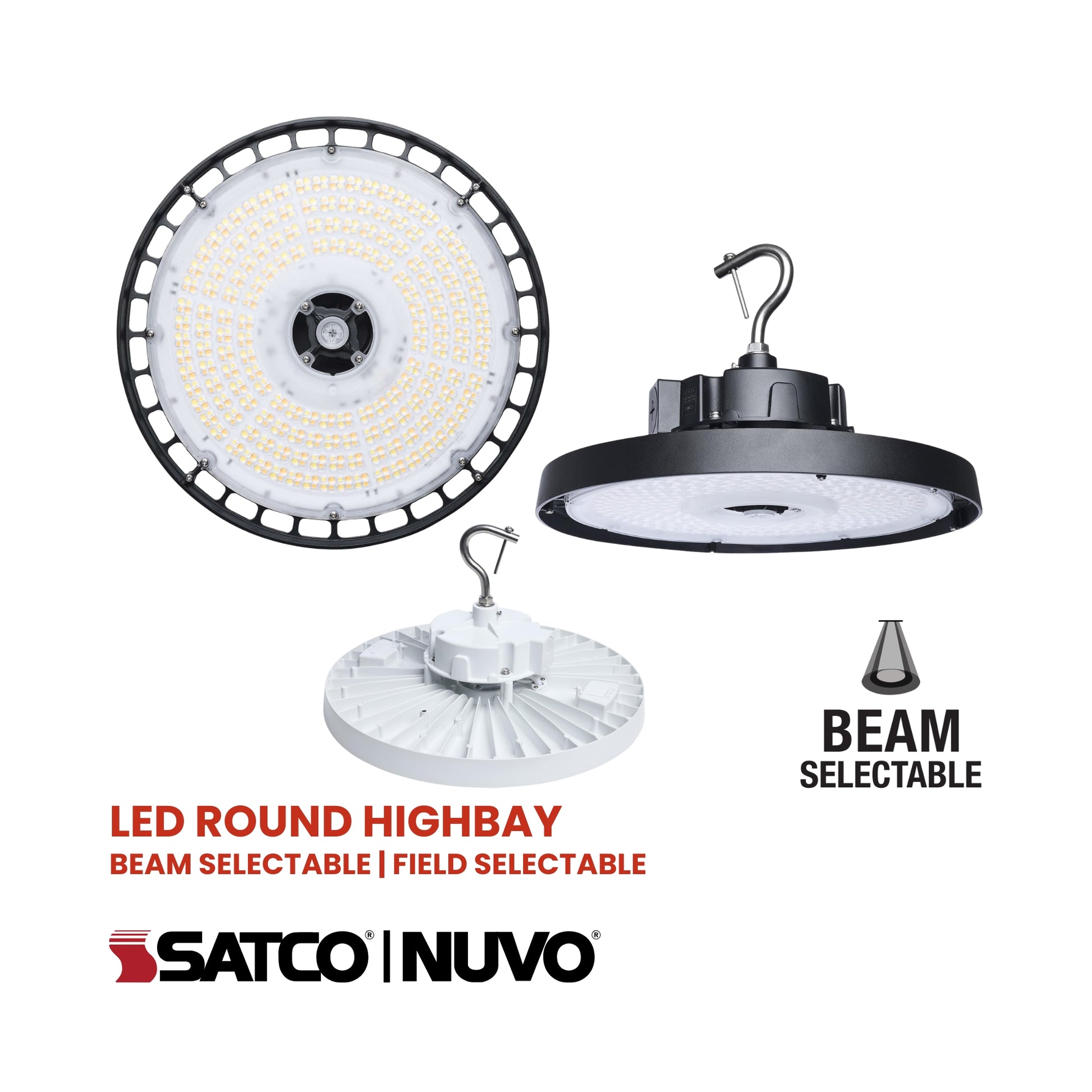

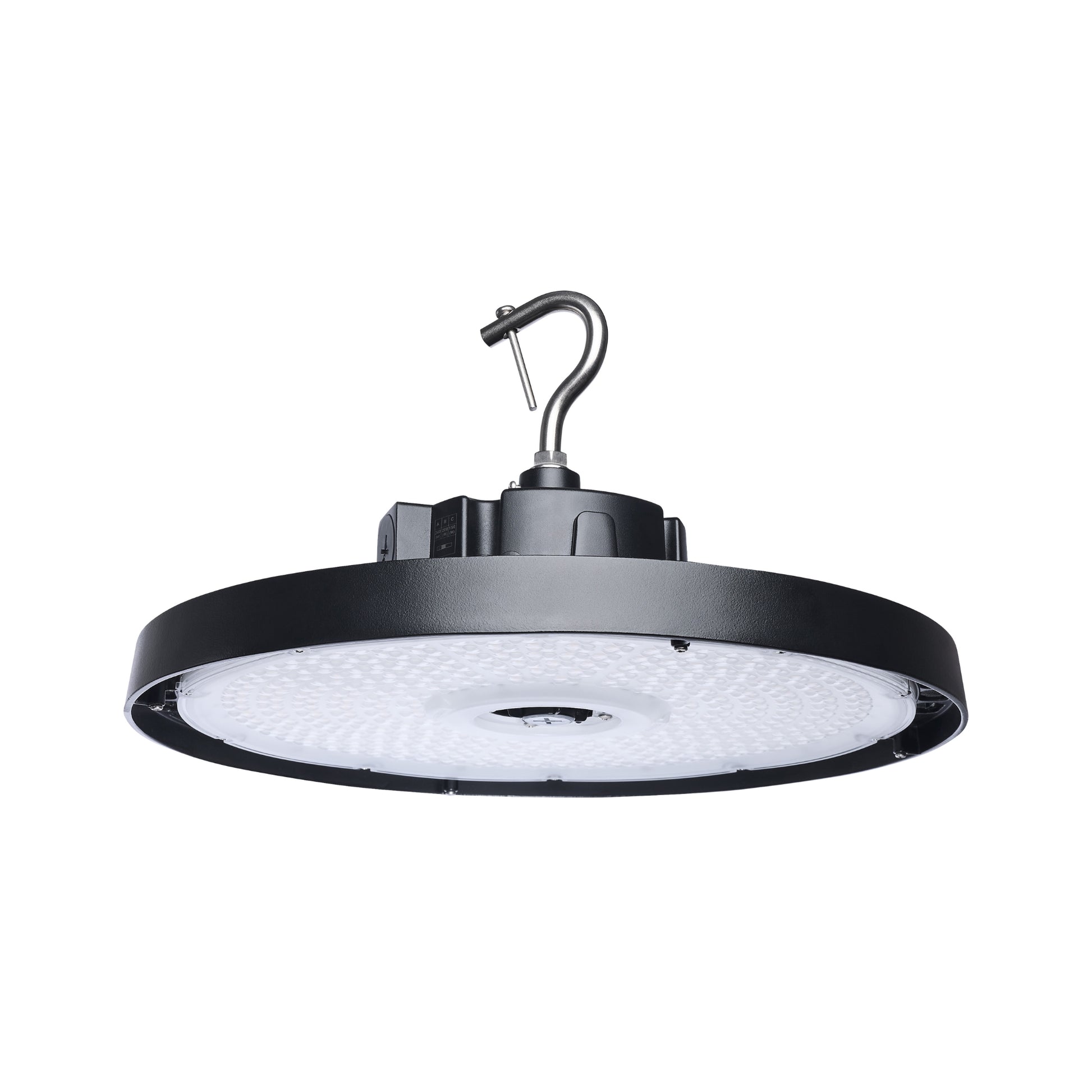

Satco 65-1521 Beam Selectable UFO High Bay — 240/200/150W Selectable — 3000K/4000K/5000K — 120-347V — Black

The Satco 65-1521 is a commercial round UFO LED high bay engineered to deliver up to 37,938 lumens with field-adjustable 240W / 200W / 150W wattage settings and switchable 3000K / 4000K / 5000K color temperatures. Operating on 120-347V electrical systems with 0–10V continuous dimming, this luminaire provides adaptable, high-performance illumination for demanding commercial and industrial environments. Built with an IP65 wet location and NEMA 4X rating alongside a UL Certification, it is qualified for commercial utility rebates under DLC Premium standards and features an innovative 3-axis selectability including an onboard beam angle adjustment switch.

Key Features

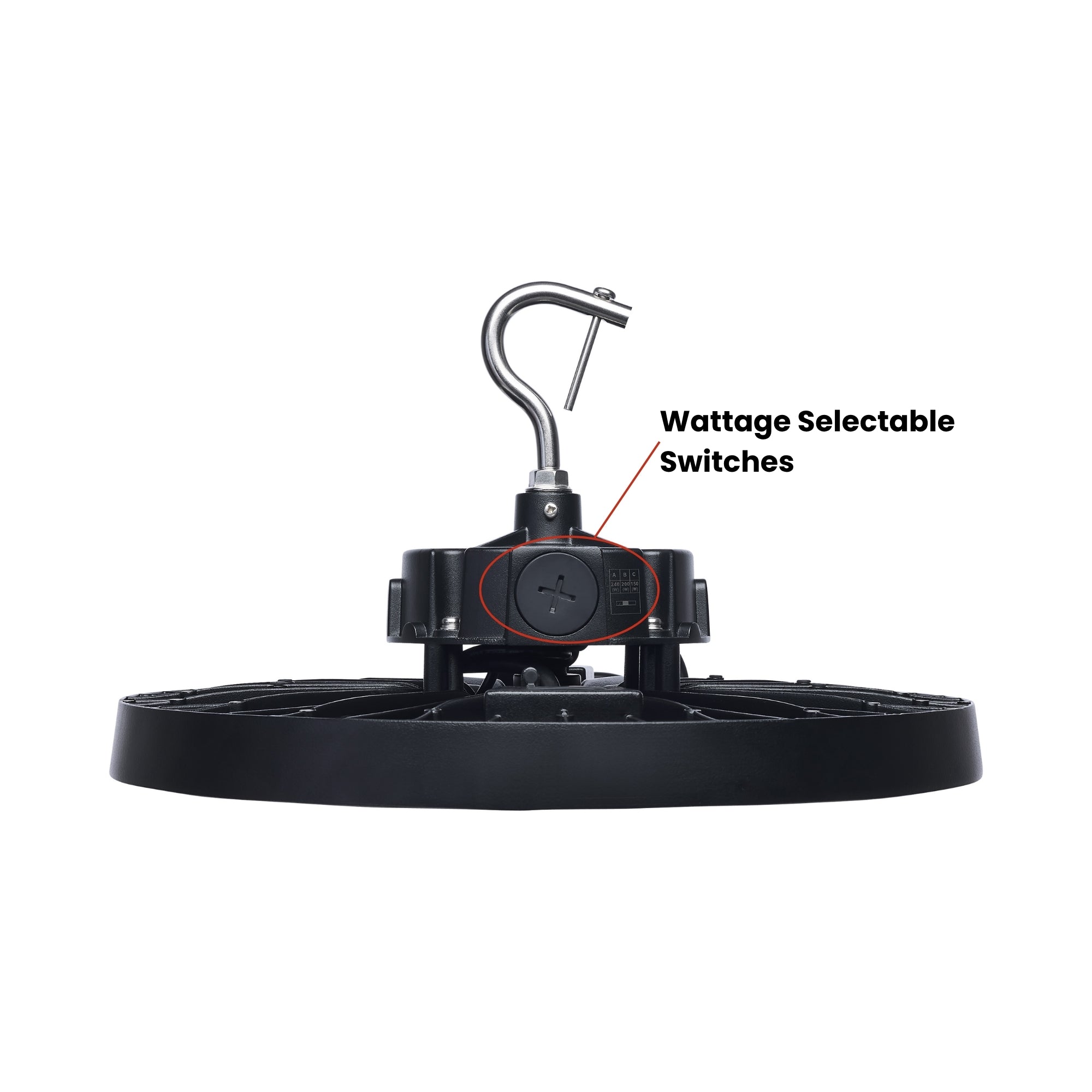

• Selectable Wattage: 240W / 200W / 150W — field-adjustable via onboard switch
• Maximum Lumen Output: 37,938 lm at 240W
• Peak Efficacy: Up to 158 lm/W for high-efficiency commercial operation
• CRI: 80 color rendering

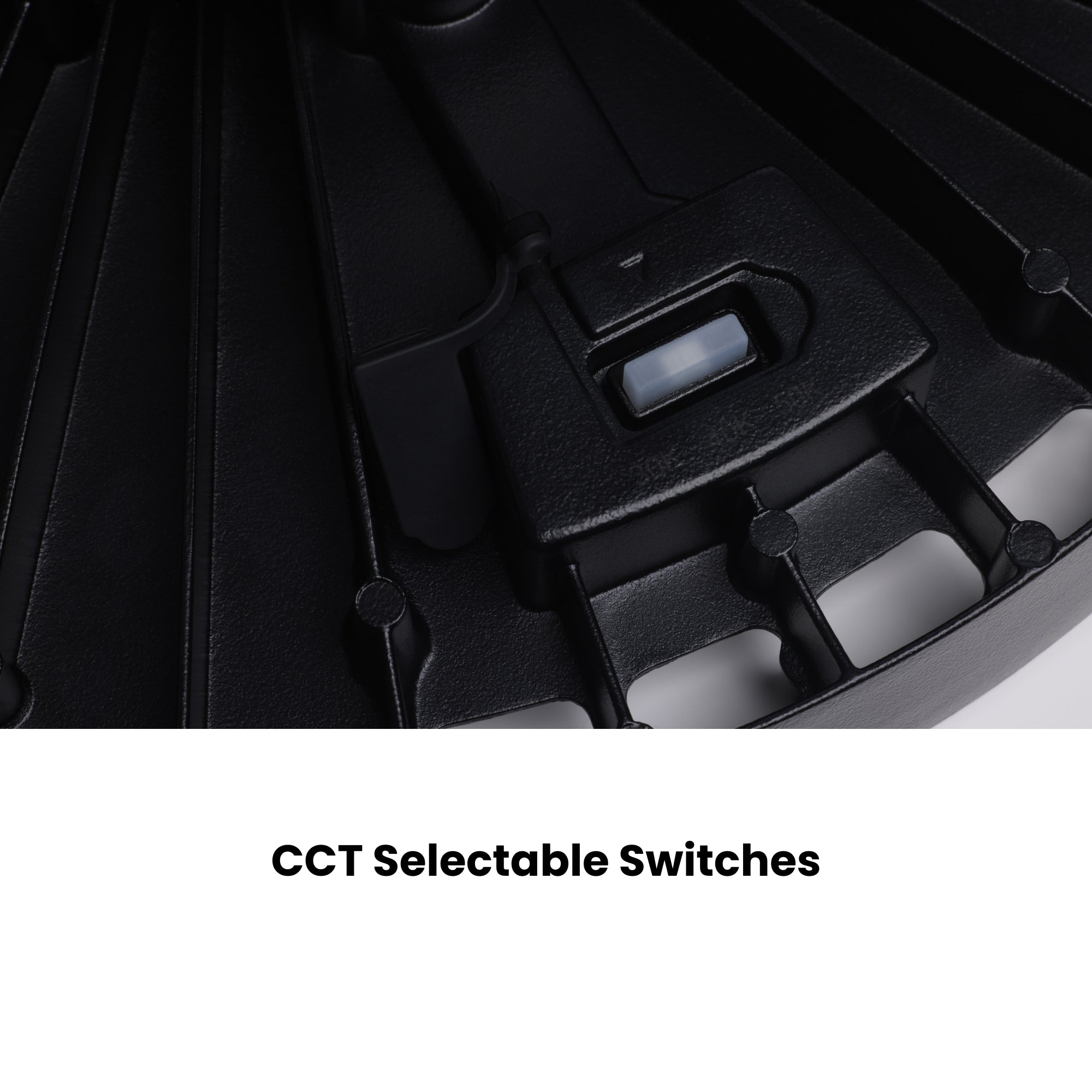

• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable via onboard switch
• Lens & Optics: Beam Selectable selection of 60°, 80°, and 100° distributions
• Dimming: 0–10V continuous dimming standard
• Voltage: Universal 120-347V AC, 50/60Hz
• Location Rating: UL Certified for wet locations; NEMA 4X (IP65) ingress rated
• Operating Temperature: −40°F (−40°C) to 122°F (50°C) ambient range
• Certifications: DLC Premium, UL Certified, IK08 Impact Rated, RoHS Compliant, ICES-005
• Rated Life: 50,000 hours
• Warranty: 5-year warranty — Satco
• Sensor Compatibility: Integrated sensor port accepts plug-and-play controls without internal wiring

Performance & Light Output

At 240W: Up to 37,938 lm.

At 150W: Up to 22,822 lm.

Note: Specific intermediate lumen metrics for the 200W setting are not published by the manufacturer.

CRI 80 across all configurations. Rated life 50,000 hours. Provides high-performance, adaptable illumination for warehouses, factories, retail, and gymnasiums.

Lens & Optics

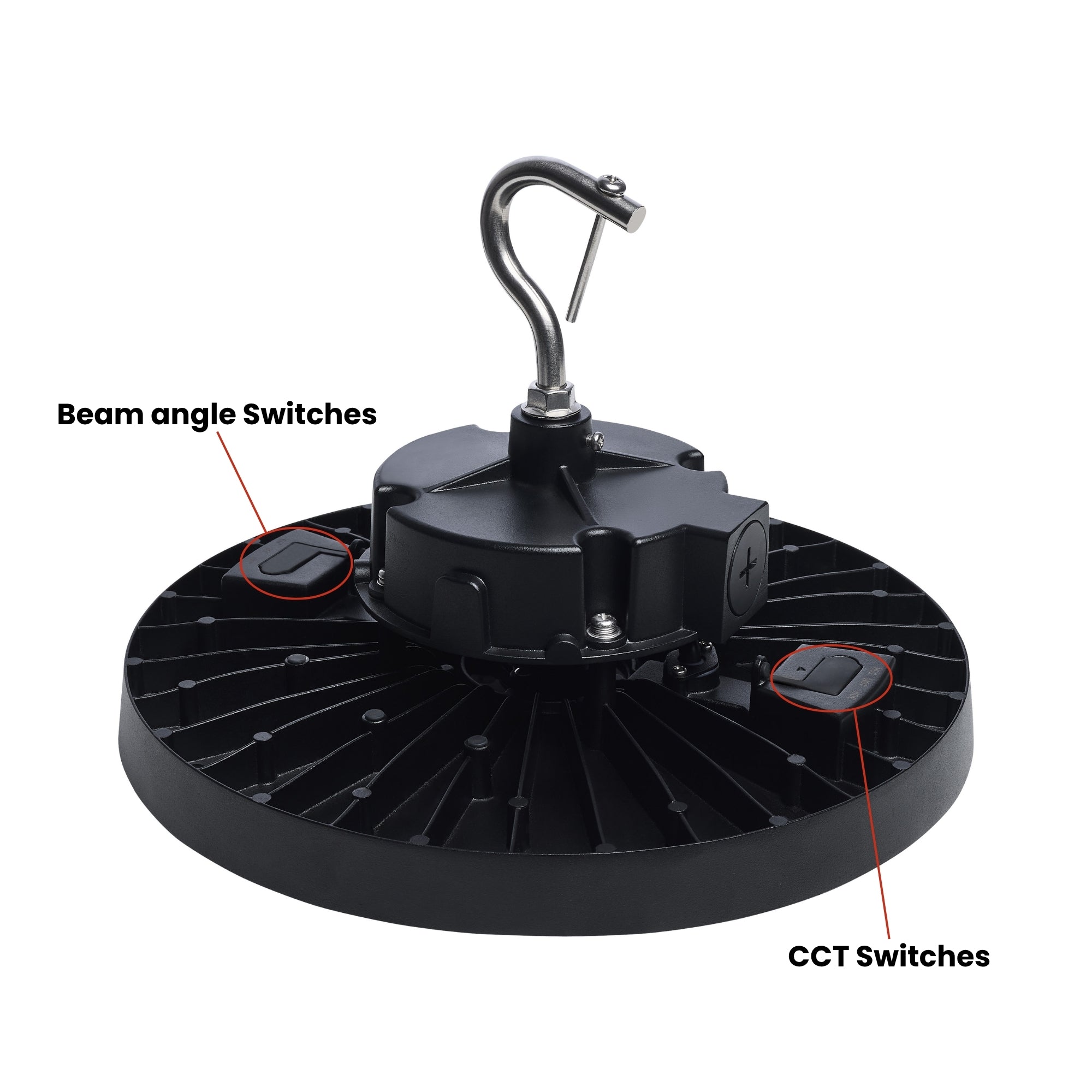

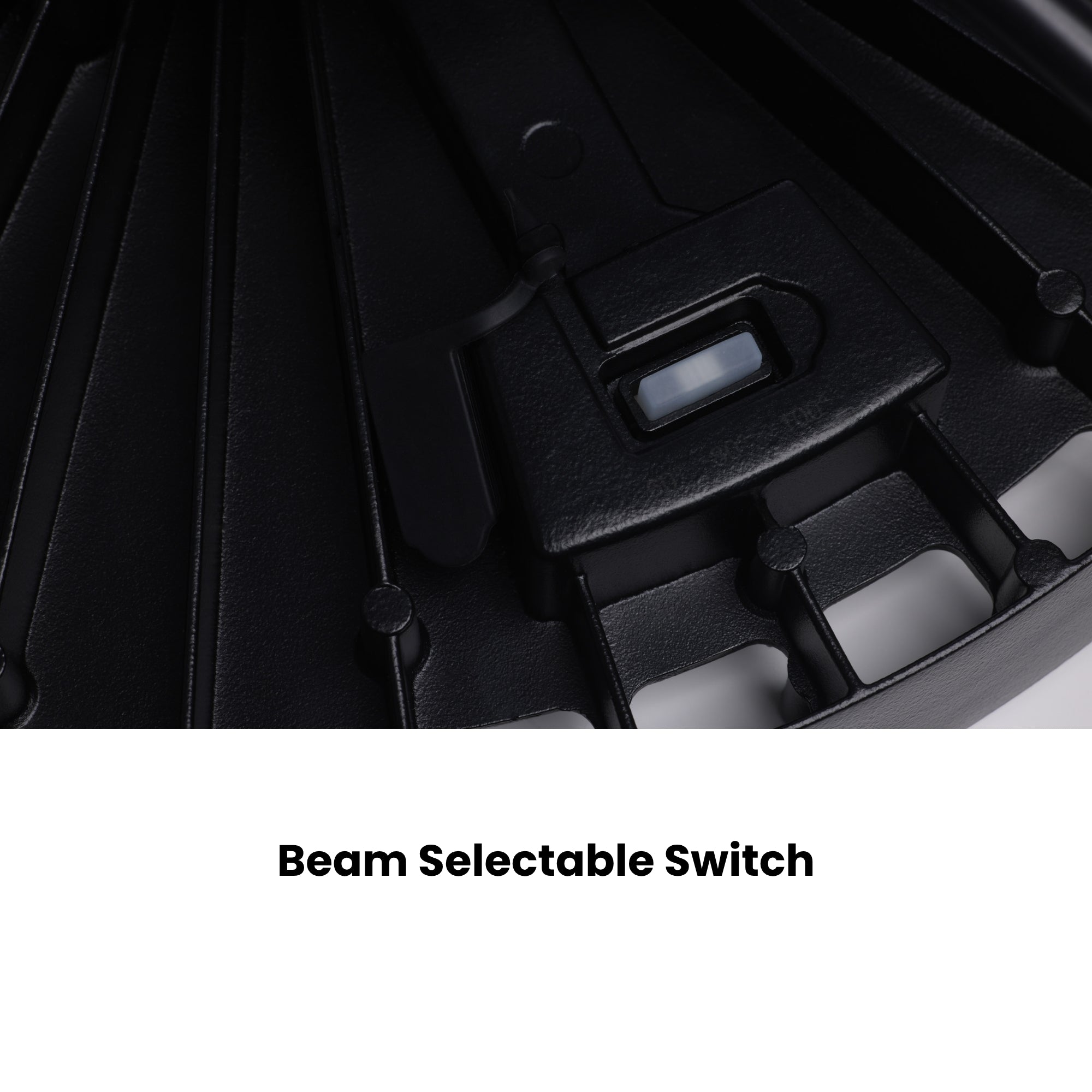

The Beam Selectable optical system provides field-adjustable beam distributions on the job site without tools or rewiring. The built-in beam selection switch allows installers to instantly toggle between three distinct distributions:

• 60° Narrow Optic: Concentrates beam distribution for narrow racking aisles, focused task areas, and elevated mounting heights.
• 80° Medium Optic: Delivers balanced distribution for standard warehouse floors.
• 100° Wide Optic: Delivers broad, uniform beam distribution for open warehouse floors, staging areas, and general open-ceiling commercial layouts.

Optional aluminum reflectors, polycarbonate shades, and bottom diffusers are available separately (see Installation & Mounting).

Smart & Control Features

The 65-1521 supports modular sensing and automated facility lighting control:

• 0–10V Continuous Dimming (Standard): Standard dimming control compatible with commercial 0–10V dimmers.

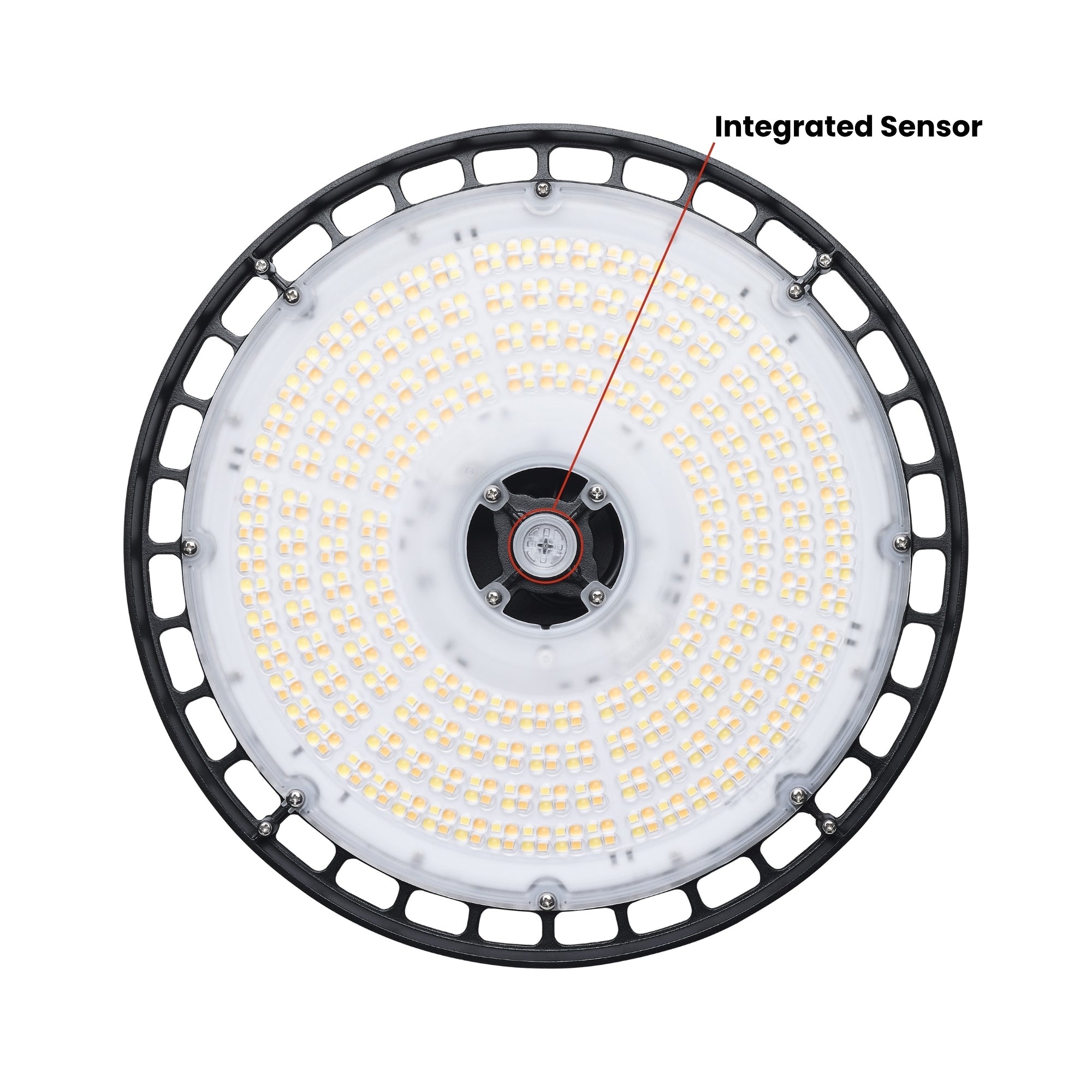

• Sensor Compatibility (Accessory): Accepts field-installable PIR and microwave occupancy sensors via the integrated sensor port.

Compatible plug-and-play sensors include the 86-238 (PIR) and 86-239 (Microwave) — sold separately. Field sensor adjustments can also be managed using an optional handheld wireless programming remote (catalog # 86-237, sold separately).

Electrical

Powered by a constant current driver operating on 120-347V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.90 and Total Harmonic Distortion (THD) <20%. Integrated 6kV surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads. RoHS compliant.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Thermal: Durable die-cast aluminum housing engineered for maximum thermal dissipation to preserve lumen maintenance across the 50,000-hour rated lifespan.

Lens & Optics: Features a durable IK08 impact-resistant polycarbonate lens.

Finish: Commercial finish in Black.

Environmental Sealing: NEMA 4X (IP65) rated and UL Certified for wet locations, providing a sealed barrier resistant to dust and moisture ingress. Ambient operating temperature range: −40°F (−40°C) to 122°F (50°C).

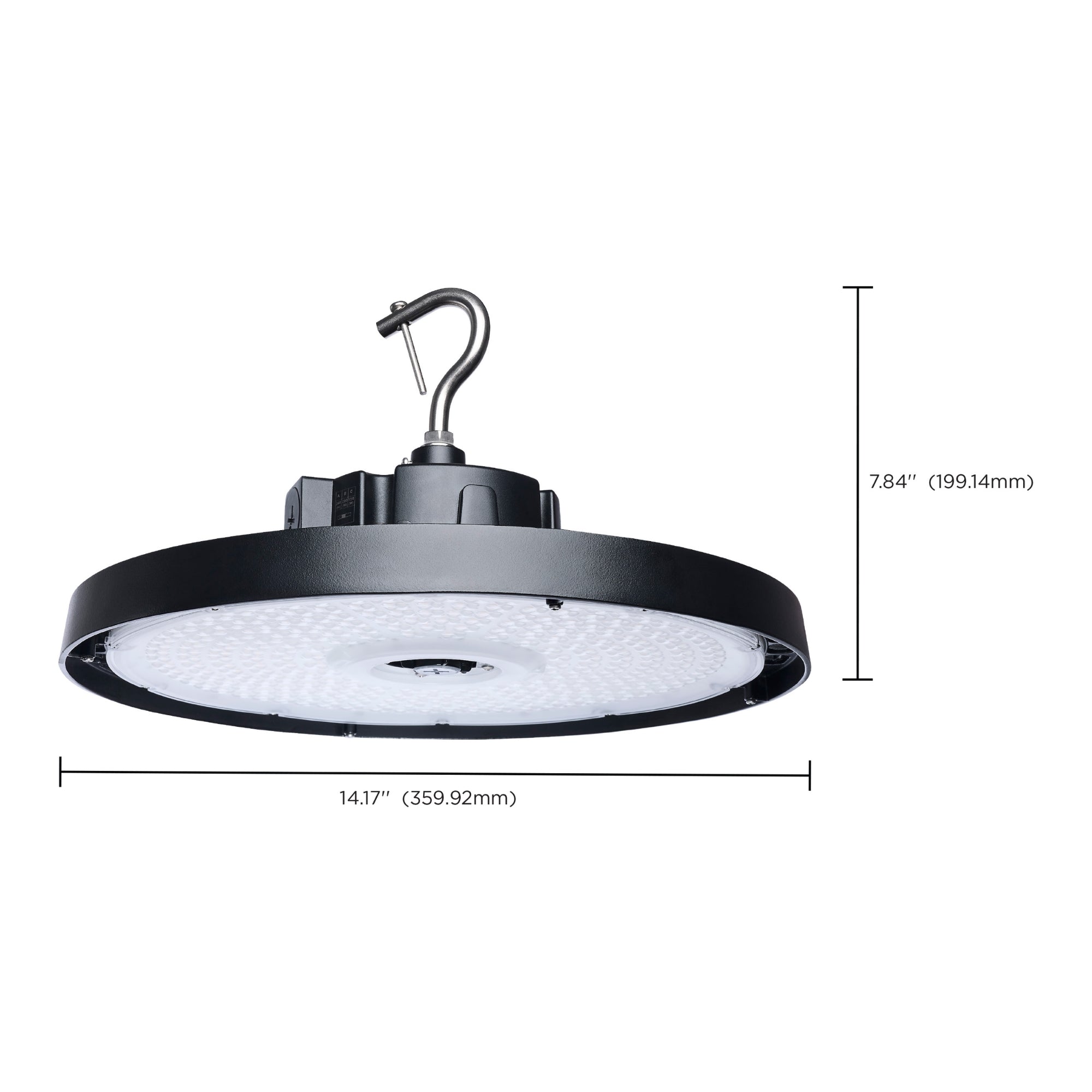

Dimensions & Weight: 14.17" Dia × 7.84" H. Fixture weight: 6.83 lbs.

Installation & Mounting

Standard Hardware: Ships standard with a locking hook accessory for quick suspension mounting.

Mounting Options: Compatible with rigid pendant mounting via a 3/8" to 3/4" pendant adapter (sold separately) and direct surface mounting via a dedicated yoke bracket (sold separately).

Accessories (Sold Separately):

• Mounting Brackets: 65-764 (Yoke Bracket, White) | 65-766 (Yoke Bracket, Black) | 65-769 (Pendant Adapter, Black) | 65-759 (Pendant Adapter, White)
• Reflectors & Lenses: 65-779 (Aluminum Reflector) | 65-799 (PC Shade) | 65-800 (Bottom Diffuser)
• Wire Guards: 65-835 (Protective Wire Guard)
• Emergency Battery Backup: 65-815 (40W EMBB)
• Sensors & Controls: 86-238 (PIR Sensor, 12 Meter) | 86-239 (Microwave Sensor, 15 Meter) | 86-237 (Programming Remote)
• Cord Sets: 65-169 / 65-199 (Whip Connectors, Black) | 65-170 / 65-200 (Whip Connectors, White)

Certifications & Rebates

• DLC Premium: Qualifies for utility rebates (searchable on designlights.org under code S-7910NQ)
• UL Certified: Certified for wet locations per UL standards for commercial luminaires
• RoHS Compliant: Manufactured free of lead, mercury, and hazardous heavy metals
• FCC Part 15: Meets requirements of ICES-005 issue 5 class A for use in commercial applications

Typical Applications

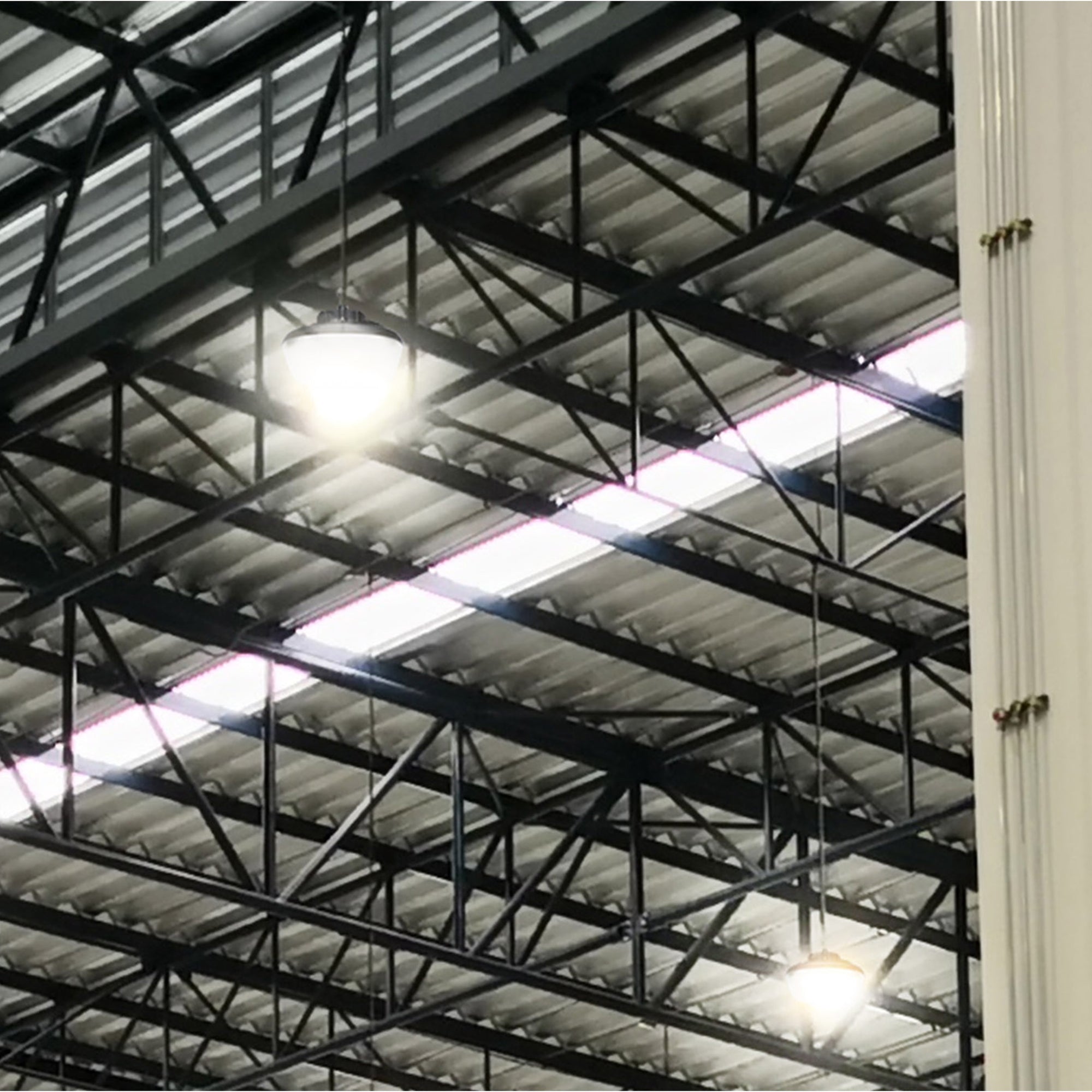

• Warehouses & Factories — provides precise lighting control and adaptable illumination for demanding industrial environments
• Aisle Racking & Logistics Corridors — 60° beam setting concentrates illumination along narrow storage rows to eliminate wasted vertical spill
• Gymnasiums & Retail — IK08 impact-resistant PC lens provides robust durability against mechanical impacts
• Unconditioned Warehouses & Cold Storage — −40°C (−40°F) minimum operating temperature rating ensures reliable performance in freezing conditions
• Precision Assembly & Inspection Areas — Selectable 3000K/4000K/5000K CCT allows illumination tuning for visual task accuracy

What's Included

• Satco 65-1521 UFO LED High Bay — Black
• Locking hook
• Installation and operation instructions
